Franklin Water Treatment PNR1-10 Quick start guide

Franklin Water Treatment, LLC
12630 US Highway 33 N
Churubusco, IN 46723
Phone [phone] Fax [phone]
PNR1 Instruction Manual 230516.docx
Nitrate, Sulfate & Fluoride Reduction System
Installation Instructions and Owner’s Manual

1
Pre-installation Instructions
Page 2
General Installation Instructions
Page 3
Bypass Valve
Page 4 & 7
Detailed Installation Instructions
Page 4
General Operation
Page 8
Control Valve Programming –Set Time-of-Day
Page 9
Control Valve Programming –Installer Settings
Page 9 - 10
Specifications
Page 11

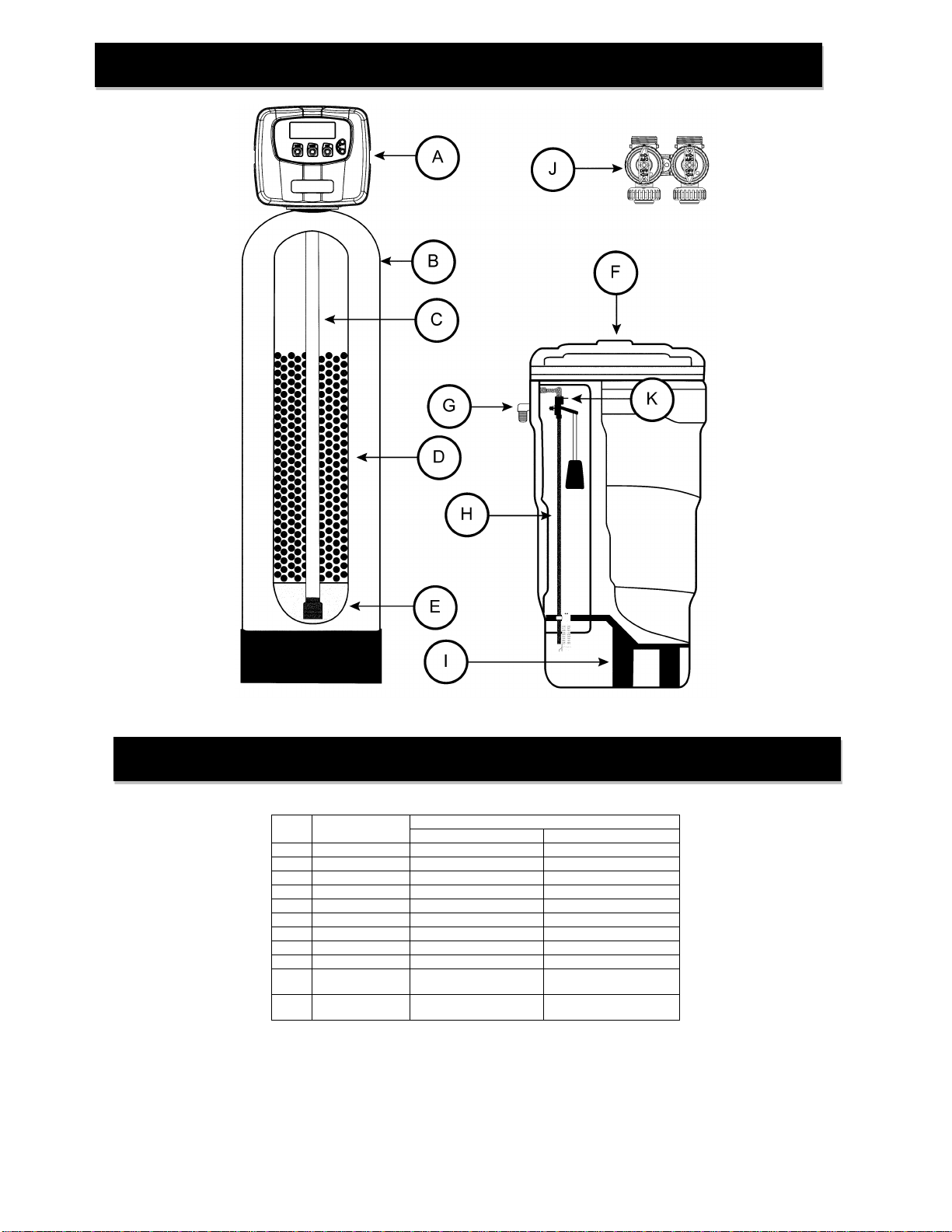

Component Parts Breakdown
Page 12
Component Parts List
Page 12
Control Valve Breakdown
Page 13
Control Valve Parts List
Page 14

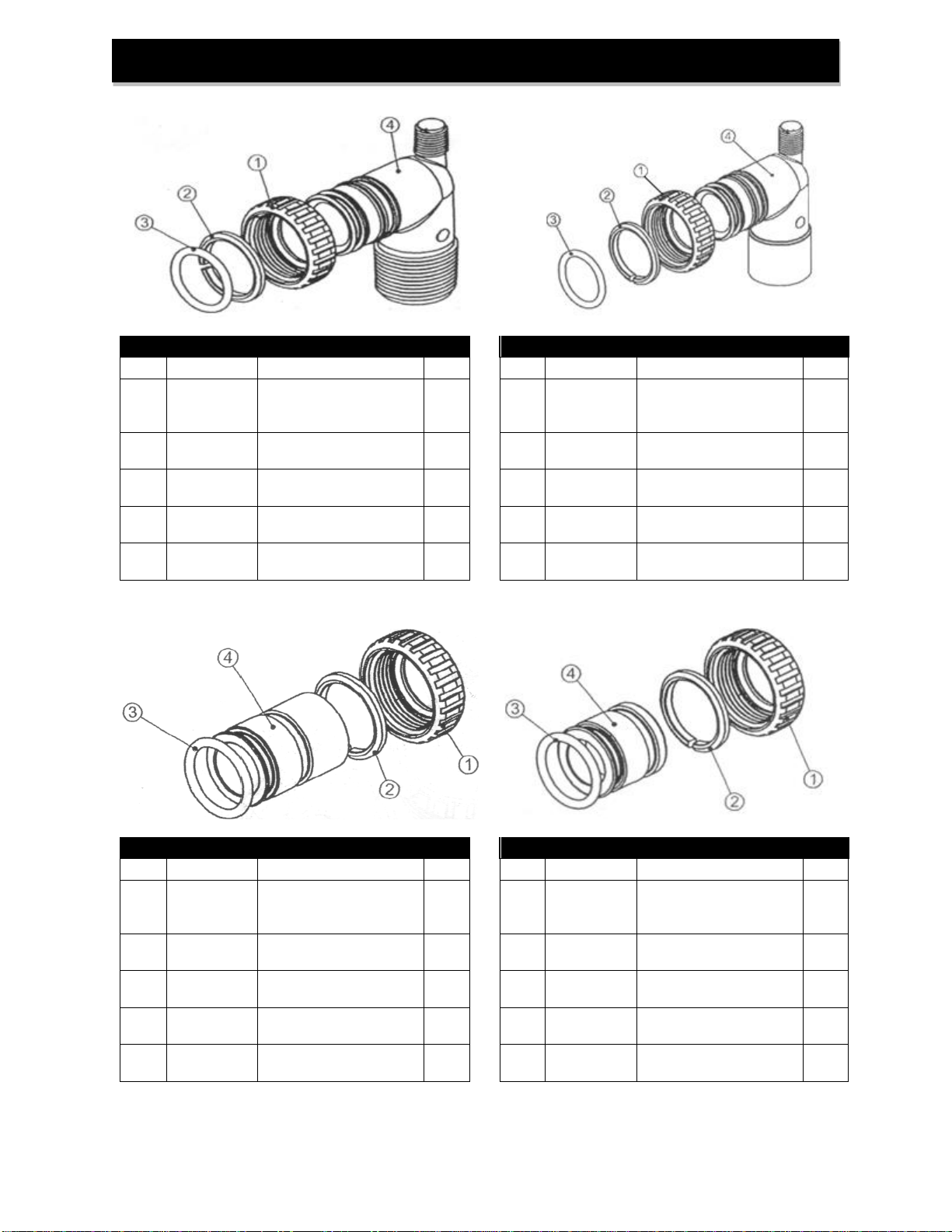

Installation Fitting Assemblies
Page 15 - 17
Troubleshooting Guide
Page 18 - 20
Ten Year Limited Warranty
Page 21
Table of Contents

2
Description of the system
The PNR1 system includes a mineral tank (with gravel, distributor and nitrate selective anion resin), brine tank
(with salt shelf, brine well, brine tank lid and safety brine valve), a mineral tank with digital backwashing control
valve with bypass valve, plumbing adapters, drain line and brine line.
Successful Application
The PNR1 system is designed to reduce nitrate, sulfate and chloride levels in potable water through anion
exchange. Water softener salt is required to regenerate the anion resin, but the PNR1 is NOT A WATER
SOFTENER. It exchanges chloride (taken from the brine used for regeneration) for nitrate, sulfate and fluoride
anions. The water being supplied to the PNR1 system must be; soft, iron free, manganese free, tannin free,
have less than 0.5 ppm chlorine and be filtered to 5 microns. Pre-treatment equipment is always required and
post-treatment with reverse osmosis may be required if TDS level exceeds 500 ppm after treatment or if a salty
taste occurs when used in combination with a softener due to the addition of sodium and chloride to the drinking
water.
Time of Regeneration
Periodically the control valve will go through regeneration. Regeneration is factory preset to 3:30 A.M. The time
of regeneration may be changed if needed (see programming procedures on pages 9 - 10).
Location Considerations
The proper location to install the system will ensure optimum performance and satisfactory water quality. The
following factors should be considered in selecting the location of this system.
1. The system must be installed after the pressure tank (private well system only).
2. The system should be installed after any other water treatment equipment except reverse osmosis.
3. If chlorine is present in the supply water a whole house carbon filter should be installed before the
system.
4. The system must not be subject to freezing temperatures.
5. Ensurethatanyin-linefilterinstalledpriortothesystemdoesnotrestrictthefloworpressurerequired
to backwash the system.
6. The system should be installed as close as possible (preferably within 15’) to an adequate floor or
laundry drain capable of handling the backwash cycle volume and flow rate (refer to unit
specificationsonpage11).Anairgapshouldbe providedbetweenthedrain lineandplumbingdrain.
7. All water conditioning equipment should be installed at least 10’ prior to the water heater. Water
temperaturesexceeding100°Fcandamagetheinternalcomponentsofthecontrolvalveandmineral
tank. An expansion tank may need to be installed in the line to the water heater in order to allow for
thermal expansion and comply with local plumbing codes.
8. Appliances requiring extended periods of continuous or high flow water use (i.e. geothermal heat
pumps,swimmingpools,lawnirrigation,outsidehosebibs,etc.)shouldbypassallwater conditioning
equipment unless the equipment has been specifically designed for that purpose.
Pre-installation Instructions

3
GENERAL INSTALLATION & SERVICE WARNINGS
The systemis not designed to support the weight of plumbing.
Do not use Vaseline, oils, other hydrocarbon lubricants or spray silicone anywhere. A silicone lubricant may be
usedon black "O" Rings, but is not necessary. Avoid any type of lubricants, including silicone, on red or clear lip
seals.
Do not use pipe dope or other sealants on threads. Teflon® tape must be used on the threads of the 1" NPT
inlet and outlet and on the threads for the drain line connection. Teflon® tape is not used on the nut connections
or caps because "O" Ring seals are used.
The nuts and caps are designed to be unscrewed or tightened by hand or with the special plastic Service
Wrench, (CV3193, not included). If necessary, pliers can be used to unscrew the nut or cap. Do not use a pipe
wrench to tighten nuts or caps. Do not place screwdriver in slots on caps and/or tap with a hammer.
NOTE: If the plumbing system is used as the ground leg of the electric supply, continuity should be maintained
by installing ground straps around any non-conductive plastic piping or bypass used in the installation.
Makesure the system is not installed backwards. The systemwillnot function properly if installedbackwards and
anion resin may be forced into the water lines. Arrows molded into the valve body indicate the direction of flow.
Site Requirements
● water pressure -- 25-100 psi (1.7 –6.9 bar)
● water temperature -- 33-100°F (0.5-37.7°C)
● electrical -- 115/120 V, 60 Hz uninterrupted outlet dry locations only
● the tank should be on a firm level surface
Typical Installation
Water Heater
Untreated Water
Untreated Water for
geothermal heat pumps,
swimmingpools, lawn
irrigation, hose bibs etc.

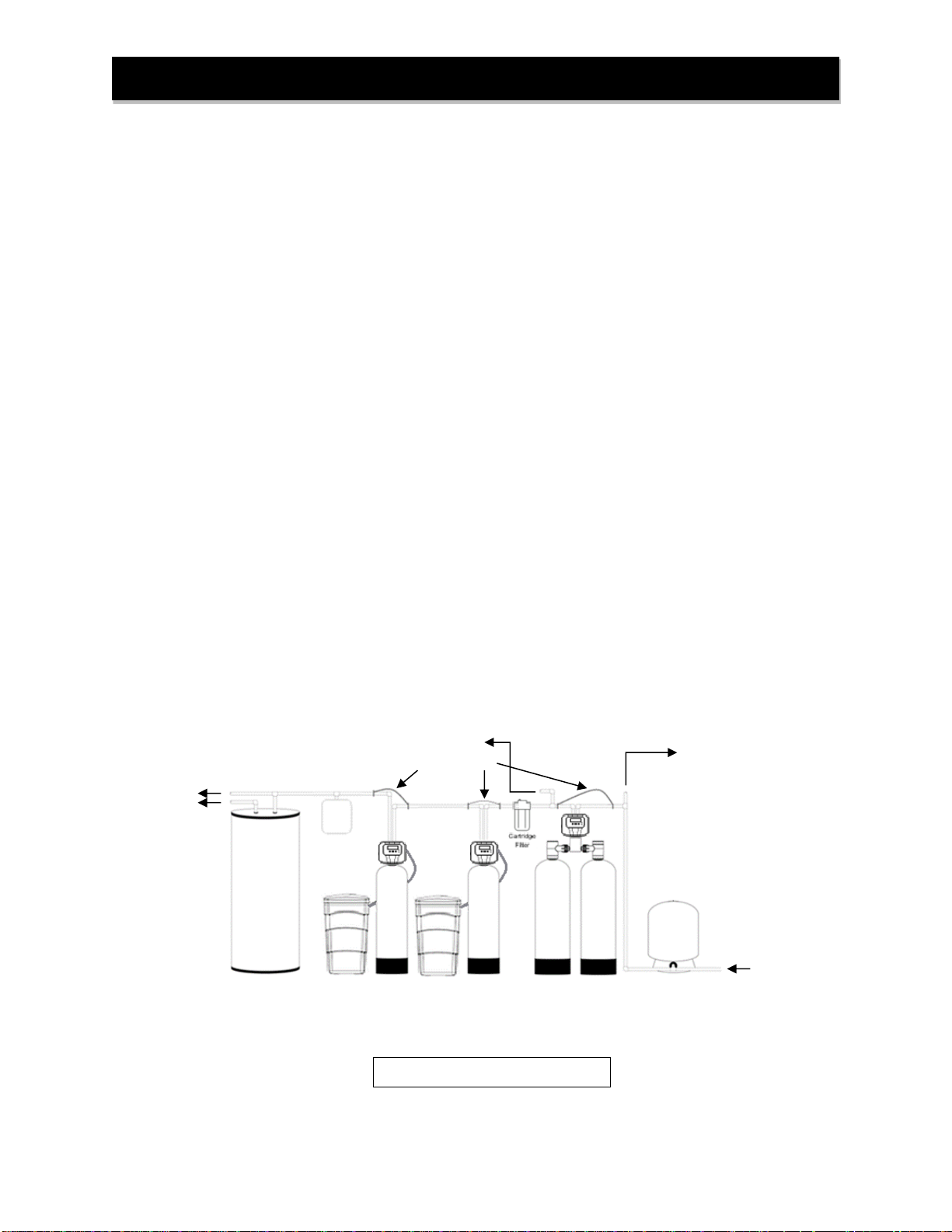

FIGURE 1: Typical Installation
General Installation Instructions
FilteredHard Water
Iron Filter with
Check Valve or
Backwash Filter
(if needed)
Water
Softener
Brine
Tank
Pressure Tank
(well system only)
Tank
Treated Water
GroundingStrap
Expansion
Tank
Brine
Tank
PNR1

4
STEP 1: Carefully remove all components from packaging. DO NOT DISCARD PACKAGING until all
nitrate reduction system components and fittings have been located.
STEP 2: Usingtheintegrated coupling nuts, attach the bypass valve tothe inlet/outlet of the controlvalve
and put handles in the bypass position (Figure 2).
STEP 3: Place unit at desired installation position.
STEP 4: Shut off water at main supply. Relieve pressure by opening nearest faucet. On private well
systems, turn off power to pump and drain pressure tank. SHUT OFF POWER OR FUEL
SUPPLY TO WATER HEATER.
STEP 5: Cut main supply line as required to fit plumbing to inlet and outlet of bypass valve. DO NOT
PLUMB INLET AND OUTLET BACKWARDS. Piping should be supported. Do not apply heat
to any fitting attached to the bypass or control valve.
STEP 6: Use the provided polyethylene tubing (NO VINYL TUBING) to run drain line from control valve
drain fitting (Figure 2) to floor drain or sump pit capable of handling the backwash rate of the
system (refer to specifications on Page 11). THE DISCHARGE END OF THE DRAIN LINE
MUST BE FIRMLY SECURED! There must be an air gap at the end of the drain lineto prevent
siphoning of wastewater and meet plumbing code. Total length of drain line should be 15’ or
less. AVOID OVERHEAD DRAINS.
Detailed Installation Instructions

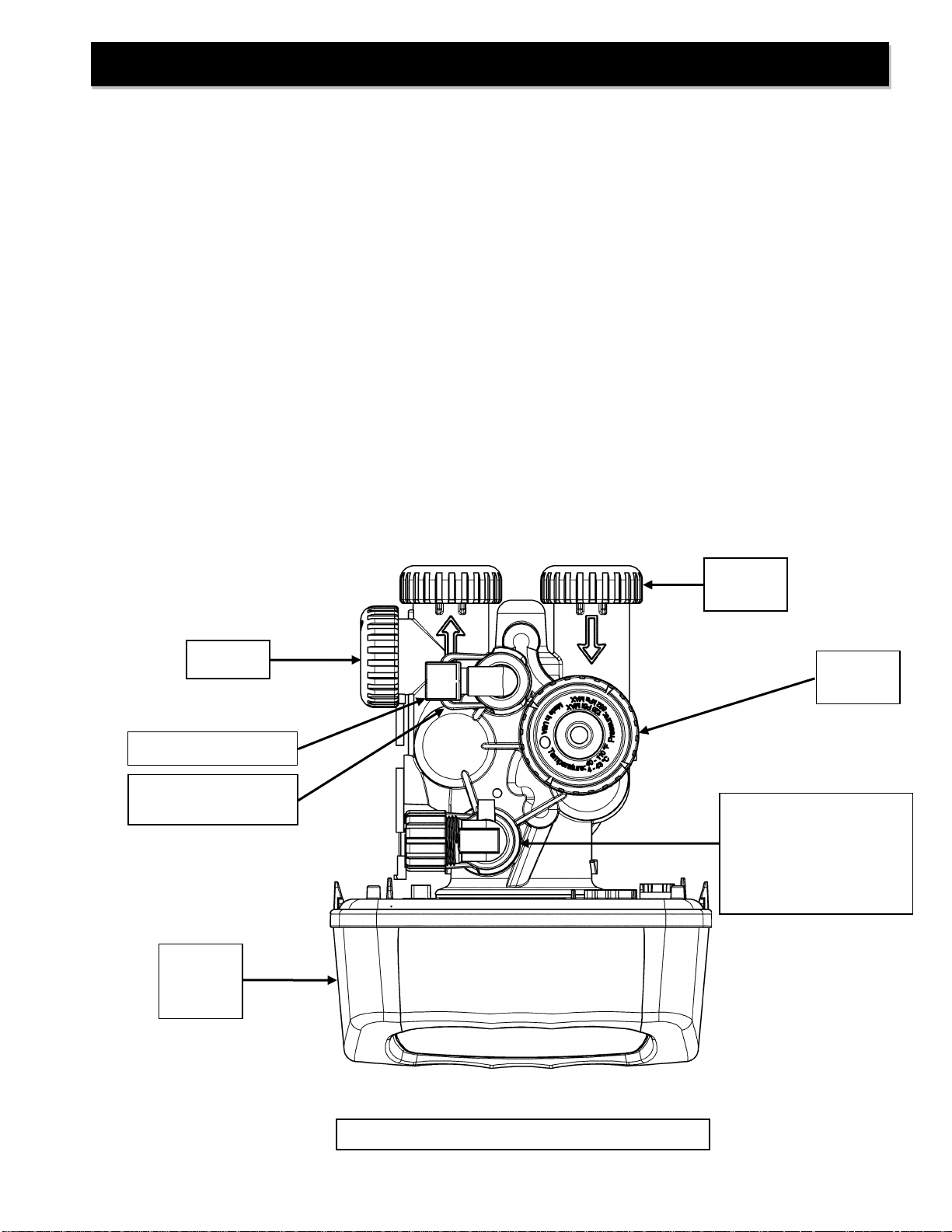

FIGURE 2: Top View of Control Valve
Meter
Union
Nut
Brine Refill Elbow
Injector
Housing
Control
Valve
Cover
Drain Elbow 3/4” MNPT
with Compression Nut
3/4” FNPT & Tube Insert
for 5/8” OD Drain Tube
(Retainer Clip not shown)
Brine Refill Elbow
Retainer Clip

5
STEP 7: Connect one end of the 3/8” brine line to the control valve quick connect brinerefill elbow(Figure
2, Page 4). Insert the other end of the brine line through the hole in the brine tank and into the
quick connect fitting on the top of the safety brine valve (Figure 3). Remove the quick connect
collet retainer clip (if included) before inserting the brine line into each fitting, press the tube in
veryfirmlyandreplacetheretainerclipbehindthecollet.NOTE:THEBRINETUBING SHOULD
BE INSERTED 5/8” INTO THE FITTING. DO NOT PUT SALT INTO THE BRINE TANK AT
THIS TIME.
STEP 8: If desired, install overflow tubing (not provided) from overflow elbow on brine tank (Figure 3) to
floor drain. Tubing must be lower than the overflow elbow at all times. DO NOT CONNECT
DRAIN LINE FROM SYSTEM CONTROL VALVE TO BRINE TANK OVERFLOW. DO NOT
CONNECT BRINE TANK DRAIN LINE TO THE SYSTEM DRAIN LINE.
STEP 9: Plugthe transformer into an un-switched electrical outlet. Ensure the control valve is in “Service”
mode (display will alternate between time, gallons remaining, days remaining and flow rate).
STEP 10: Place the bypass valve in the “Service” position (refer to Figure 4a, Page 7) and open main
supply valve or turn on power to pump on private well systems. Allow the unit to fill with water
and pressurize, then place the bypass valve in the “Bypass” position.
STEP 11: Add water in the brine tank to slightly above the top level of the salt grid (approx. 5 - 6 gallons
for units without a salt grid). DO NOT ADD SALT TO THE BRINE TANK AT THIS TIME.
FIGURE 3: Brine Tank Components
Detailed Installation Instructions (continued)
Insert brine tube into quick
connect fitting
Remove brine tube
from quick connect
fitting
Insert brine
tubing here
through
hole in brine
tank shell
Safety
Brine Valve
Assembly
Brine
Tank Lid
Brine Well
Lid
Brine Well
Salt Grid
Overflow
Elbow
Brine Tank
Shell

6
STEP 12: With the bypass valve in the “Bypass” position (refer to Figure 4a, Page 7), press and hold the
REGEN button until the motor starts. Then use the REGEN button to advance the control valve
to the BACKWASH cycle to release pressure and purge air from the mineral tank.
STEP 13: Refer to Figure 4, Page 7 for bypass valve operation. Rotate the INLET knob of the bypass
valve slowly to the “Service” position (Figure 4a). If any air spurts or any resin is expelled to the
drain, stop turning the knob until only water flows to the drain, then continue turning the knob
fully to the “Service” position.
STEP 14: When all air has been purged from the system and only water is running to the drain, turn the
OUTLET knob of the bypass valve to the “Service” position also. Allow the system to backwash
for a few minutes or until the drain water runs clear.
STEP 15: Using the REGEN button, advance the control valve to the REGENERANT DRAW DN
(downflow brine draw) cycle. Verify that the water level in the brine tank is slowly dropping (less
than ½ gpm). Allow water level to drop below the top of the salt grid before continuing. If the
water level does not drop, refer to page 18 for Troubleshooting. After verifying water level is
dropping, use the REGEN button to advance past the BACKWASH 2, RINSE AND 5 second
FILL cycle to the normal service display.
ADD SALT TO BRINE TANK NOW. Any typeof water softener salt may be used.
STEP 16: Check for leaks and correct as necessary.
STEP 17: Turn power or fuel supply back on to water heater.
STEP 18: PressandholdtheNEXTandUPbuttonstogetheruntilthescreenchangestoinputthe adjusted
grain equivalent of anions in the water on the WATER HARDNESS screen (refer to calculation
under Installer Settings, Page 9, for details), then press NEXT to set the maximum DAYS
BETWEEN REGENERATIONS based on the calculation on page 10. Then press NEXT
repeatedly until the time of day is displayed.
STEP 19: Press the CLOCKbutton to set the current time of day. (Page 9, note AM and PM).
Detailed Installation Instructions (continued)

7
The bypass valve is used to isolate the control valve from the plumbing system's water pressure in order to
perform control valve repairs or maintenance. The 1" full flow bypass valve incorporates four positions including
a diagnostic position that allows a service technician to have pressure to test a system while providing untreated
bypass water to the building. Be sure to installbypass valve onto main control valve, before beginning plumbing
or make provisions in the plumbing system for a bypass. The bypass body and rotors are glass filled Noryl®
and the nuts and caps are glass filled polypropylene. All seals are self-lubricating EPDM to help prevent valve
seizing after long periods of non-use.Internal "O" Rings can easily be replaced if service is required. The
bypass consists of two interchangeable plug valves that are operated independently by red arrow shaped
handles. The handles identify the direction of flow. The plug valves enable the bypass valve to operate in four
positions.
1. Normal Operation Position: The inlet and outlet handles point in the direction of flow
indicated by the engraved arrows on the control valve. Water flows through the control
valve for normal operation of a nitrate reduction system or filter. During the regeneration cycle this
position provides regeneration water to the unit, while also providing untreated water to
the distribution system (Fig. 4a).
2. Bypass Position: The inlet and outlet handles point to the center of the bypass. The
system is isolated from the water pressure in the plumbing system. Untreated water is
supplied to the building (Fig. 4b).
3. Diagnostic Position: The inlet handle points toward the control valve and the outlet
handle points to the center of bypass valve. Untreated supply water is allowed to flow to
the system and to the building, while not allowing water to exit from the system to the
building (Fig. 4c) .This allows the service technician to draw brine and perform other tests
without the test water going to the building.
NOTE: The system must be run through a rinse cycle before returning the bypass valve
to the normal position.
4. Shut Off Position: The inlet handle points to the center of the bypass valve and the outlet
handle points away from the control valve. The water is shut off to the building. The water
treatment system will depressurize upon opening a tap in the building. A negative pressure
in the building combined with the system being in regeneration could cause a siphoning
of brine into the building. If water is available on the outlet side of the system it is an
indication of water bypassing the system (Fig. 4d)
Figure 4a - Service
Figure 4b - Bypass
Figure 4c - Diagnostic
Figure 4d –Shut Off
Bypass Valve
FIGURE 4: Bypass Valve Operation

8
USER DISPLAYS
When the system is operating, one of several displays may be shown. Pressing NEXT will alternate between the
displays. One of the displays is the current time of day. The second display shows days to a regen/gallons
remaining. Days To A Regen is the number of days left before the system goes through a regeneration cycle.
Capacity remaining is the number of gallons that will be treated before the system goes through a regeneration
cycle. Thethird display is currentflow in gal/min. The user canscroll between the displays as desired by pushing
NEXT or display will scroll automatically. When water is being treated (i.e. water is flowing through the system)
the word "GPM" flashes on left side of display when other than flow rate is displayed. User screens will
continuously scroll, switching views every 3 seconds. If the screens are manually scrolled, this screen will remain
constantfor5 minutesthencontinue toscroll. Theconditional screens willtakeprecedenceoverthe scrollingand
the conditional conditions willapply.To manually reduce capacity, press down button while capacity remaining or
days to a regen is displayed.
MANUAL REGENERATION
Sometimes there is a need to regenerate the system sooner than when the system calls for it, usually referred to
as manual regeneration. There may bea period of heavy waterusagebecause of guests or a heavy laundry day.
Toinitiateamanualregenerationat the preset delayed regeneration time, press and release “REGEN”. The words
“REGEN TODAY” will flash in left corner of display as it scrolls through displays to indicate that the system will
regenerate at the preset delayed regeneration time. If you pressed the “REGEN” button in error, pressing the
button again will cancel the request. To initiate a manual regeneration immediately, press and hold the “REGEN”
button for five seconds. The system will begin to regenerate immediately. The request cannot be cancelled. You
must cycle all the way through the cycles to make it stop. PLEASE NOTE: This will reset the meter. Note: If the
salt tank does not contain salt, fill with salt and wait at least two hours before regenerating. If two regenerations
are desired within 24 hour period, press /release REGEN button. REGEN TODAY willflash on screen.Press and
hold REGEN button until valve initiates an immediate regeneration.
General Operation

9
A) SET THE TIME OF DAY
1. Press the “CLOCK” button
a. The upper left of the display will show “TIME HOUR”
b. The lower left of the display will show “SET”
c. The hour and AM or PM willflash
2. Press the UP or DOWN buttons (triangle pointing up or down) until the correct
combination of hour and “AM”or “PM” is reached to match the current time.
3. Press the “NEXT” button
a. The upper left of the display will show “TIME MINUTES”
b. The lower left of the display will show “SET”
c. The minutes will flash
4. Press the UP or DOWN buttons until the minutes match the current time. If you
need to go back to the HOUR screen press the “REGEN” button.
5. Press the “NEXT” button to return to the main screen.
Power Loss - Lithium battery on circuit board provides up to 2 years of time clock
backup during power outages. If the power is out when battery is depleted, only time
of day needs to be reset, all other values are stored in non-volatile memory. When
time of day is flashing, replace lithium coin type 2032 battery. Battery back-up feature
will be activated after 24 hours of power.
B) Enter Programming: The manufacturer has preset the unit so gallons between
regenerations are automatically calculated after grain per gallon equivalent is entered. It
is recommended that you contact Franklin Water Treatment Technical Services to
more accurately calculate the grain per gallon equivalent and maximum days
between regenerations. The values used below are based on averages.
1. Hardness: Press “NEXT” and UP (triangle pointing up) buttons simultaneously for
3 seconds.
a. The upper left of the display will show “WATER HARDNESS”
b. The lower left of the display will show “SET”
c. A number will flash (default 3) followed by “GR” (grains).
2. Based on water analysis results (obtained either from a lab or in-field testing). Set
thegrainpergallonequivalentofthecombinedanionlevelsusingtheUPorDOWN
(triangle pointing up or down) buttons. The allowable range is from 1 to 150 in 1
grainincrements. Note: (nitrate mg/l x 0.81 + sulfatemg/l x 1.04 + fluoride mg/l
x 2.63) ÷ 17.1, rounded up = grains per gallon equivalent as CaCO3.
Installer Settings

10
3. Regeneration Days Override: Press the “NEXT” button
a. The upper left of the display will show “DAYS BETWEEN REGEN”
b. The lower left of the display will show “SET”
c. A number will flash (default 4)
4. Using the UP or DOWN (triangle pointing up or down) buttons, set the maximum
number of days the system will go between regenerations even if the unit still has
capacity remaining based on water usage, gpg equivalent setting and capacity
setting. The allowable range is 1 to 28 and OFF. If set to OFF, the unit will only
regenerate based on water usage, gpg equivalent setting and capacity. NOTE:
(graincapacity {see specson page 11}) ÷ gpgequivalent =galloncapacity. Gallon
capacity÷max.daily gallonusage(#ofpeoplex75galons),roundeddown=max.
# of days between regenerations.
5. Regeneration Time: (3:30 AM) Press the “NEXT” button
a. The upper left of the display will show “REGEN TIME HOUR”
b. The lower left of the display will show “SET”
c. The hour and AM or PM willflash
6. RegenerationHour: UsingtheUPorDOWNbuttons,set thecombinationofhour
of day and “AM”or “PM”that the BACKWASH cycle of regeneration should occur.
Please note that regeneration will actually begin with the short (less than 10
minutes)BrineFillcycle90minutespriortothetimesetherefollowedby90 minutes
(default) of inactivity to allow water in the brine tank to become saturated with salt.
7. Press the “NEXT” button
a. The upper left of the display will show “REGEN TIME MINUTES”
b. The lower left of the display will show “SET”
c. The minutes will flash
8. Regeneration Minutes: Using the UP or DOWN buttons, set the minutes portion
of the time when regeneration should occur. If you need to go back to the HOUR
screen press the “REGEN” Button.
9. Exit Programming: Press the “NEXT” button
a. The upper left of the display will show “TIME”
b. The current time of day will be shown on the right side of the display
c. Only the colon between the hour and minutes will be flashing

11
Description
Models
PNR1-10
PNR1-20
MEDIA VOLUME ft3
1.0
1.7
CAPACITY, equivalent gpg as CaCO3
@Factory Salt @ 9lb/ft3(146 g/L)
5,500
9,500
@Max. Salt @ 15lb/ft3 (243 g/L)
7,000
12,000
Operating Flow Rate, gpm
Continuous (2 gpm/ft3)
2
3
Service (5 gpm/ft3, <=15 psi drop)
5
9
Peak (Max. 20 psi drop)
15
18
Pressure Loss psi
@ Continuous Flow Rate
2
2
@ Service Flow Rate
7
9
@ Peak Flow Rate
19
20
Regen. Flow Rates, gpm
Backwash & Rapid Rinse
1.7
2.2
Injector
White
Blue
Brine Draw / Rinse
0.28 / 0.36
0.38 / 0.5
Service Pipe Size, in.
1” & 3/4”
1” & 3/4”
Factory Regeneration Settings
Brine Tank Fill (lbs of salt)
9
18
Softening (minutes dissolvingsalt)
90
90
Backwash (minutes)
7
10
Brine Draw & Rinse (minutes)
50
65
Backwash 2 (minutes)
1
1
Rapid Rinse(minutes)
8
11
Total Water Used, gallons
44
79
Dimensions in.
Mineral Tank, diameter x height
9 x 48
12 x 48
Brine Tank, diameter x height
14 x 34
18 x 33
Overall, length x widthx height
14 x 24x 56
18 x 30 x 56
Approximate Ship Wt., lbs.
104
162
Factory Default Settings:
“Hardness” 3 gpg
Days Between Regenerations 4
Regeneration Time 3:30 AM
Specifications

12
REF
DESCRIPTION
MODEL NUMBER
PNR1-10
PNR1-20
A*
Control Valve
PNR1-10-VLV-L-BP-
PNR1-20-VLV-L-BP-
B
Mineral Tank
MTP0948GR
MTP1248GR
C
Distributor
D100S-48
D100S-48
D
Resin
1–A520E
2–A520E
E
1/4/ x 1/8 gravel
QC20
QC20
F
BrineTank Assy.
BT1434ASSY
BTSQ1833ASSY
G
Overflow Elbow
BT-OVERFLO
BT-OVERFLO
H
SafetyBrine Valve
SBV14ASSY
SBV14ASSY
I
SaltPlatform
BTSG14
BTSG18SQ
J**
BypassValve
Less Fittings
CV3006
CV3006
K
Elbow Locking
Clip
FC103
FC103
*A topscreen (18280-02, not shown) is included with the control valve assembly
**Refer to “Installation Fitting Assemblies” pages 15- 17 foravailableI/Ofittings.
ALL MODELS INCLUDE ¾ QUICK CONNECT FITTINGS AS WELL AS 1” MALE NPT ELBOWS
Component Parts Breakdown
Component Parts List

13
Control Valve Breakdown

14
REF #
Part Number
Description
A
CV3002-A
Drive Assembly (does not include circuit board or motor)
B
CV3186-06
Power Cord with Transformer, 15 VDC
C
CV3003
Meter and Cable Assembly
D
CV3006
Bypass Valve, Less Fittings
1
CV3998-01FA
Front Cover, PXX1 Series
2
CV3107-01
Drive Motor
3
CV3578HP-
02BOARD
Circuit Board, PXX1 Series
4
CV3004
Drive Cap Assembly
5
CV3135
O-ring, -228
6
CV3011
Piston Assembly
7
CV3174
Brine Valve
8
CV3005
Seal Cartridge Assembly
9
CV3946
Back Plate, PXX1 Series
10
CV3180
Base O-ring, -337
11
CV3105
O-ring, -215
12
CV3177-01
Injector Screen
13
CV3010-1Z
Plug, Injector Assembly
14
CV3010-1E
CV3010-1F
Injector, White (PNR1-10)
Injector, Dark Blue (PNR1-20)
15
CV3150
Retainer, Split Ring
16
CV3151
Nut, 1” Quick Connect
17
CH4615
Clip, Elbow Locking
18
CV3163
O-ring, -019
19
CV3165-01
Retainer, Brine Refill Flow Control
20
CV4144
3/8” Elbow, Parker fitting
21
CV3192
PKP10TS8BULK
Compression nut, ¾” FNPT, for drain elbow
Insert, for 5/8” OD poly tube
22
CV3158-02
Elbow, Drain, ¾” Male
23
CV3159-01
Retainer, Drain Line Flow Control
24
CV3162-017
CV3162-022
Drain Line Flow Control Button:
Flow Control Washer, 1.7 GPM (PNR1-10)
Flow Control Washer, 2.2 GPM (PNR1-20)
Control Valve Parts List

15
1" PVC MALE NPT ELBOW
3/4" & 1" PVC SOLVENT ELBOW
Ref
Part #
Description
Qty
Ref
Part #
Description
Qty
CV3007
1" PVC male NPT
elbow assy
2
CV3007-01
3/4" & 1" PVC solvent
elbow assy
2
1
CV3151
Nut, 1" quick connect
2
1
CV3151
Nut, 1" quick connect
2
2
CV3150
Split ring
2
2
CV3150
Split ring
2
3
CV3105
O-ring 215
2
3
CV3105
O-ring 215
2
4
CV3149
Fitting
2
4
CV3189
Fitting
2
1" BRASS SWEAT
3/4" BRASS SWEAT
Ref
Part #
Description
Qty
Ref
Part #
Description
Qty
CV3007-02
1" brass sweat assembly
2
CV3007-03
3/4" brass sweat
assembly
2
1
CV3151
Nut, 1" quick connect
2
1
CV3151
Nut, 1" quick connect
2
2
CV3150
Split ring
2
2
CV3150
Split ring
2
3
CV3105
O-ring 215
2
3
CV3105
O-ring 215
2
4
CV3188
Fitting
2
4
CV3188-01
Fitting
2
Installation Fitting Assemblies

16
3/4" BRASS SHARK BITE
1" BRASS SHARK BITE
Ref
Part #
Description
Qty
Ref
Part #
Description
Qty
CV3007-12
3/4" brass shark bite
assembly
2
CV3007-13
1" brass shark bite
assembly
2
1
CV3151
Nut, 1" quick connect
2
1
CV3151
Nut, 1" quick connect
2
2
CV3150
Split ring
2
2
CV3150
Split ring
2
3
CV3105
O-ring 215
2
3
CV3105
O-ring 215
2
4
CV3628
Fitting
2
4
CV3629
Fitting
2
1-1/4" PLASTIC MALE NPT
Ref
Part #
Description
Qty
CV3007-05
1-1/4" plastic male NPT
assembly
2
1
CV3151
Nut, 1" quick connect
2
2
CV3150
Split ring
2
3
CV3105
O-ring 215
2
4
CV3317
Fitting
2
Installation Fitting Assemblies (cont.)

17
3/4" QUICK CONNECT
Ref
Part #
Description
Qty
K
QFNCR4
3/4" QUICK CONNECT
1*
(*2 required)
SERVICE WRENCH - CV3193
Although no tools are necessary to assemble
or disassemble the valve, the Service Wrench,
(shown in various positions on the valve) is
available to aid in assembly or disassembly.
Loosens Drain Nut In
Polytube Applications
Loosens Injector and
Bypass Caps
Loosens Quick
Connect Nuts
Loosens Drive Cap
Installation Fitting Assemblies (cont.)

18
PROBLEM
CAUSES
SOLUTIONS
Brine tank overfills or
does not draw brine
A) Brine line not fully
inserted in fittings
B) Brine line inserted
into the brine tank
overflow fitting
rather than
connected to the
safety brine valve
C) System drain line
connected to brine
overflow fitting or
overflow drain line
D) Obstruction in the
control valve
E) Problems with drain
line: plugged,
frozen, kinked,
flexible tubing,
overhead
installation,
diameter too small,
longer than 15’
F) Missing BLFC
G) Missing brine stem
H) Worn seals
1) Tighten nuts at either end of brine line
2) Verify brine line is installed correctly
3) Verify system drain line is not connected to
brine overflow elbow or brine overflow drain
line
4) Check for debris in DLFC Assembly, BLFC
Assembly, injector, injector screen
5) Manually put system into Backwash Cycle
(page 8) and unplug the transformer for 30
minutes to dislodge debris from inside the
control valve or disassemble and clean
control valve internal components
6) Resolve issues with the drain line
7) Verify brine line flow control button is not
missing
8) Verify piston brine stem is not missing
9) Replace seal and spacer assembly
Untreated water or
system not using salt
A) System is plugged
into an electrical
outlet without power
or one that is tied to
a switch
B) No salt in the brine
tank
C) Salt in the brine tank
has “bridged”
D) Bypass Valve is not
in “Service” position
or is leaking
E) Obstruction in
control valve
I) Problems with drain
line: : (See letter
“E”in prior section)
F) Control valve
programmed
incorrectly
G) System sized
improperly for actual
service flow rates
H) Faulty or unplugged
drive motor
I) Meter cable
disconnected
1) Verify system has uninterrupted power
2) Fill brine tank with salt
3) Hit the side of the brine tank with rubber
mallet to break any bridging that has
formed in the brine tank
4) Verify bypass is in “Service” position
(Figure 4a, Page 7)
5) Check for debris in DLFC Assembly, BLFC
Assembly, injector, injector screen
6) Manually put system into Backwash Cycle
(page 8) and unplug transformer for 20-30
minutes to dislodge debris
7) Resolve issues with drain line
8) Review control valve programming
9) Verify actual service flow rates required and
compare to system specifications (pages
11)
10) Verify drive motor is connected to control
valve circuit board connector J1 (labeled
“MOTOR”)
11) Verify meter cable (grey cable, 3 pins) is
connected to control valve circuit board
connector J2 (labeled “METER”)
Troubleshooting

19
PROBLEM
CAUSES
SOLUTIONS
System regenerates
at wrong time of day
A) Clock is not set
B) Power outage
C) Incorrect control
valve programming
1) Reset system clock (pages 9)
2) Verify control valve programming (pages 9
- 10)
Resin in water lines,
plugged aerators
A) Unit is installed
backwards
B) Distributor basket is
damaged
1) Re-plumb unit with water supply entering
bypass inlet (page 4)
2) Replace damaged distributor basket
Salty Water
A) Brine tank overfilled
B) Problems with drain
line: (See Letter
“E” in Brine Tank
Overfill section)
C) Rinse cycle is short
D) Salt setting too high
E) Distributor tube
improperly seated
in control valve or is
too short
F) Low water pressure
1) See “Brine tank overfills” section (Page 18)
2) Resolve drain line issues
3) Contact technical support for assistance in
verifying \ adjusting Rinse Cycle length and
Salt Setting
4) Verify proper installation of distributor tube
5) Verify at least 25 psi of line pressure
System leaks to drain
in “Service” position
A) Problem in seal
cartridge assembly
B) Control valve is
jammed or halted
during regeneration
C) Drive cap assembly
is not tightened
properly
1) Replace seals and/or piston if needed
2) Verify control valve is in “SOFTENING”
mode
3) Tighten drive cap assembly
Low water pressure
A) Iron or sediment
build up in system
B) Insufficient pump
capacity
1) Increase backwash frequency by increasing
equivalent hardness setting (page 9)
2) Verify at least 25 psi of line pressure
Display is blank
A) Control valve circuit
board needs reset
B) Transformer is
unpowered,
unplugged or
defective
C) Defective circuit
board
1) Hold “NEXT” and “REGEN” buttons for 3
seconds
2) Remove battery, unplug power for 5
seconds, plug back in, replace dead battery
3) Verify transformer is plugged into an
electricaloutlet that has powerand
transformer cable (black, 4 pins) is plugged
into control valve connector J4 (labeled
“POWER”)
4) With transformer plugged into electrical
outlet, use a volt meter to test the 2 outer
pins (furthest left and furthest right) of
connector J4 on the control valve circuit
board. Should be approximately 15 volts
DC. Replace transformer if defective.
5) Replace circuit board if needed
“SOFTENING” does
not display when
water is flowing
A) Bypass valve not in
“Service” position
B) Meter cable
disconnected
C) Restricted/stalled
meter turbine
D) Defective meter
1) Verify bypass is in “Service” position (Figure
4a, Page 7)
2) Verify meter cable (grey cable, 3 pins) is
connected to control valve circuit board
connector J2 (labeled “METER”)
3) Remove meter and check for restriction
4) Replace meter if needed
Troubleshooting (cont.)
