POZ1 Series
Backwashing Ozone Generator Filter System
Installation Instructions and Owner’s Manual

1
Pre-installation Instructions
Page 2
Media Types
Page 2
General Installation
Page 4
Bypass Valve
Page 5
Installation Instructions
Page 6
General Operation
Page 10
Maintenance
Page 11
Troubleshooting Guide
Page 13
Specifications
Page 17
Component Parts Breakdown
Page 18
Component Parts List
Page 19
Control Valve Breakdown
Page 20
Control Valve Parts List
Page 21
Ozone Generator Breakdown & Parts List
Page 22
Installation Fittings
Page 23
Ten Year Limited Warranty
Page 26
Table of Contents

2
Description of the filter system:
The POZ1 system includes a filtration tank (with gravel and distributor) and a backwashing control valve with ozone
generator and bypass valve with plumbing adapters. Filtration media used with the POZ1 system may be of the
following types:
PART
MEDIA
VOLUME
PACKAGE
SHIP. WT.
NUMBER
TYPE / APPLICATION
(CU. FT.)
(LBS.)
A10
ACTIVATED CARBON TASTE &
ODOR REDUCTION
1.00
BAG
29
A05P
0.50
PAIL
14
ACC10
CATALYTIC CARBON
TASTE & ODOR REDUCTION
1.00
BAG
29
ACC05P
0.50
PAIL
14
C05P
CALCITE
SELF LIMITING ACID
NEUTRALIZER
0.50
PAIL
45
FA10
FILTER –AG
SUSPENDED SOLIDS
REDUCTION
1.00
BAG
24
FA05P
0.50
PAIL
12
IP05
IRON PRO
IRON REDUCTION & PH
ELEVAITION
0.50
PAIL
49
IP05M
IRON PRO M-BED
IRON REDUCTION & EXTRA
PH ELEVAITION
0.50
PAIL
47
QFS05P
QUARTZ FILTER SAND
0.50
PAIL
51
(.45mm x .55mm)
SEDIMENT REDUCTION
(Higher BW flow rate required!)
Z05P
ZEOLITE
SUSPENDED SOLIDS &
SEDIMENT REDUCTION
(Higher BW flow rate required!)
0.50
PAIL
25
A8042
GREENSAND PLUS
CATALYTIC MEDIA FOR
OXIDATION APPLICATIONS
(Higher BW flow rate required!)
0.50
BAG
44
Successful Application
Any filter media may havespecific limitations and/orrequirements for successful application. Consult with technical
services when selecting filter media for this system and the specific application.
Time of Regeneration
Periodically the control valve will go through a backwash cycle. This cycle is factory preset to 1:00 A.M. flushing the
accumulated sediment and/or precipitant to the drain. After the backwashing process the unit is now prepared for the
next period of service.
Pre-installation Instructions

3
Water Supply
This filter will function properly when the water supply is furnished by a jet pump, submersible pump, variable
speed (constant pressure) pump or community water supply. As with all other filter systems, however, it is
imperative that the well pump provides enough flow rate for the filter to adequately backwash. To ensure
sufficient backwash flow rate, the following pumping rate test should be performed prior to installing the POZ1.
Backwash flow rate required may vary from the installed DLFC depending on the media used with the filter.
1. Make certain no water is being drawn in the house.
2. Open spigot nearest pressure tank.
3. When well pump starts, close spigot and measure time (in seconds) to refillpressure tank (well pump
turns back off). This is Cycle Time.
4. Using a container of known volume, draw water from pressure tank and measure how many gallons
until the pump turns back on again. This is Draw Down.
5. Calculate pumping rate by dividing draw down by cycle time and multiplying by 60.
Draw Down (gallons)
X
60
=
Pumping Rate (gallons per minute)
Cycle Time (seconds)
Example: Draw down is 8 gallons
Cycle time is 65 seconds
Location Considerations
The proper location to install the POZ1 will ensure optimum filter performance and satisfactory water quality.
The following factors should be considered in selecting the location of this system.
1. The POZ1 must be installed after the pressure tank (private well system only).
2. The system should be installed as close as possible (preferably within 15’) to an adequate floor or
laundry drain capable of handling the backwash cycle volume and flow rate (refer to unit
specifications). An air gap should be provided between the POZ1 drain line and plumbing drain.
3. All water conditioning equipment should be installed at least 10’ prior to the water heater. Water
temperatures exceeding 100°F can damage the internal components of the control valve and filter
tank. An expansion tank may need to be installed in the line to the water heater to allow for thermal
expansion and comply with local plumbing codes.
4. Water pressure must not exceed the range of 25 - 100 psi.
5. The system must not be subject to freezing temperatures.
6. The control valve requires 115/120 V, 60 Hz electricity from an outlet that is not wired to a switch.
7. Never install a cartridge type filter prior to the POZ1. Any cartridge or in-line filter (if desired) may
be installed after the POZ1 system. This will prevent restricting the water flow and pressure
available for backwash.
8. Appliances requiring extended periods of continuous or high flow water use (i.e. geothermal heat
pumps, swimming pools, lawn irrigation, outside hose bibs, etc.) should bypass the filter.
8 gallons
X
60
=
7.4 gpm (gallons per minute)
65 seconds
Pre-installation Instructions (cont.)

4
GENERAL INSTALLATION & SERVICE WARNINGS
The water conditioner is not designed to support the weight of plumbing.
Do not use Vaseline, oils, other hydrocarbon lubricants or spray silicone anywhere. A silicone lubricant may be
used on black “O” Rings. This will allow ease of installation and decrease chance of rolling from the bypass and
tank connections. Avoid any type of lubricants, including silicone, on red or clear lip seals.
Do not use pipe dope or other sealants on threads. Teflon®tape may be used as required. Teflon®tape is not
used on any connection where “O” Ring seals are used
The nuts and caps are designed to be unscrewed or tightened by hand or with the special plastic Service
Wrench, (CV3193, not included). If necessary, pliers can be used to unscrew the nut or cap. Do not use a pipe
wrench to tighten nuts or caps. Do not place screwdriver in slots on caps and/or tap with a hammer.
NOTE: If the plumbing system is used as the ground leg of the electric supply, continuity should be maintained
by installing ground straps around any non-conductive plastic piping or bypass used in the installation.
Make sure the filter is not installed backwards. The filter will not function properly if installed backwards and filter
media may be forced into the service lines. Arrows molded into the valve body and red handles of the bypass
indicate the direction of flow.
The POZ1 has a check valve (OV32) installed in the inlet of the control valve. This check valve will prevent hot
water expansion in the plumbing. An expansion tank must be used on the water heater supply line to
allow for thermal expansion.
All local plumbing codes must be followed.

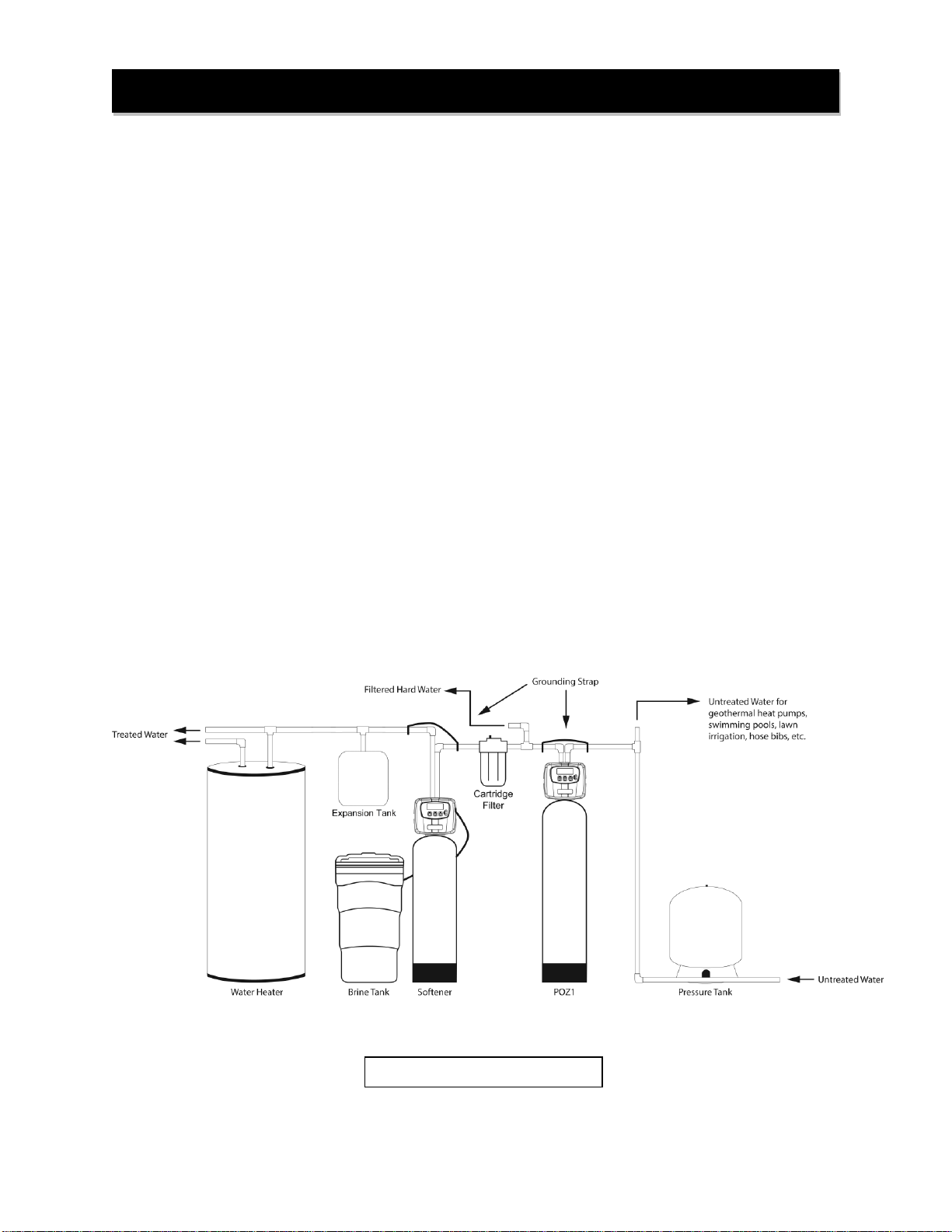

FIGURE 1: Typical Installation
General Installation

5
The bypass valve is used to isolate the control valve from the plumbing system's water pressure in order to
perform controlvalverepairs or maintenance. The 1" full flow bypass valve incorporates four positions including
a diagnostic position that allows a service technician to have pressure to test a system while providing untreated
bypass water to the building. Be sure to install bypass valve onto main control valve, before beginning plumbing
or make provisions in the plumbing system for a bypass. The bypass body and rotors are glass filled Noryl®
and the nuts and caps are glass filled polypropylene. All seals are self-lubricating EPDM to help prevent valve
seizing after long periods of non-use. Internal "O" Rings can easily be replaced if service is required. The
bypass consists of two interchangeableplug valves that areoperated independently by red arrow shaped
handles. The handles identify the direction of flow. The plug valves enable the bypass valve to operate in four
positions.
1. Normal Operation Position: The inlet and outlet handles point in the direction of flow
indicated by the engraved arrows on the control valve. Water flows through the control
valve for normal operation of a water filter or filter. During the regeneration cycle this
position provides regeneration water to the unit, while also providing untreated water to
the distribution system (Fig. 2).
2. Bypass Position: The inlet and outlet handles point to the center of the bypass. The
system is isolated from the water pressure in the plumbing system. Untreated water is
supplied to the building (Fig. 3).
3. Diagnostic Position: The inlet handle points toward the control valve and the outlet
handle points to the center of bypass valve. Untreated supply water is allowed to flow to
the system and to the building, while not allowing water to exit from the system to the
building (Fig. 4) .This allows the service technician to draw brine and perform other tests
without the test water going to the building.
NOTE: The system must be run through a rinse cycle before returning the bypass valve
to the normal position.
4. Shut Off Position: The inlet handle points to the center of the bypass valve and the outlet
handle points away from the control valve. The water is shut off to the building. The water
treatment system will depressurize upon opening a tap in the building. A negative pressure
in the building combined with the filter being in regeneration could cause a siphoning
of brine into the building. If water is available on the outlet side of the filter it is an
indication of water bypassing the system (Fig. 5)

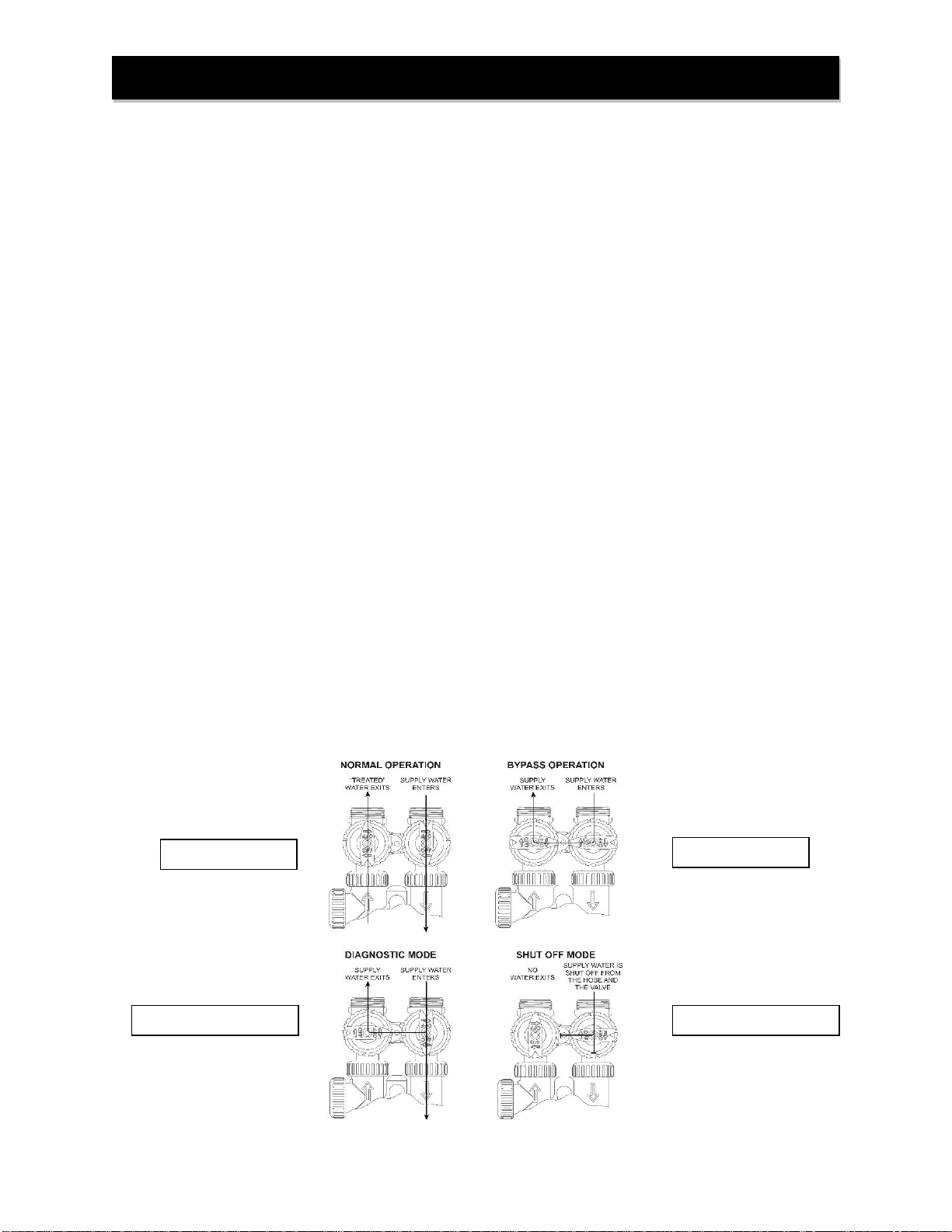

Figure 2 - Service
Figure 3 - Bypass
Figure 4 - Diagnostic
Figure 5 –Shut Off
Bypass Valve

6
STEP 1: Unpack filter unit, making sure to remove entire contents of the shipping container prior to
disposal.
STEP 2: With the filter unit in the upright position, remove the control valve from the mineral tank being
careful to not pull the distributor out of the gravel at the bottom of the tank. If the filter model has a
“-DH” suffix, do not remove the control valve. Just remove the tank dome hole plug.
STEP 3: If the control valve was removed, cover the top of the distributor tube with the included red cap.
Using the included blue media funnel, pour filter media(s) into the mineral tank. If using multiple
filter media types, load in the order of heaviest (most dense) to lightest (least dense). 14” of space
MUST be left empty at the top of the mineral tank to allow for media bed expansion during
backwash and to prevent filtermedia from being discharged through the drain line.
STEP 4: Use a garden hose or bucket to fill the media tank with water.
IMPORTANT: Carbon, Filter Ag, Zeolite and Greensand Plus must be soaked for at least 2
hours prior to submitting it to full backwash flow rate to prevent loss of media to drain.
STEP 5: Clean mineral tank threads to remove any filter media. If the control valve was removed, remove
red cap from distributor tube and reinstall control valve by threading it securely onto the mineral
tank. Otherwise simply replace the tank dome hole plug. (O-ring seal: HAND TIGHTEN ONLY!)
STEP 6: Shut off all water at main supply. On private well system, turn off power to pump and drain
pressure tank. Make certain pressure is relieved from complete system by opening nearest faucet
to drain system. SHUT OFFFUEL / ELECTRICAL SUPPLY TOWATER HEATER.
STEP 7: Plumb the water supply line to the unit's bypass valve inlet, located at the right rear as you face
the unit. There are a variety of installation fittings available. They are listed under Installation Fitting
Assemblies, pages 23-25. When assembling the installation fitting package (inlet and outlet),
connect the fitting to the plumbing system first and then attach the nut, split ring, and "O" Ring. Heat
from soldering or solvent cements may damage the nut, split ring, or "O" Ring. Solder joints should
be cool and solvent cements should be set before installing the nut, split ring, and "O" Ring. Avoid
getting solder flux, primer, and solvent cement on any part of the "O" Rings, split rings, bypass
valve, or control valve. If the building's electrical systemis grounded to the plumbing, install a copper
grounding strap from the inlet to the outlet pipe. Plumbing must be done in accordance with all
applicable local codes. MAKE CERTAIN WATER ENTERS THROUGH INLET AND
DISCHARGES THROUGH OUTLET.
STEP 8: Apply thread tape to DLFC Assembly. Remove drain line flow control (DLFC) retainer clip
(Figure 6, Page 7) and remove the DLFC assembly from the valve body, (Figure 6, Page 7). Apply
thread tape to threads. Slide drain fitting compression nut onto provided drain tubing and place the
tube insertinside the end of the tubing. Insert tubing end with insert into drain elbow and tighten the
compression nut onto the thread taped elbow. Reinsert DLFC assembly into the valve body,
makingcertain itis FULLY inserted before replacing the retaining clip.
STEP 9: Install drain line. Use the provided ½” I.D. polyethylene tubing (DO NOT USE FLEXIBLE VINYL
TUBING!) to run drain line from control valve DLFC fitting (Figure 6, Page 7) to floor drain or sump
pit capable of handling the backwash rate of the filter (refer to specifications and flow rate on page
17) or discard the compression fitting and use 3/4" NPT fitting to connect a rigid pipe drain line
(recommended). If backwash flow rate is greater than 7 gpm, use ¾” NPT connector with rigid drain
line. There must be an air gap at the end of the drain line to prevent siphoning of waste water.
Length of drain line should be 15’ or less. AVOID OVERHEAD DRAINS.
Installation Instructions

7
STEP 10: With the bypass valve handles in the bypass position (Figure 3, Page 5), turn on water
supply. Turn the inlet bypass valve handle to the diagnostic position (Figure 4, Page 5) and
allow the filter to pressurize. NOTE: the INLET and OUTLET knobs turn clockwise to close the
port to the filter and counter-clockwise to open the portto the filter. Check for leaks and correct
as needed. Return the inlet bypass valve handle to the bypass position.
STEP 11: Program control valve. Plug the transformer of both the control valve and the ozone
generator into an uninterrupted electrical outlet (not wired to a switch) and use the buttons on
the front of the control valve to adjust the initial settings.
A) SET THE TIME OF DAY
1. Press the “CLOCK” button
a. The upper left of the display will show “TIME SET HOUR”
b. The hour will flash
2. Press the “UP”or “DOWN”buttons (triangle pointing up or down) until the correct
combination of hour and “AM” or “P M” is reached to match the current time.
3. Press the “NEXT” button
a. The upper left of the display will show “TIME SET MINUTES”
b. The minutes will flash

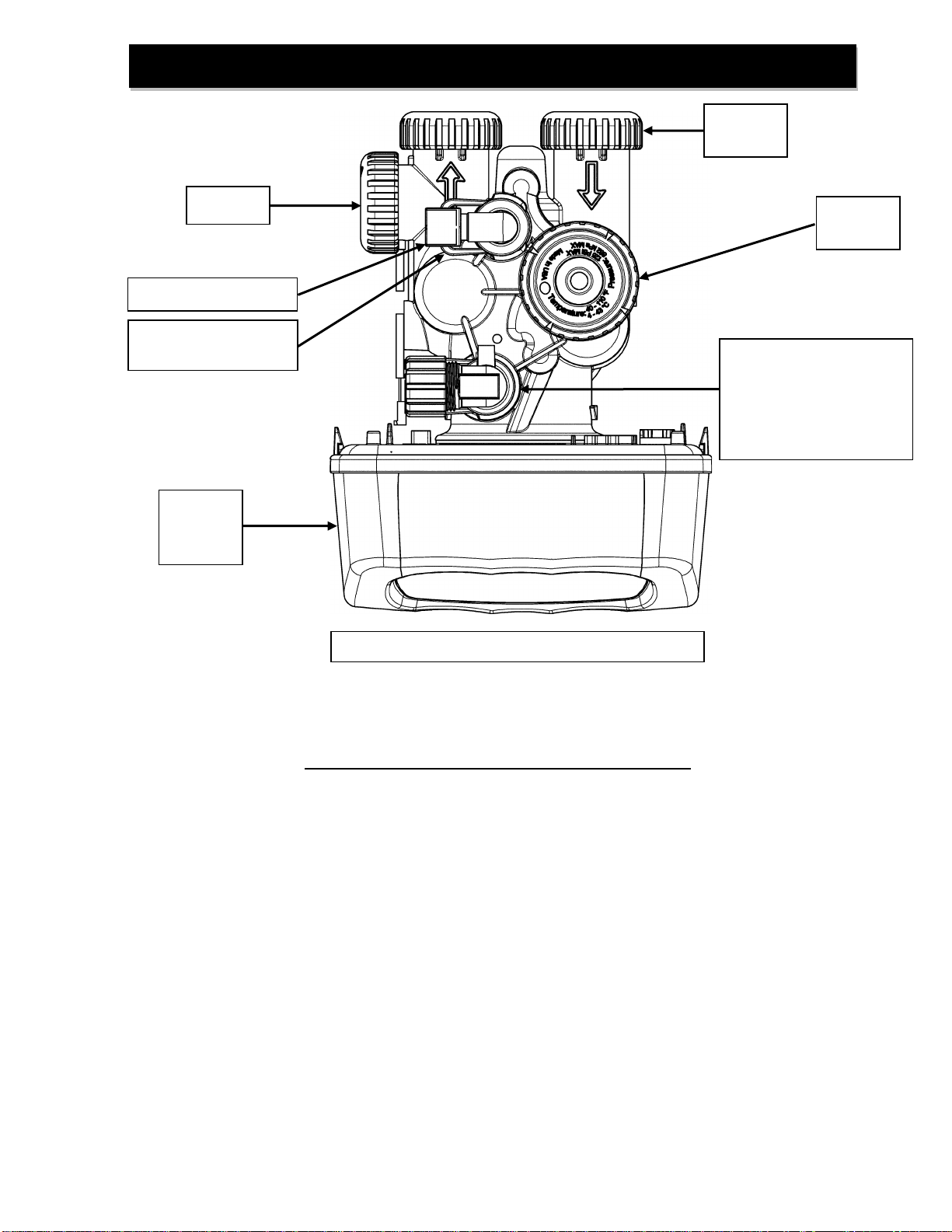

FIGURE 2: Top View of Control Valve
Meter
Union
Nut
Brine Refill Elbow
Injector
Housing
Control
Valve
Cover
Drain Elbow 3/4” MNPT
with Compression Nut
3/4” FNPT & Tube Insert
for 5/8” OD Drain Tube
(Retainer Clip not shown)
Brine Refill Elbow
Retainer Clip
Installation Instructions (cont.)

8
4. Press the “UP”or “DOWN”buttons until the minutes match the current time.
5. Press the “NEXT” button to return to the main display
B) Enter Programming: Press “NEXT” and “UP” (triangle pointing up) buttons simultaneously for
3 seconds.
1. Days Between Regeneration:
a. The upper left of the display will show “DAYS BETWEEN REGEN SET”
b. A number will flash (default 3)
2. Using the “UP”or “DOWN”(triangle pointing up or down) buttons, set the number of
days (default 3) between regenerations. NOTE: more frequent regeneration may
be required depending on the quality of the water.
3. Regeneration Time: Press the “NEXT” button
a. The upper left of the display will show “REGEN TIME HOUR SET”
b. The hour will flash
4. Regeneration Hour: Using the “UP”or “DOWN”buttons, set the combination of hour
of day and “AM” or “PM”.Make sure the filter is not regenerating at the same time
with any other water treatment equipment.
5. Press the “NEXT” button
a. The upper left of the display will show “REGEN TIME MINUTES SET”
b. The minutes will flash
6. Regeneration Minutes: Using the “UP”or “DOWN”buttons, set the minutes portion of
the time when regeneration should occur.
7. Exit Programming: Press the “NEXT” button to return to the main display
STEP 12: Initiate Manual Regeneration (Backwash Cycle): With the bypass valve in the bypass position,
press and hold the “REGEN” button 3 seconds or until the word “BACKWASH” appears in the
upper left of the display. The drive motor will run briefly, and a count-down timer will appear in the
lower right the display. There will be an audible release of pressure to the drain.
IMPORTANT: Carbon, Filter Ag, Zeolite and Greensand Plus must be soaked for at least 2
hours prior to submitting it to full backwash flow rate to prevent loss of media to drain.
STEP 13: Unplug the transformer from the electrical outlet to keep thePOZ1 in backwash for an extended
time to purge any air and remove media “fines” (very small particles of media).
STEP 14: Slowly turn the INLET knob of the bypass, counter-clockwise, to a point approximately 1/3 of the
way between “Bypass” and “Service” positions (Figure 2, Page 5) or until the remaining air is
released from the tank.
STEP 15: Once the air is purged, gradually turn the INLET knob of the bypass valve counter-clockwise until it
is fully in “Service” position (Figure 2, Page 5). Then turn the OUTLET knob of the bypass valve
counter-clockwise until it is fully in the “Service” position (Figure 2, Page 5). and leave the control
valve in “Backwash” position for at least 10 minutes or until water flowing from the drain line
runs clear; whichever is longer.
Installation Instructions (cont.)

9
STEP 16: Regenerant Draw Cycle: Plug the transformer into the electrical outlet. DO NOT press
the “REGEN” button to advance the control valve to the “REGENERANT DRAW DN” cycle. It
must complete the backwash cycle and begin the regenerant draw cycle naturally in order for
the ozone generator to turn on. Another count-down timer will appear in the time-of-day
position, “REGENERANT DRAW DN” will be shown in the upper part the display.
STEP 17: Complete Manual Regeneration: Allow the regeneration to complete and the filter will return
to service mode automatically.
STEP 18: TURN ON FUEL / ELECTRICAL SUPPLY TO WATER HEATER.
RECOMMENDED: Retain the red distributor cap and blue media funnel for future replenishment of filter media.
NOTE: If the POZ1 filter is loaded with any self-sacrificing media like Calcite or Iron Pro and the pH is
less than 7, mark the media level on the side of the tank by shining a bright light through the tank to see
its level. Replenish the media in the mineral tank when the level drops by more than three inches.
Installation Instructions (cont.)

10

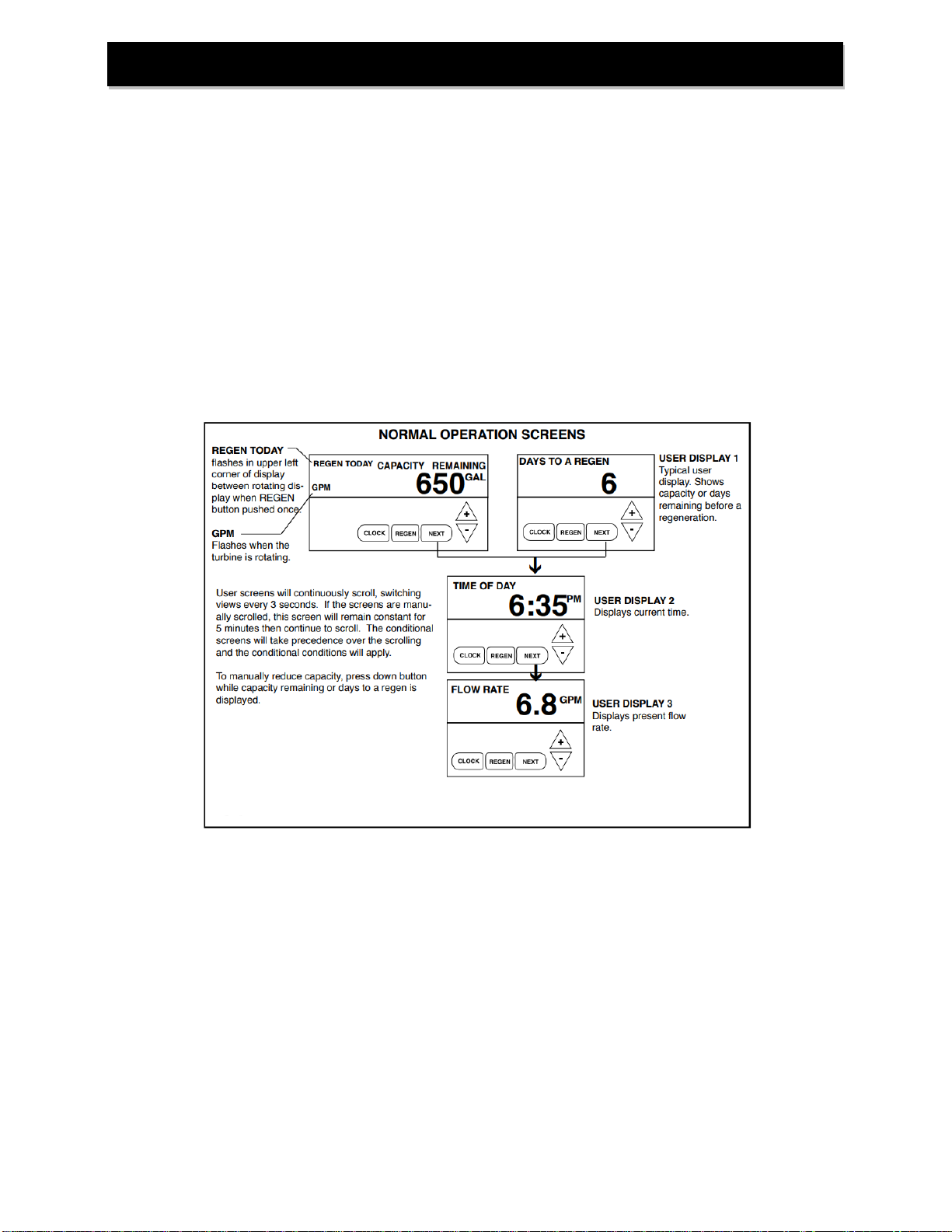

USER DISPLAYS
When the system is operating, one of several displays may be shown. Pressing NEXT will alternate between
the displays. One of the displays is the current time of day. The second display shows days to a regen/gallons
remaining (depending on how it is programmed). Days To A Regen is the number of days left before the system
goes through a regeneration cycle. Capacity remaining is the number of gallons that will be treated before the
system goes through a regeneration cycle. The third display is current flow in gal/min. The user can scroll
between the displays as desired by pushing NEXT or display will scroll automatically. When water is being
treated (i.e. water is flowing through the system) the word "GPM" flashes on left side of display when other than
flow rate is displayed. User screens will continuously scroll, switching views every 3 seconds. If the screens are
manually scrolled, this screen will remain constant for 5 minutes then continue to scroll. The conditional screens
will take precedence over the scrolling and the conditional conditions will apply. To manually reduce capacity,
press down button while capacity remaining or days to a regen is displayed.
MANUAL REGENERATION
Sometimes there is a need to regenerate the system sooner than when the system calls for it, usually referred
to as manual regeneration. There may be a period of heavy water usage because of guests or a heavy laundry
day. To initiate a manual regeneration at the preset delayed regeneration time, press and release “REGEN”.
The words “REGEN TODAY” will flash in left corner of display as it scrolls through displays to indicate that the
system will regenerate at the preset delayed regeneration time. If you pressed the “REGEN” button in error,
pressing the button again will cancel the request. To initiate a manual regeneration immediately, press and hold
the “REGEN” button for five seconds. The system will begin to regenerate immediately. The request cannot be
cancelled. You must cycle all the way through the cycles to make it stop. PLEASE NOTE: This will reset the
meter. Note: If the salt tank does not contain salt, fill with salt and wait at least two hours before regenerating. If
two regenerations are desired within 24 hour period, press /release REGEN button. REGEN TODAY will flash
on screen. Press and hold REGEN button until valve initiates an immediate regeneration.
General Operation

11
1) If your unit contains activated carbon, youshould replace the carbon and gravel underbed at least every
three years. Replacement may be required sooner if the taste and odor being removed begins to reappearin
the treated water or you experience increasing pressure drop that is not resolved by increasing the frequency
of backwashing.
2) Filter Ag, Zeolite and Filter Sand will last indefinitely. Itmay be necessary to replace them if you experience
increasing pressure drop that is not resolved by increasing the frequency of backwashing orif water quality
diminishes due to contaminant bleed through.
3) Iron Pro media or calcite will need replenished with neutralizer media (N05, MPH30 or C05P) regularly in low
pH water. Mark the side of the mineral tank at installation so the drop in media level may bemonitored by
shining a brightlight behind the mineral tank. Add media if the level hasdropped by more than three inches.
4) Greensand Plus should be replaced when iron reappears in the treated water and backwashing does not
improve the water quality or excessive pressure lossis experienced.
TO REPLENISH OR REBED MEDIA:
1) Pressure must be relieved on the system by placing the Bypass Valve in the “Bypass” position (Figure 3,
Page 5) and initiating a manual regeneration (section 3, page 10).
2) Unplug the Control Valve fromthe electrical outlet to prevent it from advancing automatically.
3) Disconnect the Control Valve fromthe Bypass Valve. If the unit has a “-DH” suffix in the model number and it
only needs topped up with neutralizer media, DO NOT disconnect from the bypass valve.
4) Disconnect the Drain Line from the Control Valve
5) Unscrew Control Valve from Mineral Tank (IF REBEDDING ONLY! Remove the distributor).If the unit
has a “-DH” suffix in the model number and it only needs topped up with neutralizer, DO NOT remove the
control valve, just unscrew the dome hole plug instead.
6) Siphon water from Mineral Tank (IF REBEDDING ONLY! Remove existing media and gravel).
7) (IF REBEDDING ONLY! Rinse Mineral Tank and replace distributor, making certain that the
distributor basket sits in the center of the tank bottom.)
8) If the control valve was removed, cover the top of the distributor tube to prevent media entering the tube
during filling. Using a funnel, pour filter media(s) into the mineral tank. (IF REBEDDING ONLY! Begin
loading the tank with the gravel underbed. Filling the Mineral Tank 1/3 with water before loading
gravel will cushion the fall and ensure even distribution of the gravel and media. If using multiple
filter media types, load in the order of heaviest {most dense} to lightest {least dense}.) 14” of space
MUST be left empty at the top of the mineral tank to allow for media bed expansion during backwash and to
prevent filter media from being discharged through the drain line.
9) Use a garden hose or bucket to fill the media tank with water.
10) Clean mineral tank threads to remove any filter media. If control valve was removed, uncover distributor tube
and reinstall control valve by threading it securely onto the mineral tank. “-DH” models that were only topped
up with neutralizer on need thedome hole plug replaced. O-ring seal; HAND TIGHTEN ONLY in both cases!
Maintenance

12
11) If control valve was removed, attach bypass valve to control valve body.
12) If control valve was removed, reattach Drain Line to Control Valve (Figure 6, Page 7).
13) IMPORTANT! Carbon, Filter Ag, Zeolite and Greensand Plus must be soaked for at least 2
hours prior to submitting it to full backwash flow rate to prevent loss of media to drain.
14) Gradually turn the INLET side knob of the bypass valve counter-clockwise not more than ½ way (45
degrees) to the “Service” position (Figure 2, Page 5) allowing unit to pressurize slowly. Check for leaks
and correct as needed. Any air trapped in the media bed should begin purging to the drain and water
should begin flowing to the drain.
15) Once the air is purged, gradually turn the INLET knob of the bypass valve counter-clockwise until it is
fully in “Service” position (Figure 2, Page 5). Then turn the OUTLET knob of the bypass valve counter-
clockwise until it is fully in the “Service” position (Figure 2, Page 5). and leave the control valve in
“Backwash” position for at least 10 minutes or until water flowing from the drain line runs clear;
whichever is longer.
16) Plug the transformer into the electrical outlet. Press the “REGEN” button to advance the control valve
to the “RINSE” cycle. Another count-down timer will appear in the time-of-day position, “RINSE” will be
shown in the lower middle of the display and “REGEN” appears in the middle left of the display. Allow
the rinse cycle to complete and the filter will return to service mode automatically.

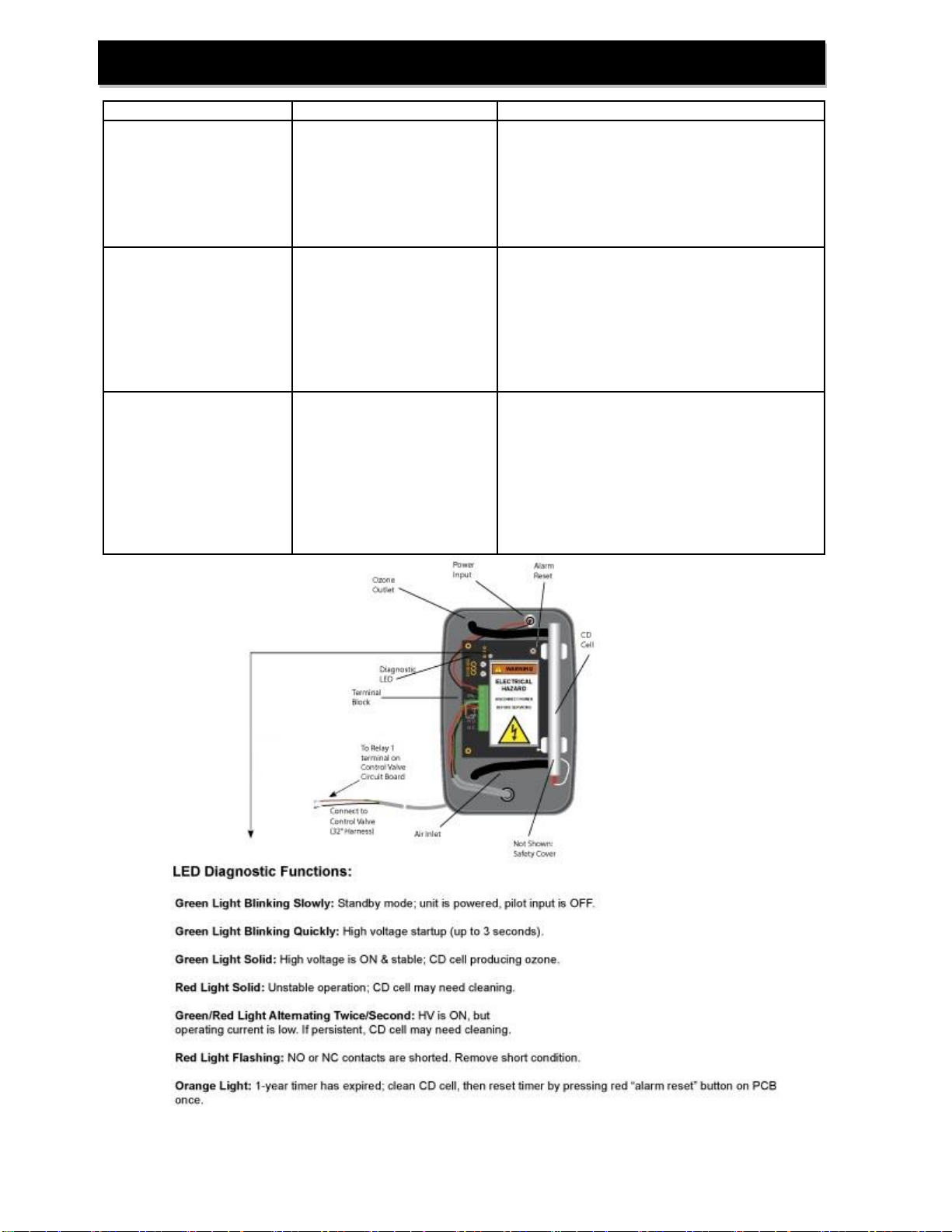

Recommended Annual Maintenance for Ozone Generator:
• Verify injector is clean and functioning and injector screen is clean.
• Clean / change CD cell (33218-R). Flush CD cells completely by pushing warm RO or soft water through CD
cells to dissolve build-up inside. This can be done using a bulb syringe or large 60cc syringe. Flush until the
water coming out is clear, usually takes 2-3 times. CD cell must be dry completely before it can be reinstalled, or
cell will not produce ozone. Verify ozone production prior to changing CD cell to understand need for cleaning
frequency at each application. Initiate regeneration, attach tubing to CD cell inlet and disconnect brine elbow
during draw cycle and blow on tubing to detect ozone odor. Check that indicator light is working.
• Change ozone check valves (at brine elbow, 47035 & OV15HT).
Maintenance (cont.)

13
PROBLEM
CAUSES
SOLUTIONS
Excessive pressure drop
through filter
A) Filter not
backwashing
B) Filter not
backwashing
frequently enough
for water condition
C) Filter bed loaded
with sand
D) “Cementing” or
“Channeling”
E) Drain Line restricted
F) Control Valve
plugged with debris
1) Check if display is blank, see “Blank
Display” section of Page 14.
2) Check if display has an error
message, see “Error Code” section of
Page 16.
3) Verify drive motor is connected to
circuit board connector J1 (labeled
“MOTOR”) and is not faulty
4) Ensure uninterrupted power supply
5) Increase Backwash frequency
6) Verify sediment being removed is less
dense than the filter media and install
a “Spin-Down” type sediment filter
ahead of the POZ1 to remove well
sand
7) Verify adequate pumping rate for
backwash
8) Probe media bed to check for
“Cementing”
9) Check drain line for restriction: frozen,
plugged, kinked, exceeds 15’,
overhead installation, flexible drain
line, drain line diameter too small
10) Disassemble and clean control valve
Contaminant not being
properly removed
A) Leaking bypass
valve
B) Internal valve leak
C) Distributor tube not
seated properly in
control valve
D) Water usage flow
rate exceeds filter
specifications
1) Verify bypass valve is in service
position
2) Replace piston and seal assemblies
3) Verify distributor tube seated securely
in control valve body
4) Verify actual water usage flow rates
against system specifications
5) Increase length of backwash and rinse
cycles
Media raises pH too high
A) Filter is brand new
or newly re-bedded
B) Wrong media used
1) Give the unit time for the pH to
stabilize
2) Re-bed the unit with a less aggressive
media
Media fails to raise pH
sufficiently
A) Water usage flow
rate is too high to
provide adequate
contact time
B) Media bed is
“Cemented” or
“Channeled”
1) Verify actual water usage flow rates
against system specifications
2) Verify adequate pumping rate for
backwash
3) Check drain line for restriction: frozen,
plugged, kinked, exceeds 15’,
overhead installation, flexible drain
line, drain line diameter too small
4) Re-bed with a more aggressive media
Filter fails to remove iron
A) pH too low
B) Dissolved oxygen
level too low
C) Iron level to high
1) pH of untreated water must be 6.8 or
higher –adjust with proper equipment
such as soda ash injection system
2) Verify ozone generator is working and
regenerate more frequently
3) Plumb a second unit in parallel
Troubleshooting

14
PROBLEM
CAUSES
SOLUTIONS
Loss of media
to drain
A) Air in system
B) Insufficient soak
time before first
backwash after
installing media
1) Ensure wellsystem has proper air
elimination control
2) Check media leveland adjustif
necessary
Media in service lines
A) Unit is installed
backwards
B) Distributor basket
is broken
C) Insufficient gravel
under bed
1) Re-plumb the water lines so that the
supply side of the line is connected to
the inlet of the bypass and the service
side is connected to the outlet.
2) Replace distributor.
3) Add gravel to tank, manually
backwash
Howling or whistling noise
during regeneration
A) Inadequate drain
line diameter or
drain line restricted
1) Reconfigureor replace drain line
Continuous flow of water
to drain
A) Loss of electrical
power during
regeneration
B) Debris in control
valve
C) Internal leak in
control valve
1) Ensure electrical outlet is functioning
2) Disassemble and clean control valve
3) Replace seals and/or piston
Filter backwashes at
wrong time of day
A) Clock is not set
properly
B) Power outage
C) Incorrect control
valve programming
1) Reset the clock (page 7)
2) Verify control valve programming
(page 8)
Display is blank
A) Control valve circuit
board needs reset
B) Transformer is
unpowered,
unplugged or
defective
C) Defective circuit
board
1) Hold “NEXT” and “REGEN” buttons
for 3 seconds
2) Remove battery, unplug power for 5
seconds, plug back in, replace dead
battery.
3) Verify transformer is plugged into an
electrical outlet that has power and
transformer cable (black, 4 pins) is
plugged into controlvalve connector
J4 (labeled “POWER”)
4) With transformer plugged into
electrical outlet, use a volt meter to
test the 2 outer pins (furthest left and
furthest right) of connector J4 on the
control valve circuit board. Should be
approximately 15 volts DC. Replace
transformer if defective.
5) Replace circuit board if needed
Troubleshooting (cont.)

15
PROBLEM
CAUSES
SOLUTIONS
Ozone unit does not
turn on
A) Unit not wired
correctly to relay or
no power
B) Unit not
programmed
correctly
C) Blown fuse
1) Correct unit wiring connections and
verify power is being supplied (12VDC
from transformer)
2) Correct unit programming
3) Replace fuse
Unit keeps blowing fuses
A) Electrical short in
unit
B) Incorrect fuse value
and type
C) Improper voltage
delivered to ozone
generator
1) Check for looseconnections or burn
marks on circuit board. Inspect high
voltage wire from printed circuit board
to ozone cell for disconnection or burn
marks. Repair all problems found.
2) Replace with correct fuse.
3) Test output of transformer matches
the stated output of label
Unit turns on, but no
ozone output
A) Cell is plugged with
a build-up
B) Water has been
allowed to back up
into cell
C) Disconnected high
voltage lead(s)
D) Frequency driver is
defective
1) Rinse cell with warm water and dry
completely
2) Replace cell and/or cell check valve
3) Connect lead(s) to Corona Discharge
Cell(s)
4) Replace circuit board driver
Troubleshooting (Ozone Generator)

16
ERROR CODE:
CAUSES
SOLUTIONS
1001 –unable to
sense motor
movement
A) Drive motor not
inserted fully to
engage pinion or is
defective
B) Circuit board not
properly snapped
into drive bracket
C) Center reduction
gear reflector dirty
1) Re-insert motor, check for broken wires,
verify motor plugged intoconnector J1
(labeled “MOTOR”) on control valve circuit
board and reset controlvalve (hold “NEXT”
and “REGEN” buttons for 3 seconds)
2) Re-seat circuit board into drive bracket and
reset control valve
3) Clean reduction gear reflectors (page 20)
1002 –unexpected
motor stall
A) Obstruction in
control valve
B) Main drive gear too
tight
C) Improper voltage
delivered to circuit
board
1) Remove piston and seal assemblies for
inspection and repair or replacement and
reset control valve (hold “NEXT” and
“REGEN” buttons for 3 seconds)
2) Loosen main drive gear and reset control
valve
3) Verify proper voltage is being supplied to
circuit board (see Solution 4 under “Display
is Blank” section, page 14)
1003 –motor ran too
long, cannot find next
cycle position
A) Motor failure during
regeneration
B) Obstruction in
control valve
C) Drive bracket not
snapped in place
properly
1) Re-insert motor, check for broken wires,
verify motor plugged intoconnector J1
(labeled “MOTOR”) on control valve circuit
board and reset control valve (hold “NEXT”
and “REGEN” buttons for 3 seconds)
2) Remove piston and seal assemblies for
inspection and repair or replacement and
reset control valve
3) Re-seat drive bracket assembly and reset
control valve
1004 –motor ran too
long, timed out trying
to reach home
position
A) Drive bracket not
snapped in place
properly
B) Center reduction
gear reflector dirty
1) Re-seat drive bracket assembly and reset
control valve (hold “NEXT” and “REGEN”
buttons for 3 seconds)
2) Clean reduction gear reflectors (page 20)
1006–MAV/SEPS/
NHBP/AUX MAV
motor ran too
long,looking for park
position
A) Control valve not
programmed for
ALT oFF
B) Obstruction in
control valve
1) Enter cycle programming leveland verify
second parameter is set to ALT oFF
2) Remove piston and seal assemblies for
inspection and repair or replacement and
reset control valve (hold “NEXT” and
“REGEN” buttons for 3 seconds)
1007–MAV/SEPS/
NHBP/AUX MAV
motor ran too short
looking for park
position
A) Control valve not
programmed for
ALT oFF
B) Obstruction in
control valve
1) Enter cycle programming leveland verify
second parameter is set to ALT oFF
2) Remove piston and seal assemblies for
inspection and repair or replacement and
reset control valve (hold “NEXT” and
“REGEN” buttons for 3 seconds)
Troubleshooting (Error Codes)

17
Description
POZ1-1054
POZ1-1248
POZ1-1354
POZ1-1465
Filter Media Volume, cu. ft.
1.0
1.5
2.0
2.5
Gravel Underbed, lbs.
20
25
25
30
Operating Flow Rate, gpm
Continuous
@ 5 gpm/ft2of media surface area
3
4
5
5
Service
@ 10 gpm/ft2of media surface area
5
8
9
11
Peak
@ 18 gpm/ft2of media surface area
10
14
17
19
Backwash
@ 10 gpm/ft2of media surface area
NOTE: some medias may require
a higher BW rate (in parenthesis)
5.3
(9)
7.5
(11)
9
(13)
11
(15)
Water Usage
Gallons
(Gallons at higher BW flow)
53
(82)
70
(98)
82
(114)
98
(130)
Service Pipe Size, in.
Standard
1
1
1
1
Tank Diameter x Height, in.
10 x 54
12 x 48
13 x 54
14 x 65
Minimum Space Required, in.
Width
11
13
14
15
Depth
16
17
18
18
Height
66
60
66
77
Approximate Ship Wt., lbs.
68
68
73
85
(Media Not Included)
Factory default settings: Filtering type, 8 minute backwash, 20 minute regenerant
draw, relay 1 time activated at 9 minutes for a duration of 17 minutes, 3 days between
regenerations.
Add “-DH” suffix for dome hole tank models. IE POZ1-1248-DH
All models include: CV3007 –1” MNPT elbow adapters and QFNCR4-2 –¾” compression
fittings for PEX, CPVC and copper.
SPECIFICATIONS

18
Component Parts Breakdown

19
*Filter media sold seperately. Select appropriate media for water condition (page 2).
Ref #
Part
Number
Description
A
POZ1-1054-VLV-L-BP
Control valve, cover, 5.3 GPM DLFC, less bypass for models POZ1-1054 & “-DH”
POZ1-1248-VLV-L-BP
Control valve, cover, 7.5 GPM DLFC, less bypass for model POZ1-1248 & “-DH”
POZ1-1354-VLV-L-BP
Control valve, cover, 9.0 GPM DLFC, less bypass for model POZ1-1354 & “-DH”
POZ1-1465-VLV-L-BP
Control valve, cover, 11.0 GPM DLFC, less bypass for model POZ1-1465 & “-DH”
B
D100S-48
Distributor tube, 1" x 48" for models POZ1-1248 & “-DH”
D100S-54
Distributor tube, 1" x 54" for models POZ1-1054, POZ1-1354 & “-DH”
D100S-65
Distributortube, 1" x65" for modelPOZ1-1465 & “-DH”
C
MTP1054N
10 x 54 mineral tank, natural, base, 2.5" top opening formodel POZ1-1054
MTP1248N
12 x 48 mineral tank, natural, base, 2.5" top opening formodel POZ1-1248
MTP1354N
13 x 54 mineral tank, natural, base, 2.5" top opening formodel POZ1-1354
MTP1465N
14 x 65 mineral tank, natural, base, 2.5" top opening formodel POZ1-1465
MTP1054DOME
10 x 54 mineral tank, natural, base, 2.5" top opening formodel POZ1-1054-DH
MTP1248DOME
12 x 48 mineral tank, natural, base, 2.5" top opening formodel POZ1-1248-DH
MTP1354DOME
13 x 54 mineral tank, natural, base, 2.5" top opening formodel POZ1-1354-DH
T14X65T4DH
14 x 65 mineral tank, natural, base, 4.0" top opening formodel POZ1-1465-DH
(Requires C5148212 tank bushing adapter for 2.5” valve thread)
D*
A10
ActivatedCarbon, 1.00 cu. ft. bag
A05P
ActivatedCarbon, 0.50 cu. ft. pail
ACC10
Catalytic Carbon, 1.00 cu. ft. bag
ACC05P
Catalytic Carbon, 0.50 cu. ft. pail
C05P
Calcite, 0.50 cu. ft. pail
FA10
FilterAg, 1.00 cu. ft. bag
FA05P
FilterAg, 0.50 cu. ft. pail
IP05
IronPro, 0.50 cu. ft. pail
IP05M
IronPro M-bed, 0.50cu. ft. pail
Z05P
Zeolite, 0.50 cu. ft. pail
A8042
Greensand Plus, 0.50 cu. ft. bag
QFS05P
Quartz FilterSand, 0.50 cu. ft. pail
E
QC20
1/4" x 1/8" Gravel, 20lb pail for models POZ1-1054 & “-DH”
qty 1.25 - QC20
1/4" x 1/8" Gravel, 20lb Pail for modelsPOZ1-1248, POZ1-1354 & “-DH”
qty 1.5 - QC20
1/4" x 1/8" Gravel, 20lb Pail for modelsPOZ1-1465 & “-DH”
Component Parts List
