Franklin LDS-1990 User manual

LDS-1990
Language Studio
Spanish German
Translate - Listen - Speak
User’s Guide
www.franklin.com/eu
LDS-1990_eng_cover_RevA.indd 1LDS-1990_eng_cover_RevA.indd 1 3/4/09 7:08:28 PM3/4/09 7:08:28 PM

1
READ THIS LICENSE AGREEMENT BEFORE USING THE ELECTRONIC REFERENCE.
YOUR USE OF THE ELECTRONIC REFERENCE DEEMS THAT YOU ACCEPT THE
TERMS OF THIS LICENSE. IF YOU DO NOT AGREE WITH THESE TERMS, YOU MAY
RETURN THIS PACKAGE WITH PURCHASE RECEIPT TO THE DEALER FROM WHICH
YOU PURCHASED THE ELECTRONIC REFERENCE AND YOUR PURCHASE PRICE
WILL BE REFUNDED. ELECTRONIC REFERENCE means the software product and
documentation found in this package and FRANKLIN means Franklin Electronic
Publishers, Inc.
Limited Use License
All rights in the ELECTRONIC REFERENCE remain the property of FRANKLIN.
Through your purchase, FRANKLIN grants you a personal and nonexclusive
license to use this ELECTRONIC REFERENCE. You may not make any copies of the
ELECTRONIC REFERENCE or of the data stored therein at the time of purchase,
whether in electronic or print format. Such copying would be in violation of
applicable copyright laws. Further, you may not modify, adapt, disassemble,
decompile, translate, create derivative works of, or in any way reverse engineer the
ELECTRONIC REFERENCE. You may not export or reexport, directly or indirectly,
the ELECTRONIC REFERENCE without compliance with appropriate governmental
regulations. The ELECTRONIC REFERENCE contains Franklin’s condential and
proprietary information which you agree to take adequate steps to protect from
unauthorized disclosure or use. This license is eective until terminated by Franklin.
This license terminates immediately without notice from FRANKLIN if you fail to
comply with any provision of this license.
License Agreement (U.S. only)
Please read the following safety
warnings and precautions before
using your device. Note: If this
device is to be used by young
children, this User’s Guide should
be read to them by an adult and
their use of the device should be
monitored. Failure to do so may
cause injury.
LDS-1990_RevA_eng.indd 1LDS-1990_RevA_eng.indd 1 3/4/09 8:02:13 PM3/4/09 8:02:13 PM

2
Table of Contents
Introduction........................................3
Battery Information ...........................5
Understanding Your Device...............7
Key Guide ............................................9
Product Care .................................... 11
Resetting Your Device ..................... 12
Getting Started................................ 13
Using the Library ............................. 14
Changing the Settings .................... 15
Selecting a Book .............................. 17
Looking Up a Word .......................... 18
Finding Idioms................................. 21
Highlighting Words ......................... 22
Using Annotations, Modications
and Highlights ................................. 23
Viewing the Annotations List ......... 25
Viewing Inections by Franklin...... 26
Viewing
Supplemental Information ............. 27
Using the Phrase Books................... 29
Using the Grammar Guide .............. 31
Using My Vocabulary List................. 33
Using My Dictionary......................... 36
Viewing Your Search History........... 38
Using the Menus.............................. 38
Using the Audio Player.................... 40
Using Record and Playback ............ 42
Playing the Games........................... 43
Using the Clock................................ 46
Using the Calculator ........................ 47
Using the Phone Book..................... 49
Using the Converter ........................ 52
Installing the
Franklin PC Desktop........................ 54
Connecting Your Device .................. 55
Using the Franklin PC Desktop....... 56
Using the
Franklin PC View™ Feature.............. 61
Specications................................... 66
Recycling and Disposal ................... 67
FCC Notice ........................................ 67
Disclaimer of Warranties................. 68
Limited Warranty
(EU and Switzerland) ....................... 68
Limited Warranty (Outside U.S.,
EU and Switzerland) ........................ 68
Limited Warranty (U.S. only)........... 69
LDS-1990_RevA_eng.indd 2LDS-1990_RevA_eng.indd 2 3/4/09 8:02:14 PM3/4/09 8:02:14 PM

3
Congratulations on your purchase
of the LDS-1990, Language Studio
Spanish - German! The LDS-1990 is an
educational, informational, and versatile
handheld computing device. Your
package includes:
• your LDS-1990 device
• Franklin PC Desktop installation CD-
ROM
• earphones
• USB cable
Your LDS-1990 has the ability to store
eBooks, RSS eNews, audio les and
other documents. It has a built-in
organiser, with a clock, calculator,
converter and phone book.
To install the Franklin PC Desktop
on your PC, your computer must
meet the following minimum system
requirements:
• IBM-compatible Pentium class PC or
higher
• 256 color VGA monitor
• Mouse or other pointing device
• Windows® XP or Windows Vista®
• 20 MB free disk space
• 32 MB RAM
• Available USB port
• CD-ROM Drive
Your LDS-1990 contains the following
reference books:
• Langenscheidt Handwörterbuch
Spanisch-Deutsch
• Langenscheidt Handwörterbuch
Deutsch-Spanisch
• Sätze für die Reise (S-D)
• Sätze für die Reise (D-S)
• Spanische Grammatik
• Guía de gramática de la lengua
española
• Deutsche Grammatik
• Guía de gramática de la lengua
alemana
Expand your vocabulary by looking
up translations of words using the
Spanish-German and German-Spanish
dictionaries. Find everyday and travel
phrases using the phrase books.
Learn grammar using the Spanish and
German grammar guides. For additional
help in using this device, read the
Spanish or German Tutorial.
Introduction Introduction
LDS-1990_RevA_eng.indd 3LDS-1990_RevA_eng.indd 3 3/4/09 8:02:14 PM3/4/09 8:02:14 PM

4
Save a list of German and Spanish
vocabulary that you want to learn,
study and remember. Add a list of
words and denitions not found in the
dictionaries in this device.
Most of these books include a word
search feature that helps you nd words
just by typing the rst few letters. If you
can’t nd the words you want, phonetic
spell correction is available to show you
other possibilities. In addition, a word
search feature is included which allows
you to type a “?” in place of any single
letter and a“✽”in place of zero, one or
more letters in a word so that you can
search based on the letters you are sure
of. Verbs are conjugated in all tenses
to make learning and comprehension
easier.
Hear Spanish and German words
and Spanish and German phrases
pronounced in high-quality speech so
you can practice saying them correctly.
Use the listen, record and playback
feature to practice pronouncing words.
Listen to a word or phrase, record
your pronunciation, then play them
both back to see how you compare.
In addition, use the audio player that
comes with your LDS-1990 to listen to
audio books and music.
Purchase titles and expand your
content by loading it from MMC/SD
(MultiMediaCard/Secure Digital). These
convenient cards (sold separately) slip
easily into the side of your LDS-1990.
Transfer les directly from your PC to an
MMC/SD and you can carry more books,
music, and other documents around
with you.
Use the Franklin PC View™ feature of the
Franklin PC Desktop to view content
from the LDS-1990 on a personal
computer. Just connect your device to
a PC and you can use the dictionary
features on a PC screen.
Introduction Introduction
LDS-1990_RevA_eng.indd 4LDS-1990_RevA_eng.indd 4 3/4/09 8:02:14 PM3/4/09 8:02:14 PM

5
Your LDS-1990 uses a rechargeable 3.7 volt lithium polymer battery.
The rst time you use your device, it requires approximately 4 to 6 hours of
charging before use. Thereafter, your device can take up to 6 hours for a full charge.
Battery power lasts for about 1 week of normal dictionary use or 14 hours of
continuous dictionary use (and around half that with continuous audio). When you
see the low battery warning, please recharge your battery.
Recharging the Battery
Follow these instructions to recharge the battery.
1. Find the USB charger cable included with your device.
2. Make sure your device is turned o.
3. Plug the small end into your device and the other end into a power source.
Continue charging your device until the battery is fully charged.

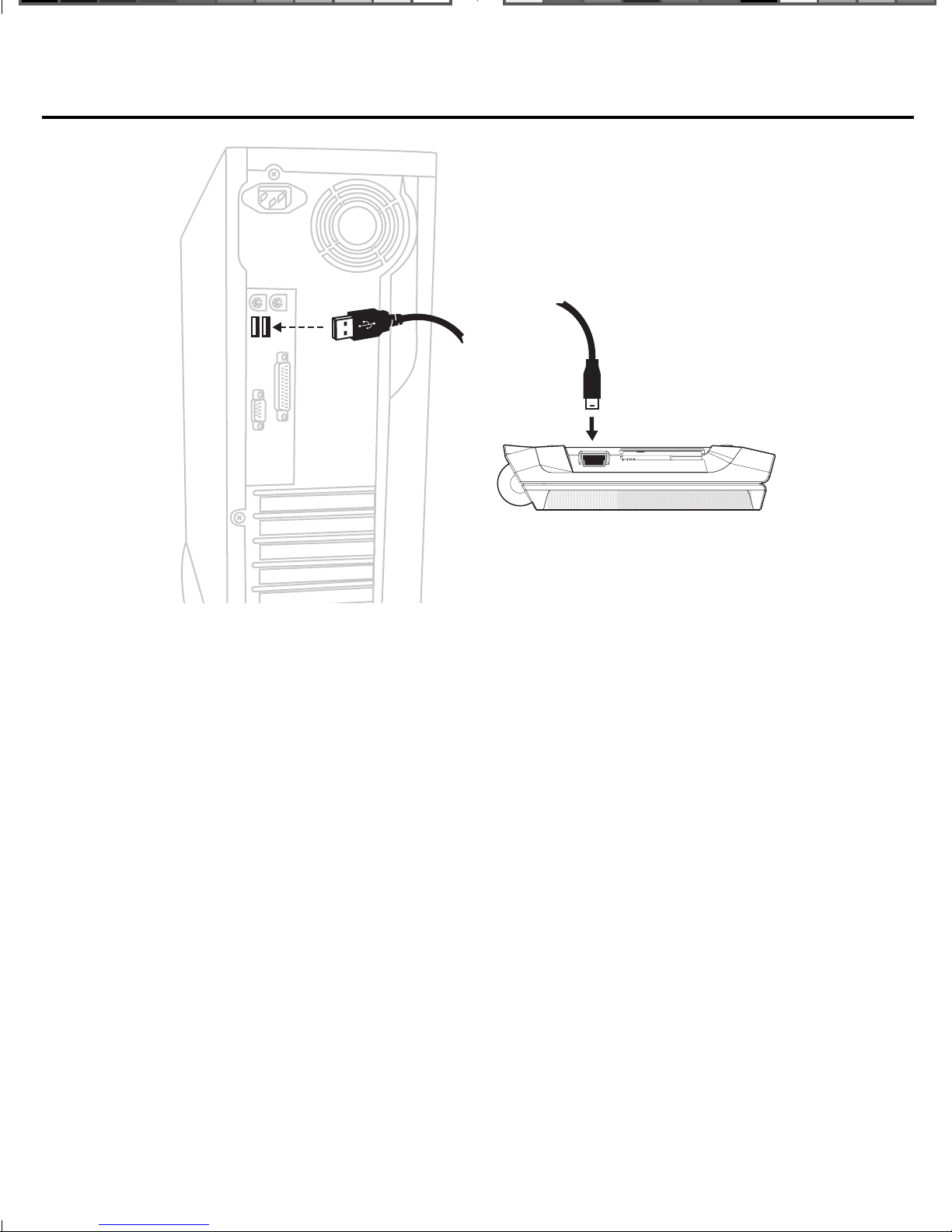

You can also charge your battery by plugging it into your PC using the included
USB cable. Plug the wide end of the USB cable into a USB port on your PC and
the smaller end of the USB cable into the USB port on your device.
Battery Information
LDS-1990_RevA_eng.indd 5LDS-1990_RevA_eng.indd 5 3/4/09 8:02:14 PM3/4/09 8:02:14 PM

6
Note: To use your device while it is plugged into your PC, use the Franklin PC
View™ feature on your PC to access the dictionaries. For more information,
please see“Using the Franklin PC View™ Feature” on page 61.
Battery Precautions
• If the device is left unused for a long period of time, the battery may lose its
charge. Please recharge the battery following the steps described above in order
to use your device.
• Rechargeable batteries are only to be charged under adult supervision.
• Use the supplied charger to recharge the battery. Improperly charging a battery
may damage the battery.
• You may not open this device. All changes to this device are strictly prohibited
and will invalidate the guarantee.
• Leaving the device in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Always try
to keep the device between 15ºC and 25ºC (59ºF and 77ºF). A device with a hot
or cold battery may not work temporarily, even when the battery is fully charged.
Battery Information
LDS-1990_RevA_eng.indd 6LDS-1990_RevA_eng.indd 6 3/4/09 8:02:14 PM3/4/09 8:02:14 PM

7
Understanding Your Device
Screen in Lid: The screen of the LDS-1990 is contained in the lid, so you can tilt the
screen for optimum viewing.
Microphone: The microphone is located in the upper left corner, just above the
keyboard on the front of your device. Speak into this when recording.
Speakers: The two speakers are located on the front edge of the device.
Screen in
Lid
Microphone
Speakers
LDS-1990_RevA_eng.indd 7LDS-1990_RevA_eng.indd 7 3/4/09 8:02:14 PM3/4/09 8:02:14 PM

8
USB Port: Plug the cable into this port to connect your device to your PC and to
recharge your device using an external power source.
Headphone Jack: The headphone jack is designed for 3.5 mm, 35 ohm impedance
stereo headphones. Caution: Monophonic headphones will not work with this unit.
Audio Player Buttons: The buttons, located on the left side of the device, control
the audio les stored on your device, as well as the volume of the speaker or
headphones.
MMC/SD Slot: Insert MMC/SD here. Slide the MMC/SD into the slot with the
contacts facing the back of the device. Push gently until it clicks into place. To
remove an MMC/SD from the slot, put your thumb on the MMC/SD and push it in
slightly. You hear a click and the MMC/SD pops out. Slide it out of the slot.
Understanding Your Device
Headphone
Jack
USB Port
MMC/SD
Slot
Audio
Player
Buttons
LDS-1990_RevA_eng.indd 8LDS-1990_RevA_eng.indd 8 3/4/09 8:02:15 PM3/4/09 8:02:15 PM

9

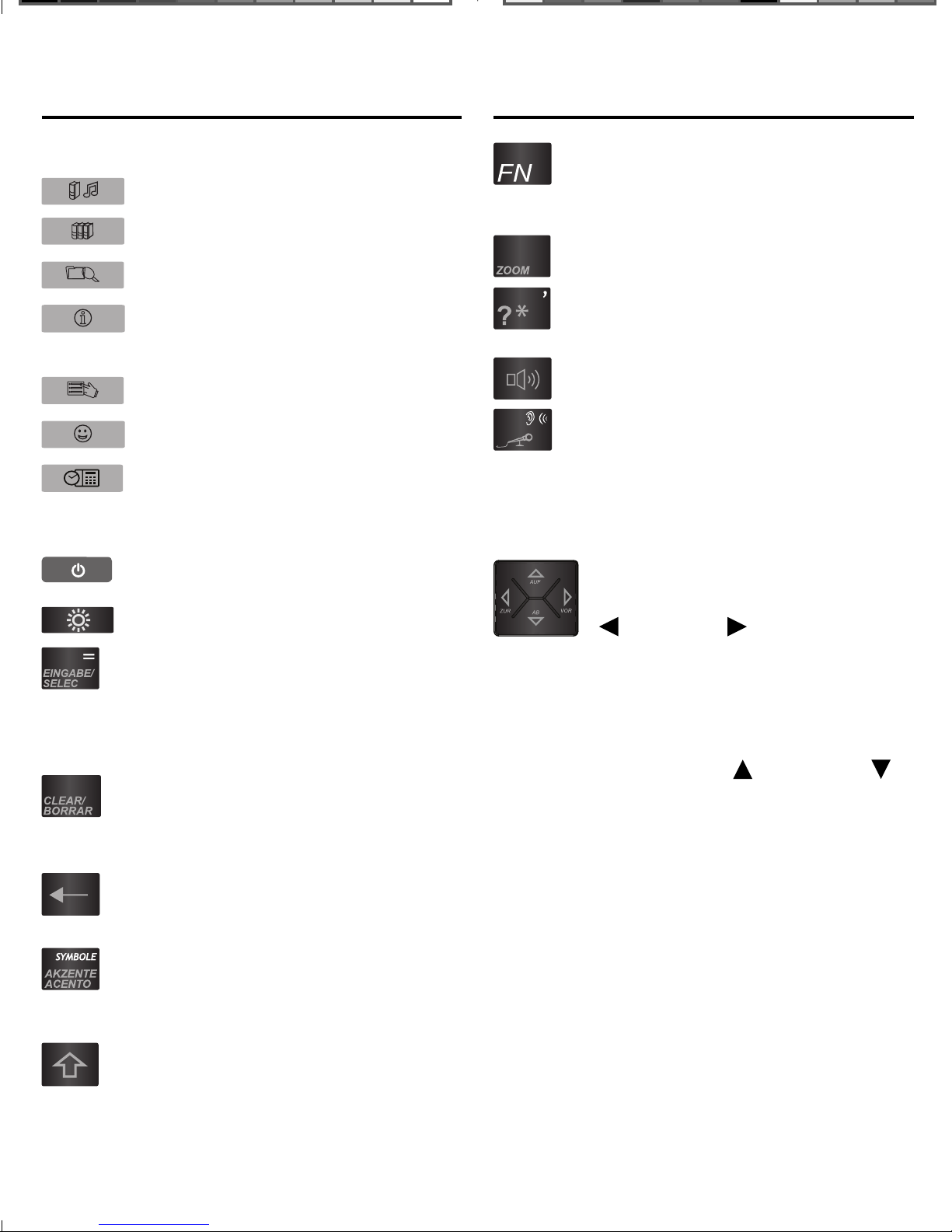

Picture Keys
Opens the Audio Player.
Goes to the Library.
Displays your search history.
Displays information about
your current screen.
Opens a menu, if available.
Goes to the Games Menu.
Goes to the Organiser.
Function Keys
Turns the product on or o.
Turns the backlight on or o.
Selects an item. In the
calculator, performs a
calculation. In text, highlights
a word.
Clears an input box. From text,
goes to the main screen of a
book.
Backs up, erases a letter, or
turns o the highlight in text.
Cycles through the accents
for the last typed letter, if
available.
Shifts to type capital letters
and punctuation marks.
Shifts to type numbers,
punctuation marks and other
symbols.
Adjusts the font size.
At an input box, types a ? to
stand for a letter in a word.
Pronounces a word or phrase.
Begins and stops recording.
With FN, plays a recorded
message.
Navigation Button
Moves in the indicated
direction. In text, press the left
( ) or right ( ) part of the
button to highlight the next or
previous link, when available.
When no links are available,
pages up or down. In text,
press the up ( ) or down ( )
part of the button to highlight
the previous or next link, when
available. When no links are
available, scrolls up or down
one line at a time.
Key Guide Key Guide
About Screen Illustrations✓
Some screen illustrations and Soft
Key labels in this User’s Guide may
dier slightly from what you see on
screen. This does not mean that your
unit is malfunctioning.
LDS-1990_RevA_eng.indd 9LDS-1990_RevA_eng.indd 9 3/4/09 8:02:15 PM3/4/09 8:02:15 PM

10
Combination Keys*
+At an input box, types an
asterisk (✽) to stand for zero,
one or more letters in a word.
+Types an apostrophe.
+At an input box or other
entry eld, cycles through the
available symbols, including @
/ _ ~ : ; , and #.
+Plays a recorded message.
Audio Keys†
Increases (+) or decreases (-)
the volume.
Plays a stopped or paused le.
Pauses a playing le. Press
and hold to stop a playing or
paused le.
Press the right side ( ) of this
key to go to the next le. Hold
it in to fast-forward through a
le. Press the left side ( ) of
this key to go to the previous
le. Hold it in to rewind
through a le.
Calculator Keys
A(1/x) Calculates a reciprocal.
S(√x) Calculates a square root.
D(x2)Squares a number.
F(%) Calculates a percentage.
G(.) Inserts a decimal point.
H(+),J(-) Adds, subtracts, multiplies or
divides numbers.
Z(+/-) Changes the number on the
screen to a negative or positive
number.
X(M+) Adds the number to the
number stored in memory.
C(M-) Subtracts the number from the
number stored in memory.
V(MR)Recalls the number stored in
memory.
B(MC)Clears the memory.
Key Guide Key Guide
* Hold the rst key while pressing the second.
K(x),L(÷)
† The keys for controlling the audio are located
on the side of your device.
LDS-1990_RevA_eng.indd 10LDS-1990_RevA_eng.indd 10 3/4/09 8:02:17 PM3/4/09 8:02:17 PM

11
Key Guide

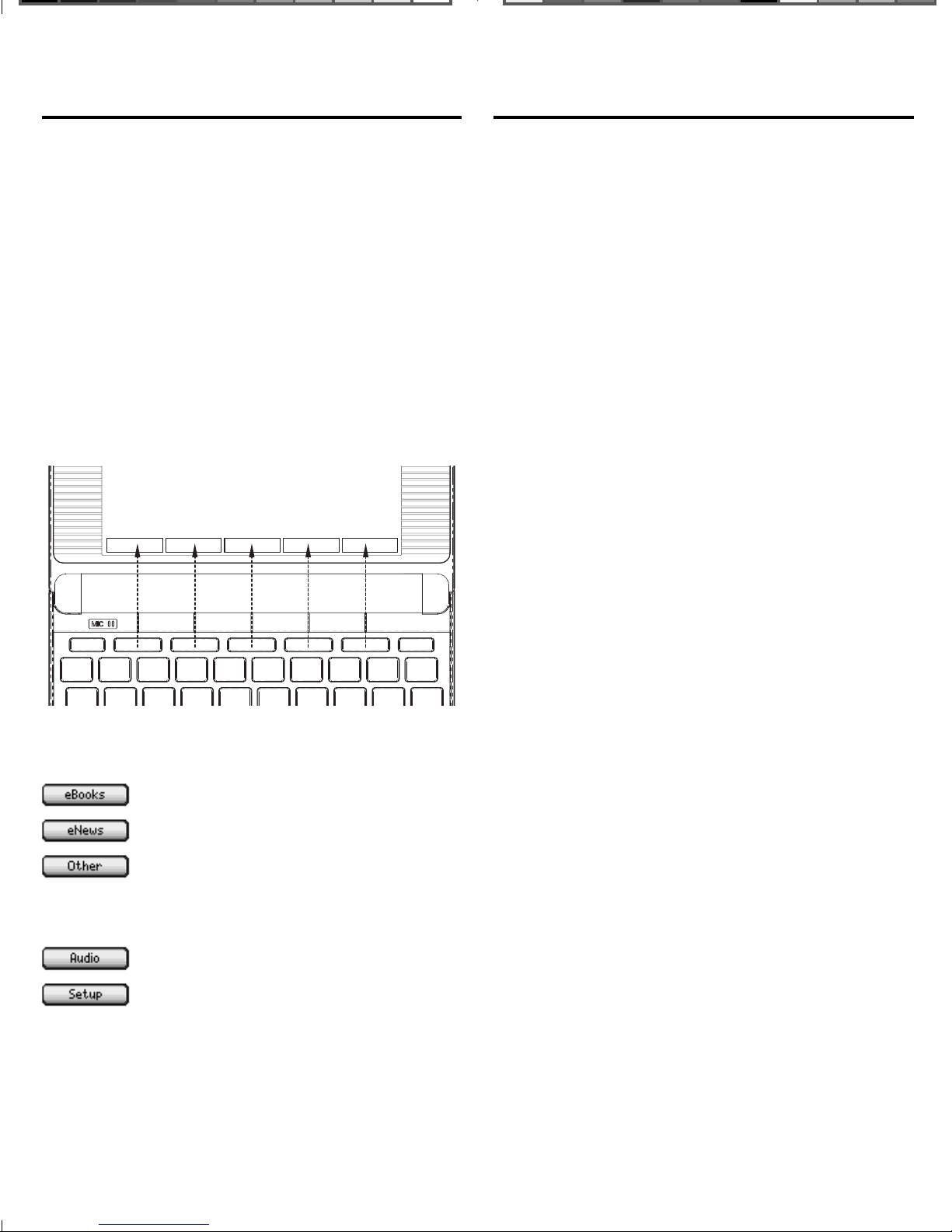

Soft Keys
In this device, up to ve extra functions
are available depending on what you
are doing and what you are reading.
They are indicated by“tabs”or“labels”
across the bottom of the screen.
Because they can change from location
to location, they are called“soft”. To
use a Soft Key, press the unlabeled
key at the top of the keyboard that
corresponds to the label you want.
For example, at the Library, the
following Soft Keys are available:
Opens the list of eBooks.
Opens the list of eNews.
Opens the list of My Vocabulary
List, My Dictionary and any
miscellaneous text les.
Opens the list of audio les.
Displays the Settings List.
Please read each individual section
for information on what Soft Keys are
available.
Product Care
Your LDS-1990 is designed to be light,
compact and durable. However, it is an
electronic device and must be treated
carefully. Putting unnecessary pressure
on it or striking the device against other
objects can cause damage.
In order to avoid damage to your LDS-
1990, please:
• Keep the lid closed when you are not
using it. This will protect the screen
from being broken, scratched or
marred in any way.
• Do not drop, crush, bend, or apply
excessive force to the device.
• Do not expose your LDS-1990 to
moisture, extreme temperatures
or other adverse conditions. Avoid
storing it in damp, humid or wet
places. It is not waterproof.
• Clean the device by wiping with
a soft, dry cloth. Do not use harsh
chemicals.
• Should the device’s glass break,
properly dispose of the product
avoiding contact with your skin, then
wash your hands immediately.
• Please keep screen protectors and
plastic bags away from babies
and children to avoid danger of
suocation.
LDS-1990_RevA_eng.indd 11LDS-1990_RevA_eng.indd 11 3/4/09 8:02:19 PM3/4/09 8:02:19 PM

12
Resetting Your Device
If the keyboard fails to respond, or if the screen performs erratically, perform a
system reset by following the steps below.
1. Use a paper clip to gently press the reset button on your unit.
If nothing happens, try step 2.
The reset button is recessed in a pin-sized hole on the back of the unit.
Warning! Pressing the reset button with more than light pressure may
permanently disable your product. In addition, resetting the product resets the
volume, contrast, date and time settings to their defaults and may erase any
recently entered information.
2. Hold CLEAR and press the reset button.
Warning! This restores factory defaults, so all saved information and settings will
be erased.
LDS-1990_RevA_eng.indd 12LDS-1990_RevA_eng.indd 12 3/4/09 8:02:19 PM3/4/09 8:02:19 PM

13

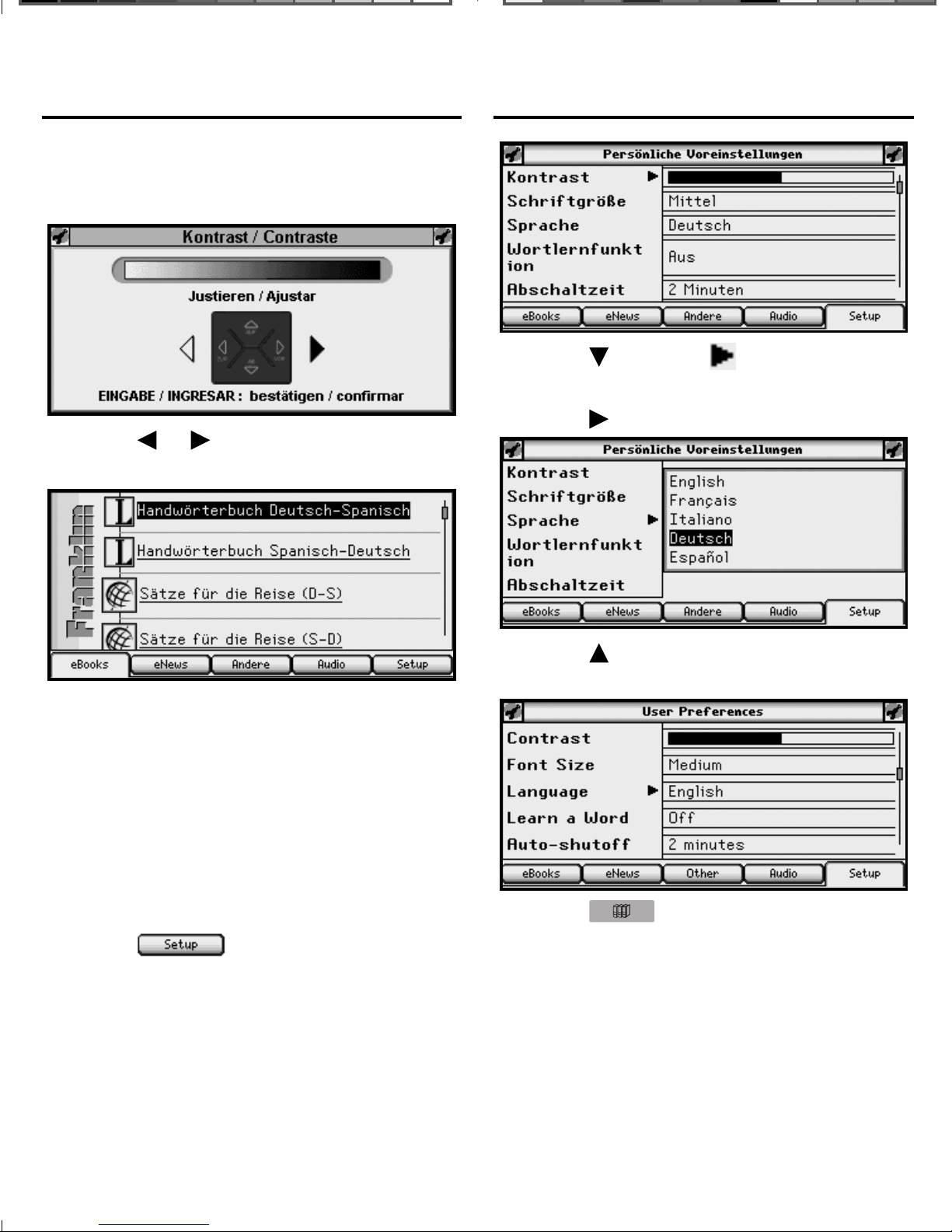

The rst time you turn on your device,
a contrast bar is displayed. The contrast
indicates how dark or light the screen is.
1. Press or to adjust the contrast.
2. Press EINGABE when done.
The eBooks tab of the Library is
displayed.
Changing the Language
Initially, the language of the LDS-1990
is set to German. You can change the
message language to English, French,
Spanish, or Italian.
1. Press .
2. Press EINGABE to select
Persönliche Voreinstellungen (User
Preferences).
3. Press to move to Sprache
(Language).
4. Press .
5. Press to highlight English and
then press EINGABE.
6. Press .
The Library is displayed.
Getting Started Getting Started
LDS-1990_RevA_eng.indd 13LDS-1990_RevA_eng.indd 13 3/4/09 8:02:20 PM3/4/09 8:02:20 PM

14

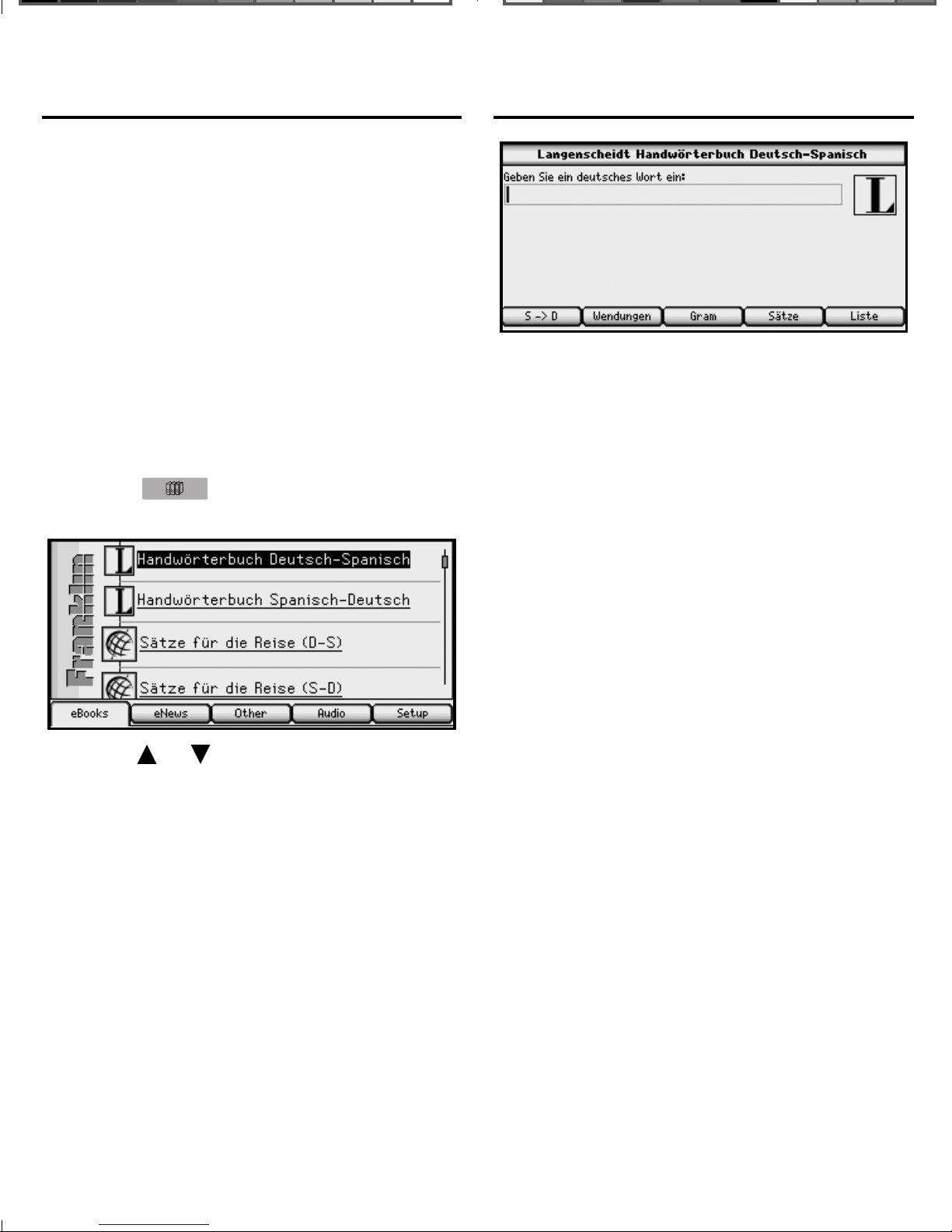

The Library is your home screen.
This is the hub of the LDS-1990 and the
place to start in order to access all of the
dictionaries and other books stored in
your device.* At any time, and from any
location, press to return to this
location.
The Library consists of ve tabs: eBooks,
eNews, Other, Audio and Setup. The
rst four of these tabs keep track of
the dierent kinds of les that you can
store on your device, and the Setup tab
opens the Settings List. To select a tab,
simply press the Soft Key that refers to
that tab, that is, the blank key at the top
of the keyboard that lines up with the
name of the tab where it is displayed on
the screen.
Try it now by pressing the ve Soft Keys
at the top of the keyboard to see what
happens. Then press to return
to the list of books.

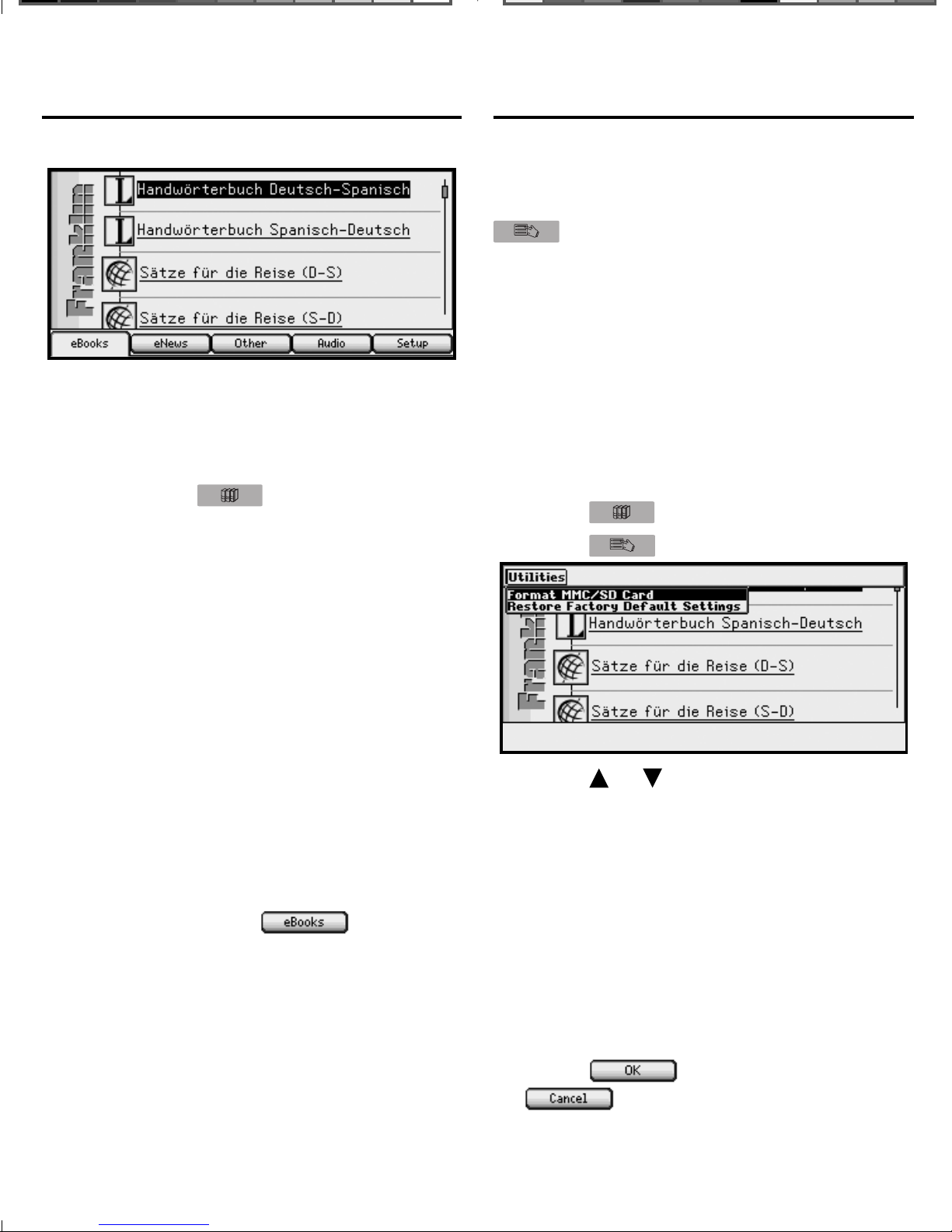

Utilities
From anywhere within the Library, press
to open the Utilities Menu. From
this menu, you can reset your device to
its factory defaults or format an MMC/
SD. Warning! Resetting to the factory
defaults returns the device to its initial
settings, as it was when you purchased
it, and erases any saved information.
Formatting an MMC/SD enables you to
erase an MMC/SD without connecting
to your PC.
1. Press .
2. Press .
3. Press or to highlight the one
you want and then press EINGABE.
Format MMC/SD Card erases all
information from an installed
MMC/SD.
Restore Factory Default Settings resets
all settings to what they were the
rst time you turned on your device.
You are asked to conrm the
selected action.
4. Press to conrm or
to cancel.
Using the Library Using the Library
*This includes any titles available on
MMC/SD cards inserted into your device.
LDS-1990_RevA_eng.indd 14LDS-1990_RevA_eng.indd 14 3/4/09 8:02:20 PM3/4/09 8:02:20 PM

15
At the Library, press to display
the Settings List. From the Settings List,
you can change your user preferences,
game settings, date and time settings,
and view the version and identication
information. For information regarding
your game settings, please see “Game
Settings”on page 43. For information
regarding your date and time settings,
please see“Setting the Date and Time”
on page 46. Press or to highlight
the menu item you want and then press
EINGABE to select it.
User Preferences
1. Press .
2. Press .
3. Press or to highlight User
Preferences and then press
EINGABE.
4. Press or to move to
Contrast, Font Size, Language,
Learn a Word, Auto-shuto,
Justication, or Margins.
Contrast determines how dark or
light the screen is.
Font Size determines how large or
small the text is in this device.
Language determines the language
used for helptext, menu items and
pop-up messages.
Learn a Word determines whether or
not you see a word every time you
turn on your device.
Auto-shuto determines how long
your device stays on if you forget to
turn it o.
Justication determines whether or
not the text of your books is fully
justied.
Margins determines whether or not
books have margins.
5. Press to open the menu of
options.
Note: For Contrast, there is no menu
of options; and simply adjust
the screen contrast when the pointer
is there.
6. Press or to move the highlight
to your choice.
7. Press or EINGABE to accept the
setting.
Press to exit the menu without
changing the setting.
8. Press or EINGABE to return to
the Settings List.
Changing the Settings Changing the Settings
LDS-1990_RevA_eng.indd 15LDS-1990_RevA_eng.indd 15 3/4/09 8:02:21 PM3/4/09 8:02:21 PM

16
Changing the Settings Changing the Settings

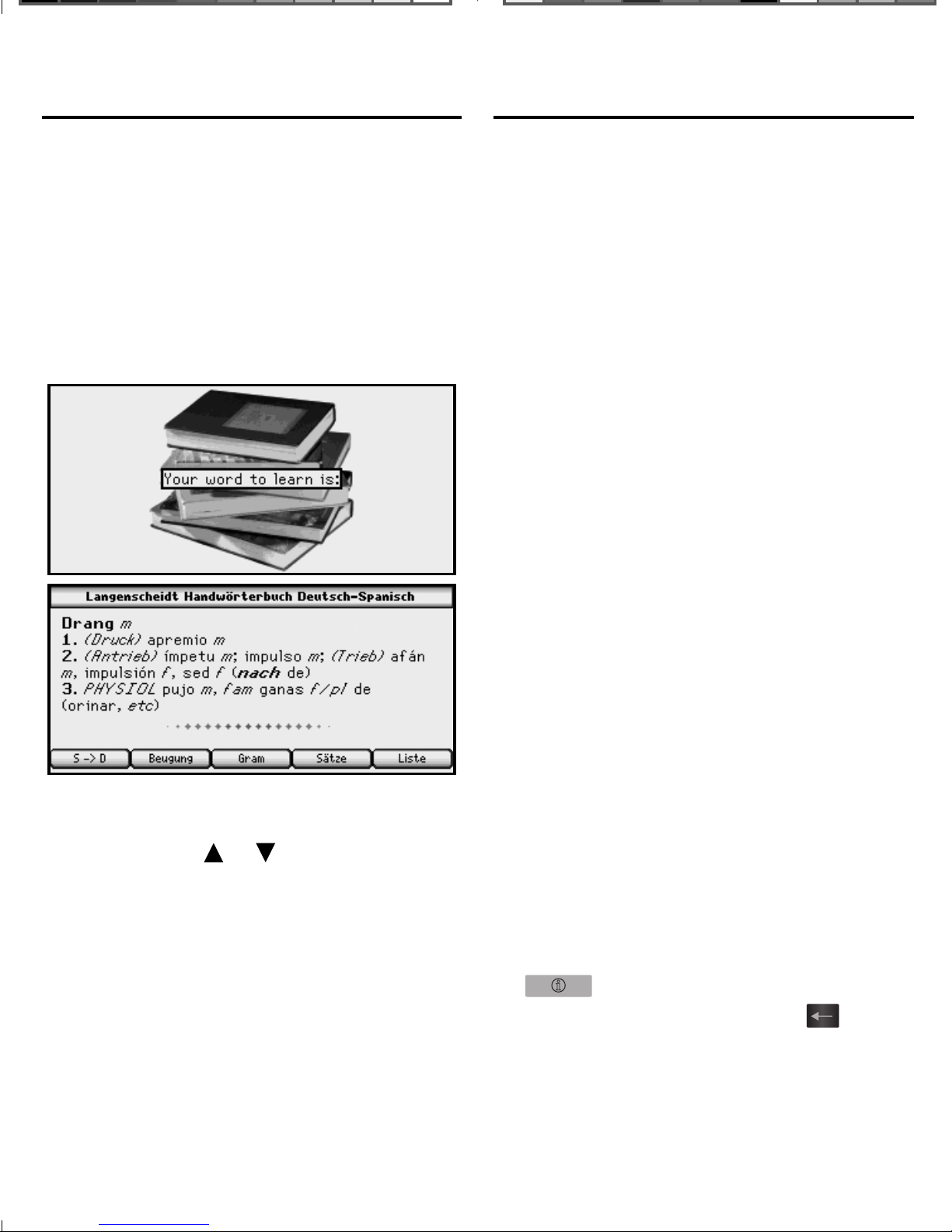

Learn a Word✓
Your LDS-1990 comes with a Learn
a Word feature to help you increase
your Spanish or German vocabulary.
Each time you turn on your device,
you can see a dierent word taken
from one of the dictionaries in your
device.
From the User Preferences menu,
open the Learn a Word options
menu. Press or to highlight the
book you want to use and then press
EINGABE.
You can learn Spanish words from
the Langenscheidt Handwörterbuch
Spanisch-Deutsch or you can
learn German words from the
Langenscheidt Handwörterbuch
Deutsch-Spanisch.
Information
The information screen displays version
and identication information about
your LDS-1990 as well as your Personal
ID number (PID). You may be asked for
your PID when you register your device
or purchase books and other content
from Franklin or Mobipocket.
Help is Always at Hand✓
For additional assistance while you
use your device, a help message is
available at any screen by pressing
. Use the navigation button
to read the message. Press to
exit help. This information is also
available by selecting Tutorial in the
Library.
LDS-1990_RevA_eng.indd 16LDS-1990_RevA_eng.indd 16 3/4/09 8:02:21 PM3/4/09 8:02:21 PM

17
Selecting a Book Selecting a Book
In your LDS-1990, you can select
from a variety of reference material
that comes with your device. You can
look up Spanish translations using
the Langenscheidt Handwörterbuch
Spanisch-Deutsch, German
translations using the Langenscheidt
Handwörterbuch Deutsch-Spanisch,
and everyday and travel phrases in the
Spanish and German phrase books. You
can learn German and Spanish grammar
rules and topics.
1. Press .
The eBooks tab is displayed.
2. Press or to move the highlight
to Handwörterbuch Deutsch-
Spanisch and then press EINGABE
to select it.
Note: This is the method to select
any book or le in any of the tabs.
That is, use the navigation button
to scroll through your list of les,
and press EINGABE to open the
highlighted le.
Note: eNews is only available
through the Mobipocket Reader for
Franklin, made available through
the Franklin PC Desktop. For more
information on using your device
on your PC, please see“Using the
Franklin PC Desktop” on page 56.
LDS-1990_RevA_eng.indd 17LDS-1990_RevA_eng.indd 17 3/4/09 8:02:24 PM3/4/09 8:02:24 PM

18
After selecting Langenscheidt
Handwörterbuch Deutsch-Spanisch, you
see a word search screen. Type words at
this screen for instant access to all the
translations in this book.
Note: You can type and search for
words in all of the dictionaries in your
LDS-1990.
1. Begin to type a German word, for
example Eisenbahn.
As you type letters, the rst word in
the book that matches the letters
you type will move to the top of the
word list. You may not have to type
the entire word in order to nd the
one you want. In this example, note
that“Eisenbahn” appears on the
screen after you type“Eise”.
2. When the word you want is on the
screen, press until the word you
want is highlighted.
Or you can continue typing letters
until the word is complete and
the matching word in the list is
automatically highlighted.
3. Press EINGABE to look it up.
4. Use the navigation button to read
the entire denition.
Press to hear the word.
5. Press CLEAR when done.
Looking Up a Word Looking Up a Word
LDS-1990_RevA_eng.indd 18LDS-1990_RevA_eng.indd 18 3/4/09 8:02:24 PM3/4/09 8:02:24 PM

19
Soft Keys in the✓Langenscheidt
Handwörterbuch Spanisch-
Deutsch or Langenscheidt
Handwörterbuch Deutsch-
Spanisch
While using the Langenscheidt
Spanish-German and German-
Spanish dictionaries, at any given
moment, up to ve extra functions
are available. For example, in the
entry for“Eisenbahn”, you see the
following Soft Keys:
Press… To…
* go to the empty Spanish
word search screen.
(Conj) look up
any inections for
“Eisenbahn”.
(Grammar) go to
a grammar topic
describing nouns.
(Phrases) nd phrases
containing“Eisenbahn”.
(List) add“Eisenbahn”to
My German Vocabulary
List.
Please remember, the Soft Keys
vary based on the book you are in.
These are the Soft Keys while in
the Langenscheidt Handwörterbuch
Deutsch-Spanisch.
Note: When there is no active word,
for example at an empty word search
screen, (Grammar) goes
to the main menu of the Grammar
Guide, (List) displays My
Vocabulary List, (Idioms)
goes to the idiom search screen, and
(Phrases) goes to the empty
word search screen of the phrase
book.
Spell Correction✓
If you type a misspelled word,
inected form, or a word not in a
book, nothing in the word list will
be highlighted as a match. Press
EINGABE to view a list of possible
spelling corrections for the word as
you typed it.
Looking Up a Word Looking Up a Word
* In the Langenscheidt Handwörterbuch
Spanisch-Deutsch, this item reads and
goes to the empty German word search screen.
LDS-1990_RevA_eng.indd 19LDS-1990_RevA_eng.indd 19 3/4/09 8:02:25 PM3/4/09 8:02:25 PM
