FREE MOTION Epic HIP AB User manual

Part No. GZ7345 R0206A Printed in USA © 2006 ICON IP, Inc.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Model No. GZFI8093.4
Serial No.
Write the serial number in the
space above for future reference.
Serial Number
Decal
(inside tower)
QUESTIONS?
At FreeMotion Fitness, we are
committed to providing com-
plete customer satisfaction. If
you have questions, see HOW
TO CONTACT CUSTOMER
CARE on the back cover of this
manual.
Visit our website at
www.freemotionfitness.com
HOW TO CONTACT CUSTOMER CARE
If you have questions after reading this manual, or if you require assistance, please contact Customer Care at
the address and phone number listed below. Please be prepared to give the following information:
• The MODEL NUMBER of the product (GZFI8093.4).
• The NAME of the product (FREEMOTION EPIC HIP AB/AD strength equipment).
• The SERIAL NUMBER of the product (see the front cover of this manual).
• When ordering replacement parts, please also give the KEY NUMBER and DESCRIPTION of the part(s) (see
the PART LIST and the EXPLODED DRAWING on pages 14 and 15 of this manual).
Customer Care: 1-800-201-2109, Monday–Friday, 8 a.m.–5 p.m. Mountain Time
FreeMotion Fitness, Inc. • 1096 Elkton Dr., Suite 600 • Colorado Springs, CO 80907
OWNER’S
MANUAL

EXPLODED DRAWING—Model No. GZFI8093.4 R0206A
40
17
51
51
15
1
37
38
64
37
38
64
2
32
62
62
66
39
3
17
7
41
5
51
91
44
45
45
89
69
4
35
71
50
10
9
12
35
34
11
34
74 34
74
31
55
38
37
51
37 51
38
55
26
26
8
28
28
67
16
87
87
37
37 38
38
65
2122
10
34
19
60
34
34
58
58
58
55
36
51
23
54
54
54
34
27
53
39
54
89 89
34
89
35
34
70
26
48
48
77
76
33
33 33
33
75
75 75
18
34
35
9
6
83
83
83
83
56
56
52
49
33
33
24
78
20
37
35
25
29
30
13
14
35
78
68
46
61
61
34
88
51
71
72 72
43
42
42
34
59
57
63
94
79
79
84
94
90
89
60
87
87
47
47
47
47
47
47
47
95
95
95
95
95
82 82
82
82
33
33
85
86
85
86
81
81
51 96
92
93
93 92
93
92
92
93
81
81
80
73
66
70
52
152
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO CONTACT CUSTOMER CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
TABLE OF CONTENTS

14
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.
Key No. Qty. Description Key No. Qty. Description
1 1 Base
21 Right Arm
3 1 Left Arm
4 2 Weight Guide
5 1 Tower
6 1 Long Panel
7 1 Short Panel
8 1 Weight Rod
9 2 Leg Pad Frame
10 2 Short Pivot Rod
11 1 Medium Pivot Rod
12 1 Long Pivot Rod
13 1 Weight Rod Nut
14 1 Star Washer
15 1 Right Handle
16 1 Left Handle
17 2 Black Handgrip
18 1 Selector Frame
19 1 Selector Bracket
20 1 Pulley Bracket
21 1 Pulley Plate
22 1 Large Cam
23 1 Small Cam
24 1 Pulley Arm
25 1 Rod Washer
26 29 Guide Bushing
27 14 Weight
28 2 Weight Bumper
29 1 Long Panel Frame
30 1 Short Panel Frame
31 1 Cover
32 1 Tower Cap
33 14 3/8" x 1/2" Button Screw
34 12 Pivot Bearing
35 6 Snap Ring
36 2 Large Bumper
37 7 Pulley
38 6 Cable Guard
39 1 Backrest
40 1 Seat
41 1 Yellow Handgrip
42 2 Rod End
43 1 Connecting Rod
44 1 1" Spacer
45 2 Bushing
46 1 Tower Cable
47 7 1" Nylon Washer
48 2 Trim
49 1 Backrest Bracket
50 1 Arm Pin
51 9 3/8" Nylon Locknut
52 4 Set Screw
53 1 3/8" x 6 1/2" Non-patch Bolt
54 5 3/8" x 1" Non-patch Screw
55 3 3/8" x 2" Bolt
56 2 Wingnut
57 1 Weight Cable
58 4 3/8" x 1" Non-patch Flat Head
Screw
59 1 Coupler Cover
60 3 3/8" x 1 1/4" Socket Bolt
61 2 1/4" x 3/8" Set Screw
62 2 1/4" x 1" Button Bolt
63 1 Short Rod End
64 2 3/8" x 1 1/4" Hex Bolt
65 2 3/8" x 2 3/4" Bolt
66 4 Guide Rod Nut
67 2 1/2" x 1 1/4" Socket Bolt
68 1 3/8" x 2 1/4" Bolt
69 1 Selector Handle
70 2 Guide Bushing
71 2 1/2" x 1 3/4" Socket Screw
72 2 1/2" Jamnut
73 1 Top Weight
74 2 Leg Pad
75 4 Tower Foot
76 1 Anchor Strap
77 1 Weight Pin
78 2 Frame Foot
79 2 1/2" Fine-thread Nut
80 2 Spring
81 4 1/2" Washer
82 4 5/16" Washer
83 4 Rivet
84 4 Guide Washer
85 2 Wave Washer
86 2 1" Steel Washer
87 4 3/8" x 1 3/4" Bolt
88 1 3/8" x 1" Bolt
89 6 3/8" Nylon Jamnut
90 1 3/8" x 1 1/4" Fine-thread Set Screw
91 1 3/8" x 1 1/2" Button Bolt
92 8 #8 x 1/2" Screw
93 4 Bumper
94 2 3/8" Fine-thread Nut
95 6 Serrated Washer
96 1 Threaded Stud
# 1 Owner’s Manual
PART LIST—Model No. GZFI8093.4 R0206A
If replacement parts are needed, or if parts are missing or damaged, see HOW TO CONTACT CUSTOMER
CARE on the back cover of this manual.
3
1. Read all instructions in this manual before
using the strength equipment. Use the
strength equipment only as described in this
manual.
2. It is the purchaser’s responsibility to ensure
that there is enough space around the
strength equipment for the intended exer-
cise. Do not crowd the strength equipment.
3. Using the anchor strap to provide maximum
stability, anchor the strength equipment to
the floor where required or whenever possi-
ble.
4. Use the strength equipment only on a level
surface. Cover the floor beneath the strength
equipment to protect the floor.
5. It is the responsibility of the owner to ensure
that all users of the strength equipment are
adequately informed of all precautions, have
read and understood all warning and caution
labels, and are informed of how to use the
strength equipment properly.
6. Keep children under 12 and pets away from
the strength equipment at all times.
7. Always wear athletic shoes for foot protec-
tion while exercising.
8. Keep hands and feet away from moving
parts. Do not lean on or rest your hands on
the strength equipment when it is in use.
9. All users of the strength equipment should
be instructed to report any injury or strength
equipment irregularity to facility staff imme-
diately.
10. Make sure the weight pin is completely
inserted into one of the weight plates.
11. Check all cables, cable connections, and pul-
leys before each use of the strength equip-
ment. Make sure all parts are properly tight-
ened. Replace any worn parts immediately.
12. Make sure the cable remains on the pulleys
at all times. If the cable binds while you are
exercising, stop immediately and make sure
the cable is on the pulleys and nothing is
interfering with the cable or pulleys. Replace
all cables at least every two years.
13. The strength equipment is designed to sup-
port a maximum user weight of 350 lbs. (160
kg).
14. Keep the strength equipment indoors, away
from moisture and dust. Do not put the
strength equipment in a garage or covered
patio, or near water.
15. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool-
ing down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the strength equipment.
IMPORTANT PRECAUTIONS

13
NOTESWARNING DECAL PLACEMENT
4
The decals shown below have been placed
on the strength equipment in the indicated
locations. If a decal is missing or illegible,
see HOW TO CONTACT CUSTOMER CARE on
the back cover of this manual and order a free
replacement decal. Apply the decal in the
location shown.
Decal 1
Shown at 70%
GZ7003
Decal 4
Shown at 85%
Decal 3
Decal 2
GZ7026
Decal 2
Decal 4
Decal 3
Decal 1

12
CABLE DIAGRAM
The cable diagram shows the proper route of the
cables. Use the diagram to make sure that the cables
and the cable guards have been assembled correctly.
If the cables have not been correctly routed, the
strength equipment will not function properly and
damage may occur. The numbers show the correct
route of the cables. Make sure that the cable
guards do not touch or bind the cables.
Tower Cable (46)
Weight Cable (57)
4
1
3
6
5
2
7
1
8
3
2
Assembled Dimensions:
Height: 62 in. (1.57 m)
Width: 38 in. (0.97 m)
Depth: 67 in. (1.70 m)
5
Base
Anchor Strap
Handle
Backrest
Weight
Weight Pin
Leg Pad
Seat
Tower
BEFORE YOU BEGIN
Thank you for selecting the FREEMOTION EPIC™HIP
AB/AD strength equipment. The strength equipment’s
stylish ergonomic design and never-before-seen fea-
tures improve upon traditional strength training. The
innovative features and quality construction provide a
reliable product for your club. And the advanced solu-
tions to isolating individual muscle groups make the
HIP AB/AD strength equipment a key tool for members
to reach their goals.
For your benefit, read this manual carefully before
using the strength equipment. If you have questions
after reading this manual, see HOW TO CONTACT
CUSTOMER CARE on the back cover of this manual. To
help us assist you, please note the product model
number and serial number before calling. The model
number is GZFI8093.4. The serial number can be
found on a decal attached to the strength equipment
(see the front cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.

11
This section explains how to adjust the strength equipment. Make sure all parts are properly tightened each time
the strength equipment is used. Replace any worn parts immediately.
6
ADJUSTING THE RESISTANCE
To change the amount of resistance for your workout,
insert the weight pin into the desired weight. Make
sure that the weight pin is fully inserted into the
weight.
ADJUSTMENTS
ADJUSTING THE ARMS
To change the position of the arms, pull the selector
handle and move the arms to the desired position.
Then, reengage the arm pin into the selector bracket.
Selector
Handle
Selector
Bracket
Arm
Pin
Arms
For required parts, see HOW TO CONTACT CUS-
TOMER CARE on the back cover of this manual.
1. Remove the wingnuts under the tower cap and
remove the tower cap from the tower.
2. Remove the guide rod nut and washer from the
top of each guide rod.
3. Lift the coupler cover and loosen the four set
screws—this will release the cable.
4. Lift the guide rods out of the top of the tower.
5. Remove the rod nut, rod star washer, and rod
washer from the top of the weight tube. Lift and
rotate the top weight, and remove it through the
front opening of the tower.
6. Servicing the weight stack involves replacing the
two guide bushings and the weight insert in the
top weight. First, use a punch to drive the two
existing guide bushings and weight insert out of
the top weight.
7. To insert the new bushings and weight insert,
hold a bushing square to the face of one of the
holes in the top weight, place a protective piece
of wood on top of the bushing, and lightly tap the
bushing into place. The bushing should be flush
with the surface. Repeat with the other bushing
and weight insert.
8. Replace the top weight. Next, tighten the rod
nut, rod star washer,and rod washer onto the
weight tube.
9. Reattach the cable to the top weight coupler.
Retighten the four set screws into the threaded
holes. Tighten the set screws equally until they
contact the cable. Then, tighten each screw
alternately 1/4 turn, until all are set to 85
inch/pounds (9.6 Newton-meters).
10. Clean and lubricate the guide rods by wiping
them with a soft cloth containing a lightweight
motor oil, 10W-40 or 10W-30 weight. Apply only a
light coating over the entire length. Note: Do not
use TEFLON®or silicone-based lubricants.
11. Reinsert the guide rods through the top of the
tower and into the weight stack.
Note: If the weight stack has shifted, use a
short bar to realign the holes in the weight
plates. Hold the weight plates while inserting
the guide rods.
12. Reattach the guide rods to the top of the frame
with the two guide rod nuts and washers.
13. Insert the weight pin into the top weight. Pull the
handle, lifting the top weight all of the way to the
top. Slowly return the handle to the resting posi-
tion. If the top weight sticks, loosen one of the
guide rod screws. Lift the top weight to the top
again. Retighten the guide rod bolt. Check the
full travel again and readjust the guide screws as
necessary.
14. While slowly pulling the handle, have someone
check the cable guard on the top weight to
ensure that it is not dragging or rubbing on the
cable.
15. Replace the tower cap and retighten the
wingnuts onto the bolts.
WARNING: Do not force the
guide rods into the weights; doing so will
damage the bushings and weight inserts.
SERVICING THE WEIGHT STACK
Weight
Insert
Guide
Bushings
Top Weight
Top Weight
Coupler
Weight
Pin
Weight

10
Pulley Adjustment—
Tools required: 9/16" open or box-end
wrench//spanner, 5/16" hex key
1. Loosen the nut hold-
ing the pulley in the
“U”-bracket.
2. To increase the ten-
sion, slide the pulley
up in the slot. To
decrease the tension,
slide the pulley down.
3. Tighten the nut and check the tension as
described in CABLE TENSION CHECK, on page
8. If necessary, readjust the pulley.
Cable End Adjustment—
Tools required: 9/16" open or box-end
wrench/spanner
1. Loosen the nut on the
end of the cable, over
the “U”-bracket.
2. Turn the threaded end
of the cable to adjust
the amount of slack in
the cable:
• If more slack is
needed in the cable,
turn the end of the
cable counter-clockwise, out of the “U”-bracket.
•If less slack is needed in the cable, turn the end
of the cable clockwise, into the “U”-bracket.
3. Retighten the nut on the end of the cable,
against the “U”-bracket.
Pulley
Slot
“U”-bracket
“U”-bracket Nut
Nut
CABLE GUARDS
Check for alignment periodically to ensure that cable
guards are not rubbing on the cable and that they are
performing their intended duty. If the alignment is not
proper, loosen the bolt slightly, readjust the cable
guard as necessary, and retighten the bolt.
Correct Alignment
Incorrect Alignment
Rubbing Rubbing
Out of
Alignment
Guards Guards
Cable
Cable
Pulley
7
DAILY
1. Upholstery—General cleaning:
•Wipe using a soft cloth dampened with a light
solution of mild soap and warm water.
•If necessary, use a soft bristle brush with the
cleaning solution.
•Rinse thoroughly using a soft cloth dampened
with clean water and dry thoroughly.
2. Upholstery—Difficult stains:
•Spray the stain with a non-abrasive household
cleaner such as FORMULA 409®cleaner,
SIMPLE GREEN®,or a similar product.
•Rub the area gently and let it sit for a few min-
utes.
•Rinse thoroughly using a soft cloth dampened
with clean water and dry thoroughly.
•Repeat if necessary using a soft bristle brush.
Optional method for difficult stains:
•Rub the area gently using a soft cloth damp-
ened with rubbing alcohol.
•Rinse thoroughly using a soft cloth dampened
with clean water and dry thoroughly.
CAUTION: When using any cleaning product, try
it first in an inconspicuous place to ensure that
there is no damage to the material. Follow the
directions and adhere to the safety precautions of
the manufacturer of each cleaning product used.
FreeMotion Fitness and its vendors cannot be
held liable for damage or injuries resulting from
the use or misuse of cleaning products.
3. Frames:
•Wipe using a soft cloth dampened with a light
solution of mild soap and warm water.Rinse
thoroughly using a soft cloth dampened with
clean water and dry thoroughly.
Important: Do not use abrasive cleaners
because they may scratch the equipment. Strong
cleaners and abrasives will damage decals. Use
caution around decals. Do not use solvents such
as lacquer thinner,kerosene, gasoline, or similar
liquids.
WEEKLY
1. Hardware:
•Check all nuts and bolts. Tighten them as
required. Important: All FREEMOTION EPIC
cushions are fabricated using dense plywood
with tee-nuts installed for bolting to the machine
framework. Because these tee-nuts are held by
the plywood, they will not withstand the torque
that standard nuts and bolts will. Therefore,
when tightening the cushion bolts, turn them
only until they are snug and the cushion does
not move or feel loose. Overtightening may strip
the tee-nuts from the plywood and make it
impossible to remove the cushion in the future.
2. Cables:
•Check all cables for proper tension.
•Check the entire length of the cable by pulling
each handle individually to its fully extended
position and inspecting the cable that is
exposed on the exterior of the machine, as well
as the cable inside of the cut stack tower.
•Run your fingers along the cable, paying close
attention at the bends and attachment points.

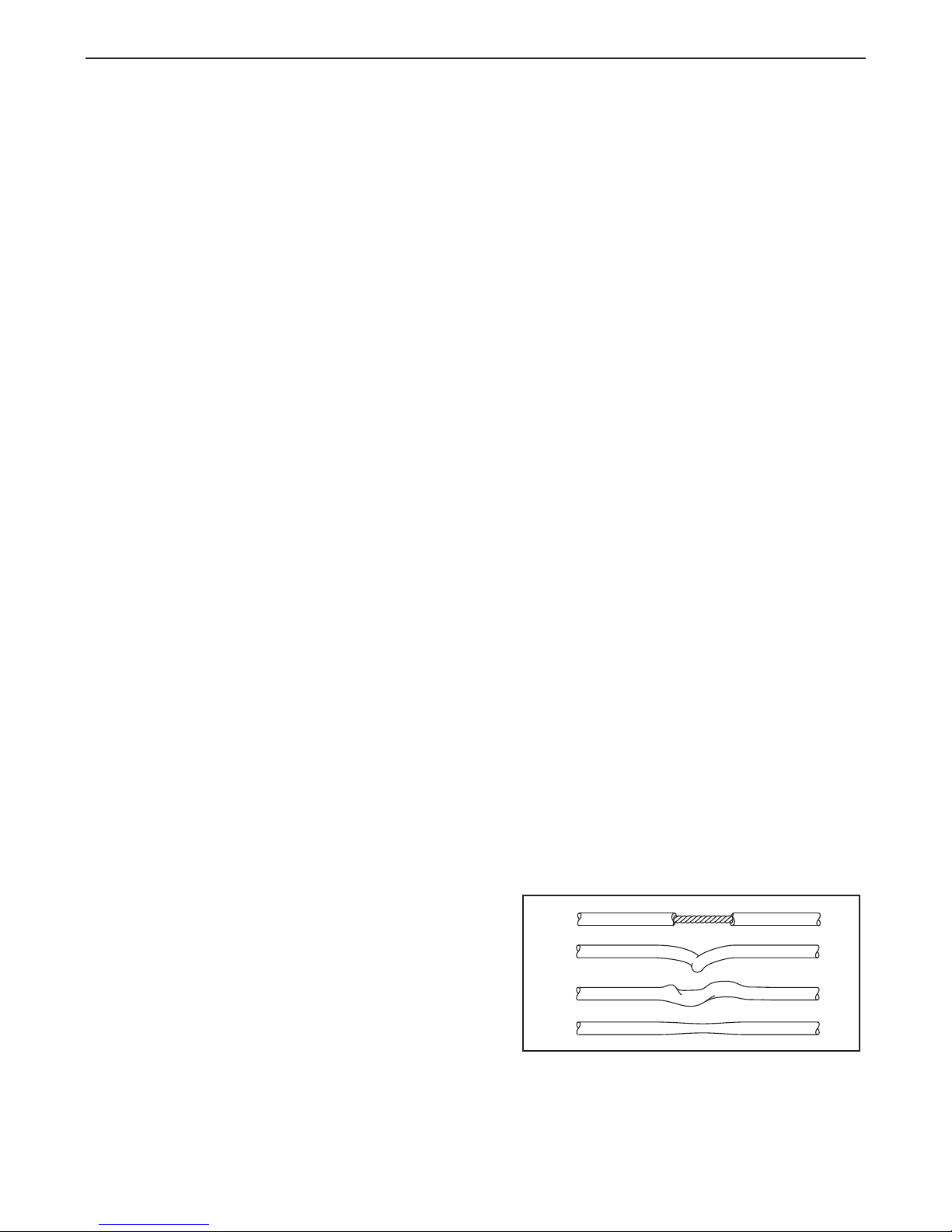

•Watch for the following conditions, which may
indicate a worn cable in need of replacement:
A. torn or split cable sheath that exposes the
cable
B. kinked or severely bent cable
C. curled or twisted sheath
D. stretched cable sheath, showing a thinning
cross-section
MAINTENANCE
Itis important for safe and trouble-free operation of your FREEMOTION EPIC strength equipment to perform
routine preventive maintenance on a regular basis. Instruct all personnel to perform equipment inspection and
maintenance requirements. Personnel must record and report any accident. To maintain the strength equipment’s
warranty, use only FREEMOTION EPIC parts for repair or replacement. If there are any questions or concerns,
see HOW TO CONTACT CUSTOMER CARE on the back cover of this manual.
SCHEDULED MAINTENANCE
A
B
D
C

9
8
MONTHLY
1. Grips:
•Check and replace as needed.
YEARLY OR AS REQUIRED
1. Weight Stack Guide Rods:
•Clean and lubricate the full length by wiping
using a soft cloth containing a lightweight
motor oil, 10W-40 or 10W-30 weight. Only a
light coating over the entire length is needed.
Note: Do not use TEFLON®or silicone-
based lubricants.
CABLE TENSION CHECK
1. Insert the weight pin into the top weight plate.
2. Slowly raise and lower the top weight by normal
machine use. The top weight should come to
rest just on top of the second weight when the
leg lever is returned to the resting position.
•If there is too much tension on the cable, the
top weight will not rest on the second weight,
and it may be difficult to insert the weight pin
into the weight plates.
•If there is not enough tension on the cable, the
top weight will not be lifted immediately when
the leg lever is lifted. Ideally, the leg lever/cable
should not move more than 1/2 in. (1.25 cm)
from the resting position before the top weight
begins to be lifted.
3. If there is too much or not enough tension on the
cable, adjust the cable as described in CABLE
ADJUSTMENTS.
CAUTION: After making any cable adjustment, pull
the handle using a light load and have someone
make sure that the cable is not derailed from a pulley
or rubbing on a guard (see CABLE GUARDS on
page 10).
INITIAL ADJUSTMENTS
Tower Pulley Adjustment–
Tools required: 5/16" hex key, 9/16" open end
wrench/spanner
1. Lift the top weight off the
weight stack and insert the
weight pin into the second
weight and the sixth hole
from the top of the weight
rod.
2. Loosen the locknut attach-
ing the pulley to the brack-
et in the top of the tower.
3. Move the pulley to the
appropriate location in the
bracket:
•If more slack is needed in
the cable, move the pul-
ley down.
• If less slack is needed in the cable, move the
pulley up.
4. Make sure that the cable guard is properly ori-
ented (see CABLE GUARDS) and retighten the
locknut attaching the pulley to the bracket.
5. Lift the top weight and remove the weight pin.
Lower the top weight so that it rests on the sec-
ond weight.
6. Readjust as necessary.
ADDITIONAL ADJUSTMENTS
Top Weight Adjustment—
Tools required: 5/32” hex key
1. If the cable needs to be shortened 3/4” (2 cm) or
more, follow the instructions in step 1 at the left.
Then, go to step 2 below.
2. See the drawing in step 2 at the left. Loosen the
locknut and move the pulley to the bottom of the
slot.
3. Lift the coupler cover from the top weight coupler.
Loosen but do not remove the two set screws
from each side of the weight coupler.
4. Pull the cable from the top weight coupler.
Determine the amount the cable needs to be
shortened and cut that much offthe end of the
cable. The cable must be long enough to be
held by the set screws without lifting the top
two weights off the third weight.
5. Cut the cable to the desired length and strip 1”
(2.5 cm of the vinyl sheeting from the cut end of
the cable.
6. Insert the cable into the top weight coupler until
all four set screws can be tightened against the
cable. Tighten each set screw alternately until all
four set screws have been tightened to 85
inch/pounds (9.6 Newton-meters).
7. Lower the coupler cover over the top weight
coupler.
CABLE ADJUSTMENTS
Set Screws
Cable
Top Weight
Coupler
Coupler Cover
Locknut

9
8
MONTHLY
1. Grips:
•Check and replace as needed.
YEARLY OR AS REQUIRED
1. Weight Stack Guide Rods:
•Clean and lubricate the full length by wiping
using a soft cloth containing a lightweight
motor oil, 10W-40 or 10W-30 weight. Only a
light coating over the entire length is needed.
Note: Do not use TEFLON®or silicone-
based lubricants.
CABLE TENSION CHECK
1. Insert the weight pin into the top weight plate.
2. Slowly raise and lower the top weight by normal
machine use. The top weight should come to
rest just on top of the second weight when the
leg lever is returned to the resting position.
•If there is too much tension on the cable, the
top weight will not rest on the second weight,
and it may be difficult to insert the weight pin
into the weight plates.
•If there is not enough tension on the cable, the
top weight will not be lifted immediately when
the leg lever is lifted. Ideally, the leg lever/cable
should not move more than 1/2 in. (1.25 cm)
from the resting position before the top weight
begins to be lifted.
3. If there is too much or not enough tension on the
cable, adjust the cable as described in CABLE
ADJUSTMENTS.
CAUTION: After making any cable adjustment, pull
the handle using a light load and have someone
make sure that the cable is not derailed from a pulley
or rubbing on a guard (see CABLE GUARDS on
page 10).
INITIAL ADJUSTMENTS
Tower Pulley Adjustment–
Tools required: 5/16" hex key, 9/16" open end
wrench/spanner
1. Lift the top weight off the
weight stack and insert the
weight pin into the second
weight and the sixth hole
from the top of the weight
rod.
2. Loosen the locknut attach-
ing the pulley to the brack-
et in the top of the tower.
3. Move the pulley to the
appropriate location in the
bracket:
•If more slack is needed in
the cable, move the pul-
ley down.
• If less slack is needed in the cable, move the
pulley up.
4. Make sure that the cable guard is properly ori-
ented (see CABLE GUARDS) and retighten the
locknut attaching the pulley to the bracket.
5. Lift the top weight and remove the weight pin.
Lower the top weight so that it rests on the sec-
ond weight.
6. Readjust as necessary.
ADDITIONAL ADJUSTMENTS
Top Weight Adjustment—
Tools required: 5/32” hex key
1. If the cable needs to be shortened 3/4” (2 cm) or
more, follow the instructions in step 1 at the left.
Then, go to step 2 below.
2. See the drawing in step 2 at the left. Loosen the
locknut and move the pulley to the bottom of the
slot.
3. Lift the coupler cover from the top weight coupler.
Loosen but do not remove the two set screws
from each side of the weight coupler.
4. Pull the cable from the top weight coupler.
Determine the amount the cable needs to be
shortened and cut that much offthe end of the
cable. The cable must be long enough to be
held by the set screws without lifting the top
two weights off the third weight.
5. Cut the cable to the desired length and strip 1”
(2.5 cm of the vinyl sheeting from the cut end of
the cable.
6. Insert the cable into the top weight coupler until
all four set screws can be tightened against the
cable. Tighten each set screw alternately until all
four set screws have been tightened to 85
inch/pounds (9.6 Newton-meters).
7. Lower the coupler cover over the top weight
coupler.
CABLE ADJUSTMENTS
Set Screws
Cable
Top Weight
Coupler
Coupler Cover
Locknut

10
Pulley Adjustment—
Tools required: 9/16" open or box-end
wrench//spanner, 5/16" hex key
1. Loosen the nut hold-
ing the pulley in the
“U”-bracket.
2. To increase the ten-
sion, slide the pulley
up in the slot. To
decrease the tension,
slide the pulley down.
3. Tighten the nut and check the tension as
described in CABLE TENSION CHECK, on page
8. If necessary, readjust the pulley.
Cable End Adjustment—
Tools required: 9/16" open or box-end
wrench/spanner
1. Loosen the nut on the
end of the cable, over
the “U”-bracket.
2. Turn the threaded end
of the cable to adjust
the amount of slack in
the cable:
• If more slack is
needed in the cable,
turn the end of the
cable counter-clockwise, out of the “U”-bracket.
•If less slack is needed in the cable, turn the end
of the cable clockwise, into the “U”-bracket.
3. Retighten the nut on the end of the cable,
against the “U”-bracket.
Pulley
Slot
“U”-bracket
“U”-bracket Nut
Nut
CABLE GUARDS
Check for alignment periodically to ensure that cable
guards are not rubbing on the cable and that they are
performing their intended duty. If the alignment is not
proper, loosen the bolt slightly, readjust the cable
guard as necessary, and retighten the bolt.
Correct Alignment
Incorrect Alignment
Rubbing Rubbing
Out of
Alignment
Guards Guards
Cable
Cable
Pulley
7
DAILY
1. Upholstery—General cleaning:
•Wipe using a soft cloth dampened with a light
solution of mild soap and warm water.
•If necessary, use a soft bristle brush with the
cleaning solution.
•Rinse thoroughly using a soft cloth dampened
with clean water and dry thoroughly.
2. Upholstery—Difficult stains:
•Spray the stain with a non-abrasive household
cleaner such as FORMULA 409®cleaner,
SIMPLE GREEN®,or a similar product.
•Rub the area gently and let it sit for a few min-
utes.
•Rinse thoroughly using a soft cloth dampened
with clean water and dry thoroughly.
•Repeat if necessary using a soft bristle brush.
Optional method for difficult stains:
•Rub the area gently using a soft cloth damp-
ened with rubbing alcohol.
•Rinse thoroughly using a soft cloth dampened
with clean water and dry thoroughly.
CAUTION: When using any cleaning product, try
it first in an inconspicuous place to ensure that
there is no damage to the material. Follow the
directions and adhere to the safety precautions of
the manufacturer of each cleaning product used.
FreeMotion Fitness and its vendors cannot be
held liable for damage or injuries resulting from
the use or misuse of cleaning products.
3. Frames:
•Wipe using a soft cloth dampened with a light
solution of mild soap and warm water.Rinse
thoroughly using a soft cloth dampened with
clean water and dry thoroughly.
Important: Do not use abrasive cleaners
because they may scratch the equipment. Strong
cleaners and abrasives will damage decals. Use
caution around decals. Do not use solvents such
as lacquer thinner,kerosene, gasoline, or similar
liquids.
WEEKLY
1. Hardware:
•Check all nuts and bolts. Tighten them as
required. Important: All FREEMOTION EPIC
cushions are fabricated using dense plywood
with tee-nuts installed for bolting to the machine
framework. Because these tee-nuts are held by
the plywood, they will not withstand the torque
that standard nuts and bolts will. Therefore,
when tightening the cushion bolts, turn them
only until they are snug and the cushion does
not move or feel loose. Overtightening may strip
the tee-nuts from the plywood and make it
impossible to remove the cushion in the future.
2. Cables:
•Check all cables for proper tension.
•Check the entire length of the cable by pulling
each handle individually to its fully extended
position and inspecting the cable that is
exposed on the exterior of the machine, as well
as the cable inside of the cut stack tower.
•Run your fingers along the cable, paying close
attention at the bends and attachment points.
•Watch for the following conditions, which may
indicate a worn cable in need of replacement:
A. torn or split cable sheath that exposes the
cable
B. kinked or severely bent cable
C. curled or twisted sheath
D. stretched cable sheath, showing a thinning
cross-section
MAINTENANCE
Itis important for safe and trouble-free operation of your FREEMOTION EPIC strength equipment to perform
routine preventive maintenance on a regular basis. Instruct all personnel to perform equipment inspection and
maintenance requirements. Personnel must record and report any accident. To maintain the strength equipment’s
warranty, use only FREEMOTION EPIC parts for repair or replacement. If there are any questions or concerns,
see HOW TO CONTACT CUSTOMER CARE on the back cover of this manual.
SCHEDULED MAINTENANCE
A
B
D
C

11
This section explains how to adjust the strength equipment. Make sure all parts are properly tightened each time
the strength equipment is used. Replace any worn parts immediately.
6
ADJUSTING THE RESISTANCE
To change the amount of resistance for your workout,
insert the weight pin into the desired weight. Make
sure that the weight pin is fully inserted into the
weight.
ADJUSTMENTS
ADJUSTING THE ARMS
To change the position of the arms, pull the selector
handle and move the arms to the desired position.
Then, reengage the arm pin into the selector bracket.
Selector
Handle
Selector
Bracket
Arm
Pin
Arms
For required parts, see HOW TO CONTACT CUS-
TOMER CARE on the back cover of this manual.
1. Remove the wingnuts under the tower cap and
remove the tower cap from the tower.
2. Remove the guide rod nut and washer from the
top of each guide rod.
3. Lift the coupler cover and loosen the four set
screws—this will release the cable.
4. Lift the guide rods out of the top of the tower.
5. Remove the rod nut, rod star washer, and rod
washer from the top of the weight tube. Lift and
rotate the top weight, and remove it through the
front opening of the tower.
6. Servicing the weight stack involves replacing the
two guide bushings and the weight insert in the
top weight. First, use a punch to drive the two
existing guide bushings and weight insert out of
the top weight.
7. To insert the new bushings and weight insert,
hold a bushing square to the face of one of the
holes in the top weight, place a protective piece
of wood on top of the bushing, and lightly tap the
bushing into place. The bushing should be flush
with the surface. Repeat with the other bushing
and weight insert.
8. Replace the top weight. Next, tighten the rod
nut, rod star washer,and rod washer onto the
weight tube.
9. Reattach the cable to the top weight coupler.
Retighten the four set screws into the threaded
holes. Tighten the set screws equally until they
contact the cable. Then, tighten each screw
alternately 1/4 turn, until all are set to 85
inch/pounds (9.6 Newton-meters).
10. Clean and lubricate the guide rods by wiping
them with a soft cloth containing a lightweight
motor oil, 10W-40 or 10W-30 weight. Apply only a
light coating over the entire length. Note: Do not
use TEFLON®or silicone-based lubricants.
11. Reinsert the guide rods through the top of the
tower and into the weight stack.
Note: If the weight stack has shifted, use a
short bar to realign the holes in the weight
plates. Hold the weight plates while inserting
the guide rods.
12. Reattach the guide rods to the top of the frame
with the two guide rod nuts and washers.
13. Insert the weight pin into the top weight. Pull the
handle, lifting the top weight all of the way to the
top. Slowly return the handle to the resting posi-
tion. If the top weight sticks, loosen one of the
guide rod screws. Lift the top weight to the top
again. Retighten the guide rod bolt. Check the
full travel again and readjust the guide screws as
necessary.
14. While slowly pulling the handle, have someone
check the cable guard on the top weight to
ensure that it is not dragging or rubbing on the
cable.
15. Replace the tower cap and retighten the
wingnuts onto the bolts.
WARNING: Do not force the
guide rods into the weights; doing so will
damage the bushings and weight inserts.
SERVICING THE WEIGHT STACK
Weight
Insert
Guide
Bushings
Top Weight
Top Weight
Coupler
Weight
Pin
Weight

12
CABLE DIAGRAM
The cable diagram shows the proper route of the
cables. Use the diagram to make sure that the cables
and the cable guards have been assembled correctly.
If the cables have not been correctly routed, the
strength equipment will not function properly and
damage may occur. The numbers show the correct
route of the cables. Make sure that the cable
guards do not touch or bind the cables.
Tower Cable (46)
Weight Cable (57)
4
1
3
6
5
2
7
1
8
3
2
Assembled Dimensions:
Height: 62 in. (1.57 m)
Width: 38 in. (0.97 m)
Depth: 67 in. (1.70 m)
5
Base
Anchor Strap
Handle
Backrest
Weight
Weight Pin
Leg Pad
Seat
Tower
BEFORE YOU BEGIN
Thank you for selecting the FREEMOTION EPIC™HIP
AB/AD strength equipment. The strength equipment’s
stylish ergonomic design and never-before-seen fea-
tures improve upon traditional strength training. The
innovative features and quality construction provide a
reliable product for your club. And the advanced solu-
tions to isolating individual muscle groups make the
HIP AB/AD strength equipment a key tool for members
to reach their goals.
For your benefit, read this manual carefully before
using the strength equipment. If you have questions
after reading this manual, see HOW TO CONTACT
CUSTOMER CARE on the back cover of this manual. To
help us assist you, please note the product model
number and serial number before calling. The model
number is GZFI8093.4. The serial number can be
found on a decal attached to the strength equipment
(see the front cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.

13
NOTESWARNING DECAL PLACEMENT
4
The decals shown below have been placed
on the strength equipment in the indicated
locations. If a decal is missing or illegible,
see HOW TO CONTACT CUSTOMER CARE on
the back cover of this manual and order a free
replacement decal. Apply the decal in the
location shown.
Decal 1
Shown at 70%
GZ7003
Decal 4
Shown at 85%
Decal 3
Decal 2
GZ7026
Decal 2
Decal 4
Decal 3
Decal 1

14
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.
Key No. Qty. Description Key No. Qty. Description
1 1 Base
21 Right Arm
3 1 Left Arm
4 2 Weight Guide
5 1 Tower
6 1 Long Panel
7 1 Short Panel
8 1 Weight Rod
9 2 Leg Pad Frame
10 2 Short Pivot Rod
11 1 Medium Pivot Rod
12 1 Long Pivot Rod
13 1 Weight Rod Nut
14 1 Star Washer
15 1 Right Handle
16 1 Left Handle
17 2 Black Handgrip
18 1 Selector Frame
19 1 Selector Bracket
20 1 Pulley Bracket
21 1 Pulley Plate
22 1 Large Cam
23 1 Small Cam
24 1 Pulley Arm
25 1 Rod Washer
26 29 Guide Bushing
27 14 Weight
28 2 Weight Bumper
29 1 Long Panel Frame
30 1 Short Panel Frame
31 1 Cover
32 1 Tower Cap
33 14 3/8" x 1/2" Button Screw
34 12 Pivot Bearing
35 6 Snap Ring
36 2 Large Bumper
37 7 Pulley
38 6 Cable Guard
39 1 Backrest
40 1 Seat
41 1 Yellow Handgrip
42 2 Rod End
43 1 Connecting Rod
44 1 1" Spacer
45 2 Bushing
46 1 Tower Cable
47 7 1" Nylon Washer
48 2 Trim
49 1 Backrest Bracket
50 1 Arm Pin
51 9 3/8" Nylon Locknut
52 4 Set Screw
53 1 3/8" x 6 1/2" Non-patch Bolt
54 5 3/8" x 1" Non-patch Screw
55 3 3/8" x 2" Bolt
56 2 Wingnut
57 1 Weight Cable
58 4 3/8" x 1" Non-patch Flat Head
Screw
59 1 Coupler Cover
60 3 3/8" x 1 1/4" Socket Bolt
61 2 1/4" x 3/8" Set Screw
62 2 1/4" x 1" Button Bolt
63 1 Short Rod End
64 2 3/8" x 1 1/4" Hex Bolt
65 2 3/8" x 2 3/4" Bolt
66 4 Guide Rod Nut
67 2 1/2" x 1 1/4" Socket Bolt
68 1 3/8" x 2 1/4" Bolt
69 1 Selector Handle
70 2 Guide Bushing
71 2 1/2" x 1 3/4" Socket Screw
72 2 1/2" Jamnut
73 1 Top Weight
74 2 Leg Pad
75 4 Tower Foot
76 1 Anchor Strap
77 1 Weight Pin
78 2 Frame Foot
79 2 1/2" Fine-thread Nut
80 2 Spring
81 4 1/2" Washer
82 4 5/16" Washer
83 4 Rivet
84 4 Guide Washer
85 2 Wave Washer
86 2 1" Steel Washer
87 4 3/8" x 1 3/4" Bolt
88 1 3/8" x 1" Bolt
89 6 3/8" Nylon Jamnut
90 1 3/8" x 1 1/4" Fine-thread Set Screw
91 1 3/8" x 1 1/2" Button Bolt
92 8 #8 x 1/2" Screw
93 4 Bumper
94 2 3/8" Fine-thread Nut
95 6 Serrated Washer
96 1 Threaded Stud
# 1 Owner’s Manual
PART LIST—Model No. GZFI8093.4 R0206A
If replacement parts are needed, or if parts are missing or damaged, see HOW TO CONTACT CUSTOMER
CARE on the back cover of this manual.
3
1. Read all instructions in this manual before
using the strength equipment. Use the
strength equipment only as described in this
manual.
2. It is the purchaser’s responsibility to ensure
that there is enough space around the
strength equipment for the intended exer-
cise. Do not crowd the strength equipment.
3. Using the anchor strap to provide maximum
stability, anchor the strength equipment to
the floor where required or whenever possi-
ble.
4. Use the strength equipment only on a level
surface. Cover the floor beneath the strength
equipment to protect the floor.
5. It is the responsibility of the owner to ensure
that all users of the strength equipment are
adequately informed of all precautions, have
read and understood all warning and caution
labels, and are informed of how to use the
strength equipment properly.
6. Keep children under 12 and pets away from
the strength equipment at all times.
7. Always wear athletic shoes for foot protec-
tion while exercising.
8. Keep hands and feet away from moving
parts. Do not lean on or rest your hands on
the strength equipment when it is in use.
9. All users of the strength equipment should
be instructed to report any injury or strength
equipment irregularity to facility staff imme-
diately.
10. Make sure the weight pin is completely
inserted into one of the weight plates.
11. Check all cables, cable connections, and pul-
leys before each use of the strength equip-
ment. Make sure all parts are properly tight-
ened. Replace any worn parts immediately.
12. Make sure the cable remains on the pulleys
at all times. If the cable binds while you are
exercising, stop immediately and make sure
the cable is on the pulleys and nothing is
interfering with the cable or pulleys. Replace
all cables at least every two years.
13. The strength equipment is designed to sup-
port a maximum user weight of 350 lbs. (160
kg).
14. Keep the strength equipment indoors, away
from moisture and dust. Do not put the
strength equipment in a garage or covered
patio, or near water.
15. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool-
ing down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the strength equipment.
IMPORTANT PRECAUTIONS

EXPLODED DRAWING—Model No. GZFI8093.4 R0206A
40
17
51
51
15
1
37
38
64
37
38
64
2
32
62
62
66
39
3
17
7
41
5
51
91
44
45
45
89
69
4
35
71
50
10
9
12
35
34
11
34
74 34
74
31
55
38
37
51
37 51
38
55
26
26
8
28
28
67
16
87
87
37
37 38
38
65
2122
10
34
19
60
34
34
58
58
58
55
36
51
23
54
54
54
34
27
53
39
54
89 89
34
89
35
34
70
26
48
48
77
76
33
33 33
33
75
75 75
18
34
35
9
6
83
83
83
83
56
56
52
49
33
33
24
78
20
37
35
25
29
30
13
14
35
78
68
46
61
61
34
88
51
71
72 72
43
42
42
34
59
57
63
94
79
79
84
94
90
89
60
87
87
47
47
47
47
47
47
47
95
95
95
95
95
82 82
82
82
33
33
85
86
85
86
81
81
51 96
92
93
93 92
93
92
92
93
81
81
80
73
66
70
52
152
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO CONTACT CUSTOMER CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
TABLE OF CONTENTS

Part No. GZ7345 R0206A Printed in USA © 2006 ICON IP, Inc.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Model No. GZFI8093.4
Serial No.
Write the serial number in the
space above for future reference.
Serial Number
Decal
(inside tower)
QUESTIONS?
At FreeMotion Fitness, we are
committed to providing com-
plete customer satisfaction. If
you have questions, see HOW
TO CONTACT CUSTOMER
CARE on the back cover of this
manual.
Visit our website at
www.freemotionfitness.com
HOW TO CONTACT CUSTOMER CARE
If you have questions after reading this manual, or if you require assistance, please contact Customer Care at
the address and phone number listed below. Please be prepared to give the following information:
• The MODEL NUMBER of the product (GZFI8093.4).
• The NAME of the product (FREEMOTION EPIC HIP AB/AD strength equipment).
• The SERIAL NUMBER of the product (see the front cover of this manual).
• When ordering replacement parts, please also give the KEY NUMBER and DESCRIPTION of the part(s) (see
the PART LIST and the EXPLODED DRAWING on pages 14 and 15 of this manual).
Customer Care: 1-800-201-2109, Monday–Friday, 8 a.m.–5 p.m. Mountain Time
FreeMotion Fitness, Inc. • 1096 Elkton Dr., Suite 600 • Colorado Springs, CO 80907
OWNER’S
MANUAL
