FREE MOTION GZFM6012.4 User manual

Visit our website at
www.freemotionfitness.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
OWNER’S MANUAL
Model No. GZFM6012.4
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal
(inside tower)
QUESTIONS?
At FreeMotion Fitness, we’re
committed to providing com-
plete customer satisfaction. If
you have questions, see HOW
TO CONTACT CUSTOMER
CARE on the back cover of this
manual.

2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
HOW TO CONTACT CUSTOMER CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
TABLE OF CONTENTS

3
1. Read all instructions in this manual before
using the strength machine. Use the strength
machine only as described in this manual.
2. It is the purchaser’s responsibility to ensure
that there is enough space around the
strength machine for the intended exercise.
Do not crowd the strength machine.
3. Using the two 9/16” anchor holes to provide
maximum stability, the strength machine
must be anchored to the floor where required
or whenever possible.
4. Use the strength machine only on a level sur-
face. Cover the floor beneath the strength
machine to protect the floor.
5. It is the responsibility of the owner to ensure
that all users of the strength machine are
adequately informed of all precautions, have
read and understood all warning and caution
labels, and are informed of how to use the
strength machine properly.
6. Keep children under 12 and pets away from
the strength machine at all times.
7. Keep hands and feet away from moving
parts. Do not lean on or rest your hands on
the strength machine when it is in use.
8. Always wear athletic shoes for foot protec-
tion while exercising.
9. All users of the strength machine should be
instructed to report any injury or strength
machine irregularity to facility staff immedi-
ately.
10. Make sure the weight pin is completely
inserted into one of the weight plates.
11. Make sure the handles are attached securely
before each use of the strength machine.
12. Check all cables, cable connections, and pul-
leys before each use of the strength machine.
Make sure all parts are properly tightened.
Replace any worn parts immediately.
13. Make sure the cable remains on the pulleys
at all times. If the cable binds while you are
exercising, stop immediately and make sure
the cable is on the pulleys and nothing is
interfering with the cable or pulleys.
14. The strength machine is designed to support
amaximum user weight of 160 kgs. (350 lbs.).
15. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool-
ing down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the strength machine.
IMPORTANT PRECAUTIONS

WARNING DECAL PLACEMENT
4
The decals shown below have been placed
on the strength machine in the indicated
locations. If a decal is missing or illegible,
see HOW TO CONTACT CUSTOMER CARE on
the back cover of this manual. Apply the decal
in the location shown.
Decal 1
Shown at 70%
PN GZ7003
Decal 4
Shown at 85%
Decal 3
PN GZ7008
Decal 2
Shown
at 50%
Decal 2
(Inside the
access cover)
Decal 5
PN GZ7026
Decal 5
Decal 4
Decal 3
Decal 3
Decal 1

Assembled Dimensions:
Height: 73 in./185 cm
Width: 42 in./107 cm
Depth: 76 in./193 cm
5
Adjustment Knob
Weights
Arm
Weight Pin
Handle
Base
Tower
Swivel Arm
BEFORE YOU BEGIN
Thank you for selecting the FREEMOTION®LIFT
strength machine. With unrestricted motion, you can
work your body’s muscle groups together—the same
way you do in real life—and train more specifically and
efficiently. Whether your goal is to tone your body,
build dramatic muscle size and strength, improve your
cardiovascular system, or train muscles for precise
patterns of movement, the LIFT strength machine will
help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the strength machine. If you have questions
after reading this manual, see HOW TO CONTACT
CUSTOMER CARE on the back cover of this manual. To
help us assist you, please note the product model
number and serial number before calling. The model
number is GZFM6012.4. The serial number can be
found on a decal attached to the strength machine
(see the front cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.

ADJUSTMENTS
This section explains how to adjust the strength machine. Make sure all parts are properly tightened each time
the strength machine is used. Replace any worn parts immediately.
6
ADJUSTING THE RESISTANCE
To change the amount of resistance for your workout,
insert the weight pin into the desired weight. Make
sure that the weight pin is fully inserted into the
weight stack.
Weight
Stack
Weight
Pin
Adjustment
Knob
Adjustment
Bracket
Extension
Arm
ADJUSTING THE EXTENSION ARMS
To adjust an extension arm, pull the adjustment knob
out as far as it will go. Move the arm to the desired
position and engage the adjustment knob into a hole
in the adjustment bracket (not shown).

7
MAINTENANCE
For safe and trouble-free operation of your FreeMotion Fitness®strength equipment, it is important to perform
routine preventative maintenance on a regular basis. Make sure that all parts are properly tightened each time
the strength machine is used. Replace any worn parts immediately. The strength machine can be cleaned with a
damp cloth and a mild, non-abrasive detergent. Do not use solvents.
Note: Instruct all personnel to perform equipment inspection and maintenance requirements. Personnel must
record and report any accident. For any questions or concerns, see HOW TO CONTACT CUSTOMER CARE
on the back cover of this manual.
Use only original FreeMotion Fitness parts for repair or replacement to maintain your machine’s warranty.
FreeMotion Fitness recommends the following procedures:
SCHEDULED MAINTENANCE
DAILY
1. Towers and Frames:
•Wipe with a light solution of mild soap and warm
water. Rinse and dry thoroughly.
Important: Do not use abrasive cleaners
because they may scratch the equipment. Strong
cleansers and abrasives will damage decals. Use
caution around decals. Do not use solvents such
as lacquer thinner,kerosene, gasoline, or similar
liquids.
CAUTION: When using any cleaning product, try
it first in an inconspicuous place to ensure there
is no damage to the material. Follow directions
and adhere to safety precautions of each manu-
facturer of cleaning agent used. FreeMotion
Fitness and its vendors cannot be held liable for
damage or injuries resulting from the use or mis-
use of cleaning products.
2. Stainless Steel Covers:
•Wipe with a light solution of mild soap and warm
water. Rinse and dry thoroughly.
•If desired, or to remove corrosion, use available
commercial stainless steel polishing com-
pounds. Follow manufacturers’ instructions.
3. Handles/Boots:
•Check all straps for wear.
•Visually check each strap along the full length
for signs of wear such as cuts, tears, or nicks.
Replace the strap immediately if necessary.
•A “fuzz” will appear on straps over time and is
not a concern unless it appears to be worn
through strands of the weave.
4. Straps with Rings:
•If a ring is pulling through the strap or tearing
away from the edge of the strap, replace imme-
diately.
•Check stitching points on straps for tears, worn
spots or separation. Replace if necessary as
required.

WEEKLY
1. Hardware:
•Check all nuts and bolts. Tighten them as
required.
2. Cables:
•Check all cables for proper tension.
•Check the entire length of the cable by pulling
each handle individually to its fully extended
position and inspecting the cable that is
exposed on the exterior of the machine, as well
as the cable inside of the cut stack tower.
•Run your fingers along the cable, paying close
attention at the bends and attachment points.
•Watch for the following conditions, which may
indicate a worn cable in need of replacement:
A. Torn or split cable sheath that exposes the
cable
B. Kinked or severely bent cable
C.Curled or twisted sheath
D.Stretched cable sheath, showing a thin-
ning cross-section
MONTHLY OR AS REQUIRED
1. Grips:
•Check and replace as needed.
2. Weight stack guide rods:
•Clean and lubricate the full length by wiping
using a soft cloth containing automotive engine
oil. Only a light coating over the entire length is
needed.
CABLE TENSION CHECK
1. Insert the weight pin into the top weight plate.
2. Slowly raise and lower the top weight by normal
machine use. The top weight should come to
rest just on top of the second weight when the
handle is returned to the resting position.
•If there is too much tension on the cable, the
top weight will not rest on the second weight,
and it may be difficult to insert the weight pin
into the weight plates.
•If there is not enough tension on the cable, the
top weight will not be lifted immediately when
one of the handles is pulled. Ideally, the han-
dle/cable should not move more than 1.3 cm
(1/2 in.) from the resting position before the top
weight begins to be lifted.
3. If there is too much or not enough tension on the
cable, adjust the cable as described in CABLE
ADJUSTMENTS on page 9.
ADJUSTMENT KNOB
If an adjustment knob sticks, it will need to be relubri-
cated. Disassemble the knob and apply a light coating
of lithium grease. Reassemble the knob as shown in
the diagram. If the adjustment knob still does not func-
tion properly, the spring may need to be replaced. To
order a new spring, see ORDERING REPLACEMENT
PARTS on the back cover of this manual.
8
A
B
D
C
Adjustment Knob Diagram
Adjustment
Pin Spring Housing Knob

9
CAUTION: After making any cable adjustment, pull
the handle using a light load and have someone make
sure that the cable is not derailed from a pulley or rub-
bing on a guard (see CABLE GUARDS on page 10).

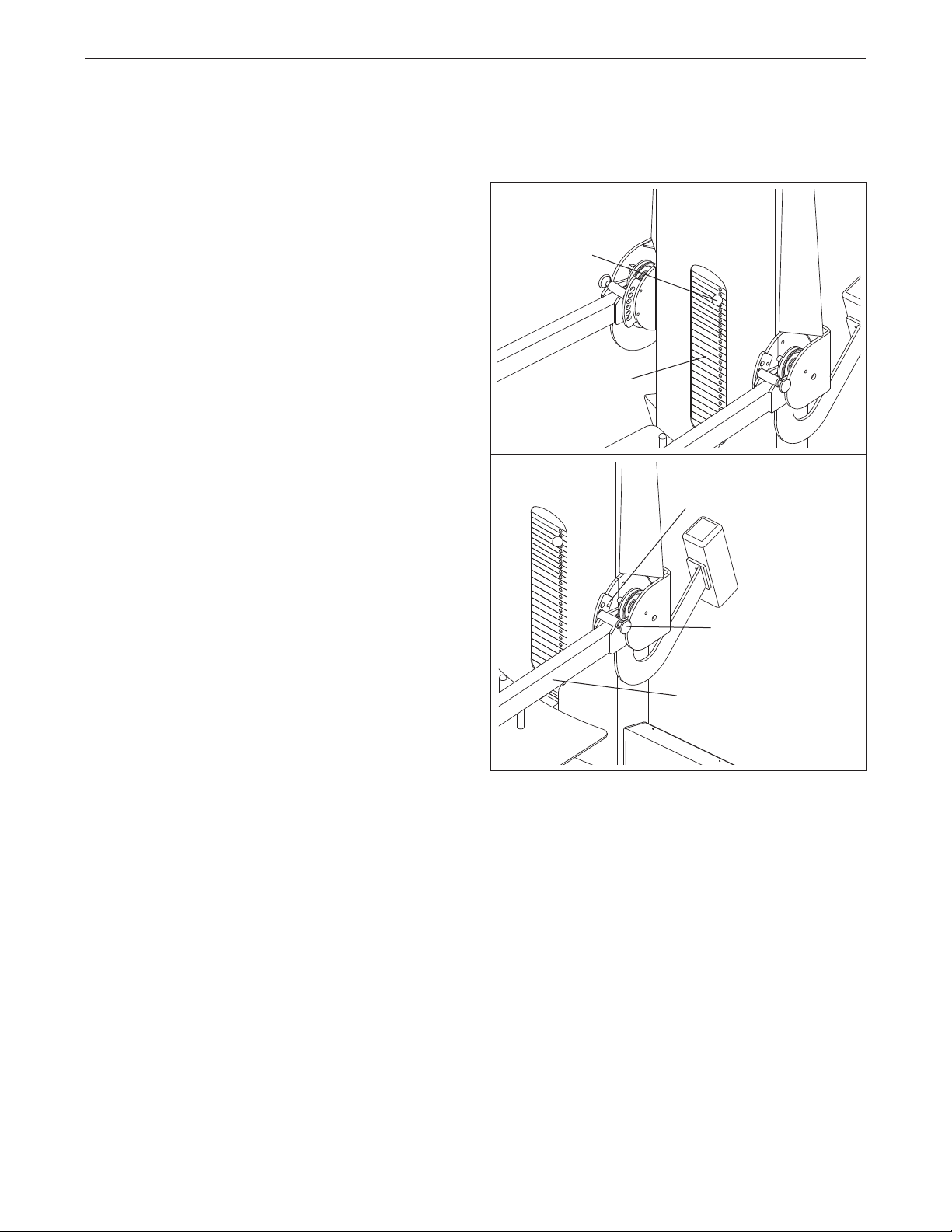

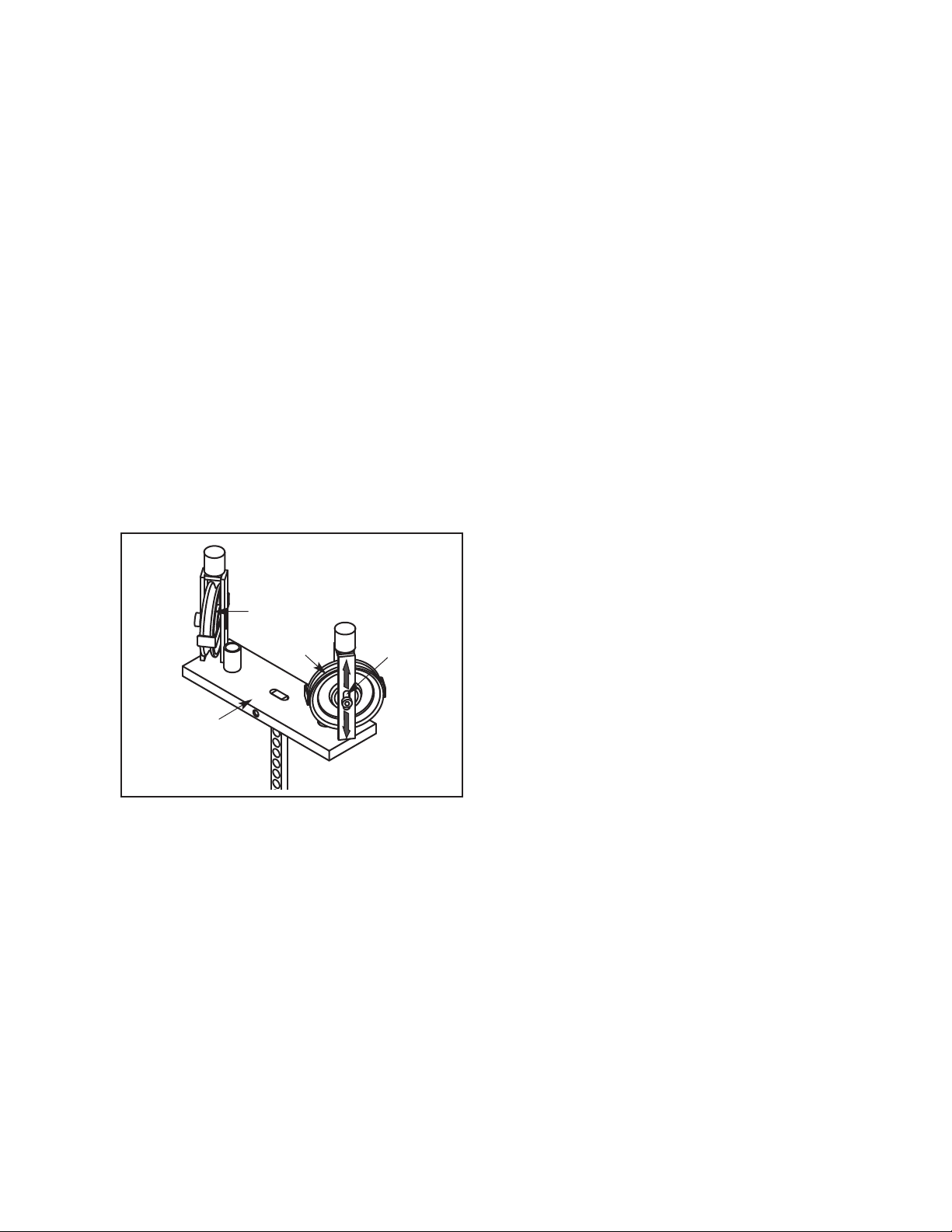

INITIAL ADJUSTMENT
Top Weight Pulley Adjustment—All machines.
Tools required: 9/16" open or box-end wrench, 5/16"
Allen wrench
Note: This is the primary adjustment for all
machines. If this adjustment does not remove the
excess slack, see ADDITIONAL ADJUSTMENTS on
this page.
1. Remove the access cover by pulling it free at the
bottom and then sliding it up until the two sets of
tabs release.
2. Using a 5/16" Allen wrench and a 9/16" open or
box-end wrench, loosen the nut holding the pulley
in the bracket on the top weight.
3. Toincrease the tension, slide the pulley down in
the slot. To decrease the tension, slide the pulley
up.
4. Tighten the nut and check the tension as
described in CABLE TENSION CHECK on page
8. If necessary,readjust the pulley.
5. Replace the access cover.
ADDITIONAL ADJUSTMENTS
Handle End Adjustment—All machines with a
strap and handle
Tools required: 1/8" Allen wrench, cable cutters, util-
ity knife, torque wrench
Note: Make this adjustment only if the pulley in the
top weight has been fully adjusted to the bottom of
the slot and the cable requires more tension.
Note: This adjustment is only for increasing the
cable tension because it requires shortening the
cable. Only one end of the cable should be short-
ened.
1. Create slack in the cable by removing the weight
pin and pulling the handle out 15–20 cm (6–8 in.).
Insert the weight pin into the third weight plate
and the tube on the bottom of the top weight.
2. Push the black rubber cover offthe aluminum
coupler and slide the cover up the cable to con-
tact the wide pulley.
3. Loosen the four oval-point, 1/4-20-unc set screws
in the coupler and pull the cable free.
4. Cut off2.5 cm (1 in.) of the cable end using cable
cutters. Note: Using any other tool may flatten
or disrupt the end strands so that it may be
difficult to reinsert the cable into the hole of
the coupler.
5. Cut off 2.5 cm (1 in.) of the black cable sheath
from the end of the cable.
6. Reinsert the cable and the sheath into the cou-
pler so that all of the bare cable is in the hole.
7. Retighten the four set screws into the threaded
holes. Tighten the set screws equally until they
contact the cable. Then, tighten each screw alter-
nately 1/4 turn, until all are set to 85 inch-pounds
(9.6 Newton-meters).
8. Slide the rubber cover over the coupler,remove
the weight pin, and lower the handle.
9. Check for proper tension on the cable as
described in CABLE TENSION CHECK on page 8.
Pulley
Pulley
Slot
Top
Weight
CABLE ADJUSTMENTS

CABLE GUARDS
Check for alignment periodically to ensure that guards
are not dragging on the cable and that they are per-
forming their intended duty. If the alignment is not
proper, loosen the bolt slightly and readjust as neces-
sary.
SERVICING THE WEIGHT STACK
For required parts, see HOW TO CONTACT CUS-
TOMER CARE on the back cover of this manual.
1. Remove the access cover by pulling it free at the
bottom and then sliding it up until the two sets of
tabs release.
2. Loosen the top bolt or nuts on each guide rod.
Remove the bolts or nuts and let the guide rods
slide down to the floor.
3. To remove the top weight, first unbolt the pul-
ley(s) to release the cable using a 5/16" hex
wrench and a 9/16" open-end wrench.
4. Slide the top weight off the top of the guide rods.
Note: Pull the guide rods toward the back of the
machine for increased clearance.
5. Servicing the weight stack involves replacing the
three bushings in the top weight. First, use a
punch to drive the three existing bushings out of
the top weight.
6. To insert the new bushings, hold each bushing
square to the face of one of the holes in the top
weight, place a protective piece of wood on top
of the bushing, and lightly tap the bushing into
place. The bushings should be flush with the sur-
face. Note: There are two sizes of bushings. The
slightly larger bushing is for the single hole in the
top weight; the smaller bushings are for the top
and bottom of the cylindrical standoff.
7. Clean and lubricate the guide rods by wiping
them using a soft cloth containing automotive
engine oil. Apply only a light coating over the
entire length.
8. Replace the top weight on the guide rods. Bolt
the pulley,cable, and cable guards back into
place.
9. Reattach the guide rods to the top of the frame.
10. Insert the weight pin in the top weight. Pull the
handle, lifting the top weight all of the way to the
top. Slowly return the handle to the resting posi-
tion. If the top weight sticks, loosen one of the
guide rod bolts or nuts. Lift the top weight to the
top again. Retighten the guide rod bolt or nuts.
Check the full travel again and readjust the guide
rods if necessary.
11. While slowly pulling the handle, have someone
check the top weight pulley guard to ensure that
it is not dragging or rubbing on the cable.
12. Replace the access cover.
10
Large
Bushing
Small
Bushings
Top
Weight
Correct Alignment
Incorrect Alignment
Rubbing Contacts
Cable
Out of
Alignment
Guards Guards
Cable
Cable
Pulley

CABLE DIAGRAM
11
The cable diagram shows the proper route of
the cable. Use the diagram to make sure that
the cable and the cable guards have been
assembled correctly. If the cable has not been
correctly routed, the strength machine will not
function properly and damage may occur. The
numbers show the correct route of the cable.
Make sure that the cable guards do not
touch or bind the cable.
1
2
3
4
6
7
8
9
10
5

12
NOTES

13
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.
If replacement parts are needed, or if parts are missing or damaged, see HOW TO CONTACT CUSTOMER
CARE on the back cover of the owner’smanual.
Key No. Qty. Description Key No. Qty. Description
11 Tower
2 1 Access Cover
3 1 Base
4 1 Right Pulley Guard
5 8 Rivet
6 1 Right Stabilizer
7 1 Left Stabilizer
8 1 Right Stabilizer Cover
9 1 Left Stabilizer Cover
10 1 Left Pulley Guard
11 1 Right Extension Arm
12 1 Left Extension Arm
13 2 Double Cable Guard
14 2 5/16” x 5/8” Socket Head Screw
15 10 Pulley
16 2 Spring
17 2 Adjustment Knob
18 2 Adjustment Pin
19 2 Counterweight
20 1 Left Pivot Frame
21 2 Adjustment Bracket
22 3 Floor Bumper
23 8 Cable Guard
24 4 3/8” Serrated Lock Washer
25 2 Weight Bumper
26 1 Weight Pin
27 15 20-pound Weight
28 9 10-pound Weight
29 1 Top Weight
30 2 Weight Guide Rod
31 4 5/8” Nut
32 2 Handle
33 4 3/4” Pivot Bushing
34 4 5/8” Lock Washer
35 2 3/8” x 1 3/4” Bolt
36 1 Right Pivot Frame
37 2 Arm Bumper
38 2 3/8” x 4 1/2” Bolt
39 8 3/8” Nylon Locknut
40 4 3/8” x 3/4” Screw
41 1 Cable
42 2 Long Nylon Spacer
43 2 3/8” x 2 1/4” Bolt
44 2 1/2” x 4 1/2” Bolt
45 4 3/8” x 2” Bolt
46 2 Short Nylon Spacer
47 8 1/2” x 1” Bolt
48 2 Eyebolt
49 8 1/2” x 1” Flat Head Screw
50 6 3/8” x 1/2” Screw
51 4 3/8” Pinch Nut
52 2 Swivel Arm
53 2 Trunnion
54 2 1/2” Bearing
55 2 Aluminum Coupler
56 8 1/4” Set Screw
57 2 Rubber Cover
58 2 Top Weight Bumper
59 2 Small Top Weight Bushing
60 1 Large Top Weight Bushing
61 4 Pivot Pulley Bearing
62 2 1” Wave Washer
63 2 1” Washer
64 2 1” Retainer Ring
65 2 11/8” Retainer Ring
66 4 3/4” Shoulder Bolt
67 4 1/4” Nut
68 1 Tower Top Plate
69 2 #10 Self-drilling Screw
70 2 Bungee Clip
71 2 Bungee Cord
72 4 Bungee Tie
73 4 3/8” x 4” Bolt
#1Owner’s Manual
PART LIST—Model No. GZFM6012.4 R0305A

EXPLODED DRAWING—Model No. GZFM6012.4 R0305A
50 50
22
47
44
3
64 63
62
61
39
15
52
61 53
64 63
62
61
39 15
52
61
53
19
17
12
18
19
17
11
18 16
16
66
66
35
35
71
72
69
70
73
33
33
32
41
57
55
51
54
48
65
56
56
32
41
57
55
51
54
48
65
56
56
38
42
15
46
21
40
37 20
14
49
49
4
66
66
71
72
70
69
73
33
33
14
Page 1 of 2

50
22
5
5
5
56
8
50
47
22
47
47
7
9
5
5
5
50
50
67
67
45
45
39
15
15
23
23
39
67
67
30
31
31
34
2
2439
43
24
1
10
4
21
40
37
36
14
49
49
26
6
27
28
68
42
15 46 38
15 13
43 24
15
13
24
39
29
58
58
59
60
59
25
15
23
45 39
15
23
45
39
15
Page 2 of 2

Part No. GZ7267 R0305A Printed in USA © 2005 ICON IP, Inc.
If you have questions after reading this manual, or if you require assistance, please contact Customer Care at
the address and phone number listed below. Please be prepared to give the following information:
• The MODEL NUMBER of the product (GZFM6012.4)
• The NAME of the product (FREEMOTION®LIFT strength machine)
• The SERIAL NUMBER of the product (see the front cover of this manual)
When ordering replacement parts, please also give the KEY NUMBER and DESCRIPTION of the part(s) (see
the PART LIST and the EXPLODED DRAWING on pages 11 to 13 of this manual).
HOW TO CONTACT CUSTOMER CARE
Customer Care: 1-800-201-2109, Monday–Friday, 8 a.m.–5 p.m. Mountain Time
FreeMotion Fitness, Inc. • 1096 Elkton Drive, Suite 600 • Colorado Springs, CO 80907
