Installation Manual STG7 P Gas form 9123689 rev. 11/2011
MODELS
Programmable controls STG7 P
Gas types G20/25
INSTALLATION MANUAL
STG7 P GAS FIRED
ROTISSERIE OVEN
- NOTICE -
This manual is prepared for the use of trained Service Technicians and should
not be used by those not properly qualified. If you have attended a training
for this product, you may be qualified to perform all the procedures in this
manual.
This manual is not intended to be all encompassing. If you have not attended a
training for this product, you should read, in its entirety, the repair procedure
you wish to perform to determine if you have the necessary tools, instru-
ments and skills required to perform the procedure. Procedures for which you
do not have the necessary tools, instruments and skills should be performed
by a trained technician.
Reproduction or other use of this Manual, without the express written consent of
Fri-Jado, is prohibited.
Model STG7 P Gas

Installation Manual STG7 P Gas form 9123689 rev. 11/2011Page 2
EMPTY PAGE

Installation Manual STG7 P Gas form 9123689 rev. 11/2011 Page 3
Index .......................................................................................................................................................... 3
General technical data.............................................................................................................................. 4
Technical Data U.S. Standard Models ................................................................................................... 4
Installation procedures............................................................................................................................. 5
Unpacking the unit................................................................................................................................ 5
Removal of pallet................................................................................................................................... 5
Location.................................................................................................................................................. 6
Connecting the rotisserie ...................................................................................................................... 6
Electrical supply ..................................................................................................................................... 6
Gas connection....................................................................................................................................... 7
Gas pressure and orifices....................................................................................................................... 7
Gas inlet pressure................................................................................................................................... 7
Gas technical data.................................................................................................................................. 8
Gas consumption ................................................................................................................................... 9
Gas block Honeywell type VK4115V..................................................................................................... 9
Flue gas analyser.................................................................................................................................. 10
Legs / castors ........................................................................................................................................ 10
Tethering of the unit ........................................................................................................................... 11
Extraction of the rotisserie.................................................................................................................. 12
Test run................................................................................................................................................. 12
Instructions for operators.................................................................................................................... 12
Maintenance ........................................................................................................................................ 13

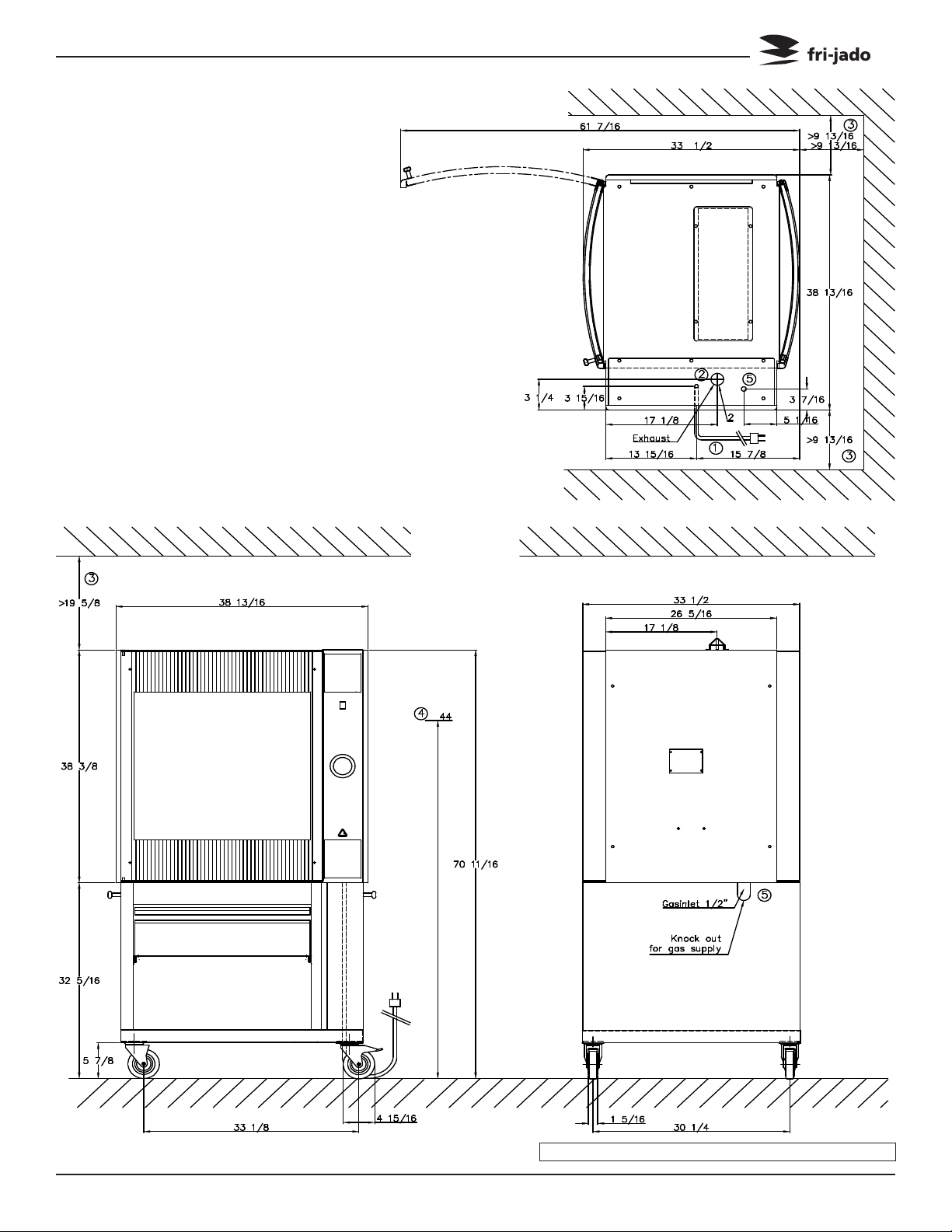

Installation drawings.............................................................................................................................. 14
INDEX

Installation Manual STG7 P Gas form 9123689 rev. 11/2011
GENERAL TECHNICAL DATA
Page 4
GENERAL TECHNICAL DATA
TECHNICAL DATA U.S. STANDARD MODELS
Tools
• Standardsetoftools.
• Metricwrenches,socketsandhexsocketkeywrenches.
• VOMwithACcurrenttester(anyVOMwithasensitivityofatleast20,000ohmspervoltcan
be used).
• Temperaturetester.
• Insulationvaluetester(Megger).
• Toxicity meter.
• Gas pressure meter.
• TL84919FieldServiceGroundingKit.
ThismanualcoverstheSTG7PgasredrotisserieovenssuitableforG20/25(naturalgas).
•STG7–Ovenwithsevenspits(28to35chickens).
Alloftheinformation,illustrationsandspecicationscontainedinthismanualarebasedonthe
latest product information available at the time of printing.
Note: From dec 2008 on the gas pipe ends under the STG 7 instead of at the rear end.
A knee piece and a 8 inch nipple (NPT to BSP thread) is delivered with the unit.
Type STG 7
Power(W) 345
Fusesneededwithpowerconnection115V,1N~50…60Hz(1phasewith
zero)
1x15A
Standard plug from factory single pole Nema5-15
Netweight 204 kg 450 Lbs
Gross weight 230 kg 507 Lbs
Height 1025 mm 40 1/4 “
Width 985 mm 38 3/4 “
Depth 850 mm 33 1/2 “

Installation Manual STG7 P Gas form 9123689 rev. 11/2011
INSTALLATION PROCEDURES
Page 5
INSTALLATION PROCEDURES
• Unpackingoftheunit.
• Removethepalletundertheunitwiththehelpofaforklift.
• Puttheunitonhislocation.
• Checkifthereisenoughfreespacearoundtheunit(seeinstallationdrawing).
• Checktheelectricalsupply.
• Checkgaspressurecontrolvalve
• Tetheringoftheunit.
• Loadaprograminthememoryandmakeatestrunon482°F.
• Giveinstructionstotheoperator.
UNPACKING THE UNIT
Immediatelyafterunpackingtheoven,checkforpossibleshippingdamage.Iftherotisserieis
foundtobedamaged,savethepackagingmaterialandcontactthecarrierwithin15daysof
delivery.

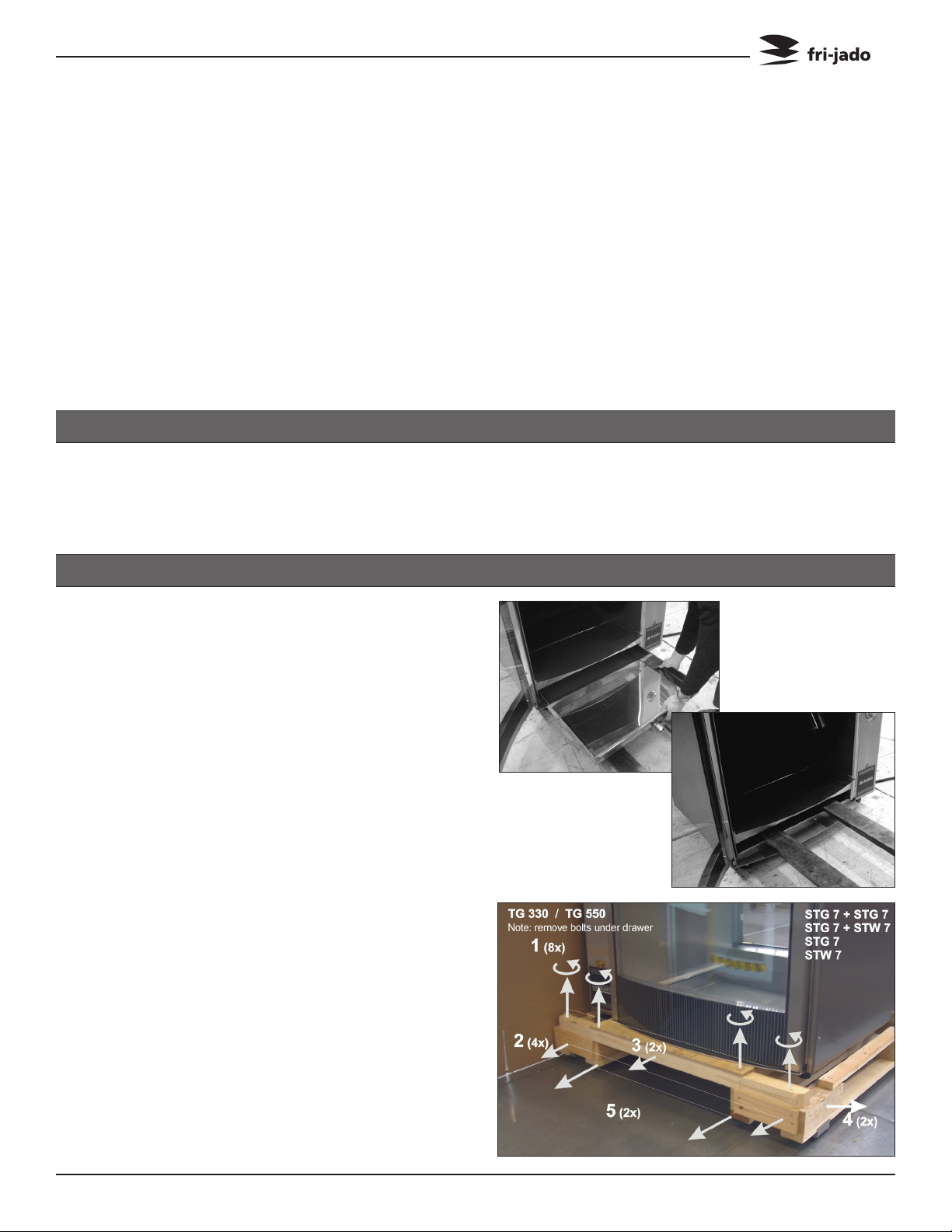

REMOVAL OF PALLET
The standard way to remove the rotisserie
from a pallet is with a fork lift. See pictures.
Opendoorandremovethedrawer.Liftthe
unit from pallet and put the unit in its place.
Anotherpossibilityistodisassemblethe
pallet. For the pallet of the STG 7 follow the
procedure on the photo.

Installation Manual STG7 P Gas form 9123689 rev. 11/2011
INSTALLATION PROCEDURES
Page 6
Priortoinstallation,testtheelectricalservicetoassurethatitagreeswiththespecicationson
the machine data plate located on the right side panel near the controls. The connecting cable
for the unit must be equipped with an approved plug connection. If use is to be made of a
permanentconnection,theconnectingcablemustbeconnectedtoamanualon/offswitchthat
is installed near the unit in a clear visible manner.
ELECTRICAL SUPPLY
Fora1-phase208V~circuitwithneutral,
the unit must be connected according to the
figure below.
IMPORTANT: Make sure you leave sufficient
space around the rotisserie to easily remove
orinserttherotor.Ifthebasehas(rotating)
wheels,theooronwhichitrestsmustbe
level.
LOCATION
The rotisserie must be installed on a level surface. The installation location must allow adequate
clearances for servicing and proper operation.
ATTENTION: All external connections to the rotisserie must be made according to
local, state and national regulations by skilled installers.
CONNECTING THE ROTISSERIE

Installation Manual STG7 P Gas form 9123689 rev. 11/2011
INSTALLATION PROCEDURES
Page 7
Allgassupplyconnectionsandanypipejointcompound
used must be resistant to the action of propane gases. Codes
require a gas shutoff valve be installed in the gas line ahead
of the oven.
Thegasinletislocatedonthebottomside,undertheelec-
tric compartment. This connection is 1/2”. Separate packed
with the delivery you will find a knee with 1/2” inside thread
andatube0f6”length.Ononesideofthetubethecon-
nectionis1/2”andontheotherside1/2”withNPTthread
(markedbyanotchinthetube).Withthiskneeandtube
you can lead the gas connection to the main gas supply. Con-
nect the rotisserie to the gasline after leveling. Gas supply
linemustbeatleasttheequivalentof1/2“(12.7mm)iron
pipe.Makesurethepipesarecleanandfreeofobstructions,
dirt,andpipingcompound.
Note:Afterthepipinghasbeencheckedforleaks,fully
purge gas pipes to remove air. Disconnect the rotisserie from
the gas supply piping system during any pressure testing on
the gas supply piping system.
Note:Checkalljointsinthegassupplylineforleakspriorto
start up the rotisserie. Use a soap and water solution. Do not
useanopename.
GAS CONNECTION
NaturalgasandPropanegas
Theburneroricesaresizedtodeliverthenameplateinputratingatagasmanifoldpressure
between5”and20”W.C.(watercolumn)(13-50mbar).
GAS PRESSURE AND ORIFICES
The inlet pressure has to be according the table on
the next page.
The pressure can be checked on the gas block with a
pressuremeter(seealsogasblock).
GAS INLET PRESSURE

Installation Manual STG7 P Gas form 9123689 rev. 11/2011
INSTALLATION PROCEDURES
Page 8
GAS TECHNICAL DATA
GAS-TECHNICAL DATA STG 7-GAS PAGE1/1
Date
01-02-2009
Gas
type
Inlet
pressure
inch wc
Inlet
pressure
mbar
min pressure
(Qn-Hi)
inch wc
min pressure
(Qn-Hi)
mbar
Consumption
cfm
Consumption
m3/h
G20 8 20 6 14.5 0.89 cfm 1.51 m3/h
G25 10 25 6 14.5 1.01 cfm 1.71 m3/h
G31 20 50 6 14.5 0.32 cfm 0.55 m3/h

Installation Manual STG7 P Gas form 9123689 rev. 11/2011
INSTALLATION PROCEDURES
Page 9
GAS BLOCK HONEYWELL TYPE VK4115V
Gasinlet: Inletofgasaftergaspressurecontrolvalve(max.24“H2O).
Gasoutlet: Outletofgasintogasmixtureblower.
Coils: 2 Coils for the gas valves.
Inlet pressure: Measuring tube for gas after reduction valve. In order to measure loosen the
screw on inside of tube.
Outletorburnerpressure:Measuringtubeofgasgoingintogasmixtureblower.Inorderto 
measure loosen the screw on inside of tube.
You can use this measuring point also to check if the gas valves are opening.
GAS CONSUMPTION
G20(naturalgas) 0,89cfm(1.51m3/h)
G25(naturalgas) 1.01cfm(1.71m3/h)
G31(Propane) 0.32cfm(0.55m3/h)
OriceforG20/25 3/16“(4.2mm)
AirinletforG20/25 11/16“(18.1mm)
Gas outlet
Coils for gas valves
Gas inlet
Burner pressure Inlet pressure

Installation Manual STG7 P Gas form 9123689 rev. 11/2011
INSTALLATION PROCEDURES
Page 10
Withtheuegasanalyseryoucanmeasuretheexhaustgasontherotisseriefortoxicity.
WiththeuseofaTesto330-1LLyougetthefollowingmeasurements:
Testo330-1LL
V1.21 01297080
100035026 G 20
06.04.2007 12:42:13
Fuel:   Naturalgas
O2ref.:  3.0%
CO2max:  11.7%
5.2 %  Oxigen
8.8 %  CO2
1.33 Lambda
5 ppm  CO
0.01 GI
26.7 %  qR
73 efficiency
130 °F  dewpoint   54°C
713 °F  Exhaustgastemp.  378°C
74 °F  Ambienttemp.  23°C
The2mostimportantvaluesaretheCO2percentageandtheexhaustgastemperature.
CO2%G20/25between8.8-9.2%
Exhaustgasbetween698-788°F(370-420°C)
FLUE GAS ANALYSER
Eachrotisserieisfurnishedon2”legs.Acaster-equippedstandwithconvenientstoragedrawer
is available. The rotisserie is mounted on top of the stand.
LEGS / CASTORS

Installation Manual STG7 P Gas form 9123689 rev. 11/2011
INSTALLATION PROCEDURES
Page 11
TETHERING OF THE UNIT
(Forunitswithxedwiringorplacedonbaseswithcastors)
Warning: Safetystandardsrequirethat,whenthisapplianceisproperlyconnectedtotheelec-
tricalpowersupplyusingexibleconduit,adequatemeansbeprovidedtolimitmovementof
the appliance without depending on or transmitting stress to the electrical conduit. This means
that, as part of the installation, the base or bottom unit of stacked models must be secured to
the building structure (typically either wall or floor) to limit the movement of the appliance
and, thus, helping to prevent damage to the conduit during cleaning, maintenance and service
operations.
Atetherbracket,asshownonthedrawingbelow,isprovidedwiththebaseorstackingkit.
Basedontheroutingoftheexibleconduit,thebracketmustbeinstalledalongwiththecaster
to one corner of the base using the hardware provided. The remaining open hole in the center
ofthetetherbracketistobeusedtosecureoneendofthetether(locallysuppliedchain,cable,
etc.). The other end of the tether is to be secured to an anchoring point in the building struc-
ture.Note:Lengthoftethermustbeshorterthantheexibleconduittomakesurethatduring
appliancemovement,nostressistransmittedtotheconduit.
Warning: Followinginstallation,checktoconrmthat,whentheapplianceismovedtothe
limitsofthetetherineachdirection,nostressistransmittedtotheelectricalconduit.

Installation Manual STG7 P Gas form 9123689 rev. 11/2011
INSTALLATION PROCEDURES
Page 12
The rotisserie must be burned in to release any odours that might result from heating the new
ovensurfaces.Operatetherotisserieatmaximumtemperaturesettingof482°Ffor30minutes.
Smokewithanunplaesantodourwillnormallybegivenoffduringthisburn-inperiod.
TEST RUN
EXTRACTION OF THE ROTISSERIE
Ventilation requirements will vary with each installation and must comply with
applicableportionsofNFPAStandard#96andwithstateandlocalcodes.
Considerations to be kept in mind include :
• Flueconnectionsshouldneverbemadedirectlytotheoven.
• Therotisserieshouldbelocatedunderahoodwhichhasadequateconnectiontoanexhaust
duct and extends 8” beyond the oven sides.
• Clearanceabovetherotisserieueshouldbeadequatefortheproductstoescapesothat
thereisnointerferencewiththeheatcirculationintheoven.RefertoANSI/NFPA96,”
StandardforVentilationControlandFireProtectionofCommercialCookingOperations”
(latestedition).TheSTG7producesabout350cfwatervaporpercycle.Whenplacingthe
rotisserie under an extraction hood you have to consider the following guide lines:
- Theminimumcapacityoftheextractionhoodhastobe600cfm
- Theextractionhoodhastoextendminimumby8”onallsidesoftherotisserie
- Theextractionhoodhastohaveafreehight,abovetherotisserie,ofaminimumof16”
- Therotisseriehastobeaccessibleforservicepurposes
Afterinstallationoftherotisserie,theoperatoroftheunithastobeinstructed.
Theinstructionhastocoverthefollowingsubjects:
• Programmingandoptions.
• Workingoftheunit.
• Freespaceofunitforcoolingofdrivemotorandblowers.
• Runthroughtheusermanual.
• Refertothestoryboard,trainingguideandlaminatedsheetwithpre-programmed
programs(onlyforWall-mart).
• Periodicalmaintenance:
o Cleaning of fan plate every month.
o Cleaning of fans on blower every month.
• Howtoreactforinformationorservicecalls.
INSTRUCTIONS FOR OPERATORS

Installation Manual STG7 P Gas form 9123689 rev. 11/2011
INSTALLATION PROCEDURES
Page 13
MAINTENANCE
The customer should have the gas rotisserie periodically checked by a skilled technician accord-
inglocal,stateornationalregulations.
First remove the right side panel according the service manual.
• Check for gas leaks and/or bad connections of the gas supply inside and outside.
• Check the gas burner.
• Checktheinletpressureandre-adjustifnecessary.Forthecorrectvalue,seetablepage8.
• Measuretheexhaustgaswithauegasanalyzer,seepage10.
• Check the electrical supply.

Installation Manual STG7 P Gas form 9123689 rev. 11/2011
INSTALLATION DRAWINGS
Page 14
Placing and connecting the STG 7
Description belonging to the lables on the drawings
Label Description
1Powercable,length70”*
2 Exhaust opening
3 Space between a rotisserie and a wall or ceiling
4 Location for socket
5 Gas connection
*) length is measured from the point where the cables coms out of the unit
INSTALLATION DRAWINGS

Installation Manual STG7 P Gas form 9123689 rev. 11/2011
INSTALLATION DRAWINGS
Page 15
Placing and connecting the STG 7 on base

Installation Manual STG7 P Gas form 9123689 rev. 11/2011Page 16
EMPTY PAGE

Installation Manual STG7 P Gas form 9123689 rev. 11/2011 Page 17
EMPTY PAGE

Fri-Jado Inc. • 180 Kehoe Blvd. • Carol Stream, Ill. 60188 • USA • tel. [phone] • fax [phone] • toll free 877-FRI-JADO • [e-mail] • www.frijado.com
