Frico RDS User manual

RDS
.... 16
SE .... 20 EN .... 24 NO .... 29 DE .... 34 FR
.... 39
ES .... 44 IT .... 49 NL .... 54 PL .... 59
RU
Original instructions

RDS
2
Introduktionssidorna består huvudsakligen av bilder. För översättning av de engelska texter
som används, se respektive språksidor.
SE
The introduction pages consist mainly of pictures. For translation of the English texts used,
see the respective language pages.
EN
Introduksjonssidene består hovedsakelig av bilder. For oversettelse av de engelske tekstene,
se de respektive språksidene
NO
Les pages de présentation contiennent principalement des images. Pour la traduction des
textes en anglais, consultez la page correspondante à la langue souhaitée.
FR
Die Einleitungsseiten bestehen hauptsächlich aus Bildern. Für die Übersetzung der
verwendetenTexte in englischer Sprache, siehe die entsprechenden Sprachseiten.
DE
Las páginas introductorias contienen básicamente imágenes. Consulte la traducción de los
textos en inglés que las acompañan en las páginas del idioma correspondiente.
ES
De inleidende pagina's bevatten hoofdzakelijk afbeeldingen.Voor een vertaling van de
gebruikte Engelse teksten, zie de pagina's van de resp. taal.
NL
Le pagine introduttive contengono prevalentemente immagini. Per le traduzioni dei testi scritti
in inglese, vedere le pagine nelle diverse lingue.
IT
Początkowe strony zawierają głównie rysunki. Tłumaczenie wykorzystanych
tekstów angielskich znajduje się na odpowiednich stronach językowych.
PL
RU Страницы в начале Инструкции состоят в основном из рисунков, схем и таблиц. Перевод
встречающегося там текста приведен в разделе RU.

RDS
3

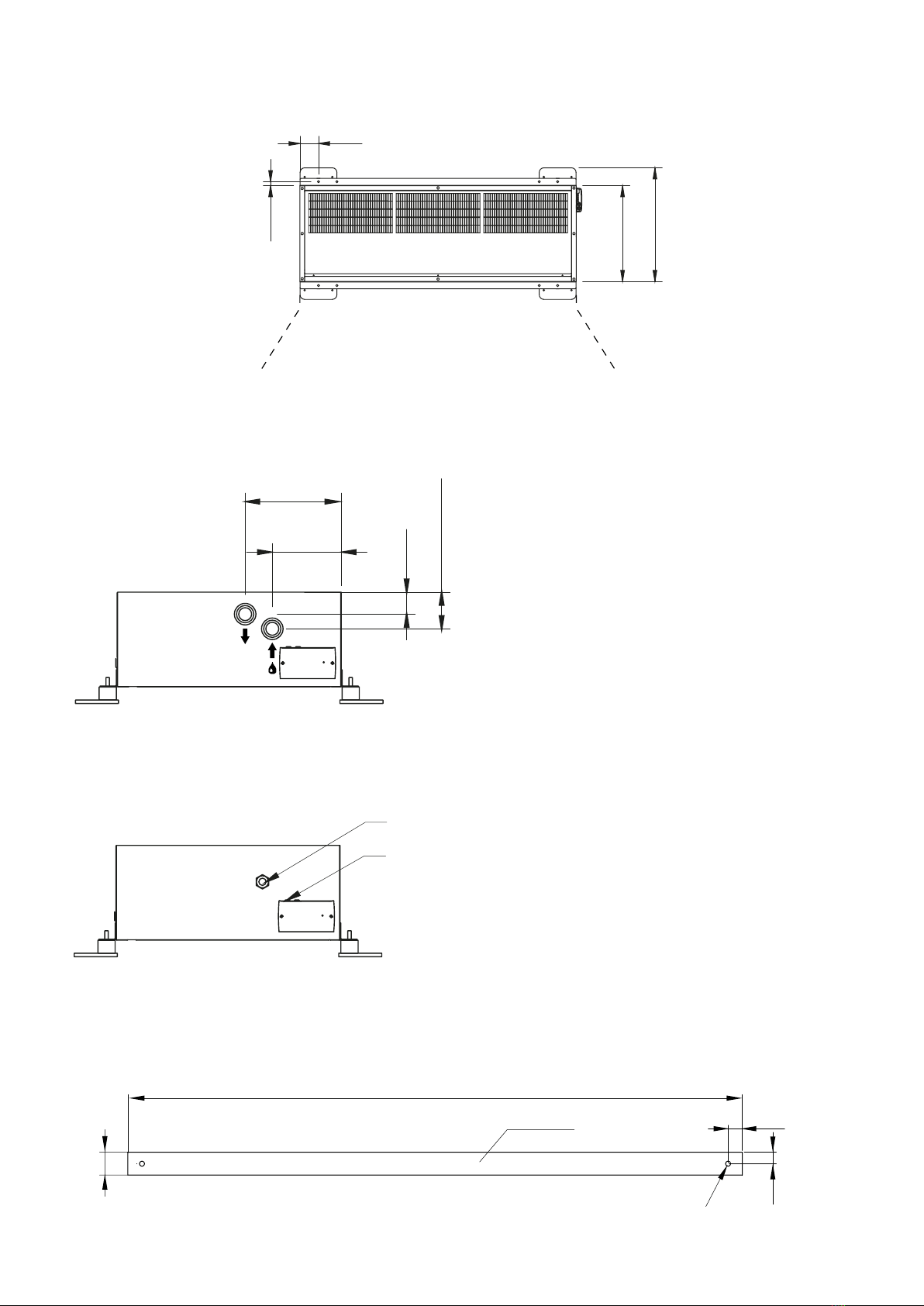

Top view
Side view
W
R
L
L
[mm]
RDS23 1000
RDS29 1000
RDS38 1500
RDS56 2000
RDS65 2500
70
270
Min. 800
520
115
125
220
Z
Z + 240
Z + 265

RDS
4
Suspended from ceiling
825 825 825
L/2
13
505
260
15
520
ca 75
ca 80
ca 65
10
x M8
8 x M8
13
RDS65
RDS23
RDS29
RDS38
RDS56

RDS
5
223
160
51
85
400V 3 ~
230V ~
Connections position W
Connections position E
RDSB
L
20
25
Ø9
40x80
40
Mounted on revolving door
100
22
520
617

RDS
6
SIReB
SIReAC
SIReAA
SIReRTX 70x33x23 mm
SIReUR 114x70x50 mm
SIReWTA
SIReCJ4
SIReCJ6
SIReCC603 3 m
SIReCC605 5 m
SIReCC610 10 m
SIReCC615 15 m
SIReCC640 40 m
SIReCC403 3 m
SIReCC405 5 m
SIReCC410 10 m
SIReCC415 15 m

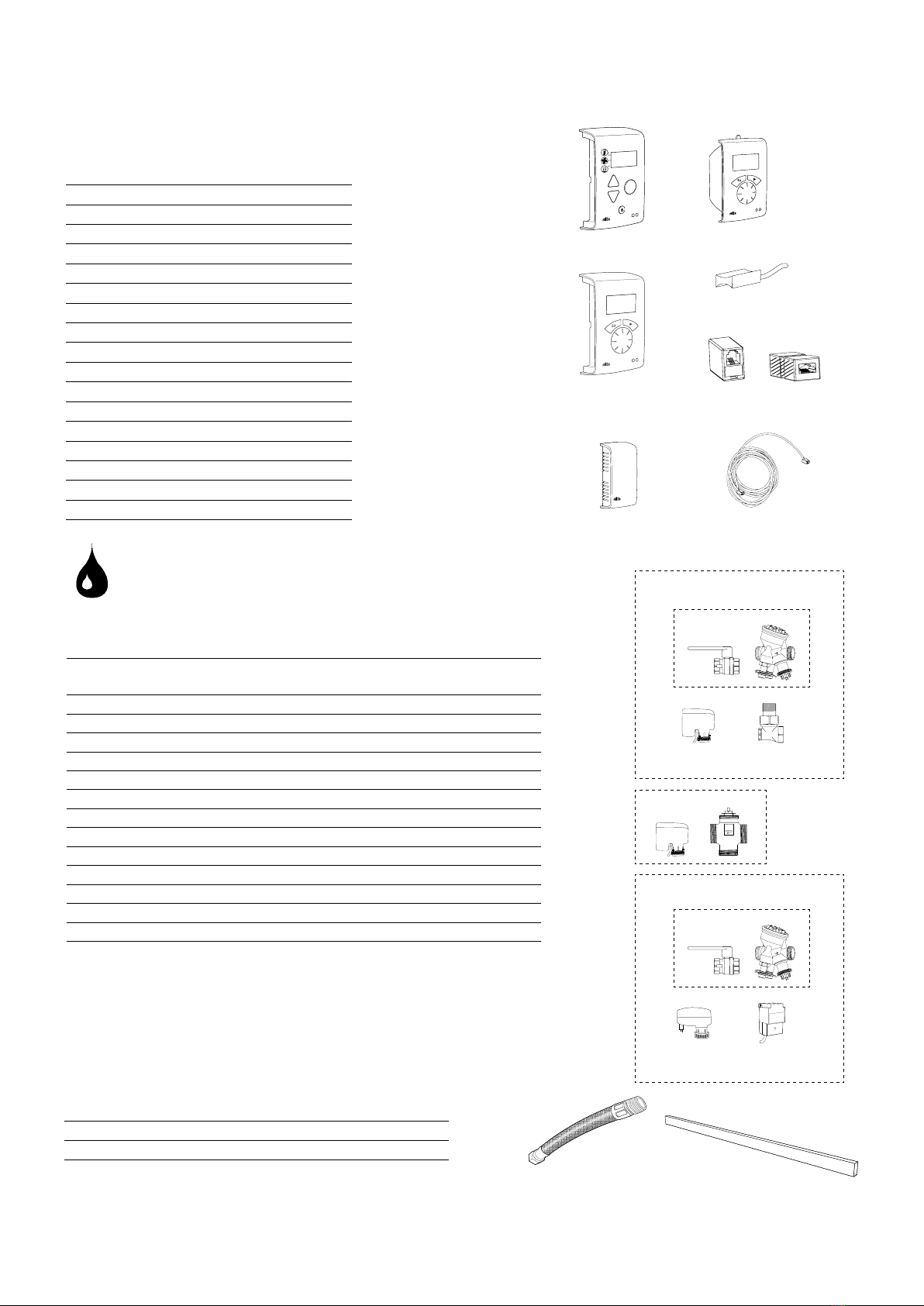

Accessories
SIRe
C
SIReB
SIReAC/SIReAA
SIReRTX
SIReUR
SIReWTA
SIReCC
SIReCJ4/SIReCJ6
FH1025 Flexible hose DN25, inside thread, length 1 m
RDSB Beam 40x80 mm
FH1025 RDSB
VKF
SDM24 ST23024
SD230 BPV10
VKF
VLSP
VLP
VOT
Type RSK-nr
(SE)
NRF-nr
(NO)
Connection
VLSP15LF 670 45 35 DN15
VLSP15NF 670 45 36 850 26 36 DN15
VLSP20 670 45 37 850 26 37 DN20
VLSP25 670 45 38 850 26 38 DN25
VLSP32 670 45 39 850 26 39 DN32
VLP15LF 670 45 30 673 09 47 DN15
VLP15NF 670 45 31 850 26 31 DN15
VLP20 670 45 32 850 26 32 DN20
VLP25 670 45 33 850 26 33 DN25
VLP32 670 45 34 850 26 34 DN32
VOT15 673 61 93 85 024 05 DN15
VOT20 673 61 94 85 024 06 DN20
VOT25 673 61 95 85 024 07 DN25

RDS
7

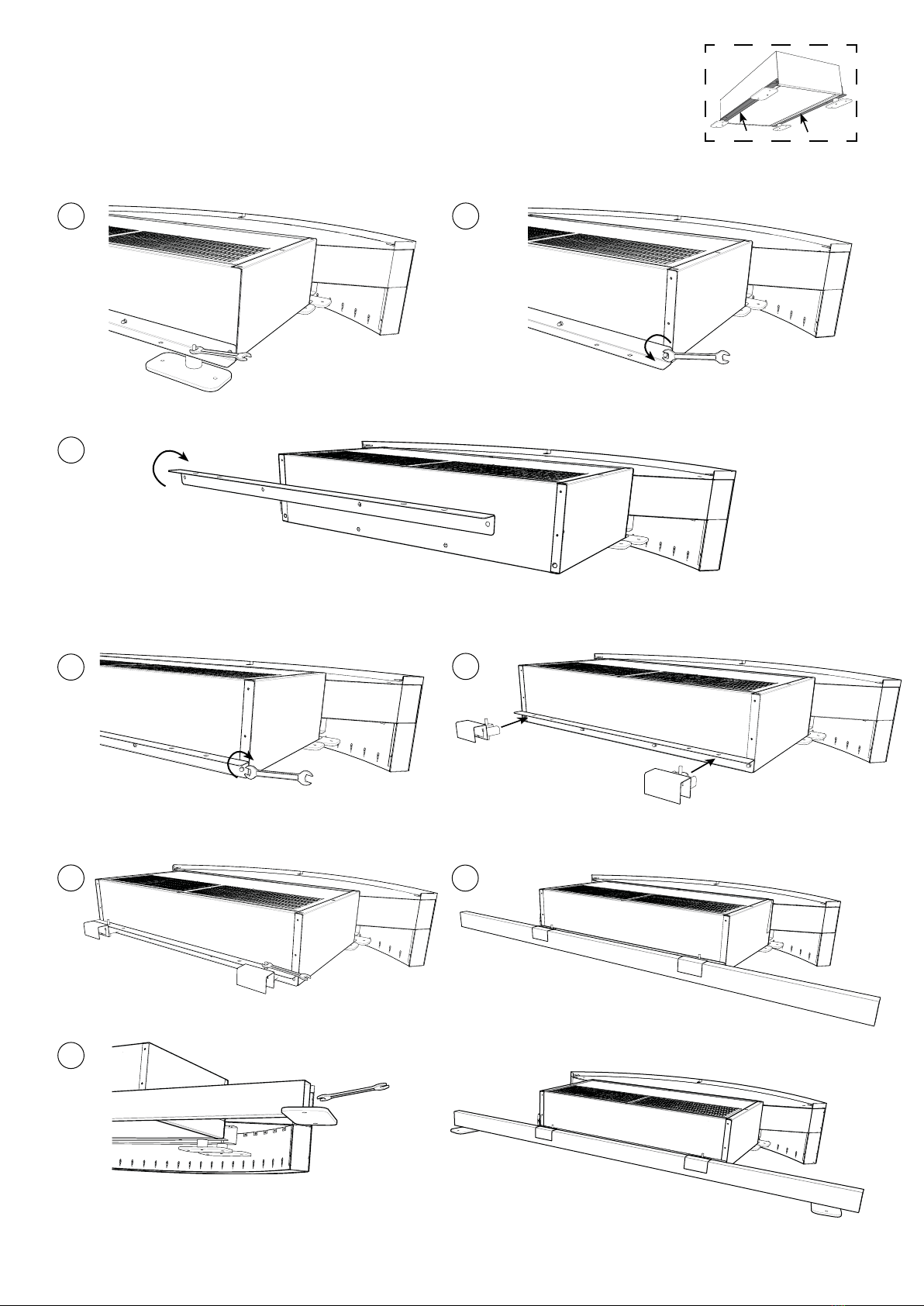

RDS + RDSB (beam)
x2 x4
x4
x2
1 2
3
45
67
8

RDS
8
RDS A
RDS23/29A
SIReB1
Actuator
230V~
Transformer
230V
200V
170V
145V
120V 100V
N
Black
Blue
White
White
Supply
230V~
C2 C1 ROOM
Internal
sensor
Motor
protection
°C°C°C
Transformer
230V
200V
170V
145V
120V 100V
N
Yellow Orange Red Brown Black Green Blue
RDS38A
°C°C°C°C
RDS65A RDS56A
230V~

RDS
9
RDS E
RDS23/29E
RDS56/65E
RDS23/29/38E
SIReB1
Actuator
230V~
Transformer
230V
200V
170V
145V
120V 100V
N
Black Black
Grey
Blue Blue
White
White
Supply
230V~
C2 C1 ROOM
Internal
sensor
Motor
protection
°C°C°C
Transformer
230V
200V
170V
145V
120V 100V
N
Yellow Orange Red Brown Black Green Blue
RDS38E
°C°C°C°C
RDS65E RDS56E
400V3~
230V~
N
L1L2L3

RDS
10
RDS W
RDS23/29W
SIReB1
Actuator
230V~
Transformer
230V
200V
170V
145V
120V 100V
N
Black
Blue
White
White
Supply
230V~
C2 C1 ROOM
Internal
sensor
Motor
protection
°C°C°C
Transformer
230V
200V
170V
145V
120V 100V
N
Yellow Orange Red Brown Black Green Blue
RDS38W
°C°C°C°C
RDS65W RDS56W
230V~

RDS
11
SIReB Basic
RDS A
RDS E
Wiring diagrams for SIReAC Competent and SIReAA Advanced, see manuals for SIRe.
C2
X5
C1
X4
ROOM
X3
Pot.
Unit ID ACTUATORSUPPLY
N L NL
PE
L
~
230V~
C2
X5
C1
X4
ROOM
X3
Pot.
Unit ID ACTUATORSUPPLY
N L NL
PE
L
~
230V~
C2
X5
C1
X4
ROOM
X3
Pot.
Unit ID ACTUATORSUPPLY
N L NL
PE
L
~
230V~
SIReCC6XX (max 50 m)
SIReCC6XX
(max 50 m)
SIReCC6XX
(max 50 m)
SIReUB1
SIReRTX
(optional)
L=2m
SIReB1/B2/B1EC
SIReB1/B2/B1EC
SIReB1/B2/B1EC

RDS
12
SIReB Basic
RDS W
Wiring diagrams for SIReAC Competent and SIReAA Advanced, see manuals for SIRe.
C2
X5
C1
X4
ROOM
X3
Pot.
Unit ID ACTUATORSUPPLY
N L NL
PE
L
~
230V~
C2
X5
C1
X4
ROOM
X3
Pot.
Unit ID ACTUATORSUPPLY
N L NL
PE
L
~
230V~
C2
X5
C1
X4
ROOM
X3
Pot.
Unit ID ACTUATORSUPPLY
N L NL
PE
L
~
230V~
SIReCC6XX (max 50 m)
SIReB1/B2/B1EC
SIReB1/B2/B1EC
SIReB1/B2/B1EC
SIReCC6XX
(max 50 m)
SIReCC6XX
(max 50 m)
SIReUB1
SIReRTX
(optional)
SD230
SD230
SD230
L=1,5m
L=2m

RDS
13
Output charts water
Supply water temperature: 80 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 80/60 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPA]
Output*2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPA]
RDS23WL max 1950 11,5 40 0,07 1,3 16,3 42,4 0,20 9
min 950 5,6 32 0,03 0,2 10,3 49,9 0,13 3,8
RDS29WL max 2200 12,9 42 0,08 1,8 1 7, 4 41,2 0,21 10,3
min 950 5,6 32 0,03 0,2 10,3 49,9 0,13 3,8
RDS38WL max 3100 18,0 38 0,11 1,2 26,5 43 0,32 9,9
min 1300 7, 7 30 0,04 0,2 15,2 52,2 0,19 3,4
RDS56WL max 4400 25,2 36 0,14 2,9 37,7 43,1 0,46 27,2
min 1800 10,5 27 0,05 0,4 21,7 52,3 0,27 9,4
RDS65WL max 5300 31,0 34 0,17 5,0 48 44,5 0,59 54,4
min 2250 13,2 26 0,06 0,8 27,3 53,5 0,33 18,3
Supply water temperature: 70 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 70/50 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPA]
Output*2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPA]
RDS23WL max 1950 11,4 44 0,11 2,9 12,8 37,3 0,16 5,8
min 950 5,4 33 0,04 0,4 8,2 43,3 0,10 2,5
RDS29WL max 2200 13,1 47 0,14 4,7 13,8 36,4 0,17 6,6
min 950 5,4 33 0,04 0,4 8,2 43,3 0,10 2,5
RDS38WL max 3100 1 7, 5 41 0,15 2,2 21 37,8 0,26 6,4
min 1300 7, 6 32 0,05 0,3 12,1 45,2 0,15 2,3
RDS56WL max 4400 25,4 41 0,21 6,3 30 38 0,37 1 7, 7
min 1800 10,9 30 0,07 0,8 1 7, 3 45,4 0,21 6,2
RDS65WL max 5300 30,4 38 0,23 9,2 38,3 39,2 0,47 35,3
min 2250 13,3 28 0,08 1,3 21,9 46,5 0,27 12,1

RDS
14
Supply water temperature: 55 °C
Room temperature: +18 °C
Outlet air temperature: +32 °C
Water temperature: 55/35 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPA]
Output*2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPA]
RDS23WL max 1950 9,2 42 0,17 6,6 7, 6 29,5 0,09 2,2
min 950 4,5 32 0,05 0,7 4,9 33,1 0,06 1
RDS29WL max 2200 10,4 44 0,23 11,9 8,2 28,9 0,10 2,6
min 950 4,5 32 0,05 0,7 4,9 33,1 0,06 1
RDS38WL max 3100 15,0 42 0,27 7, 3 12,5 29,9 0,15 2,5
min 1300 6,0 30 0,06 0,4 7, 3 34,4 0,09 0,9
RDS56WL max 4400 21,6 42 0,39 20,1 18,2 30,2 0,22 7
min 1800 8,9 30 0,09 1,3 10,4 35 0,13 2,5
RDS65WL max 5300 24,7 37 0,33 19,0 23,4 31 0,28 14,1
min 2250 10,6 28 0,10 1,9 13,5 35,6 0,16 5
See www.frico.se for additional calculations.
*1) Recommended outlet air temperature for good comfort and optimized output.
*2) Nominal output at given supply and return water temperature.
Supply water temperature: 60 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 60/40 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPA]
Output*2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPA]
RDS23WL max 1950 11,1 48 0,22 10,9 9,4 32,1 0,11 3,3
min 950 5,6 37 0,06 1,0 6 36,6 0,07 1,4
RDS29WL max 2200 12,5 50 0,30 21,0 10,1 31,4 0,12 3,7
min 950 5,6 37 0,06 1,0 6 36,6 0,07 1,4
RDS38WL max 3100 18,1 48 0,35 12,0 15,4 32,6 0,19 3,6
min 1300 7, 7 35 0,07 0,7 8,9 38,1 0,11 1,3
RDS56WL max 4400 25,8 48 0,50 32,9 22,2 32,8 0,27 10,1
min 1800 10,2 32 0,09 1,3 12,7 38,6 0,15 3,5
RDS65WL max 5300 31,4 45 0,51 42,4 28,4 33,7 0,34 20,2
min 2250 13,4 32 0,12 2,7 16,3 39,3 0,20 7, 1
Output charts water

RDS
15
Electrical heat - RDS E 3
Water heat - RDS WL, coil for low water temperature (480 °C) 2
*1) Lowest/highest airflow of totally 5 fan steps.
*2) Sound power (LWA) measurements according to ISO 27327-2: 2014, Installation type E.
*3) Sound pressure (LpA). Conditions: Distance to the unit 5 metres. Directional factor: 2. Equivalent absorption
area: 200 m². At lowest/highest airflow.
*4) ∆t = temperature rise of passing air at maximum heat output and lowest/highest airflow.
*5) Applicable at water temperature 60/40 °C, air temperature, in +18 °C.
*6) Applicable at water temperature 80/60 °C, air temperature, in +18 °C.
*7) Approximate weight for air curtain and duct.
Protection class: IP20.
CE compliant.
The data are estimated average values which are affected by the shape of the exhaust duct.
Type Output*5
[kW]
Output*6
[kW]
Airflow*1
[m3/h]
∆t*4,5
[°C]
∆t*4,6
[°C]
Water
volume
[l]
Sound
power*2
[dB(A)]
Sound
pressure*3
[dB(A)]
Voltage
[V]
Amp.
[A]
Length
[mm]
Weight*7
[kg]
RDS23WL 9,4 16 950/1950 19/14 32/24 2,2 77 43/61 230V~ 2,2 1000 80
RDS29WL 10 17 900/2200 19/13 32/23 2,2 79 47/63 230V~ 4,0 1000 100
RDS38WL 15 26 1300/3100 20/14 34/25 3,4 80 47/64 230V~ 5,6 1500 150
RDS56WL 22 37 1850/4400 20/14 34/25 4,5 81 48/65 230V~ 7, 9 2000 200
RDS65WL 28 48 2250/5300 21/15 35/26 5,7 82 48/66 230V~ 9,5 2500 220
Type Output
steps
[kW]
Airflow*1
[m3/h]
∆t*4
[°C]
Sound
power*2
[dB(A)]
Sound
pressure*3
[dB(A)]
Voltage [V]
Amperage [A]
(control)
Voltage [V]
Amperage [A]
(heat)
Length
[mm]
Weight*7
[kg]
RDS23E08 2,7/5,4/8,1 950/2000 26/12 77 43/61 230V~/2,2 400V3~/11,7 1000 80
RDS29E12 3,9/7,8/12 1100/2600 33/14 79 47/63 230V~4,4 400V3~/16,9 1000 100
RDS38E18 6,0/12/18 1550/3700 35/14 80 47/64 230V~/6,2 400V3~/26,0 1500 150
RDS56E23 7,8/15/23 2150/5200 32/13 81 48/65 230V~/8,7 400V3~/33,8 2000 200
RDS65E30 9,9/19/30 2600/6300 35/14 82 48/66 230V~/10,5 400V3~/42,9 2500 220
Technical specifications
Ambient, no heat - RDS A 1
Type Output
[kW]
Airflow*1
[m3/h]
Sound
power*2
[dB(A)]
Sound
pressure*3
[dB(A)]
Voltage
[V]
Amperage
[A]
Length
[mm]
Weight*7
[kg]
RDS23A 0 950/2000 77 43/61 230V~ 2,2 1000 80
RDS29A 0 1100/2600 79 47/63 230V~ 4,4 1000 100
RDS38A 0 1550/3700 80 47/64 230V~ 6,2 1500 150
RDS56A 0 2150/5200 81 48/65 230V~ 8,7 2000 200
RDS65A 0 2600/6300 82 48/66 230V~ 10,5 2500 220

RDS
20
EN
Installation and operating instructions
General Instructions
Read these instructions carefully before
installation and use. Keep this manual for
future reference.
The product may only be used as set out in
the assembly and operating instructions. The
guarantee is only valid if the product is used
in the manner intended and in accordance
with the instructions.
Application area
RDS is intended for revolving doors. The air
curtain is installed above the door and the
exhaust duct is adapted to the diameter of the
door, which gives a neat and discrete solution.
The air curtain is available without heat, with
electrical heating and with water heating.
Protection class: IP20.
Operation
Air is drawn in at the top of the unit and
blown out downwards so that it shields the
door opening and minimizes heat loss. To
achieve the optimum curtain effect the
unit must extend the full width of the door
opening.
The efficiency of the air curtain depends
on the air temperature, pressure differences
across the doorway and any wind pressure.
NOTE! Negative pressure in the building
considerably reduces the efficiency of the air
curtain. The ventilation should therefore be
balanced.
Mounting
The air curtain is installed horizontally on
the roof of the revolving door with vibration
dampers on steel plates (100 x 200 mm) that
distribute the weight.
The unit could alternatively be mounted on
beams.
• Make sure that the air curtain fits on top of
the revolving door.
• The distance between the roof of the
revolving door and the inside ceiling must
not be less than 800 mm, for installation
and service to be possible.
• Ensure that the ceiling of the revolving door
can carry the weight of the air curtain and
duct. The total weight of the installation
is stated in the Technical specifications. If
the roof of the revolving door cannot take
the weight, RDS can be mounted on a beam
construction. Mounting brackets for beam
included.
• Mounting with beam, see fig. 2.
Electrical installation
The installation, which should be preceded by
an omnipolar switch with a contact separation
of at least 3 mm, should only be wired by a
competent electrician and in accordance with
the latest edition of IEE wiring regulations.
The control system is pre-installed in the air
curtain with an integrated control card. SIRe
is supplied pre-programmed with quick-fit
connections. Modular cables are connected to
the control board. See manual for SIRe.
Unit with water heating
Connected via the built-in control board with
2 m cord and plug.
Unit with electrical heating
The electrical connection is made on the
side of the unit. Control (230V~) and power
supply for heat (400V3~) should be connected
to a terminal block.
See Fig.1.
The largest cable diameter for the terminal
block is 16 mm². The cable glands used must
meet the protection class requirements. In
the distribution board it is to be indicated
that ”the air curtains can be supplied from
more than one connection”.
See wiring diagrams.
1. The service hatch is opened by unscrewing
the screws on the top side of the unit.
2. The unit is connected via the cable gland
on the right side of the unit (seen from
inside).
See wiring diagrams.
Type Output
[kW]
Voltage
[V]
Min. area
[mm2]
All control - 230V~ 1,5
RDS23E08 8,1 400V3~ 2,5
RDS29E12 11,7 400V3~ 4
RDS38E18 18,0 400V3~ 10
RDS56E23 23,4 400V3~ 10
RDS65E30 29,7 400V3~ 16

RDS
21
EN
Start-up (E)
When the unit is used for the first time or after
a long period of disuse, smoke or odour may
result from dust or dirt that has collected on
the element. This is completely normal and
disappears after a short time.
Connecting the water coil (W)
The installation must be carried out by an
authorised installer.
The water coil has copper tubes with
aluminium fins and is suitable for connection
to a closed water heating system. The heating
coil must not be connected to a mains
pressure water system or an open water
system.
Note that the unit shall be preceded by a
regulating valve, see Frico valve kit.
The water coil is connected on the side
of the unit via DN25 (1’’), internal thread
connections.
Flexible hoses are available as accessories, see
accessories pages.
NOTE: Care must be taken when connecting
the pipes. Use a wrench or similar to hold the
air curtain connections to prevent straining of
the pipes and subsequent water leakage during
connection to water supply pipe-work.
The connections to the heating coil must be
equipped with shut off valves to allow problem
free removal. A vent valve should be connected
at a high point in the pipe system.
Air valves are not included.
Basic setting fan speed
The fan speed when the door is open is set
using the control. Note that the air flow
direction and fan speed may need fine
adjustment depending on the loading of the
door.
Filter (W)
The distance between the coil plates in
combination with the hole diameter of
the intake grille protects against dirt and
blockage. This normally makes a separate filter
unnecessary.
Service, repairs and maintenance
For all service, repair and maintenance first
carry out the following:
1. Disconnect the power supply.
2. Service hatch is opened by unscrewing the
screws on the top or bottom side of the unit.
Maintenance
Unit with water heating:
The appliance filter should be cleaned
regularly to ensure the air curtain effect and
the heat emission from the device. How often
depends on local circumstances. A clogged
filter is not a risk, but the appliance function
can fail. Vacuum the intake grille regularly
from outside when dust is visible, for example
as a part of the cleaning routine.
All units:
Since fan motors and other components are
maintenance free, no maintenance other than
cleaning is necessary. The level of cleaning
can vary depending on local conditions.
Undertake cleaning at least twice a year. Inlet
and exhaust grilles, impeller and elements
can be vacuum cleaned or wiped using a
damp cloth. Use a brush when vacuuming
to prevent damaging sensitive parts. Avoid
the use of strong alkaline or acidic cleaning
agents.
Overheating
The air curtain unit with electric heater is
equipped with an overheat protector. If it is
deployed due to overheating, reset as follows:
1. Disconnect the electricity with the fully
isolated switch.
2. Allow the electrical coil to cool.
3. Determine the cause of overheating and
rectify the fault.
4. Connect the air curtain again.
All motors are equipped with an integral
thermal safety cut-out. This will operate,
stopping the air curtain should the motor
temperature rise too high. The cut-out
will automatically reset when the motor
temperature has returned to within the
motor’s operating limits.
Temperature control
Temperature control of SIRe maintains the
exhaust temperature. If the temperature
should exceed the preset value anyway
the overheating alarm goes off. For more
information see the manual for SIRe.

RDS
22
EN
Trouble shooting
If the fans are not working or do not blow properly,
check the following:
• That the intake grille/filter is not dirty.
• Functions and settings of the SIRe control
system, see manual for SIRe.
If there is no heat, check the following:
• Functions and settings of the SIRe control
system, see manual for SIRe.
For units with electrical heating, also check the
following:
• Power supply to electric heater coil; check
fuses and circuit-breaker (if any).
• That the overheat protection for the motors
has not been deployed.
For units with water coil, also check the following:
• That the water coil is air free.
• That there is enough water flow.
• That incoming water is heated enough.
If the fault cannot be rectified, please contact
a qualified service technician.
Residual current circuit breaker (E)
When the installation is protected by means
of a residual current circuit breaker, which
trips when the appliance is connected,
this may be due to moisture in the heating
element. When an appliance containing a
heater element has not been used for a long
period or stored in a damp environment,
moisture can enter the element.
This should not be seen as a fault, but is
simply rectified by connecting the appliance
to the main supply via a socket without a
safety cut-out, so that the moisture can be
eliminated from the element. The drying
time can vary from a few hours to a few days.
As a preventive measure, the unit should
occasionally be run for a short time when it is
not being used for extended periods of time.
Packaging
Packaging materials are chosen with
consideration to environment and are
therefore recyclable.
Handling of product at end of working life
This product may contain substances
necessary for functionality of product but
potentially dangerous for the environment.
The product should not be disposed
mixed with general household waste but
delivered to a designated collection point for
environmental recycling. Please contact local
authority for further details of your nearest
designated collection point.
Replacing heating elements/heating
package (E)
The coil must be replaced through the top
service hatch.
1. Mark and disconnect the cables to the
heating elements/package
2. Remove the mounting screws securing the
heating elements/package in the unit and lift
the heaging elements/package out.
3. Install the new heating elements/package in
reverse order to the above.
Fan replacement
Fans are replaced through the bottom service
hatch. Alternatively the screws of the bottom
service hatch are slackened and the fans are
replaced through the top service hatch.
1. Determine which of the fans is not
functioning.
2. Disconnect the cables to the relevant fan.
3. Remove the screws securing the fan and lift
the fan out.
4. Install the new fan as above in reverse
order.

RDS
23
EN
Safety
• For all installations of electrically heated
products should a residual current circuit
breaker 300 mA for fire protection be used.
• Keep the areas around the air intake
and exhaust grilles free from possible
obstructions!
• The unit must not be fully or partially
covered as overheating can result in a fire
risk!
• Lifting equipment must be used to lift the
unit.
• This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
• Children of less than 3 years should be
kept away unless continuously supervised.
• Children aged from 3 years and less than 8
years shall only switch on/off the appliance
provided that it has been placed or
installed in its intended normal operating
position and they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved.
• Children aged from 3 years and less
than 8 years shall not plug in, regulate
and clean the appliance or perform user
maintenance.
CAUTION — Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.

Main office
Frico AB Tel: [phone]
Industrivägen 41
SE-433 61 Sävedalen [email protected]
Sweden www.frico.net
For latest updated information and information
about your local contact: www.frico.net.
Art.nr: 208029, 20200304, KG/CH
