AMERICA’S BEST AIR CONDITIONER
2001
HAZARDGARD®
ROOM AIR CONDITIONER
Service & Parts
Manual
Models
SH14J30A-1
SH14J30A-A
SH20J30A-1
SH20J30A-A
HG2001 (8/01)

2
TABLE OF CONTENTS
Specifications.................................................................................................................... 4
Performance Data............................................................................................................. 6
Component Operation & Testing....................................................................................... 4
Compressors .................................................................................................................... 4
Thermal Overload............................................................................................................. 4
Checking Compressor Efficiency ...................................................................................... 5
Fan Motor ......................................................................................................................... 5
System Control Switch...................................................................................................... 5
Run Capacitor...................................................................................................................6
Thermostat........................................................................................................................ 6
Triac/Control Assembly..................................................................................................... 7
Low Ambient By-Pass Valve ............................................................................................. 8
Sealed Refrigeration System Repairs............................................................................... 8
Hermetic Component Replacement.................................................................................. 9
Special Procedure in the case of Compressor Motor Burn-Out........................................ 9
Rotary Compressor Special Troubleshooting & Service ................................................... 10
Refrigerant Charge ........................................................................................................... 10
TROUBLESHOOTING
Troubleshooting SH14J30A .............................................................................................. 11
Troubleshooting SH20J30A .............................................................................................. 16

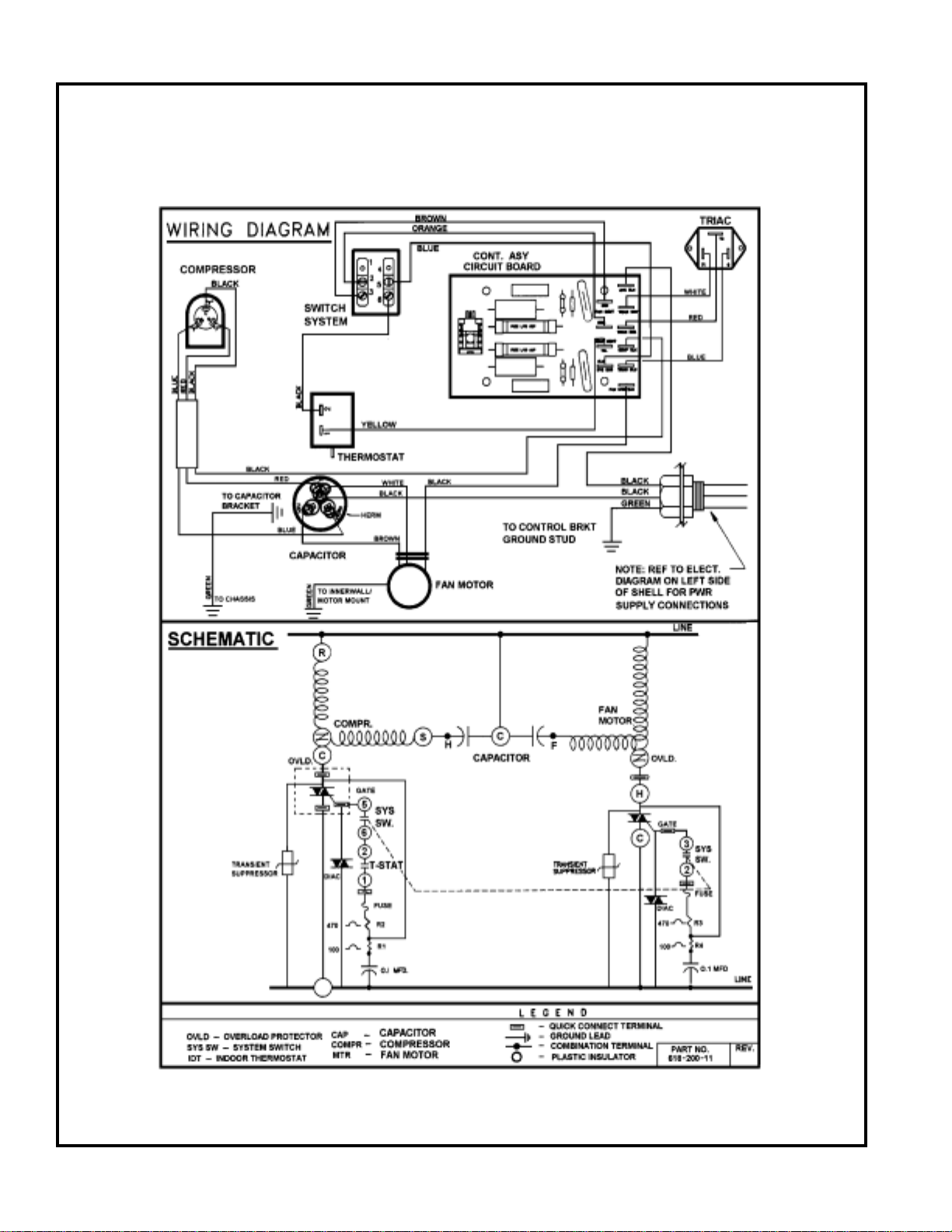

WIRING DIAGRAM
SH14J30A / SH20J30A .................................................................................................... 14
PARTS LIST
SH14J30A / SH20J30A Model Chassis Parts List ............................................................ 18

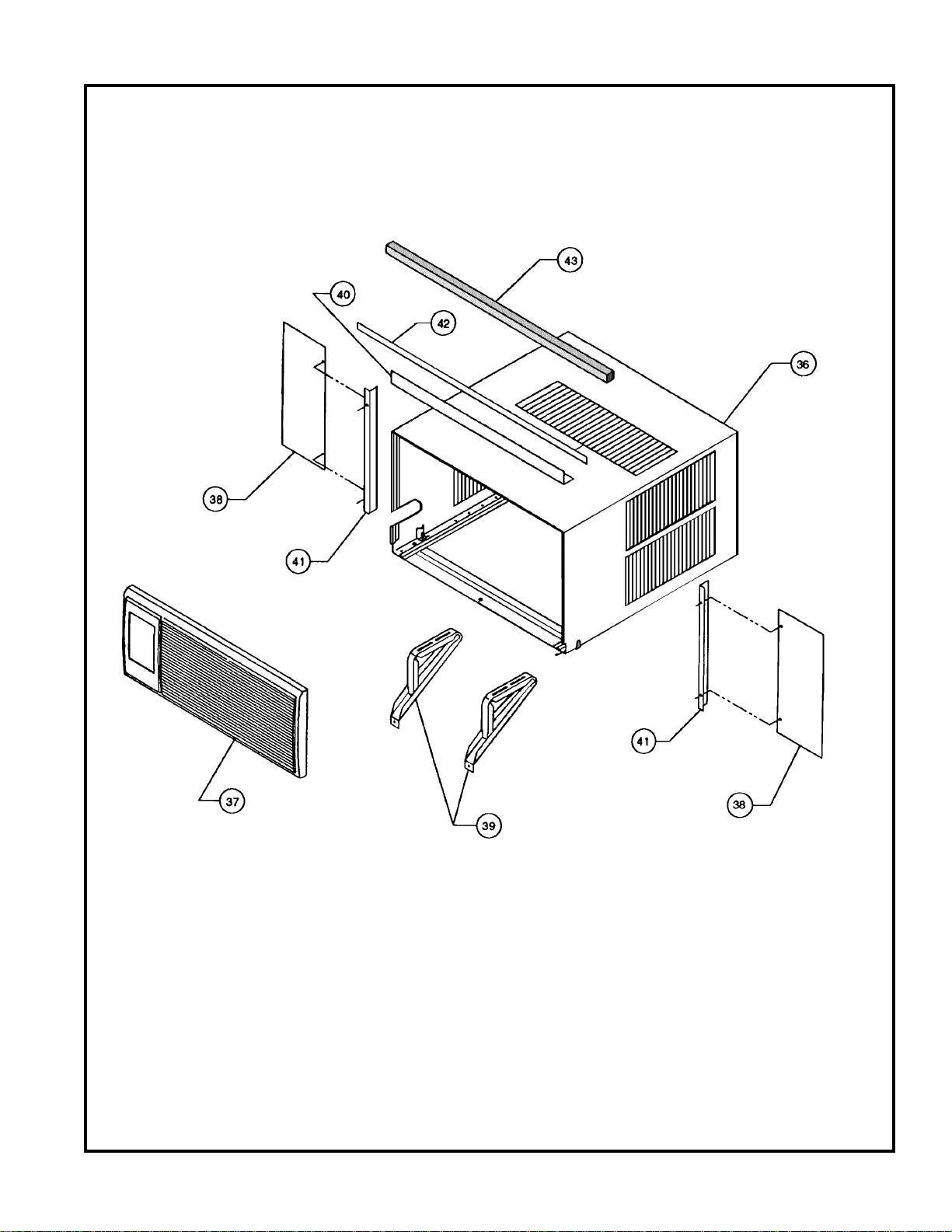

SH20J30A / SH20J30A Model Cabinet Parts List ............................................................ 19
PAGE

3
* Rating Conditions: 80° F. Room Air Temperature and 59% Relative Humidity with 95° F. Outside Air Temperature at 40% Relative Humidity.
PERFORMANCE EVAPORATOR AIR OPERATING ELECTRICAL R-22 COMP.
DATA * TEMP° F PRESSURES RATINGS REFRIG. OIL
DISCHARGE TEMP SUCTION DISCHARGE AMPS LOCKED CHARGE IN CHARGE IN
AIR DROP °F ROTOR AMPS OUNCES FLUID OZ.
56.78 23.22 79 296 7.8 43 28 32
8.5
52.83 27.16 79.5 282 9.8 52 39 32
10.4
SH14J30A-1
SH14J30A-A
SH20J30A-1
SH20J30A-A
BTUH 14000/14000 19000/18800
E.E.R. - Btu/watt 8.0/8.0 8.5/8.5
Volts 230/208 230/208
Hertz/Phase 60/1 60/1
Amperes 7.8/8.5 9.9/10.8
Total Watts 1750/1750 2235/2210
Fuse/Breaker Size 15 20
Fan RPM 1095 1095
Evaporator Air CFM 375 425
Dehumidification-Pts./hr. 4.0 5.7
Width 25-15/16” 25-15/16”
Height 15-15/16” 17-15/16”
Depth 27-3/8” 27-3/8”
Min. Ext. into Room 5-7/8” 5-7/8”
Min. Ext to Outside 16-15/16” 16-15/16”
Net Weight 129 Lbs. 177 Lbs.
Shipping Weight 147 Lbs. 199 Lbs.
Maximum Temperature Rating 1200C (2480F) Ignition Temperature Rating
for Class 1, Division 2, Group D
SPECIFICATIONS SH14J30A-1
SH14J30A SH20J30A-1
SH20J30A

4
FIGURE 1 COMPRESSOR WINDING TEST
DISCONNECT ELECTRICAL POWER TO
THE UNIT BEFORE SERVICING OR
TESTING
COMPONENT OPERATION AND TESTING
WARNING
FIGURE 2 TYPICAL GROUND TEST
Testing Procedures
1. Terminal "C" and "S" - no continuity -
open winding - replace compressor.
2. Terminal "C" and "R" - no continuity -
open winding - replace compressor.
3. Terminal "R" and "S" - no continuity
open winding - replace compressor.
4. Terminal "C" and the shell of the
compressor – continuity – grounded
motor – replace compressor.
5. Should continuity exist between
terminals "R" and "S", but not
between terminals "C" and "S" and
"C" and "R", the internal overload
may be open. If the compressor is
extremely hot, allow it sufficient time
to cool. It may require as long as one
hour for the compressor to cool
sufficiently for the internal overload to
close.
COMPRESSOR WINDING TEST
(See Figure 1.)
Remove the compressor terminal box cover
and disconnect the wires from the terminals.
Using an ohmmeter, check continuity across
the following:
COMPRESSORS
Compressors are single phase, 208/230 volt.
All compressor motors are permanent split
capacitor type, using only a running capacitor
across the start and run terminal.
All compressors are internally spring mounted
and externally mounted on rubber isolators.
Line Voltage Overload
The compressor is equipped with an internal
line voltage overload. This overload is
embedded in the windings of the motor to
sense the motor temperature. The overload will
open and disconnect the power to the motor
due to high temperatures caused by:
1. A locked rotor.
2. Excessive running amps.
3. High discharge temperature.
4. Low refrigerant charge.

5

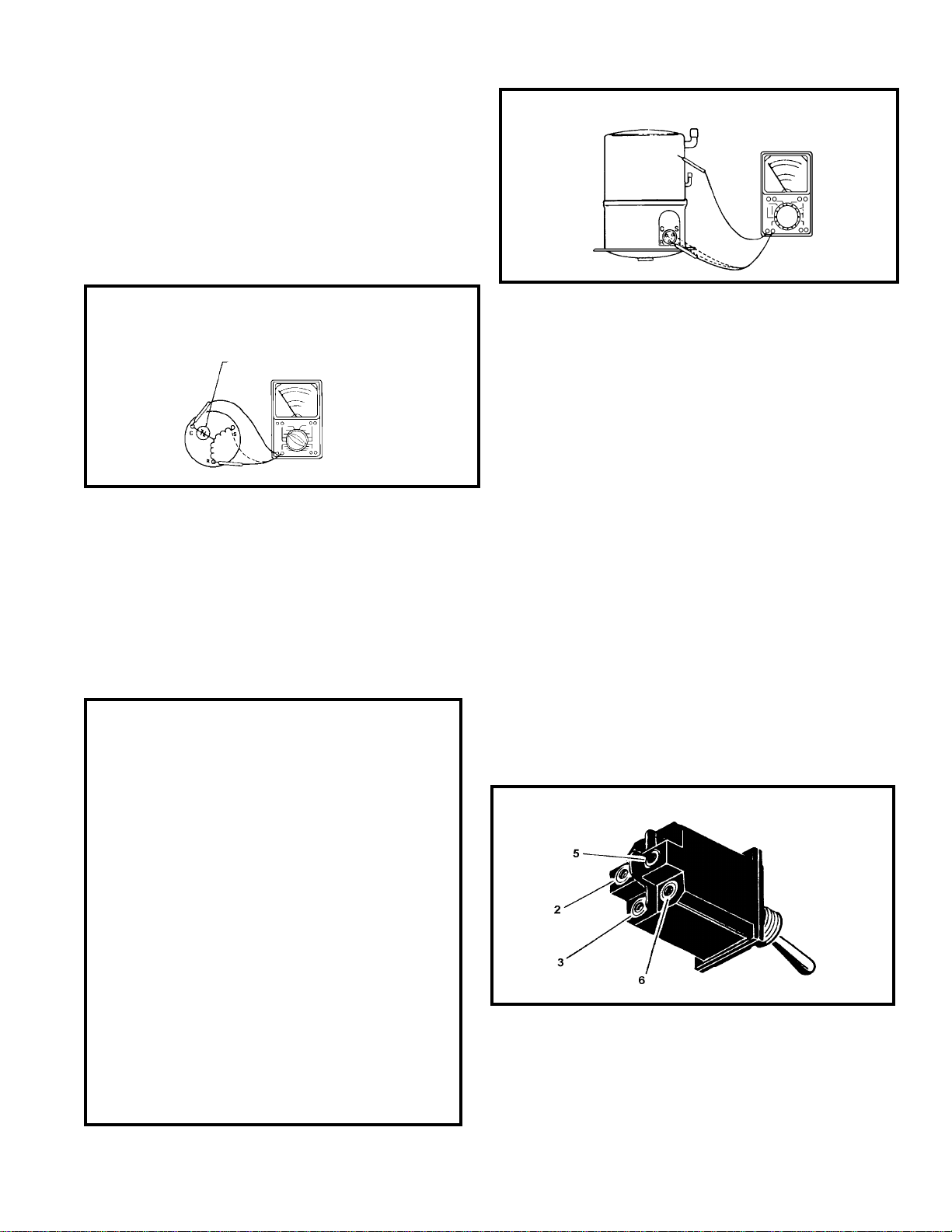

FIGURE 2 INTERNAL OVERLOAD
FIGURE 5 SWITCH, ON-OFF
FIGURE 2 TYPICAL GROUND TEST
LINE BREAK
INTERNAL OVERLOAD
OHMMETER
SYSTEM CONTROL SWITCH
(Figure 5)
This switch is double pole, single throw. Check
for continuity between terminals 2 and 3, and 5
and 6.
FAN MOTOR
A 230 volt single phase permanent split
capacitor motor is used to drive the evaporator
blower and condenser fan. A running capacitor
is wired across the start and run terminals of
the motor.
The motor is totally enclosed and is protected
with a line voltage overload located internally of
the motor. The motor shaft is stainless steel to
resist corrosion.
FAN MOTOR – TEST
Disconnect power to the unit.
1. Determine that the capacitor is
serviceable.
2. Disconnect the black lead from the circuit
board.
3. Apply "live" test cord leads to the
common terminal of the capacitor and the
black lead. The motor should run at high
speed.
CHECKING COMPRESSOR EFFICIENCY
The reason for compressor inefficiency is
normally due to broken or damaged suction
and/or discharge valves, reducing the ability of
the compressor to pump refrigerant gas.
This condition can be checked as
follows:
1. Install a piercing valve on the suction and
discharge or liquid process tube.
2. Attach gages to the high and low sides of
the system.
3. Start the system and run a "cooling or
heating performance test."
If test shows:
A. Below normal high side pressure.
B. Above normal low side pressure.
C. Low temperature difference across the
coil.
The compressor valves are
faulty - replace the compressor.
GROUND TEST
Use an ohmmeter set on its highest scale.
Touch one lead to the compressor body (clean
point of contact, as a good connection is a
must) and the other probe in turn to each
compressor terminal. (See Figure 2.) If a
reading is obtained, the compressor is
grounded and must be replaced.

6

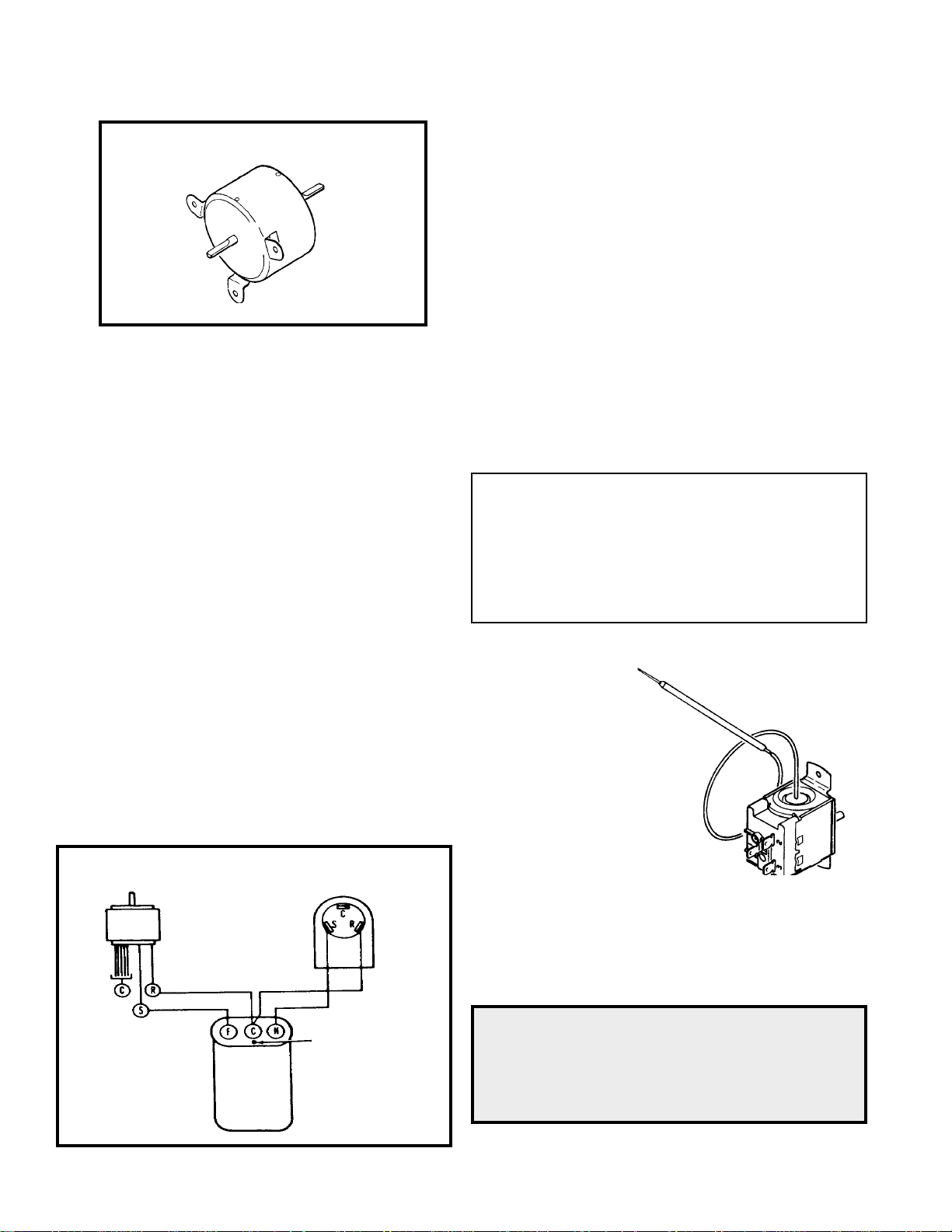

FIGURE 5 FAN MOTOR
RED DOT
RUN CAPACITOR
FAN
MOTOR
COMPRESSOR
FIGURE 6 RUN CAPACITOR HOOK–UP
CAPACITOR, RUN
A run capacitor is wired across the auxiliary and
main winding of a single phase permanent split
capacitor motor such as the compressor and
fan motors. A single capacitor can be used for
each motor or a dual rated capacitor can be
used for both.
The capacitor’s primary function is to reduce
the line current while greatly improving the
torque characteristics of a motor. The capacitor
also reduces the line current to the motor by
improving the power factor of the load. The line
side of the capacitor is marked with a red dot
and is wired to the line side of the circuit. (See
Figure 6.)
THERMOSTAT
A cross ambient
thermostat is
used to maintain
the desired
comfort level.
The thermostat
reacts only to a
change in
temperature at
the bulb location.
Important to the
successful operation
of the unit is the position of the sensing bulb in
relation to the evaporator. See Figure 7.
RANGE:
Thermostat
(Part No. 618-225-02)
60°F ( ± 2°) to 90°F( ± 4°)
FIGURE 7 SENSING
BULB LOCATION
CAPACITOR – TEST
1. Remove the capacitor from the unit.
2. Check for visual damage such as bulges,
cracks, or leaks.
3. For dual rated capacitors, apply an
ohmmeter lead to the common (C) terminal and
the other probe to the compressor (HERM)
terminal. A satisfactory capacitor will cause a
deflection on the pointer, then gradually move
back to infinity.
4. Reverse the leads of the probe and
momentarily touch the capacitor terminals. The
deflection of the pointer should be two times
that of the first check if the capacitor is good.
5. Repeat steps 3 and 4 to check the fan
motor capacitor.
NOTE: A shorted capacitor will indicate a
low resistance and the pointer will move
more to the “0”end of the scale and remain
there as long as the probes are connected.
An open capacitor will show no movement of
the pointer when placed across the
terminals of the capacitor.

7

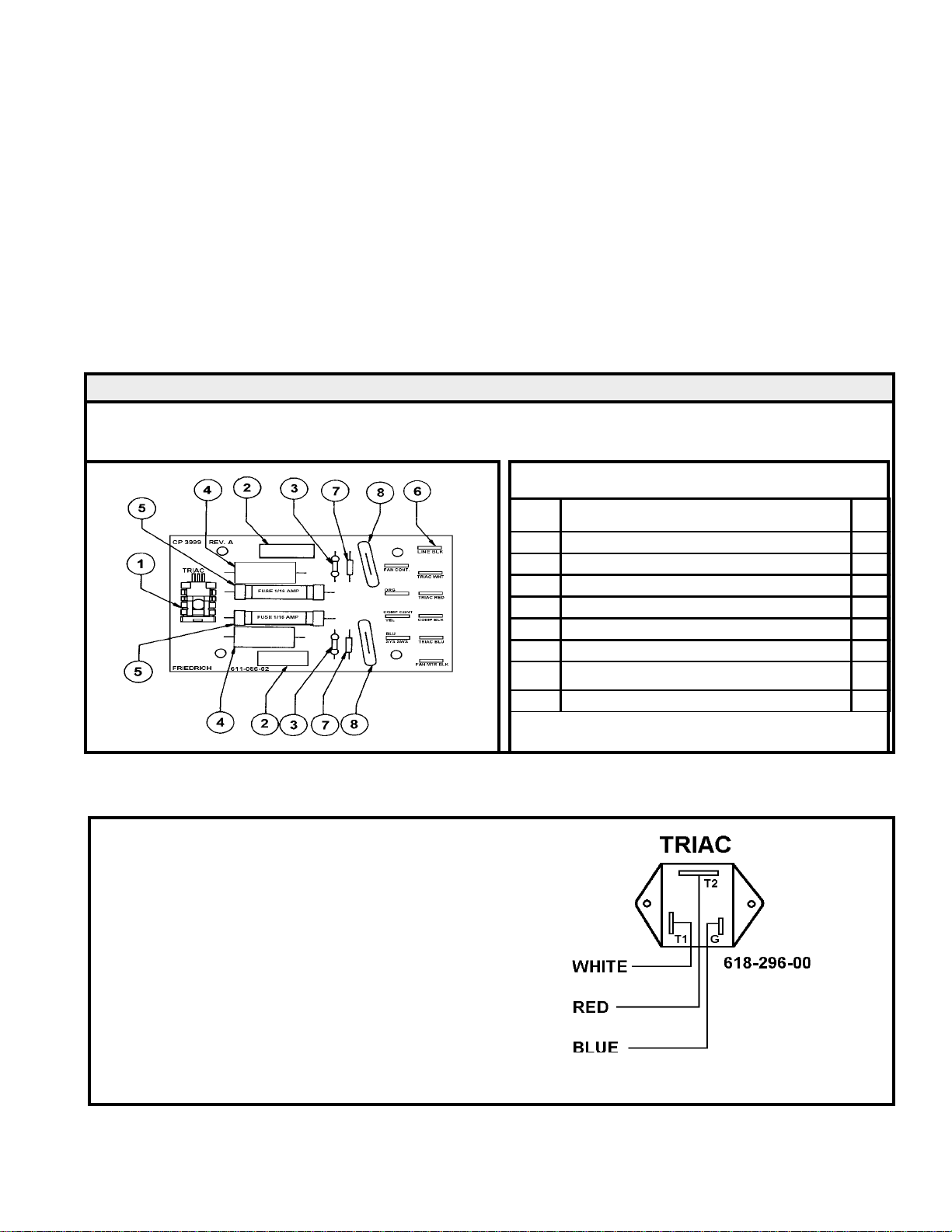

CONTROL ASSEMBLY — PRINTED CIRCUIT BOARD
ITEM
ITEMITEM
ITEM
NO.
NO.NO.
NO. DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION NO.
NO.NO.
NO.
REQ
REQREQ
REQ
1SEE TRIAC MANUFACTURER’S TABLE 1
2.1 MFD. CAPACITOR .630 V DC MIN. 2
3100 OHMS RESISTOR 1/2 WATT 2
4470 OHMS RESISTOR 5 WATT 2
5.0265 A FUSE (1/16 AMP) (UL LISTED) 2
6MALE 1/4" QUICK CONNECT 10
7TECCOR HT-32. -35, GT-32, -35 OR HUTSON D-30
DIAC 2
8SIEMENS S20K275 OR G.E. V275LA40A VARISTORS 2
TRIAC
With the system switch in the "On" position
and the thermostat closed, current flows
through the control components of the
printed circuit board to the TRIAC causing it
to switch on, starting the compressor. If the
compressor fails to start and the compressor
has been tested by the direct start method,
and the thermostat tests satisfactorily,
replace both the TRIAC and the printed
circuit control.
The TRIAC is located on
the evaporator header inside the control
panel.
Note: The temperature must be within the
range listed to check the thermostat. Refer
to the troubleshooting section in this manual
for additional information on thermostat
testing.
TEST
Remove the wires from the thermostat. Turn
the thermostat to its coldest position. Check to
see if there is continuity between the two
terminals. Turn the thermostat to its warmest
position. Check continuity to see if the
thermostat contacts open.

8
LOW AMBIENT BY–PASS VALVE
The HazardGard unit is designed to operate at
low outside ambient temperatures. This is
accomplished by the use of a by–pass valve
installed in the refrigeration circuit. The valve is
connected between the discharge line at the
compressor and the suction process tube. The
valve responds to suction pressure which, when
reduced in the system, causes the valve to
open and by–pass hot gas from the high
pressure side to the low pressure side of the
system. The hot gas entering the compressor
mixes with the cool gas returned through the
suction line, thus increasing the suction
pressure. The valve is preset to open when the
suction pressure reaches 50 psig. This
pressure setting cannot be altered. The system
can be operated at outdoor temperatures as
low as 45°F before the evaporator coil will
begin to accumulate frost.
To determine if the valve operates, block the
return air to the evaporator coil. Turn on the
unit and touch the tube at the by–pass valve
outlet which connects to the suction process
tube. When the low side pressure reaches
approximately 50 psig, the valve will begin to
open and the tube will get hot. This method will
determine if the valve is responding to the
suction pressure change.
FIGURE 8
LOW AMBIENT BY-PASS VALVE
1. Voltmeter
2. Ammeter
3. Ohmmeter
4. E.P.A Approved Refrigerant Recovery
System
5. Vacuum Pump (capable of 200 microns or
less vacuum).
6. Acetylene Welder
7. Electronic Halogen Leak Detector G.E.
Type H-6 or equivalent).
8. Accurate refrigerant charge measuring
device such as:
a. Balance Scales - 1/2 oz. accuracy
b. Charging Board - 1/2 oz. accuracy
9. High Pressure Gauge - (0-400 lbs.)
10. Low Pressure Gauge - (30" - 150 lbs.)
11. Vacuum Gauge - (0-1000 microns)
EQUIPMENT MUST BE CAPABLE OF:
1. Recovering CFC’s as low as 5%.
2. Evacuation from both the high side and low
side of the system simultaneously.
3. Introducing refrigerant charge into the high
side of the system.
4. Accurately weighing the refrigerant charge
actually introduced into the system.
5. Facilities for flowing nitrogen through the
refrigeration tubing during all brazing
processes.
SEALED REFRIGERATION SYSTEM
REPAIRS
EQUIPMENT REQUIRED

9
10.Evacuate the system to an absolute holding
pressure of 200 microns or less.
NOTE: This procedure can be speeded up
by the use of heat lamps, or by breaking the
vacuum with refrigerant or dry nitrogen at
5,000 microns. Pressure system to 5 PSIG
and leave in the system a minimum of 10
minutes. Recover refrigerant, and proceed
with evacuation to a pressure of 200
microns or a minimum of 10%.
11.Break the vacuum by charging the system
from the high side with the correct amount
of refrigerant specified. This will prevent
boiling the oil out of the crankcase.
NOTE: If the entire charge will not enter
the high side, allow the remainder to enter
the low side in small increments while
operating the unit.
12.Restart the unit several times after allowing
pressures to stabilize. Pinch off the process
tubes, cut and solder the ends. Remove the
pinch off tool, and leak check the process
tube ends.
SPECIAL PROCEDURES IN THE CASE OF
COMPRESSOR MOTOR BURN-OUT
1. Recover all refrigerant and oil from the
system.
2. Remove the compressor, capillary tube and
filter drier from the system.
3. Flush the evaporator, condenser and all
connecting tubing with dry nitrogen, or
equivalent, to remove all contamination from
the system. Inspect the suction and
discharge lines for carbon deposits.
Remove and clean if necessary.
4. Reassemble the system, including a new
drier-strainer and capillary tube.
5. Proceed with processing as outlined under
hermetic component replacement.
HERMETIC COMPONENT REPLACEMENT
The following procedure applies when replacing
components in the sealed refrigeration circuit or
repairing refrigerant leaks. (Compressor,
condenser, evaporator, capillary tube,
refrigerant leaks, etc.)
1. Recover the refrigerant from the system at
the process tube located on the high side of
the system by installing a line tap on the
process tube. Apply the gauge from the
process tube to EPA approved gauges from
the process tube to the EPA approved
recovery system. Recover the CFC’s in the
system to at least 5%.
2. Cut the process tube below the pinch off in
the suction side of the compressor.
3. Connect the line from the nitrogen tank to
the suction process tube.
4. Drift dry nitrogen through the system and
unsolder the more distant connection first.
(Filter drier, high side process tube, etc.)
5. Replace the inoperative component, and
always install a new filter drier. Drift dry
nitrogen through the system when making
these connections.
6. Pressurize the system to 30 PSIG with
proper refrigerant and boost the refrigerant
pressure to 150 PSIG with dry nitrogen.
7. Leak test the complete system with the
electric halogen leak detector, correcting
any leaks found.
8. Reduce the system to zero gauge pressure.
9. Connect the vacuum pump to the high side
and low side of the system with deep
vacuum hoses, or copper tubing. (Do not
use regular hoses.)

10
NOTE:
All inoperative compressors returned to
Friedrich must have all lines properly
plugged with the plugs from the
replacement compressor.
REFRIGERANT CHARGE
1. The refrigerant charge is extremely critical.
Measure the charge carefully and as exactly
as possible to the nameplate charge.
2. The correct method for charging the rotary
is to introduce liquid refrigerant into the high
side of the system with the unit off. Then
start the compressor and enter the balance
of the charge, gas only, into the low side.
The introduction of liquid into the low side,
without the use of a capillary tube, will
cause damage to the discharge valve of the
rotary compressor.
ROTARY COMPRESSOR SPECIAL
TROUBLESHOOTING AND SERVICE
Basically, troubleshooting and servicing
rotary compressors is the same as on the
reciprocating compressor with only a few
exceptions.
1. Because of the spinning motion of the rotary,
the mounts are critical. If vibration is
present, check the mounts carefully.
2. The electrical terminals on the rotary are in a
different order than the reciprocating
compressors. The terminal markings are on
the cover gasket. Use your wiring diagram
to insure the correct connections.

11
PROBLEM POSSIBLE CAUSE TO CORRECT
Unit does not
run.
PROBLEM POSSIBLE CAUSE TO CORRECT
DirtyFilter.
Restricted air flow.
Inoperativethermostat.
Short of refrigerant.
Partiallyrestricted capillary.
Inoperative fan motor.
Heat sink triac shorted.
Evaporator
coil freezes
up.
PROBLEM POSSIBLE CAUSE TO CORRECT
Test cooling performance of unit. Unit undersized.
Check for partially iced coil. Check temperature split across
coil.
Check for presence of oil on silver soldered connections.
Check for partially iced coil. Check split across coil. Check
for low running amperage.
Check operation of thermostat. Replace if contacts remain
closed.
Replace both heat sink assembly and printed circuit control.
Compressor
runs
continually.
Does not
cycle off.
PROBLEM POSSIBLE CAUSE TO CORRECT
Place jumper across thermostat terminals. If unit operates,
replace thermostat.
Check as above.
Connect per wiring diagram.
Test for continuity at switch terminals 5 and 6.
Loss of charge in thermostat bulb.
Loose or broken parts in
thermostat.
Incorrect wiring.
System switch open.
Thermostat
does not turn
unit on.
Excessive heat load.
Restriction in line.
Refrigerant leak.
Thermostat contacts stuck.
Heat sink triac shorted.
PROBLEM POSSIBLE CAUSE TO CORRECT
Turn to highest temperature setting to see of unit will cycle off.
Disconnect power to the unit. Remove cover of thermostat
and check if contact is stuck, if so replace thermostat.
Test switch for open contacts at terminals 5 and 6, 2 and 3
with switch in “Off”position.
Thermostat set at coldest point
Thermostat contacts stuck.
Switch (On - Off) shorted.
Thermostat
does not
turn unit off.
Power disconnected.
System switch in “Off”position.
Branch circuit fuse blown or
circuit breaker tripped.
Inoperative system switch.
Loose or disconnected wiring at
switch.
Inoperative switch (On-Off).
Clean as recommended in Owner’s Manual.
Check for dirty or obstructed coil - clean as required.
Test for shorted thermostat or stuck contacts.
De-ice coil and check for leak.
De-ice coil. Check temperature differential across coil. Touch
test coil return bends for same temperature. Test for low
running current.
Test and replace if inoperative.
If thermostat is functioning properly and compressor cycles,
replace both heat sink and printed circuit board.
Check power source.
Set switch correctly.
Replace fuse, reset breaker. If repeats, check fuse or breaker
size. Check for shorts in unit wiring and components.
Test for continuity.
Check wiring and connections. Connect per wiring diagram.
Test for continuity, 3 and 2, 5 and 6.
TROUBLESHOOTING

12
PROBLEM POSSIBLE CAUSE TO CORRECT
Compressor
attempts to
start, or runs
for short
periodsonly.
Cycles on
overload.
Allow a minimum of two (2) minutes to allow pressures to
equalize before attempting to start.
Check voltage with unit operating. Check for other appliances
on the circuit. Unit should be on separate circuit for proper
voltage, and be fused separately.
Connect per wiring diagram.
Check by substituting a known good capacitor of correct rating.
Check for proper fan speed or blocked condenser.
Check for kinked discharge line or restricted condenser. Check
amperage.
Change compressor if all other corrections above are normal.
Compressor attempts to start
before system pressures are
equalized.
Low or fluctuating voltage.
Incorrect wiring.
Shorted or incorrect capacitor.
Restricted or low air flow through
condenser coil.
Compressor running abnormally
hot.
Overload opens too soon.
PROBLEM POSSIBLE CAUSE TO CORRECT
Compressor
does not
start - fan
motor
runs.
Check continuity of thermostat at coldest setting. Jump
contacts, if compressor runs, replace thermostat.
Check for nameplate voltage.
Test for continuity.
Check by substituting a known good capacitor of correct rating.
Replace both heat sink assembly and printed circuit control.
Check voltage at compressor terminals. If voltage is
satisfactory, replace compressor.
Check windings for continuity and resistance. Direct test
compressor. If direct test fails, replace compressor.
Thermostat contacts not closing.
Low voltage supply.
Switch (On-Off) inoperative.
Open capacitor.
Heat sink triac open.
Internal overload open.
Open or shorted compressor
windings
PROBLEM POSSIBLE CAUSE TO CORRECT
Set to coldest position. Test thermostat and replace if
necessary.
Clean as recommended in Owner’s Manual.
Use steam or detergents to clean.
Adjust air louvers.
Clean, check for leak and make repair.
Check amperage draw against nameplate. If not conclusive,
make pressure test.
Thermostat open or inoperative.
Dirty air filter.
Dirty or plugged condenser or
evaporatorcoil.
Poor air circulation in area being
cooled.
Low capacity - undercharge.
Compressor not pumping
properly.
Does not
cool, or
cools only
slightly
Fan motor
does not
run.
PROBLEM POSSIBLE CAUSE TO CORRECT
Check continuity across terminals 2 and 3.
Check by substituting a known good capacitor of the same
rating.
Direct test fan motor.
Connect per wiring diagram.
Replace both printed circuit control and heat sink assembly.
Rotate by hand, add oil, if noisy, replace.
Adjust for proper clearance.
Defective switch (On-Off).
Fan capacitor open.
Inoperative fan motor.
Incorrect wiring of fan circuit.
Printed circuit triac open.
Check for seized motor bearings.
Bound fan blade or blower wheel.
TROUBLESHOOTING (Continued)

13
PROBLEM POSSIBLE CAUSE TO CORRECT
Replace both printed circuit control and heat sink assembly.
Printed circuit triac shorted.
PROBLEM POSSIBLE CAUSE TO CORRECT
Refer to Installation Instructions for proper installation.
Adjust motor mount to attain proper fan blade and blower
wheel clearance.
Check for deteriorated compressor grommets, or missing
mounting parts.
Adjust and tighten as required.
Poorinstallation.
Fan blade striking chassis.
Compressor vibrating.
Loose cabinet parts, improperly
mounted components, tubing
rubbing.
Outside water
leaks.
Repair and clean, or replace as required.
Remove condenser shroud, Clean and remove old sealer from
base pan and shroud. Apply new sealer, reinstall and check.
Clean with steam or detergent.
Adjust fan blade to 1/2" clearance from condenser coil.
Evaporator drain pan cracked or
obstructed.
Water in center section of base
pan (compressor area).
Dirty Condenser coil.
Fan blade and slinger ring
improperlypositioned.
Clean obstructed drain trough.
Evaporator drain pan broken or cracked. Reseal or replace.
Dirty evaporator coil, or extremely high humidity conditions.
Clean coil with steam or detergent.
Evaporator drain pan
overflowing.
Condensation forming on
bottom of base pan.
Water dripping from discharge
air grilles.
PROBLEM POSSIBLE CAUSE TO CORRECT
Water leaks into
room.
Switch (On-Off)
does not cut fan
motor off.
Noisy and/or
vibration.
PROBLEM POSSIBLE CAUSE TO CORRECT
TROUBLESHOOTING (Continued)

14
WIRING DIAGRAM FOR SH14J30A & SH20J30A

15
Hazardgard Cabinet Parts

16
Hazardgard Chassis Parts

17
HAZARDGARD PARTS LIST
REF. PART NO. DESCRIPTION APPLICATION
SSSS
HHHH
1122
4400
JJJJ
3333
0000
AAAA
----
1A1A
1 611-935-49 Compressor, Tecumseh, 230/208V; 60 Hz 1 Ph, Model AWG5515EXN.. 1 1
1 611-935-50 Compressor, Tecumseh, 230/208 V; 60 Hz 1 Ph, Model AWG5519EXN. 1 1
2 618-714-26 Motor, Fan 1/8 HP..................................................................................... 1 1
2 618-714-27 Motor, Fan 1/4 HP..................................................................................... 1 1
3 617-682-00 Box, Electrical Wiring................................................................................ 1 1 1 1
4 613-892-00 Cover, Assembly Box................................................................................ 1 1 1 1
5 609-353-00 Switch, On-Off DPST ................................................................................ 1 1 1 1
* 618-295-00 Circuit board, Support............................................................................... 4 4 4 4
* 611-086-02 Control Assembly, Printed Circuit Board .................................................. 1 1 1 1
* 618-297-00 Insulator, Electrical ................................................................................... 1 1 1 1
* 618-296-00 TRIAC –Heatsink ..................................................................................... 1 1 1 1
* 618-332-00 Strap, TRIAC ............................................................................................ 1 1 1 1
6 618-225-02 Thermostat................................................................................................ 1 1 1 1
7 610-803-46 Capacitor 20/7.5 MFD, 440 Volt ............................................................... 1 1
7 610-803-47 Capacitor 25/7.5 MFD, 440 Volt ............................................................... 1 1
8 618-298-00 Holder, Thermostat ................................................................................... 1 1 1 1
* 613-891-00 Connector, E.M.T. ..................................................................................... 1 1 1 1
* 618-212-00 Harness, Wire, Compressor ..................................................................... 1 1 1 1
* 618-208-01 Harness wire, Fan Motor .......................................................................... 1 1 1 1
REFRIGERATION SYSTEM COMPONENTS
9 618-501-03 Coil, Evaporator ........................................................................................ 1 1
9 618-500-08 Evaporator ................................................................................................ 1 1
10 618-503-10 Condenser ................................................................................................ 1 1
10 618-503-11 Condenser ................................................................................................ 1 1
* 013-900-05 †Capillary Tube .064 I.D. x 25”Long ........................................................ 1 1
* 037-605-18 †Capillary Tube .054 I.D. x 27 3/8”Long .................................................. 1 1
* 608-095-00 Valve, By-Pass .......................................................................................... 1 1 1 1
* 603-081-01 Filter Drier (Install during sealed system repairs)..................................... 1 1 1 1
CHASSIS PARTS
11 614-939-05 Knob, Control............................................................................................ 1 1 1 1
12 618-205-05 Panel, Control Mtg .................................................................................... 1 1
12 618-205-06 Panel, Control Mtg .................................................................................... 1 1
* 600-713-12 Bushing, Snap .......................................................................................... 1 1 1 1
* 600-713-11 Bushing, Snap .......................................................................................... 1 1 1 1
* 618-293-00 Panel Plate ............................................................................................... 1 1 1 1
* 618-299-00 Block, Insert .............................................................................................. 1 1 1 1
13 618-120-06 Panel Assembly, left side.......................................................................... 1 1
13 618-120-07 Panel Assembly, left side.......................................................................... 1 1
*NOT SHOWN
†CAPILLARY LENGTH MAY VARY, FLOW RATE IS THE SAME.
ELECTRICAL PARTS

18
HAZARDGARD PARTS LIST
REF. PART NO. DESCRIPTION
SSS S
HH HH
112 2
440 0
JJJ J
333 3
000 0
AA AA
-- --
1A1 A
APPLICATION
14 618-028-01 Partition, Control Box.................................................................................. 1 1
14 618-043-01 Partition, Control Box.................................................................................. 1 1
15 618-204-00 Bracket, Capacitor Mtg. .............................................................................. 1 1 1 1
16 618-207-00 Strap, Capacitor.......................................................................................... 1 1 1 1
17 618-226-01 Decorative Panel ........................................................................................ 1 1 1 1
* 618-306-00 Plate, Inner Wall ......................................................................................... 1 1 1 1
18 618-172-00 Cover, Top................................................................................................... 1 1 1 1
19 618-167-00 Insulation, Top Cover .................................................................................. 1 1 1 1
* 618-168-00 Insulation, Left Side Deck........................................................................... 1 1 1 1
20 618-171-00 Deck............................................................................................................ 1 1 1 1
* 608-658-08 Filter, Air...................................................................................................... 1 1
* 608-658-09 Filter, Air...................................................................................................... 1 1
* 618-230-00 Holder, Filter ............................................................................................... 2 2 2 2
21 618-202-00 Airfoil ........................................................................................................... 1 111
* 618-206-00 Bracket, Resistor Block .............................................................................. 1 1 1 1
* 915-003-01 Clamp, Supply Cord.................................................................................... 1 1 1 1
22 605-420-03 Fan Blade ................................................................................................... 1 1
22 605-420-04 Fan Blade ................................................................................................... 1 1
23 606-106-03 Blower Wheel ............................................................................................. 1 1
23 606-106-01 Blower Wheel ............................................................................................. 1 1
24 618-033-00 Inner Wall.................................................................................................... 1 1
24 618-047-00 Inner Wall.................................................................................................... 1 1
25 618-025-00 Mount, Motor............................................................................................... 1 1
25 618-041-00 Mount, Motor............................................................................................... 1 1
26 618-036-00 Shroud ........................................................................................................ 1 1
26 618-049-00 Shroud ........................................................................................................ 1 1
27 618-026-00 Brace, Shroud............................................................................................. 3 3 3 3
28 618-169-00 Insulation, Inner Wall .................................................................................. 1 1
28 618-169-01 Insulation, Inner Wall .................................................................................. 1 1
29 618-173-00 Blower Front ............................................................................................... 1 1
29 618-174-00 Blower Front ............................................................................................... 1 1
30 618-149-00 Scroll ........................................................................................................... 1 1
30 618-175-00 Scroll ........................................................................................................... 1 1
31 618-215-00 Door, Slide Assembly ................................................................................. 1 1 1 1
32 618-034-05 Base Pan .................................................................................................... 1 1
32 618-034-11 Base Pan .................................................................................................... 1 1
* 618-038-00 Drain Pan.................................................................................................... 1 1 1 1
* 618-188-00 Rear Grille................................................................................................... 1 1
* 618-188-01 Rear Grille................................................................................................... 1 1
33 610-289-00 Grommet, Compressor ............................................................................... 3 3 3 3
34 914-004-00 Bolt, Compressor Mounting ........................................................................ 3 3 3 3
35 618-102-00 Plenum Assembly ..................................................................................... 1 1 1 1
* 618-093-00 Knob, Fresh Air & Exhaust ......................................................................... 1 1 1 1
* NOT SHOWN
CHASSIS PARTS (Cont.)

19
* 618-092-00 Lever, Fresh Air & Exhaust ................................................................................ 1 1 1 1
* 618-062-00 Connector, Louver ............................................................................................. 2 2 2 2
* 618-063-00 Louver, Grille...................................................................................................... 20 20 20 20
* 618-063-01 Louver with Handle ............................................................................................ 2 2 2
36 618-032-03 Outer Shell.........................................................................................................11
36 618-046-00 Outer Shell.........................................................................................................11
37 618-089-00 Grille, Intake....................................................................................................... 1 1
37 618-111-00 Grille, Intake....................................................................................................... 1 1
* 618-199-00 Latch, Intake Grille............................................................................................. 2 2 2 2
38 602-944-08 Wingboard ......................................................................................................... 1 1
38 602-944-09 Wingboard ......................................................................................................... 1 1
* 611-050-04 Accessory Package ........................................................................................... 1 1
* 611-050-05 Accessory Package ........................................................................................... 1 1
39 611-095-03 Bracket, Support ................................................................................................ 2 2 2 2
40 618-197-01 Angle, Wingboard (Top)..................................................................................... 1 1 1 1
41 618-198-01 Angle, Wingboard (Side) ................................................................................... 2 2
41 618-198-03 Angle, Wingboard (Side) ................................................................................... 2 2
42 606-103-03 Gasket (Vinyl) .................................................................................................... 1 111
* 608-460-16 Bag (Assembly Hardware)................................................................................. 1 1 1 1
* 617-173-01 Gasket, Chassis (Foam) .................................................................................... 1 1 1 1
* 618-116-20 Carton, Shipping ................................................................................................ 1 1
* 618-116-21 Carton, Shipping ................................................................................................ 1 1
* 618-139-00 Pad, Shipping .................................................................................................... 1 1 1 1
* 618-118-00 Pad, Shipping .................................................................................................... 2 2
* 618-118-01 Pad, Shipping .................................................................................................... 2 2
* 618-141-01 Pad, Shipping (Top) ........................................................................................... 1 1 1 1
43 600-733-00 Gasket, Window (Foam).................................................................................... 1 1 1 1
* Not Shown
OPTIONAL ACCESSORIES
* 01900-235 Drain –Condensate Connection Kit, DC–2 ....................................................... x x x x
* 01900-312 Start Kit, Capacitor/Relay (Pow–R–Pak) ........................................................... x x x x
* HG2001 Parts Manual (7/01) ........................................................................................... x x x x
* 92002403 Installation Manual............................................................................................. x x x x
HAZARDGARD PARTS LIST
REF. PART NO. DESCRIPTION
SSS S
HH HH
11 22
44 00
JJ JJ
33 33
00 00
AAA A
-- --
1A1 A
APPLICATION
CHASSIS PARTS (Cont.)

20
Friedrich Air Conditioning Co.
4200 North Pan Am Expressway
P.O. Box 1540, San Antonio, Texas 78295-1540, USA
Tel. [phone] Fax: [phone]
Printed in the U.S.A HG02001 (8/01)
Certified Parts...
Use Factory
