Friedrich KUHL R-410A User manual

Kühl Parts (7-10)
2010 Room Air Conditioner
Parts Manual – R-410A Models
SYSTEM FAN MODE
SCHEDULE FAN SPEED
AUTO
AUTO
AUTO
CONTINUOUS
°F °C
Kühl + XStar®

1
Table of Contents
Unit Identication ...................................................
XStar®Unit Exploded Diagram ..............................
XStar®Sleeve Exploded Diagram .........................
XStar®Parts List ................................................
Kühl Unit Exploded Diagram ..................................
Kühl Sleeve Exploded Diagram .............................
Kühl Small Chassis Parts List ..........................
Kühl Medium Chassis Parts List .....................
Kühl Large Chassis Parts List ........................
2
3
4
5-6
7
8
9-10
11-12
13-14

2
Serial Number
Decade Manufactured
L=0 C=3 F=6 J=9
A=1 D=4 G=7
B=2 E=5 H=8
A K A R 00001
Production Run Number
Year Manufactured
A=1 D=4 G=7 K=0
B=2 E=5 H=8
C=3 F=6 J=9
Product Line
R = RAC
Month Manufactured
A=Jan D=Apr G=Jul K=Oct
B=Feb E=May H=Aug L=Nov
C=Mar F=Jun J=Sept M=Dec
1st Digit – Function
S = Straight Cool, Value Series
Y = Heat Pump
E = Electric Heat
2nd Digit
S = Small Chassis
M = Medium Chassis
L = Large Chassis
3rd and 4th Digit - Approximate
BTU/HR in 1000s (Cooling)
Heating BTU/Hr capacity listed in the
Specication/Performance Data Section
8th Digit – Engineering
Major change
7th Digit – Options
0 = Straight Cool &
Heat Pump Models
3 = 3 KW Heat Strip, Nominal
4 = 4 KW Heat Strip, Nominal
5 = 5 KW Heat Strip, Nominal
6th Digit – Voltage
1 = 115 Volts
3 = 230-208 Volts
5th Digit
Alphabetical Modier
Model Number Code
S S 08 M 1 0 A
RAC Serial Number Identication Guide
UNIT IDENTIFICATION

XStar®Unit Exploded Diagram
4
20
13
21
22
11
9
19
6
2
10
7
12
23
14
15
3
5
24
8
18
17
16
1
3

XStar®Sleeve Exploded Diagram
29
28
30
11
26
30
27
25
31
4

5
XStar®Parts List
REF NO. PART NO. DESCRIPTION
EQ08M11-A EQ08M11-B XQ05M10-A XQ05M10-B XQ06M10-A XQ08M10-A XQ08M10-B XQ10M10-A
1 61896026 CONDENSER COIL 1 1 1 1 1 1 1 1
2 61600271 EVAPORATOR COIL 1
2 62050024 EVAPORATOR COIL 1
2 62050026 EVAPORATOR COIL 1 1 1 1 1 1
3 61717103 COMPRESSOR KIT 1
3 61717101 COMPRESSOR KIT 1
3 61717102 COMPRESSOR KIT 1 1
3 61717105 COMPRESSOR KIT 1
3 61717104 COMPRESSOR KIT 1
3 61717154 COMPRESSOR KIT 1 1
* 03760502 CAPILLARY TUBE 1
* 03760545 CAPILLARY TUBE 1 1
* 03760548 CAPILLARY TUBE 1
* 03760550 CAPILLARY TUBE 1 1 1 1
* 61828202 LIQUID DRIER 1 1 1 1 1 1 1 1
4 61921210 ELECTRONIC CONTROL BOARD 1 1 1 1 1 1
* 61826610 REMOTE CONTROL 2010 RAC & WM 1 1 1 1 1 1
* 60441610 SYSTEM SWITCH (ROTARY) 1 1
* 61822401 THERMOSTAT 1 1
* 61080528 CAPACITOR 1
* 61080530 CAPACITOR 1 1 1
* 61080550 CAPACITOR 1 1
* 61080580 CAPACITOR 1 1
5 61764558 OVERLOAD 1 1
5 61764559 OVERLOAD 1
5 61764563 OVERLOAD 1
561764596 OVERLOAD 1
5 61764597 OVERLOAD 1 1
5 61764598 OVERLOAD 1
6 61871451 FAN MOTOR 1 1 1 1 1 1 1 1
7 61929611 HEATER 1.15 KW @ 115V 1 1
8 60500380 SUPPLY CORD 1 1 1 1 1 1 1 1
9 61923901 CONTROL MOUNTING BRACKET 1 1 1 1 1 1
10 61928801 PANEL BLWR FRONT EQ 2003 1 1
11 61924300 LEFT SIDE PANEL 1 1 1 1 1 1 1 1
12 61990700 BLOWER FRONT 1 1 1 1 1 1
13 61990701 TOP BLOWER FRONT 1 1 1 1 1 1 1 1
14 60610606 BLOWER WHEEL, EVAPORATOR 1 1 1 1 1 1
14 60610612 BLOWER WHEEL, EVAPORATOR 1 1
15 61990606 SCROLL Q CHASSIS 1 1 1 1 1 1 1 1
16 61634001 CONDENSER FAN BLADE 1 1 1 1 1 1 1 1
17 61627601 SHROUD 1 1 1 1 1 1 1 1
18 61597317 INNERWALL XQ 1 1 1 1 1 1
18 61597318 INNERWALL EQ 1 1

XStar®Parts List (Continued)
6
REF NO. PART NO. DESCRIPTION
EQ08M11-A EQ08M11-B XQ05M10-A XQ05M10-B XQ06M10-A XQ08M10-A XQ08M10-B XQ10M10-A
19 61776903 MOTOR MOUNT 1 1 1 1 1 1 1 1
20 61619517 COVER TOP Q-CHASSIS VENTED 1 1 1 1 1 1 1 1
21 91400400 COMPRESSOR MOUNTING BOLT 3 3 3 3 3 3 3 3
22 61028900 COMPRESSOR GROMMET 3 3 3 3 3 3 3 3
23 61638400 DRAIN PAN 1 1 1 1 1 1 1 1
24 61626312 BASEPAN 1 1 1 1 1
24 61626313 BASEPAN 1
24 61626314 BASEPAN 1 1
25 61625813 SHELL ASY CHASSIS S/W Q VENTED 1 1 1 1 1 1 1 1
26 61627211 CHANNEL SILL Q CHASSIS 1 1 1 1 1 1 1 1
27 61627313 SUPPORT TOP BRACKET/CHANNEL Q 1 1 1 1 1 1
28 61637717 DECORATIVE FRONT 1 1 1 1 1 1 1 1
29 61632315 AIR FILTER 1 1 1 1 1 1 1 1
30 61680205 ASY CURTAIN AND FRAME Q 1 1 1 1 1 1
31 61717300 GASKET CHASSIS SEAL Q 1 1 1 1 1 1 1 1
* 61715800 COUNTER WEIGHT 6 6 3 3 3 3 6 2
* 61883101 ISOLATION PAD 1
* 61699801 DEFROST THERMOSTAT 1 1
* 61699901 CLIP (FOR DEFROST THERMOSTAT) 1 1
* 60179903 CONDENSATE VALVE 1 1
* 61834800 STRAINER 1 1 1 1 1 1 1 1
* 61947500 DUCT DISCHARGE EQ 1 1
* 61911605 CONTROL KNOBS 2 2
* 60062720 CAPACITOR STRAP 1 1 1 1 1 1 1 1
* 61619405 DECK (EQ08) 1 1
* 61990500 DECK, EVAP Q CHASSIS 1 1 1 1 1 1
* 60217902 SEAL FAN MOTOR TO INNER WALL 1 1 1 1 1 1 1 1
* 60301800 WIRE CLIP FASTEX 1 1 1 1 1 1 1 1
* 91500306 CLAMP COATED ROUND 14AWG 1 1 1 1 1 1 1 1
* 61619612 CONTROL MOUNTING BRACKET 1 1
* 61715922 CONTROL DECORATIVE PLATE/PANEL 1 1
* 25066200 WIRE INSULATOR STR-LG 3 3
* 61900500 HOLDER T-STAT SENSOR 1 1
* 61925001 HOLDER, THERMISTOR 1 1 1 1 1 1
* 61031040 GASKET 2 2 2 2 2 2 2 2
* 60169120 SCRIPT FRIEDRICH 2010 "FESTOON" 1 1 1 1 1 1 1 1
* 91002900 SPEEDNUT PUSH TYPE 3 3 3 2 3 3 3 3
* 61031049 GASKET,FOAM PLSTC PRESS/SENS 1 1 1 1 1 1
* 61778700 BAG ASY PLSTC SQ-KQ-XQ 1 1 1 1 1 1
* 61778701 BAG ASY PLSTC YQ & EQ08 1 1
* 60073300 GASKET URETHANE FOAM 1 1 1 1 1 1
* 01900235 DC-2 DRAIN KIT
* 01109003 TOUCH UP SPRAY PAINT (12 OZ.)

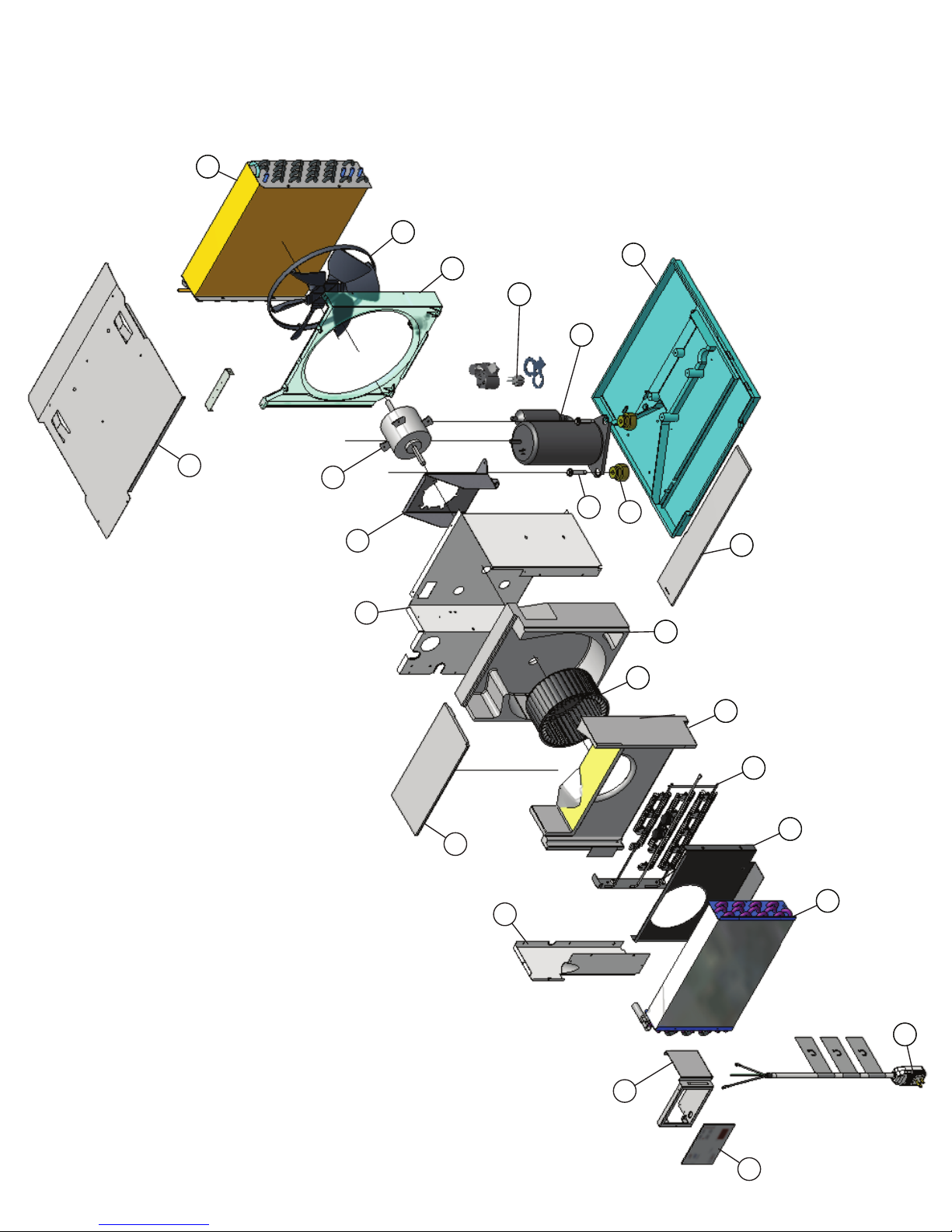

Kühl Unit Exploded Diagram
10
5
8
4
35
32
23
25
26
2
31
33
17
34
3
9
28
12
27
18
1
13
22
11
21
15
14
7
19
20
24
29
30
36
16
6
7

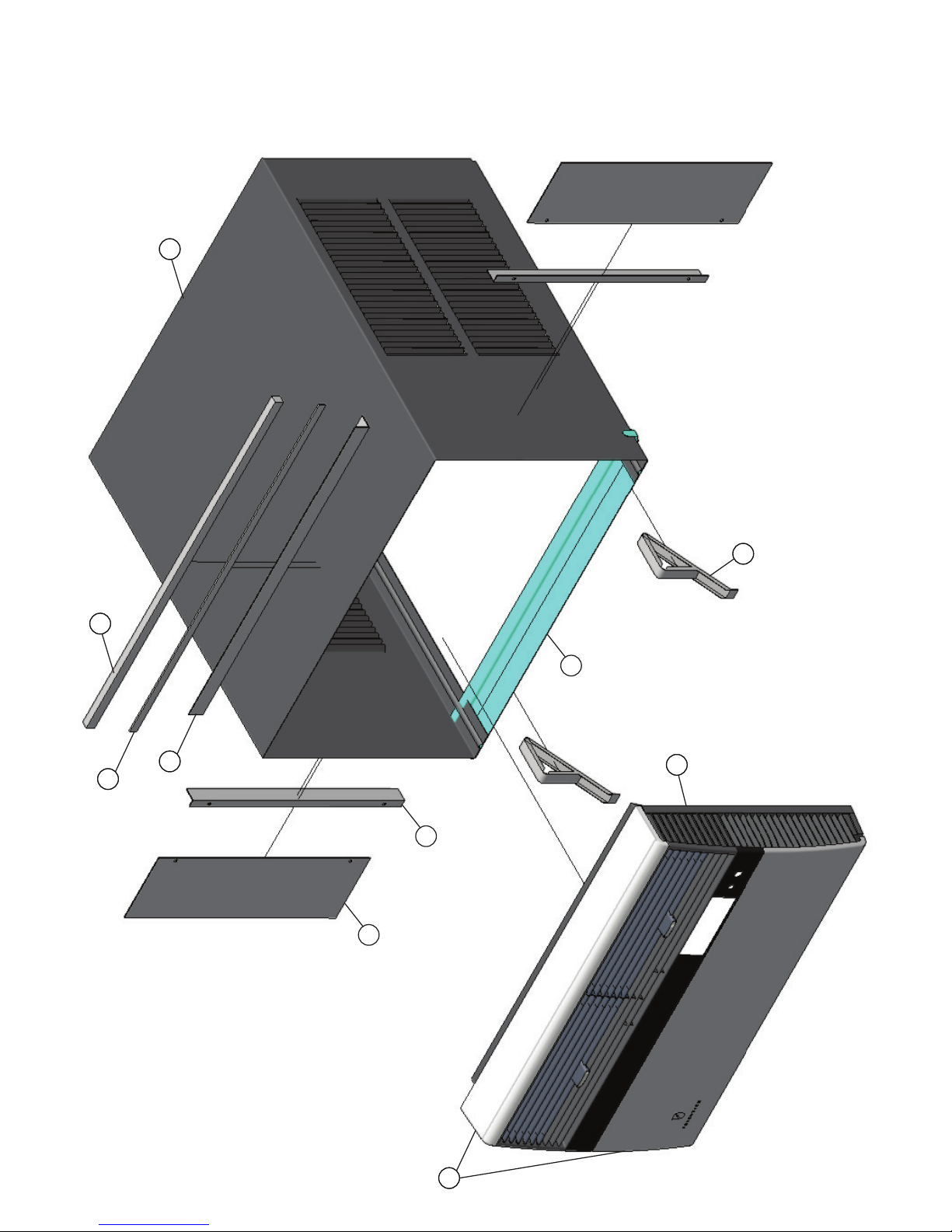

Kühl Sleeve Exploded Diagram
39
40
45
41
46
44
37
38
43
42
8

Kühl Small Chassis Parts List
9
REF NO. PART NO. DESCRIPTION
ES12M33-A
ES12M33-B ES15M33-A SS08M10-A SS10M10-A SS10M10-B SS12M10-A SS12M30-A SS12M30-B SS14M10-A SS15M30-A YS10M10-A YS12M33-A
1 61850323 CONDENSER COIL 1 1 1 1 1 1 1 1 1 1 1
1 61850340 CONDENSER COIL 1
1 62050304 CONDENSER COIL 1
2 61850110 EVAPORATOR COIL 1 1 1 1 1 1
2 61850117 EVAPORATOR COIL 1
2 61850118 EVAPORATOR COIL 1
2 61850123 EVAPORATOR COIL 1 1
2 62050032 EVAPORATOR COIL 1 1 1
3 61717102 COMPRESSOR KIT 1
3 61717115 COMPRESSOR KIT 1 1
3 61717120 COMPRESSOR KIT 1
3 61717116 COMPRESSOR KIT 1
3 61717127 COMPRESSOR KIT 1 1
3 61717126 COMPRESSOR KIT 1
3 61717152 COMPRESSOR KIT 1
3 61717164 COMPRESSOR KIT 1 1
3 61717176 COMPRESSOR KIT 1 1
4 25022032 REVERSING VALVE + SOLENOID KIT 1
4 25022022 REVERSING VALVE + SOLENOID KIT 1
* 61824405 CHECK VALVE 1 1
* 03760500 CAPILLARY TUBE 1
* 03760517 CAPILLARY TUBE 1
* 03760482 CAPILLARY TUBE 1
* 03760548 CAPILLARY TUBE 1 1
* 03760473 CAPILLARY TUBE 1
* 03760479 CAPILLARY TUBE 1
* 03760555 CAPILLARY TUBE 1
* 03760520 CAPILLARY TUBE 1 1 1 1
* 03760555 CAPILLARY TUBE 1
* 03760511 CAPILLARY TUBE 1 1
* 61828202 LIQUID DRIER 1 1 1 1 1 1 1 1 1 1 1
* 61828204 SUCTION DRIER 1 1
5 62601006 ELECTRONIC CTRL USER INTERFACE KIT 1 1 1 1 1 1 1 1 1 1 1 1 1
6 62601000
ELECTRONIC CTRL (COOL ONLY KIT)
1 1 1 1 1 1 1 1
6 62601003
ELECTRONIC CTRL (ELEC. HEAT + COOL KIT)
1 1 1
6 62601002
ELECTRONIC CTRL (HEAT PUMP + ELEC. HEAT KIT)
1
6 62601004
ELECTRONIC CTRL (HEAT PUMP + COOL KIT)
1
* 62601007
THERMISTOR ASY FOR ELEC. CTRL.
1111111111111
* 62601005 REMOTE CONTROL KIT 2010 1 1 1 1 1 1 1 1 1 1 1 1 1
7 61080522 CAPACITOR 1 1
7 61080529 CAPACITOR 1
7 61080532 CAPACITOR 1 1
7 61080533 CAPACITOR 1
7 61080536 CAPACITOR 1 1
7 61080559 CAPACITOR 1 1
7 61080569 CAPACITOR 1
7 61080582 CAPACITOR 1 1
8 25063605 SOLENOID COIL 1
8 25063505 SOLENOID COIL 1
9 61717126 COMPRESSOR KIT 1
9 61764558 OVERLOAD 1
9 61764565 OVERLOAD 1 1
9 61764566 OVERLOAD 1
9 61764583 OVERLOAD 1
9 61764584 OVERLOAD 1
9 61764585 OVERLOAD 1 1
9 61764586 OVERLOAD 1 1
9 61764589 OVERLOAD 1
9 61764594 OVERLOAD 1 1
10 61878610 HEATER 3.3 KW @ 230V 1 1 1 1

Kühl Small Chassis Parts List (Continued)
10
REF NO. PART NO. DESCRIPTION
ES12M33-A ES12M33-B ES15M33-A SS08M10-A SS10M10-A SS10M10-B SS12M10-A SS12M30-A SS12M30-B SS14M10-A SS15M30-A YS10M10-A YS12M33-A
11 61871441 FAN MOTOR 1 1 1 1 1 1 1
11 61871444 FAN MOTOR 1 1 1 1 1 1
12 60500390 SUPPLY CORD 1 1 1 1 1 1
12 60500394 SUPPLY CORD 1 1 1
12 60500398 SUPPLY CORD 1 1 1 1
13 60179903 BELLOWS CONDENSATE VALVE 1 1 1 1 1
14 60610603 BLOWER WHEEL, EVAPORATOR 1 1 1 1 1
14 60610604 BLOWER WHEEL, EVAPORATOR 1 1 1 1 1 1 1 1
15 61914905 SCROLL SMALL 1 1 1 1 1 1 1 1 1 1 1 1 1
16 60542003 FAN BLADE, CONDENSER 1 1 1 1 1 1 1 1 1 1 1 1 1
17 61803601 SHROUD 1 1 1 1 1 1 1 1 1 1 1 1 1
18 61802500 MOTOR MOUNTING BRACKET 1 1 1 1 1 1 1 1 1 1 1 1 1
20 61907310 INNERWALL ASY SMALL 1 1 1 1 1 1 1 1 1 1 1 1 1
20 61821500 DOOR/SLIDE ASY 1 1 1 1 1 1 1 1 1 1 1 1 1
21 61817100 DECK 1 1 1 1 1 1 1 1 1 1 1 1 1
22 61820200 AIR FOIL 1 1 1 1 1 1 1 1 1 1 1 1 1
* 61816800 INSUL L/S AIR DECK 1 1 1 1 1 1 1 1 1 1 1 1 1
* 61816900 INSUL INNERWALL SMALL 1 1 1 1 1 1 1 1 1 1 1 1 1
25 61817300 BLOWER FRONT 1 1 1 1 1 1 1 1 1 1 1 1 1
27 61807255 PANEL CONTROL HOUSING SMALL 1 1 1 1 1 1 1 1 1 1 1 1 1
28 61802810 PARTITION ASY 1 1 1 1 1 1 1 1 1 1 1 1 1
* 61817000 INSULATION LEFT SIDE PANEL 1 1 1 1 1 1 1 1 1 1 1 1 1
* 61937200 LEFT SIDE PANEL 1 1 1 1 1 1 1 1 1 1 1 1 1
29 61803457 BASEPAN 1 1 1
29 61803459 BASEPAN 1 1 1 1
29 61803461 BASEPAN 1 1 1 1
29 61803462 BASEPAN 1 1
30 61803800 DRAIN PAN 1 1 1 1 1 1 1 1 1 1 1 1 1
31 62400127 AIR FILTER ASY (SMALL) 1 1 1 1 1 1 1 1 1 1 1 1 1
32 62400134 NUT DRIVER FOR DECO FRONT 1 1 1 1 1 1 1 1 1 1 1 1 1
33 62400124 FRONT HANDLE / CONTROL MOUNT 1 1 1 1 1 1 1 1 1 1 1 1 1
34 61802600 BRACE SHROUD 3 3 3 3 3 3 3 3 3 3 3 3 3
35 91400400 COMPRESSOR MOUNTING BOLT 3 3 3 3 3 3 3 3 3 3 3 3 3
36 61028900 COMPRESSOR GROMMET 3 3 3 3 3 3 3 3 3 3 3 3 3
37 62400420 DECORATIVE FRONT ASY PKGD SMALL 1 1 1 1 1 1 1 1 1 1 1 1 1
38 PKWSILS FILTER ACCESS PANEL (SILVER) 1 1 1 1 1 1 1 1 1 1 1 1 1
39 60294416 WINGBOARD 1 1 1 1 1 1 1 1
40 61819816 SIDE ANGLE FOR WINGBOARD 2 2 2 2 1 2 2 2
41 61109514 SUPPORT BRACKETS 2 2 2 2 1 2 2 2
42 61819715 TOP ANGLE FOR WINGBOARD 1 1 1 1 1 1 1 1
43 60610305 WINDOW SEAL GASKET 1 1 1 1 1 1 1 1
44 61717302 CHASSIS SEAL GASKET 1 1 1 1 1 1 1 1 1 1 1 1
45 61808414 SILL PLATE 1 1 1 1 1 1 1 1 1 1 1 1 1
46 61825720 OUTER SHELL ASY SMALL 1 1 1 1 1 1 1 1 1 1 1 1 1
* PKWIKS WINDOW INSTALLATION KIT 1 1 1 1 1
* 61611700 REAR GRILLE MOUNTING BRACKET 1 1 1 1 1 1 1 1 1 1 1 1 1
* 61818520 PAINTED REAR GRILLE 1 1 1 1 1 1 1 1 1 1 1 1 1
* 60169120 SCRIPT FRIEDRICH FOR REAR GRILLE 1 1 1 1 1 1 1 1 1 1 1 1 1
* 91002900 PUSH NUT FOR FRIEDRICH SCRIPT 3 3 3 3 3 3 3 3 3 3 3 3 3
* 61818900 HEATER MOUNTING BRACKET 1 1 1 1
* 61812900 SHIELD BOTTOM S/M 3R 1 1 1
* 61812901 SHIELD BOTTOM S/M 4R 1
* 61821800 SHIELD HEAT SMALL 1 1 1 1
* 61820700 CAPACITOR STRAP 1 1 1 1 1 1 1 1 1 1 1 1
* 61820702 CAPACITOR STRAP 1
* 61814805 CONNECTOR FOR FRESH AIR 1 1 1 1 1 1 1 1 1 1 1 1 1
* 61819601 SHELL GUIDE (PLASTIC) 2 2 2 2 2 2 2 2 2 2 2 2 2
* 60846016 ASY PLSTC BAG W/WIK 1 1 1 1 1 1 1 1
* 60846017 ASY PLSTC BAG W/O WIK 1 1 1 1 1
* 61715800 COUNTER WEIGHT 3 3 3 3 3 3 3 3 3 3 3
* 01900236 DC-2 DRAIN KIT (SILVER)
* 01109004 TOUCH UP SPRAY PAINT (SILVER)

Kühl Medium Chassis Parts List
11
REF NO. PART NO. DESCRIPTION
EM18M34-A EM24M34-A SM18M30-A SM21M30-A SM24M30-A YM18M34-A
1 61850227 CONDENSER COIL 1 1 1
1 61850228 CONDENSER COIL 1 1 1
2 61850108 EVAPORATOR COIL 1 1 1
2 62050030 EVAPORATOR COIL 1
2 62050034 EVAPORATOR COIL 1 1
3 61717118 COMPRESSOR KIT 1
3 61717119 COMPRESSOR KIT 1
3 61717131 COMPRESSOR KIT 1 1
3 61717121 COMPRESSOR KIT 1 1
4 25022032 REVERSING VALVE + SOLENOID KIT 1
* 61824405 CHECK VALVE 1
* 03760500 CAPILLARY TUBE 1
* 03760501 CAPILLARY TUBE 1
* 03760513 CAPILLARY TUBE 2 2
* 03760545 CAPILLARY TUBE 3 3
* 03760451 CAPILLARY TUBE 1
* 61828202 LIQUID DRIER 1 1
* 61828203 LIQUID DRIER 1 1 1
* 61828204 SUCTION DRIER 1
5 62601006 ELECTRONIC CTRL USER INTERFACE KIT 1 1 1 1 1 1
6 62601000 ELECTRONIC CTRL (COOL ONLY KIT) 1 1 1
6 62601003 ELECTRONIC CTRL (ELEC. HEAT + COOL KIT) 1 1
6 62601002
ELECTRONIC CTRL (HEAT PUMP + ELEC. HEAT KIT)
1
* 62601007
THERMISTOR ASY FOR ELEC. CTRL.
1 1 1 1 1 1
* 62601005 REMOTE CONTROL KIT 2010 1 1 1 1 1 1
7 61080529 CAPACITOR 1 1 1
7 61080557 CAPACITOR 1 1
7 61080570 CAPACITOR 1
8 25063605 SOLENOID COIL 1
10 61878611 HEATER 4.0 KW @ 230V 1 1 1
11 61871432 FAN MOTOR 1 1 1 1 1 1
12 60500394 SUPPLY CORD 1 1
12 60500398 SUPPLY CORD 1
12 60500399 SUPPLY CORD 1 1 1
13 60179903 BELLOWS CONDENSATE VALVE 1 1 1
14 60610616 BLOWER WHEEL, EVAPORATOR 1 1
14 60610617 BLOWER WHEEL, EVAPORATOR 1 1
14 60610618 BLOWER WHEEL, EVAPORATOR 1 1
15 61817505 SCROLL MEDIUM 1 1 1 1 1 1
16 60542004 FAN BLADE, CONDENSER 1 1 1 1 1 1
17 61804901 SHROUD 1 1 1 1 1 1
18 61804100 MOTOR MOUNTING BRACKET 1 1 1 1 1 1
20 61907210 INNERWALL ASY MEDIUM 1 1 1 1 1 1
20 61821500 DOOR/SLIDE ASY 1 1 1 1 1 1

Kühl Medium Chassis Parts List (Continued)
REF NO. PART NO. DESCRIPTION
EM18M34-A EM24M34-A SM18M30-A SM21M30-A SM24M30-A YM18M34-A
21 61817100 DECK 1 1 1 1 1 1
22 61820200 AIRFOIL 1 1 1 1 1 1
25 61817400 BLOWER FRONT 1 1 1 1 1 1
27 61807256 PANEL CONTROL HOUSING MED 1 1 1 1 1 1
28 61804310 PARTITION ASY 1 1 1 1 1 1
29 61803461 BASEPAN 1 1 1
29 61803462 BASEPAN 1 1 1
30 61803800 DRAINPAN 1 1 1 1 1 1
31 62400210 STANDARD FILTER ASY (MED) 1 1 1 1 1 1
32 62400134 NUT DRIVER FOR DECO FRONT 1 1 1 1 1 1
33 62400124 FRONT HANDLE / CONTROL MOUNT 1 1 1 1 1 1
34 61802600 BRACE SHROUD 3 3 3 3 3 3
35 91400400 COMPRESSOR MOUNTING BOLT 3 3 3 3 3 3
36 61028900 COMPRESSOR GROMMET 3 3 3 3 3 3
37 62400421 DECORATIVE FRONT (COMPLETE) 1 1 1 1 1 1
38 PKWSILM FILTER ACCESS PANEL (SILVER) 1 1 1 1 1 1
39 60294421 WINGBOARD 1 1 1
40 61819817 SIDE ANGLE FOR WINGBOARD 2 2 2
41 61109514 SUPPORT BRACKETS 2 2 2
42 61819715 TOP ANGLE FOR WINGBOARD 1 1 1
43 60610305 WINDOW SEAL GASKET 1 1 1
44 61717302 CHASSIS SEAL GASKET 1 1 1 1 1 1
45 61808414 SILL PLATE 1 1 1 1 1 1
46 61825721 OUTER SHELL ASY MEDIUM 1 1 1 1 1 1
* 61715800 COUNTER WEIGHT 2 2 2 2 2 2
* 61816800 INSUL L/S AIR DECK 1 1 1 1 1 1
* 61816901 INSUL INNERWALL MEDIUM 1 1 1 1 1 1
* 61817001 INSULATION LEFT SIDE PANEL 1 1 1 1 1 1
* 61937100 LEFT SIDE PANEL 1 1 1 1 1 1
* PKWIKM WINDOW INSTALLATION KIT 1 1 1
* 61611701 REAR GRILLE MOUNTING BRACKET 1 1 1 1 1 1
* 61818521 PAINTED REAR GRILLE 1 1 1 1 1 1
* 60169120 SCRIPT FRIEDRICH FOR REAR GRILLE 1 1 1 1 1 1
* 91002900 PUSH NUT FOR FRIEDRICH SCRIPT 3 3 3 3 3 3
*61818900 HEATER MOUNTING BRACKET 1 1 1
* 61812900 SHIELD BOTTOM S/M 3R 1 1
* 61812901 SHIELD BOTTOM S/M 4R 1
* 61821801 SHIELD HEAT MED 1 1 1
* 61820700 CAPACITOR STRAP 1 1 1 1 1 1
* 61814805 CONNECTOR FOR FRESH AIR 1 1 1 1 1 1
* 61819601 SHELL GUIDE (PLASTIC) 2 2 2 2 2 2
* 60846016 ASY PLSTC BAG W/WIK 1 1 1
* 60846017 ASY PLSTC BAG W/O WIK 1 1 1
* 01900236 DC-2 DRAIN KIT (SILVER)
* 01109004 TOUCH UP SPRAY PAINT (SILVER)
12

Kühl Large Chassis Parts List
REF NO. PART NO. DESCRIPTION
EL36M35-A SL28M30-A SL28M30-B SL36M30-A YL24M35-A
1 61850235 CONDENSER COIL 1 1
1 61850238 CONDENSER COIL 1
1 62050221 CONDENSER COIL 1 1
2 61896305 EVAPORATOR COIL 1 1
2 62050004 EVAPORATOR COIL 1 1
2 62050031 EVAPORATOR COIL 1
3 61717131 COMPRESSOR KIT 1
3 61717130 COMPRESSOR KIT 1 1
3 61717132 COMPRESSOR KIT 1 1
4 25022032 REVERSING VALVE + SOLENOID KIT 1
* 61824405 CHECK VALVE 1
* 03760511 CAPILLARY TUBE 2 2
* 01390595 CAPILLARY TUBE 2 2
* 01390000 CAPILLARY TUBE 1
* 03760482 CAPILLARY TUBE 1
* 03760473 CAPILLARY TUBE 1 1
* 61828203 LIQUID DRIER 1 1 1 1
* 61828204 SUCTION DRIER 1
5 62601006 ELECTRONIC CTRL USER INTERFACE KIT 1 1 1 1 1
6 62601000 ELECTRONIC CTRL (COOL ONLY KIT) 1 1 1
6 62601003 ELECTRONIC CTRL (ELEC. HEAT + COOL KIT) 1
6 62601002
ELECTRONIC CTRL (HEAT PUMP + ELEC. HEAT KIT)
1
* 62601005 REMOTE CONTROL KIT 2010 1 1 1 1 1
* 62601007
THERMISTOR ASY FOR ELEC. CTRL.
1 1 1 1 1
7 61080515 CAPACITOR 1
7 61080516 CAPACITOR 1 1
7 61080517 CAPACITOR 1 1
8 25063605 SOLENOID COIL 1
10 61878612 HEATER 5.2 KW @ 230V 1 1
11 61871446 FAN MOTOR 1 1
11 61871447 FAN MOTOR 1 1 1
12 60500398 SUPPLY CORD 1 1
12 60500399 SUPPLY CORD 1 1 1
13 60179903 BELLOWS CONDENSATE VALVE 1 1
14 60610619 BLOWER WHEEL, EVAPORATOR 1 1
14 60610620 BLOWER WHEEL, EVAPORATOR 1 1 1
15 61818100 SCROLL LARGE 1 1 1 1 1
16 60542007 FAN BLADE, CONDENSER 1 1 1 1 1
17 61807702 SHROUD 1 1 1 1 1
18 61806700 MOTOR MOUNTING BRACKET 1 1 1 1 1
20 61907110 INNERWALL ASY LRG 1 1 1 1 1
20 61821500 DOOR/SLIDE ASY S/M/L 1 1 1 1 1
21 61818000 DECK LRG 1 1 1 1 1
22 61820201 AIRFOIL 1 1 1 1 1
13

Kühl Large Chassis Parts List (Continued)
REF NO. PART NO. DESCRIPTION
EL36M35-A SL28M30-A SL28M30-B SL36M30-A YL24M35-A
25 61817800 BLOWER FRONT 1 1 1 1 1
27 61807257 CONTROL PANEL HOUSING 1 1 1 1 1
28 61807010 PARTITION ASY 1 1 1 1 1
29 61809515 BASEPAN 1
29 61809516 BASEPAN 1
29 61809517 BASEPAN 1 1
29 61809518 BASEPAN 1
30 61807400 DRAINPAN 1 1 1 1 1
31 62400321 STANDARD FILTER ASY LRG 1 1 1 1 1
32 62400134 NUT DRIVER FOR DECO FRONT 1 1 1 1 1
33 62400318 FRONT HANDLE / CONTROL MOUNT 1 1 1 1 1
34 61810000 BRACE SHROUD, LARGE 3 3 3 3 3
35 91400400 COMPRESSOR MOUNTING BOLT 3 3 3 3 3
36 01150934 COMPRESSOR GROMMET 3 3 3 3 3
37 62400422 DECORATIVE FRONT ASSY PKGD LRG 1 1 1 1 1
38 PKWSILL FILTER ACCESS PANEL (SILVER) 1 1 1 1 1
39 60294426 WINGBOARD 1 1 1
40 61819818 SIDE ANGLE FOR WINGBOARD 2 2 2
41 61109514 SUPPORT BRACKETS 2 2 2
42 61819717 TOP ANGLE FOR WINGBOARD 1 1 1
43 60610305 WINDOW SEAL GASKET 1 1 1
44 61717302 CHASSIS SEAL GASKET 1 1 1 1 1
45 61808415 SILL PLATE 1 1 1 1 1
46 61825722 OUTER SHELL LRG 1 1 1 1 1
* 61715800 COUNTER WEIGHT 2 2 2 2
* 61818300 INSUL L/S AIR DECK 1 1 1 1 1
* 61816902 INSUL INNERWALL, LRG 1 1 1 1 1
* 61817600 INSULATION LEFT SIDE PANEL 1 1 1 1 1
* 61937000 LEFT SIDE PANEL 1 1 1 1 1
* PKWIKL WINDOW INSTALLATION KIT 1 1
* 61611702 REAR GRILLE MOUNTING BRACKET 1 1 1 1 1
* 61818522 PAINTED REAR GRILLE 1 1 1 1 1
* 60169120 SCRIPT FRIEDRICH FOR REAR GRILLE 1 1 1 1 1
* 91002900 PUSH NUT FOR FRIEDRICH SCRIPT 3 3 3 3 3
* 61818900 HEATER MOUNTING BRACKET 1 1
* 61813501 SHIELD BOTTOM LRG 4R 1 1
* 61821900 SHIELD HEAT LRG 1 1
* 61820702 CAPACITOR STRAP 1 1 1 1 1
* 61814806 CONNECTOR FOR FRESH AIR 1 1 1 1 1
* 61819601 SHELL GUIDE (PLASTIC) 2 2 2 2 2
* 60846016 ASY PLSTC BAG W/WIK 1 1 1
* 60846017 ASY PLSTC BAG W/O WIK 1 1
* 01900236 DC-2 DRAIN KIT (SILVER)
* 01109004 TOUCH UP SPRAY PAINT (SILVER)
14

Printed in the U.S.A. Kühl Parts (7-10)
FRIEDRICH AIR CONDITIONING CO.
Post Ofce Box 1540 · San Antonio, Texas 78295-1540
4200 N. Pan Am Expressway · San Antonio, Texas 78218-5212
[phone] · 877-599-5665 x 846 · FAX [phone]
Email: [email protected]
www.friedrich.com
Printed in the U.S.A.
TECHNICAL SUPPORT
CONTACT INFORMATION
