Friedrich SH15 User manual

Installation & Operation Manual
Hazardous Duty Room Air Conditioner
230-Volt: SH15|SH20
www.segind.com.br

2
Table of Contents
Operation and Care Instructions
Your Safety and the safety of others................................................................................................................................... 2
General Instructions ............................................................................................................................................................ 3
Filter information ................................................................................................................................................................ 4
Maintenance Checklist........................................................................................................................................................ 4
Special Features .................................................................................................................................................................. 5
Control Panel ...................................................................................................................................................................... 5
Underwriters Laboratories .................................................................................................................................................. 5
Installation Instructions
Electrical Requirements ...................................................................................................................................................... 6
Unpacking the Unit............................................................................................................................................................. 8
Chassis Wiring and Preparation.......................................................................................................................................... 8
Shell Preparation................................................................................................................................................................. 9
Shell Installation ............................................................................................................................................................... 10
Sash Window ............................................................................................................................................................. 10
Through-the-Wall ...................................................................................................................................................... 13
Chassis Installation ........................................................................................................................................................... 16
WARRANTY ................................................................................................................................................................... 18
Your safety and the safety of others are very important.
CAUTION
NOTICE
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is a safety Alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol with the word “WARNING”
or “CAUTION”. These words mean:
You can be killed or seriously injured if you do not
follow instructions.
You can receive minor or moderate injury if you do not
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what will happen if the instructions are not followed.
A message to alert you of potential property damage will have the word “NOTICE”.
Potential property damage can occur if instructions are not followed.
WARNING

3
Hazardgard Room air conditioner
General Instructions
Your new Friedrich has been carefully engineered and manufactured to give you many years of dependable, efficient operation, main-
taining a comfortable temperature and humidity level. Many extra features have been built into your unit to assure quiet operation, the
greatest circulation of cool, dry air, and the most economic operation.
Here are some suggestions to help you use your new Friedrich most efficiently:
1. Carefully read and follow the installation instructions.
2. Your Friedrich Hazardgard room air conditioner is electri-
cally grounded for your safety. The power supply must
alsobegroundedandmustbeinstalledinaccordancewith
NECArticle501. Thebranchcircuitratingisshownon
the nameplate for each model.
3. Make sure the unit is the right capacity for the area to be
cooled. Too little capacity makes the unit work too hard,
using more electricity than needed and increasing wear.
Toomuchcapacityisalsohardontheunitasitwillcycleon
and off too rapidly, and cannot control humidity as well.
4. When you first turn on your Friedrich, set the thermostat
to its coldest position to cool the room. When the desired
temperature is reached, turn the thermostat control to-
wardthe"warmer"positionuntilyouhearaclickandthe
compressor goes off. The thermostat will then cycle the
compressor to maintain the selected temperature.
5. Clean the filter frequently (See General Maintenance).
6. Donotblocktheairflowtoandfromtheunit. Makesure
thelouversaredirectedtogiveevendistributionofair
throughout the room. Caution: If air is directed into a
restricted area such as behind a bed or into a corner, this
may cause the unit to cycle on and off rapidly, which could
damage your unit.
7. A dirty filter or improperly set controls can affect the cool-
ing ability of the unit.
8. Ifcoolingisweakandyouhaveverifiedthatthefilteris
clean and the controls are properly set, the unit may be low
on refrigerant, and you should call your Friedrich service
provider to check the unit.
9. Keep blinds, shades and drapes closed on the sunny side
of the room being cooled.
10. Proper insulation helps your unit maintain the desired inside
temperature.
11. Whenever possible, shade west-facing windows with aw-
nings.
12. Keep window coverings away from the unit to provide free
air flow.

4
Filter Information
The filter in your Friedrich removes dust, pollen and other
impurities from the air as they are drawn through the unit.
The filter is permanent and reusable, and has a germicidal
treatment which is not affected by washing.
Won’t Cool
If the unit operates, but doesn’t cool, check to see that the con-
trols are properly set. Inspect the filter and clean it thoroughly, if
needed.Checktoseeifthechassissealgasketisinstalled(refer
to installation instructions).
Won’t Run
If the unit does not operate at all, check that the power supply
connections are tight. Check for blown fuses or tripped circuit
breakers. Replace blown fuses with the proper size time-delay
fuse. The nameplate on the unit shows the proper fuse size. After
restoring power, wait three minutes before restarting the unit.
Inside Coil Freezes Up
Your Friedrich Hazardgard is designed not to freeze with outdoor
temperaturesaslowas45°F(7°C). Freezingshouldonlyoccur
whentheoutsideairisdampandbelow45°F(7°C). Iftheindoor
Maintenance Checklist
coil should ice over while cooling, set the thermostat to the warm-
est position until the ice on the coil is gone. Setting the thermostat
to a slightly warmer position will probably keep ice from forming
on the coil. A dirty filter will contribute to icing.
Cleaning
The front grille of your Friedrich, as well as the complete cabi-
net may be cleaned with warm water and a mild detergent. The
coils and base pan should be cleaned periodically for the most
efficient operation. We suggest you call your Friedrich dealer
forthisservice.
Lubrication
Fan motors are factory lubricated and sealed. No lubrication
is required.
A clogged, dirty filter reduces the air flow through the unit and
reduces its efficiency. You should check the filter every seven
to ten days, depending on the amount your unit is used. Clean
the filter regularly.
FILTER RETAINER CLIPS
The ¿lter can be removed for cleaning by opening the front of
the unit and releasing the ¿lter from its retaining clips.

5
Permanent Split-Capacitor, totally enclosed fan motor to
assure efficient operation even under adverse electrical
conditions. Motor has a special stainless steel shaft to resist
corrosion and a hermetically sealed overload for arc-free
operation.
High capacity compressor with internal hermetically sealed
overload.
Solid-state printed circuit board insulated against corrosion
on conductor paths. Contains transient voltage suppressor
to protect controls against transient voltage spikes. Provides
solid state switches for arc-free operation.
Hot gas bypass low ambient control to permit operation
without freezing at outdoor ambient temperatures as low
as 45°F (7°C).
Environmentally sealed on-off switch and gold plated
contacts in thermostat for corrosion resistance.
Electrodeposited epoxy primer and alkyd enamel, both
oven-baked for an attractive, long-lasting finish.
Friedrich Air Conditioning quality has been proven by more than 25 years of successful experience from the Gulf of Mexico to
the searing sands of the Arabian desert.
Hazardgard Special Features
Copper tubing/aluminum fin coils.
Galvanized steel cabinet and base pan, all bonderized.
Slide-outchassisforeasyinstallationinwindowor
through–the–wall.
Extra insulation inside, including completely insulated
plenum chamber for quieter, more efficient cooling.
Entireunittestruninenvironmentalchamberbefore
crating.
Eight–way air flow control for uniform air circulation.
Patented electronic control circuit.
Condensate drain with exclusive mosquito trap.
15 amp circuit with time-delay fuse required. Accommodates
direct wiring.
Longlasting3/8"(10mm)thickairfilter,germicidally
treated, easily removed for cleaning.
Control Panel
Function Control (Power)
This switch is a double pole, single throw toggle switch.
ON-Turnseverythingon.
OFF - Turns everything off.
Temperature Control
Theknobatthebottomisthethermostatwhichisacrossambient
type used to maintain the desired comfort level. The thermostat
reacts only to a change in temperature at the bulb location - turn
the knob clockwise to set cooler, counterclockwise for warmer.
Exclusive
Friedrich leads with the first UL Listed Room Air Conditioners
designed to cool living quarters and other enclosures situated in
hazardous locations where specific volatile flammable liquids or
gases are handled or used with enclosed containers or systems.
Friedrich Hazardgard room air conditioners are designed to
meet the National Electrical Code, Article 500 requirements
for Class I, Division 2, Groups A, B, C, D Hazardous locations,
and are the only air conditioners UL Listed for this application.
THIS UNIT IS LISTED BY UNDERWRITERS LABORA-
TORIESFORUSEINCLASSI,DIVISION2,GROUPSA,
B, C, D HAZARDOUS LOCATIONS. Operating Temperature
Code: T3B.

6
Installation Instructions
Models SH15 and SH20
NOTE: THIS MANUAL INCLUDES INSTALLATION INSTRUCTIONS FOR BOTH WINDOW MOUNT AND THROUGH-
THE-WALL INSTALLATIONS
Electrical Requirements
ALL FIELD WIRING MUST MEET THE REQUIREMENTS OF THE NATIONAL ELECTRICAL CODE (ANSI/NFPA 70)
ARTICLE 501.
THE FIELD-PROVIDED CIRCUIT PROTECTION DEVICE (HACR CIRCUIT BREAKER OR TIME DELAY FUSE) MUST
NOT EXCEED THE AMPACITY INDICATED ON THE PRODUCT NAMEPLATE.
IMPORTANT: Before you begin the actual installation of your air conditioner, check local electrical codes and the information
below.
Your air conditioner must be connected to a power supply with the same A.C. voltage and frequency (hertz) as marked on the data
plate located on the chassis. Only alternating current (A.C.), no direct current (D.C.), can be used.
An overloaded circuit will invariably cause malfunction or failure of the air conditioner; therefore, it is extremely important that the
electrical power is adequate. Consult your dealer or power company if in doubt.
The following instructions are for HAZARDGARD models and cabinet sizes listed below.
)DxWxH(EZISTENIBACSPUORG
SMALL CHASSIS SH15 15 15/16" x 25 15/16" x 27 3/8"
(405 mm x 660mm x 695mm)
MEDIUM CHASSIS SH20 17 15/16" x 25 15/16" x 27 3/8"
(455 mm x 660mm x 695mm)
epyTgulPrebmuNledoM Circuit Rating
Time Delay Fuse
pmA51-V052xoBnoitcnuJ51HS
pmA51-V052xoBnoitcnuJ02HS
Explosion Hazard
Electrically connect unit in accordance with NEC
Code Article 501. Failure to do so can result in
death, explosion, fire, or electrical shock.
Electrical Shock Hazard
WARNING

7
Hazardgard Window Mount Installation Hardware
ITEM # 4
ITEM #10
ITEM # 7
ITEM # 13
ITEM # 12
ITEM # 6
ITEM # 5
ITEM # 1
ITEM # 14
NOT TO SCALE
ITEM # 2 ITEM # 3
ITEM # 11
ACCESSORY DETAIL
ITEM DESCRIPTION QTY.
No.
SHELL MOUNTING PARTS
2TEKCARBTROPPUS1
2 SCREW, 10 - 24 x 1" HEX HEAD 4
4TUNDLEWTALF42-013
4 SCREW, SHEET METAL #12A x 2" 7
WINGBOARD ANGLE MOUNTING
5 WINGBOARD ANGLE, TOP 1
6 WINGBOARD ANGLE, SIDE 2
7 SCREW, SHEET METAL #8A x 3/8" 2
WINGBOARD MOUNTING PARTS
8 WINGBOARD (MASONITE) - (NOT SHOWN) 1
4TUNDEEPSEPYT"J"9
10 WINGBOARD CLIP (SPRING STEEL) 4
11 SCREW. #8A x 1/2" PHILLIPS TRUSS HD. 4
WINDOW SEALING
12 SEALING GASKET (VINYL) 1
13 WINDOW SEAL GASKET (DARK FOAM) 1
14 CHASSIS SEAL GASKET (LIGHT FOAM) 1
ITEM # 9

8
STEP 1 Remove the junction box, cover and screw (above items) from the shipping position underneath the fan motor. Install one
junction box mounting leg in the upper left position facing the rear of the junction box.
STEP 2 Remove and discard the plastic bushing from the conduit connector on the side panel of the control compartment. Strip the
black wires only, approximately 1/2 inch (13 mm).
STEP 3 Insert all wires (2 black, 1 green) into the box and thread the box onto the conduit connector until tight. Back off counter
clockwise until the junction box is vertical with the mounting leg at the upper–right position facing the box opening. Be
sure that the shell can fit between this box and the chassis.
Unpacking The Unit
STEP 1 Remove decorative plastic return air grille to a safe area away from the unit.
STEP 2 Remove the installation hardware, wingboard and two (one light colored and one dark colored) gaskets from beneath the
unit,andplacetheminasafeareaawayfromtheunit.
STEP 3 Remove the chassis retainer by removing the far right screw in the basepan (see Figure A); save this screw to reattach the
chassisretainerafterinstallation(Step15). Also,removeanddiscardthetworetainerscrewsandplasticbushingslocated
attherearoftheunit.
STEP 4 While an assistant holds the cabinet stationary, use the hand pull at the front of the base pan (see Figure A) to pull the
chassis out of the cabinet. Remove white foam blocks used to restrain the compressor during shipment. Inspect basepan
for dislodged white blocks, and remove. Do not remove any other foam.
Chassis Wiring and Preparation
CABINET
HAND PULL
CHASSIS RETAINER
FAR RIGHT SCREW
HAND PULL
Figure A CABINET
STEP 3
PROVIDED HARDWARE
1 JUNCTION BOX FRIEDRICH PN: 613-893-00
2 MOUNTING LEGS RACO INC. PN: 5324-0
2 LEG SCREWS
2 HOLE COVERS
1 GROUND SCREW
BOX COVER FRIEDRICH PN: 613-892-00
GASKET RACO INC. PN: 5173-0
2 SCREWS
1 SHEET METAL SCREW

9
Figure B
Shell (Cabinet) Preparation
It will be necessary to relocate the sill plate of the cabinet 2"
back from its shipping position, and the shell guides 4" forward,
totheforward-mostholeintheshellrail. Discardthechassis
retainer wire disconnected in Section II, Step 3. The junction
box mounting leg from Section VI, Step 1, and the field-installed
conduit will retain the chassis in the shell.
IF THIS INSTALLATION IS FOR A SASH WINDOW – With
thewideflangeandpilotholesofthesillplateforward,putthe
screws/nutsintherearholesofthesillplateandthirdshellhole
from the front (the center of three square holes). Anchor the
side angles (Item #6) by engaging the tabs at each end of the sill
plate with the bottom loops of the side angle. Engage the tabs at
CABINET TOP ANGLE (ITEM #5)
8A X 3/8" LONG SCREW (ITEM #7)
2 REQUIRED
LOOP
SIDE ANGLE
(ITEM #6) 2
REQUIRED
SILL PLATE
TAB
TAB
Detail B-1
Detail B-2
LOOP
Position the sill plate into the
cabinet with the sill plate holes
to the back. Align the plate 2
inches from the front of the
cabinet and secure it with a nut
and bolt in each end.
Figure C
DETAIL 2
DETAIL 1
BEFORE AFTER
SILL PLATE
TURN SILL PLATE
END TO END
BEND TABS DOWN
SCREW
(2 REQUIRED)
NOTE: HOLES
MOVED TO
BACK SIDE
NUT
(2 REQUIRED)
RETAINER, CHASSIS
(THIS SIDE ONLY)
CABINET
each end of the top angle (Item #5) with the top loops of the side
angle. Install two (2) screws (Item #7) to secure the top angle
tabs and the side angle to the rear-most holes in the side of the
cabinet (See Figure B, below).
IF THIS INSTALLATION IS THROUGH A WALL – Turn
thesillplateendtoendsothatthewideflangewithpilotholes
will be over the wall header (towards the rear) and two inches
from the front of the cabinet. Bend the tabs into the channel
ofthesillplate,putthescrews/nutsinthefrontholesofthesill
plateandintothesecondshellholefromthefront.Useonebolt
on each side to secure the sill plate to the cabinet. (See Figure
C, below.)

10
Figure D
Figure E
STEP 3 OUTSIDE SUPPORT MOUNTING: Assemble the support brackets (Item #1) to the bottom rails of the cabinet with four
(4) 10-24 1" long screws (Item #2) and four (4) 10–24 flat nuts (Item #3). Adjust the support brackets to bring the bottom
pads in contact with the wall surface. (See Figure E.)
A1"x4"or2"x4"SPACERSHOULDBEUSEDBETWEENTHEWALLANDTHESUPPORTBRACKETSWHEN
INSTALLED ON ALUMINUM OR VINYL SIDING). Drill 5/32" (4 mm) dia. pilot holes, and secure the brackets to the wall with
two (2) #12A x 2" long screws (Item #4). Adjust the support brackets to provide an approximate 3/8" (10 mm) down slope towards the
outside for drainage. Tighten all screws. (See Figure E).

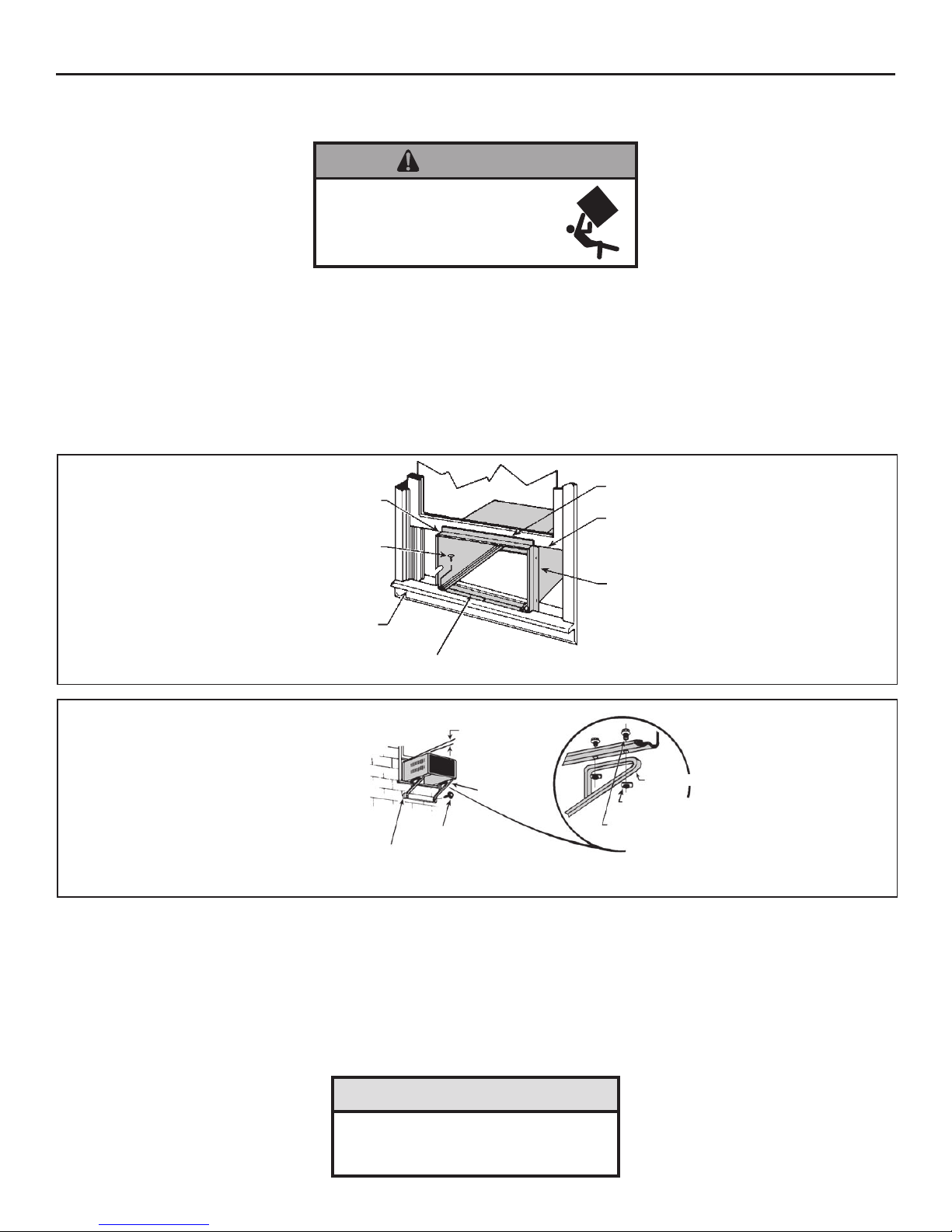

Shell Installation: Sash Window Installations
Shell (Cabinet) Installation – Standard Sash Windows
STEP 1 Checkthewindowsillandframetobesuretheyareingoodconditionandfirmlyanchoredtothewall. Repairif
necessary.
STEP 2 CABINET MOUNTING: Raise the lower window sash 1/4" more than the height of the cabinet. Carefully slide the cabinet
throughtheopenwindowuntilthesillplatechannelrestsbehindthewindowsillandthetopsupportanglerestsagainstthe
window (See Figure D). Center the cabinet side to side and drill three (3) 5/32" dia. pilot holes into the window sill using
theholesinthecabinetsillplateasaguide. Installthree(3)#12Ax2"longscrews(Item#4)(SeeFigureD).
CENTER CABINET SIDE TO SIDE IN WINDOW
DRILL 3 5/32" PILOT HOLES AND INSTALL 3
#12A X 2" LONG SCREWS (ITEM #4)
WINDOW SILL
LOCATE THE SILL PLATE GUIDE CHANNEL
JUST BACK OF THE WINDOW SILL.
TOP SUPPORT ANGLE
PULL WINDOW SASH DOWN BEHIND
THE TOP SUPPORT ANGLE
SIDE SUPPORT ANGLE
A 1" X 4" OR 2" X 4" SPACER SHOULD BE USED BE-
TWEEN THE WALL AND BRACKET WHEN INSTALLED
ON ALUMINUM, ASBESTOS OR VINYL SIDING.
3/8" (10 MM)
DOWN SLOPE
#12A X 2"
SCREW
(ITEM #4)
SUPPORT
BRACKET
10 - 24 FLAT WELDNUT (ITEM #3)
10 - 24 X 1" HEX HEAD SCREW (ITEM #2)
SUPPORT BRACKET (ITEM #1)
Falling Object Hazard
Not following Installation Instructions
for mounting your air conditioner can
result in property damage, injury, or
death.
WARNING
Instructions for mounting sleeve with
slope must be observed to prevent entry
of water into room.
NOTICE

11
Figure F
The illustrations below show a standard frame construction
installationaswellassomesuggestedwaysofadaptingthe
support bracket to thick walls and large stone ledges.
Figure 2
Figure 3
SUBTRACT 1/8" (3 MM) FROM
DIMENSION "B" AND MEASURE FROM
THE EDGE OF THE WINGBOARD (ITEM
# 8), MARK AND CUT WITH A SAW.
STEP 4 CUT WINGBOARD PANELS: Measure and cut the wingboard panels from the supplied masonite (Item #8) to fit the
spaces between the side window channels and the sides of the cabinet (See Figure F).
NOTE: AFTER CUTTING PANELS, MAKE A TRIAL TEST TO SEE IF THEY FIT THE SPACE WITH ABOUT
1/8" CLEARANCE BEFORE GOING TO STEP 5.
Typical Installation Sill Plate
10 - 24 SCREW
10 - 24 FLAT NUT 3/8" (10 MM)
SLOPE DOWN
#12A X 2" SHEET METAL SCREW
1" X 2" OR 2" X 4" SPACER BETWEEN WALL
AND BRACKET SHOULD BE USED ON ALU-
MINUM, ASBESTOS OR VINYL SIDING
Figure 1
STONE LEDGE
OUTSIDE WALL
CUT TO FIT DIMENSION "A"
AND BEND DOWN TO FOR A
VERTICAL LEG
DISCARD
SHADED AREA
STONE LEDGE
3/8" (10 MM)
SLOPE DOWN
3/8" (10 MM)
SLOPE DOWN
#12A X 2" SHEET METAL SCREW
2" X 4" SPACER
MEASURE DISTANCE "B" TO THE INSIDE
OF THE CHANNEL ON EACH SIDE
CUT HERE AND DISCARD THE CENTER
WASTE MATERIAL
WINGBOARD
CUT
HERE
Figure 4
STONE LEDGE
3/8" (10 MM) SLOPE DOWN
STRAIGHTEN TAB TO LAY FLAT ALONG
THE BOTTOM RAIL OF THE SHELL.
SECURE THE LONGEST SIDE OF
THE BRACKET TO THE SHELL.
ADJUST IN OR OUT TO
REST ON THE LEDGE
Instructions for mounting sleeve with
slope must be observed to prevent entry
of water into room.
NOTICE

12
Figure G
Figure H
Figure I
STEP 6 INSTALLSIDEWINGBOARDPANELS: Besurethatthecabinethasbeensecuredtothewindowsillandtheoutside
support brackets have been installed as shown in Figures D and E on Page 11. Raise the window sash and install the right
and left side wingboard panels (See Figure H).
STEP 7 INSTALL WINDOW SEALING GASKETS: Measure and cut the vinyl window seal gasket (grey color, Item #12) to fit
thewidthofthewindowandinstallasshowninFigureI. Pullthewindowsashdownbehindthegasket. Measureandcut
the dark foam window seal gasket (Item #13) and install it between the upper glass panel and the top part of the lower sash
(SeeFigureI).

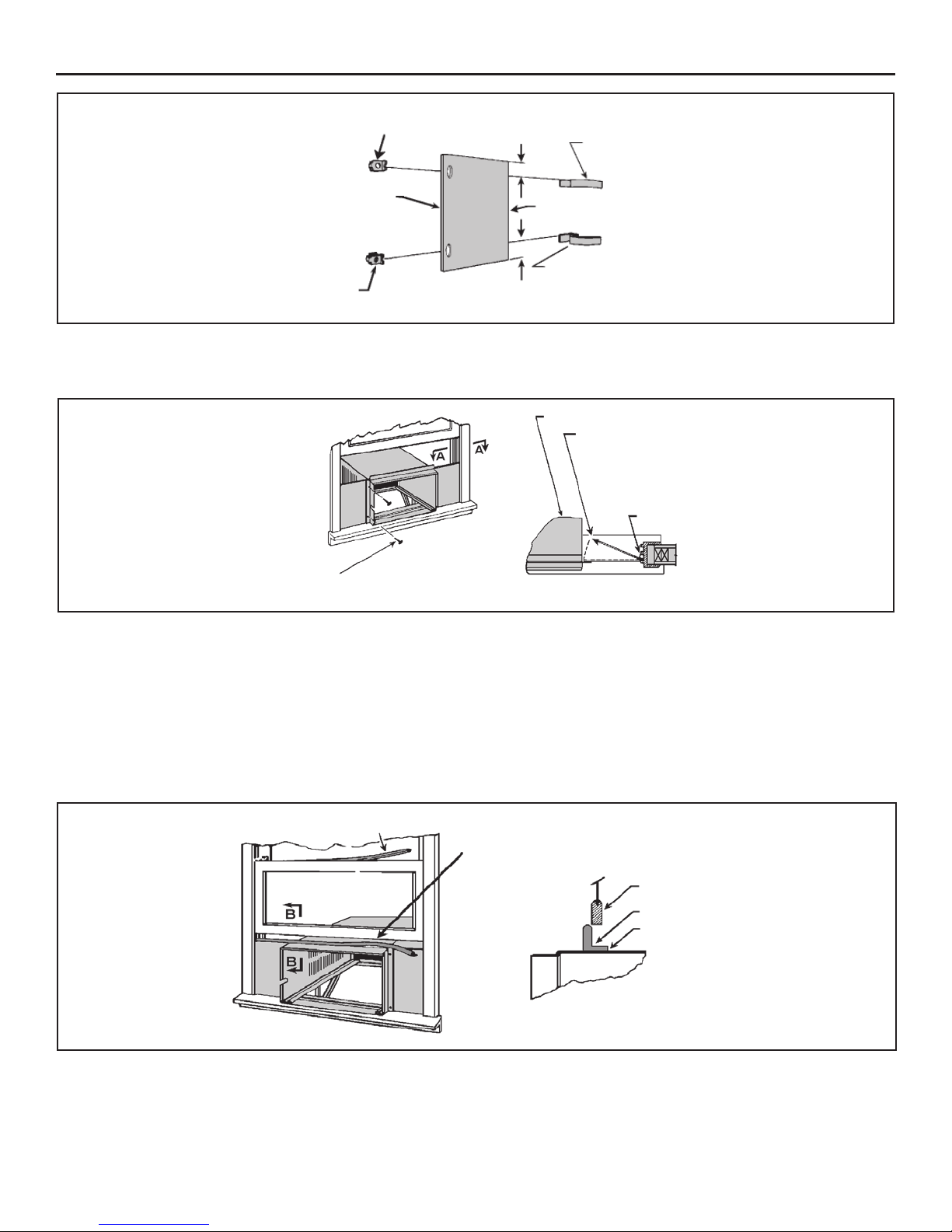

STEP 5 ASSEMBLE CLIPS TO WINGBOARD PANELS: Assemble "J" type speed nuts (Item #9) and spring steel clips (Item
#10) to the edges of the cut wingboard panels (See Figure G).
NOTE: FOR REASONS OF SECURITY AND SAFETY, THE CUSTOMER MUST PROVIDE A MEANS OF PREVENTING
THE WINDOW FROM OPENING.
STEP 8 When possible, caulk the outside of the installation with industrial type caulking to prevent air and water leaks.
"J" TYPE SPEED NUT (ITEM #9)
2 REQUIRED
SPRING STEEL CLIP (ITEM #10)
2 REQUIRED
CUT EDGE
SLIDE CLIP OVER CUT EDGE OF WINGBOARD PANEL
CENTER THE HOLE IN THE SPEED NUT OVER
THE SLOT IN THE WINGBOARD PANEL
CUT WINGBOARD PANEL
TOP OF CABINET
PLACE WINGBOARD PANEL IN WINDOW JAM TO
COMPRESS THE SPRINGS INSIDE THE RUNNERS,
AND SWING THE PANEL INTO PLACE INDICATED
BY THE DOTTED LINE.
WINDOW JAM
SECURE THE SIDE WINGBOARD PANELS TO
THE SIDE ANGLES WITH FOUR (4) #8 X 1/2"
LONG SCREWS (ITEM #11), TWO ON EACH SIDE. SECTION A - A
SECTION B - B
LOWER WINDOW SASH
VINYL WINDOW SEAL GASKET
TOP WINGBOARD ANGLE
VINYL WINDOW SEAL GASKET ITEM #12)
FOAM WINDOW SEAL GASKET (ITEM # 13)

13
NOTE: THESE DIMENSIONS ARE FOR FINISHED HOLE SIZE
HOLE SIZE REQUIREMENTS
Shell Installation: Through-the-wall Installations
CONDENSER AIR
INTAKE LOUVERS
2" (51 MM) MINIMUM
BOTH SIDES
TOP VIEW SHOWING BEVELED SIDES
FOR AIR INTAKE. WALL BELOW
UNIT MUST ALSO BE BEVELED TO
ASSURE PROPER TILT ANGLE.
CONDENSER
AIR INTAKE
LOUVERS
15 1/8 " (384 MM)
MAXIMUM WALL THICKNESS
Figure J EXTRA THICK WALL CONSTRUCTION
Figure K
STEP 1 CHECKING WIRING AND PLUMBING: Check all wiring and plumbing inside and outside the wall to be sure none
will be broken where the hole is to be cut.
STEP 2 HOLE CONSTRUCTION: Depending on the size of the unit to be installed, layout the hole dimensions in accordance
withthechartbelow(SeeFigureK). Cutandframeintheholetothefinisheddimensions. Use
2"x4"materialforframingandfollowthesuggestedtypicalinstallationsinFigureL,MorNonPage15.
NOTE: IF THE WALL CONSTRUCTION IS TYPICAL FRAME OR 2 X 4 STUDDING WITH BRICK OR STONE VENEERS,
LOCATETHEHOLENEXTTOONEOFTHESTUDS. FORMASONRY,CONCRETEORCINDERBLOCKWALLS,
LOCATE THE HOLE FOR CONVENIENCE.
FINISHED SMALL MEDIUM
DIMENSION CHASSIS CHASSIS
A16-3/16" 18-3/16"
B26-3/16" 26-3/16"
Wall Preparation
The maximum wall thickness permissible without special construction is determined by the model size to be installed. THE OUT-
SIDECABINETCONDENSERAIRINTAKELOUVERSMUSTNOTBEBLOCKEDBYEXTENDINGINSIDETHEWALL
AREA. Observe the maximum wall thickness shown as dimension "A" in Figure J.
Special Instructions For Extra Thick Walls
For installation in walls exceeding the maximum thickness shown as dimension A, the following suggested construction
may apply. (See Figure J).
Falling Object Hazard
Not following Installation Instructions
for mounting your air conditioner can
result in property damage, injury, or
death.
WARNING

14
Figure L
Figure M
Figure N
MORTAR
CAULK ALL SIDES
CABINET
WEATHER CABINET
CAULK ALL SIDES
SHIM THE VOID SPACE AT THE TOP AND
SIDES WITH WOOD AS REQUIRED
CAULK ALL SIDES
WEATHER CABINET
SHIM VOID SPACES AT TOP AND
SIDES WITH WOOD AS REQUIRED
FRAME WALL
CONSTRUCTION
BRICK VENEER
CONSTRUCTION
SOLID MASONRY
CONSTRUCTION

15
CAULK ALL SIDES AIR TIGHT
TRIM MOULDING
3/8" (10 MM) SLOPE DOWN
NOTE: SUPPORT BRACKETS MAY BE OMITTED FROM
THROUGH-THE-WALL INSTALLATIONS IF THE CABINET IS
SECURED AS FOLLOWS. DRILL 2 HOLES IN EACH SIDE
AND INSTALL 4 FASTENERS (2 EACH SIDE).
USE #12A X 2" (51 MM) SCREWS, TOGGLE BOLTS OR
EXPANSION ANCHOR BOLTS AS SHOWN IN STEP 5.
SUPPORT BRACKETS (ITEM 1) (SEE NOTE ABOVE)
SCREW #12 X 2" LONG, USE ONE IN EACH
BRACKET. DRILL 5/23 (4 MM) DIA. PILOT HOLES.
SILL PLATE GUIDE CHANNEL
INSIDE WALL SURFACE
SCREW #12A X 2" LONG
USE 3
Figure O
MOLLY OR TOGGLE BOLT EXPANSION ANCHOR BOLT
NOTE: ALTERNATEFASTENERSWHICHMAYBEUSEDFORSECURINGTHESILLPLATEINTHEWALL,ANDTHE
SUPPORT BRACKETS TO THE OUTSIDE WALL ARE NOT FURNISHED, BUT ARE AVAILABLE AT A LOCAL
HARDWARE STORE.
STEP 5 Drilltwo(2)5/32"(4mm)dia.pilotholesineachsideatthelocationsshown(FigureO)andinstallfour(4)#12x2"screws
(Item #4). If the hole construction in Step 2 provides a sturdy mount with solid vertical studs, no support brackets are
required. Theinstallationmustsupporttheweightoftheunitplusanadditionalweightof400pounds(185kg)ontherear
of the cabinet. The support brackets may be used for through-the-wall installations as shown in Figure O, for additional
support.
STEP 6 If desired, trim around the cabinet on the room side with a suitable frame molding furnished by the installer (See Figure O).
STEP 3 Slide the cabinet into the hole far enough to allow the guide-channel of the sill plate to contact the inside wall surface (See
Figure O).
STEP 4 Drill three (3) 5/32" dia. pilot holes through holes in sill-plate into the framing and install three (3) #12 x 2" long screws
(Item #4) (See Figure O).
TYPICAL INSTALLATION
Instructions for mounting sleeve with
slope must be observed to prevent entry
of water into room.
NOTICE

16
Figure P
Chassis Installation
STEP 1Slide the chassis into the cabinet stopping approximately 3" from full insertion. Stuff the chassis seal gasket (Item #14) one
inch deep between the chassis and the cabinet (See Figure P). Begin at either bottom corner and go up the side, across the
top, and down the opposite side. Make sure that the gasket is behind the conduit connector (furthest from you). Push the
chassis into the shell the remaining distance so that the plastic front shrouds the front edge of the shell. Fasten the junction
box mounting foot to the shell with the sheet metal screw.
If chassis seal gasket is not installed, the operation of the unit will be negatively affected. Also, the operation noise and
outside noise will be amplified.
NOTE: Field wiring must be provided to this junction box in accordance with NATIONAL ELECTRIC CODE ARTICLE 501.
Field and equipment grounds are to be terminated at the post in the junction box with the green screw provided. Equipment
power leads are to be connected with the field supply by means of wire nuts (not provided). Install the gasket and cover
plate onto the junction box.
CHASSIS SEAL GASKET
Explosion Hazard
Electrically connect unit in accordance with NEC
Code Article 501. Failure to do so can result in
death, explosion, fire, or electrical shock.
Electrical Shock Hazard
WARNING
Cut/Sever
Although great care has been
taken to minimize sharp edges
in the construction of your unit,
use gloves or other hand
protection when handling unit.
Failure to do so can result in minor
to moderate personal injury.
CAUTION
Excessive Weight Hazard
Use two or more people when
installing your air conditioner.
Failure to do so can result in
back or other injury.
CAUTION

17
Figure Q
STEP 2 Be sure that the filter is in place then install the return air grille (See Figure Q). The top of the return air grille can be butted
against the bottom of the discharge plenum. Snap the grille into place by pushing the grille up and onto the unit's latches at
the bottom.
STEP 3 Youhavecompletedyourinstallation. Conductareviewofyourinstallationtoinsurethattheunitissafelyandsecurely
installed. Refer to the "OPERATING GUIDE" section of this manual to test the operation of your unit.
Discharge Air Plenum
Slot
Tab
DETAIL 1
Latches
Return air grille
DETAIL 4
Side view
(Cutaway)
DETAIL 2
DETAIL 3
DETAIL 1
Latch
Slot
Tab
Return Air Grille

18
WARNING: – EXPLOSION HAZARD –
SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2.
HAZARDGARD®
ROOM AIR CONDITIONERS
LIMITED WARRANTY
LIMITED ONE YEAR PARTS WARRANTY
1. Limited warranty – One year. Friedrich warrants that it will provide a replacement for any part of this HazardGard Room Air
Conditioner found defective in material or workmanship for a period of one (1) year from the date of original purchase.
2. Limited warranty – One year. The Friedrich warranty also covers the cost of labor for repairing any compressor, condenser,
evaporator or inter-connecting tubing found defective within the warranty period, providing the unit is returned to an authorized
Friedrich Repair Station located within the Continental United States.
The Friedrich warranty does not cover:
(1) Any charges for removal, transportation or reinstallation of the unit; (2) the cost of labor to replace parts other than those
described above; and (3) does not apply to any HazardGard Room Air Conditioner that has been subject to (a) accident, misuse,
flood, fire, or neglect; (b) repairs or alterations outside of the Friedrich Authorized Dealer or Service Center so as to affect adversely
its performance and reliability; or (c) any repairs or servicing as a result of using parts not sold or approved by Friedrich.
LIMITATIONS: This warranty is a LIMITED warranty. Anything in the warranty notwithstanding, IMPLIED WARRANTIES
FOR PARTICULAR PURPOSE AND MERCHANTABILITY SHALL BE LIMITED TO THE DURATION OF THE EXPRESS
WARRANTY. MANUFACTURER EXPRESSLY DISCLAIMS AND EXCLUDES ANY LIABILITY FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES FOR BREACH OF ANY EXPRESSED OR IMPLIED WARRANTY.
(10-04)
