Friedrich VERT-I-PAK VEA09 Original operating instructions

920-075-08 (10-04)
VERT-I-PAK®A-SERIES
SINGLE PACKAGE
VERTICAL AIR
CONDITIONING SYSTEM
9,000 - 18,000 BTU/h
INSTALLATION &
OPERATION GUIDE

2
Table of Contents
920-075-08 (10-04)
I. General Specifications
Installation Recommendations .......................................................................................................................................... 3
Model Number Identification Guide ................................................................................................................................... 4
VERT-I-PAK Chassis Specifications.................................................................................................................................... 4
II. Installation
1. Utility Closet Dimensions ................................................................................................................................................... 5
2. Wall Plenum & Architectural Louver Installation ................................................................................................................ 6
3. Electrical Information .....................................................................................................................................................7-9
4. Indoor Return Air Grille Installation .................................................................................................................................. 10
5. Ductwork Preparation and CFM ....................................................................................................................................... 11
6. Chassis Installation.......................................................................................................................................................... 11
7. Chassis Final Connections (Electrical, Duct, Drain & Wall Thermostat)............................................................................ 12
8. Final Installation Checklist............................................................................................................................................... 12
III. Chassis Operation
9. Thermostat Control ..........................................................................................................................................................13
10. Low Ambient Protection for Compressor & Fan ................................................................................................................ 13
11. Heating Defrost (Heat Pump Models only)........................................................................................................................ 13
12. Fresh Air Door................................................................................................................................................................... 13
13. Condensate Disposal System .......................................................................................................................................... 13
IV. Service & Warranty
14. Servicing / Chassis Quick Changeouts............................................................................................................................. 13
15. Warranty .......................................................................................................................................................................... 14

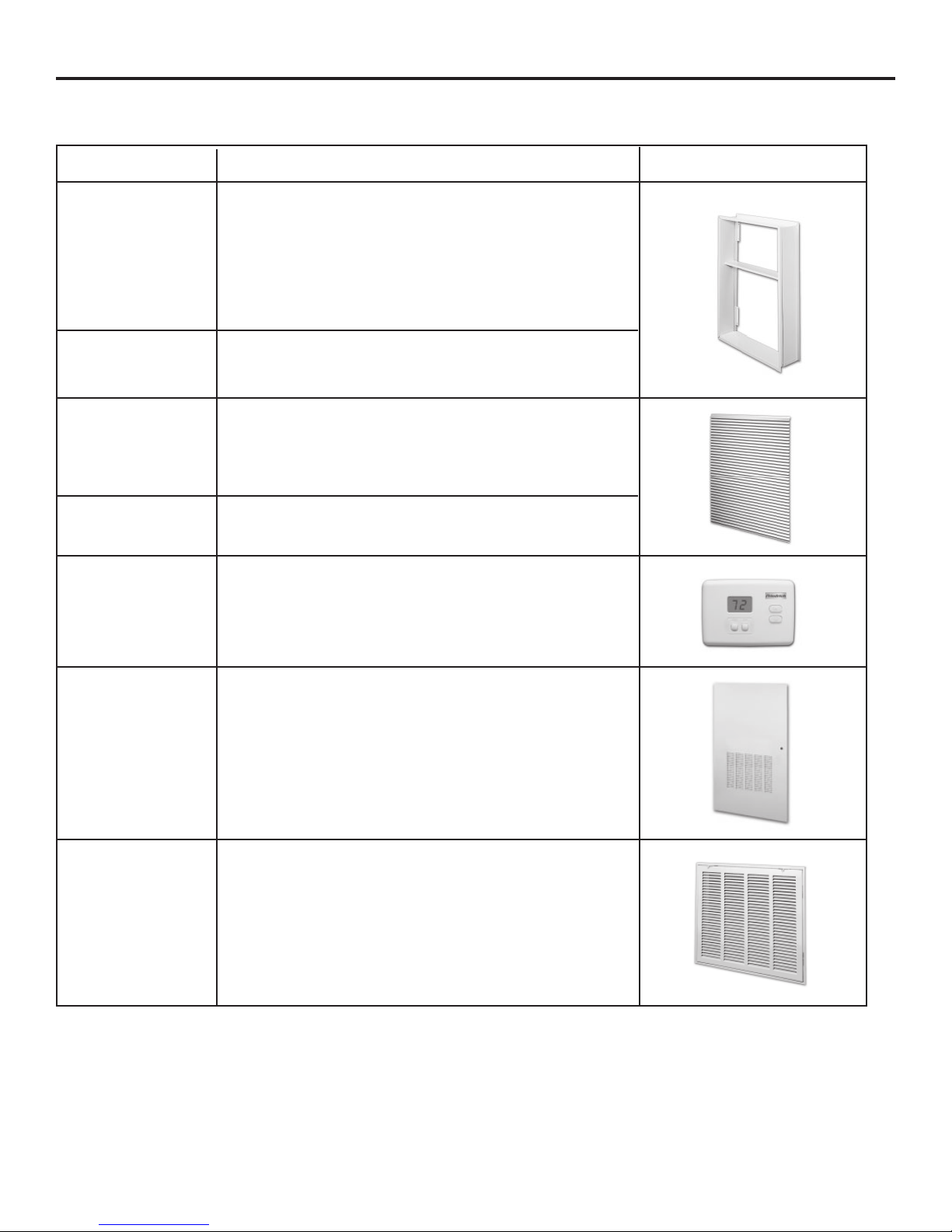

V. Vert-I-Pak Accessories .................................................................................................................................................... 15
Please read this manual thoroughly prior to equipment installation or operation. It is the installer’s
responsibility to properly apply and install the equipment. Installation must be in conformance
with the NFPA 70-2002 National Electric Code or current edition and Universal Mechanical Code
current edition and applicable local or national codes.
Proper installation is not difficult but it is essential.

3
920-075-08 (10-04)
Vert-I-Pak Installation Recommendations
For proper unit performance and maximum operating life please refer to the minimum installation clearances below.
The above suggestions are for reference only and do not represent all possible installations. Please contact the factory
for information regarding affects of other installation arrangements.
By following these simple recommendations you can be confident that your Friedrich Vert-I-Pak®will provide years
of worry-free operation.
Figure 2
Figure 1
Any time obstructions are present use
the following guidelines for proper
spacing from the VERT-I-PAK louver:
• For minor obstructions such as lamp
poles or small shrubbery a clearance
of 24" from the outdoor louver should
be maintained.
• For major obstructions such as a solid
fence, wall or other heat rejecting
device like a condensing unit, a mini-
mum distance of 72" should be kept.
12"
24"60"
VPAK VPAK VPAK
POLE
FENCE
MAJOR OBSTRUCTION
BUILDING
OUTDOOR
CONDENSING
UNIT
72"
24"
SHRUB
VERT-I-PAK
®
units must be installed on an outside wall. Confined spaces and/or covered areas should be
avoided. Units should be installed no closer than 12" apart when two units are side by side. If three of more
units are to operate next to one another allow a minimum of 60" between units or pairs of units. Also, a vertical
clearance of 60" should be maintained between units. Units installed on the bottom floor should be mounted
at least 6" off of the ground.
A
B
60"60"
60"
60"
LARGER RECESS OK. IF A> 5xB
12"
6"
60"
60"
60"
6"
60"
60"
6"
60" 60"
SMALL RECESS OK

4
920-075-08 (10-04)
V=Vertical Series
E=Cooling with or without electric heat
H=Heat Pump
DESIGN SERIES
A = 32" Cabinet
NOMINAL CAPACITY
VOLTAGE
K = 208/230V-1Ph-60Hz
Section I. General Specifications
Vert-I-Pak®Model Identification Guide
MODEL NUMBER V E A 09 K 50 RT A
SERIES
ELECTRIC HEATER SIZE
A-Series
00 = No electric heat
25 = 2.5 KW
34 = 3.4 KW
50 = 5.0 KW
A-Series (Btu/h)
09 = 9,000
12 = 12,000
18 = 18,000
ENGINEERING CODE
OPTIONS
RT = Standard Remote Operation
SP = Seacoast Protected
Vert-I-Pak®Chassis Specifications
MODEL: V(E,H)A09 V(E,H)A12 V(E,H)A18
Voltage (V) 230 / 208 230 / 208 230 / 208
Refrigerant R-22 R-22 R-22
Chassis Width 23.125" 23.125" 23.125"
Chassis Depth 23.125" 23.125" 23.125"
Chassis Height ** 32.25" 32.25" 32.25"
Shipping W x D x H 26.00" x 28.50" x 35.00" 26.00" x 28.50" x 35.00" 26.00" x 28.50" x 35.00"
Supply Duct Collar *** 10" 10" 10"
Drain Connection 3/4" FPT 3/4" FPT 3/4" FPT
Min. Circuit Amps See Chassis Nameplate
CFM Indoor See Charts 2 & 3 (Page 10)
Max. Duct ESP .3 in. water .3 in. water .3 in. water
NOTES:
** Height includes 2" duct collar & isolators under unit.
*** Factory collar accepts 10" flex duct.

5
920-075-08 (10-04)
Top View
Figure 4

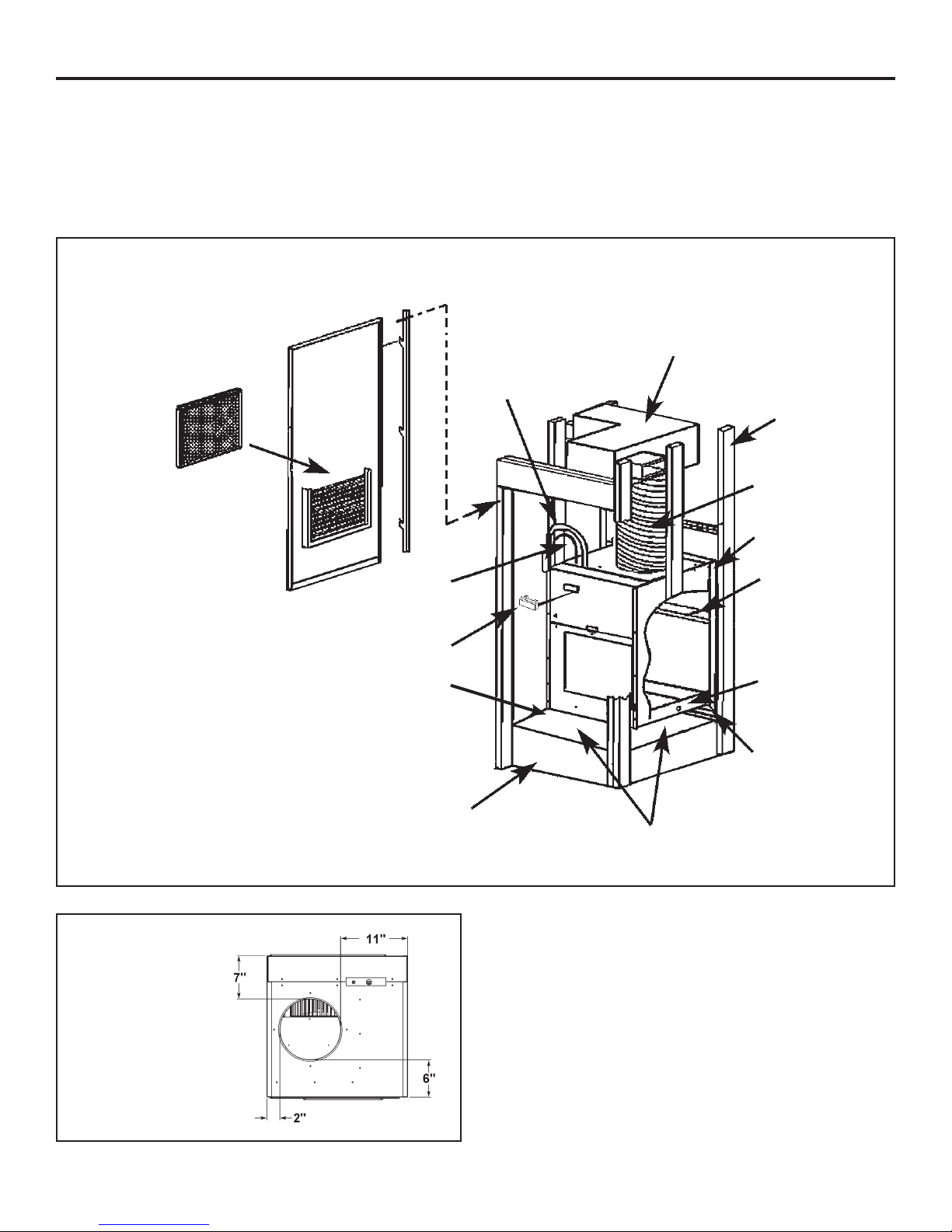

II. Installation
1) Utility Closet Dimensions
Recommended utility closet dimensions and a typical indoor installation are illustrated in Figure 3. Three inches minimum clearance on
three sides of the unit must be allowed for return airflow, installation access and service access. See Figures 3 and 4 for clearances
and reference dimensions.
Figure 3
Typical Utility Closet
25" x 20" Filter
(Field Supplied)
VPRG4 Access Panel and
Return Air Filter Grille
Electrical
Connection
Rigid Ductwork
Flexible Ductwork
Exterior Wall
VPAWP1-8/1-14
Wall Plenum
Plenum Divider
3/4" FPT Drain
Connection
Optional
Platform 3" Clearance on all three sides
minimum for service and installation.
Power
Disconnect
Thermostat
Wiring
See Figure 8, Page 10
for return air options
Chassis installs
23/8" into Plenum
Chassis Shown in Closet, on Optional Platform
• Vert-I-Pak Chassis dimensions:
23
1
/
8
" wide x 23
1
/
8
" deep x 32
1
/
4
" high.
• VPAWP1-8/1-14 Wall Plenum cut-out
dimensions 24
5
/
8
" wide x 30
7
/
8
" high.
• VPRG4 Access Panel cutout dimensions:
27" wide by 55
3
/
4
" high.
• See Figure 9 (Pg 11) for proper chassis
installation.
Optional field
installed dran pan
(refer to local codes)

6
920-075-08 (10-04)
2) Wall Plenum and Architectural Louver Installation
A. Install the wall plenum (VPAWP1-8/1-14) components in accordance with the installation instructions provided with each accessory.
B. Ensure that the divider is adjusted properly for the depth of the wall in accordance with the accessory installation manual
.
Figure 5
Caulk all 8
flange corners
Proper Header
Proper Flashing
Proper Flashing
Proper Caulking
Outside Wall
Proper Caulking
Architectural louver VPAL2 mounted
on the outside wall plenum (Part A)
Inside Wall Plenum
(Part B)
IMPORTANT REMINDER: FRIEDRICH WALL PLENUM IS NOT DESIGNED TO CARRY STRUCTURAL
LOADS. PROPER WALL HEADER CONSTRUCTION IS REQUIRED. THE PLENUM REQUIRES
PROPER FLASHING, SHIM AND CAULK FOR A WEATHER RESISTANT INSTALLATION.
• Rough opening dimension 24
5
/
8
" wide x 30
7
/
8
" high.
• Ensure that the bottom of the plenum is
3
/
4
" from the floor of the closet.
• For proper airflow, maintain a minimum distance of 12" between Vert-I-Pak units (see Figure 1, page 3).
Consult the factory for any installation or application questions.
Wall Plenum & Outdoor Louver Installation

7
920-075-08 (10-04)
3) Electrical Data
Sample Nameplate (see your chassis nameplate)
Electrical Data
Voltage ( V) 230/208 230/208 230/208 230/208 230/208 230/208 230/208 230/208 230/208
LRA - Comp. (A) 21 21 21 24.0 24.0 24.0 47 47 47
Cooling Current (A) 4.4/4. 9 4.4/4. 9 4.4/4.9 5.5/6.1 5.5/6.1 5.5/6.1 9.2/10.2 9.2/10.2 9.2/10.2
MIN. Ckt. Amps (A) 15 20 30 15 20 30 15 20 30
Power Connection HARD WIRED HARD WIRED HARD WIRED
V(E,H)A09K25
V(E,H)A09K34
V(E,H)09K50
V(E,H)A12K25
V(E,H)A12K34
V(E,H,)A12K50
V(E,H)A18K25
V(E,H)A18K50
V(E,H)A18K34
Model
MODEL NO 1
SERIAL NO *
FRIEDRICH AIR CONDITIONING CO.
SAN ANTONIO, TEXAS
VOLTS: 24,33,34
VOLTAGE RANGE: 255-197
REFRIG CHARGE: 7 OZS. R22
DESIGN PRESSURE: 575 PSIG HS / 150 PSIG LS
COOLING: BTU/HR 8
SEER: 10 COP: 16
HEAT PUMP BTU/HR: 14
TOTAL COOLING AMPS: 9
TOTAL ELEC. HEAT AMPS: 15
ELECTRIC HEAT WATTS: 18
FOR PERMANENTLY CONNECTED UNITS ONLY:
COMP'. PLA 11 LRA 12
MOTOR: FLA 13 HP 19
HEATER AMPS: 17
MIN. CKT AMP ~0 USE ~1 MAX. TIME DELAY FUSE
OR HACR TYPE CIRCUIT BREAKER.
GENERAL UNIT INFORMATION:
MAX OUTLET AIR TEMPERATURE: 2OO'F
MAX EXTERNAL STATIC PRESSURE ELECTRIC
HEAT'..5 IN. WATER
"O" CLEARANCE TO COMBUSTIBLE MATERIAL
USE ON SINGLE OUTLET CIRCUIT ONLY
ELECTRICAL SHOCK AND
MOVING PARTS HAZARD
CAN CAUSE INJURY OR
DEATH
PULL OUT DISCONNECT
HEAD LOCATED ON THE
FRONT OF THIS UNIT TO
DISABLE POWER BEFORE
SERVICING.
LISTED
120524
HEATING AND
COOLING EQUIPMENT
APPLICABLE PATENTS:
US 6,065,296
NY MEA NO.: 295-00-E
USE ONE OF THE
FOLLOWING ITEMS
FROM EACH CATEGORY
TO COMPLETE THE
ASSEMBLY
WALL PLENUM:
VPAWP1 -8
VPAWP1 -14
OUTDOOR GRILLE
VPAL2
INDOOR GRILLE
VPRG1
VPRG2
VPRG5
SAMPLE
WARNING
Important: all 208/230v chassis must be hard wired with properly sized breaker. See nameplate for specific chassis
electrical requirements. See page 8 - Figure 5 for unit wiring and wall thermostat wiring. See page 8 for wire size. Use
HACR type breakers to avoid nuisance trips. All field wiring must be done in accordance with nec and local codes.

8
920-075-08 (10-04)
Electrical Requirements
Figure 6
3) Electrical Data (continued)
Electrical Rating Tables
NOTE: Use copper conductors ONLY. Wire sizes are per
NEC. Check local codes for overseas applications
Recommended branch circuit wire sizes*
Nameplate
maximum circuit
breaker size
AWG Wire size**
15A 14
20A 12
30A 10
AWG — American Wire Gauge
* Single circuit from main box
** Based on copper wire, single insulated conductor at 60°C
Note: All field wiring must comply with NEC and local codes. It
is the responsibility of the installer to insure that the electrical
codes are met.
Wire Size Use ONLY wiring size recommended for single
outlet branch circuit.
Fuse/Circuit
Breaker
Use ONLY type and size fuse or HACR circuit
breaker indicated on unit's rating plate (See sample
on page 6). Proper current protection to the unit is
the responsibility of the owner.
Grounding
Unit MUST be grounded from branch circuit to
unit, or through separate ground wire provided on
permanently connected units. Be sure that branch
circuit or general purpose outlet is grounded.
Wire Sizing
Use recommended wire size given in tables and
install a single branch circuit. All wiring must comply
with local and national codes. NOTE: Use copper
conductors only.
CAUTION
Electric shock hazard.
Turn OFF electric power before service
or installation.
All electrical connections and wiring MUST
be installed by a qualified electrician and
conform to the National Electrical Code and
all local codes which have jurisdiction.
Failure to do so can result in property
damage, personal injury and/or death.

9
920-075-08 (10-04)
Electrical & Thermostat Wiring Diagrams
3) Electrical Data (continued)
Note: the diagram above illustrates the typical thermostat wiring and 208 volt transformer wiring.
See the unit control panel for the actual unit wiring diagram and schematic.
RT2
THERMOSTAT
(FRONT)
Figure 7
208V 240V

10
920-075-08 (10-04)
4) Indoor Return Air Grille Installation
There are three Indoor Return Air Grille options as shown in Figure 8. Choose the option that best suits your needs. Use the installation
instructions provided with accessories for installation details.
Notes:
A. These are the Friedrich recommended return air grille / filter / access panel arrangements. Consult the factory on other
arrangements. Improper return air arrangements will cause performance problems.
B. Return air arrangements are shown from the front, but can also be installed from the right or left side of the unit.
Return Air Grille Options
All Vert-I-Pak chassis are shipped with a
14 x 20 filter installed. If an accessory filter
holder is to be used, you MUST remove the
factory shipped filter from the chassis. Do
NOT use two filters
Figure 8
VPRG2
Return Air Grille
Unit requires a field-supplied
access door or panel and a
16" x 20" filter.
VPRG4
Return Air Grille with Access Panel
A field-supplied (25" x 20") filter is
mounted inside the hinged access door.
Option 1
Option 2

11
920-075-08 (10-04)
5) Ductwork Preparation
1) Duct ESP:
To determine your system's indoor external static pressure
(ESP, in inches of water) use a duct calculator (as provided
by your duct supplier). Include all flex duct transitions and
discharge grille(s). If flex duct is used, be sure all the slack
is pulled out of the flex duct. Flex duct ESP can increase
considerably when not fully extended. DO NOT EXCEED a
total of .30 ESP, as this is the MAXIMUM design limit for the
VERT-I-PAK A-Series unit.
2) Determining the Indoor CFM: Chart A – CFM
3) Correct CFM (if needed):
Chart B – Correction Multipli
ers
6) Chassis Installation
Install the following components as shown in Figure 5.
A. Ensure that the wall plenum is installed in accordance with
the VPAWP1-8/1-14 Installation Manual.
B. Place the chassis into the closet with the outdoor side
facing the wall plenum opening.
C. Slide the chassis into the wall plenum until the plenum
divider seal is established. (See Figure 9)
The Ver t- I - Pak chassis must be inser ted into the wall plenum so that the
plenum divider gasket makes contact with the plastic condenser baffle on
the unit. The chassis will fit approximately 2
3
/
8
" into the wall plenum.
Slide-in View / Chassis Installation
Figure 9
ESP (") Capacity
BTU/h 18000 12000 / 9000
.00 520 420
.10 510 410
.20 500 370
.30 490 330
Correction Multipliers for:
230V 1.00
208V 0.97
Heating 1.00
Cooling 0.95

12
920-075-08 (10-04)
CAUTION
 The unit basepan has three (3) provisions (left, right, and
rear) for connecting an external condensate drain.
 A field supplied condensate drain system must be
connected to one of the three (left, right, or rear) 3/4"
FPT connections on the unit basepan. Use of rear fitting
may result in staining of the outside wall.
 The remaining two connections must be plugged using
the two 3/4" pipe plugs (provided) and field supplied
teflon tape or pipe joint compound.
 The addition of a secondary drain pan may be required.
Follow all applicable codes.
 Failure to follow these procedures may result in serious
property damage.
 A field supplied secondary condensate pan may be
applied. Check with local codes.
7) Chassis Final Connections
With the chassis in place, you are now ready to begin chassis
connections:
A. Move the thermostat switches to "OFF" and "AUTO." This
will keep the thermostat from cycling the chassis until final
connections are complete.
B. Connect the ductwork onto the 10" collar. Plastic wireties (field
supplied) are suggested to secure the ductwork in place. Use
2 wire ties, one for each inner and outer flex duct sleeve.
C. Using the two 3/4" plugs supplied with the unit, plug two of
the condensate drain holes. Connect a drain to the third
condensate exit location. Be sure to use teflon tape or
approved pipe sealant on all drain connections and plugs.
(See Figure 10.)
D. For 208 Volt power only: you must move the transformer wire
as shown in Figure 7, Page 9.
E. Review the Final Installation Checklist on Page 12 before
replacing the power quick disconnect, reconnecting power
to the chassis, plugging in the remote thermostat harness, or
operating the chassis.
8) Final Installation Checklist
Correct line voltage?
Chassis deck level?
Plenum divider baffle installed?
Wall plenum caulked? Level? Flashing?
HACR type breaker/fuse?
Single circuit only?
Ductwork connected?
Chassis weather seal in place?
Wall thermostat wired correctly?
Chassis inserted into plenum?
Electrical shock and moving parts hazard can cause injury
or death. If you have not done so, pull out the disconnect
head found on the front of chassis before continuing instal-
lation! Disconnect external power at the breaker.

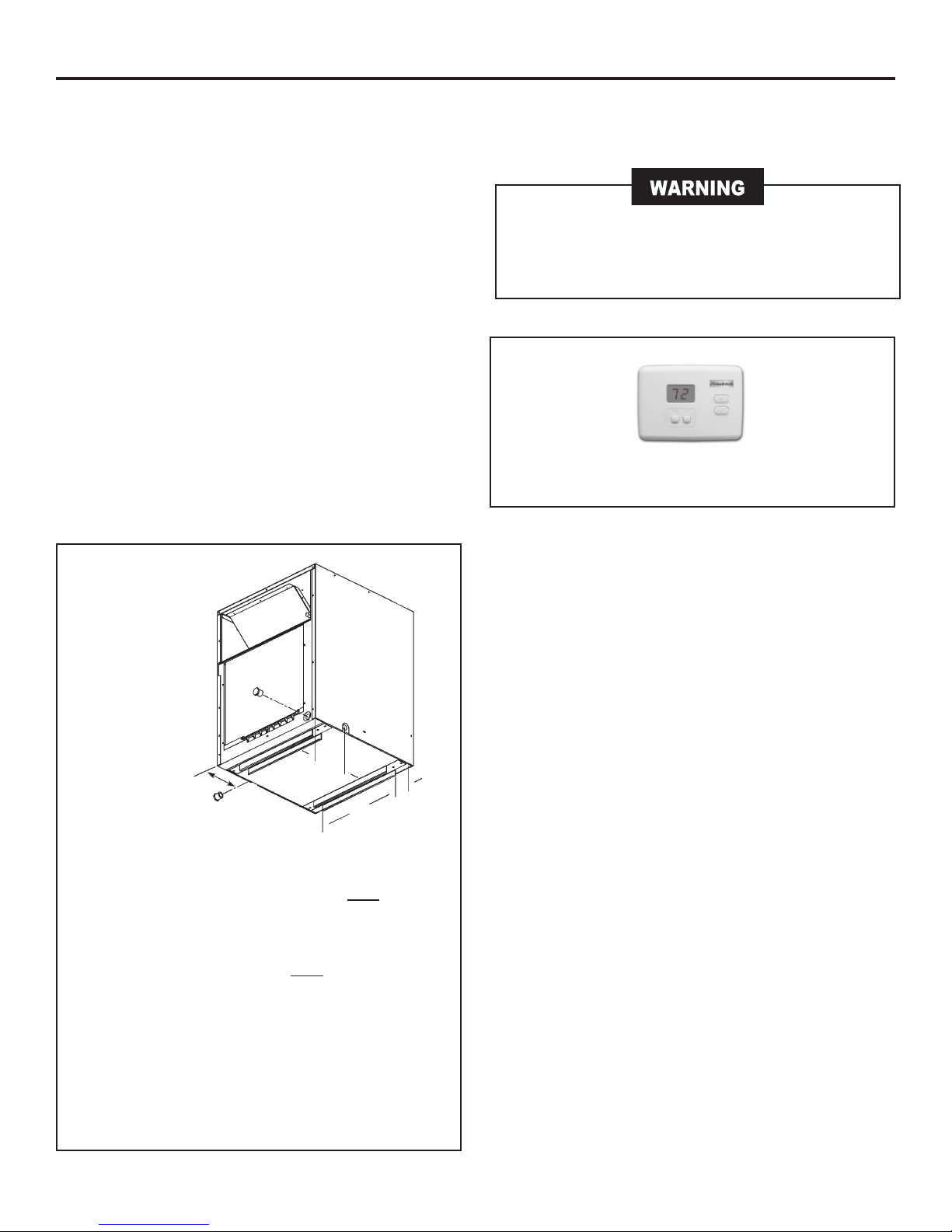

Drain Connection
and Location
Figure 10
RT2 Digital Thermostat
87/8"
71
/83"
17 x 21
/8

13
920-075-08 (10-04)
III. Chassis Operation
9) Remote Thermostat Control
The chassis requires a simple single stage heat-cool wall thermostat.
Each chassis comes with a terminal strip located in the electrical
control box. All internal chassis wiring (low & high voltage) is factory
ready for 230 Volt operation. For 208 Volt operation a single wire
MUST BE CHANGED ON THE TR ANSFORMER. Refer to Figure
7 on page 9.
10) Low Ambient Protection
Each chassis is equipped with Low Ambient Protection in the form of
a suction line thermostat. This thermostat will prevent compressor
operation at low suction line temperatures. Each chassis is also
equipped with a factory installed bellows that will drain water from
the base pan to prevent the fan slinger from freezing during winter
weather.
11) Heating Defrost (Heat Pump Models Only)
All Heat Pumps have a passive heating defrost system. Defrost
occurs as needed and automatically switches to electric heat during
defrost. When the outdoor ambient temperature drops below a 45°F
factory setting, the chassis automatically switches to electric heat.
As outdoor ambient temperatures rise above 45°F, the chassis
returns to the heat pump mode. The changeover temperature
is user adjustable from approximately 32°F - 55°F. The defrost
thermostat may also be used to lock out the compressor in an
emergency heat situation.
12) Fresh Air Door
The Fresh Air Door is an "intake" system. The fresh air door is
opened via a slide on the front of the chassis located just above
the indoor coil. Move the slide left to open and right to close the
fresh air door. The system is capable of up to 60 CFM of fresh air
@ ~.3" H20 internal static pressure.
13) Condensate Disposal System
The internal drain connections are 3/4" FPT fittings on the right, left
and outdoor side of the unit. See Figure 10 on page 12. The chassis
is designed with a condensate drain system that has 3 parts. The
three parts work as follows:
Part 1: The system’s first stage increases energy efficiency
utilizing a factory installed fan that slings the cold
condensate onto the hot outdoor coil.
Part 2: When high outdoor humidity prevents the slinger from
disposing of all the condensate, the excess condensate
overflows into the internal drain connection.
Part 3: If Parts 1 & 2 fail for any reason, excess condensate
overflows from a spillway directly into the wall plenum
to the outside of the building. IF THIS OCCURS, THIS
IS YOUR WARNING THAT THE CHASSIS OR DRAIN
NEEDS SERVICING.
Follow all codes when working with the condensate drain
system. A secondary drain pan may be placed beneath the
chassis to prevent condensated spillage due to improper
installation or unit malfunction.
IV. Service & Warranty
14) Servicing / Chassis Quick Changeouts
The chassis is designed for quick disconnect and change out. For
minor electrical service, the control box cover lifts straight up after
the screws & disconnect head are removed. For major electrical,
refrigeration and fan service the chassis must be removed from
utility closet.
To Remove the Chassis from the Closet:
A Switch the wall thermostat off.
B Pull the power disconnect located in the front of the chassis.
C Turn off all power to the unit at the main breaker or
disconnect.
D Disconnect the thermostat wiring.
E Disconnect the electrical connection.
F Disconnect the ductwork.
G Disconnect the drain connection.
H Slide the chassis out of the wall plenum.
I Lift the chassis out of the utility closet.
15) Warranty
All service work must be done by a qualified servicer. See
Warranty on the next page, and consult your dealer or contractor
for details.
Electrical shock and moving parts hazard can cause injury
or death. Pull out the disconnect head found on the front
of the chassis before servicing.

14
920-075-08 (10-04)
Friedrich Air Conditioning Company
P.O. Box 1540
San Antonio, TX 78295
210.357.4400
www.friedrich.com
VERT-I-PAK®A SERIES
SINGLE PACKAGE VERTICAL AIR CONDITIONERS
LIMITED WARRANTY
SAVE THIS CERTIFICATE. It gives you specific rights, you may also have other rights which may vary from state to state and
province to province.
In the event that your unit needs servicing, contact your nearest authorized service center. If you do not know the nearest service
center, ask the company that installed your unit or contact us - see address and telephone number above. To obtain service
and/or warranty parts replacement, you must notify an authorized FRIEDRICH Air Conditioning Co. service center, distributor,
dealer, or contractor of any defect within the applicable warranty period.
When requesting service: please have the model and serial number from your unit readily available.
Unless specified otherwise herein, the following applies:
FRIEDRICH VERT-I-PAK A SERIES VERTICAL AIR CONDITIONERS AND HEAT PUMPS
LIMITED WARRANTY - FIRST YEAR (Twelve (12) months from the date of installation). Any part found to be defective in
the material or workmanship will be repaired or replaced free of charge by our authorized service center during the normal
working hours; and
LIMITED WARRANTY - SECOND THROUGH FIFTH YEAR (Sixty (60) months from the date of installation). ON THE
SEALED REFRIGERATION SYSTEM. Any part of the sealed refrigeration system that is defective in material or workmanship
will be repaired or replaced free of charge (excluding freight charges) by our authorized service center during normal working
hours. The sealed refrigeration system consists of the compressor, metering device, evaporator, condenser, reversing valve,
check valve, and the interconnecting tubing.
These warranties apply only while the unit remains at the original site and only to units installed inside the continental
United States, Alaska, Hawaii, Puerto Rico and Canada. The warranty applies only if the unit is installed and operated in
accordance with the printed instructions and in compliance with applicable local installation and building codes and
good trade practices. For international warranty information, contact the Friedrich Air Conditioning Company -
International Division.
Any defective part to be replaced must be made available to FRIEDRICH in exchange for the replacement part. Reasonable
proof must be presented to establish the date of install, otherwise the beginning date of this certificate will be considered to be our
shipment date plus sixty days. Replacement parts can be new or remanufactured. Replacement parts and labor are only
warranted for any unused portion of the unit’s warranty.
We will not be responsible for and the user will pay for:
1. Service calls to:
A) Instruct on unit operation. B) Replace house fuses or correct house wiring. C) Clean or replace air filters. D) Remove
the unit from its installed location when not accessible for service required. E) Correct improper installations.
2. Parts or labor provided by anyone other than an authorized service center.
3. Damage caused by:
A) Accident, abuse, negligence, misuse, riot, fire, flood, or acts of God. B) Operating the unit where there is a corrosive
atmosphere containing chlorine, fluorine, or any damaging chemicals (other than in a normal residential environment). C)
Unauthorized alteration or repair of the unit, which in turn affects its stability or performance. D) Failing to provide proper
maintenance and service. E) Using other than a “Seacoast Protected” unit in a coastal environment. F) Using an
incorrect power source. G) Faulty installation or application of the unit.
We shall not be liable for any incidental, consequential, or special damages or expenses in connection with any use or
failure of this unit. We have not made and do not make any representation or warranty of fitness for a particular use or
purpose and there is no implied condition of fitness for a particular use or purpose. We make no expressed warranties
except as stated in this certificate. No one is authorized to change this certificate or to create for us any other
obligation or liability in connection with this unit. Any implied warranties shall last for one year after the original
purchase date. Some states and provinces do not allow limitations on how long an implied warranty or condition lasts, so the
above limitations or exclusions may not apply to you. The provisions of this warranty are in addition to and not a modification of
or subtraction from the statutory warranties and other rights and remedies provided by law.
In case of any questions regarding the provisions of this warranty, the English version will govern.
(10-04)

15
920-075-08 (10-04)
V. Vert-I-Pak Accessories
RETURN AIR GRILLE – Interior return air grille that
hinges to allow a field supplied (16" x 20") filter to slip
inside. Must be used when an access door / panel
already exists in closet.
DIMENSIONS: 187/16" high x 223/8" wide.
ACCESS PANEL / RETURN AIR GRILLE – Serves as
an access panel to chassis and interior return air grille.
A field-supplied (25" x 20") filter is mounted inside the
hinged access door.
DIMENSIONS: 58" high x 29" wide.
CUTOUT DIMENSIONS: 553/4" high x 27" wide.
DIGITAL THERMOSTAT Digital electronic thermostat with
"one touch" adjustment. Mounts to wall for control of unit.
Same as VPAL2 but can be ordered in a special color to
match the exterior wall.
ARCHITECTURAL LOUVER Extruded aluminum louver
that attaches to the outdoor section of the wall plenum.
DIMENSIONS: 311/16" high x 259/16" wide.
Same as VPAWP1-8, but telescopes 8" to 14" as required.
WALL PLENUM Two-part sleeve that telescopes in and
out from 51/2" to 8" in depth. The wall plenum sits inside
the exterior wall penetration.
DIMENSIONS: 303/8" high x 241/8" wide.
CUTOUT DIMENSIONS: 307/8" high x 245/8" wide.
VPAWP1-8
VPRG2
VPRG4
RT2
VPSC2
VPAL2
VPAWP1-14
MODEL DESCRIPTION PHOTO

920-075-08 (10-04)
FRIEDRICH AIR CONDITIONING CO. INC.
Post Office Box 1540 · San Antonio, Texas 78295-1540
4200 N. Pan Am Expressway · San Antonio, Texas 78218-5212
[phone] · FAX [phone]
www.friedrich.com
Printed in the U.S.A.
