Friedrich MW09C3E User manual

MULTI SPLIT TYPE
AIR CONDITIONER
WALL MOUNTED type
CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
OUTLINE AND DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
REFRIGERANT SYSTEM DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . 3
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
INDOOR PRINTED CIRCUIT BOARD CIRCUIT DIAGRAM . . . . . 5
OUTDOOR PRINTED CIRCUIT BOARD CIRCUIT DIAGRAM . . . 6
PRINTED CIRCUIT BOARD LAYOUTS . . . . . . . . . . . . . . . . . . . . . . 7
DISASSEMBLY ILLUSTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Models Indoor unit Outdoor unit
ASU9D AOU18D
MW09C3E MR18DC3E
s
DUAL ZONE
DUAL ZONE
SPLIT TYPE
AIR CONDITIONER
920-149-00 (10-02)

– 1–
SPECIFICATIONS
INDOOR UNIT ASU9D ASU9D x 2
OUTDOOR UNIT AOU18D
COOLING CAPACITY (BTU/hr) 9,300 - 9,600 18,600 - 18,800
PO ER SOURCE (V) 208 - 230
FREQUENCY (Hz) 60
RUNNING CURRENT (A) 4.9 - 4.6 9.5 - 9.0
INPUT ATTS ( ) 1,000 - 1,030 1,950 - 2,000
SEER 10.5 11.0
MOISTURE REMO AL Pts/hr (R/hr) 2.1 (1.0) 2.1 (1.0) + 2.1 (1.0)
AIR CIRCULATION-Hi (m3/hr) 510 510 + 510
ELECTRICAL DATA
COMPRESSOR
FAN MOTOR
DIMENSIONS
TYPE Hermetic type, Permanent split condenser,
2 pole, Single phase, Induction motor
CODE QK151KAA
208 - 230 60Hz
REFRIGERANT R-22 lbs (g) 1.83 (830) x 2
POWER SOURCE ( ) 208 - 230
H I (r.p.m.) 1,320 ± 20
INDOOR UNIT MED (r.p.m.) 1,210 ± 20
LO (r.p.m.) 1,100 ± 20
QUIET (r.p.m.) 1,000 ± 20
OUTDOOR UNIT (r.p.m.) 0,650 ±50
INDOOR UNIT
H x x D inch (mm)
11 (280) x 32-1/8 (815) x 7 (179)
OUTDOOR UNIT 25-6/16 (643) x 33-1/16 (840) x 13-3/16 (335)
WEIG TS
INDOOR UNIT
GROSS / NET lbs (kg)
26 / 22 (12 / 10)
OUTDOOR UNIT 168 / 150 (76 / 68)
MW09C3E x 2MW09C3E
MR18DC3E

– 2–
Models : ASU9D / AOU18D
32-1/8”(815) 7 (179)
11 (280)
OUTLINE AND DIMENSIONS
INDOOR UNIT
Unit : inch (mm)
OUTDOOR UNIT
33-1/16”
(840) 13-3/16” (336)
25-6/16”
(643)
13-3/16”
(333)
63/64” (25)
31-10/16” (804)
Mounting bolt pitch)
MW09C3E / MR18DC3E

– 3–
REFRIGERANT SYSTEM DIAGRAM
Models : ASU9D x 2 / AOU18D
COMPRESSOR-A
2-WAY
VALVE
2-WAY
VALVE
3-WAY
VALVE
3-WAY
VALVE
THERMISTOR-A (DISCHARGE PIPE)
COMPRESSOR-B
THERMISTOR-A (CONDENSER)
THERMISTOR-B (DISCHARGE PIPE)
THERMISTOR-B (CONDENSER)
THERMISTOR
(PIPE)
EVAPORATOR EVAPORATOR
CAPILLARY TUBE HEAT EXCHANGER
HEAT EXCHANGER
CAPILLARY TUBE
DRYER DRYER
OUTDOOR UNIT
INDOOR UNIT A INDOOR UNIT B
THERMISTOR
(PIPE)
MW09C3E x 2 / MR18DC3E

– 4–
CIRCUIT DIAGRAM
Models : ASU9D x 2 / AOU18D
12345 12 12
12
22 11
345
12345 123456 89 123456 89
6 89
3 2 1
3 2 1
6 5 4 3 2 1
6 5 4 3 2 1
PURPLE BLUE GREEN YELLOW ORANGE RED
WHITE
BLACK
RED
BLACK
GREEN
RED
BLACK
123
WHITE
YELLOW
WHITE
ORANGE ORANGE
WHITE
RED
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
BROWN
1 2 1 2
M
FM
FM
FAN MOTOR
FAN
CAPACITOR
COMPRESSOR CAPACITOR B
COMPRESSOR MOTOR B
POWER RELAY B
TERMINAL
TERMINAL
POWER SOURCE 230 - 208V 60Hz
OVERLOAD PROTECTOR
BLACK
BLACK
BLACK
WHITE RED BLUE
THERMISTOR (OUTDOOR TEMP.)
RED
BLUE
BROWN
S
R
C
WHITE BLACK
BLACK BLACK
PINK
BLACK
WHITE
WHITE WHITE BLUE
RED
GREEN RED RED
PURPLE PURPLE
YELLOW
THERMAL FUSE
FUSE
F1 T3.15A 250V
FUSE (3A)
G
TRANSFORMER
PRINTED CIRCUIT BOARD
RED RED BLUE BLUE BLACK BROWN PINK GREEN YELLOW
UNIT A UNIT B POWER
THERMISTOR A (COND. TEMP.) THERMISTOR B (COND. TEMP.) THERMISTOR A (DIS. TEMP.) THERMISTOR B (DIS. TEMP.)
WHITE
WHITE
BLACK
WHITE BLACK
WHITE
COMPRESSOR CAPACITOR A
COMPRESSOR MOTOR A
STEP MOTOR
CONTROL BOARD
POWER SUPPLY BOARD
THERMISTOR
(ROOM TEMP.)
(LOUVER U)
LOUVER Z DIFFUSER
TEST
POWER RELAY A
OVERLOAD PROTECTOR
RED
WHITE
BROWN
RED
ORANGE
YELLOW
GREEN
BLACK
BLACK BLACK
WHITE
GRAY
PURPLE
BLUE
BROWN
S
R
C
BLACK
GREEN/ YELLOW
1 2 3 4 5 6 8 9
10
1
1 2 3 4 5 1 2 3 4 5
2 3 4 5 6 8 9
10
M
54321 54321
()
THERMISTOR
(PIPE TEMP.)
PRINTED CIRCUIT
BOARD (DISPLAY)
FAN MOTOR
CAPACITOR
TERMINAL THERMAL
PROTECTOR
GRAY GRAY
12345 12 12
12
22 11
345
12345 123456 89 123456 89
6 89
3 2 1
3 2 1
6 5 4 3 2 1
6 5 4 3 2 1
PURPLE BLUE GREEN YELLOW ORANGE RED
WHITE
BLACK
RED
BLACK
GREEN
RED
BLACK
123
WHITE
YELLOW
WHITE
ORANGE ORANGE
WHITE
RED
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
BROWN
1 2 1 2
M
FM
STEP MOTOR
CONTROL BOARD
POWER SUPPLY BOARD
THERMISTOR
(ROOM TEMP.)
(LOUVER U)
LOUVER Z DIFFUSER
TEST
UNIT A
INDOOR UNIT OUTDOOR UNIT
UNIT B
BROWN
RED
ORANGE
YELLOW
GREEN
BLACK
BLACK BLACK
WHITE
GRAY
PURPLE
BLUE
GREEN/ YELLOW
1 2 3 4 5 6 8 9
10
1
1 2 3 4 5 1 2 3 4 5
2 3 4 5 6 8 9
10
M
54321 54321
()
THERMISTOR
(PIPE TEMP.)
PRINTED CIRCUIT
BOARD (DISPLAY)
FAN MOTOR
CAPACITOR
TERMINAL THERMAL
PROTECTOR
GRAY GRAY
CN1
CN
CN101 CN103
W104W105W106W101
CN104
CN6 CN5CN4
CN11
1 2
12
3 4 5 6
CN12
1 2
1 2
CN
1 2
3 4 5 6
CN8
W2 W1
1 2 3 4
CN9
1 2 3 4 5 6 8 9
10
1234
CN3CN2
CN4
1 2
CN5
1 2
1
CN1
E
1 2
CN18
3 1 2
CN10
3
23456 8
1 2 3 4 5
CN3
CN2
CN1
CN
CN101
CN102
CN102
CN103
W104W105W106W101
CN104
CN6 CN5CN4
1 2 3 4 5
CN3
CN2
MW09C3E x 2 / MR18DC3E

– 5–
INDOOR PRINTED CIRCUIT BOARD
CIRCUIT DIAGRAM
Model : ASU9D
(RED)
(GREEN)
(WHITE) (WHITE) (ORANGE) (ORANGE)
(BROWN)
(BROWN)
(BLACK) (BLACK) (GRAY) (GRAY)
PIPE TEMPERATURE THERMISTOR ROOM TEMPERATURE THERMISTOR
(RED) (ORANGE) (PURPLE)
(RED) (
ORANGE
)
(YELLOW)
(YELLOW) (GREEN) (GREEN) (BLUE) (BLUE) OPERATE (RED)
TIMER (GREEN) SWING (ORANGE)
(PURPLE) (GRAY) (WHITE)
(BLACK)
LOUVER U LOUVER Z (DIFFUSER)
INDICATOR PCB
CONTROLLER PCB ASSEMBLY (MAIN PCB)
THERMAL FUSE 102°C
230V AC 0 Hz
FAN CAPACITOR
8.38MHz
(WHITE)
(WHITE) (WHITE)
(WHITE) (WHITE) (WHITE) (WHITE) (WHITE) (WHITE) (RED)
(RED)
(RED)
(BLACK)
(BLACK) (WHITE)
MODEL CHANGING CODE
AUTO CHANGE OVER
HEATING CORRECTION SWITCHING
AUTO RESTART
REMOTE CONTROL CUSTOM CODE RESERVE
(WHITE)
(BLACK)
POWER SUPPLY PCB
MW09C3E

– 6–

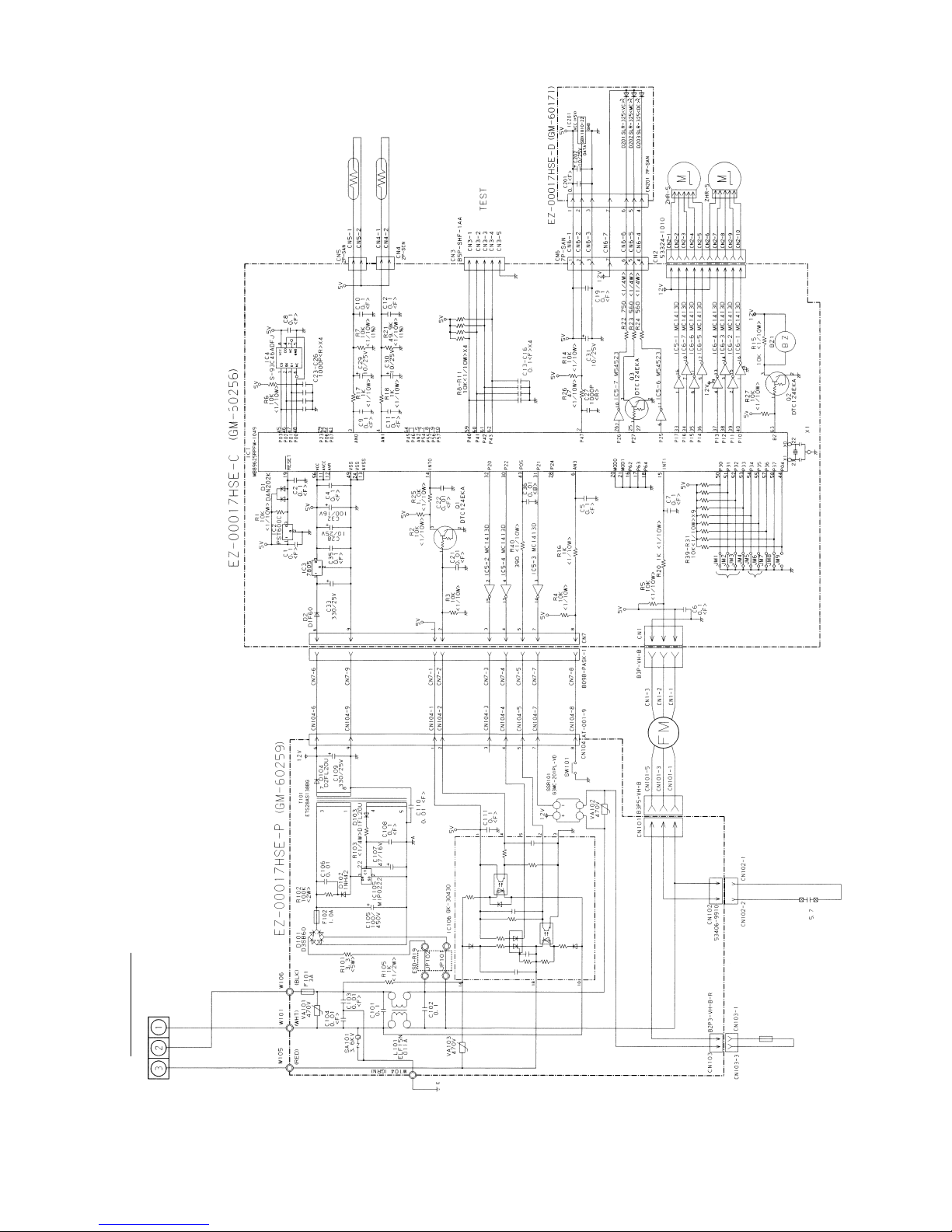

OUTDOOR PRINTED CIRCUIT BOARD
