IDH1000 FEATURES AND OPERATION MANUAL
VERev. 1.2.2 Aug. 20188

Table of Contents
Page 2
Page 3-4
Page 5
Page 6-8
Page 9
- Fuel Fill Location & Filling Precautions
- Door latches, Compartments and Hitch/Tongue Details
- External Power Connections
- Heater Access Doors and Slide Out System
- Basic Features of Heaters (See heater manual for full operating & servicing information)
Page 10 -
Page 11-12 -
Engine/Generator Layout and Identification (See engine manual for engine type specific detailed information)
Rear Compartment Controls & Functions
Page 13 -
Page 14-15 -
Fuel Level Sending Unit
Compartment Lighting Control Timers - Function & Adjustment
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
- Basic Starting Instructions for the Kubota or Isuzu Diesel Engine
- Isuzu Engine Basic Spare Parts List
- Kubota Engine Basic Spare Parts List
- Location of Rating Plate Information and Serial Number Identification - List of Important Warnings & Precautions
- 120VAC Circuit Wiring Diagram
-12VDC Circuit Wiring Diagram
-
Appendix A Overall Exterior Dimensions

Fuel Fill Point
The fuel tank is filled at this location on the side of unit near the rear.
Maximum fuel tank capacity is 215 US gal (812 Litres)
Caution: Fill tank only to 7/8 of maximum capacity (approx. 190 US gal./720L)
Refer to rating plate in rear compartment for specific details.
Approximate maximum run time for IDF1000 with full tank is approx. 30hours.
CAUTION:
Filling the fuel tank too quickly or overfilling the tank can increase the risk of spills,
backsplash or fuel discharging from the tank vent line due to fuel expansion, etc.
Page 2

Positive Lock Access Door Latches
Door Latches in Closed Position Press Bottom of Latches to Open
Page 3

Left front storage compartment access door.
Trailer tongue area illustrating various components
Always ensure tow vehicle has sufficient tow ratings and reduce speed when towing
Break-away switch
battery.
Check battery
condition
annually
Tongue jack
7 Pin trailer
connector to vehicle
for exterior lights and
electric brakes
Break-away switch
Safety chains
Height adjustable hitch
Pintle or 2-5/16” ball
available
Page 4

External Power Connections
• 120VAC 15A "shore power" inlet to supply engine block heater
and battery charger/maintainer.
• 120VAC 15A GFCI protected auxiliary power
outlet
Page 5

Swing Open Side Access Doors
Access to Heater Discharges
Heater discharge doors have safety interlock switches
and each door must be open in order for the respective
heater to operate.
Access to Heater Controls
Heater inlet doors provide access to the heater
controls and should normally remain open
during operation.
Catches are provided to
secure doors in the open
position
Page 6

Heaters are mounted onto poly lined slides rails permitting slide outaccess for service or complete removal from
enclosure.
IDH500QR heaters can slide out toward the burner end only and IDF500HS heaters can slide out from both the burner
end or the air discharge end.
Illustration of "Lock Bolts" which secure slide rails in locked position. These must be removed in order to slide heaters)into service position
Page 7
SLIDE LOCK BOLT

Illustration of a heater pulled into access positions.
Heater travel is limited by "slide limit stop bolts". The heaters canbe completely
removed from the enclosure by unfastening the slide limit safety stop bolt.
Note: IDH models slide-out from the burner side of the trailer only
Page 8
IDF500HS HEATER SHOWN IDH500QR HEATER SHOWN
SLIDE STOP BOLT
SLIDE STOP BOLT

IDF500HS and IDH500QR Heaters
PRESSURE GAUGE
KEEP VALVE CLOSED DURING NORMAL OPERATION & OPEN TO
ONLY TO CHECK PRESSURE.
FUEL FILTER
FUEL
SOLENOID
AIR
ADJUSTMENTS
IGNITION
TRANSFORMER
GENISYS CONTROL
RED “LOCKOUT” INDICATOR
AND RESET BUTTON
FUEL SOLENOID VALVE
“ENERGIZED” INDICATOR
POWER SUPPLY
INDICATOR
BURNER OPERATION SELECTOR
SWITCH.
OFF / MANUAL / THERMOSTAT
BURNER CIRCUIT
BREAKER
GENISYSY 7505
CONTROL
REMOTE
THERMOSTAT
CONNECTION
Burner Controls and Functions
See heater manual for complete operation and maintenance information
Page 9

Diesel Generator
KUBOTA ENGINE UNIT
Refer to Engine Manual for Instructions and Servicing
ISUZU ENGINE UNIT
Refer to Engine Manual for Instructions and Servicing
Page 10

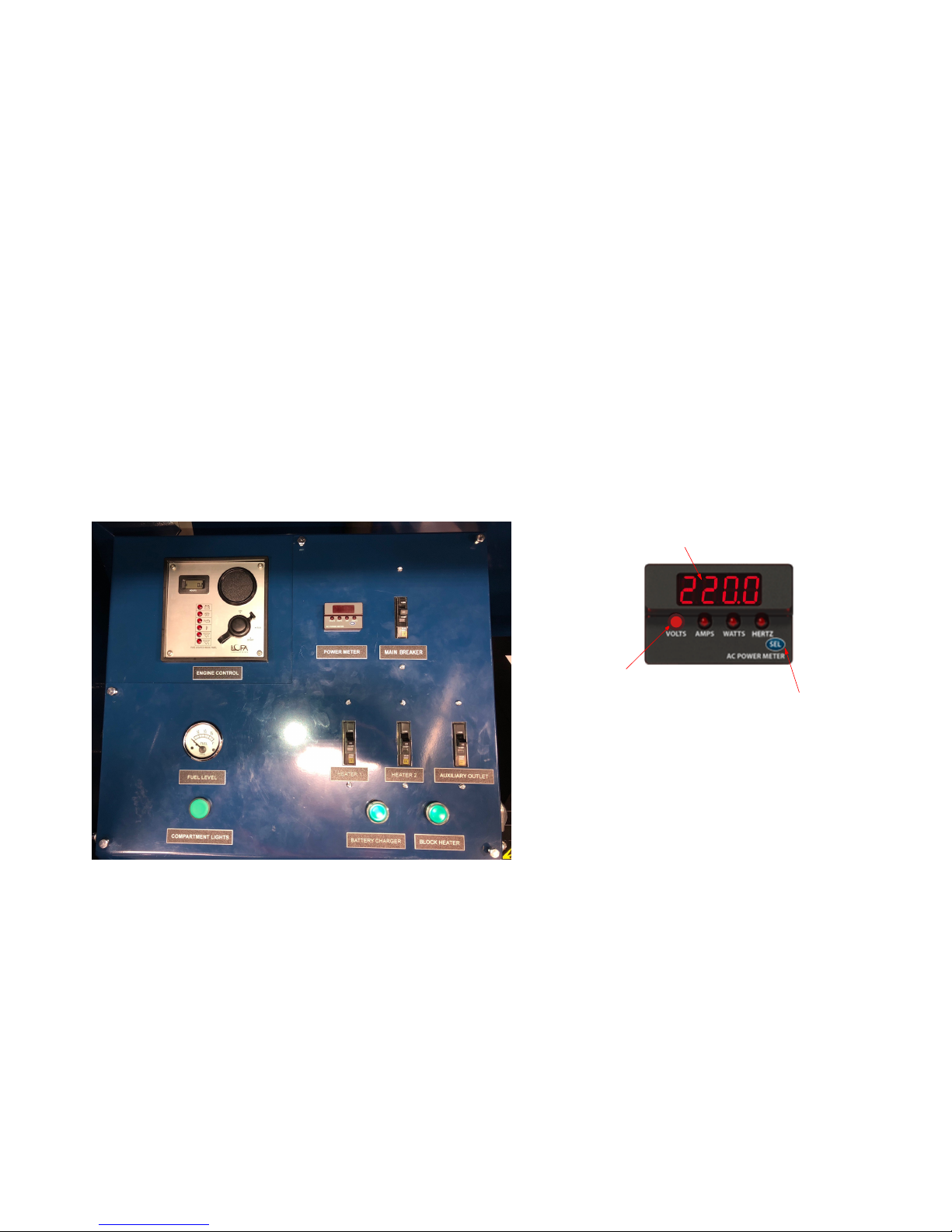

Rear Compartment Power Distribution and Controls
Control functions for both Kubota &Isuzu engine versions are similar.
Individual Circuit Breakers for main supply power and each heater and the auxiliary power receptacle.
Fuel gauge shows fuel level when engine is running or keyswitch is in accessory position.
PPower meter indicates volt, amp, kilowatts or HZ (selectable))when generator is running.
Page 11
DISPLAY SCREEN
INDICATES SUPPLY VOLTAGE, TOTAL AMPS, TOTAL WATTS OR LINE FEQUENCY
INDICATOR LIGHTS
ILLUMINATES TO SHOW WHAT IS BEING MEASURED & DISPLAYED
SELECTOR BUTTON
ALLOWS USER TO SELECT WHAT VALUE TO READ OR CAN BE SET TO SCROLL
Momentarily pressing "SEL" button each time will cycle the display to the next measurement.
Holding the "SEL" button for 3 seconds will set the meter to
continuously cycle through each measurement and display them
for 3 seconds.
The meter can also be configured to always display the desired specific measurement such
as amps or watts each time the heater is powered up. This is accomplished by setting the meter to
the desired measurement reading and leaving it to display that reading without touching the "SEL"
button for at least 60 seconds. Then each time the unit is powered up it will display that
measurement.
POWER METER
NOTE:
DISPLAY MAY INDICATE A RUNNING FEQUENCY ABOVE 60 HZ. (62HZ-65HZ).
THIS IS NORMAL TO ALLOW FOR ENGINE SPEED DROOP OF THE GOVENOR AND
PREVENT THE FRQUENCY FROM DROPPING BELOW 60 HZ. WITH FULL ENGINE LOADS.

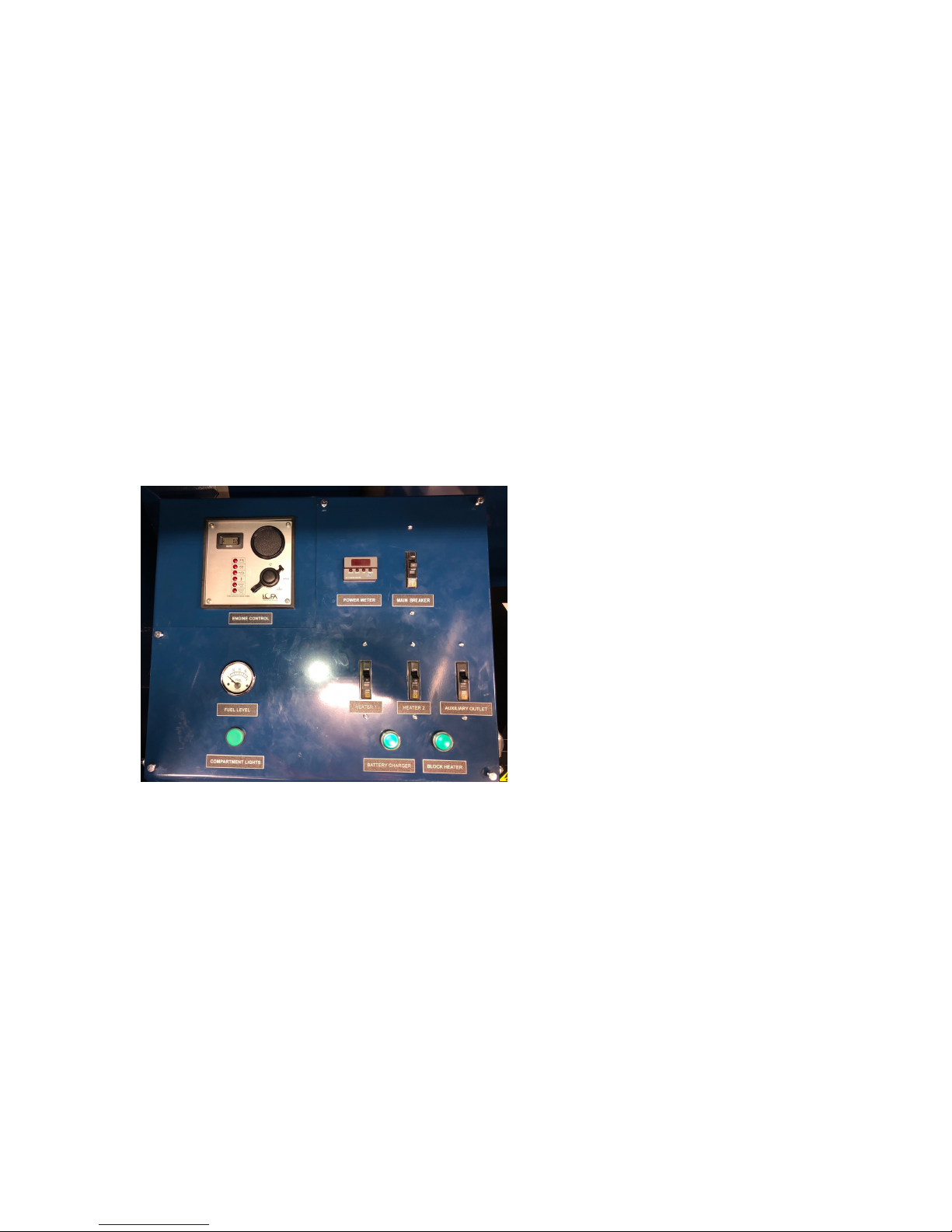

Pushbuttons for Compartment Lighting and Accessories
Page 12
Compartment Lights
-Press & hold button until lights turn on lights on (Hold for at least 1 to 2 seconds)
-Lights will remain on for 3 minutes & will then automatically turn off.
-Press & hold button for 5 to 8 seconds to turn lights on for 20 minutes & then will automatically turn off.
-Momentary button press at anytime allows the lights to be turned off before the timing period has completed.
Battery Charger & Block Heater
Battery charger & block heater buttons are push-on/push-off
Press buttons to activate & button will illuminate when power is supplied) Press buttons again to
deactivate.
BATTERY
CHARGER

Fuel Level Sender
Fuel Level Sending Unit
10-180 ohm. Fuel Tank
Page 13

Compartment Lighting Timers
• Compartment lighting iscontrolled with a programmable PLCLC
control activated with the momentary pushbutton on the panel.
This prevents unwanted battery drain from constant unattended
operation of the lights.
• The PLC has two pre-programmed timing periods of 3 minutes or
20 minutes depending on the lighting duration desired. Selecting
the desired lighting times is described on page 12.
• The PLC is located under the front control panel and has a display
screen that can be used for operation information, troubleshooting
and programming.
• The control also has a 6 pin receptacle on the exterior left rear
of the control panel that is designed for connection to an optional
Frost Fighter roof beacon. This beacon can be used to display
operational status and alerts for low fuel levels.
Page 14
CAUTION RISK OF ELECTRIC SHOCK
ENSURE 120VAC0EXTERNALL POWER IS DISCONNECTED AND/OR GENERATOR IS STOPPED BEFORE ACCESSING THE CONTROLS AND CHANGING TIMER SETTINGS.
6 PIN CONNECTOR
AT REAR OF
CONTROL PANEL

Gaining Access to PLC Control and Low Voltage Fuses
TO OPEN, REMOVE THE FIVE FRONT PANEL BOLTS
AND LIFT THE FRONT COVER TO ACCESS THE
FUSES AND PLC CONTROL
Fuses for 12VDC power are
located inside control panel
One 10 amp & one 1 amp ATO fuses
Page 15
CAUTION RISK OF ELECTRIC SHOCK
ENSURE 120VAC0EXTERNALL POWER IS DISCONNECTED AND/OR GENERATOR IS STOPPED BEFORE ACCESSING THE CONTROLS AND CHANGING TIMER SETTINGS.

Startingthe diesel engine
Turn key-switch on LOFA control from
“OFF” to “RUN” position.
LOFA control shown with key-switch placed in “RUN” position which
illuminates the indicator lights & activatesthe fuel gauge.
The electric fuel pump for priming will operate for approx. 10 seconds. Turn
the key-switch to "OFF" & then back to "RUN" reactivates electric fuel pump
for additional 10 sec. if extended priming is required or engine fails to start.
After a few seconds with the key-switch
in the "RUN" position the lower indicator
lights will go off.
Engine preheating is shown by the
illuminated “PREHEAT” indicator light
and will remain on until preheating is
complete.
IMPORTANT:DO NOT STOP THE ENGINE/GENERATOR UNTIL BOTH HEATERS HAVE BEEN SHUT DOWN FIRST AND HAVE
COMPLETED THEIR COOL DOWN AND THE FANS HAVE STOPPED.
Page 16
To stop the engine move key-switch to the
"OFF" position
When the“PREHEAT” indicator light goes off
move the key-switch to "START" and release
once engine starts.
If the engine starts but fails to run or it fails to
start then repeat this process.

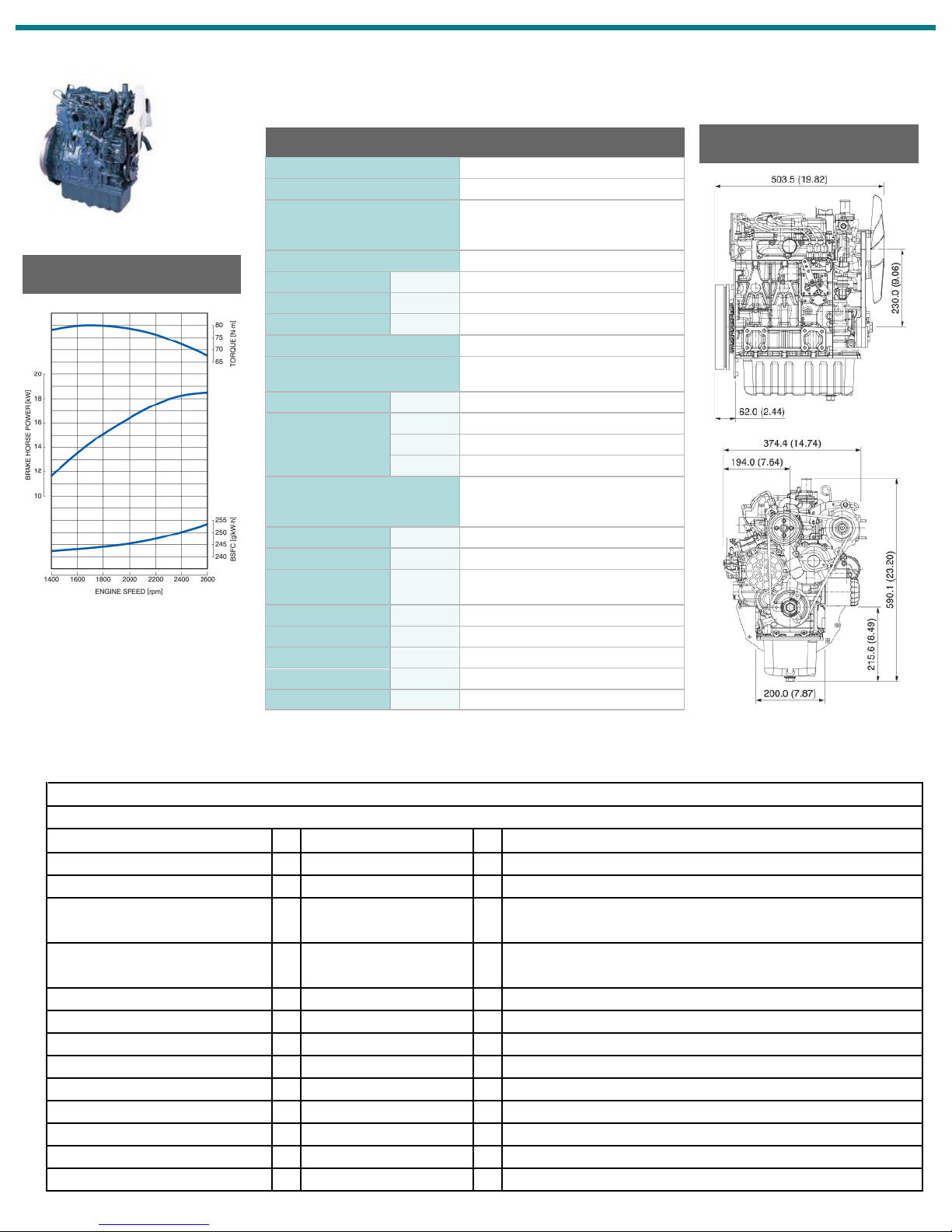

Kubota Engine Division Industrial Diesel Engine
Kubota 05 Series D1305-E4B
GENERAL SPECIFICATION
Model D1305-E4B
Emission Regulation Tier 4
Type Vertical 4-cycle
Liquid Cooled
Diesel
Number of Cylinders 3
Bore mm (in) 78.0 (3.07)
Stroke mm (in) 88.0 (3.46)
Displacement L (cu.in) 1.261 (76.95)
Combustion System IDI
Aspiration Naturally
Aspirated
Operating Speed rpm 1800
Output:
Gross
kW 14.2
HP 19.0
Direction of Rotation Counterclockwise
Viewed on
Flywheel
Oil Pan Capacity L (U.S.gal) 5.7 (1.51)
Starter Capacity V-kW 12-1.2
Alternator
Capacity V-A 12-40
Length mm (in) 503.5 (19.82)
Width mm (in) 374.4 (14.74)
Height (1) mm (in) 590.1 (23.20)
Height (2) mm (in) 215.6 (8.49)
Dry Weight kg (lb) 95.0 (209.4)
*Specification is subject to change without notice.
*Dry weight isaccording to Kubota's standard specification.
PERFORMANCE CURVE
DIMENSIONS
SPARE PARTS LIST FOR KUBOTA D1305 ENGINE
DESCRIPTION PART NUMBER CROSS REFERENCE PART NUMBER
Oil Filter HH160-32093 BALDWIN B161-S / FLEETGUARD LF3536 / WIX 51064
Fuel Filter 70000-43080 Donaldson P550127 / Baldwin FFR-P4766 (Spin-on)
WIX 33830 (cartridge)
Air Cleaner Element 15741-11080 Baldwin PA3476 / LUBERFINER LAF8823 / WIX 49410
(WA10015 Outer)
Valve Cover gasket 1G700-14520
Alternator 16231-64012
Starter 6A230-59210
Thermostat 19434-73014
Thermostat Gasket 16221-73270
Water Pump 16251-73034
Water Pump Gasket 16239-74014
Fan Belt 16282-97013
Stop Solenoid 17208-60016
Page 17

ISUZU MOTORS AMERICA, LLC
PowerTrain Division MODEL
ISZJ SPEC NO.
DWG NO./DATE
3CH1NGZG1
IS-15-098-0
B3-19E46-0020, N/A
BASIC ENGINE
DESCRIPTION
1.3L,3CYL,4STROKE,WTRCOOLED, OHV,I/L, INDIRECTINJECTED, NATURALLY
ASPIRATED DIESEL B:80mm, S:84mm, CR:23.1:1, GLOW PLUG ASSISTED START
ENGINE
CONFIGURATION INDUSTRIAL F/F GENSET ENGINE
12V PERFORMANCE*
US EPA (Final Tier 4)
CERTIFIED & EC EXEMPT
(<19kW)
14.3 BHP@1800 RPM (STANDBY)
13.0 BHP@1800 RPM (PRIME)
LOW IDLE SPEED: 1800±25 RPM
HIGH IDLE SPEED: 1925±25 RPM
SPECIFIC OEM
INFORMATION ISZASTD
DATEOF
ISSUE: 7/22/2016
ISZA DATE RELEASED:
PREVIOUS ISSUE
DATE:
7/22/2016
ISZA
SPECIFICATION INFORMATION
PART NAME PART NUMBER TYPE PART DESCRIPTION
CRANKCASE BREATHER
N/A
CLOSED TYPE; INTEGRAL PART OF INLET
MANIFOLD
FLYWHEEL HOUSING 5-86400-948-0
SAE #5, t:124mm, w/TACH PORT 3/4"-16@45
°
CCW FROM 3 O'CLOCK
OIL PAN 5-86400-756-0
3.4L MAX, 1.6L MIN, ANGLED 30
°
ALL DIR,
BOTTOM DRAIN
DIPSTICK 5-86400-708-0 SHORT TYPE
FLYWHEEL 5-86402-455-0 SAE 7.5", w/DRIVE RING Z:116
CRANKSHAFT PULLEY 5-86402-457-0 EFF DIA:110mm
OIL FILTER 5-86400-632-0
- TOYO ROKAKI, FULL FLOW PAPER ELEM TYPE
- DONALSONP502067
FUEL FILTER 5-86401-996-0
5-86400-776-0
ASM
ELEM
TAIYO GIKEN, PAPER ELEM TYPE, CARTRIDGE TYPE
Spin-on Donaldson P550048
Donaldson P50-2166 element
WATER PUMP 5-86402-032-0
IMPELLER TYPE, LOW POSITION, w/HOT HEATER
PLUG
WATER OUTLET PIPE 5-86400-909-0 LH SIDEWARD
THERMOSTAT 5-86400-718-0
71
°
C INITIAL OPENING TEMP AT ATMOSPHERIC
PRESSURE; 85
°
C TEMP AT VALVE LIFT OF 8mm &
OVER
COOLING FAN 5-86400-913-0 335mm DIA, PULLER, 6-BLADE, PLASTIC
FAN PULLEY 5-86400-716-0 EFF DIA:100mm RATIO:1.1:1
FAN BELTA-36
FAN SPACER 5-86400-287-0 t=25mm
BOLT, FAN FIXING 5-86400-572-0 QTY 4, M6 x 35mm
OIL COOLER N/A
INLET MANIFOLD N/A RH SIDEWARD (COMBINED w/HEAD COVER)
AIR CLEANER (Filter) N/A
DONALDSON P822686
INTAKE AIR HEATER N/A
*Rating: SAE J1349 NET
without Fan
Page 18

Rating Plate Information and Serial Number Located
on inside wall ofGenerator/Control Compartment
IMPORTANT WARNINGS AND PRECAUTIONS
UNDERSTAND AND OBSERVE ALL RULES AND PRECAUTIONS REGARDING THE
TOWING OF A TRAILER & USE AN APPROPRIATELY RATED AND EQUIPPED TOW
VEHICLE
ENSURE THAT ALL MINIMUM CLEARANCES STATED ON THE RATING PLATE ARE
MAINTAINED DURING OPERATION
CAUTION MUST BE TAKEN DURING REFUELLING TO ELIMINATE THE POSSIBLE
RISK OF A SPARK OR FIRE & AVOID FUEL SPILLAGE
USE ENVIRONMENTAL SPILL TRAYS UNDER THE FUEL FILL POINTS WHENEVER
POSSIBLE OR WHEN REQUIRED
RISK OF ELECTRIC SHOCK PRESENT
DO NOT REMOVE OR DISABLE ANY GROUNDING
DO NOT HANDLE LIVE ELECTRICAL CORDS OR CONNECTIONS WHILE STANDING
ON WET SURFACES.
THIS EQUIPMENT IS FOR OUTDOOR USE ONLY - ENSURE ADEQUATE VENTILATION
IS PROVIDED TO THE UNIT
AVOID LOCATING THIS EQUIPMENT WHERE THERE MAY BE A RISK OF CARBON
MONOXIDE ENTERING AREAS WHERE PERSONS ARE WORKING OR PRESENT SUCH
AS DIRECTLY AT DOORWAYS OR LARGE OPENINGS
THIS EQUIPMENT SHOULD ONLY BE OPERATED BY PERSONS FAMILIAR WITH THE
SAFE OPERATION OF THIS TYPE OF EQUIPMENT.
Page19
