Frost Fighter IDHQR Series Datasheet

1
Installation - Operation/Maintenance
Instructions and Parts List
READ INSTRUCTIONS PRIOR TO STARTING HEATERS
FROST FIGHTER INC.
100-1500 NOTRE DAME AVE
WINNIPEG, MANITOBA
CANADA R3E 0P9
TEL : [phone]
FAX: [phone]
FROST
WWW.FROST-FIGHTER.COM
TOLL FREE 1-888-792-0374
INDIRECT FIRED SPACE HEATERS
OIL FIRED
REV 1.3
JUNE 2018
MODEL IDH400QR
MODEL IDH400QRC

2

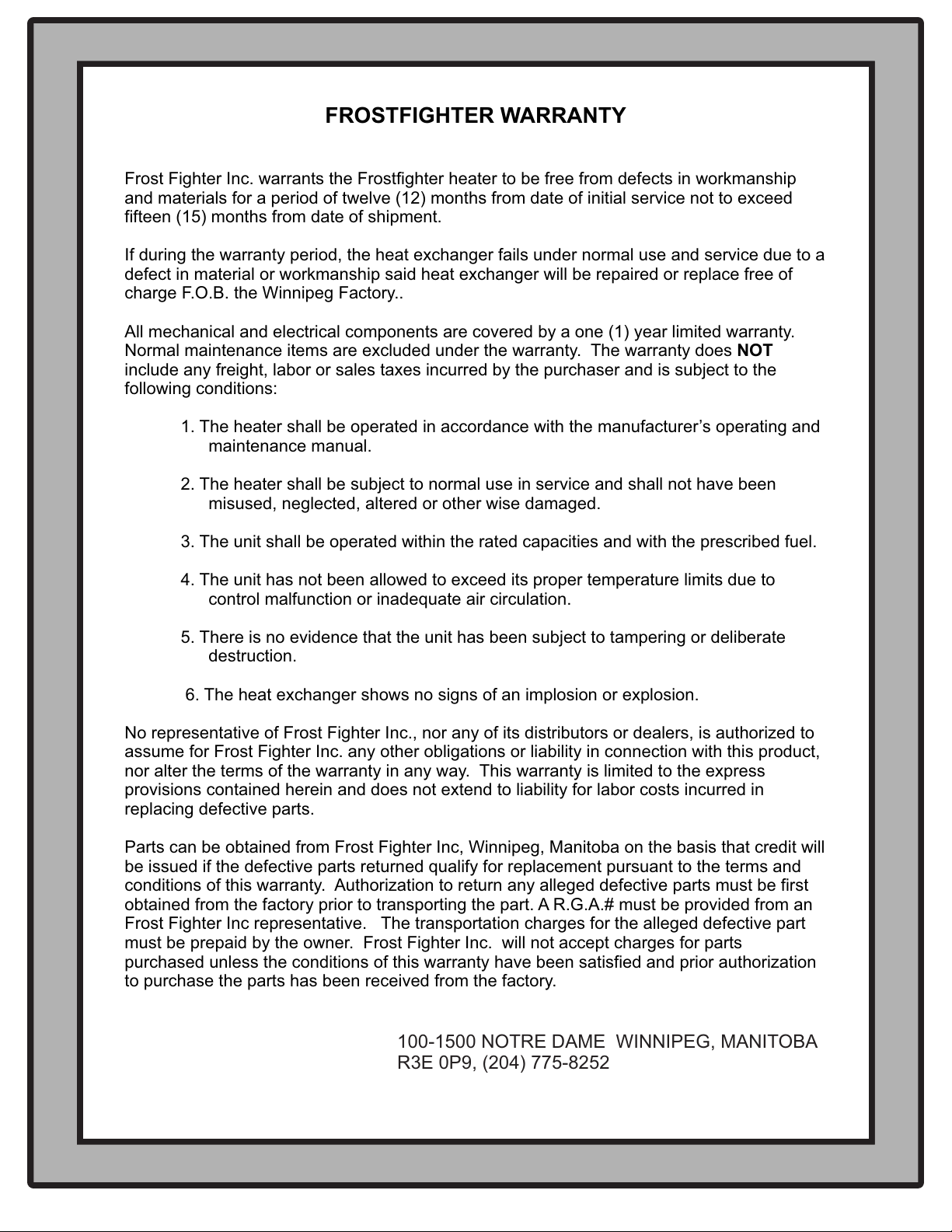

FROSTFIGHTER WARRANTY
Frost Fighter Inc. warrants the Frostfighter heater to be free from defects in workmanship
and materials for a period of twelve (12) months from date of initial service not to exceed
fifteen (15) months from date of shipment.
If during the warranty period, the heat exchanger fails under normal use and service due to a
defect in material or workmanship said heat exchanger will be repaired or replace free of
charge F.O.B. the Winnipeg Factory..
All mechanical and electrical components are covered by a one (1) year limited warranty.
Normal maintenance items are excluded under the warranty. The warranty does NOT
include any freight, labor or sales taxes incurred by the purchaser and is subject to the
following conditions:
1. The heater shall be operated in accordance with the manufacturer’s operating and
maintenance manual.
2. The heater shall be subject to normal use in service and shall not have been
misused, neglected, altered or other wise damaged.
3. The unit shall be operated within the rated capacities and with the prescribed fuel.
4. The unit has not been allowed to exceed its proper temperature limits due to
control malfunction or inadequate air circulation.
5. There is no evidence that the unit has been subject to tampering or deliberate
destruction.
6. The heat exchanger shows no signs of an implosion or explosion.
No representative of Frost Fighter Inc., nor any of its distributors or dealers, is authorized to
assume for Frost Fighter Inc. any other obligations or liability in connection with this product,
nor alter the terms of the warranty in any way. This warranty is limited to the express
provisions contained herein and does not extend to liability for labor costs incurred in
replacing defective parts.
Parts can be obtained from Frost Fighter Inc, Winnipeg, Manitoba on the basis that credit will
be issued if the defective parts returned qualify for replacement pursuant to the terms and
conditions of this warranty. Authorization to return any alleged defective parts must be first
obtained from the factory prior to transporting the part. A R.G.A.# must be provided from an
Frost Fighter Inc representative. The transportation charges for the alleged defective part
must be prepaid by the owner. Frost Fighter Inc. will not accept charges for parts
purchased unless the conditions of this warranty have been satisfied and prior authorization
to purchase the parts has been received from the factory.
100-1500 NOTRE DAME WINNIPEG, MANITOBA
R3E 0P9, [phone]

3
SPECIFICATIONS
NOTE: -These heaters are intended for use primarily as temporary heating
of buildings under construction, alteration or repair
MAXIMUM ALLOWABLE DUCT LENGTHS
Flue size-6” on all units
MODEL IDH400QR IDH400QRC
MAXIMUM
INPUT
340,000
BTU/HR
400,000
BTU/HR
NOZZLE
SIZE
2.00 USGPH
45’ B (SOLID)
2.25 USGPH
45’B (SOLID)
PUMP
PRESSURE
140 P.S.I.
MAXIMUM
155 P.S.I.
MAXIMUM
FUEL
TANK CAP.
35 IMP GALS.
42 US GALS.
35 IMP GALS.
42 US GALS.
ELECTRICAL
SUPPLY
115 VOLT
15 AMP
115 VOLT
15 AMP
HEATED AIR
(W/O DUCT) 2850 CFM 2850 CFM
APROX.
RUN TIME 17 HOURS 15 HOURS
APPROVAL
AGENCY
DRY
WEIGHT 510 LBS. 510 LBS.
PLEASE REFER TO PAGE 7 IF KEROSENE IS NOT BEING USED.
IDH
400
QR
/ IDH400QRC
75
feet 16" outlet ducting w/ 0 feet 16" inlet ducting
IDH400QR / IDH400QRC 75 feet 2 X 12" outlet ducting w/ 25 feet 16" inlet ducting
50 feet
2 X 12"
outlet ducting w/ 50 feet 16" inlet ducting
OR

4
A
BC
A
BC
Heater Only
Heater Only
With Packaging
With Packaging
IDF350
IDF500
IDF350
IDF500
MODEL
MODEL
A
A
B
B
C
C
WEIGHT (LBS)
WEIGHT (LBS)
L
L
W
W
H
H
WEIGHT (LBS)
WEIGHT (LBS)
51"
27"
29 1/2"
65 1/2" 25"
25"
65 1/2"
29 1/2"
27"
76 1/2"
76 1/2"
51"
83"
83"
38"
38"
52 1/2"
52 1/2"
70 1/2" 32" 35 1/4"
70 1/2" 32" 35 1/4"

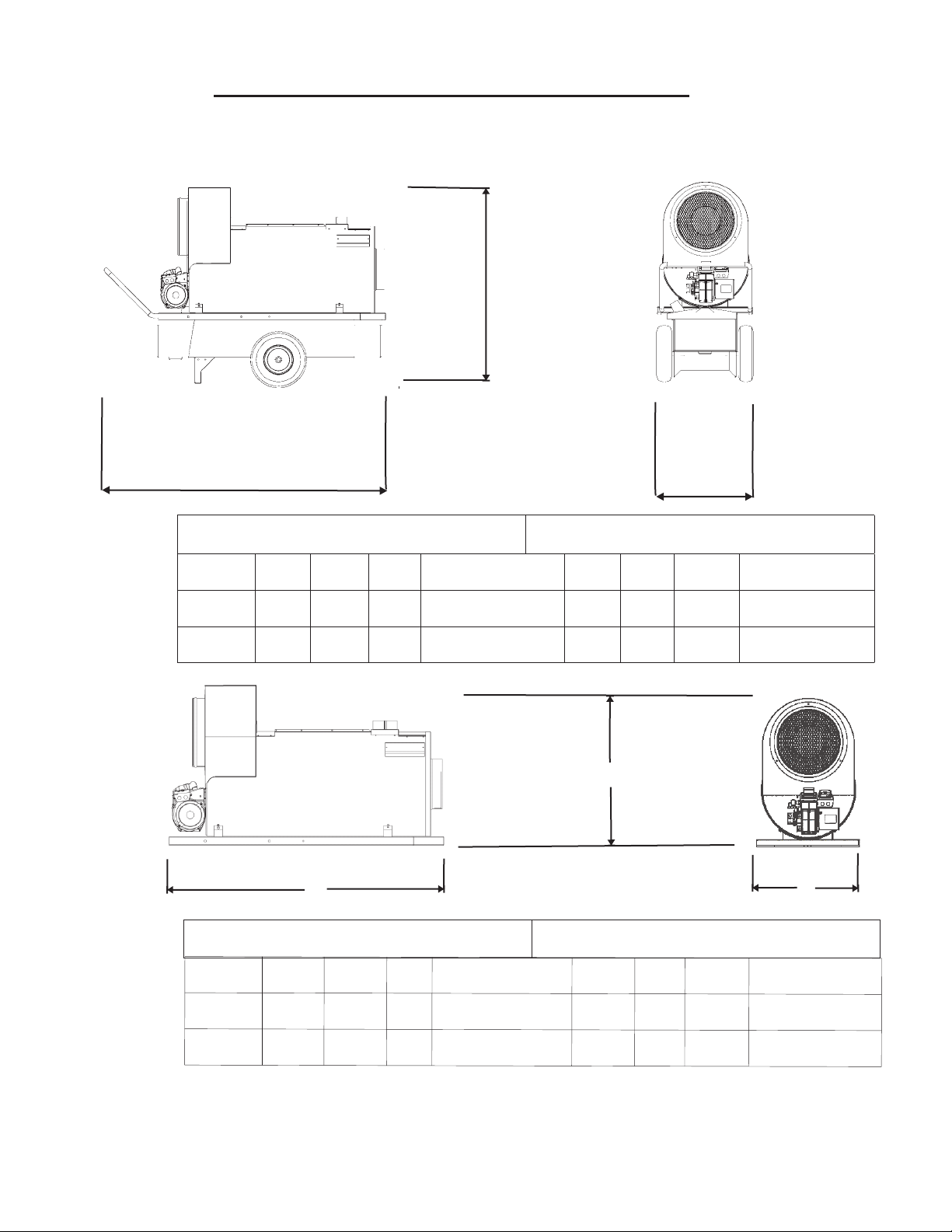

Dimensions of IDHQR series of heaters
510
510 562
562
325
375
325
375

5
INSTALLATION INSTRUCTIONS
1. The recommendations of local authorities having jurisdiction must be followed. For recommended
Installation practices refer to C.S.A. Standard B139 (CANADA) or NFPA 54 (US)
2. When firing the unit in an enclosed area 3 square feet must be provided to allow the free entry of the air
required for operation.
3. For electrical supply, use 3 wire receptacle with “U” ground.
4. Do not operate the unit in partly ventilated areas without a flue pipe or in close proximity to combustible
surfaces or materials.
NOTE: Installation clearances are as follows:
Top - 3 inches
Sides - 24 inches
Burner End - 4 feet
Discharge End - 10 feet Vent
Connector - 24 inches
Floor - Combustible
2 FT.
MIN.
2 FT.
MIN.
FLUE WITH
VERTICAL RUN
FLUE WITH
HORIZONTAL RUN
RISE RATIO
1 IN 10

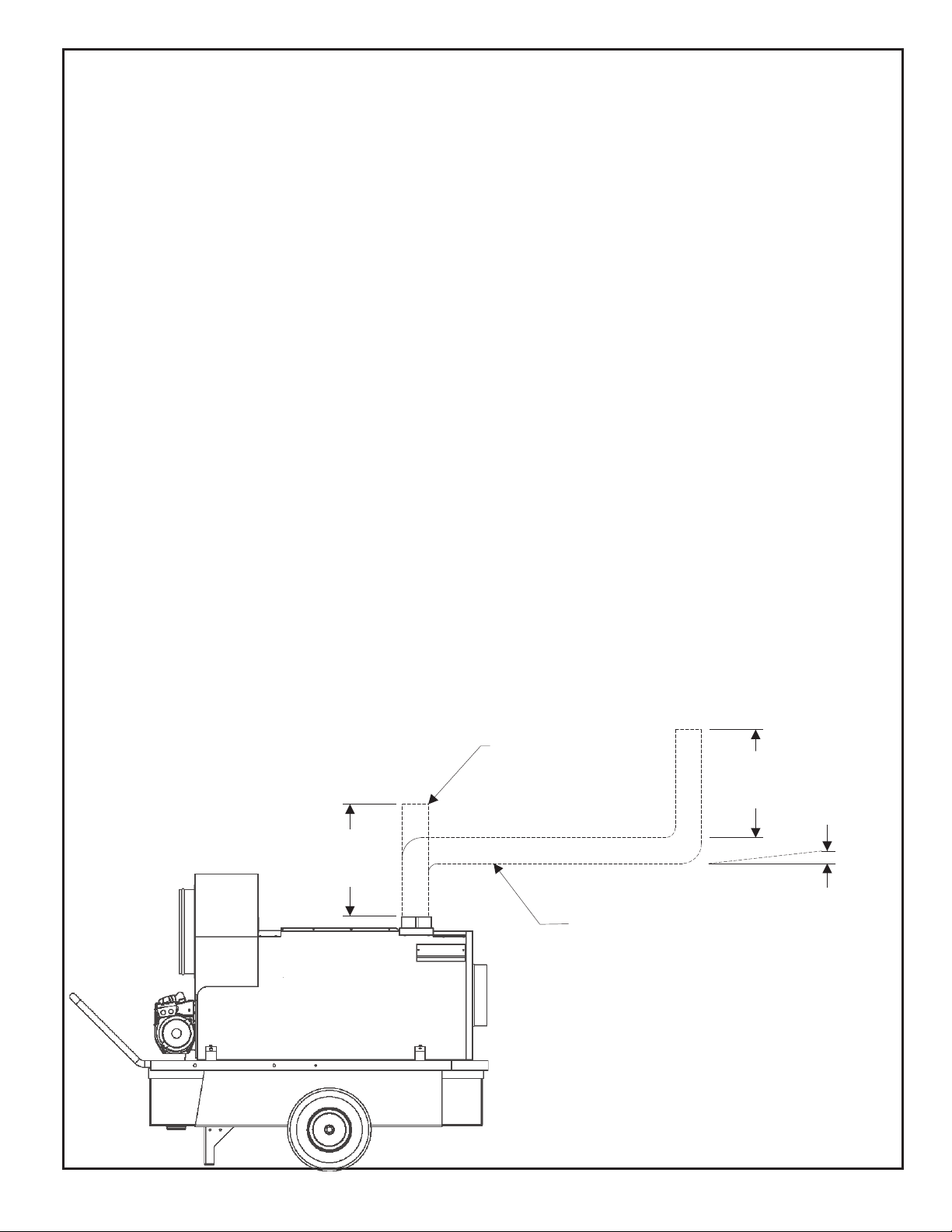

INSTALLATION CLEARANCES
FLUE PIPE CONNECTIONS
When the heater is connected to a flue pipe the flue pipe shall terminate in a vertical
section at least two feet long. Horizontal runs should have rise ratio of 1 in 10 away
from the heater. The chimney should have .02” W.C. draft to ensure safe operation
of the unit. Where down drafts are liable to occur a vent cap should be used. All venting
Should correspond with the CSA B149 (CANADA), NFPA 54 (US) standard or local codes.

6
OPERATING INSTRUCTIONS
TO START HEAT WITH GENISYS CONTROL
1. Ensure unit is on flat, level ground before starting, canopy and fan guards must be closed.
2. Flip switch to “OFF” position
3 Check fuel level ( 2-4 gallons to start)
4. Plug in supply cord to 115 volt outlet.
5. Flip switch to “MANUAL” position.
6. For thermostat operation flip switch to “THERM” position.
7. There will be a 5 second safe start check, a 45 second pre purge then the burner will fire.
IF HEATER FAILS TO START
1. Press manual reset button on burner relay.
2. Check for low voltage condition and 115 volt supply.
3. Check fuel filter, suction tubing and nozzle assembly
NOTE: If unit has been reset a number of times without ignition there will be an
accumulation of oil in the combustion chamber! Do the Following:
1. Make sure unit is sitting on level ground to ensure excess oil drain out of secondary
exchanger (via small drain hole located on outer shell of heat exchanger by burner end).
2. Allow unit to drain for 15-20 minutes or until all oil has drained out.
3. Upon ignition excessive amounts of smoke will be present until all excess
oil has been burnt from the heat exchanger.
4. When the unit has stabilized and the burner set up to operate properly, shut off
the switch. Let the fan cool down the chamber and stop.
IF UNIT STILL DOES NOT START REFER TO THE TROUBLE SHOOTING GUIDE PAGE 13
CAUTION
1. Do not start heater when excess oil has accumulated in chamber.
2. Do not fill tank while unit is operating.
3. Do not shut off by disconnecting supply cord. The heat exchanger
should be properly cooled before power shutdown.
4. In no case should extension cords be smaller than 12 A.W.G. and no
longer than 100 feet.
5. Do not use gasoline, crankcase oil or heavier than No. 2 furnace oil.
6. Always maintain adequate fuel supply.
ELECTRICAL REQUIREMENTS:
15 amp circuit IDH400QR
15 amp circuit IDH400QRC
TO STOP HEATER
Flip switch to “OFF” position. The burner motor will continue to run for 2 minutes to help cool the heat
exchanger and electrodes. The supply fan will continue to operate until the heat exchanger
has sufficiently cooled. Do not disconnect main power until supply fan has stopped running.
WARNING!: BEFORE MOVING ANY GUARDS OR SAFETIES DISCONNECT
THE MAIN POWER AS THE SUPPLY FAN WILL CYCLE
AUTOMATICALLY.

7
IDH MAINTENANCE INSTRUCTIONS
!WARNING!: Heaters should be fully serviced annually to ensure proper
performance. Maintenance should be performed by trained personnel
only. Incorrect maintenance may result in improper operation and
serious injury.
HIGH LIMIT SWITCH
It is recommended that the limit switch should be checked every heating season to ensure the switch
limits the temperature to 250oF (IDH400QR) 290°F (IDH400QRC) (This can be done by restricting the
air
flow through the unit. After tests are complete, remove all restrictions.
FAN SWITCH
The fan switch has been selected to allow for preheating of the heat exchanger to ensure that
only heated air is allowed to enter the space. Upon satisfying the need for heat, the fan switch will
continue to run the supply fan until the heat exchanger has cooled sufficiently. This feature will
help prolong the life of your heat exchanger.
FUEL FILTER
Replace cartridge (48164 or 48164A)once every week of normal usage or sooner, depending
upon fuel quality.
FLAME DETECTOR
BURNER
The electrode spacing must be checked and adjusted, if necessary after every nozzle
change. Nozzle should be replaced annually or sooner if burner cannot be set up to
operate properly. Nozzle size and type are marked on the rating plate.
ELECTRICAL
Ensure all conduit (BX) connectors are tight. Check inside connections in control box to ensure
good connections. Check marrettes.
FAN
Check for dust or dirt build up on blades. Check for tightness of the set screw. Run heater to
check for fan vibration. Replace fan blade if vibration is noticeable.
MOTORS
No lubrication is necessary since the bearings are the sealed type. Clean motor of existing dust or dirt.
FUEL SYSTEM
Periodically remove fuel tank drain plug and clean tank. Do not store unit containing
furnace oil for long periods. The quality of fuel oil will affect light off at low ambient
temperatures, #1 fuel oil or kerosene are recommended for temperatures below
-10o C/8oF. (see page 8 for recommended settings if using #2 fuel oil in cold temperature)
FUEL PUMP
Check fuel pump pressure on a regular basis. This can be checked at the bleeder screw.
ADD 10 LBS TO THIS READING TO GET THE TRUE PRESSURE.
There is a pressure loss when fuel passes through solenoid valve. Example: IDH400 pressure
should be read at the port as 150 PSI, then the reading at nozzle line will then be 140.
HEAT EXCHANGER
If a smokey condition continues even after adjusting the air band assembly, the heat exchanger
should be thoroughly cleaned as per next page.
To test the cad cell, start the burner and before the safety lock-out timing period ends,
disconnect the cad cell wires from the F-F terminals on the control. Next, jumper the F-F
terminals with a piece of wire. This will allow the burner to continue running so that you will be
able to check the cad cell resistance during the run cycle. If you did not get the F-F terminals
on the control jumpered before the burner locked out, wait 3-5 minutes before attempting this
again. With the burner running, connect the ohmmeter across the cad cell leads. Your signal
should be between 250-1200 ohms. If higher, please clean the cad cell eye or replace.

8
CLEANING PROCEDURE
1. Remove front cap. (48205 or 48205A)
2. Remove cover panel (jacket to front). (48119)
3. Remove fan thermostat cover on outer jacket (the one nearest the burner). (48112A)
Loosen thermostat and remove from the jacket. Remove high limit thermostat
cover.(48112). Remove the two screws that are on jacket, at the 3’o’clock & 9 o’clock
position 8 inches from front of unit.
4. Slide heat exchanger out of jacket and place front face down on floor.
5. Access for combustion chamber and heat exchanger cleaning is obtained through
the burner head opening and by removing the heat exchanger cap ring(s) (50115).
6. To reassemble, reverse procedure. If you need assistance, please contact the factory.
Close canopy and ensure fan guards are in proper position before trying to restart the unit..
COMBUSTION AIR ADJUSTMENTS
****For proper combustion air adjustment a calibrated gas analyzer and smoke tester should be
used to ensure complete combustion. Air adjustment should be made at the correct input and be
adjusted to achieve 10% CO2. For optimum combustion efficiency the combustion air control should be
set to provide no more than a No. 1 smoke (Bacharach Scale). The Beckett burner has a calibrated air
band, which will assist in adjusting the primary air for a good oil/air mixture. Adjust air band supply by
loosening lock screws and moving air shutter (B48254) and if necessary the bulk air band. Begin by
reducing the air until the unit begins to produce smoke. Increase air until no smoke is produced. Check for
excessive heat build up in the heat exchanger. Insufficient air will cause flame impingement and reduced
heat exchanger life. Increase air until heat build up has been eliminated. Check for proper ignition. Once
satisfied re- tighten all screws and locking mechanisms.
This adjustment is to be carried out while the unit is operating and after 5 minutes of firing. Rotating the air
bands on the burner housing makes the adjustment.
SHUTTERUNIT MODEL
8
IDH400QR
PRELIMINARY AIR SETTINGS
BAND
0
BURNER MODEL
CF 500
***Note: The above settings are approximations based upon clean equipment in proper working
order below 1000 ft. elevation. Combustion air adjustments will vary with location, altitude and
type of fuel used. Colder ambient conditions may require less air and higher altitudes may require
more air. (ie. Set shutter on IDH400QR to 6 or 7 in very cold conditions to improve light-off. )
CF 500
Due to the increased density of #2 oil at colder temperatures, kerosene fuel must
be used or the oil nozzle may need to be changed as follows at temperatures
below 8'F/-10'C.
Model
IDH400QR
IDH400QRC
Nozzle (USGPH)
1.75 X 45°B Delevan
2.00 X45°B Delevan
0
IDH400QRC10

9
TEMPERATURE FEELER ADJUSTMENT THAT IS ATTACHED TO THE FAN SWITCH
ALWAYS MAKE SURE THAT THE TEMPERATURE FEELER IS TOUCHING THE HEAT EXCHANGER!!
The temperature feeler provides air flow over the fan switch, which regulates the cycling of the fan.
The temperature feeler can be adjusted for different outside temperatures, by rotating the location
of the temperature feeler holes. This will provide optimum performance of the unit in different
applications, and will reduce or eliminate unnecessary fan cycling.
IF SURROUNDING AIR IS WARM (EG., -5 C or 23 F, indoor application):
TURN THE TEMPERATURE FEELER SO THAT THE HOLES ARE PARALLEL WITH THE HEAT
EXCHANGER, AND ENSURE THAT NOTHING IS BLOCKING THE AIR FLOW (EG., SCREWS).
BY DOING THIS THE FAN SWITCH WILL REMAIN COOL AND NOT OVERHEAT. (SEE FOLLOWING)
The fan switch is located under the high limit/fan cover which is mounted on the jacket close to front of unit.
The switch can be adjusted by using a flat-headed screw driver and turning it clockwise or counter clock
wise to desired temperature.
IF SURROUNDING AIR IS COLD (EG., under -5 C or 23 F)
TURN THE TEMPERATURE FEELER SO THAT THE HOLES ARE CLOSED OFF AS THE AIR GOES
OVER THE HEAT EXCHANGER, THIS WILL REDUCE FAN CYCLING, UNIT SHUTDOWN, ETC.
(SEE FOLLOWING)
.
Indoor and outdoor settings of fan switch
Indoors & if surrounding air is warm i.e. -5C/23F-Fan switch should be set to 115°F or higher
so as to shut down unit when heat exchanger is properly cooled, also keeps fan motor
from excessive running on when discharging cooler air.
Outdoor-Fan switch should be set between 100°-90°. The colder the temperature the lower
the setting may need to be to prevent fan cycling.
PLEASE NOTE THAT THERE IS A LONGER
TEMPERATURE FEELER ON THE AUTOMATIC HIGH
LIMIT. THIS SHOULD NOT BE ADJUSTED.

10
ELECTRODE SETTINGS FOR
IDH400QR & IDH400QRC MODELS
SLIDE PLATE SETTINGS FOR IDH400QR & IDH400QRC 4-5

11
BURNER JUNCTION BOX OF IDH400QR AND IDH400QRC

12
THE SETTING OF THE “Z” DIMENSION ON IDH400QR & IDH400QRC

13
IDH SERIES TROUBLE SHOOTING GUIDE
ALWAYS DOUBLE CHECK FOR SUFFICIENT POWER , GAUGE OF CORD (SEE TOP OF PAGE #5)
AND PROPER FUEL SUPPLY. POWER AND FUEL SUPPLY MUST BE SHUT OFF/DISCONNECTED
BEFORE REMOVING OR REPLACING ANY COMPONENTS ON THE HEATER.
1.Unit is turned on, nothing happens after 5 second safe start.
a. Ensure proper voltage coming in, 115V AC.
b. Check for power on both sides of burner fuse. If no power, then check toggle switch. If
power on one side, replace fuse. If power on both sides, go to c.
c. Check black wire from primary control. If no power there, remove high limit cover &
check for power on both sides of high limit. If power on one side only, replace high limit. If power on
both sides, go to d.
d. Ensure thermostat contacts on primary control ( T and T) are jumpered out.
e. Make sure light on primary control is not flashing. If so, push button to reset.
f. Check manual reset button on motor and wiring connection to motor. If reset pushed
and power going to motor, nothing is happening, replace burner motor.
g. On neutral line ( white wires) make sure all connections are tight and secure, and unit is
properly grounded. With AC voltage tester, check white (neutral lines) for power (one on
ground, one on neutral). If over 5 volts, check polarity. If polarity correct, check wires
individually for power to determine leak source, then replace leak source.
h. If power coming into black wire on primary control, but no power out to orange wire,
replace primary control.
i. If green light on primary control stays on, check to ensure transformer door is closed
properly as cad cell is detecting light. Check cad cell is working. If light stays on and no
obvious areas open, check OHM reading across two yellow wires. If you get a reading, replace cad
cell. If you get no OHM reading from cad cell, replace primary control if light still on.
2. Burner motor starts but unit will not fire.
a. Check for power on blue wire on primary control going to ignitor. If no power there,
replace primary control if powered, go to b.
b. Remove electrode assembly and check isolators for cracks or chips in the porcelain.
Make sure electrode setting is proper. For electrode adjustments, please turn
to page 9.Clean assembly if there is any soot or oil..
c The nozzle should be checked and ensure it is not clogged or blocked. Make sure
nozzle is not loose.
d. Ensure air shutters are properly set to factory specifications.
e. Check for power on violet line on primary control. After pre-purge, if no power sent to
violet line, replace primary control. If power on violet line, remove copper fuel line at
electrode assembly to ensure fuel is coming out. If no fuel there, replace solenoid valve.
f. At the bleeder screw, check for proper out pump pressure (see maintenance section). If
low or no pump pressure, go to g
g Check oil filter, oil pick up tube and oil lines to ensure free flow and they are not clogged
or dirty.
h Check electrical polarity and grounding.
3.Burner fires then locks out.
a. Check oil pressure to ensure solenoid valve is opening. Check oil flow system, filter,
pick up tubes and lines.
b. The nozzle should be checked to ensure it is clean and emitting a good spray pattern,
as this could affect the cad cell operation.
c. Cad cell (flame detector) could be defective. Disconnect yellow cad cell wires from
primary control. Start unit and when it fires, connect jumper across connections on
primary control. If unit continues to run, then check cad cell alignment with burner, clean face with
a soft cloth and ensure no external light is affecting it. With an ohmmeter, check resistance across
cad cell leads with machine running and primary control cad cell leads jumpered out. If resistance
over 1200 OHMS, cad cell should be replaced. If unit locks out with jumper, replace primary control.

14
IDH TROUBLE SHOOTING GUIDE
3. d. Wires between cad cell and primary control should be checked to see that they are
pinched or crimped.
e. Prime fuel pump by loosening bleeder screw till steady stream of fuel comes out to
ensure no air or bubbles in fuel line..
f. If unit locks out three times in succession, it will go into restricted lock out mode.
To reset, hold down reset button for 15 seconds until LED flashed twice. The unit will then
resume in normal operating mode. After verifying primary control is not in lockout & light
continues to flash, replace primary control.
g. Check polarity, ground & voltage must be between 108-132v AC.
h. Make sure high limit is functioning properly.
4. Smoky fire
a. Check nozzle, make sure is tight and not clogged.
b. Check combustion chamber for cracks or burnt out.
c. Check air band settings. (Air shutter and/or air band may be closed too much-restricting
combustion air.
d. Check pump pressure.
e. Check slide plate to make sure it is in correct position.( See page 10 & 12 for settings) If
necessary, open slightly.
f. Check recommended settings if using #2 fuel in cold ambient temperatures
5. Delayed ignition
a. Check for proper electrode setting.
b. Check the isolators for cracks or a conducting coat of soot or oil. Cracks sometimes
occur under the electrode bracket, causing a short circuit.
c. Check to see that the air shutter is not overly open-too much air will blow out flame.
d. Check to ensure pump pressure is properly set..
e. Change nozzle.
f. Check fuel filter, replace if necessary.
g. Ensure draft or wind is not blowing out flame-add 3’ stack.
6. Main fan will not come on, unit shuts down on high limit.
a. Check temperature feeler, make sure it is in properly.
b. Jumper out fan switch to test motor. If you have voltage to motor and still does not start,
replace motor. Check line voltage to ensure proper voltage. Also checks amp draw on motor. Motor
may be running too hot and not run due to thermal overload being tripped.
c. Replace fan switch if you have power on one side after unit heating up it does not make
d. Replace high limit as it may be tripping too soon and not giving fan switch time to
7
engage.
e. Ensure fan switch temperature is correct for weather conditions ( see page 21
for settings)
Unit on, but cycles on high limit
a. Check air flow, ensure both ducts are in place and clear of obstruction and straight.
b. Check pump pressure, unit could be over firing.
c. Check nozzle that proper size of nozzle is installed.
d. Change high limit.
e. See page 2 for maximum duct lengths. Any longer will create back pressure in the
unit and trip the high limit.
f. Fuel type- #2 will increase BTU output @cold ambient temperatures resulting in
overheating.
8 Combustion chamber turns red.
a. Nozzle may be firing side ways (replace or adjust)
b. Clogged nozzle ( replace)
c. Temperature feeler not on properly or missing ( Must be touching heat
exchanger)
d. High limit not functioning ( replace)
e. Excessive pump pressure. Check and reset if necessary
f. Fuel type-see page 8 for recommended settings.

15
Burner States
Standby: The burner is idle, waiting for a call for heat.
Valve-On Delay: The igniter and motor are on while the control delays turning on
the oil solenoid valve for 45 seconds..
Trial For Ignition: The oil solenoid valve is energized. A flame should be established
within the factory set trial for ignition time ("lockout time").
Lockout: The control has shut down for one of the following safety reasons:
a. The trial for ignition (lockout) time expired without flame being
established.
b. The cad cell detected flame at the end of the Valve On Delay state.
To reset the control from lockout click the button 1-second.
NOTE: A recurrence of the above failure modes or a failed welded relay check
could cause the control to enter a Hard Lockout state that must be
reset only by a qualified service technician. To reset from Hard
Lockout, hold the reset button for 15 seconds until the yellow light turns
on.
Ignition Carryover: Once flame is established, the igniter remains on to ensure flame
stability.
Run: The flame is sustained until the call for heat is satisfied. The burner
is then sent to Motor-Off Delay, if applicable, or it is shut down and
sent to Standby.
Recycle: If the flame is lost while the burner is firing, the control shuts down
the burner,enters a 60 second recycle delay, and repeats the ignition
sequence. The control will continue to Recycle each time the flame
is lost, until it reaches a pre-set time allotment. The control will then
go into Hard Lockout instead of recycle. This feature prevents
excessive accumulation of oil in the appliance firing chamber.
Motor-Off Delay: If applicable, the oil solenoid valve is turned off and the control
delays turning the motor off for the set motor-off delay time before
the control returns to standby.
Pump Prime: The igniter and motor are on with the oil solenoid valve energized
for 4 minutes. During Pump Prime mode, the cad cell is disregarded,
allowing the technician to prime the pump without having to jumper
the cad cell.
Sequence of Operation for Genisys Controller

16

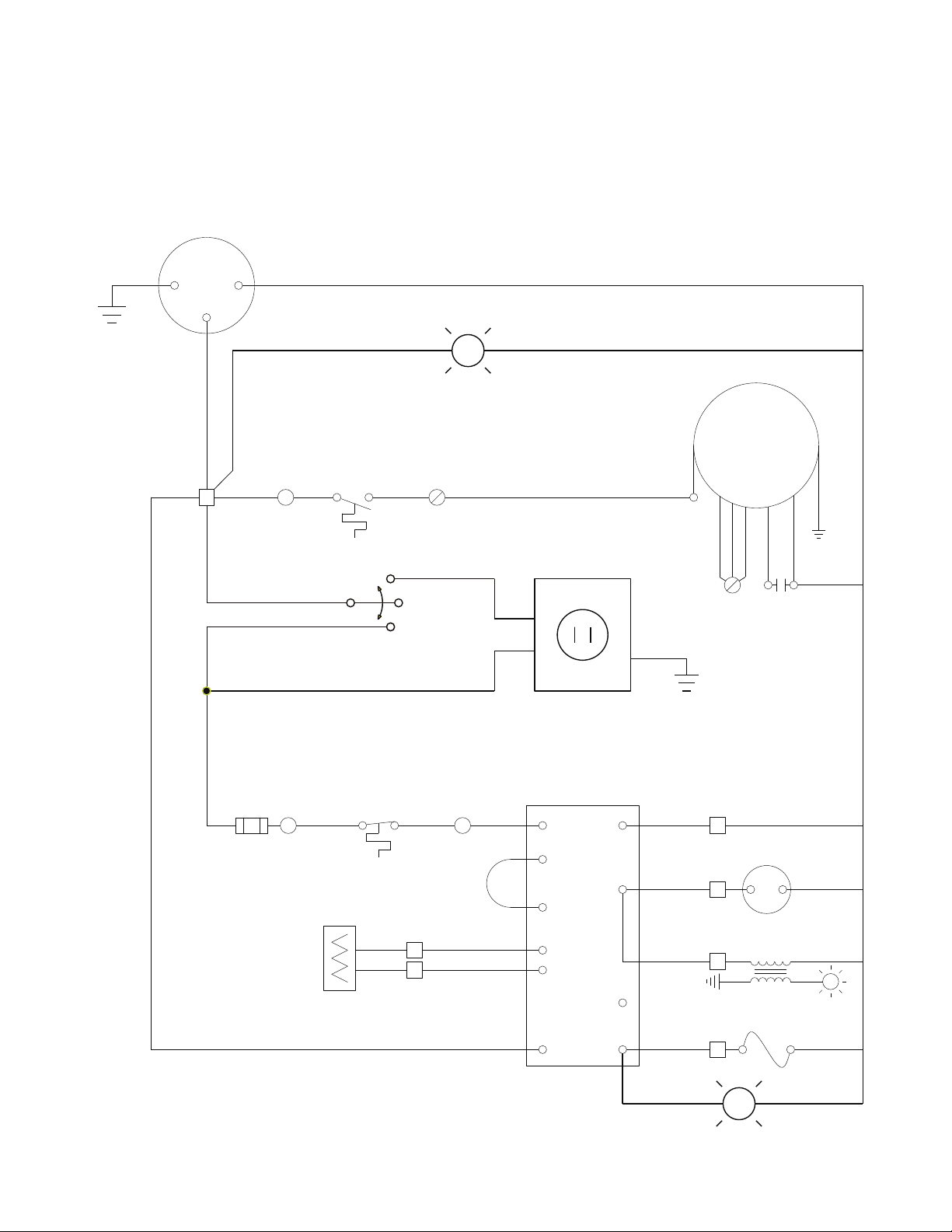

HIGH LIMIT
SWITCH
BLACK
15AMP
BURNER
BREAKER
BLACK BLACK BLACK LIMIT L2
WHITE
ORANGE
IGNITER
VIOLET
VALVE
BLUE
JUMPER
TR
TW
IGNITON
TRANSFORMER
FUEL PUMP
SOLENOID
FLAME
DETECTOR CAD
CELL
YELLOW
YELLOW
BURNER
MOTOR
BURNER
MOTOR
WHITE
WHITE
WHITE
GENISYS IGNITION
CONTROLER
FAN
THERMOSTAT
RED RED RED
FAN MOTOR
MALE PLUG
(115V/1Ø/60Hz)
WHITE
GREEN
GROUND
L1
RED
1
1
4
2
6
7
4
3
8
3
WHITE
THERMOSTAT
RED
BLACK
MANUAL
OFF
BLACK
GROUND
THERMOSTAT
RECEPTICLE
GREEN
WHITE
BLACK
BROWN
ORANGE
BLUE
WHITE
GREEN
CAPACITOR(S)
WHITE
BLACK
VIOLET
WHITE
WHITE
WHITE
IDH400QR & IDH400QRC WIRING
DIAGRAM
BURNER ON
G
POWER ON
R

POWER SUPPLY PLUG
115V 1PH V 60HZ
JUNCTION BOX ON SIDE OF FAN HOUSING
1 AMP FUSE POWER METER
FAN
SWITCH
(AUTO - ON)
RED RED
BLACK
SUPPLY FAN
WHITE
WHITE
BLACK BROWN
BLUE
ORANGE
GREEN
WHITE
WHITE
BLACK
BLACK
BLACK
BLUE
BLACK
JUNCTION BOX ON BURNER
CONNECTION BOX AT FRONT OF HEATER
FAN SWITCH
HIGH LIMIT SWITCH
CIRCUIT BREAKER POWER ON
THERMOSTAT
MANUAL
OFF
THERMOSTAT RECEPTACLE
BLACK
RED
BLACK WHITE
GREEN
RED
LIMIT WHITE
WHITE
WHITE
WHITE
ORANGE
BLUE
VIOLET
BLACK
IGNITER
FUEL SOLENOID
BLACK
JUMPER
FLAME
DETECTOR
L2
L1 VALVE
IGNITER
BURNER
MOTOR
CAD
CELL
TR
TW
MOTOR
CAPACITOR
WIRING DIAGRAM
IDH400QR / IDH400QRC
-OILFIRED-
(With Power Meter)
AUG. 2018
WHITE
GREEN
PICK UP
COIL POLARITY
INDICATOR
DOT
WHITE
BURNER ON
OIL PRIMARY CONTROL
RED / BLK STRIPE
17

DISPLAY SCREEN
INDICATES SUPPLY VOLTAGE, TOTAL AMPS, TOTAL WATTSOR LINE FEQUENCY
INDICATOR LIGHTS
ILLUMINATES TO SHOW WHAT IS BEING MEASURED & DISPLAYED SELECTOR BUTTON
ALLOWS USER TO SELECT WHAT VALUE TO READ OR CAN BE SET TO SCROLL
Momentarily pressing "SEL" button each time will cycle the display to the next measurement.
Holding the "SEL" button for 3 seconds will set the meter to continuously cycle through
each measurement and display them for 3 seconds.
The meter can also be configured to always display the desired specific measurement such
as amps or watts each time the heater is powered up.This is accomplished by setting the meter to the
desired measurement reading and leaving it to display that reading without touching the "SEL" button
for at least 60 seconds.Then each time the unit is powered up it will display that measurment.
Frost Fighter IDH-QR (IDH-QRM) Heaters after June 2018 may be equipped with optional power meter
providing areal time display of critical information about the electrical power that is being supplied to the
heater aswellas heater's function and performance.
A bright 0.36"/9.2mm LED display is readable from up to 15 feet away which indicates the supply voltage,
total amps, total watts orthe line frequency by simply selecting which you wish to view. The display can also
be set to continuously cycle through all four measurements.
Voltage measurement range is 85-264 VAC at 47-63HZ
Wattage is measured up to 9999 watts max.
Current is 0-32A with 0.01A resolution.
Display will accurately indicate real power and true rms current values of standard sine waves,triangle waves,
square waves and other irregularly shaped waves with an accuracy of ±1% full scale.
POWER METER
FAN SELECTOR SWITCH
“AUTO” Norm. Temperature Controlled
“ON” Continuous Operation
18

19
IDH400QR/IDH400QRC
CF BURNER
ELECTRODE ASSEMBLY
(PART #B30268A)
NOZZLE LINE / OIL PIPE
BUSS BAR HOLDER
NOZZLE ADAPTER
B48150
B20262
ELECTRODE INSULATOR KIT
INC. BUSS BARS & ELECTRODES
SOLID NOZZLE
1.75-2.25 GPH -

20
B48183A
Ignitor
Primary control
50144 Genisys
B30798
Solenoid Valve
B30255A
Blast tube
48152 & 48152B
Copper line
48139
Suntec A pump
B48254
Air Shutter
B48253
Air Band
48140
Burner motor
IDH400QR & IDH400QRC BURNER COMPONENTS
