INVERTER SIO
Driver
1 System Configuration.......................................................................................................3
2 External Device Selection................................................................................................7
3 Communication Settings..................................................................................................8
4 Setup Items....................................................................................................................28
5 Cable Diagrams .............................................................................................................32
6 Supported Device Addresses.........................................................................................65
7 Device Code and Address Code....................................................................................72
8 Error Messages..............................................................................................................76

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 2
Introduction
This manual describes how to connect the Display and the External Device (target inverter).
In this manual, the connection procedure is described in the sections identified below:
1System Configuration
This section lists the types of External
Devices and SIO that you can connect.
)"1 System Configuration" (page 3)
2External Device Selection
Select the model (series) of the External
Device and its connection method.
)"2 External Device Selection" (page 7)
3Communication Settings
This section shows setting examples for
communicating between the Display and
the External Device.
)"3 Communication Settings" (page 8)
4Setup Items
This section describes communication
setup items on the Display.
Set the Display's communication settings
in GP Pro-EX or in off-line mode.
)"4 Setup Items" (page 28)
5Cable Diagrams
This section shows cables and adapters
for connecting the Display and the
External Device.
)"5 Cable Diagrams" (page 32)
Operation

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 3
1 System Configuration
The following section shows system configurations for connecting Fuji Electric Systems Co., Ltd. External
Devices and the Display.
Series Inverter*1
*1 included in the inverter model names varies depending on the capacity, power supply and language.
Link I/F SIO Type Setting
Example Cable Diagram
FRENIC5000G11S FRNG11S-Terminal block on
the inverter RS-422/485 (2 wire)
Setting
Example 1
(page 8)
Cable
Diagram 1
(page 32)
FRENIC5000P11S FRNP11S-Terminal block on
the inverter RS-422/485 (2 wire)
Setting
Example 1
(page 8)
Cable
Diagram 1
(page 32)
FVR-E11S FVRE11S-RJ-45 connector on
the inverter RS-422/485 (2 wire)
Setting
Example 2
(page 10)
Cable
Diagram 2
(page 38)
FVR-C11S FVRC11S-Terminal block on
OPC-C11S-RS*2
*2 The model code for the option card shows the card type (either A, B or C) categorized according to capacity.
RS-422/485
(2 wire)
Setting
Example 3
(page 12)
Cable
Diagram 4
(page 52)
FRENIC-MEGA FRNG1-
RJ-45 connector on
the inverter RS-422/485 (2 wire)
Setting
Example 4
(page 14)
Cable
Diagram 2
(page 38)
Terminal block on
the inverter RS-422/485 (2 wire)
Setting
Example 5
(page 16)
Cable
Diagram 3
(page 46)
FRENIC-Mini FRNC1-RJ-45 connector on
OPC-C1-RS*3
*3 Communication card for the inverter
RS-422/485
(2 wire)
Setting
Example 6
(page 18)
Cable
Diagram 2
(page 38)
FRENIC-Eco FRNF1-
RJ-45 connector on
the inverter RS-422/485 (2 wire)
Setting
Example 7
(page 20)
Cable
Diagram 2
(page 38)
Terminal block on
OPC-F1-RS*3 RS-422/485
(2 wire)
Setting
Example 8
(page 22)
Cable
Diagram 3
(page 46)
FRENIC-Multi FRNE1-
RJ-45 connector on
the inverter RS-422/485 (2 wire)
Setting
Example 9
(page 24)
Cable
Diagram 2
(page 38)
RJ-45 connector on
OPC-E1-RS*3 RS-422/485
(2 wire)
Setting
Example 10
(page 26)
Cable
Diagram 5
(page 57)

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 4
Connection Configuration

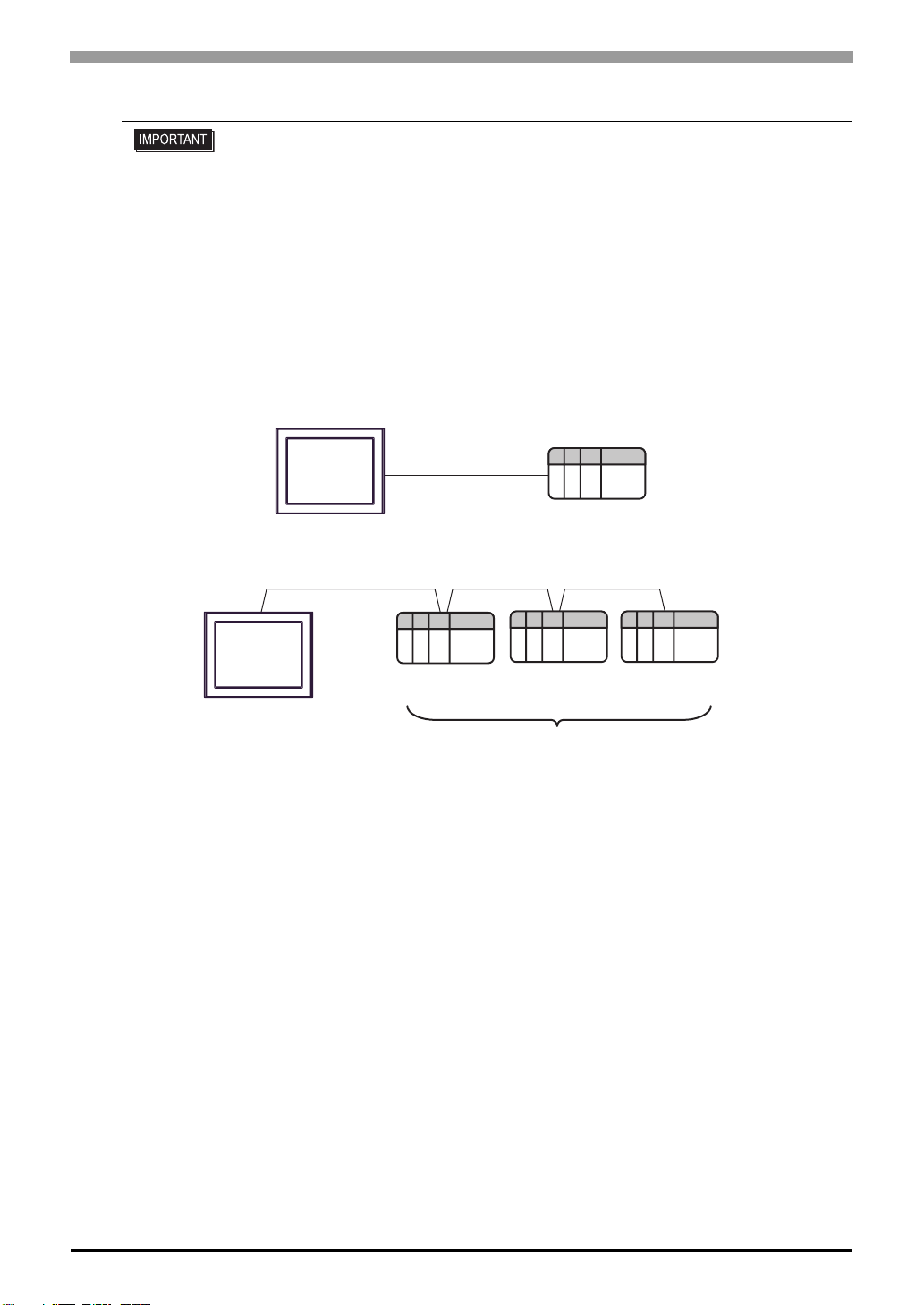

• 1:1 Connection
• 1:n Connection
• If a communication error is generated while operating via RS-422/485, there is a possibility
that the stop command will not be recognized via RS-422/485. This is dangerous, so be sure to
perform an emergency stop using the External Device outer signal terminal’s force stop
function.
• If the alarm reset is done while the run command is on via RS-422/485, the External Device
will reboot abruptly. This is dangerous, so be sure to reset the alarm after confirming that the
run command is turned off.
Display
External Device
Display
External
Device
Maximum number of connectable units: 16 units
External
Device
External
Device

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 5
IPC COM Port
When connecting IPC with an External Device, the COM port used depends on the series and SIO type. Please
refer to the IPC manual for details.
Usable Port
DIP Switch setting: RS-232C
Series Usable Port
RS-232C RS-422/485(4 wire) RS-422/485(2 wire)
PS-2000B COM1*1 , COM2,
COM3*1, COM4
*1 The RI/5V can be switched. Use the IPC’s switch to change if necessary.
--
PS-3450A, PS-3451A,
PS3000-BA, PS3001-BD COM1, COM2*1*2 COM2*1*2 COM2*1*2
PS-3650A, PS-3651A COM1*1 --
PS-3700A (Pentium®4-M)
PS-3710A COM1*1, COM2*1,
COM3*2 , COM4
*2 Set up the SIO type with the DIP Switch. Please set up as follows according to SIO type to be used.
COM3*2 COM3*2
PS-3711A COM1*1, COM2*2 COM2*2 COM2*2
PL-3000B, PL-3600T,
PL-3600K, PL-3700T,
PL-3700K, PL-3900T
COM1*1*2, COM2*1,
COM3, COM4 COM1*1*2 COM1*1*2
DIP Switch Setting Description
1OFF
*1
*1 When using PS-3450A, PS-3451A, PS3000-BA and PS3001-BD, turn ON the set value.
Reserved (always OFF)
2OFF
SIO type: RS-232C
3OFF
4 OFF Output mode of SD (TXD) data: Always output
5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None
6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None
7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available
8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available
9OFF
RS (RTS) Auto control mode: Disabled
10 OFF

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 6
DIP Switch setting: RS-422/485 (4 wire)
DIP Switch setting: RS-422/485 (2 wire)
DIP Switch Setting Description
1 OFF Reserved (always OFF)
2ON
SIO type: RS-422/485
3ON
4 OFF Output mode of SD (TXD) data: Always output
5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None
6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None
7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available
8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available
9OFF
RS (RTS) Auto control mode: Disabled
10 OFF
DIP Switch Setting Description
1 OFF Reserved (always OFF)
2ON
SIO type: RS-422/485
3ON
4 OFF Output mode of SD (TXD) data: Always output
5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None
6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None
7 ON Short-circuit of SDA (TXA) and RDA (RXA): Available
8 ON Short-circuit of SDB (TXB) and RDB (RXB): Available
9ON
RS (RTS) Auto control mode: Enabled
10 ON

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 7
2 External Device Selection
Select the External Device to be connected to the Display.
Setup Items Setup Description

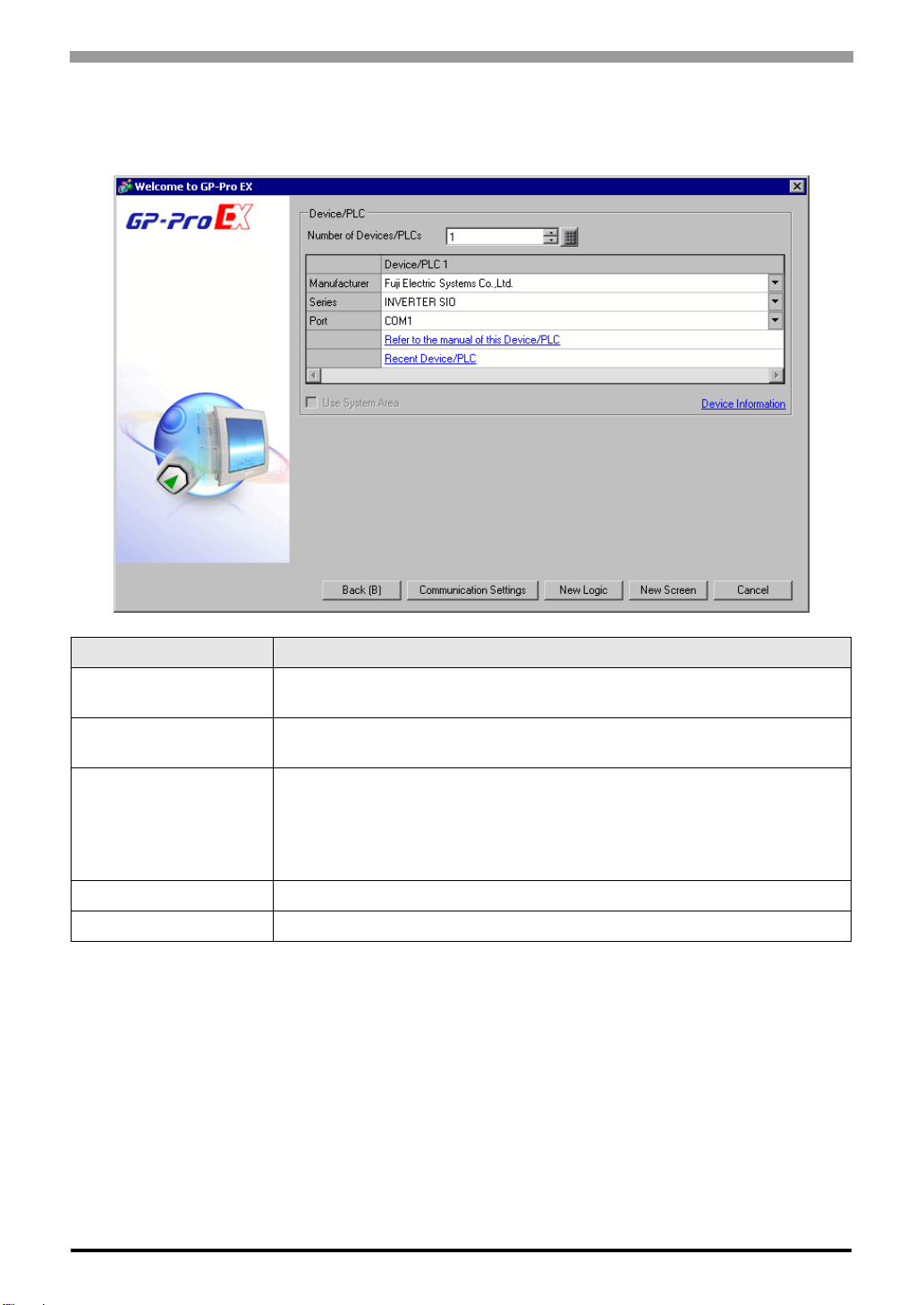

Number of Devices/PLCs Use an integer from 1 to 4 to enter the number of Devices/PLCs to connect to the
display.
Manufacturer Select the manufacturer of the External Device to be connected. Select "Fuji Electric
Systems Co., Ltd.".
Series
Select the model (series) of the External Device to be connected and connection
method. Select "INVERTER SIO".
In System configuration, check to make sure the External Device to which you are
connecting is supported in "INVERTER SIO".
)"1 System Configuration" (page 3)
Port Select the Display port to be connected to the External Device.
Use System Area Not available in this driver.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 8
3 Communication Settings
This section provides examples of communication settings recommended by Pro-face for the Display and the
External Device.
3.1 Setting Example 1
GP-Pro EX Settings

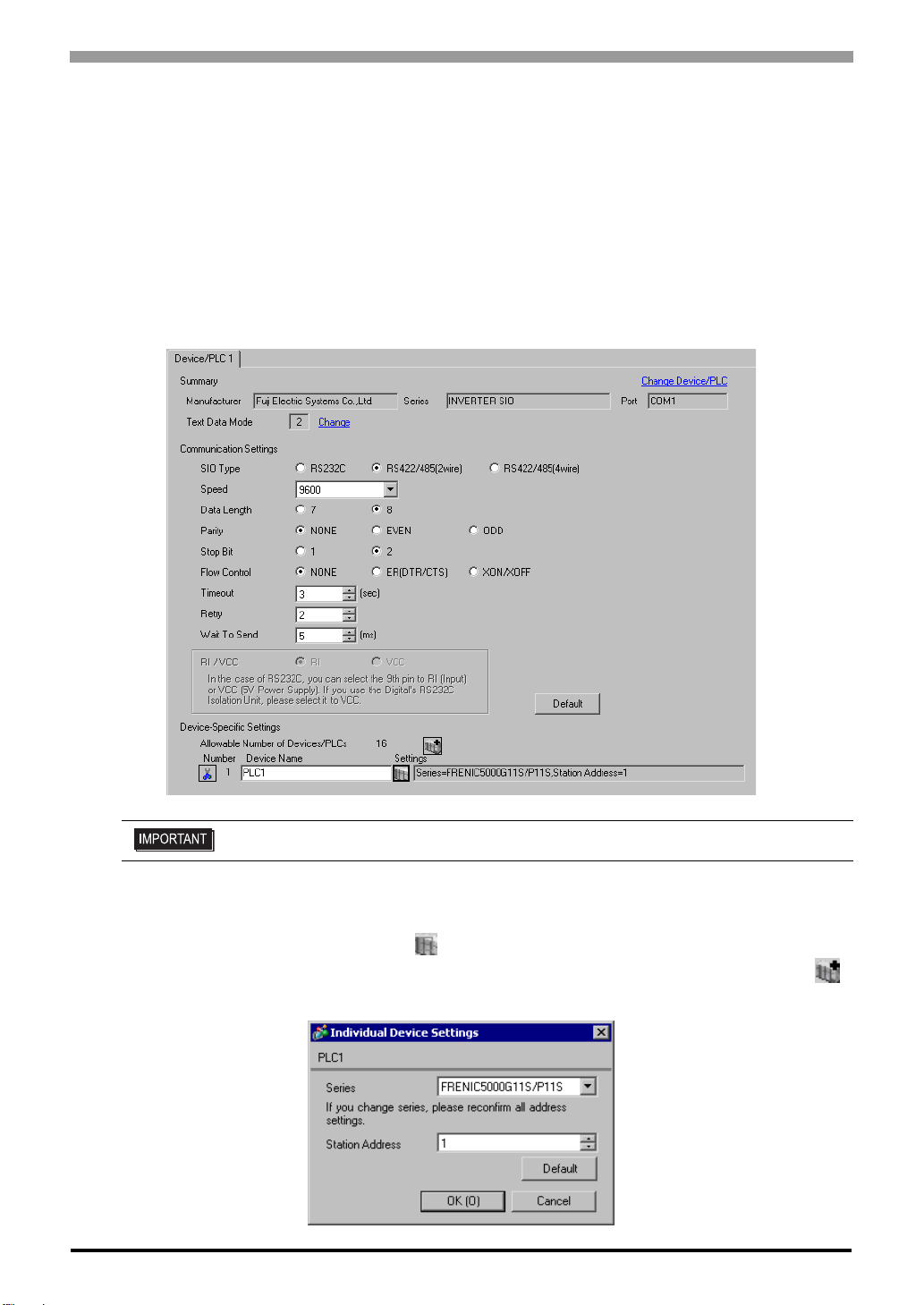

Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, select the External Device and from [Device-Specific
Settings] in the [Device/PLC] window, click [Settings].
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click
to add another External Device.
• Set Wait To Send to 1(ms) or more.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 9
External Device Settings
To configure communication settings, use the PRG, FUNC/DATA, Up, Down, or SHIFT key on the touch panel
located on the front of the External Device. Refer to your External Device manual for details.
1Turn ON the power of the External Device.
2Press the PRG key to move to the program menu.
3Select [1. DATA SET], and press the FUNC/DATA key.
4Press the Up, Down, or SHIFT key to select the function code you want to set.
5Press the FUNC/DATA key.
6Press the Up, Down, or SHIFT key to display the setting value.
7Press the FUNC/DATA key.
8Press the PRG key to move to the operation mode.
9Reboot the External Device.
This completes the External Device settings.
Function Code Setting Setup Description
H31 1 Station address
H34 1 Speed
H35 0 Data length selection
H36 0 Parity bit selection
H37 0 Stop bit selection

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 10
3.2 Setting Example 2
GP-Pro EX Settings

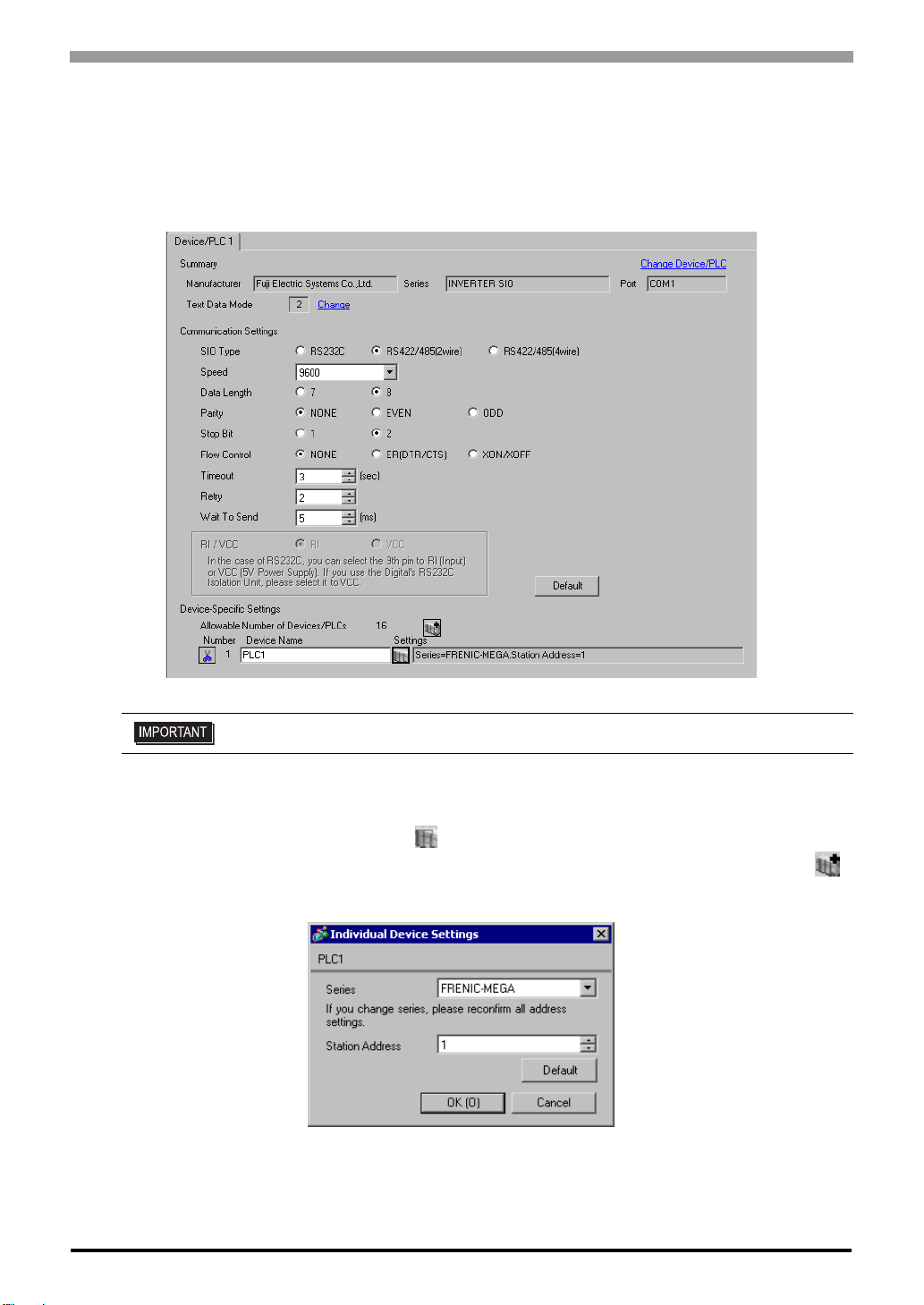

Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].

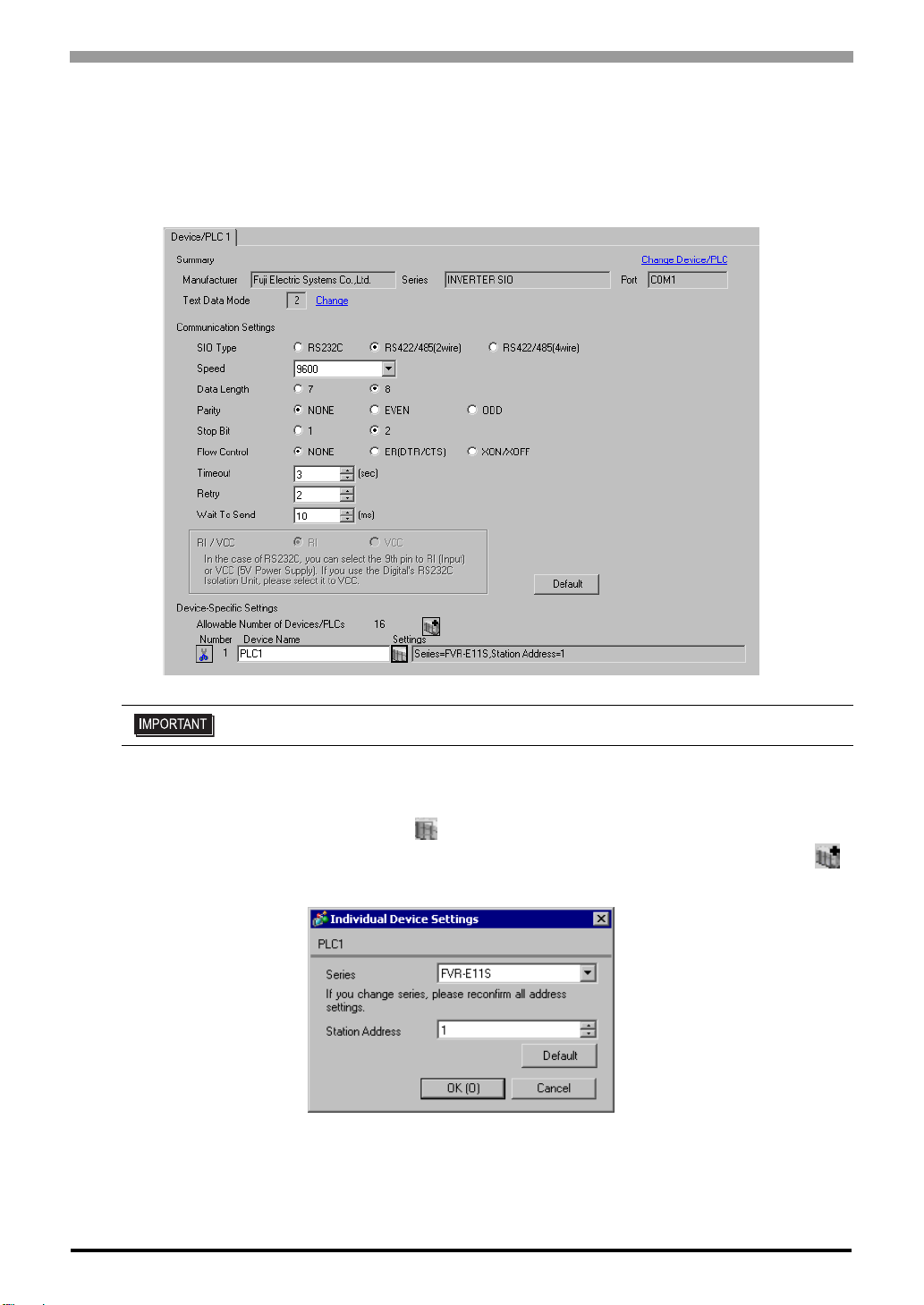

Device Setting
To display the [Individual Device Settings] dialog box, select the External Device and from [Device-Specific
Settings] in the [Device/PLC] window, click [Settings].
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click
to add another External Device.
• Set Wait To Send to 10(ms) or more.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 11
External Device Settings
To configure communication settings, use the FUNC/DATA, Up, Down, or PRG/RESET key on the touch panel
located on the front of the External Device. Refer to your External Device manual for details.
1Turn ON the power of the External Device.
2Press the PRG/RESET key to move to the program mode.
3Press the Up or Down key to display the function code you want to set.
4Press the FUNC/DATA key.
5Press the Up or Down key to display the setting value.
6Press the FUNC/DATA key.
7Press the PRG/RESET key to move to the normal mode.
8Reboot the External Device.
This completes the External Device settings.
Function Code Setting Setup Description
H31 1 Station address
H34 1 Speed
H35 0 Data length selection
H36 0 Parity bit selection
H37 1 Stop bit selection

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 12
3.3 Setting Example 3
GP-Pro EX Settings
Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, select the External Device and from [Device-Specific
Settings] in the [Device/PLC] window, click [Settings].
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click
to add another External Device.
• Set Wait To Send to 10(ms) or more.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 13
External Device Settings
To configure communication settings, use the FUNC/DATA, Up, Down, or PRG/RESET key on the touch panel
located on the front of the External Device. Refer to your External Device manual for details.
1Turn ON the power of the External Device.
2Press the PRG/RESET key to move to the program mode.
3Press the Up or Down key to display the function code [o00].
4Press the FUNC/DATA key.
5Press the Up or Down key to display the setting value.
6Press the FUNC/DATA key.
7Press the Up or Down key to display the function code you want to set.
8Press the Up or Down key to display the setting value.
9Press the FUNC/DATA key.
10 Press the PRG/RESET key to move to the normal mode.
11 Reboot the External Device.
This completes the External Device settings.
Function Code Setting Setup Description
o00 1 Option select (RS-485
Communications)
Function Code Setting Setup Description
o01 1 Station address
o04 1 Speed
o05 0 Data length selection
o06 0 Parity bit selection
o07 0 Stop bit selection

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 14
3.4 Setting Example 4
GP-Pro EX Settings
Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, select the External Device and from [Device-Specific
Settings] in the [Device/PLC] window, click [Settings].
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click
to add another External Device.
• Set Wait To Send to 5(ms) or more.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 15
External Device Settings
To configure communication settings, use the FUNC/DATA, Up, Down, or PRG/RESET key on the touch panel
located on the front of the External Device. Refer to your External Device manual for details.
1Turn ON the power of the External Device.
2Press the PRG/RESET key to move to the program mode.
3Press the Up or Down key to display the function code group [1.Y_ _ ].
4Press the FUNC/DATA key.
5Press the Up or Down key to display the function code you want to set.
6Press the FUNC/DATA key.
7Press the Up or Down key to display the setting value.
8Press the FUNC/DATA key.
9Press the PRG/RESET key to move to the operation mode.
10 Reboot the External Device.
This completes the External Device settings.
Function Code Setting Setup Description
Y01 1 Station address
Y04 2 Speed
Y05 0 Data length selection
Y06 0 Parity bit selection
Y07 0 Stop bit selection
Y10 2 Protocol selection

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 16
3.5 Setting Example 5
GP-Pro EX Settings
Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, select the External Device and from [Device-Specific
Settings] in the [Device/PLC] window, click [Settings].
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click
to add another External Device.
• Set Wait To Send to 5(ms) or more.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 17
External Device Settings
To configure communication settings, use the FUNC/DATA, Up, Down, or PRG/RESET key on the touch panel
located on the front of the External Device. Refer to your External Device manual for details.
1Turn ON the power of the External Device.
2Press the PRG/RESET key to move to the program mode.
3Press the Up or Down key to display the function code group [1.Y_ _ ].
4Press the FUNC/DATA key.
5Press the Up or Down key to display the function code you want to set.
6Press the FUNC/DATA key.
7Press the Up or Down key to display the setting value.
8Press the FUNC/DATA key.
9Press the PRG/RESET key to move to the operation mode.
10 Reboot the External Device.
This completes the External Device settings.
Function Code Setting Setup Description
Y11 1 Station address
Y14 2 Speed
Y15 0 Data length selection
Y16 0 Parity bit selection
Y17 0 Stop bit selection
Y20 2 Protocol selection

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 18
3.6 Setting Example 6
GP-Pro EX Settings
Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, select the External Device and from [Device-Specific
Settings] in the [Device/PLC] window, click [Settings].
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click
to add another External Device.
• Set Wait To Send to 5(ms) or more.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 19
External Device Settings
To configure communication settings, use the FUNC/DATA, Up, Down, or PRG/RESET key on the touch panel
located on the front of the External Device. Refer to your External Device manual for details.
1Turn ON the power of the External Device.
2Press the PRG/RESET key to move to the program mode.
3Press the Up or Down key to display the function code group [1.Y_ _ ].
4Press the FUNC/DATA key.
5Press the Up or Down key to display the function code you want to set.
6Press the FUNC/DATA key.
7Press the Up or Down key to display the setting value.
8Press the FUNC/DATA key.
9Press the PRG/RESET key to move to the operation mode.
10 Reboot the External Device.
This completes the External Device settings.
Function Code Setting Setup Description
Y01 1 Station address
Y04 2 Speed
Y05 0 Data length selection
Y06 0 Parity bit selection
Y07 0 Stop bit selection
Y10 2 Protocol selection

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 20
3.7 Setting Example 7
GP-Pro EX Settings
Communication Settings
To display the setup screen, from the [System Settings] workspace, select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, select the External Device and from [Device-Specific
Settings] in the [Device/PLC] window, click [Settings].
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click
to add another External Device.
• Set Wait To Send to 5(ms) or more.
