Fujitsu AOTR12JCC User manual

KEEP THIS OPERATION MANUAL
FOR FUTURE REFERENCE
FUJITSU GENERAL LIMITED
OPERATING MANUAL
P/N9331435017-01
Indoor Unit
ASTA07JCC
ASTA09JCC
ASTA12JCC
Outdoor Unit
AOTR07JCC
AOTR09JCC
AOTR12JCC
COOLING MODEL
ROOM AIR CONDITIONER
WALL MOUNTED TYPE
R410A
REFRIGERANT
This Air Conditioner contains and operates
with refrigerant R410A and Polyol Ester oil.
THIS PRODUCT MUST ONLY BE INSTALLED OR SERVICED
BY QUALIFIED PERSONNEL.
Refer to Commonwealth, State, Territory and local legislation,
regulations, codes, installation & operation manuals, before
the installation, maintenance and/or service of this product.
06G362_9331435017-01_cover.p65 2006.8.7, 3:15 PM1

1
CONTENTS
SAFETY PRECAUTIONS .......................................... 1
FEATURES AND FUNCTIONS ................................. 2
NAME OF PARTS ...................................................... 3
PREPARATION .......................................................... 5
OPERATION .............................................................. 6
TIMER OPERATION .................................................. 8
SLEEP TIMER OPERATION ...................................... 9
ADJUSTING THE DIRECTION OF
AIR CIRCULATION .................................................. 10
SWING OPERATION ............................................... 11
COIL DRY OPERATION ........................................... 11
MANUAL AUTO OPERATION ................................ 11
CLEANING AND CARE ........................................... 12
TROUBLESHOOTING ............................................. 14
OPERATING TIPS .................................................... 15
SAFETY PRECAUTIONS
●Do not attempt to install this air conditioner by yourself.
●This unit contains no user-serviceable parts. Always consult authorized service per-
sonnel for repairs.
●When moving, consult authorized service personnel for disconnection and installa-
tion of the unit.
●Do not become excessively chilled by staying for lengthy periods in the direct cooling
airflow.
●Do not insert fingers or objects into the outlet port or intake grilles.
●Do not start and stop air conditioner operation by disconnecting the power supply
cord and so on.
●Take care not to damage the power supply cord.
●In the event of a malfunction (burning smell, etc.), immediately stop operation, dis-
connect the power supply plug, and consult authorized service personnel.
●If the power supply cord of this appliance is damaged, it should only be replaced by
the authorized service personal, since special purpose tools and specified cord are
required.
●Provide occasional ventilation during use.
●Do not direct air flow at fireplaces or heating apparatus.
●Do not climb on, or place objects on, the air conditioner.
●Do not hang objects from the indoor unit.
●Do not set flower vases or water containers on top of air conditioners.
●Do not expose the air conditioner directly to water.
●Do not operate the air conditioner with wet hands.
●Do not pull power supply cord.
●Turn off power source when not using the unit for extended periods.
●Check the condition of the installation stand for damage.
●Do not place animals or plants in the direct path of the air flow.
●Do not drink the water drained from the air conditioner.
●Do not use in applications involving the storage of foods, plants or animals, precision
equipment, or art works.
●Do not apply any heavy pressure to radiator fins.
●Operate only with air filters installed.
●Do not block or cover the intake grille and outlet port.
●Ensure that any electronic equipment is at least one metre away from either the in-
door or outdoor units.
●Avoid installing the air conditioner near a fireplace or other heating apparatus.
●When installing the indoor and outdoor unit, take precautions to prevent access to
infants.
●Do not use inflammable gases near the air conditioner.
DANGER!
CAUTION!
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM1

2
FEATURES AND FUNCTIONS
INVERTER
At the start of operation, a large power is used to bring the
room quickly to the desired temperature. Afterwards, the
unit automatically switches to a low power setting for eco-
nomic and comfortable operation.
AUTO CHANGEOVER
The operation mode (cooling, dry) is switched automatically
to maintain the set temperature, and the temperature is kept
constant at all times.
PROGRAM TIMER
The program timer allows you to integrate OFF timer and
ON timer operations in a single sequence. The sequence can
involve one transition from OFF timer to ON timer, or from
ON timer to OFF timer, within a twenty-four hour period.
SLEEP TIMER
When the SLEEP button is pressed during cooling mode,
the thermostat setting is gradually raised during the period
of operation. When the set time is reached, the unit auto-
matically turns off.
WIRELESS REMOTE CONTROL UNIT
The Wireless Remote Control Unit allows convenient con-
trol of air conditioner operation.
SWING OPERATION
The Air Flow Direction Louvers swings automatically up and
down so that the air speeds to every nook and corner of
your room.
REMOVABLE OPEN PANEL
The indoor unit’s Open Panel can be removed for easy clean-
ing and maintenance.
MILDEW-RESISTANT FILTER
The AIR FILTER has been treated to resist mildew growth,
thus allowing cleaner use and easier care.
POLYPHENOL CATECHIN AIR CLEANING FILTER
The polyphenol catechin air cleaning filter uses static elec-
tricity to clean the air of fine particles and dust such as to-
bacco smoke and plant pollen that are too small to see.
The filter contains catechin, which is highly effective against
various bacteria by suppressing the growth of the bacteria
adsorbed by the filter.
Note that when the air cleaning filter is installed, the amount
of air produced decreases, causing a slight decrease in the
air conditioner's performance.
NEGATIVE AIR IONS DEODORIZING FILTER
It comprises pottery super micro particles, which can pro-
duce negative air ions having the effect of deodorizing and
can absorb and remit the peculiar smell at home.
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM2

3
NAME OF PARTS
Fig. 5
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 6
C
C
Fig. 7
To facilitate explanation, the accompanying illustra-
tion has been drawn to show all possible indicators;
in actral operation, however, the display will only
show those indicators appropriate to the current
operation.
OPERATION
TIMER
SWING
FH
I
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM3

4
NAME OF PARTS
Fig. 6 Remote Control Unit
JSLEEP button
KMASTER CONTROL button
LSET TEMP. button ( /)
MSignal Transmitter
NTIMER MODE button
OTIMER SET ( / ) button
PFAN CONTROL button
QSTART/STOP button
RSET button
SSWING button
TRESET button
UTEST RUN button
●This button is used when installing the
conditioner, and should not be used un-
der normal conditions, as it will cause the
air conditioner’s thermostat function to op-
erate incorrectly.
●If this button is pressed during normal op-
eration, the unit will switch to test opera-
tion mode, and the Indoor Unit’s OPERA-
TION Indicator Lamp and TIMER Indicator
Lamp will begin to flash simultaneously.
●To stop the test operation mode, press the
START/STOP button to stop the air condi-
tioner.
VCLOCK ADJUST button
WRemote Control Unit Display (Fig. 7)
XTransmit Indicator
YClock Display
ZOperating Mode Display
[Timer Mode Display
\Fan Speed Display
\Temperature SET Display
`SLEEP Display
aSWING Display
Fig. 1 Indoor Unit
1Operating Control Panel (Fig. 2)
2MANUAL AUTO button
3Remote Control Signal Receiver
4Indicator Lamps (Fig. 3)
5OPERATION Indicator Lamp (red)
6TIMER Indicator Lamp (green)
●If the TIMER indicator lamp flashes when
the timer is operating, it indicates that a
fault has occurred with the timer setting
(See Page 15 Auto Restart).
7SWING Indicator Lamp (orange)
8Intake Grille (Fig. 4)
9Air Filter
0Air Flow Direction Louver
ARight-Left Louver
(behind Air Flow Direction Louver)
BDrain Hose
CPower Supply Plug
DPower Supply Cord
EAir Cleaning Filter
Fig. 5 Outdoor Unit
FIntake Port
GOutlet Port
HPipe Unit
IDrain port (bottom)
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM4

5
Turn on the Power
1Connect the Power Supply Plug (Fig. 1 C) to an electri-
cal outlet; in the case of a direct line connection, turn
on the circuit breaker.
Load Batteries (R03/LR03 ××
××
×2)
1Press and slide the battery compartment lid on the re-
verse side to open it.
Slide in the direction of the arrow while pressing the mark.
2Insert batteries.
Be sure to align the battery polarities ( ) correctly.
3Close the battery compartment lid.
Set the Current time
1Press the CLOCK ADJUST button (Fig. 6 V).
Use the tip of a ball-point pen or other small object to press the button.
2Use the TIMER SET ( / ) buttons (Fig. 6 O) to
adjust the clock to the current time.
button: Press to advance the time.
button: Press to reverse the time.
(Each time the buttons are pressed, the time will be advanced/reversed in
one-minute increments; hold the buttons depressed to change the time
quickly in ten-minute increments.)
3Press the CLOCK ADJUST button (Fig. 6 V) again.
This completes the time setting and starts the clock.
To Use the Remote Control Unit
●The Remote Control Unit must be pointed at signal receiver (Fig. 1 3) to operate
correctly.
●Operating Range: About 7 meters.
●When a signal is properly received by the air conditioner, a beeping sound will
be heard.
●If no beep is heard, press the Remote Control Unit button again.
Remote Control Unit Holder
PREPARATION
CAUTION!
●Take care to prevent infants from
accidentally swallowing batteries.
●When not using the Remote Control Unit
for an extended period, remove the
batteries to avoid possible leakage and
damage to the unit.
●If leaking battery fluid comes in contact
with your skin, eyes, or mouth, immedi-
ately wash with copious amounts of
water, and consult your physician.
●Dead batteries should be removed
immediately and disposed of properly,
either in a battery collection receptacle
or to the appropriate authority.
●Do not attempt to recharge dry batteries.
Never mix new and used batteries, or
batteries of different types.
Batteries should last about one year
under normal use. If the Remote Con-
trol Unit’s operating range becomes ap-
preciably reduced, replace the batteries
and press the RESET button with the tip
of a ballpoint pen or other small object.
3To remove the Remote
Control Unit (when use at
hand).
1Mount the Holder. 2Set the Remote Control
Unit.
Screws
Insert
Press in
Slide up
Pull out
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM5

6

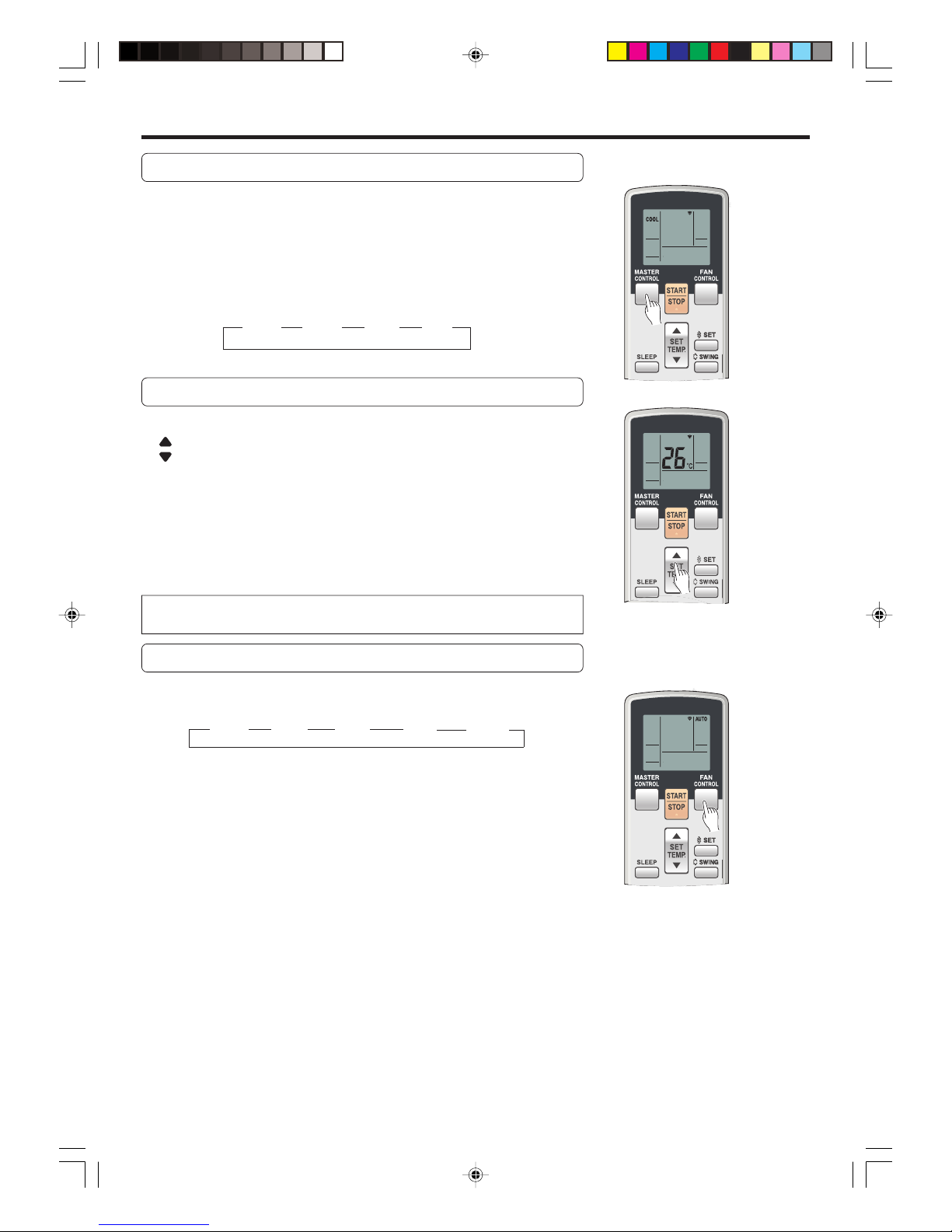

To Select Mode Operation
1Press the START/STOP button (Fig.6 Q).
The indoor unit’s OPERATION Indicator Lamp (red) (Fig. 3 5) will light.
The air conditioner will start operating.
2Press the MASTER CONTROL button (Fig.6 K) to se-
lect the desired mode.
Each time the button is pressed, the mode will change in the following
order.
AUTO COOL DRY FAN
About three seconds later, the entire display will reappear.
To Set the Thermostat
Press the SET TEMP. button (Fig. 6 L).
button: Press to raise the thermostat setting.
button: Press to lower the thermostat setting.
●Thermostat setting range:
AUTO .................................. 18 to 30 °C
Cooling/Dry ........................ 18 to 30 °C
The thermostat cannot be used to set room temperature during the FAN mode (the
temperature will not appear on the Remote Control Unit’s Display).
About three seconds later, the entire display will reappear.
The thermostat setting should be considered a standard value, and may differ
somewhat from the actual room temperature.
To Set the Fan Speed
Press the FAN CONTROL button (Fig. 6 P).
Each time the button is pressed, the fan speed changes in the following order:
AUTO HIGH MED LOW QUIET
About three seconds later, the entire display will reappear.
When set to AUTO:
Cooling : As the room temperature approaches that of the thermostat setting,
the fan speed becomes slower.
Fan : The fan runs at the low fan speed.
The fan will operate at a very low setting during Monitor operation.
OPERATION
ssss
Example: When set to COOL.
Example: When set to 26 °C.
Example: When set to AUTO.
s
ssss
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM6

7
To Stop Operation
Press the START/STOP button (Fig. 6 Q).
The OPERATION Indicator Lamp (red) (Fig. 3 5) will go out.
About AUTO CHANGEOVER Operation
AUTO: ●When AUTO CHANGEOVER operation first selected, the fan will oper-
ate at very low speed for about one minute, during which time the unit
detects the room conditions and selects the proper operating mode.
If the differance between thermostat setting and actual room tempera-
ture is more than +2 °C →Cooling or dry operation
If the difference between thermostat setting and actual room tempera-
ture is +2 °C for less →Monitor operation
●When the air conditioner has adjusted your room’s temperature to near
the thermostat setting, it will begin monitor operation. In the monitor
operation mode, the fan will operate at low speed. If the room tem-
perature subsequently changes, the air conditioner will once again
select the appropriate operation (Cooling) to adjust the temperature to
the value set in the thermostat.
(The monitor operation range is +2 °C for less relative to the thermostat
setting.)
●If the mode automatically selected by the unit is not what you wish,
select one of the mode operation (COOL, DRY, FAN).
About Mode Operation
Cooling: ●Use to cool your room.
Dry: ●Use for gently cooling while dehumidifying your room.
●You cannot heat the room during Dry mode.
●During Dry mode, the unit will operate at low speed; in order to adjust
room humidity, the indoor unit’s fan may stop from time to time. Also,
the fan may operate at very low speed when adjusting room humidity.
●The fan speed cannot be changed manually when Dry mode has been
selected.
Fan: ●Use to circulate the air throughout your room.
During Cooling/Dry mode:
Set the thermostat to a temperature set-
ting that is lower than the current room
temperature. The Cooling and Dry modes
will not operate if the thermostat is set
higher than the actual room temperature
(in Cooling mode, the fan alone will oper-
ate).
During Fan mode:
You can not use the unit to heat and cool
your room.
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM7

8
TIMER OPERATION
s
Before using the timer function, be sure that the Remote Control Unit is set to the correct current time (☞P. 5).
To Use the ON timer or OFF timer
1Press the START/STOP button (Fig. 6 Q)
(if the unit is already operating, proceed to step 2).
The indoor unit’s OPERATION Indicator Lamp (red) (Fig. 3 5) will light.
2Press the TIMER MODE button (Fig. 6 N) to select the
OFF timer or ON timer operation.
Each time the button is pressed the timer function changes in the follow-
ing order:
CANCEL OFF ON
PROGRAM(OFF →ON, OFF ←ON)
The indoor unit’s TIMER Indicator Lamp green (Fig. 3 6) will light.
3Use the TIMER SET buttons (Fig. 6 O) to adjust the
desired OFF time or ON time.
Set the time while the time display is flashing (the flashing will continue
for about five seconds).
button: Press to advance the time.
button: Press to reverse the time.
About five seconds later, the entire display will reappear.
To Use the Program timer
1Press the START/STOP button (Fig. 6 Q).
(if the unit is already operating, proceed to step 2).
The indoor unit’s OPERATION Indicator Lamp (red) (Fig. 3 5) will light.
2Set the desired times for OFF timer and ON timer.
See the section “To Use the ON timer or OFF timer” to set the desired
mode and times.
About three seconds later, the entire display will reappear.
The indoor unit’s TIMER Indicator Lamp (green) (Fig. 3 6) will light.
3Press the TIMER MODE button (Fig. 6 N) to select the
PROGRAM timer operation (OFF ON or OFF ON
will display).
The display will alternately show “OFF timer” and “ON timer”, then change
to show the time setting for the operation to occur first.
●The program timer will begin operation. (If the ON timer has been se-
lected to operate first, the unit will stop operating at this point.)
About five seconds later, the entire display will reappear.
About the Program timer
●The program timer allows you to integrate OFF timer and ON timer operations in
a single sequence. The sequence can involve one transition from OFF timer to
ON timer, or from ON timer to OFF timer, within a twenty-four hour period.
●The first timer function to operate will be the one set nearest to the current time.
The order of operation is indicated by the arrow in the Remote Control Unit’s
Display (OFF →ON, or OFF ←ON).
●One example of Program timer use might be to have the air conditioner auto-
matically stop (OFF timer) after you go to sleep, then start (ON timer) automati-
cally in the morning before you arise.
To Cancel the Timer
Use the TIMER button to select “CANCEL”.
The air conditioner will return to normal
operation.
To Change the Timer Settings
Perform steps 2and 3.
To Stop Air Conditioner Operation
while the Timer is Operating
Press the START/STOP button.
To Change Operating Conditions
If you wish to change operating conditions
(Mode, Fan Speed, Thermostat Setting),
after making the timer setting wait until the
entire display reappears, then press the
appropriate buttons to change the operat-
ing condition desired.
ss
t
To Cancel the Timer
Use the TIMER MODE button to select
“CANCEL”.
The air conditioner will return to normal
operation.
To Change the Timer Settings
1.
Follow the instructions given in the section
“To Use the ON Timer or OFF Timer” to se-
lect the timer setting you wish to change.
2. Press the TIMER MODE button to select
either OFF ON or OFF ON.
To Stop Air Conditioner Operation
while the Timer is Operating
Press the START/STOP button.
To Change Operating Conditions
If you wish to change operating conditions
(Mode, Fan Speed, Thermostat Setting), after
making the timer setting wait until the entire
display reappears, then press the appropri-
ate buttons to change the operating
condition desired.
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM8

9
SLEEP TIMER OPERATION
Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped.
To Use the SLEEP Timer
While the air conditioner is operating or stopped, press the
SLEEP button (Fig. 6 J).
The indoor unit’s OPERATION Indicator Lamp (red) (Fig. 3 5) lights and the TIMER
Indicator Lamp (green) (Fig. 3 6) light.
To Change the Timer Settings
Press the SLEEP button (Fig. 6 J) once again and set the time
using the TIMER SET ( / ) buttons (Fig. 6 O).
Set the time while the Timer Mode Display is flashing (the flashing will continue
about five seconds).
button: Press to advance the time.
button: Press to reverse the time.
About five seconds later, the entire display will reappear.
To Cancel the Timer:
Use the TIMER MODE button to select
“CANCEL”.
The air conditioner will return to normal
operation.
To Stop the Air Conditioner During
Timer Operation:
Press the START/STOP button.
About the SLEEP Timer
To prevent excessive cooling during sleep, the SLEEP timer function automatically modifies the thermostat setting in accordance
with the set time setting. When the set time has elapsed, the air conditioner completely stops.
Set time
1 hour
1 °C 2 °C
During Cooling/Dry operation:
When the SLEEP timer is set, the thermostat setting is auto-
matically raised 1 °C every sixty minutes. When the thermo-
stat has been raised a total of 2 °C, the thermostat setting at
that time is maintained until the set time has elapsed, at which
time the air conditioner automatically turns off.
SLEEP timer setting
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM9

10

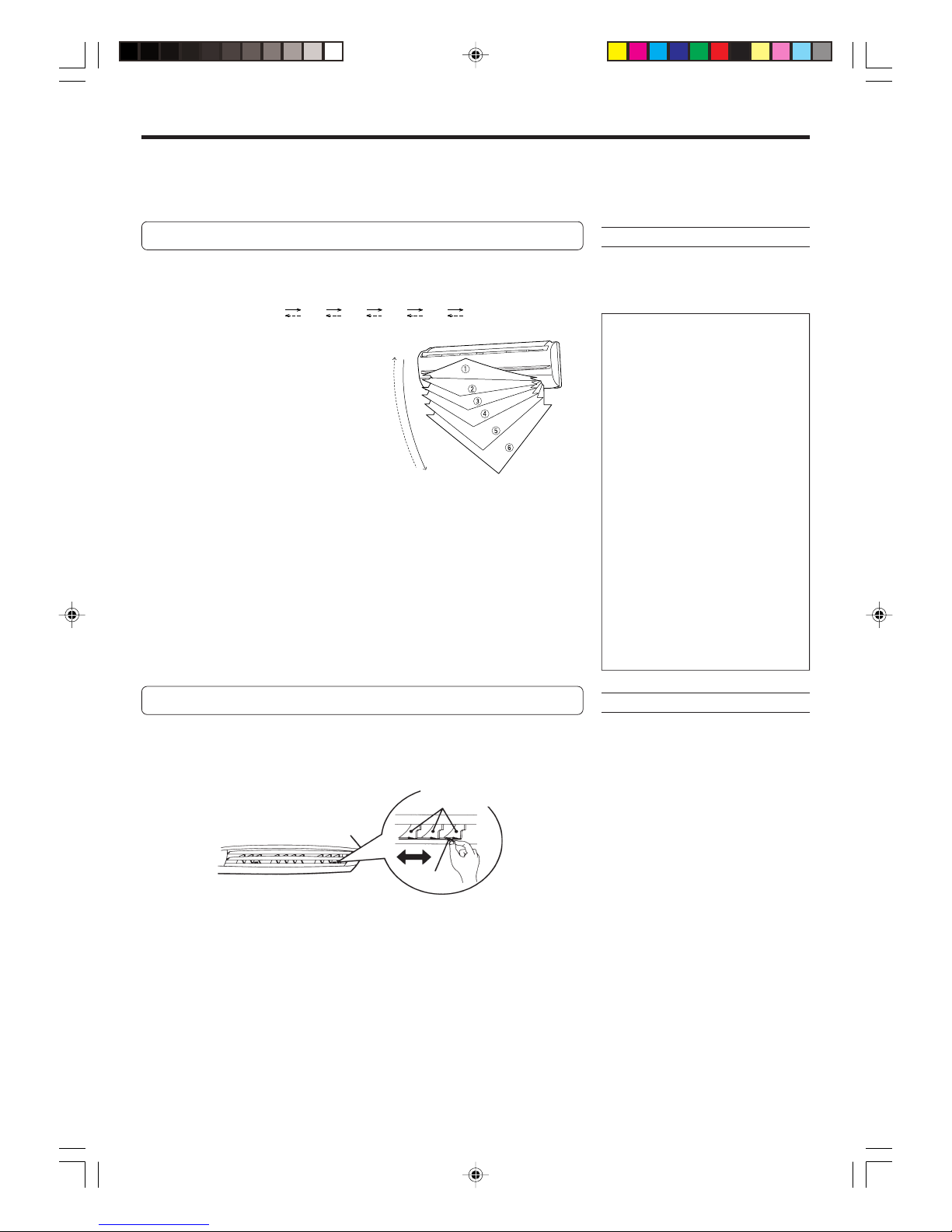

Vertical Air Direction Adjustment
Press the SET button (Fig. 6 R).
Each time the button is pressed, the air direction range will change as follows:
321654
Types of Air flow Direction Setting:
1,2,3: During Cooling/Dry modes
1,2,3,4,5,6: During FAN mode
The Remote Control Unit’s display does
not change.
●Use the air direction adjustments within the ranges shown above.
●The vertical airflow direction is set automatically as shown, in accordance with
the type of operation selected.
During Cooling/Dry/FAN mode : Horizontal flow 1
●During AUTO mode operation, for the first minute after beginning operation,
airflow will be horizontal 1; the air direction cannot be adjusted during this pe-
riod.
Right-Left Adjustment
Adjust the Right-Left louvers.
●Move the Right-Left louvers to adjust air flow in the direction you prefer.
ADJUSTING THE DIRECTION OF AIR CIRCULATION
Vertical (up-down) direction of airflow is adjusted by pressing the Remote Control Unit’s SET button. Horizontal (right-left)
airflow direction is adjusted manually, by moving the Air Flow Direction Louvers.
Whenever making horizontal airflow adjustments, start air conditioner operation and be sure that the vertical air direction
louvers are stopped.
RDANGER!
●Never place fingers or foreign objects in-
side the outlet ports, since the internal fan
operates at high speed and could cause
personal injury.
●Always use the Remote Control Unit’s
SET button to adjust the vertical airflow
louvers. Attempting to move them
manually could result in improper op-
eration; in this case, stop operation and
restart. The louvers should begin to
operate properly again.
●During use of the Cooling and Dry
modes, do not set the Air Flow Direc-
tion Louvers in the range(4- 6) for
long periods of time, since water vapor
may condense near the outlet louvers
and drops of water may drip from the
air conditioner. During the Cooling and
Dry modes, if the Air Flow Direction
Louvers are left in the heating range
for more than 30 minutes, they will
automatically return to position 3.
●When used in a room with infants, chil-
dren, elderly or sick persons, the air
direction and room temperature
should be considered carefully when
making settings.
RDANGER!
●When adjusting the Right-Left Louvers, it
is necessary to stop the Air-Conditioner
first and make sure that it stops completely
before adjusting the direction.
Right-Left Louvers
knob
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM10

11
SWING OPERATION
MANUAL AUTO OPERATION
Use the MANUAL AUTO operation in the event the Remote Control Unit is lost or otherwise unavailable.
How To Use the Main Unit Controls
Press the MANUAL AUTO button (Fig. 2 2) on the main unit
control panel.
To stop operation, press the MANUAL AUTO button (Fig. 2 2) once again.
(Controls are located inside the Open Panel)
●When the air conditioner is operated
with the controls on the Main Unit, it
will operate under the same mode as
the AUTO mode selected on the Re-
mote Control Unit (see page 7).
●The fan speed selected will be “AUTO”
and the thermostat setting will be
standard.(24°C)
Begin air conditioner operation before performing this procedure.
To select SWING Operation
Press the SWING button (Fig. 6 S).
The SWING Display (Fig. 7 a) will light.
In this mode, the Air Flow Direction Louvers will swing automatically to direct the
air flow both up and down.
To stop SWING Operation
Press the SWING button (Fig. 6 S) once again.
The SWING Display (Fig. 7 a) will go out.
Airflow direction will return to the setting before swing was begun.
About Swing Operation
●The range of swing is relative to the currently set airflow
direction.
●During Cooling/Dry modes, if SWING Operation in con-
tinued at the lowest (downward) range for more than 30
minutes, the unit will automatically switch the swing
range to the horizontal flow range, to prevent the con-
densation of moisture on the outlet.
●The SWING operation may stop temporarily when the
air conditioner’s fan is not operating, or when operating
at very low speeds.
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM11

12
Cleaning the Intake Grille
1. Remove the Intake Grille.
1Place your fingers at both lower ends of the grille
panel, and lift forward; if the grille seems to catch
partway through its movement, continue lifting up-
ward to remove.
2Pull past the intermediate catch and open the Intake
Grille wide so that it become horizontal.
2. Clean with water.
Remove dust with a vacuum cleaner; wipe the unit with
warm water, then dry with a clean, soft cloth.
3. Replace the Intake Grille.
1Pull the knobs all the way.
2Hold the grille horizontal and set the left and right
mounting shafts into the bearings at the top of the
panel.
CLEANING AND CARE
●Before cleaning the air conditioner, be sure to turn it off and disconnect the Power Supply Cord.
●Be sure the Intake Grille (Fig. 1 8) is installed securely.
●When removing and replacing the air filters, be sure not to touch the heat exchanger, as per-
sonal injury may result.
CAUTION!
Cleaning the Air Filter
1. Open the Intake Grille, and remove the air
filter.
Lift up the air filter’s handle, disconnect the two lower
tabs, and pull out.
2. Remove dust with a vacuum cleaner or by
washing.
After washing, allow to dry thoroughly in a shaded place.
3. Replace the Air Filter and close the Intake
Grille.
1Align the sides of the air filter with the panel, and push
in fully, making sure the two lower tabs are returned
properly to their holes in the panel.
(For purposes of example, the illustration shows the unit
without Intake Grille installed.)
●Dust can be cleaned from the air filter either with a vacuum
cleaner, or by washing the filter in a solution of mild de-
tergent and warm water. If you wash the filter, be sure to
allow it to dry thoroughly in a shady place before rein-
stalling.
●If dirt is allowed to accumulate on the air filter, air flow
will be reduced, lowering operating efficiency and increas-
ing noise.
●During periods of normal use, the Air Filters should be
cleaned every two weeks.
●When used for extended periods, the unit may accumulate dirt inside, reducing its performance. We recommend that the
unit be inspected regularly, in addition to your own cleaning and care. For more information, consult authorized service
personnel.
●When cleaning the unit’s body, do not use water hotter than 40 °C, harsh abrasive cleansers, or volatile agents like
benzene or thinner.
●Do not expose the unit body to liquid insecticides or hairsprays.
●When shutting down the unit for one month or more, first allow the fan mode to operate continuously for about one-half
day to allow internal parts to dry thoroughly.
Intake Grille
Air filter handle
Hooks (two places)
Intake
Grille
Hooks (two places)
Intake Grille
Mounting
shaft
Knob
Intake Grille
Bearing
Mounting shaft
Knob
Mounting
shaft
Knob
2Close the Intake Grille.
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM12

13
Replacing dirty Air cleaning filters
Replace filters with the following components (purchased
separately).
●
POLYPHENOL CATECHIN AIR CLEANING FILTER : UTR-FA04-1
●Negative air ions deodorizing filter: UTR-FA04-2
1. Open the Intake Grille and remove the Air
filters.
2. Replace them by two new Air cleaning
filters.
1Remove the old air cleaning filters in reverse order of
their installation.
2Install in the same way as for installation of the air
cleaning filter set.
3. Install the two Air filters and close the
Intake Grille.
In regard to the Air Cleaning Filters
POLYPHENOL CATECHIN AIR CLEANING FILTER (one sheet)
●The Air Cleaning Filters are disposable filters. (They can
not be washed and reused.)
●For storage of the Air Cleaning Filters, use the filters as
soon as possible after the package has been opened.
(The air cleaning effect decreases when the filters are left
in the opened package)
●Generally, the filters should be exchanged about every
three months.
Please buy delicated air cleaning filters (UTR-FA04-1) (Sold
separately) to exchange the used dirty air cleaning filters.
[Negative air ions deodorizing filter (one sheet) — light blue]
●The filters should be exchanged about every three years
so as to maintain the deodorizing effect.
●Filter frame is not a one-off product.
Please buy delicated deodorizing filter (UTR-FA04-2) (Sold
separately) when exchanging the filters.
Maintenance of Deodorizing Filters
In order to maintain the deodorizing effect, please clean the
filter in the follow way once three months.
1Remove the deodorizing filter.
2Clean with water and dry in the air.
1) Flush the filters with high-pressure hot water until
the surface of the filters are covered with water.
Please flush with diluent neutral detergent.
Never wash by reaming or rubbing, otherwise it
will damage the deodorizing effect.
2) Rinse with water flow.
3) Dry in shade.
3Reinstall the deodorizing filter.
Air Cleaning Filter Installation
1. Open the Intake Grille and remove the Air
filters.
2. Install the Air cleaning filter set (set of 2).
1Set the air cleaning filter into the air cleaning filter
frame.
2Engage the latch at both ends of the filter with the
two hooks at the rear of the air cleaning filter frame.
Take care that the air cleaning filter does not project be-
yond the frame.
3Engage the four fixing locations at the top and bot-
tom of the air cleaning filter frame with the hooks of
the air filter.
3. Install the two Air filters and close the
Intake Grille.
●When air cleaning filters are used, the effect will increased
by setting the fan speed to “High”.
Air cleaning filter set
Air cleaning filter frame
Air cleaning filter
Hook (2 places at the rear)
Latch (2 places)
Rear of the filter
Fixing location, hook (4 places)
CLEANING AND CARE
Air Filter
(Right & Left)
Air Filter
(Right & Left)
Air filter
Hooks
(two places)
Air Filter Hooks (two places)
Air Filter (Right & Left)
Air filter
Hooks (two places)
Hooks (two places)
Air Filter(Right & Left)
Air Filter
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM13

14
TROUBLESHOOTING
WARNING!
Symptom
Doesn’t operate immedi-
ately:
Noise is heard:
Smells:
Mist or steam are
emitted:
Airflow is weak or stops:
Problem
●If the unit is stopped and then immediately started again, the com-
pressor will not operate for about 3 minutes, in order to prevent
fuse blowouts.
●
Whenever the Power Supply Plug is disconnected and then re-
connected to a power outlet, the protection circuit will operate for
about 3 minutes, preventing unit operation during that period.
●During operation and immediately after stopping the unit, the
sound of water flowing in the air conditioner’s piping may be
heard. Also, noise may be particularly noticeable for about 2 to 3
minutes after starting operation (sound of coolant flowing).
●During operation, a slight squeaking sound may be heard. This is
the result of minute expansion and contraction of the front cover
due to temperature changes.
●Some smell may be emitted from the indoor unit. This smell is
the result of room smells (furniture, tobacco, etc.) which have
been taken into the air conditioner.
●During Cooling or Dry operation, a thin mist may be seen emitted
from the indoor unit. This results from the sudden Cooling of
room air by the air emitted from the air conditioner, resulting in
condensation and misting.
●The fan may operate at very low speed during Dry operation or
when the unit is monitoring the room’s temperature.
●In the monitor AUTO operation, the fan will operate at very low
speed.
See Page
—
—
—
—
—
6
NORMAL
FUNCTION
In the event of a malfunction (burning smell, etc.), immediately stop operation, disconnect the
Power Supply Plug, and consult authorized service personnel.
Merely turning off the unit’s power switch will not completely disconnect the unit from the power
source. Always be sure to disconnect the Power Supply Plug or turn off your circuit breaker to
ensure that power is completely off.
Before requesting service, perform the following checks:
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM14

15
AUTO Restart
In Event of Power Interruption
●The air conditioner power has been interrupted by a
power failure. The air conditioner will then restart auto-
matically in its previous mode when the power is restored.
●Operated by setting before the power failure.
TROUBLESHOOTING
Symptom
Doesn’t operate at all:
Poor Cooling performance:
The unit operates
differently from the Remote
Control Unit’s setting:
See Page
—
8 - 9
—
6
5
CHECK ONCE
MORE
Items to check
●Is the Power Supply Plug disconnected its outlet?
●Has there been a power failure?
●Has a fuse blown out, or a circuit breaker been tripped?
●Is the timer operating?
●Is the Air Filter dirty?
●Air the air conditioner’s intake grille or outlet port blocked?
●Did you adjust the room temperature settings (thermostat) cor-
rectly?
●Is there a window or door open?
●In the case of Cooling operation, is a window allowing bright sun-
light to enter? (Close the curtains.)
●In the case of Cooling operation, are there heating apparatus and
computers inside the room, or are there too many people in the
room?
●Is the unit set for LOW or QUIET operation?
●Are the Remote Control Unit’s batteries dead?
●Are the Remote Control Unit’s batteries loaded properly?
OPERATING TIPS
If the problem persists after performing these checks, or if you notice burning smells, or the TIMER indicator Lamp (Fig. 3 6)
and the OPERATION Indicator Lamp (Fig 3 5) flashes, immediately stop operation, disconnect the Power Supply Plug (Fig. 1 C),
and consult authorized service personnel.
●
If a power failure occurs during TIMER operation, the timer
will be reset and the unit will begin (or stop) operation at the
new time setting. In the event that this kind of timer fault
occurs the TIMER Indicator Lamp will flash (see Page. 4).
●Use of other electrical appliances (electric shaver, etc.) or
nearby use of a wireless radio transmitter may cause the
air conditioner to malfunction. In this event, temporarily
disconnect the Power Supply Plug, reconnect it, and then
use the Remote Control Unit to resume operation.
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM15

16
OPERATING TIPS
Dry Mode
About 18 to 43 °C
About 18 to 32 °C
Outdoor temperature
Indoor temperature
Cooling Mode
About 18 to 43 °C
About 18 to 32 °C
Temperature and Humidity Range
●If the air conditioner is used under higher temperature conditioner than those listed, the built-in protection circuit may
operate to prevent internal circuit damage. Also, during Cooling and Dry modes, if the unit is used under conditions of
lower temperature than those listed above, the heat-exchanger may freeze, leading to water leakage and other damage.
●Do not use this unit for any purposes other than the Cooling, Dehumidifying, and air-circulation of rooms in ordinary
dwellings.
●If the unit is used for long periods under high-humidity conditions, condensation may form on the surface of the indoor
unit, and drip onto the floor or other objects underneath. (About 80% or more)
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM16

17
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM17

18
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM18

19
06G362_9331435017-01_En.p65 2006.8.7, 3:18 PM19
