PRIMEQUEST 3800E
System Configuration Guide
Contents
1. Overview
2. Base Unit
3. System Board (SB)
4. CPU
05. Memory
16. I/O Unit
27. Disk Unit (DU)
58. HDD / SSD
79. Power Supply Unit (PSU), Power Cords
810. PCI Card
911. Rack Installation
10 12. Maximum Quantity of PCIe Cards
11 13. OS x Order Number Matrix
14. Restrictions
12 Change Report
December 2018

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide
Front side
Rear side
Overview
System Board
Disk Unit for SAS
Disk Unit for Disk/MMB Unit
(Disk Unit_M)
I/O Unit
Power Supply Unit
Management Board
DU_M#0
slot#0
slot#1
slot#2
slot#3
SB#3
SB#2
SB#1
SB#0
DU_M#1
DU_M#2
DU_M#3
DU_SAS#0
DU_SAS#1
slot#0
slot#1
slot#2
slot#3
MMB#1
MMB#0
PSU_M#1
PSU#1 PSU#0
PSU#2
PSU#3
IOU#0
IOU#1
IOU#2
IOU#3
slot#0
slot#1
slot#2
slot#3
slot#0
slot#1
slot#2
slot#3
slot#0
slot#0
slot#1
slot#1
slot#2
slot#2
slot#3
slot#3
PSU_M#0
2 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide
Light gray color components Included in a Base unit.
Dark gray color components are optional.
Configuration diagram
PSU_M#0 PSU_M#1 MMB#0 MMB#1
Disk Unit_M #0
HDD/SSD
RAID
Card
FBU
Disk Unit_M #1
HDD/SSD
RAID
Card
FBU
Disk Unit _M#2
HDD/SSD
RAID
Card
FBU
Disk Unit_M #3
HDD/SSD
RAID
Card
FBU
PSU#0 PSU#1 PSU#2 PSU#3
I/O Unit #0
PCI Slot
LAN port
x8 Lane x8 Lane
x16 Lane
x8 Lane
Disk Unit #0
HDD/SSD
RAID
Card
FBU
Disk UNit #1
PCIe SFF
Retimer
Card
SB #0
CPUCPU
Memory
DIMM
…
DIMM
DIMM
…
DIMM
Memory
TPM M.2
eLCM
SB #1
CPUCPU
Memory
DIMM
…
DIMM
DIMM
…
DIMM
Memory
TPM M.2
eLCM
SB #2
CPUCPU
Memory
DIMM
…
DIMM
DIMM
…
DIMM
Memory
TPM M.2
eLCM
SB #3
CPUCPU
Memory
DIMM
…
DIMM
DIMM
…
DIMM
Memory
TPM M.2
eLCM
I/O Unit #1
PCI Slot
LAN port
x8 Lane x8 Lane
x16 Lane
x8 Lane
I/O Unit #2
PCI Slot
LAN port
x8 Lane x8 Lane
x16 Lane
x8 Lane
I/O Unit #3
PCI Slot
LAN port
x8 Lane x8 Lane
x16 Lane
x8 Lane
3 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide
Part Numbers Legend:
Part numbers:
MC-****** is a Build-to-Order (BTO) option to be assembled with a Base Unit
MCX****** is an option to be shipped separately from a Base Unit (Loose Delivery)
PRIMEQUEST 3800E Base Unit
MCJ3AC111
- Rack mount type
- 1x System Board is included in the Base Unit, Max. 4x System Boards can be mounted.
- 1x I/O Unit is included in the Base Unit, Max. 4x I/O Units can be mounted.
- Max. 4 x PCI Boxes can be connected.
- 1 x MMB is included. An additional MMB can be mounted for redundancy.
- 2 x LAN ports per I/O Unit.
- 2x PSUs and 1x PSU_M are included in the Base Unit, Max. 4x PSUs and 2x PSU_Ms can be mounted.
- Power cords need to be ordered. The quantity is equal to the quantity of PSU.
- Rack space : 7U
Advanced Thermal Design Option
MC-0PTH2
Operating temperature of up to 40°C
System Board
Base Unit
The following options are NOT included in the Base Unit.
- CPU, Memory, power cord
The following compoernents are included in the Base Unit.
- 1x System Board
- 1x I/O Unit
- 2x PSUs and 1x PSU_M
- 1x Rack Mount Kit
- 1x MMB
Start
When this option
is selected, CPU with TDP 200W or more
cannot be installed.
4 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide

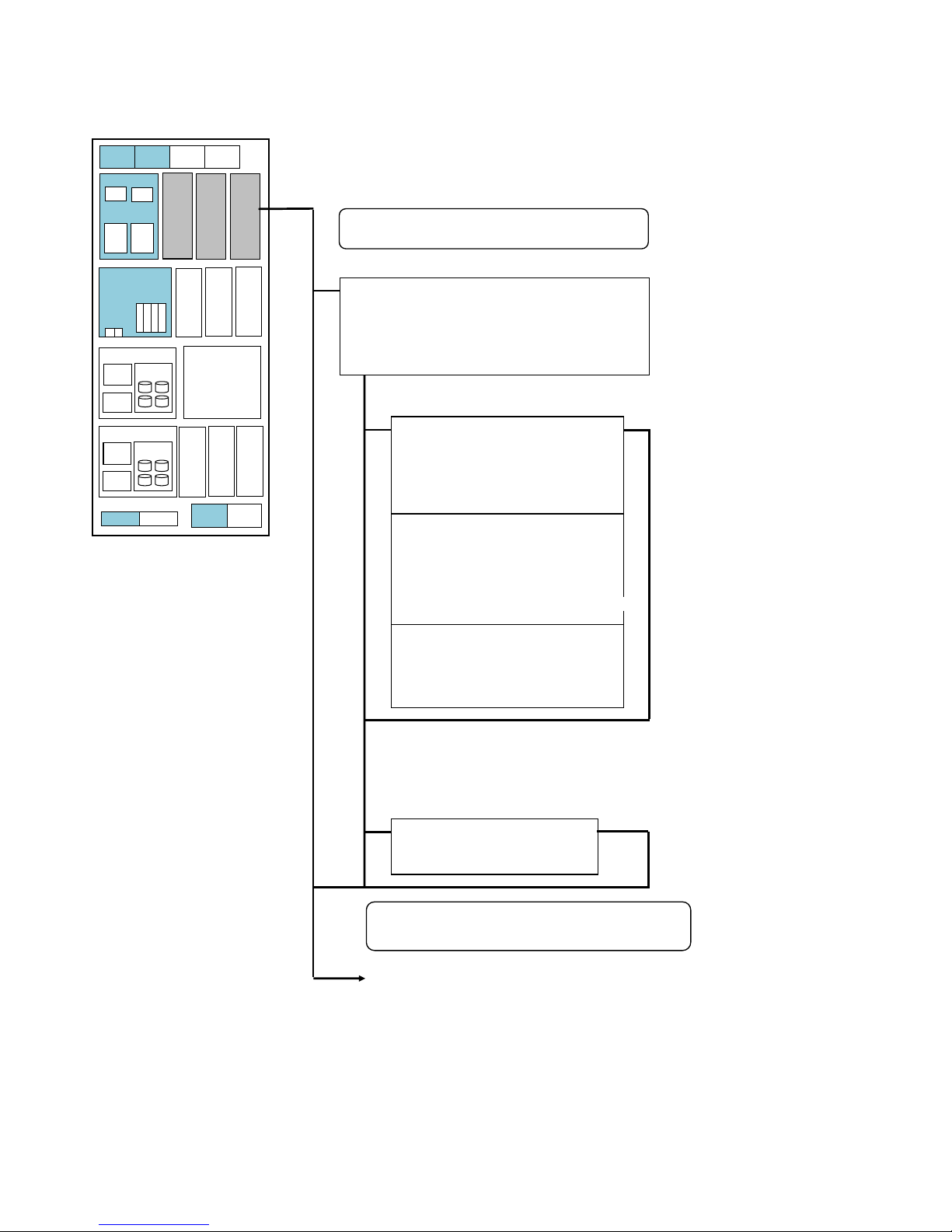

System Board
MC-3HSBA1 / MCX3HSBA1 (LD)
- Min. 1 xSB needs to be mounted. Max. 4 xSB can be mounted per Base Unit.
- The System Board does not include a security chip called TPM.
- Neither CPU nor memory module is included. CPU and memory need to be ordered separately.
Min. 2 xCPU and 2 xmemory module need to be mounted oneach System Board.
Max. 12 xmemory modules (24 xDIMMs) can be mounted.
M.2 Flash Device (VMware, 150GB)
MC-5FB721 / MCX5FB721 (LD)
- M.2 SATA 150GB for VMware boot only
- 1 x M.2 Flash Devices can be mounted.
- DWPD : 1.5
- Cannot be mounted with M.2 Flash Device (150GB)
[ MC-5FB731 / MCX5FB731 ]
M.2 Flash Device (150GB)
MC-5FB731 / MCX5FB731 (LD)
- M.2 SATA 150GB boot device except for VMware
- Max 2 x M.2 Flash Devices can be mounted.
- Software RAID can be configured with two devices.
- DWPD : 1.5
- Cannot be mounted with M.2 Flash Device (VMware,
150GB) [ MC-5FB721 / MCX5FB721 ]
USB Flash Device 64GB Dual
MC-5FA411 / MCX5FA411 (LD)
- USB 64GB boot device mounted on SB
- 2 x 64GB micro SD cards are mounted.
- 2 micro SD cards automatically configured RAID1.
- Cannot be mounted with M.2 Flash Device.
TPM module V2.0
MC-6HTP31 / MCX6HTP31(LD)
- Available except for China
- One for System Board
CPU
System Board (SB)
PSU_M
#1
PSU_M
#0
I/O Unit
#1
I/O Unit #0
LAN
port
PCI Slots
x4
MMB #0
Disk
Unit_M
#1
PSU#3
PSU#2PSU#1
PSU#0
MMB #1
Disk Unit #0
HDD/SSD
RAID
Card
FBU
SB #0
Memory
x12 slots
CPU
Memory
x12 slots
CPU
SB #1
Disk Unit #1
Disk Unit_M #0
HDD/SSDRAID
Card
FBU
Disk
Unit_M
#2
Disk
Unit_M
#3
I/O Unit
#2
I/O Unit
#3
SB #2 SB #3
1x System Board is included in the Base unit,
Max. 4x System Boards can be mounted per Base unit.
The following functions are NOT available for the System Board with TPM.
-
Reserved SB
-
Dynamic Reconfiguration
5 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide

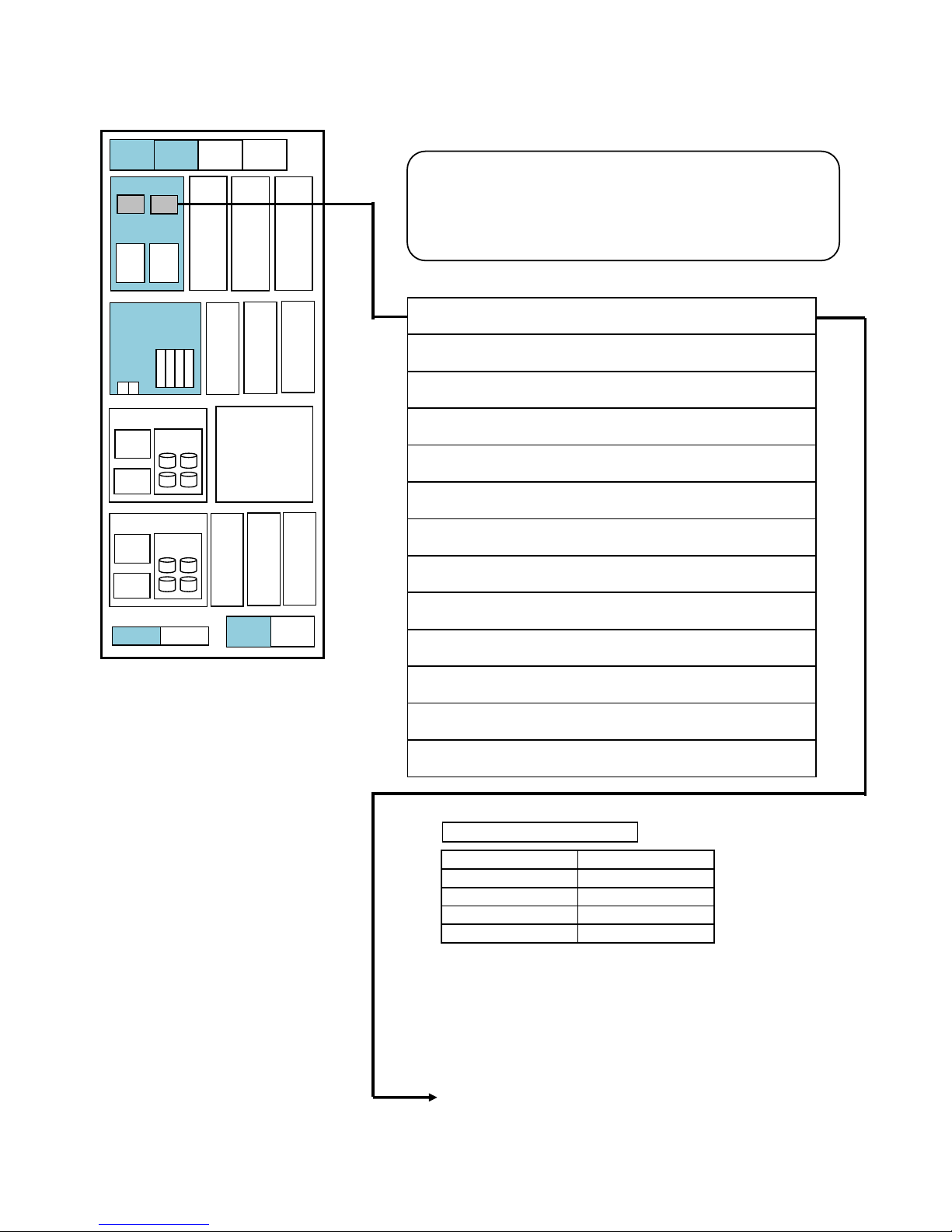

CPU
Intel® Xeon® Platinum 8180M Processor (28C/2.5GHz/1.5TB/205W）
MC-3BFA11 / MCX3BFA11(LD)
Intel® Xeon® Platinum 8180 Processor (28C/2.5GHz/768GB/205W）
MC-3BFA21 / MCX3BFA21(LD)
Intel® Xeon® Platinum 8176M Processor (28C/2.1GHz/1.5TB/165W）
MC-3BFB11 / MCX3BFB11(LD)
Intel® Xeon® Platinum 8176 Processor (28C/2.1GHz/768GB/165W）
MC-3BFB21 / MCX3BFB21(LD)
Intel® Xeon® Platinum 8170M Processor (26C/2.1GHz/1.5TB/165W）
MC-3BFC21 / MCX3BFC21(LD)
Intel® Xeon® Platinum 8170 Processor (26C/2.1GHz/768GB/165W）
MC-3BFC11 / MCX3BFC11(LD)
Intel® Xeon® Platinum 8164 Processor (26C/2GHz/768GB/150W）
MC-3BFD11 / MCX3BFD11(LD)
Intel® Xeon® Platinum 8168 Processor (24C/2.7GHz/768GB/205W）
MC-3BFE11 / MCX3BFE11(LD)
Intel® Xeon® Platinum 8160M Processor (24C/2.1GHz/1.5TB/150W）
MC-3BFF11 / MCX3BFF11(LD)
Intel® Xeon® Platinum 8160 Processor (24C/2.1GHz/768GB/150W）
MC-3BFF21 / MCX3BFF21(LD)
Intel® Xeon® Platinum 8153 Processor (16C/2.0GHz/768GB/125W）
MC-3BFG11 / MCX3BFG11(LD)
Intel® Xeon® Platinum 8158 Processor (12C/3.0GHz/768GB/150W）
MC-3BFH11 / MCX3BFH11(LD)
Intel® Xeon® Platinum 8156 Processor (4C/3.6GHz/768GB/105W）
MC-3BFJ11 / MCX3BFJ11(LD)
- Two CPUs required for one System board.
- Only the same kind of CPU can be installed in the partition.
- Different types of CPUs can be installed in the different partitions.
Memory
3SB
6
4SB
8
# of SBs in one Base Unit
# of CPUs in one Base Unit
1SB
2
2SB
4
PSU_M
#1
PSU_M
#0
I/O Unit
#1
I/O Unit #0
LAN
port
PCI Slots
x4
MMB #0
Disk
Unit_M
#1
PSU#3
PSU#2PSU#1
PSU#0
MMB #1
Disk Unit #0
HDD/SSD
RAID
Card
FBU
SB #0
Memory
x12 slots
CPU
Memory
x12 slots
CPU
SB #1
Disk Unit #1
Disk Unit_M #0
HDD/SSD
RAID
Card
FBU
Disk
Unit_M
#2
Disk
Unit_M
#3
I/O Unit
#2
I/O Unit
#3
SB #2 SB #3
-
2x CPUs required for one System board.
-
Can not mix different CPUs in one partition.
-
CPUs with number 'xxxxM' support up to 1.5TB of memory.
Other CPUs support up to 768GB of memory.
CPU mounting condition
*(
Number of cores / Frequency / Max. memory per CPU /
6 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide

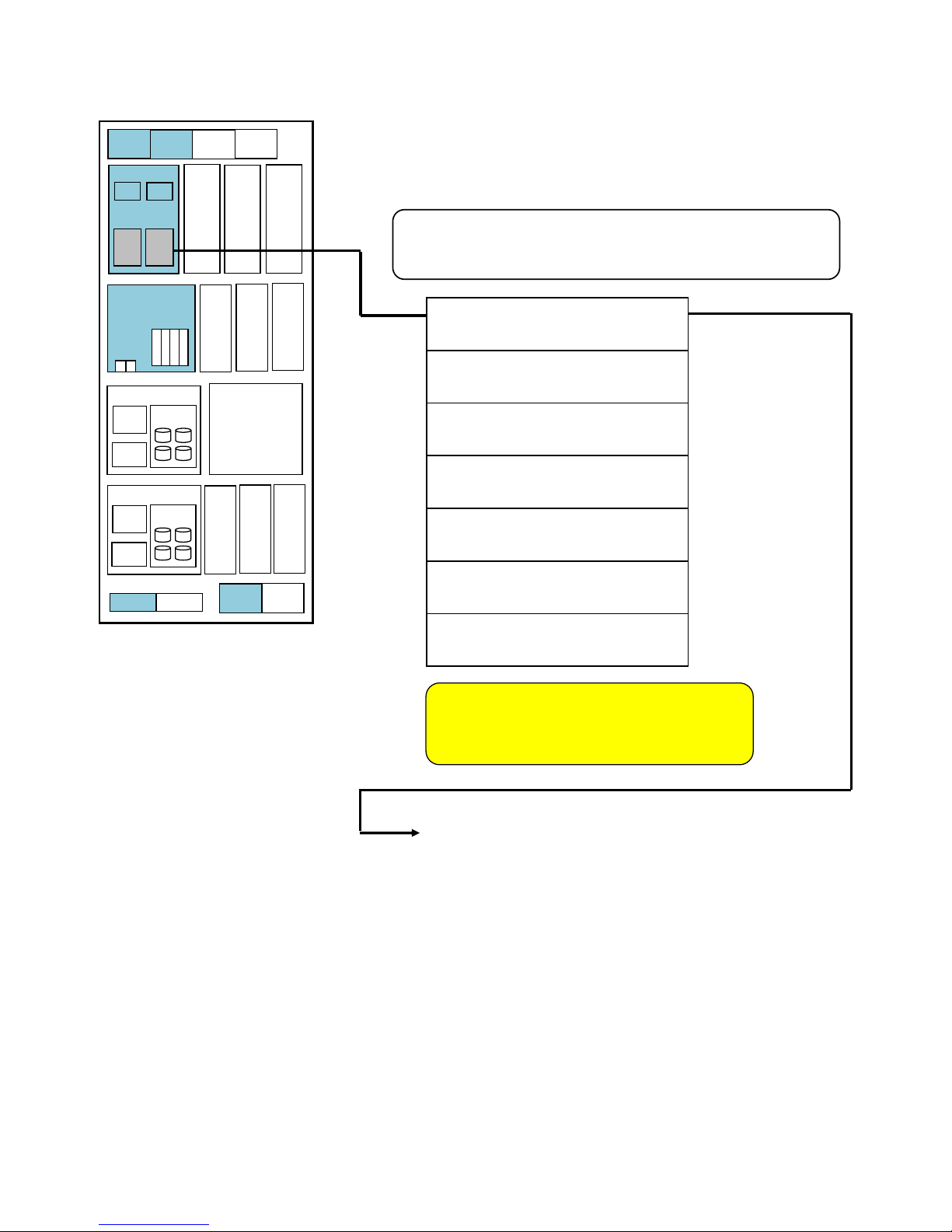

16GB memory ( 8GB DDR4 DIMM x 2 )
MC-3CD531 / MCX3CD531 (LD)
- 2x 8GB 2666GHz 1Rx4 RDIMMs
32GB memory ( 16GB DDR4 DIMM x 2 )
MC-3CD641 / MCX3CD641 (LD)
- 2x 16GB 2666GHz 1Rx4 RDIMMs
32GB memory ( 16GB DDR4 DIMM x 2 ) *1
MC-3CD651 / MCX3CD651 (LD)
- 2x 16GB 2666GHz 2Rx4 RDIMMs
64GB memory ( 32GB DDR4 DIMM x 2 )
MC-3CD741 / MCX3CD741 (LD)
- 2x 32GB 2666GHz 2Rx4 RDIMMs
128GB memory ( 64GB DDR4 DIMM x 2 )
MC-3CD831 / MCX3CD831 (LD)
- 2x 64GB 2666GHz 4Rx4 RDIMMs
128GB memory ( 64GB DDR4 DIMM x 2 )
MC-3CC821 / MCX3CC821 (LD)
- 2x 64GB 2666GHz 4Rx4 LRDIMMs
256GB memory ( 128GB DDR4 DIMM x 2 )
*2
MC-3CD921 / MCX3CD921 (LD)
- 2x 128GB 2666GHz 8Rx4 RDIMMs
Memory mounting
Memory
PSU_M
#1
PSU_M
#0
I/O Unit
#1
I/O Unit #0
LAN
port
PCI Slots
x4
MMB #0
Disk
Unit_M
#1
PSU#3
PSU#2PSU#1
PSU#0
MMB #1
Disk Unit #0
HDD/SSD
RAID
Card
FBU
SB #0
Memory
x12 slots
CPU
Memory
x12 slots
CPU
SB #1
Disk Unit #1
Disk Unit_M #0
HDD/SSD
RAID
Card
FBU
Disk
Unit_M
#2
Disk
Unit_M
#3
I/O Unit
#2
I/O Unit
#3
SB #2 SB #3
-
At least one set of memory (2 DIMMs) must be installed for
each CPU.
-
Max 6 sets of memory (12 DIMMs) can be installed for each CPU.
*1 Special release option.
Please contact a local sales representative when needed.
*2 Long lead time option.
Please contact a local sales representative when needed.
7 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide
1. Memory and DIMM slots
(1) Memory module for PRIMEQUEST is composed of 2 x DIMMs.
(2) At least 2 DIMMs have to be installed in one CPU (4 DIMMs in one SB) in Normal mode and Spare mode,
4 DIMMs have to be installed in one CPU (8 DIMMs in one SB) in Mirror mode.
Memory mode can be selected from the menu displayed by right-clicking the partition in SystemArchitect.
(3) Up to 12 DIMMs can be installed in each CPU.
(4) DIMM SlotArrangement of SB/MSB is shown below.
DIMM#xx0 is farther Slots and DIMM#xx1 is nearer Slots among the six DIMM Slots connected to the iMC.
DIMM Slot Arrangement of SB/MSB
MSC : Memory Scale-up Controller on MSB
iMC : Memory Controller
2. Maximum Memory Capacity
Memory Installation Order
Microsoft® Windows Server® 2016 (Standard / Datacenter)
Microsoft® Hyper-V Server 2016
12
Memory Mounting
Operating System
Max. Memory Capacity
(TB)
Microsoft® Windows Server® 2012 R2 (Standard/Datacenter)
Microsoft® Hyper-V Server 2012 R2
4
VMware vSphere® 6.5 Patch01
12
Red Hat® Enterprise Linux® 7.3 (incl. KVM)
12
SUSE® Linux Enterprise Server 12SP2 (incl. KVM/XEN)
12
Oracle® Linux 7.4
12
iMC
iMC
CPU#0
DIMM#0F0
DIMM#0F1
DIMM#0E0
DIMM#0E1
DIMM#0D0
DIMM#0D1
DIMM#0A1
DIMM#0A0
DIMM#0B1
DIMM#0B0
DIMM#0C1
DIMM#0C0
iMC
iMC
DIMM#1A1
DIMM#1A0
DIMM#1B1
DIMM#1B0
DIMM#1C1
DIMM#1C0
DIMM#1F0
DIMM#1F1
DIMM#1E0
DIMM#1E1
DIMM#1D0
DIMM#1D1
CPU#1
8 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide
Memory Installation Order
DIMM installation order on System Board
The order of DIMM installation is shown in the following tables.DIMMs are installed in order from one with small number.
Memory Mode is set for each partition in the configuration menu of SystemArchitect.
0A0 0B0 0C0 0D0
0E0 0F0 1A0 1B0 1C0 1D0 1E01F0
0A1 0B1 0C1 0D1 0E1 0F1 1A1 1B1 1C1 1D1 1E1 1F1
1 2
4(*1)
81 2 4(*1) 81 3 5(*1) 91 3 5(*1) 9
6 6(*2) 10 6 6(*2) 10 7 7(*2) 11 7 7(*2) 11
1482610 1593711
1482610 1593711
1482610 1593711
1482610 1593711
114114115115
224224335335
112112113113
(*1)(*2) In the case of 4 DIMMs in one iMC, remove DIMM installed in (*1) slot and then install DIMM to (*2) slot.
(*3) When the CPU whose memory capacity is 768GB is installed, 128GB DIMM can be installed up to number 5 and cannot be installed after number 6.
(*4) Only when the CPU whose memory capacity is 768GB and 128GB DIMM are installed together, this installation order is applied.
Memory
Mode
Lockstep
CPU#0 DIMM Slot
CPU#1 DIMM Slot
iMC#0
iMC#1
iMC#0
iMC#1
Normal /
Performance
Disabled
(*3)
Enabled
(*3)
Full Mirror /
Address
Range Mirror
Disabled /
Enabled
Disabled /
Enabled
(*4)
Not supported
Enabled
Not supported
Spare
Disabled
(*3)
Enabled
Not supported
9 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide
Which size of DIMM can be installed together in a DDR CH or a SB/MSB and a Partition are shown in the following tables.
When the partitions are different, there is no restriction on mixing of DIMMs with different capacity in a system.
DIMM mixed installation condition in a DDR channel.
Yes: Supported Blank: Not supported
(B): Using DIMM mixed installation Condition#B
DIMM mixed installation condition in a System Board and partition.
Yes: Supported Blank: Not supported
*1 : Mixed installation with 32GB Memory and 64GB Memory is allowed only in the case of combination of 16GB-1R RDIMM and 32GB-2R RDIMM.
*2 : Mixed installation with 128GB RDIMM and 64GB RDIMM is allowed.
(A): Using DIMM mixed installation Condition#A
(B): Using DIMM mixed installation Condition#B
Memory Mixed Condition
16GB Memory
(8GB R-DIMM x2)
32GB Memory
(16GB R-DIMM x2, 1Rx4)
32GB Memory
(16GB R-DIMM x2, 2Rx4)
64GB Memory
(32GB R-DIMM x2)
128GB Memory
(64GB LR-DIMM x2)
128GB Memory
(64GB R-DIMM x2, 3DS)
256GB Memory
(128GB R-DIMM x2, 3DS)
16GB Memory
(8GB R-DIMM x2)
Yes
32GB Memory
(16GB R-DIMM x2, 2Rx4)
Yes
32GB Memory
(16GB R-DIMM x2, 1Rx4)
Yes
Yes(B)
128GB Memory
(64GB LR-DIMM x2)
Yes
64GB Memory
(32GB R-DIMM x2)
Yes
Yes
256GB Memory
(128GB R-DIMM x2, 3DS)
Yes
128GB Memory
(64GB R-DIMM x2, 3DS)
256GB Memory
(128GB R-DIMM x2, 3DS)
16GB Memory
(8GB R-DIMM x2)
Yes
16GB Memory
(8GB R-DIMM x2)
32GB Memory
(16GB R-DIMM x2, 1Rx4)
32GB Memory
(16GB R-DIMM x2, 2Rx4)
64GB Memory
(32GB R-DIMM x2)
128GB Memory
(64GB LR-DIMM x2)
128GB Memory
(64GB R-DIMM x2, 3DS)
32GB Memory
(16GB R-DIMM x2, 2Rx4)
Yes
32GB Memory
(16GB R-DIMM x2, 1Rx4)
Yes
Yes(B)
Yes (*1)(A)
128GB Memory
(64GB LR-DIMM x2)
Yes
64GB Memory
(32GB R-DIMM x2)
Yes
Yes
Yes (*2)(A)
256GB Memory
(128GB R-DIMM x2, 3DS)
Yes
128GB Memory
(64GB R-DIMM x2, 3DS)
10 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide
DIMM mixed installation conditions are shown in the following tables.
Same symbols mean to be able to install same DIMMs which is defined in the tables below.
Different symbols mean to be able to mix different DIMMs.
Condition#A : DIMMs cannot be mixed in a DDR channel.
0A0 0B0 0C0 0D0 0E0 0F0 0A0 0B0 0C0 0D0 0E0 0F0
0A1 0B1 0C1 0D1 0E1 0F1 0A1 0B1 0C1 0D1 0E1 0F1
□△〇☆▽◇■▲●★▼◆
□△〇☆▽◇■▲●★▼◆
□△〇☆▽◇■▲●★▼◆
□△〇☆▽◇■▲●★▼◆
□△〇☆▽◇■▲●★▼◆
□△〇☆▽◇■▲●★▼◆
□□□△△△■■■▲▲▲
□□□△△△■■■▲▲▲
Condition#B : DIMMs can be mixed in a DDR channel.
0A0 0B0 0C0 0D0 0E0 0F0 0A0 0B0 0C0 0D0 0E0 0F0
0A1 0B1 0C1 0D1 0E1 0F1 0A1 0B1 0C1 0D1 0E1 0F1
□△〇☆▽◇■▲●★▼◆
♤ ♡ ♧ ♙ ♘ ♖ ♠ 💛 ☘ ♟♞♜
□△〇☆▽◇■▲●★▼◆
♤ ♡ ♧ ♙ ♘ ♖ ♠ 💛 ☘ ♟♞♜
□△〇☆▽◇■▲●★▼◆
♤ ♡ ♧ ♙ ♘ ♖ ♠ 💛 ☘ ♟♞♜
□□□△△△■■■▲▲▲
〇〇〇☆☆☆●●●★★★
Memory Mixed Installation Condition
CPU#0 / MSC#0
CPU#1 / MSC#1
iMC#0
iMC#1
iMC#0
iMC#1
CPU#0 / MSC#0
CPU#1 / MSC#1
Memory Mode
Lockstep
Normal
Disabled
Enabled
Sparing
Disabled
Enabled
Not Supported
Full Mirror /
Address Range
Mirror
Disabled
Enabled
Not Supported
iMC#0
iMC#1
iMC#0
iMC#1
Memory Mode
Lockstep
Normal
Disabled
Enabled
Sparing
Disabled
Enabled
Not Supported
Full Mirror /
Address Range
Mirror
Disabled
Enabled
Not Supported
11 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide
Management Board (MMB)
MC-5HMM31 / MCX5HMM31 (LD)
- Max. 2 x MMBs can be mounted.
1 x MMB is included in the Base Unit.
An additional MMB can be mounted as an option.
- MMB can be redundant with 2 x MMB configuration.
- Each MMB has 4 x LAN ports for server administration and maintenance.
( 2 x user ports, 1 x REMCS port and 1 x maintenance port)
I/O Unit
Management Board (MMB)
1x MMB is included in the Base Unit.
Max. 2x MMBs
can be mounted in a Base unit.
PSU_M
#1
PSU_M
#0
I/O Unit
#1
I/O Unit #0
LAN
port
PCI Slots
x4
MMB #0
Disk
Unit_M
#1
PSU#3
PSU#2PSU#1
PSU#0
MMB #1
Disk Unit #0
HDD/SSD
RAI
D
Card
FBU
SB
/MS
B
#1
Disk Unit #1
Disk Unit_M #0
HDD/SSD
RAI
D
Card
FBU
Disk
Unit_M
#2
Disk
Unit_M
#3
I/O Unit
#2
I/O Unit
#3
SB #0
Memory
x12 slots
CPU
Memory
x12 slots
CPU
MSB #2
Memory
x12 slots
Memory
x12 slots
MSB
#3
12 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide
I/O UNIT
I/O Unit
MC-5HUX61 / MCX5HUX61 (LD)
- 1x I/O Unit is included in the Base unit,
Max. 4 x I/O Units can be mounted.
- 2 x 10GBASE-T LAN ports per I/O Unit.
- 4x Low Profile PCIe slots per I/O Unit.
- PCI Express 3.0 x16 Lane x1 slot, x8 Lane x3 slots
- 12 PCIe slots in the PCI Box are available using PCI Box connection card.
- PCI hot plug is not supported. PCI hot plug is available on PCI Box.
Disk Unit for SAS
PSU_M
#1
PSU_M
#0
I/O Unit
#1
I/O Unit #0
LAN
port
PCI Slots
x4
MMB #0
Disk
Unit_M
#1
PSU#3
PSU#2PSU#1
PSU#0
MMB #1
Disk Unit #0
HDD/SSD
RAID
Card
FBU
SB #0
Memory
x12 slots
CPU
Memory
x12 slots
CPU
SB #1
Disk Unit #1
Disk Unit_M #0
HDD/SSD
RAID
Card
FBU
Disk
Unit_M
#2
Disk
Unit_M
#3
I/O Unit
#2
I/O Unit
#3
SB #2 SB #3
1x I/O Unit is included in the Base Unit.
Max. 4x I/O Units
can be mounted in a Base unit.
With PSU 2 + n configuration, IOU can only be installed with a maximum of 2 units.
Please refer to 'Power Supply Unit' for details.
13 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide
Disk Unit for SAS
MC-5HDU71 / MCX5HDU71 (LD)
- Max. 2x Disk Units for SAS per Base Unit.
- 1x RAID Controller card is required.
- Max 4x SAS HDD/SSD can be mounted per Disk Unit.
SAS RAID Controll Card (2GB Cache)
MC-0JSRA1 / MCX0JSRA1 (LD)
- One RAID Controller card allows mounting of 4x disk drives
such as HDD or SSD.
- 12Gbps for each disk drive. 2GB of cache memory
- RAID 0/1/1E/5/6/10 and hot spare supported
RAID Advanced Software Options
MC-0KLA51 / MCX0KLA51 (LD)
License Activation Key for CacheCade 2.0
- Connection between I/O Unit Flash Back-up Unit
and Disk Unit MC-0JFB61 / MCX0JFB61 (LD)
- Flash Backup Unit for RAID Controller (2GB Cache)
I/O Unit#0 Disk Unit #0
I/O Unit#1 Disk Unit #1
SAS RAID Controll Card (4GB Cache)
MC-0JSR71 / MCX0JSR71 (LD)
- One RAID Controller card allows mounting of 4x disk drives
such as HDD or SSD.
- 12Gbps for each disk drive. 4GB of cache memory
- RAID 0/1/5/6/10 and hot spare supported
- No RAID Software License required.
SAS RAID Controll Card (8GB Cache)
MC-0JSR81 / MCX0JSR81 (LD)
- One RAID Controller card allows mounting of 4x disk drives
such as HDD or SSD.
- 12Gbps for each disk drive. 8GB of cache memory
- RAID 0/1/5/6/10 and hot spare supported
- No RAID Software License required.
Flash Back-up Unit
MC-0JFB41 / MCX0JFB41 (LD)
- Flash Backup Unit for RAID Controller
(4GB/8GB Cache)
Disk Unit for Disk/MMB Unit
Disk Unit for SAS
I/O Unit
Disk Unit
PSU_M
#1
PSU_M
#0
I/O Unit
#1
I/O Unit #0
LAN
port
PCI Slots
x4
MMB #0
Disk
Unit_M
#1
PSU#3
PSU#2PSU#1
PSU#0
MMB #1
Disk Unit #0
HDD/SSD
RAI
D
Card
FBU
SB #0
Memory
x12 slots
CPU
Memory
x12 slots
CPU
SB #1
Disk Unit #1
Disk Unit_M #0
HDD/SSD
RAI
D
Card
FBU
Disk
Unit_M
#2
Disk
Unit_M
#3
I/O Unit
#2
I/O Unit
#3
SB #2 SB #3
Disk Unit for SAS
-
Max. 2 of the following Disk Units can be mounted on the Base
Unit.
*Please see Restrictions No.6.
14 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide
Disk Unit for Disk/MMB Unit (Disk Unit_M)
Disk Unit for Disk/MMB Unit
MC-5HDU51 / MCX5HDU51 (LD)
- Max. 4x Disk Units per Disk/MMB Unit.
- 1x RAID Controller card is required per Disk Unit.
- Max 4x SAS HDD/SSD can be mounted per Disk Unit.
SAS RAID Controll Card (2GB Cache)
MC-0JSRA1 / MCX0JSRA1 (LD)
- One RAID Controller card allows mounting of 4x disk drives
such as HDD or SSD.
- 12Gbps for each disk drive. 2GB of cache memory
- RAID 0/1/1E/5/6/10 and hot spare supported
RAID Advanced Software Options
MC-0KLA51 / MCX0KLA51 (LD)
License Activation Key for CacheCade 2.0
Flash Back-up Unit
MC-0JFB61 / MCX0JFB61 (LD)
- Flash Backup Unit for RAID Controller (2GB Cache)
- Connection between I/O Unit
and Disk Unit_M SAS RAID Controll Card (4GB Cache)
MC-0JSR71 / MCX0JSR71 (LD)
- One RAID Controller card allows mounting of 4x disk drives
such as HDD or SSD.
- 12Gbps for each disk drive. 4GB of cache memory
- RAID 0/1/5/6/10 and hot spare supported
- No RAID Software License required.
SAS RAID Controll Card (8GB Cache)
MC-0JSR81 / MCX0JSR81 (LD)
- One RAID Controller card allows mounting of 4x disk drives
such as HDD or SSD.
- 12Gbps for each disk drive. 8GB of cache memory
- RAID 0/1/5/6/10 and hot spare supported
- No RAID Software License required.
Flash Back-up Unit
MC-0JFB41 / MCX0JFB41 (LD)
- Flash Backup Unit for RAID Controller
(4GB/8GB Cache)
Internal HDD for Disk Unit
I/O Unit#2
Disk Unit_M#2
I/O Unit#3
Disk Unit_M#3
I/O Unit
Disk Unit
I/O Unit#0
Disk Unit_M#0
I/O Unit#1
Disk Unit_M#1
PSU_M
#1
PSU_M
#0
I/O Unit
#1
I/O Unit #0
LAN
port
PCI Slots
x4
MMB #0
Disk
Unit_M
#1
PSU#3
PSU#2PSU#1
PSU#0
MMB #1
Disk Unit #0
HDD/SSD
RAI
D
Card
FBU
SB #0
Memory
x12 slots
CPU
Memory
x12 slots
CPU
SB #1
Disk Unit #1
Disk Unit_M #0
HDD/SSD
RAI
D
Card
FBU
Disk
Unit_M
#2
Disk
Unit_M
#3
I/O Unit
#2
I/O Unit
#3
SB #2 SB #3
-
Max. 4 Disk Units can be mounted on the Disk/MMB Unit
-
In order to mount Disk Unit #1, #2 and #3, I/O Unit #1, #2 and #3 is
required respectively.
Disk Unit for Disk/MMB Unit
*Please see Restrictions No.6.
15 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide
Internal HDD for Disk Unit
Internal SAS HDD for Disk Unit
300GB Internal HDD (15,000rpm)
MC-5DS771 / MCX5DS771 (LD)
- SAS 12Gbps, hot plug, 512n format

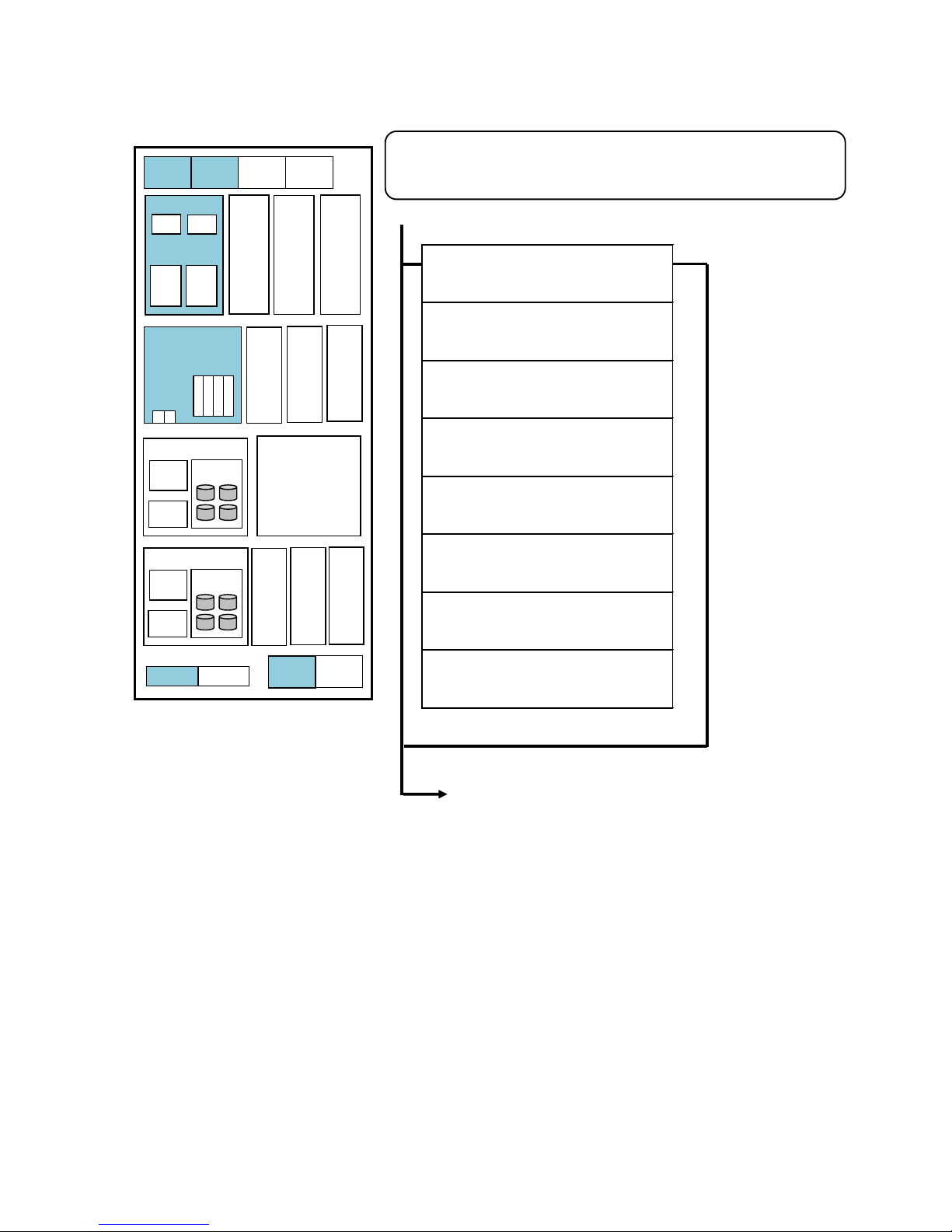

300GB Internal HDD (10,000rpm)
MC-5DS781 / MCX5DS781 (LD)
- SAS 12Gbps, hot plug, 512n format
600GB Internal HDD (15,000rpm)
MC-5DS961 / MCX5DS961 (LD)
- SAS 12Gbps, hot plug, 512n format
600GB Internal HDD (10,000rpm)
MC-5DS971 / MCX5DS971 (LD)
- SAS 12Gbps, hot plug, 512n format
900GB Internal HDD (15,000rpm)
MC-5DSA51 / MCX5DSA51 (LD)
- SAS 12Gbps, hot plug, 512n format
900GB Internal HDD (10,000rpm)
MC-5DSA61 / MCX5DSA61 (LD)
- SAS 12Gbps, hot plug, 512n format
1.2TB Internal HDD (10,000rpm)
MC-5DSB41 / MCX5DSB41 (LD)
- SAS 12Gbps, hot plug, 512n format
1.8TB Internal HDD (10,000rpm)
MC-5DSC21 / MCX5DSC21 (LD)
- SAS 12Gbps, hot plug, 512e format

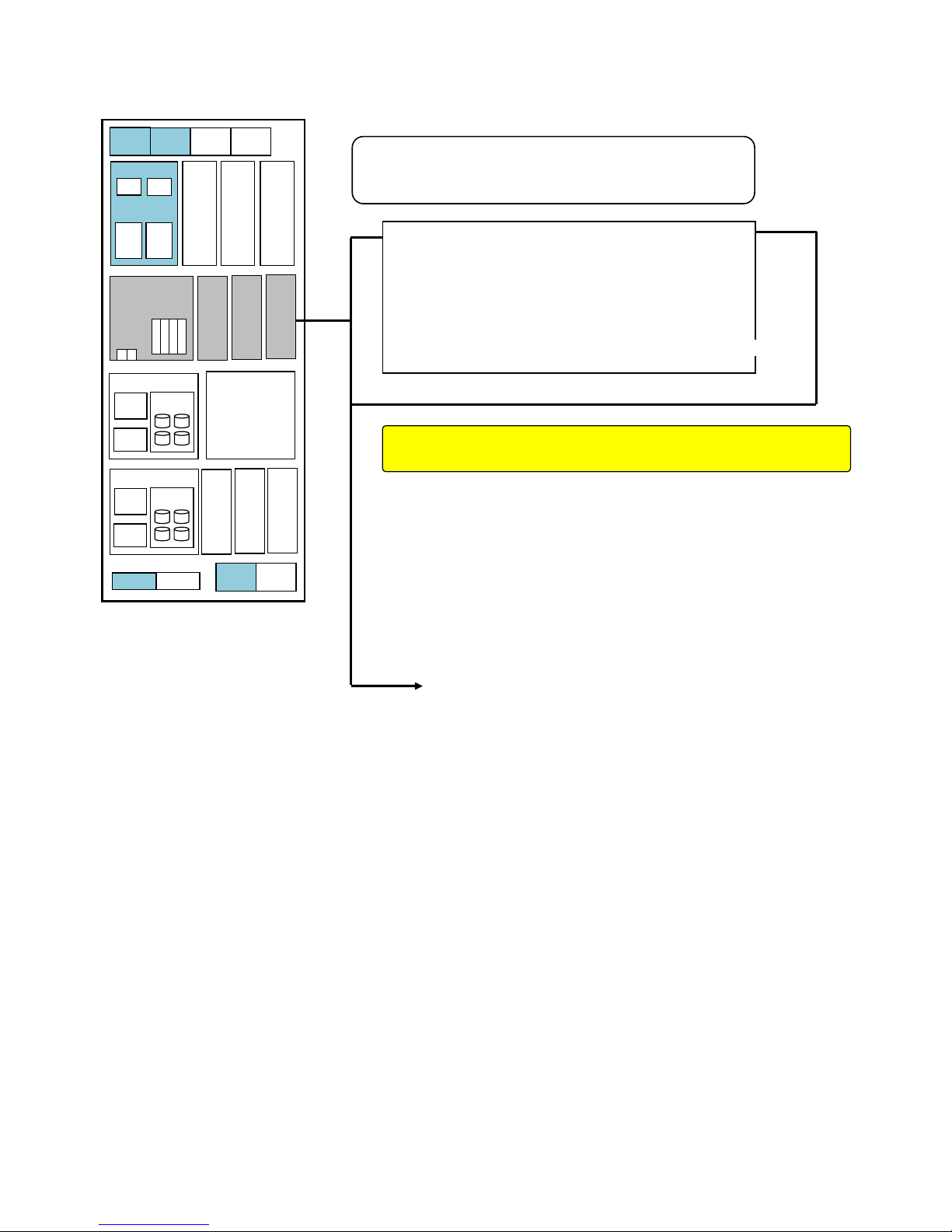

Internal SSD for Disk Unit
PSU_M
#1
PSU_M
#0
I/O Unit
#1
I/O Unit #0
LAN
port
PCI Slots
x4
MMB #0
Disk
Unit_M
#1
PSU#3
PSU#2PSU#1
PSU#0
MMB #1
Disk Unit #0
HDD/SSD
RAID
Card
FBU
SB #0
Memory
x12 slots
CPU
Memory
x12 slots
CPU
SB #1
Disk Unit #1
Disk Unit_M #0
HDD/SSD
RAID
Card
FBU
Disk
Unit_M
#2
Disk
Unit_M
#3
I/O Unit
#2
I/O Unit
#3
SB #2 SB #3
Max. 4 pcs of HDD/SSD can be mounted per the Disk Unit for SAS or the
Disk Unit for Disk/MMB Unit.
16 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide

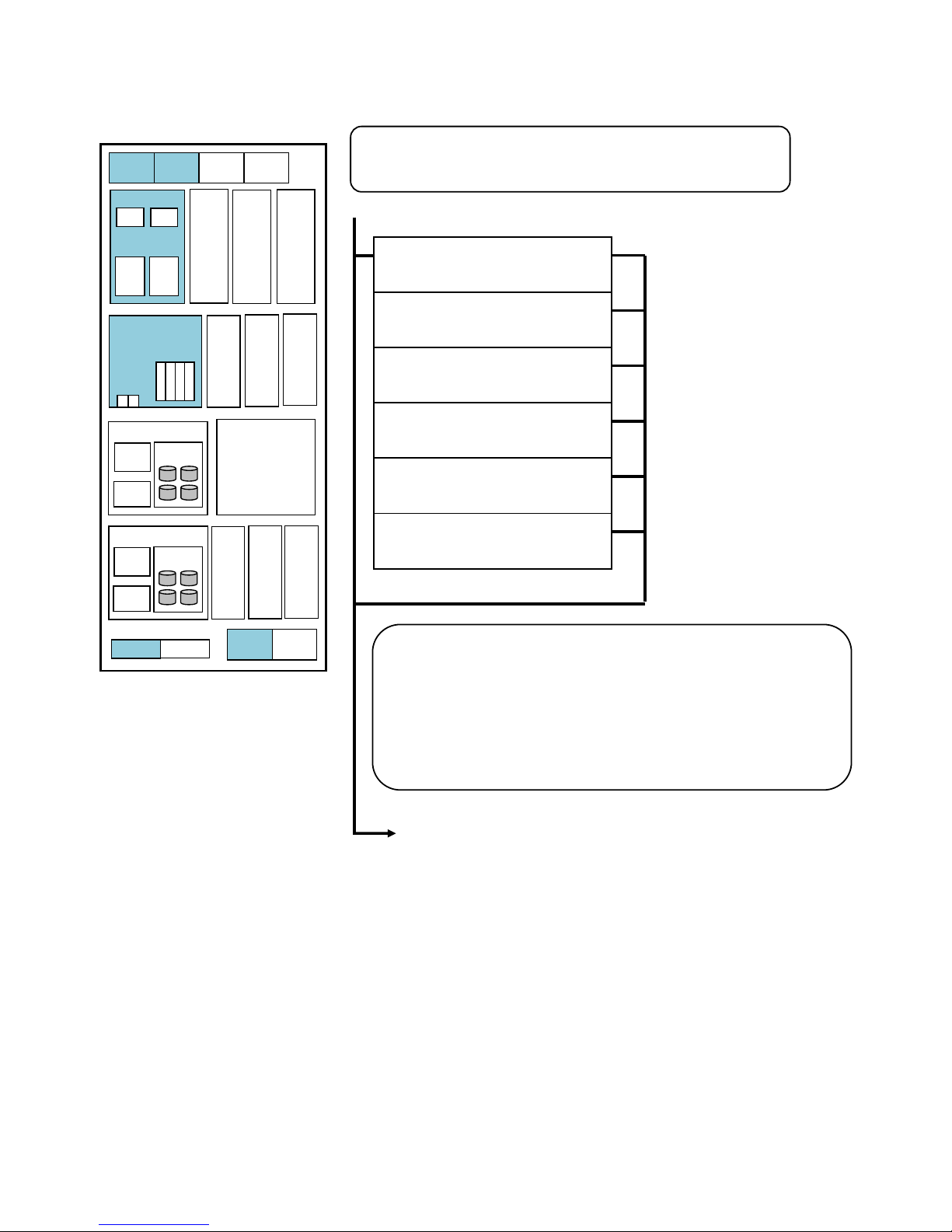

Internal SSD for DU
Internal SAS SSD for Disk Unit
400GB SAS SSD
MC-5DK871 / MCX5DK871 (LD)
- SAS 12Gbps, hot plug, DWPD : 10
800GB SAS SSD
MC-5DK951 / MCX5DK951 (LD)
- SAS 12Gbps, hot plug, DWPD : 10
1.6TB SAS SSD
MC-5DKA51 / MCX5DKA51 (LD)
- SAS 12Gbps, hot plug, DWPD : 10
800GB SAS SSD
MC-5DK961 / MCX5DK961 (LD)
- SAS 12Gbps, hot plug, DWPD : 3
1.6TB SAS SSD
MC-5DKA61 / MCX5DKA61 (LD)
- SAS 12Gbps, hot plug, DWPD : 3
3.2TB SAS SSD
MC-5DKC21 / MCX5DKC21 (LD)
- SAS 12Gbps, hot plug, DWPD : 3
Power Supply Unit
PSU_M
#1
PSU_M
#0
I/O Unit
#1
I/O Unit #0
LAN
port
PCI Slots
x4
MMB #0
Disk
Unit_M
#1
PSU#3
PSU#2PSU#1
PSU#0
MMB #1
Disk Unit #0
HDD/SSD
RAID
Card
FBU
SB #0
Memory
x12 slots
CPU
Memory
x12 slots
CPU
SB #1
Disk Unit #1
Disk Unit_M #0
HDD/SSD
RAID
Card
FBU
Disk
Unit_M
#2
Disk
Unit_M
#3
I/O Unit
#2
I/O Unit
#3
SB #2 SB #3
As flash memory cells are wearing parts, an SSD can only tolerate a
limited number of write jobs. DWPD (Drive Write Per Day) is an indicator
which specifies write endurance of an SSD.
Depending on how the product is used, the number of writing times may
reach the end of write endurance.
Procuct status can be confirmed by management tools such as iRMC
Web-UI and Server View RAID Manager (SVRM).
Max. 4 pcs of HDD/SSD can be mounted per the Disk Unit for SAS or the
Disk Unit for Disk/MMB Unit.
17 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide

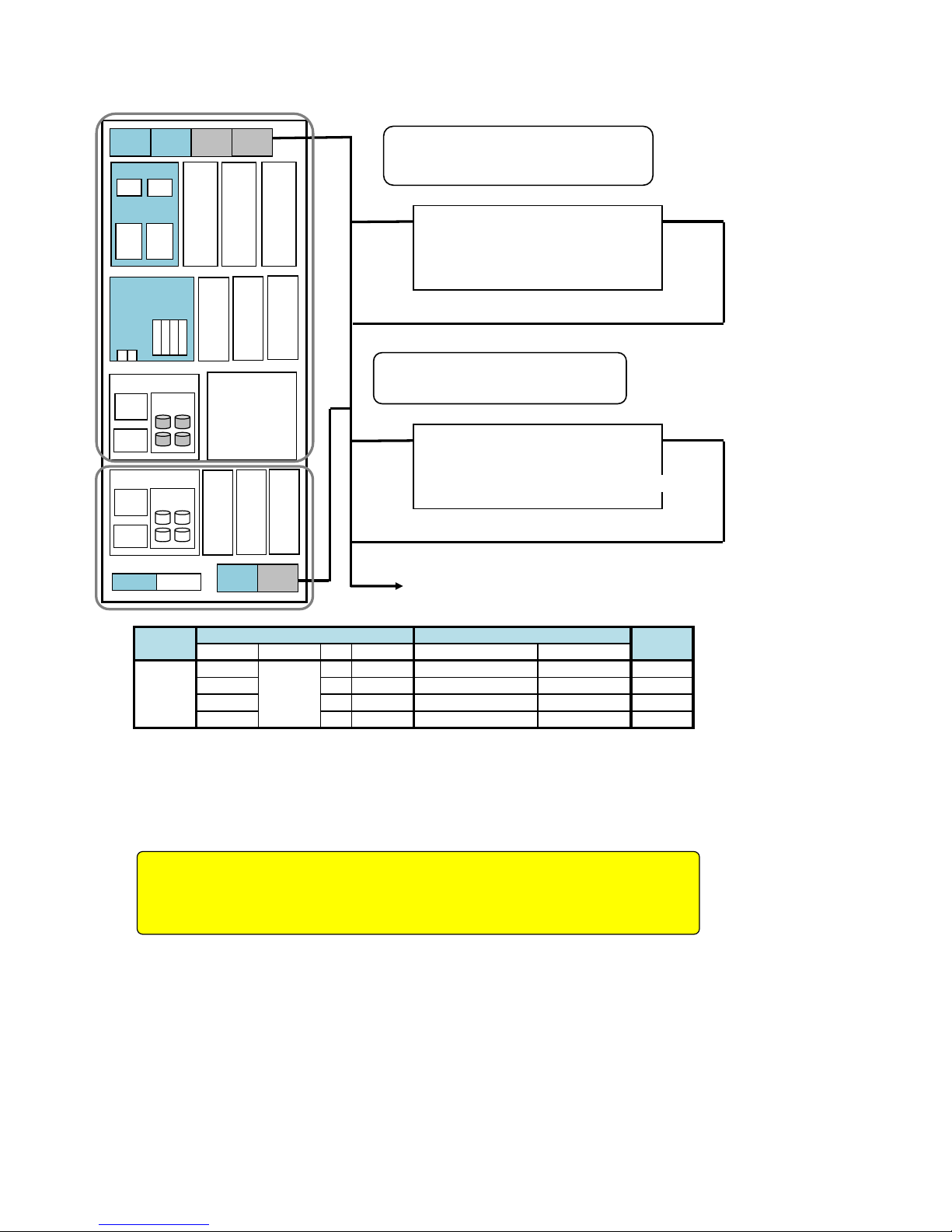

Power Supply Unit (PSU)
200V Normal PSU
MC-5HPS71 / MCX5HPS71 (LD)
- 2x Nomal PSU is included in the Base unit.
- Max. 4x PSU can be mounted for PSU redundancy.
- 80PLUS® Platinum certified
200V Normal PSU for Disk/MMB Unit
MC-5HPS91 / MCX5HPS91 (LD)
- 1x PSU_M is included for Disk/MMB Unit.
- Max. 2x PSU_M can be mounted for PSU redundancy.
- 80PLUS® Platinum certified
Power Cords
IOU
4
4
2
2
*1: At least 3 PSUs and 1 PSU_M are required. No installation restriction of components.
4 PSUs and 2 PSU_Ms configuration is resistant to failure of one power supply unit. Dual power feed is not possible.
*2: At least 2 PSUs and 1 PSU_M are required. The maximum number of I/O unit is 2.
3 PSUs and 2 PSU_Ms configuration is resistant to failure of one power supply unit.
*3: At least 2 PSUs and 1 PSU_M are required. The maximum number of I/O unit is 2.
4 PSUs and 2 PSU_Ms configuration is dual power feed configuration.
Dual power feed configuration is resistant to one data center power feed failure and PSU failure.
AC Power
input
# of components
# of PSUs
Dual
Power feed
CPU (W)
DIMM
PCIeSSD
PSU
PSU_M
240V
>=200
96 slots
(Max.
12TB)
8
3 + 1 (*1)
1 + 1 (*1)
>=200
2
2 + 1 (*2) / 2 + 2 (*3)
No
=<165
8
3 + 1 (*1)
1 + 1 (*1)
No
1 + 1 (*2, *3)
Yes
=<165
2
2 + 1 (*2) / 2 + 2 (*3)
1 + 1 (*2, *3)
Yes
PSU_M
#1
PSU_M
#0
I/O Unit
#1
I/O Unit #0
LAN
port
PCI Slots
x4
MMB #0
Disk
Unit_M
#1
PSU#3
PSU#2PSU#1
PSU#0
MMB #1
Disk Unit #0
HDD/SSD
RAID
Card
FBU
SB #0
Memory
x12 slots
CPU
Memory
x12 slots
CPU
SB #1
Disk Unit #1
Disk Unit_M #0
HDD/SSD
RAID
Card
FBU
Disk
Unit_M
#2
Disk
Unit_M
#3
I/O Unit
#2
I/O Unit
#3
SB #2 SB #3
2x
Normal PSU is included in Base Unit.
Max 4x PSU can be mounted.
1x PSU_M is included for Disk/MMB Unit.
Max 2x PSU_M can be mounted.
If the number of IOU or PCIe SSD exceed the above limit in the PSU 2 + n configuration (*2, *3),
it is necessary to check the power consumption of the configuration.
For request of configuration check, please submit request to the contact shown below
18 of 38

FUJITSU Server PRIMEQUEST 3800E System Configuration Guide

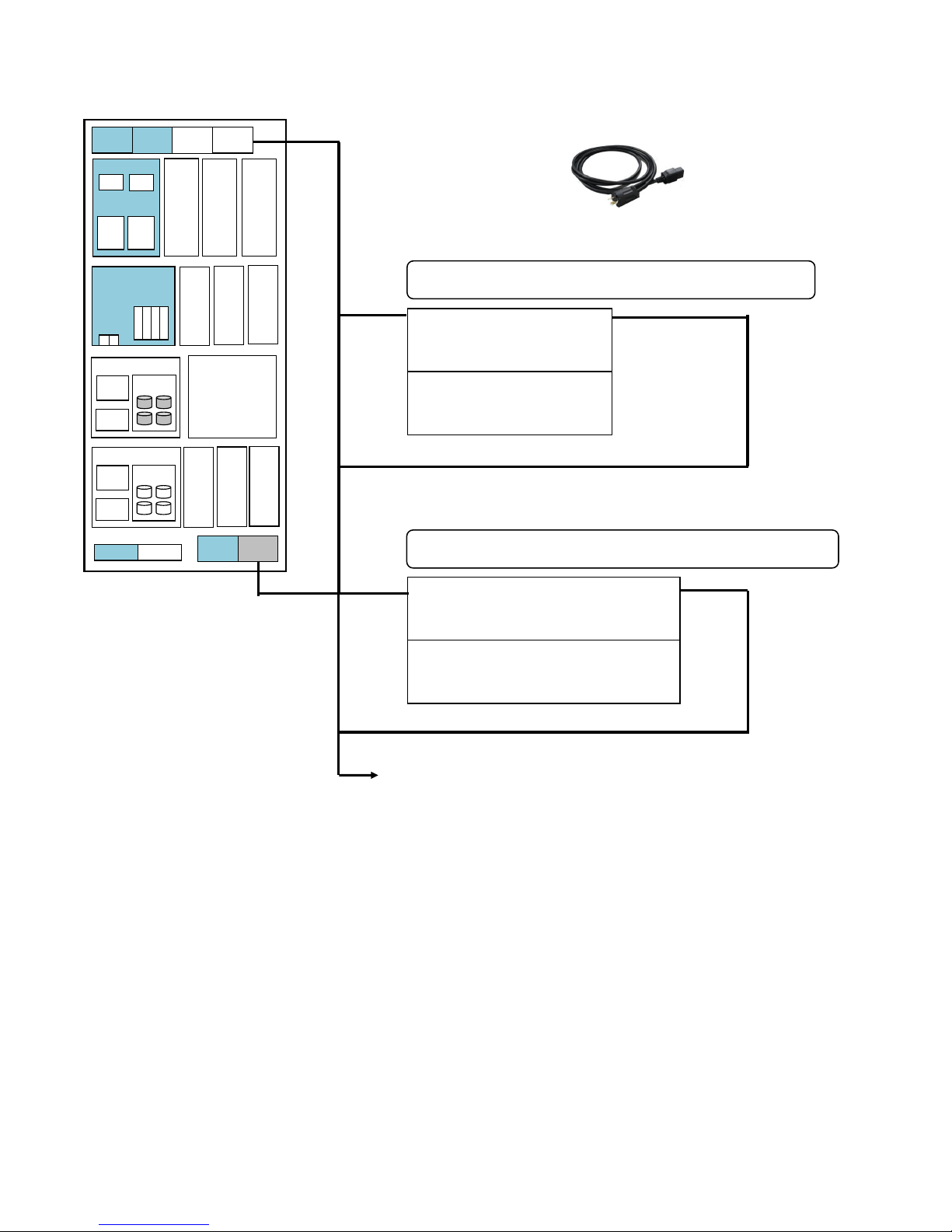

Power Cords for APAC and Americas
IEC 200V AC Cable(3m)
MC-0HCB13 / MCX0HCB13 (LD)
- IEC60320 C20, 3m
- power cord x 1
IEC 200V AC Cable(1m)
MC-0HCB11 / MCX0HCB11 (LD)
- IEC60320 C20, 1m
- power cord x 1
IEC 200V AC Cable for Disk/MMB Unit(3m)
MC-0HCB43 / MCX0HCB43 (LD)
- IEC60320 C20, 3m
- power cord x 1
IEC 200V AC Cable for Disk/MMB Unit(1m)
MC-0HCB41 / MCX0HCB41 (LD)
- IEC60320 C20, 1m
- power cord x 1
PCI Box
power cord
PSU_M
#1
PSU_M
#0
I/O Unit
#1
I/O Unit #0
LAN
port
PCI Slots
x4
MMB #0
Disk
Unit_M
#1
PSU#3
PSU#2
PSU#1
PSU#0
MMB #1
Disk Unit #0
HDD/SSD
RAID
Card
FBU
SB #0
Memory
x12 slots
CPU
Memory
x12 slots
CPU
SB #1
Disk Unit #1
Disk Unit_M #0
HDD/SSD
RAID
Card
FBU
Disk
Unit_M
#2
Disk
Unit_M
#3
I/O Unit
#2
I/O Unit
#3
SB #2 SB #3
* The same quantity of Power Cords need to be ordered as that of PSU.
* The same quantity of Power Cords need to be ordered as that of PSU_M.
19 of 38

FUJITSU Server PRIMEQUEST 3400E System Configuration Guide
you need one cable for each PSU
S26361-F3151-E301 T26139-Y3850-E10
Power Cord 16A
No powercord as
IEC320 C19->C20, 3.5m order option
No mix of different power cords is possible.
S26361-F3151-E100 S26361-F3151-E200 S26361-F3151-E500 S26361-F3151-E10
Power cord 16A Power cord 16A Power cord Power Cord 16A
IEC320 C19->CEE 7/7
IEC320 C19->16A CEE Blue
IEC320 C19 -> US NEMA L6-20p
IEC320 C19->C20 1 m
you need one cable for each PSU_M
Power cord options (1x per PSU_M)
T26139-Y1968-E100
Cable powercord rack, 4m, black
No mix of different power cords is possible.
IEC 320 C14 -> C13 (10A plug)
T26139-Y3850-E10 No powercord as order option
PCI Box
End : Power Cords for Disk/MMB Unit

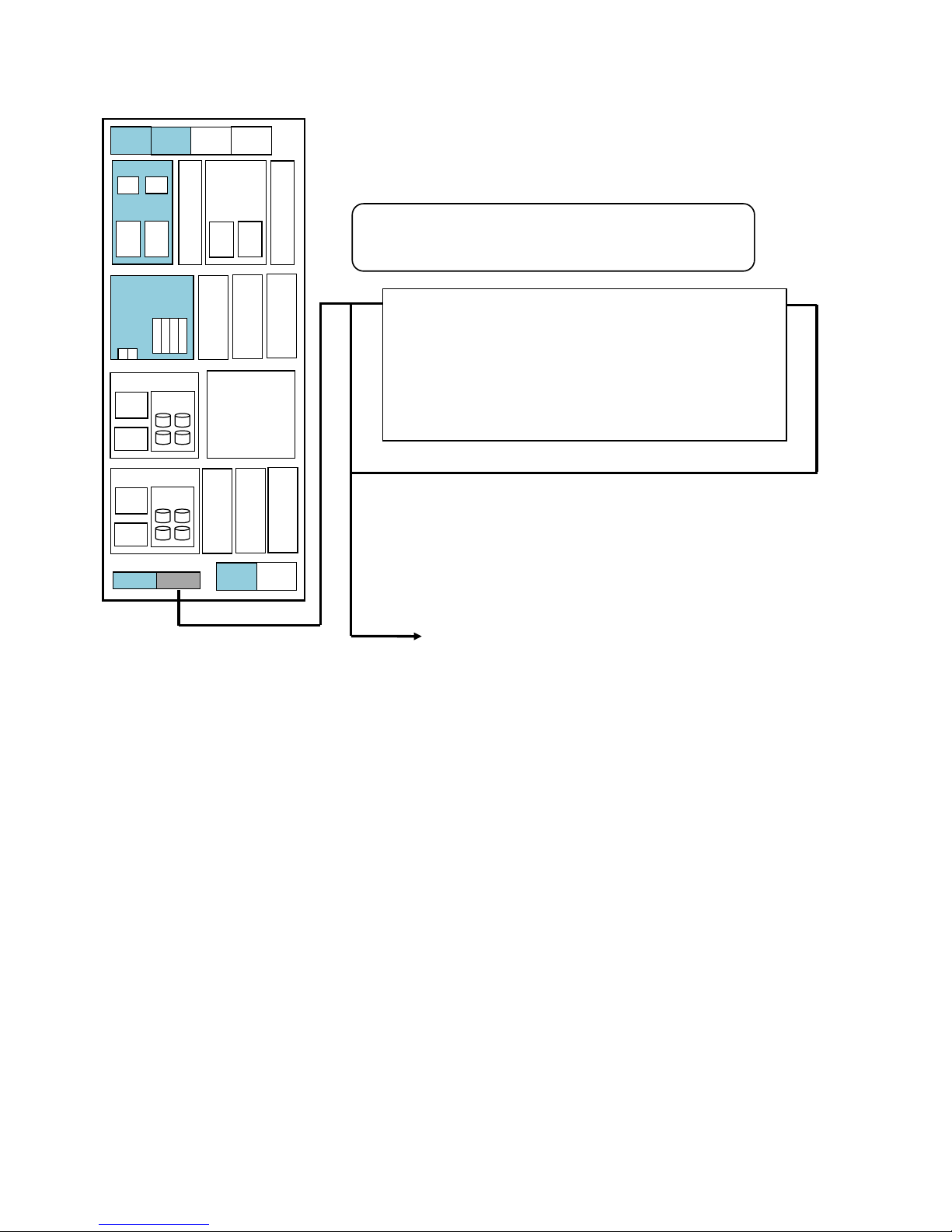

Power Cords for EMEA & India
Base Unit Power Cords
for PSU (MC*5HPS71)
End : Power Cords for Base Unit
Disk/MMB Unit Power Cords
for PSU_M (MC*5HPS91)
20 of 38
