FUJITSU Storage
ETERNUS DX
Configuration Guide -Server Connection-
(Fibre Channel) ETERNUS DX60/DX60 S2, DX80, DX90 Disk Storage System
Settings
P3AM-3182-15ENZ0

This page is intentionally left blank.

Preface
This manual briefly explains the operations that need to be performed by the user in order to connect an
ETERNUS DX to a server running Solaris OS, HP-UX, AIX, Windows®, Linux, VMware ESX, Egenera BladeFrame,
Citrix® XenServer®, Oracle Linux, or Oracle VM Server via a Fibre Channel interface.
This manual should be used in conjunction with any other applicable user manuals, such as those for the
ETERNUS DX, server, OS, Fibre Channel Card, Converged Network Adapter cards, and drivers.
Refer to "FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- Notations" for the notations
used in this manual such as product trademarks and product names. For storage systems that are supported
by the OS, refer to the Server Support Matrix of the ETERNUS DX.
15th Edition
June 2015
The Contents and Structure of this Manual
This manual is composed of the following two chapters.
•"Chapter 1 Workflow" (page 6)
This chapter describes the workflow when setting up an ETERNUS DX.
•"Chapter 2 Setting Up the ETERNUS DX" (page 8)
This chapter describes how to set up an ETERNUS DX.
3
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-3182-15ENZ0

Table of Contents
Chapter 1 Workflow 6
Chapter 2 Setting Up the ETERNUS DX 8
2.1 Common Settings ........................................................................................................................... 8
2.1.1 Setting the To-server Connection Type (Setting the FC Port Parameters) ..............................................................8
2.1.2 Sense Data Conversion (Setting the Host Responses)...........................................................................................9
2.1.3 Registering the WWNs of the Accessing Fibre Channel Cards or Converged Network Adapter Cards (Setting FC
Host).....................................................................................................................................................................11
2.1.4 Creating and Allocating LUN Groups (Setting Host Affinity Groups) ....................................................................12
2.2 Specific Settings ........................................................................................................................... 13
2.2.1 Setting the Reset Groups.....................................................................................................................................13
2.2.2 Setting the Subsystem Parameters (for HP-UX only)...........................................................................................14
2.3 Checking the WWNs ..................................................................................................................... 14
4
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-3182-15ENZ0

List of Tables
Table 2.1 FC port parameter settings (FC-AL connection) ..........................................................................................8
Table 2.2 Transfer rate setting values........................................................................................................................8
Table 2.3 FC port parameter settings (Fabric connection) .........................................................................................9
Table 2.4 Transfer rate setting values........................................................................................................................9
Table 2.5 Host response settings .............................................................................................................................10
5
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-3182-15ENZ0

Chapter 1
Workflow
This manual is used when performing the setup procedures described in the "Setting Up the ETERNUS DX"
section of the "FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (Fibre Channel)" for
each OS.
Required Documents
•"FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (Fibre Channel) Fibre Channel
Switch Settings"
•"Converged Enhanced Ethernet Administrator's Guide"
•"Fabric OS Administrator's Guide"
•"FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (Fibre Channel) for Oracle Solaris"
•"ETERNUS Web GUI User's Guide"
Workflow
Setting the FC Port Parameters
Set the to-server connection type.
•"2.1.1 Setting the To-server Connection Type (Setting the FC Port Parameters)" (page 8)
Setting the Host Responses
Set the host responses to match the connection configuration.
•"2.1.2 Sense Data Conversion (Setting the Host Responses)" (page 9)
Setting the FC Host
Register the WWNs of the accessing Fibre Channel cards or Converged Network Adapter cards.
•"2.1.3 Registering the WWNs of the Accessing Fibre Channel Cards or Converged Network Adapter
Cards (Setting FC Host)" (page 11)
6
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-3182-15ENZ0

Setting the Affinity Groups
Set the server accessible LUN groups.
•"2.1.4 Creating and Allocating LUN Groups (Setting Host Affinity Groups)" (page 12)
Setting the Host Affinity
Define the relationship between the registered Host Affinity and the FC host.
•"2.1.4 Creating and Allocating LUN Groups (Setting Host Affinity Groups)" (page 12)
Setting the Reset Groups
Assign the ports of the ETERNUS DX to the same reset group, depending on the connection conditions.
•"2.2.1 Setting the Reset Groups" (page 13)
Setting the Subsystem Parameters (for HP-UX only)
Set whether to enable [Disable Load Balance], a function that restricts retry-required sense responses
when the ETERNUS DX is in overload.
•"2.2.2 Setting the Subsystem Parameters (for HP-UX only)" (page 14)
Checking the WWNs
Check information that is necessary for connecting to the server.
•"2.3 Checking the WWNs" (page 14)
After completing all the required procedures in this manual, follow the procedures in "FUJITSU Storage
ETERNUS DX Configuration Guide -Server Connection- (Fibre Channel)" for each OS.
Chapter 1 Workflow
7
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-3182-15ENZ0

Chapter 2
Setting Up the ETERNUS DX
2.1 Common Settings
This section explains the settings required for all server OSs, regardless of the connection configuration.
See the "ETERNUS Web GUI User's Guide" for details of how to set up and operate ETERNUS Web GUI.
2.1.1 Setting the To-server Connection Type (Setting the FC Port Parameters)
For each connection configuration, set the indicated items only. Retain the default values for all of the pa-
rameters that are not described below.
Table 2.1 FC port parameter settings (FC-AL connection)
Parameter Solaris OS
HP-UX, AIX, Windows®, Linux, VMware
ESX, PAN Manager, Citrix XenServer,
Oracle Linux, Oracle VM Server
Connection FC-AL
Set Loop ID Manual
Loop ID (*1) Values from 0x10 upwards (except
0x7D)
0x00
Frame Size 2048 bytes (Default value)
Transfer Rate See the table below (*2)
Host Affinity Enable
Reset Scope I_T_L (Default value)
Release Reservation if Chip is Reset Disable (Default value)
*1: Assign Loop IDs that are unique within each Loop, in ascending order.
*2: Set the appropriate value from the following table. Do not use [Auto].
Table 2.2 Transfer rate setting values
Fibre Channel card maximum speed Transfer rate setting value
8Gbit/s CA 4Gbit/s CA
8Gbit/s 8Gbit/s 4Gbit/s
4Gbit/s 4Gbit/s 4Gbit/s
2Gbit/s 2Gbit/s 2Gbit/s
1Gbit/s — 1Gbit/s
8
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-3182-15ENZ0

Table 2.3 FC port parameter settings (Fabric connection)
Parameter Setting value
Connection Fabric
Frame Size 2048 bytes (Default value)
Transfer Rate See the table below (*1)
Host Affinity Enable
Reset Scope I_T_L (Default value)
Release Reservation if Chip is Reset Disable (Default value)
*1: Set the appropriate value from the following table. Do not use [Auto].
Table 2.4 Transfer rate setting values
Fibre Channel switch or CEE/FCoE
switch maximum speed
Transfer rate setting value
8Gbit/s CA 4Gbit/s CA
8Gbit/s 8Gbit/s 4Gbit/s
4Gbit/s 4Gbit/s 4Gbit/s
2Gbit/s 2Gbit/s 2Gbit/s
1Gbit/s — 1Gbit/s
When setting a Fabric connection, complete the preparatory work and set up the Fibre Channel switch or
the CEE/FCoE switch beforehand. For setting details, refer to "FUJITSU Storage ETERNUS DX Configuration
Guide -Server Connection- (Fibre Channel) Fibre Channel Switch Settings", "Converged Enhanced Ethernet
Administrator's Guide", or "Fabric OS Administrator's Guide".
2.1.2 Sense Data Conversion (Setting the Host Responses)
The ETERNUS DX sense data conversion must be set to match the way in which the server will process the
ETERNUS DX request responses.
Set the parameters according to the conditions that are described in Table 2.5.
Retain the default values for all of the parameters that are not described below. If multiple conditions apply,
set the parameters so that all of these conditions are met.
When setting the access path using the ETERNUS SF Storage Cruiser, the host responses for FC host will be
set to default values. Set the host responses after setting the access path using the ETERNUS SF Storage
Cruiser.
Chapter 2 Setting Up the ETERNUS DX
2.1 Common Settings
9
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-3182-15ENZ0

Table 2.5 Host response settings
OS Conditions Parameter Setting value
Solaris (*1) When MPxIO is used and the Multi-
path Diagnostic Program or En-
hanced Support Facility 5.1 or later
is installed
Reservation Conflict Response for
Test Unit Ready
Conflict
Sense Data Conversion MPxIO Recommended
When MPxIO is used for purposes
other than described above
Reservation Conflict Response for
Test Unit Ready
Conflict
Sense Data Conversion Linux Recommended
(When not using
GRMPD)
When the ETERNUS Multipath Driver
or VxVM is used
All parameters Default value
HP-UX Common (required setting) Host Specific Mode HP-UX Mode
When Integrity VM is used Sense Data Conversion Linux Recommended
(When not using
GRMPD)
AIX (*2)
VIOS
Common (required setting) Host Specific Mode AIX Mode
When one of the following condi-
tions applies
•ETERNUS Multipath Driver 2.0 is
used
•When FJspio is used and PowerHA
or HACMP is used for a single path
configuration
Reservation Conflict Response for
Test Unit Ready
Conflict
Windows® (*3) When one of the following condi-
tions applies
•The OS standard multipath driver
(msdsm) is used
•VxVM is used
Sense Data Conversion Windows Recommen-
ded (When not using
GR/ETERNUS MPD or
Device Driver)
When one of the following condi-
tions applies
•SAN Boot is configured with the
PRIMEQUEST 1000 series
•SAN Boot is configured with the
PRIMEQUEST 500/400 series
Sense Data Conversion Linux Recommended
(When not using
GRMPD)
When the ETERNUS Multipath Driver
is used
All parameters Default value
When MSCS is used on Windows
Server® 2003
Reservation Conflict Response for
Test Unit Ready
Conflict
Linux When one of the following condi-
tions applies
•The OS standard multipath driver
(device mapper) is used
•VxVM is used
•SAN Boot is configured with the
PRIMEQUEST 1000 series
•SAN Boot is configured with the
PRIMEQUEST 500/400 series
Sense Data Conversion Linux Recommended
(When not using
GRMPD)
Conditions that are not listed above All parameters Default value
Chapter 2 Setting Up the ETERNUS DX
2.1 Common Settings
10
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-3182-15ENZ0

OS Conditions Parameter Setting value
VMware ESX (*3) When one of the following condi-
tions applies
•VMware vSphere
•SAN Boot is configured with the
PRIMEQUEST 1000 series
Sense Data Conversion Linux Recommended
(When not using
GRMPD)
For VMware Infrastructure 3 Inquiry Standard Data Version Version 4
Sense Data Conversion Linux Recommended
(When not using
GRMPD)
PAN Manager
Citrix XenServer
Oracle VM Server for
x86
Oracle Linux
Common (required setting) Sense Data Conversion Linux Recommended
(When not using
GRMPD)
IBM SVC Common (required setting) Byte-0 of Inquiry Response Custom
Inquiry VPD ID Type Type 1
Reservation Conflict Response for
Test Unit Ready
Conflict
Change Volume Mapping Report
Volume Capacity Expansion Report
Sense Data Conversion Linux Recommended
(When not using
GRMPD)
*1: •For details on the firmware versions that support the Multipath Diagnostic Program, refer to "Multi-
path Diagnostic Program User's Guide".
•An Oracle-brand Fibre Channel card driver may be used for Fujitsu Fibre Channel cards. To confirm
which driver should be used, check the "Notes" and "Fibre Channel Cards that Require an Oracle-brand
Driver" sections in "FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (Fibre Chan-
nel) for Oracle Solaris".
*2: Use of a PowerHA/HACMP cluster configuration only affects the setting for single path configurations
with FJspio.
*3: When connecting a Windows®-based VMware VCB Proxy server to the ETERNUS DX, and the LUNs are
shared between the VMware VCB Proxy server and VMware ESX server, the settings detailed in the
"VMware ESX" row of Table 2.5 should be used.
2.1.3 Registering the WWNs of the Accessing Fibre Channel Cards or Converged Net-
work Adapter Cards (Setting FC Host)
Register the WWN of each Fibre Channel card or Converged Network Adapter card installed in the server that
will access the ETERNUS DX. At the same time, set the host response registered in "2.1.2 Sense Data Conver-
sion (Setting the Host Responses)" (page 9) to accept these FC hosts (WWNs).
Registering the FC host WWNs and setting up LUN mappings (Host Affinities) as described elsewhere, allows
limits to be set on which servers are allowed to access which ETERNUS DX LUNs.
When a server-side Fibre Channel card or Converged Network Adapter card is replaced, the WWN of the
replacement Fibre Channel card or Converged Network Adapter card must be re-registered to the ETERNUS
DX.
Chapter 2 Setting Up the ETERNUS DX
2.1 Common Settings
11
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-3182-15ENZ0

2.1.4 Creating and Allocating LUN Groups (Setting Host Affinity Groups)
Create a LUN group (Affinity Group) for the server to access.
Allocate the relationship between registered FC hosts (WWN) and Affinity groups using the Host Affinity set-
ting function to specify which LUNs to be accessed. This sets access restrictions to the ETERNUS DX from each
server.
•If the one-to-one relationship between the WWNs and Fibre Channel cards or Converged Network Adapt-
er cards cannot be determined, the LUN mapping may not be set correctly. In this case, trying various
settings may be necessary until the server is able to recognize the ETERNUS DX logical disks.
•Depending on the OS version, the server may not recognize the ETERNUS DX unless an affinity group is
assigned from LUN0. In this case, assign an affinity group starting from LUN0 in ascending order.
Chapter 2 Setting Up the ETERNUS DX
2.1 Common Settings
12
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-3182-15ENZ0

2.2 Specific Settings
Some settings are not required for some OSes and/or connection configurations.
Check the various cases described below, and perform any required settings.
2.2.1 Setting the Reset Groups
If the system configuration matches any of the items "System configuration that requires the reset group set-
ting" in the following table, every ETERNUS DX port that connects to the given server's access paths must be
assigned to the same reset group.
For system configurations other than the following, use the default settings.
OS System configuration that requires the reset group setting
Solaris OS Cluster configuration
AIX Single path configuration using FJspio for a PowerHA or HACMP cluster
Windows Server® 2003 MSCS configuration (*1)
VMware vSphere (ESXi 5.5, ESXi 5.1, ES-
Xi 5.0, ESX 4.1, ESXi 4.1, ESX 4.0, ESXi
4.0)
VMware Infrastructure 3 (ESX 3.5, ESXi
3.5)
Multipath configuration
or
Multiple ESX servers share ETERNUS DX LUNs (*2)
*1: For a Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, or Windows Server®
2008 based WSFC configuration, the reset group settings are not necessary.
Chapter 2 Setting Up the ETERNUS DX
2.2 Specific Settings
13
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-3182-15ENZ0

*2: When multiple ESX servers share ETERNUS DX LUNs, any ETERNUS DX CA port that connects a shared
LUN to an ESX server must be assigned to the same reset group, whether multi-paths are used for the
ESX servers or not.

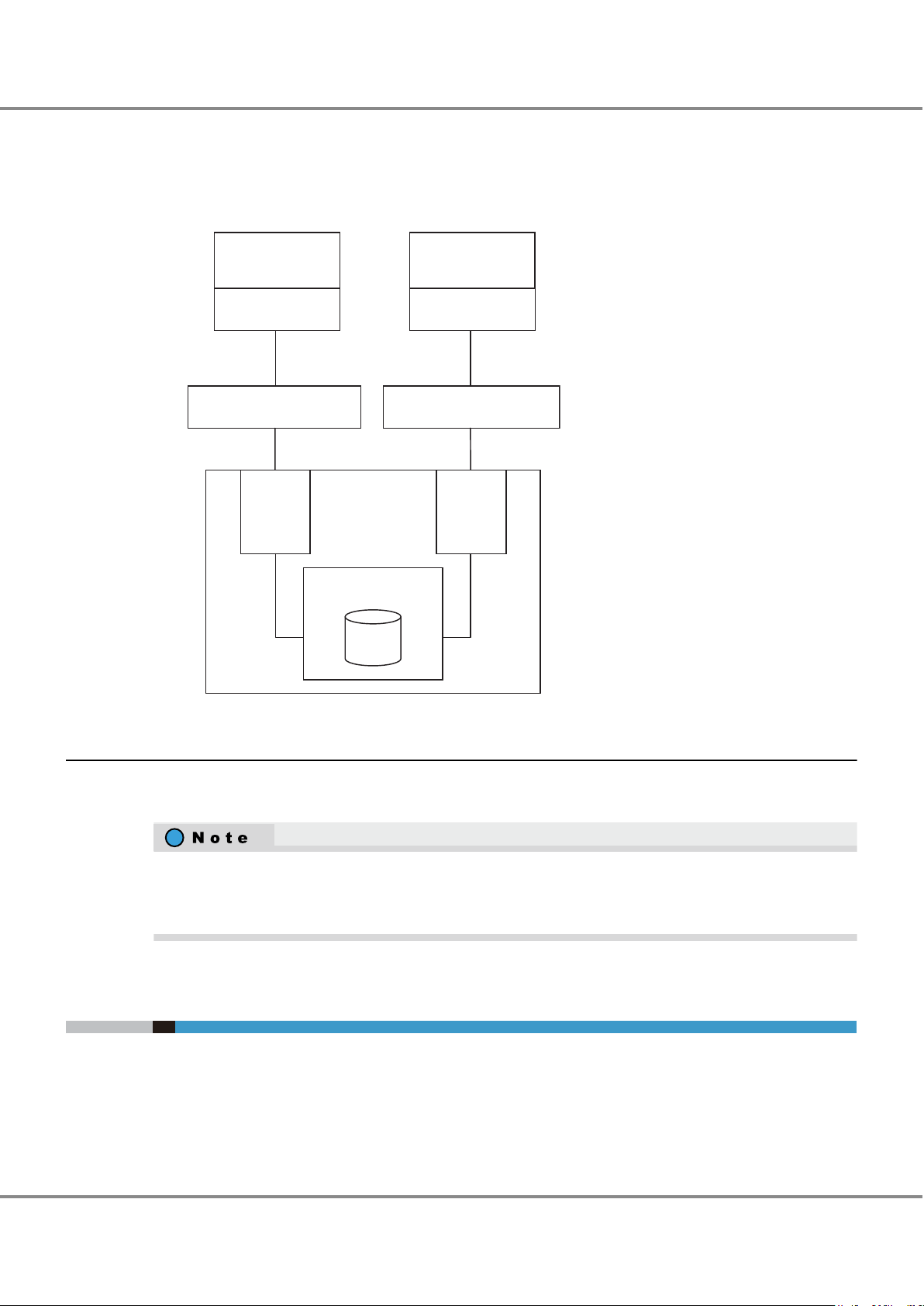

Example: When multiple ESX servers share ETERNUS DX LUNs, CM#0 CA#0 Port#1 and CM#1 CA#0 Port#1
must be assigned to the same reset group, even for single-path configurations.
Server#1 Server#2
LAN switch#1 LAN switch#2
HBA#1 HBA#1
Affinity-Group
CM#0
Port#1
CM#1
Port#1
2.2.2 Setting the Subsystem Parameters (for HP-UX only)
Disable the [Load Balance] parameter in "Set Subsystem Parameters" screen. This prevents sense responses
that require access retries from being issued when the ETERNUS DX is overloaded.
For HP-UX server, improper logs may be recorded unless sense response is restricted. Therefore, "Load Bal-
ance" should be disabled. (Sense response should be restricted.)
Note that changing the "Load Balance" setting has no affect on non-HP-UX servers.
2.3 Checking the WWNs
Use ETERNUS Web GUI to check the WWN of each ETERNUS DX. They are required for connecting the ETERNUS
DX to the server.
Chapter 2 Setting Up the ETERNUS DX
2.3 Checking the WWNs
14
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-3182-15ENZ0

FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
(Fibre Channel) ETERNUS DX60/DX60 S2, DX80, DX90 Disk Storage System Settings
P3AM-3182-15ENZ0
Date of issuance: June 2015
Issuance responsibility: FUJITSU LIMITED
•The content of this manual is subject to change without notice.
•This manual was prepared with the utmost attention to detail. However, Fujitsu shall assume no responsibility for any
operational problems as the result of errors, omissions, or the use of information in this manual.
•Fujitsu assumes no liability for damages to third party copyrights or other rights arising from the use of any information
in this manual.
•The content of this manual may not be reproduced or distributed in part or in its entirety without prior permission from
Fujitsu.
