Fulcrum Red carbon xrp User manual

TECHNICAL MANUAL - OFF ROAD
MAINTENANCE SHEETS FOR OFF-ROAD WHEELS
UNIT TYPE OPERATION REVISION DESCRIPTION
OFF-ROAD WHEELS
DISC BRAKE MOVEMENT OF CONES / BOTTOM BRACKET CUPS 008 01- 11 /2016
REMOVAL AND REFITTING OF THE FREE WHEEL
BODY WITH MOVEMENT OF CONES / BOTTOM
BRACKET CUPS
PRODUCTS TO WHICH THIS PROCEDURE APPLIES
RED CARBON
XRP RED METAL ZERO XRP
GRUPPO
TIPOLOGIA
OPERAZIONE
REVISIONE
DESCRIZIONE
RUOTE STRADA
MOVIMENTO CONO / CALOTTA
008
0/2011
SMONTAGGIO E RIMONTAGGIO CORPO RUOTA
LIBERA RUOTA POSTERIORE CON MOVIMENTO
CONO/CALOTTA
PRODOTTI SUI QUALI APPLICARE LA PROCEDURA
Red Carbon
XRP ™
Red Metal 0
XRP™
1 2 3
Inserire la chiave fissa da 17 sul controdado del perno
mozzo. Inserire la chiave esagonale da 5 all’interno
dell’esagono del perno e svitare il controdado in senso
antiorario.
Svitare completamente il controdado. Rimuovere il distanziale in resina.
4 5 6
Togliere il corpo portapignoni dal perno del mozzo. Se necessario ingrassare anche all’interno dei
cricchetti del corpo ruota libera. OPERAZIONE 013.
Inserire il corpo ruota libera sul perno posteriore
7 8 9
Con un cacciavite inserire all’interno dell’inserto a
cremagliera i cricchetti.
Inserire completamente il corpo ruota libera. Inserire il distanziale.
10
11
Avvitare il controdado sul perno.
Inserire la chiave esagonale da 5 all’interno del perno
e tenendola fissa avvitare il controdado con la chiave
dinamometrica da 17.

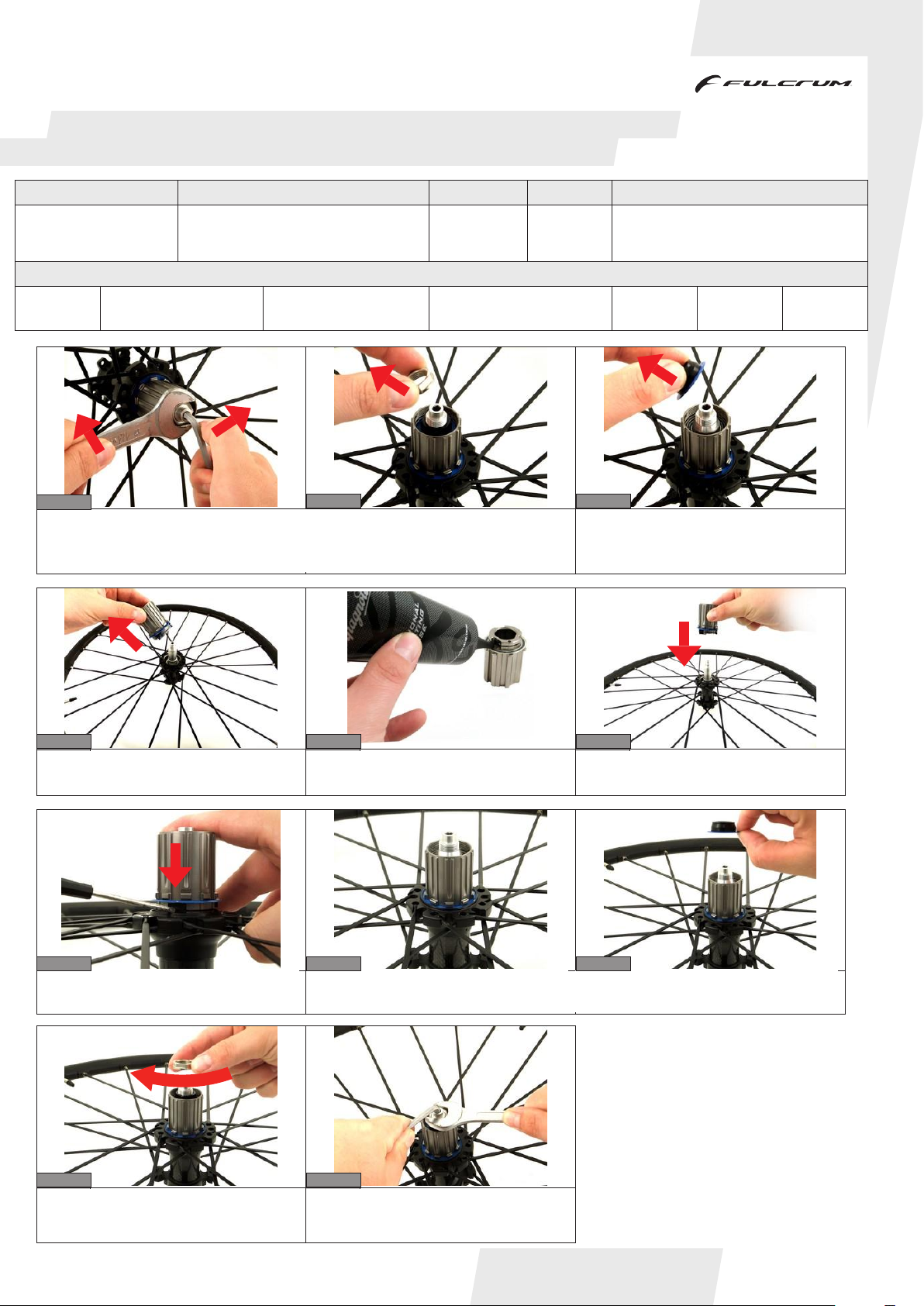

Insert a 17mm open-end spanner in the locknut of the hub
pivot. Insert the 5mm hexagon wrench in the hexagon of
the pivot, and turn the locknut anti-clockwise.
Loosen the locknut completely. Remove the resin spacer.
Remove the pinion-holder element from the hub pivot. If necessary, grease the inside of the FW body ratchets as
well. OPERATION 013.
Insert the FW body in the rear pivot.
Insert the spacer.Insert the FW body completely.Use a screwdriver to insert the ratchets in the rack insert.
Tighten the locknut on the pivot. Insert the 5mm hexagon wrench in the pivot and, keeping
it stationary, tighten the locknut using the 17mm torque
wrench.
12 3
4 5 6
7 8 9
10 11

TECHNICAL MANUAL - OFF ROAD
MAINTENANCE SHEETS FOR OFF-ROAD WHEELS
UNIT TYPE OPERATION REVISION DESCRIPTION
OFF-ROAD WHEELS
DISC BRAKE
INDUSTRIAL BEARINGS/CONES-BOTTOM
BRACKET CUPS 008 01- 11 /2016 DISASSEMBLY AND REFITTING OF THE FREE WHEEL BODY
PRODUCTS ON WHICH TO APPLY THE PROCEDURE
RED POWER
(2015)
RED POWER HP
(2015) RED POWER C23 / HP / BOOST RED PASSION / RED PASSION 3 /
BOOST
6
On the left side, remove the external adapter. It is not
necessary to remove the QR adapter (if this is fitted).
Block the pivot on the left side, using a 14mm cone
wrench.
Loosen the right-hand adapter, using a 17mm wrench.
Pay attention to the left-hand thread!
Remove the adapter and the spacer (if fitted). Remove the FW body from the hub pivot. Grease the inside of the rack insert with lithium grease.
the quantity of grease inserted should cover about 75%
of the free space of the rack insert.
If necessary, grease the inside of the FW body pawls
as well.
Insert the FW body on the pivot. Using a screwdriver, move the pawls into the closed
position and, slowly rotating the FW body, insert them
in the rack.
7
3
4
9
5
1 2
8

MAINTENANCE SHEETS FOR OFF-ROAD WHEELS
TECHNICAL MANUAL - OFF ROAD
UNIT TYPE OPERATION REVISION DESCRIPTION
OFF-ROAD WHEELS
DISC BRAKE
INDUSTRIAL BEARINGS/CONES-BOTTOM
BRACKET CUPS 008 01- 11 /2016 DISASSEMBLY AND REFITTING OF THE FREE WHEEL BODY
PRODUCTS ON WHICH TO APPLY THE PROCEDURE
RED POWER
(2015)
RED POWER HP
(2015) RED POWER C23 / HP / BOOST RED PASSION / RED PASSION 3 /
BOOST
Insert the external adapter on the left side.
On the left, insert a 14mm cone wrench on the pivot. Screw in the bushing on the right, using a 17mm socket
spanner. Tighten to a torque of 12 Nm. Attention: left-
hand thread!
Insert the adapter on the right, and tighten it. Atten-
tion: left-hand thread!
13
1210 11
