Furious FPV FORTINI F4 User manual

Please contact us if you need further assistance:
Tech support: [e-mail]
Sales support: [e-mail]
Website: http://furiousfpv.com/

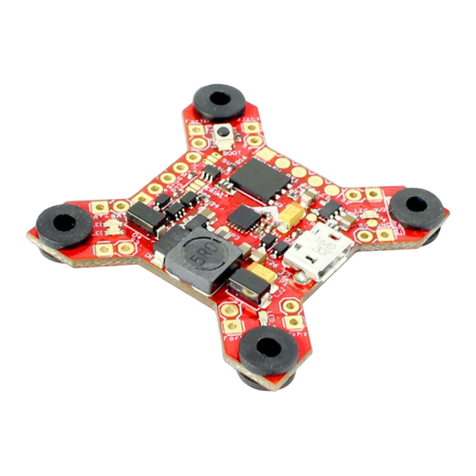

FORTINI F4
Flight Controller
USER MANUAL VERSION 1.0

1
Contents
Introduction.......................................................................................................2
Features.............................................................................................................2
Connections.......................................................................................................4
Connect with Receiver....................................................................................4
Using SPD15 Receiver............................................................................4
Using LR1000D Receiver ........................................................................5
Using XSR FrSky Receiver.......................................................................6
Using Spektrum Satellite Receiver .........................................................6
Connect with Video Transmitter.....................................................................7
Using Tramp HV.....................................................................................7
Using TBS Unify Pro ...............................................................................9
Using FX FX799T ..................................................................................11
Connect with stack Mnova and Runcam ......................................................13
Connect with other devices ..........................................................................14
Connect with ESC 4 in 1 ................................................................................15
Using Aikon SEFM 30A.........................................................................15
Using Cicada 35x4 35A.........................................................................16
Using T-Motor F 35A 4IN1-4S ..............................................................17
Basic setup.......................................................................................................18
Tips ..................................................................................................................20
How to configure your Spektrum RX with your Flight Controller ..................20
How to open Piggy OSD menu by Transmitter..............................................21

2
Introduction
After a full year of study & experience with the Radiance & KOMBINI Flight Controllers, we've
gathered every aspect of customer feedback in an ultimate effort to produce the single most cutting
edge Flight Controller the FPV market has ever seen. Hold on - you don't want to miss this.
Enter the all new Fortini F4 - the culmination of years of research and application as we push
forward into the outer limits of FPV. With a new high performance, low noise 32kHz Invensense 20602
gyro that features ultra-high sensitivity, this FC is designed for outright performance, offering ultra-
crisp flight characteristics that will be felt in every move you make. Want more? Don't worry - just look
below.
With a massive array of (5) UARTS, the Fortini F4 allows simultaneous connection of SBUS, S.PORT,
OSD, USB and either a TBS Smart Audio System or Immersion RC Tramp. Furthering this, the Fortini F4
is the very first Flight Controller that offers built in input & output Inrush Voltage Protection to protect
the BEC and other electronic components in the case of extreme voltage spikes.
Soft mounted for the ultimate in vibration protection, the Fortini F4 features 16MB of integrated
flash memory, allowing BlackBox functionality to review all data after your flight. The Fortini F4 is also
the very first FC to allow S.PORT direct connection with the receiver without any aspect of receiver
modification.
The Fortini F4 is the full up package, breaking new ground in true FC brilliance. Toss compromise
out the window and open your FPV world to the most functional and feature packed FC you have ever
seen before.
Features
Invensense 20602 gyro for high speed 32khz, lowest noise floor and highest sensitivity
Gyro located as close as possible to the center
Integrated vibration dampening dummies
Separate power supply for gyro with LDO
low noise and high accuracy
Built in driver inverter for S-bus
Built in driver inverter for Smartport
connection directly to FC
MCU: STM32F405
Voltage and current ADC pins, for full
voltage and current monitoring
16MB of flash memory Blackbox
5x Serial UARTs for USB, OSD, SMART AUDIO or TRAMP, SPORT, SBUS
RX powered via USB
Selectable 3.3V or 5V for RX

3
LED Driver for WS2812b programmable LED
Integrated buzzer driver
Built-in BEC 5V-2A supports direct 2-6S Lipo connection
Inrush Voltage Protection Input and Output by Transient Voltage SuppressorBoard Layout
Weight: 5.5gr
Dimensions

4
Connections
Connect with Receiver:
*WARNING: Fortini F4 can support up to 6s Lipo battery but make sure other
devices also support it.
Using SPD15 Receiver:
* NOTE: If you are using S.Port with firmware 3.1.7, please enter CLI mode and
type the following commands:
set sport_halfduplex = OFF
save
You can buy SPD15 Receiver right here: https://goo.gl/FTnrpR

5
Using LR1000D Receiver:
* NOTE: If you are using S.Port with firmware 3.1.7, please enter CLI mode and
type the following commands:
set sport_halfduplex = OFF
save
You can buy LR1000D Receiver right here: https://goo.gl/4Cr0Hl
* NOTE: If you use LR1000D Receiver please go to CLI and type the following
commands:
set sbus_inversion = OFF
save

6
Using XSR FrSky Receiver:
* NOTE: If you are using S.Port with firmware 3.1.7, please enter CLI mode and
type the following commands:
set sport_halfduplex = OFF
save
Using Spektrum Satellite Receiver:

7
Connect with Video Transmitter:
Using Tramp HV:
With Piggy V2 OSD

8
With Only Camera

9
Using TBS Unify Pro:
With Piggy V2 OSD

10
With Only Camera

11
Using FX FX799T:
With Piggy V2 OSD

12
With Only Camera

13
Connect with stack Mnova and Runcam :
*WARNING: Mnova is only compatible with 5V. Please solder only to 5V
pad if using Mnova
You can buy Mnova right here: https://goo.gl/JyQnds

14
Connect with other devices:
You can buy LED STRIP right here: https://goo.gl/TXwSwI

15
Connect with ESC 4 in 1:
Using Aikon SEFM 30A:
You can buy ESC Aikon SEFM 30 4 in 1 right here: https://goo.gl/IOYBEr

16
Using Cicada 35x4 35A:
You can buy ESC Sunrise Cicada 35x4 35A right here: https://goo.gl/s08OaI

17
Using T-Motor F 35A 4IN1-4S:
You can buy ESC F 35A 4in1-4S right hexre: https://goo.gl/QyM3eh

18
Basic setup
Please, follow carefully these next steps, and always remove your propellers when you’re
configuring your quad
STEP 1: Connect Fortini F4 with computer via USB cable and then open BetaFlight
STEP 2: Configure Ports.
(1) Turn on MSP of UART 1 to use OSD.
(2) Turn on Serial Rx of UART 3 to use Receiver Mode
(3) Select SmartPort of UART 6 to use S.Port UART 6
(4) In Peripherals of UART 4:
Select IRC Tramp for Tramp HV VTX
Select TBS Smartaudio for TBS Unify Pro VTX
* NOTE: Please make sure that all the connections are correct.

19
STEP 3: Go to Configuration tab and choose ESC/Motor protocol in ESC/Motor Features
STEP 4: Select Serial- based receiver in Receiver Mode
If you are using SBus, iBus or a Spektrum Satellite, you will need to pick your Serial Receiver Provider.
Follow below table:
RX Type
Serial Receiver Provider
DSM2 1024bit/22ms
SPEKTRUM1024
DSM2 2048bit/11ms
SPEKTRUM2048
DSMX 1024bit/22ms
SPEKTRUM1024
DSMX 2048bit/11ms
SPEKTRUM2048
FrSky RX
SBUS
Futaba RX
SBUS
FlySky RX
IBUS
Turnigy RX
IBUS
Click “Save and Reboot”.
