Furniture of America CM7534CK User manual

Assembly Instructions
EASY DIFFICULT
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.

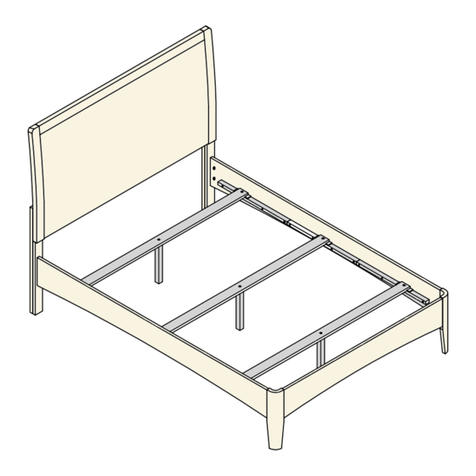

CM7534CK
2 PERSONS RECOMMENDED
Tools Required For Assembly:
Allen Wrench
(Included)
Phillips Screwdriver
Wrench
(Included)
(Not Included)
Page 1 of 6
For more information contact our team: [email protected]
Rev: 19-02-16

BASIC ASSEMBLY TECHNIQUES
FOR YOUR FURNITURE TO LAST,CORRECT ASSEMBLY AND PROPER MAINTENANCE ARE NECESSARY.
PLEASE FOLLOW THE INFORMATION PROVIDED BELOW TO FULLY ENJOY YOUR FURNITURE.
FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY
RESULT IN INJURY AND/OR PROPERTY DAMAGE.
IT IS THE USER'S RESPONSIBILITY TO MAINTAIN THE FURNITURE.THE HARDWARE MAY
LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO
SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE
SERIOUS INJURY.
When lock or spring washer is used in
an assembly, please make sure the
lock or spring washer is placed
between the larger flat washer and the
head of the screw or bolt.
Some furniture comes with height
adjusetment knobs underneath each
leg. To lower or to raise each leg, you
need to turn clockwise or
counterclockwise, respectively.
FURNITURE OF AMERICA.ALL RIGHTS RESERVED.
Make sure all parts are properly
aligned, then use the appropriate
hand tool to completely tighten the
bolts or screws. Do not use power
tools and do not overtighten.
Position each part correctly and insert
screws or bolts into their respective
holes by hand tighten or using the
proper hand tool. Only tighten when
step is completed or when instructed
to do so.
Save the instructions and store the Allen
wrench or any supplied tool for later
maintenance. After two weeks, check and
tighten any loose hardware and repeat
again every six months thereafter.
Page 2 of 6
Use cardboard or carpet area when
assembling furniture to prevent
scratches .Make sure the furniture
rests on a flat and level surface with
each leg evenly touching the floor.
No dragging of products/parts.

Parts List
Hardware List
#1 x 1pc
#2 x 2pcs
Before you begin, please read Page 2
of "Assembly and Care Advice".
And remember, do not tighten until
each step is completed or instructed.
Headboard Panel
#3 x 1pc
#6 x 4pcs
#7 x 8pcs
#5 x 1pc
Page 3 of 6
#4 x 2pcs
HB Leg (L&R)
Footboard
Side Rail
Bed Slat
Headboard Support
Support Leg 30 x 30 x 225mm
#E x 8pcs
#A x 10pcs
Bolt Ø5/16" x 2"
#B x 10pcs
#C x 10pcs
Lock Washer Ø5/16"
Flat Washer Ø5/16"
#D x 1pc
#F x 8pcs
#H x 8pcs
Screw #4 x 30mm
Allen Key 4mm
Threaded Pins Ø5/16" x 3-1/2"
Hex Nut Ø5/16"
Ø1/4
#I x 1pc
Wrench 14mm
Half Moon Washer Ø5/16"
#G x 8pcs

# A x 10pcs
#B x 10pcs
#C x 10pcs
#A #B
#C
#D
#D
#A
#C
#B
#1
# 2L
# 5
# 2R
Page 4 of 6
Exploded View
#1
#2L
#2R
#3
#4
#4
#5
#6
#7
Align HB legs (#2R/L) to headboard (#1) and HB support (#5), then
secure by using bolts (#A) with washers (#B,C).

Page 5 of 6
#F x 8pcs
#G x 8pcs
#H x 8pcs #1
# 2L
# 2R
#3
#4
#4
#F
#G
#H
#I
# 6
#7 x 4
Attach threaded pins (#F) to the headboard (#1) and footboard
(#3), then align side rails (#4) to the threaded pins of the
headboard and footboard. Secure by using half moon washers
(#G) and hex nuts (#H).
Attach support legs (#7) to the slats (#6), then adjust the
leveler on support legs according to ground level.

Page 6 of 6
#E x 8pcs
#E
#4
#4
# 6
ASSEMBLY IS COMPLETED
Align slats (#6) to the side rails (#4), then
secure by using screws (#E).
