Furuno LH-3000 User manual

1. INSTALLATION
5
Wiring
The illustration below shows how to connect the power supply. Other equipment are
connected similarly.
J1
(1) Unfasten screws.
(2) Pull out terminal.
- +
(3) Insert wire into terminal,
and tighten screw at top
of terminal.
J2
J3
AFT FWD 13.6V
- + - + - +
TERMINAL ARRANGEMENT
0V 0V 0V 0V 0V4 CAL4
MIC PTT AUX ALRM SP4
J3
- + - + - +
AFT FWD 13.6V
J1
0V3 CAL3 SP2 0V1 CAL1
SP3 0V2 CAL2 SP1
J2
(4) Set terminal;
tighten screws.
Jeweler’s
screwdriver
Note: Connect power cables
to the battery correctly.
ppppp
pppp p p
LH-3000, rear panel, how to wire terminals

1. INSTALLATION
6

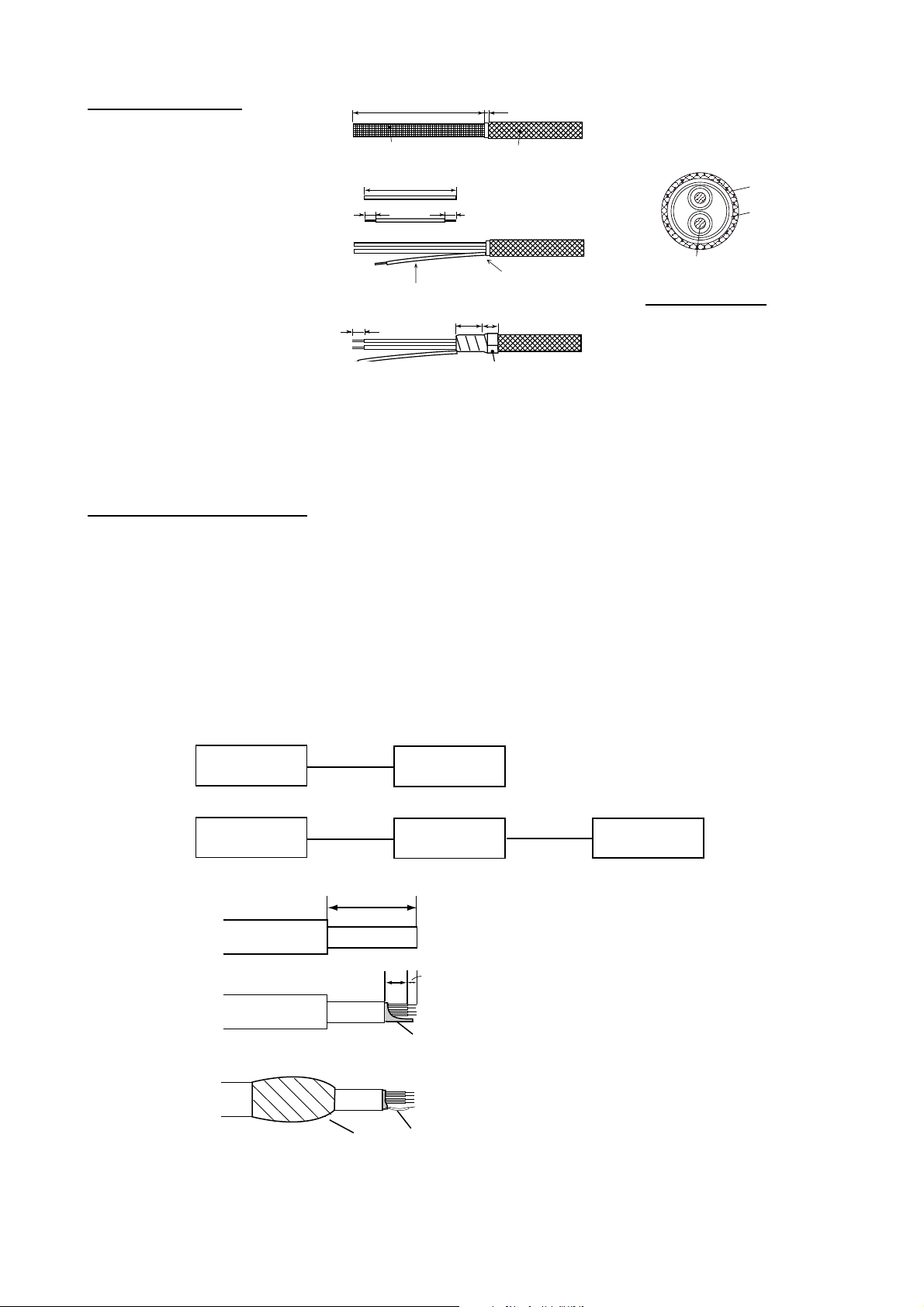

Power connection
The LH-3000 is intended for
use with a 13.6 VDC power
supply. Connect the power
cable (local supply) to the
terminals labeled “13.6V”.
Use cable type DPYC-1.5 or
equivalent. Fabricate the
cable as shown below. For
longer runs the wire size of
leads should be increased
accordingly to minimize line
losses. The wire connected to the positive (+) terminal must be connected to the positive
terminal on the DC power source, and the wire connected to the negative terminal (-) must
be connected to the negative terminal on the DC power source. If the power leads are
reversed the fuse (inside the Loud Hailer) will blow.
Intercom speaker (option)
Up to four intercom speakers may be connected to the intercom speaker terminals labeled
CAL1-CAL4. Connect each speaker to the terminal block according to desired intercom
speaker selection. The cable end is prefabricated. However, to meet EMC requirements the
length of the cable must be less than 1 m. If the distance between the Loud Hailer and
intercom speaker is greater than 2 m (max. 20 m), use a junction box (local supply). For the
connection to the junction box use cable type CO-SPEVV-SB-C 0.2X2P (option) and
fabricate it as below. In this case, the length of the cable between the junction box and an
intercom speaker must no be more than 1 m regardless of whether the equipment must
meet EMC requirements or not.
Loud Hailer Intercom
Speaker
2 m max.
Distance between loud hailer and intercom speaker is less than 2 m.
Loud Hailer Junction
Box 1 m max.
Distance between loud hailer and intercom speaker is 2-20 m.
Intercom
Speaker
2-20 m max.
45
11 7
Outer sheath
Twist and trim the shield.
Inner sheath Remove the outer sheath and
armor by 45 mm.
Remove the inner sheath by 11 mm,
and the sheath of the cores by 7 mm.
Cut the unused cores.
Solder a vinyl wire to the shield.
Tape the sheath.
Vinyl wire
Vinyl
tape
Fabrication of speaker cable
Conductor
S = 1.5 mm
φ= 1.56 mm
2
Armor
Sheath
φ =
11.7 mm
DPYC-1.5 Sectional view
77 3
7
Armor
Cut the sheath.
Sheath
15 10
L*
515
Drain wire fabrication
Solder drain wire
* Length long enough to
reach ground terminal.

243
A
1
B
C
DRAWN
CHECKED
APPROVED DWG.No.
TITLE NAME 名称
相互結線図
LH‑3000
ラウドヘイラー
INTERCONNECTION DIAGRAM
GND
PTT
MIC
AG
NC
NC
NC
FG
12345678
12
GND
J4
EXT. SPEAKER
IV‑1.25
φ3.5 PLUG
1 2 3 4 5 6
FWD+
FWD‑ AFT‑
AFT+
J1
After Horn Forward Horn
*1
*1
*1
13.6 VDC
2 3 4 5 6 7 8 9 1
J2
CAL1
SP1
CAL2
SP2
CAL3
SP3
インターコムスピーカ INTERCOM SPEAKER
LH‑3010
インターコムスピーカ INTERCOM SPEAKER
LH‑3010
インターコムスピーカ INTERCOM SPEAKER
LH‑3010 *3
*3 *3
P
P
P
P
P
P
*2
*4
LOUD HAILER
LOUD HAILER
LH‑3000
1 2 3 4 5 6 7 8 9
ALARM
AUX
PTT
10 11
MIC
J3
CAL4
SP4
0V 0V
0V INPUT FROM
*1
*1
*1
MICROPHONE
インターコムスピーカ INTERCOM SPEAKER
LH‑3010 *3
P
P
C5646‑C01‑B
K.MIYAZAWA
DPYC‑1.5 DPYC‑1.5
TTYC‑1
TTYCS‑1
TTYCS‑1
*4
*4
0V
+13.6V
‑13.6V
0V1 0V2 0V3 0V4
DPYC‑1.5, MAX 7.5m
ALARM SENSOR
EXT. AUDIO SOURCE *1
NOTE *1: LOCAL SUPPLY. *2: CONNECTOR PLUGS FITTED AT FACTORY.
*3: OPTION. *4: SOLDER DRAIN WIRE TO ARMOR OF CABLE AND CONNECT IT TO EARTH TERMINAL.
DO NOT SHORT THE DRAIN WIRES ON THE HEAT SINK.
注記
＊2）コネクタは工場にて取付済み。
＊3）オプション。
＊1）現地手配。
＊4）ケーブルのあじろがい装にアース線を
ハンダ付けしてアース端子に接続。
このアース線は放熱板にショートさせないこと。
＊5）LH‑3000とLH‑3010間：
EXTERNAL SPEAKER
外部スピーカ 8Ω
CONNECT CABLE FROM LH‑3010 DIRECTLY TO LH‑3000.
USE JUNCTION BOX(JB).
GREATER THAN 2m:
*5
*5
*5
*5
Feb. 3 '04
（2mを超える場合）接続箱(JB)を使用し、LH‑3000とJB間は20m以下、
JBとLH‑3010間は1m以下にすること。
(2m以下の場合）LH‑3010からのケーブルを直接LH‑3000に接続すること。
*5: CABLING BETWEEN LH‑3000 AND LH‑3010:
2m OR LESS:
DISTANCE BETWEEN LH‑3000 AND JB SHALL BE 20m OR LESS. DISTANCE BETWEEN JB AND LH‑3010 SHALL BE 1m OR LESS.
*3 CO‑SPEVV‑SB‑C 0.2X2P MAX 20m
*3 CO‑SPEVV‑SB‑C 0.2X2P MAX 20m *3 CO‑SPEVV‑SB‑C 0.2X2P MAX 20m *3 CO‑SPEVV‑SB‑C 0.2X2P MAX 20m
*3 CO‑SPEVV‑SB‑C 0.2X2P, MAX 5m
*1
*1
*1 *1
J.B. J.B.
J.B. J.B.
*1
*1
*1
*1 *1
MIC DM‑2003
Takahashi T.
Y.Hatai
Yosh itoshi Hatai
