Furuno BR-500 User manual

BRIDGE NAVIGATIONAL WATCH
ALARM SYSTEM (BNWAS)
BR-500
OPERATOR'S MANUAL
www.furuno.com
Model

The paper used in this manual
is elemental chlorine free.
・FURUNO Authorized Distributor/Dealer
9 52 Ashihara cho,
Nishinomiya, 662 8580, JAPAN
A
:
MAR
2011
.
Printed in Japan
All rights reserved.
G2
:
OCT
.
05, 2016
Pub. No.
OME-44610-G2
(
ETMI
)
BR-500
0 0 0 1 7 4 6 1 8 1 6

i
IMPORTANT NOTICES
General
• This manual has been authored with simplified grammar, to meet the needs of international users.
• The operator of this equipment must read and follow the descriptions in this manual. Wrong oper-
ation or maintenance can cancel the warranty or cause injury.
• Do not copy any part of this manual without written permission from FURUNO.
• If this manual is lost or worn, contact your dealer about replacement.
• The contents of this manual and equipment specifications can change without notice.
• The example screens (or illustrations) shown in this manual can be different from the screens you
see on your display. The screens you see depend on your system configuration and equipment
settings.
• Save this manual for future reference.
• Any modification of the equipment (including software) by persons not authorized by FURUNO will
cancel the warranty.
• The following concern acts as our importer in Europe, as defined in DECISION No 768/2008/EC.
- Name: FURUNO EUROPE B.V.
- Address: Ridderhaven 19B, 2984 BT Ridderkerk, The Netherlands
• All brand and product names are trademarks, registered trademarks or service marks of their re-
spective holders.
How to discard this product
Discard this product according to local regulations for the disposal of industrial waste. For disposal
in the USA, see the homepage of the Electronics Industries Alliance (http://www.eiae.org/) for the
correct method of disposal.
How to discard a used battery
Some FURUNO products have a battery(ies). To see if your product has a battery, see the chap-
ter on Maintenance. Follow the instructions below if a battery is used. Tape the + and - terminals
of battery before disposal to prevent fire, heat generation caused by short circuit.
In the European Union
The crossed-out trash can symbol indicates that all types of batter-
ies must not be discarded in standard trash, or at a trash site. Take
the used batteries to a battery collection site according to your na-
tional legislation and the Batteries Directive 2006/66/EU.
In the USA
The Mobius loop symbol (three chasing arrows) indicates that
Ni-Cd and lead-acid rechargeable batteries must be recycled.
Take the used batteries to a battery collection site according to
local laws.
In the other countries
There are no international standards for the battery recycle symbol. The number of symbols can
increase when the other countries make their own recycle symbols in the future.
Cd
Ni-Cd Pb

ii
SAFETY INSTRUCTIONS
CAUTION
WARNING
Mandatory ActionProhibitive ActionWarning, Caution
Warning Label
A warning label is attached to the processor unit.
Do not remove the label. If the label is missing
or damaged, see your dealer about replacement.
Do not disassemble or modify the
equipment.
Fire, electrical shock or bodily injury
can result.
Do not operate the equipment with
wet hands.
Fire or electrical shock can result.
Keep the equipment away from rain,
water and water splash.
Fire or electrical shock can result if water
gets into the equipment.
Use the correct fuse.
Use of a wrong fuse can cause bodily
injury or fire.
Do not open the equipment.
This equipment uses high voltage that can
cause electrical shock.
Only qualified persons can work inside
the equipment.
Turn off power at switchboard if the
something is dropped inside the
equipment.
Fire or electrical shock can result if the
power remains on.
Turn off power at switchboard if the
equipment is emitting smoke or fire.
Fire or electrical shock can result if the
power remains on.
Indicates a condition that can cause death or serious injury if
not avoided.
Indicates a condition that can cause minor or moderate injury if
not avoided.
WARNING CAUTION
WARNING
To avoid electrical shock, do not
remove cover. No user-serviceable
parts inside.
Read these safety instructions before you operate or install the equipment.
Name: Warning Label (1)
Type: 86-003-1011-3
Code No.: 100-236-233-10

SAFETY INSTRUCTIONS
iii
CAUTION
WARNING
Securely ground (protection earth)
the equipment.
Ineffective ground can cause electrical
shock.
Follow the compass safe distances
shown in the table below to prevent
interference to a magnetic compass.
Do not open the equipment unless
authorized.
This equipment uses high voltage which
can cause electrical shock if mishandled.
Turn off power at switchboard before
starting the installation.
Fire or electrical shock can result if the
power is on.
Be sure to connect to the correct power
supply.
Connection to a wrong power supply
can cause fire or bodily injury.
Do not disassemble or modify the
equipment.
Fire, electrical shock or bodily injury can
result.
Steering
compass
Standard
compass
Unit
0.60 m
BR-510 0.40 m
1.75 m
0.30 m
2.70 m
0.35 m
0.40 m
0.60 m
0.45 m
0.70 m
0.35 m0.55 m
BR-520
BR-530
BR-540
BR-550
BR-560
0.30 m0.45 m
BR-570

iv
TABLE OF CONTENTS
FOREWORD ...................................................................................................................vi
SYSTEM CONFIGURATION ........................................................................................viii
1. MAIN ALARM PANEL ...........................................................................................1-1
1.1 Controls...................................................................................................................... 1-1
1.2 How to Turn the System On/Off ................................................................................. 1-1
1.3 BNWAS Display ......................................................................................................... 1-2
1.4 How to Adjust the LCD/LED Brilliance,
Key Backlighting1-3

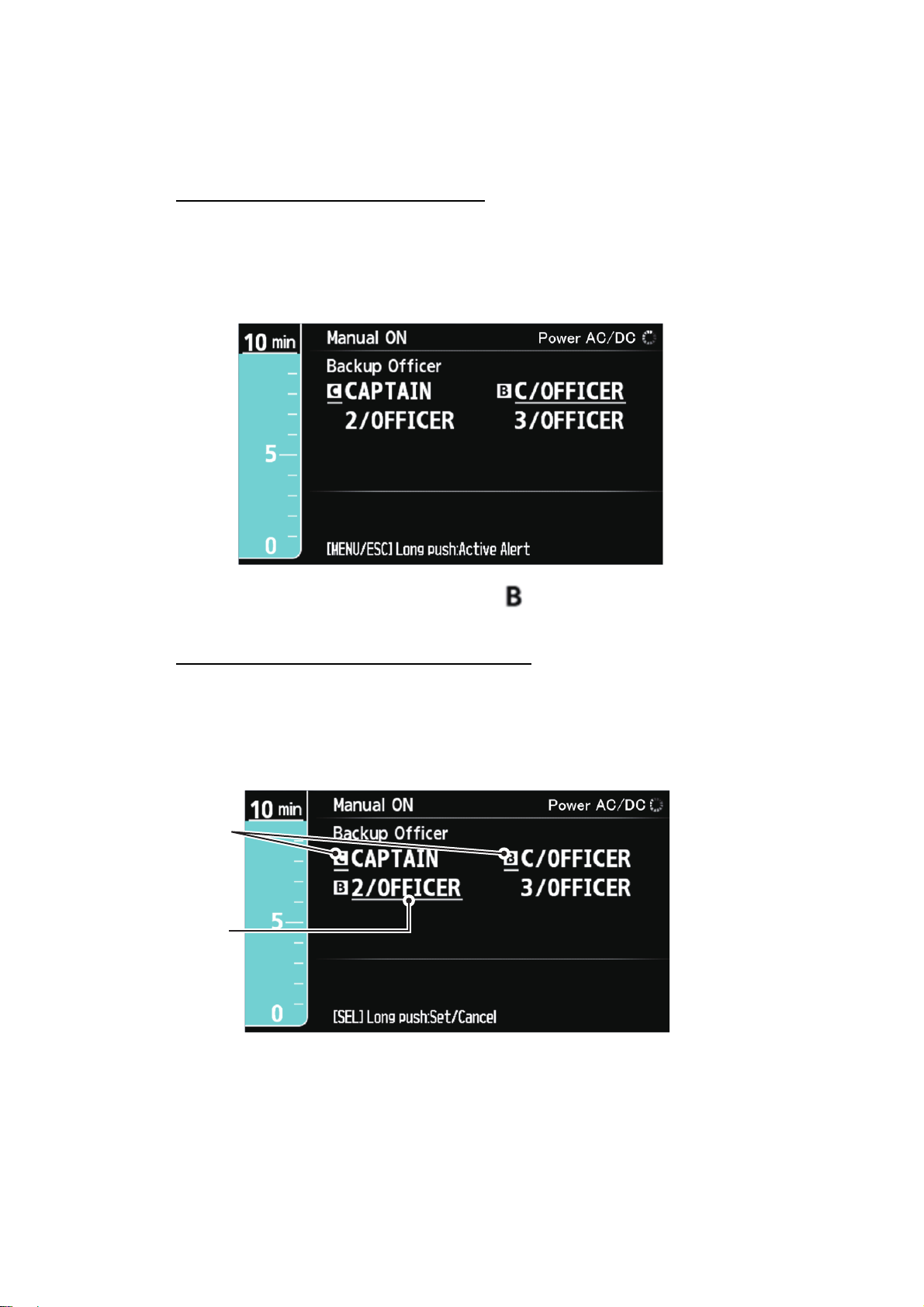

1.5 How to Assign Backup Officers.................................................................................. 1-4
1.6 Mode .......................................................................................................................... 1-5
1.7 Dormant Period .......................................................................................................... 1-5
1.8 Watch Alarm Sequence ............................................................................................. 1-5
1.9 Help Area ................................................................................................................... 1-9
1.9.1 System failure indications .............................................................................. 1-9
1.9.2 Active Alert list and Alert Log ....................................................................... 1-10
1.9.3 Operational event indications....................................................................... 1-11
1.10 How to Make an Emergency Call............................................................................. 1-12
1.11 How to Call a Navigation Officer .............................................................................. 1-13
1.12 External Emergency Call (Backup Navigator).......................................................... 1-13
2. OPTIONAL EQUIPMENT.......................................................................................2-1
2.1 Timer Reset Panel BR-530, BR-550 .......................................................................... 2-1
2.2 Cabin Panel BR-540 .................................................................................................. 2-2
2.3 Motion Detector BR-560............................................................................................. 2-3
2.4 Flash Beacon BR-570 ................................................................................................ 2-4
3. MAINTENANCE AND
TROUBLESHOOTING3-1
3.1 Maintenance............................................................................................................... 3-1
3.2 Fuse Replacement ..................................................................................................... 3-2
3.3 Troubleshooting ......................................................................................................... 3-2
3.4 How to Check Connection Between Processor Unit/Cabin Panel/ Timer Reset Panel 3-
3
3.5 Life Expectancy of Major Parts .................................................................................. 3-4
4. INSTALLATION .....................................................................................................4-1
4.1 Equipment Lists.......................................................................................................... 4-1
4.2 Mounting Considerations ........................................................................................... 4-2
4.3 Main Alarm Panel BR-510.......................................................................................... 4-3
4.3.1 Desktop mount ............................................................................................... 4-3
4.3.2 Flush mount ................................................................................................... 4-3
4.3.3 Shield film (option) ......................................................................................... 4-4
4.4 Processor Unit BR-520 .............................................................................................. 4-4
4.5 Timer Reset Panel BR-530, Cabin Panel BR-540, Motion Detector BR-560, Flash
Beacon BR-570 (optional units)4-4
4.5.1 Flush mount ................................................................................................... 4-4
4.5.2 Bulkhead mount (option)................................................................................ 4-5
4.6 Watertight Timer Reset Panel BR-550 (option).......................................................... 4-9
4.7 Wiring .......................................................................................................................4-11
4.7.1 Processor Unit.............................................................................................. 4-11

TABLE OF CONTENTS
v
4.7.2 Wiring information ........................................................................................4-13
4.7.3 Main Alarm Panel .........................................................................................4-14
4.7.4 Timer Reset Panel, Cabin Panel, Motion Detector, Flash Beacon...............4-15
4.7.5 Flash Beacon ...............................................................................................4-15
4.7.6 How to fabricate cables for the Cabin Panel, Timer Reset Panel, Flash Beacon
and Motion Detector4-16
4.8 DIP Switch, Rotary Switch Settings..........................................................................4-16
4.9 How to Adjust LED Brilliance....................................................................................4-17
4.10 Menu Settings...........................................................................................................4-18
4.10.1 Administrator Menu ......................................................................................4-18
4.10.2 Service Menu ...............................................................................................4-22
4.11 I/O Sentence Information..........................................................................................4-24
4.11.1 Input sentences ............................................................................................4-25
4.11.2 Output sentences .........................................................................................4-26
APPENDIX 1 MENU TREE, ABBREVIATIONS, JIS CABLE GUIDE ......................AP-1
APPENDIX 2 ALERT ICONS, IDS, MEANINGS AND MEASURES ........................AP-3
SPECIFICATIONS ..................................................................................................... SP-1
PACKING LIST............................................................................................................ A-1
OUTLENE DRAWING ................................................................................................. D-1
INTERCONNECTION DIAGRAM ................................................................................ S-1
INDEX ......................................................................................................................... IN-1

vi
FOREWORD
A Word to the Owner of the BR-500
Congratulations on your choice of the FURUNO BR-500 Bridge Navigational Watch Alarm System
(BNWAS). We are confident you will see why the FURUNO name has become synonymous with
quality and reliability.
Since 1948, FURUNO Electric Company has enjoyed an enviable reputation for innovative and
dependable marine electronics equipment. This dedication to excellence is furthered by our ex-
tensive global network of agents and dealers.
Your equipment is designed and constructed to meet the rigorous demands of the marine envi-
ronment. However, no machine can perform its intended function unless properly operated and
maintained. Please carefully read and follow the operation and maintenance procedures set forth
in this manual.
Thank you for considering and purchasing FURUNO.
We would appreciate feedback from you, the end-user, about whether we are achieving our pur-
poses.
Features
The BR-500 monitors the Officer of the Watch’s (OOW) presence on the bridge to prevent mari-
time casualties. The system sends an alarm to the quarters of the backup officer if the OOW fails
to respond to the active alarm or emergency call.
• Complies to the following standards;
IMO MSC.128 (75), IEC60945 Ed.4, IEC61162-1 Ed.4 (2010-11).
• Watches for unattended bridge and operator disability.
• Transmits alarm to backup officer if the OOW fails to respond to active alarm or emergency call.
• Motion Detector (option) detects motion on the bridge to confirm operator fitness.
• Flash Beacon (option) flashes to remind OOW to confirm presence (by operating equipment in
the system).
Software history
Main Alarm Panel Program Processor Unit Program
• BOOT: 2450054-01.xx
Initial version 04/2015
• APPLICATION: 2450056-02.xx
• BOOT: 2450058-01.xx
Initial version 04/2015
• APPLICATION: 2450060-02.xx
• CPLD: 2450065-01.xx
xx: denotes minor change to version number.

FOREWORD
vii
Usage precautions
Back-up power supply
The BR-500 is not equipped with a back-up power supply. Use an external back-up power supply
(24 VDC) when the main or auxiliary power fails.
Motion Detector (BR-560)
The Motion Detector judges motion by the amount of temperature change within the detection
area. If the area has source(s) of heat other than personnel or the temperature change is too
small, detection of motion may not be possible. Keep the following points in mind:
Motion is mis-detected when
• movement in sleep is judged as motion.
• movement by small animal(s) is judged as motion.
• equipment that circulates air (air conditioner, etc.), steam-generating warmers and the like
causes temperature change.
• sunlight or shade in the detection area causes temperature change.
Motion cannot be detected if
• The ambient temperature is almost the same as personnels’.
• the temperature change in personnel or detection area is too small.
• personnel motion is too fast or too slow
• there is an obstruction between personnel and the Motion Detector.
The Motion Detector can be affected by sunlight. Install it in a place well away from sunlight.
Note: The surrounding environment can prevent detection of movement, thus the motion detector
can only act as an aid to the timer reset panel. FURUNO will accept no responsibility for any
accidents resulting from sensor misdetection.
Resetting the watch alarm timer
Reset the watch alarm timer from the Timer Reset Panel, which is installed next to the Main Alarm
Panel.

viii
SYSTEM CONFIGURATION
PROCESSOR UNIT
BR-520
100-230 VAC
MAIN ALARM PANEL
BR-510
CABIN PANEL
BR-540 (Max. 12)
TIMER RESET PANEL
BR-530
WATERTIGHT TIMER
RESET PANEL
BR-550
(Max. 6)
FLASH BEACON
BR-570 (Max. 3)
MOTION DETECTOR
BR-560 (Max. 2)
- Dashed lines indicate optional or local supply equipment.
- Environmental category:
Units protected from the weather: BR-510, BR-520, BR-530, BR-540, BR-560, BR-570
Units exposed to the weather: BR-550
24 VDC
(back-up
battery)
Operator Fitness IN (4 lines)
Backup Navigator IN (1 line)
Autopilot (1 line)
Dry Contact
(SYSTEM FAIL)
Serial I/O IEC61162 (1 line)
(2 lines)
AMS

1-1
1. MAIN ALARM PANEL
The Main Alarm Panel is the heart of the BNWAS. All settings are done from the Main
Alarm Panel.
1.1 Controls
1.2 How to Turn the System On/Off
Power to the system is
supplied from the power
switch on the ship’s
switchboard. After the
power is applied to the
system, the BNWAS dis-
play, shown to the right,
appears.
Note: Wait at least one
minute before reapply-
ing the power to ensure
correct startup.
No. Control Name Description
1SEL Press: Select the backup officer.
Long press: Select the regular backup officer.
2 MODE Select the operating mode.
3 MENU/ESC Open the menu; return to previous setting or previous screen.
Long press: Displays the Active Alert list and Alert Log.
4 CursorPad Select items on menus; adjust LCD brilliance and key backlighting.
5 ENT/CALL Confirm operation; call the Captain or other navigation officer.
6 EMG Make emergency call.
7 RESET Reset the watch timer.
㽲
㽳㽴
㽶㽷
㽸
㽵
How to detach the hard cover from the unit
Put your thumbs on the front and forefingers
on the catches at the sides of the cover.
Pull the cover toward you.
Catch

1. MAIN ALARM PANEL
1-2
1.3 BNWAS Display
The BNWAS display is divided into the seven areas described below.
Operating mode
The current operating mode. The possible indications are Auto, Manual ON, and Man-
ual OFF.
Note: Auto operating mode is not available for SOLAS vessels.
Power indication
The power indications shows the power being supplied to the system.
• Power AC/DC: Both AC and DC power
• Power AC: AC power
• Power DC: DC power
If something appears to be wrong with the system, check the power source (battery)
and cables.
System status indicator
The system status indicator rotates when the system is normal, and appears on all dis-
plays. If the indicator is not rotating, there can be a problem with the system. Contact
a FURUNO agent or dealer for information.
Backup officer indication/selection
Up to six backup officers can be assigned using the SEL key. The current assigned
backup officers are displayed with a backup icon ( ) before their name, as shown
for C/OFFICER in the above figure. When [Captain Backup] is set to [ON], the captain
icon ( )is underlined, as shown in the above figure.
Help area
The help area shows all operational events, operation guides and error messages.
See section 1.9 “Help Area”.
Watch time interval countdown timer
The length of the bar decreases as time progresses and the color of the bar changes
with each stage.
Power AC/DC
Power AC/DC
Operating mode Power indication System status
indicator
Operational event, operation guide
Watch time
interval
Watch time interval
countdown timer
(Colored bar flows
downward with time)
Error message Help area
Backup
Officer
Indication/
Selection

1. MAIN ALARM PANEL
1-3
Watch time interval setting
The currently selected watch time interval appears at the top of the watch time interval
countdown timer.
1.4 How to Adjust the LCD/LED Brilliance,
Key Backlighting
The brilliance of the LCD of the Main Alarm
Panel, the ALARM LED of the Timer Reset
Panel and the LED of the Flash Beacon, and
the backlighting for the keys of the Main Alarm
Panel can be adjusted as shown below.
1. Press any arrow on the CursorPad to
show the [BRILL] window.
2. Press the right or left arrow on the CursorPad to adjust the brilliance of the LED.
The setting range is 0-7, and the default setting is 5.
3. Press the up or down arrow on the CursorPad to adjust the key backlighting of the
Main Alarm Panel and the ALARM LEDs (incl. Flash Beacon). The setting range
is 0-7, and the default setting is 5.
4. Press the MENU/ESC key to close the window. (The window closes automatically
if there is no adjustment within several seconds.)
Note 1: If the screen is too bright with minimum brilliance at nighttime, install the shield
film (option) to reduce the brilliance. See paragraph 4.3.3.
Note 2: The system increases the brilliance one step in stages 1-3 of the watch alarm.
When the timer is reset, the previous brilliance is restored. Brilliance is not changed if
it is set for maximum at stages 1-3.
2nd stage 3rd stage
Time remaining in
1st stage
(bar is red)
Time remaining
in dormant period
(bar is light-blue)
Watch time
setting (min)
Dormant Period Prewarning 1st stage
Watch time
setting (min)
Watch time
setting (min)
Time remaining
in prewarning +
1st stage
(bar is yellow)
Watch time
setting (min)
(No countdown
in 3rd stage)
Watch time
setting (min)
Time remaining
in 2nd stage
(bar is red)
BRILL
LCD
MIN MAX
Key / ALARM LED
4
4

1. MAIN ALARM PANEL
1-4
1.5 How to Assign Backup Officers
You can assign up to six backup officers and select the backup officer on duty from
the BNWAS display.
How to assign one officer as backup
Press the SEL key to move the underline cursor and assign a backup officer. The un-
derline cursor moves with each press of the SEL key.
In the example figure below, [C/OFFICER] is assigned as the backup officer.
The backup officer also has a backup icon ( ) to the left of their name, as shown in
the figure above.
How to assign multiple officers as backup
1. Press the SEL key to select the first officer to assign as backup.
2. Press and hold the SEL key to show an underline below the selected officer’s
backup icon. This officer is now saved as a backup officer.
3. Repeat steps 1 and 2 to assign other backup officers as required.
4. To cancel a backup officer assigned in this manner, select the officer, then press
and hold the SEL key. The underline indication below the backup icon disappears.
You can now select a different officer to assign as backup.
Currently assigned
backup officer’s
name is underlined
Other backup
officers’ icon is
underlined

1. MAIN ALARM PANEL
1-5
1.6 Mode
The BR-500 has three main modes of operation:
Manual OFF: The BNWAS is inactive. Use this mode when entering or just leaving
harbor. No reset is necessary. Default setting.
Manual ON: The BNWAS is active. Use this mode when the vessel is traveling on the
open sea. Reset is necessary to continue operation.
AUTO: The BNWAS is active or inactive according to the autopilot state. BNWAS is
ON when the autopilot is ON; OFF when the autopilot is OFF.
Note: Auto operating mode is not available for SOLAS vessels.
1. Press the MODE key. You are asked to enter the pass-
word. Enter the password. See the FURUNO service tech-
nician for the password.
2. Use the CursorPad to select a mode then press the ENT/
CALL key.
1.7 Dormant Period
The watch time interval can be selected from the Administrator Menu. Only the admin-
istrator of the system can access the Administrator Menu. See paragraph 4.10.1
menu for how to select the interval time.
1.8 Watch Alarm Sequence
The watch alarm checks for the presence of the OOW on the bridge. If equipment on
the bridge (Main Alarm Panel, Timer Reset Panel, Backup Navigator, Autopilot, or Mo-
tion Detector) is operated within the selected watch time interval, no alarm is given. If
no equipment is operated within the selected watch time interval, the system contin-
ues in the sequence shown below.
1. The watch alarm timer starts when the system is started. The length of the watch
time interval countdown timer bar (color is light-blue at this time) decreases as
time progresses. (The timer interval is set on the Administrator Menu, which is un-
der the control of the Administrator.)
If the equipment connected to the system is operated before the timer reaches ze-
ro, the timer countdown is restarted.
Watch time interval
countdown timer
(light-blue in
dormant period)

1. MAIN ALARM PANEL
1-6
2. If the equipment connected to the system is not operated within the watch time
interval, the PREWARNING phase begins:
3. If the equipment connected to the system is not operated during the PREWARN-
ING, the 1st stage visual and audible alarms begin.
4. If the equipment connected to the system is not operated within 15 seconds, the
2nd stage visual and audible alarms begin.
• Main Alarm Panel shows a 15-second visual alarm (in yellow)
• Timer Reset Panel flashes its ALARM LED for 15 seconds
• Flash Beacon flashes
• Main Alarm Panel releases a 15-second visual (in red) and audible alarms
• Timer Reset Panel flashes its ALARM LED for 15 seconds and sounds its buzzer
for 15 seconds
• Flash Beacon flashes

1. MAIN ALARM PANEL
1-7
Note: The alarm cannot be stopped from a Timer Reset Panel at this point.
5. If, within the 2nd stage watch interval (90-180 seconds), the equipment connected
to the system is not operated or the OOW does not press the RESET key, the 3rd
stage visual and audible alarms begin.
6. At the 2nd and 3rd stages, stop the buzzer and acknowledge the alarm with the
RESET key on the Main Alarm Panel.
Equipment and visual alarm, LED, buzzer
• Main Alarm Panel shows a 90-180-second visual alarm (in red) and sounds its
buzzer for 90-180 seconds
• Timer Reset Panel flashes its ALARM LED for 90-180 seconds and sounds its
buzzer for 90-180 seconds
• Cabin Panel:
• Captain selected as a backup officer: ALARM LED lights and buzzer sounds,
90-180 seconds each
• Backup officer (selected on BNWAS display): ALARM LED lights and buzzer
sounds, 90-180 seconds each
• Other backup officer: No action
• Public cabin: ALARM LED lights and buzzer sounds, 90-180 seconds each
• Flash Beacon flashes or is OFF (depending on DIP SW setting)
• Main Alarm Panel continuously displays a visual alarm (in red) and sounds its
buzzer until reset occurs
• Timer Reset Panel continuously flashes its ALARM LED and sounds its buzzer
until reset occurs
• All Cabin Panels continuously light their ALARM LEDs and sound their buzzers
until reset occurs
• Flash Beacon flashes or is OFF (depending on DIP SW setting)
Equipment State LED
color
Dorman
t Period
Pre-
warning
1st
stage
2nd
stage*23rd
stage
Main Alarm
Panel BR-510
Visual alarm None Yes Yes Yes Yes
Buzzer None None Yes Yes Yes
Timer Reset
Panel BR-530/
550
RESET LED Green Lit Lit Lit Lit Lit
ALARM LED Yellow OFF Flashing Flashing Flashing Flashing
Buzzer None None Yes Yes Yes
Cabin Panel:
BR-540 Cap-
tain*1
DUTY LED Green Lit*3Lit*3Lit*3Lit*3Lit*3
ALARM LED Red OFF OFF OFF Lit*3Lit
Buzzer None None None Yes*3Yes

1. MAIN ALARM PANEL
1-8
Cabin Panel
BR-540: Back-
up officer*5
DUTY LED Green Lit Lit Lit Lit Lit
ALARM LED Red OFF OFF OFF Lit Lit
Buzzer None None None Yes Yes
Cabin Panel
BR-540: other
officers
DUTY LED Green OFF OFF OFF OFF OFF
ALARM LED Red OFF OFF OFF OFF Lit
Buzzer None None None None Yes
Cabin Panel
BR-540: public
cabin
DUTY LED Green OFF*6OFF*6OFF*6OFF*6OFF*6
ALARM LED Red OFF OFF OFF OFF*6Lit
Buzzer None None None None*6Yes
Flash Beacon
BR-570
LED Yellow OFF Flashing Flashing Flashing*4Flashing*4
*1 Captain selected as backup officer on Administrator menu.
*2 Output if [2nd Stage] is set to ON in Administrator menu.
*3 [Captain Backup] set to ON in Administrator menu.
*4 According to DIP SW setting in Processor Unit; SW ON: OFF, SW OFF: Flashes.
*5 Officer selected as a backup officer.
*6 According to DIP SW setting in Processor Unit;
SW ON: Sending alarm at 2nd stage.
SW OFF: Not sending alarm at 2nd stage.
Equipment State LED
color
Dorman
t Period
Pre-
warning
1st
stage
2nd
stage*23rd
stage
MAIN ALARM PANEL
TIMER RESET PANEL
(incl. watertight type)
CABIN PANEL
in back-up navigation
officer quarters
Visual alarm* + Audible alarm
Visual alarm (lighting)
+ Audible alarm
Visual alarm (lighting)
+ Audible alarm
Alarm
acknowledged
Timer starts
Variable (90-180 s)
Timer
restarts
2nd stage
3rd stage
15 s 15 s
Dormant Period
Specified interval
Variable (3-12 min)
No acknowledgment
Alarm forwarded
Alarm forwarded
- TIMER RESET
- OPERATOR FITNESS
- ACKNOWLEDGE
- MOTION DETECTION
If none of the above is done
Visual alarm*
Visual alarm*
+ Audible
alarm
Visual alarm (lighting)
+ Audible alarm
* LED flashing at Main Alarm Panel,
Timer Reset Panel, light flashing
on Flash Beacon
1st
stage
30 s after specified
interval elapses
Prewarning
CABIN PANEL in other
navigation officers quarters
and all public areas
Watch alarm sequence

1. MAIN ALARM PANEL
1-9
1.9 Help Area
The help area displays alerts related to system failures, operational events, operation
help, etc.
1.9.1 System failure indications
This section describes how system failures are given and the accompanying operation
flow.
1. The help area shows system failure messages in white (warning level alerts have
a flashing yellow background, alarm level alerts have a red flashing background),
along with the respective alert number and icon. The alert number differs depend-
ing on the Alarm Mode chosen at installation. To change the Alarm Mode settings,
consult a FURUNO technician. Only the alert with the highest priority is displayed
in the help area. All other alerts are listed on the [Active Alert] list and [Alert Log]
screens. (See paragraph 1.9.2.)
2. The buzzer at the Main Alarm Panel sounds.
3. Press any key on the Main Alarm Panel to stop the buzzer and acknowledge the
alarm.
4. For any system error, contact a FURUNO sales representative or service techni-
cian for advice.
The tables below show the alert messages, along with their respective alert icon and
alert number, in order of priority.
Legacy Mode
AlertI/F1 Mode and AlertI/F2 Mode
Alert no. & Indication Problem Measures
010 Failure: Communication Communication failure between
Processor Unit and Main Alarm
Panel
Consult a FURUNO technician.
011 Failure: AC AC power to the unit is interrupted
or stopped.
Check power to the unit, check
cabling and connections to the
unit.
012 Failure: DC DC power to the unit is interrupted
or stopped.
Check power to the unit, check
cabling and connections to the
unit.
Alert No. & Indication Problem Measures
250 COM ERR with
Processor Unit
Communication failure between
Processor Unit and Main Alarm
Panel
Consult a FURUNO technician.
(220*1)001 DC Power
Failure
DC power to the unit is interrupted
or stopped.
Check power to the unit, check
cabling and connections to the
unit.
(220*1)002 AC Power
Failure
AC power to the unit is interrupted or
stopped.
Check power to the unit, check
cabling and connections to the
unit.
220003 BNWAS Alarm is
1st Stage *2
Watch alarm is at first stage Press any key on the Main
Alarm Panel, or press the
Timer Reset Panel button.

1. MAIN ALARM PANEL
1-10
*1: AlertI/F2 mode is displayed in six figures, with the prefix 220. AlertI/F1 Mode is dis-
played in three figures.
*2: Shown only in AlertI/F2 Mode.
For a full list of alert icons, alert IDs, priorities, categories and suggested measures,
see "ALERT ICONS, IDS, MEANINGS AND MEASURES" on page AP-3.
1.9.2 Active Alert list and Alert Log
All active alerts are listed on the [Active Alert] list. To open the list, do the following:
1. Press and hold the MENU/ESC to display the [Active Alert] list.
2. Press or to change between the [Active Alert] list and [Alert Log].
3. Press or to change pages on the Alert Log.
220004 BNWAS Alarm is
2nd Stage *2
Watch alarm is at second stage Press the RESET key on the
Main Alarm Panel.
220005 BNWAS Alarm is
3rd Stage *2
Watch alarm is at third stage Press the RESET key on the
Main Alarm Panel.
220950 Communication Er-
ror with BAM *2
Communication failure between
Processor Unit and Bridge Alert
Management (BAM) system
Check connection with BAM
system. Contact FURUNO if
the problem is not resolved.
Alert No. & Indication Problem Measures
Active Alert list
Help area
Alert Log
Help area
