Installation Manual
DUAL-FREQUENCY SEARCHLIGHT SONAR
Model CH-300
SAFETY INSTRUCTIONS .............................................................................................................i
SYSTEM CONFIGURATION .......................................................................................................iii
EQUIPMENT LISTS.....................................................................................................................iv
1. MOUNTING ...........................................................................................................................1-1
1.1 Monitor Unit/Control Unit.................................................................................................1-2
1.2 Control Unit .....................................................................................................................1-6
1.3 Transceiver Unit ..............................................................................................................1-8
1.4 Hull Unit...........................................................................................................................1-9
1.5 Interface Unit.................................................................................................................1-27
1.6 Motion Sensor MS-100 (option) ....................................................................................1-28
1.7 Clinometer BS-704 (option)...........................................................................................1-29
2. WIRING .................................................................................................................................2-1
2.1 Wiring Among Units ........................................................................................................2-1
2.2 Transceiver Unit ..............................................................................................................2-4
2.3 Hull Unit...........................................................................................................................2-6
2.4 Interface Unit...................................................................................................................2-7
2.5 I/O Sentences .................................................................................................................2-8
3. ADJUSTMENT ......................................................................................................................3-1
3.1 General Checks ..............................................................................................................3-1
3.2 Checking TX Frequency..................................................................................................3-2
3.3 Heading Adjustment Setting............................................................................................3-4
3.4 Setting for Synchronizing Transmission with other Equipment .......................................3-5
3.5 Setting for Satellite Compass..........................................................................................3-6
3.6 Setting of Motion Sensor/Satellite Compass...................................................................3-8
3.7 System Back Up..............................................................................................................3-9
3.8 Setting of Interface Unit.................................................................................................3-10
APPENDIX 1 HOW TO MAKE THE RETRACTION TANK FOR WOODEN VESSEL ..........AP-1
APPENDIX 2 HOW TO INSTALL THE RETRACTION TANK FOR WOODEN VESSEL......AP-7
PACKING LISTS....................................................................................................................... A-1
OUTLINE DRAWINGS.............................................................................................................. D-1
INTERCONNECTION DIAGRAMS........................................................................................... S-1

7KHSDSHUXVHGLQWKLVPDQXDO
LVHOHPHQWDOFKORULQHIUHH
࣭)85812$XWKRUL]HG'LVWULEXWRU'HDOHU
$VKLKDUDFKR
1LVKLQRPL\D-$3$1
$  $35 

3ULQWHGLQ-DSDQ
$OOULJKWVUHVHUYHG
*  0$5  
3XE1R ,0(*
5()8  &+
 

i
WARNING
ELECTRICAL SHOCK HAZARD
Do not open the equipment.
Only qualified personnel
should work inside the
equipment.
WARNING
If a steel tank is installed on a wooden
or FRP vessel, take appropriate
measures to prevent electrolytic
corrosion.
Electrolytic corrosion can damage the hull.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or equipment damage.
Installe the specified transducer tank
in accordance with the installation
instructions. If a different tank is to be
installed the shipyard is solely respon-
sible for its installation, and it should
be installed so the tank doesn’t strike
an object.
The tank or hull may be damaged if the
tank strikes an object.
SAFETY INSTRUCTIONS
WARNING
Indicates a condition that can cause death or serious
injury if not avoided.
CAUTION
Indicates a condition that can cause minor or moderate
injury if not avoided.
Warning, Caution Mandatory Action
Prohibitive Action
Read these safety instructions before you operate the equipment.
Be sure no water leaks in at the transdu-
cer installation site.
Water leakage can sink the vessel. Also
confirm that the transducer will not loosen
by ship’s vibration. The installer of the
equipment is solely responsible for the
proper installation of the equipment.
FURUNO will assume no responsibility for
any damage associated with improper
installation.
Connection of an incorrect power supply
can cause fire or equipment damage. The
voltage rating of the equipment appears
on the label above the power connector.

ii
CAUTION
Observe the following compass safe
distances to prevent deviation of a
magnetic compass:
Ground the equipment to prevent
electrical shock and mutual
interference.
CH-302/
MU-100C
CH-303
IF-8000
CH-302
CH-256
Standard Steering
0.80 m 0.55 m
0.55 m 0.30 m
0.95 m 0.65 m
WORKING WITH THE SONAROIL
Precautions
Keep oil away from eyes. Wear protective
gloves when working with the oil. The oil
can cause inflammation of the eyes.
Do not touch the oil. Wear protective
gloves when working with the oil. The oil
can cause inflammation of the skin.
Do not ingest the oil. Diarrhea or vomiting
can result.
Keep the oil out of reach of children.
Emergency
If the oil enters eyes, flush with clean
water about 15 min. Consult a physician.
If the oil contacts skin, wash within soap
and water.
If the oil is ingested, see a physician
immediately.
Disposal of oil and its container
Dispose of oil and its container in
accordance with local regulations.
For further details, contact place of
purchase.
Storage
Seal container to keep out foreign
material. Store in dark place.
CAUTION
Install the monitor unit MU-100C out of
direct sunlight.
It is difficult to see the display in direct
sunlight.
Keep hands away from the raise/lower
shaft of the hull unit when it is working.
Injury to hands may result if they become
caught in the shaft.
Do not exceed 20 knots when operating
the equipment and do not exceed 15
knots when raising or lowering the
transducer.
The transducer shaft may become damaged.
The hull unit is designed to withstand ship’s
speed of 20 knots. For vessel with greater
speed, reinforce the hull unit.
The transducer tank should be mounted at
the place above the waterline. If this is
impossible, make safety provisions (ex.
construction of watertight compartment).
If there is a possibibility of vibration at the
soundome in high-speed cruising, which
creates prssure inside the tank, discuss the
problem with shipyard and hull manufacturer.
0.30 m 0.30 m
0.30 m 0.30 m

iii
SYSTEM CONFIGURATION
DATA/VIDEO OUT
12-24 VDC
Note 1
Note 2
12-24 VDC
Speaker
Motion Sensor
VGA Ext.
Monitor
Control Unit
Display
Unit
CONTROL UNIT CH-302
Remote
Controller
HULL UNIT
CH-304/305
12/24 VDC
Navigator
Note 2
MONITOR UNIT MU-100C
TRANSCEIVER UNIT
CH-303
INTERFACE UNIT IF-8000
Rectifier
RU-1746B-2
100/110/200/220 VAC
Satellite compass
or
NMEA Input
Note 1: MU-100C is the standard supply
monitor unit. An external monitor
may be connected via the
interface unit (option). The drawing
above shows the system configuration
with the MU-100C.
Note 2: For blackbox type, MU-100C is
not supplied. Connect external
monitor (user supply) and control
unit to the interface unit.

iv
EQUIPMENT LISTS
Standard Supply
Name Type Code no. Qty Remarks
Control Unit/
Monitor Unit
CH-302/
MU-100C - 1 Not supplied with blackbox type
Control Unit CH-302 - 1 Not supplied with unibody type
Interface Unit IF-8000 - 1 For blackbox type (not required for MU-151C)
Transceiver Unit CH-303 - 1
Hull Unit CH-304 - 1 400 stroke See the following table for
Hull Unit Standard Supply.
CH-305 - 250 stroke
Spare Parts
SP06-01101 001-360-670 1 For unibody type*
SP06-01102 006-556-210 1 For transceiver unit*
SP06-01103 006-558-990 1 For hull unit*
SP06-01111 006-556-220 1 For interface unit*
Installation
Materials
CP06-01200 000-068-496
1 set
06S4078 (5 m), 06S4080 (15 m), CP06-01251*
CP06-01201 000-068-497 06S4078 (5 m), 06S4080 (30 m), CP06-01251*
CP06-01202 000-068-498 06S4078 (5 m), 06S4080 (50 m), CP06-01251*
CP06-01203 000-068-499 06S4078 (10 m), 06S4080 (15 m), CP06-01251*
CP06-01204 000-068-500 06S4078 (10 m), 06S4080 (30 m), CP06-01251*
CP06-01205 000-068-502 06S4078 (10 m), 06S4080 (50 m), CP06-01251*
CP06-01261 006-562-580 1 For transceiver unit*
CP06-01501 006-561-620 1 set For hull unit*
CP02-06600 000-012-486
1 set
MJ-A10SPF0002-0015 (0.15 m), for unibody type
CP02-06610 000-012-480 MJ-A10SPF0002-015 (1.5 m ), for blackbox type
CP02-06620 000-012-481 MJ-A10SPF0002-050 (5 m), for blackbox type
Accessories FP02-05100 000-012-474 1 set For unibody type, FP02-05101*, hood
FP06-01410 000-068-630 For control unit, FP06-01120*, hard cover
*: See the lists at the back of this manual.
Hull Unit Standard Supply
Name Type Code no. Qty Remarks
Raise/lower
Drive Unit
CH-3041 -
1 set
CH-3051 -
Soundome CH-3042 - 1 set
Flange CH-2543 006-557-810 1 set See the lists at the back of this manual.
Assembly Kit for
field CH-2544
000-068-681
1 set
Includes liquid gasket.
See the lists at the back of this manual.
001-497-120 Without liquid gasket.
See the lists at the back of this manual.
Shaft SHJ-0006 661-000-062 1 2.2 m, for 3.5/5.2 m cable
06-007-1572 600-715-721 3.8 m, for 5.2m cable
Sonar Oil 4 lit. 000-824-033 1

v
Options
Name Type Code no. Remarks
Remote Controller CH-256-E 000-068-492
Interface Unit IF-8000 -
Motion Sensor MS-100 -
Monitor Unit MU-100C -
Control Unit CH-302-E -
Clinometer BS-704 -
Loudspeaker CA-151S-ASSY 001-466-200
CA-150BS-ASSY 000-190-183
Signal Cable S06-9-5 006-556-270 Extension cable for
loudspeaker
Rectifier RU-1746B-2 000-030-439
Cable assy.
MJ-A6SPF0012-050C 000-154-053 6pin-6pin, 5m
MJ-A6SPF0012-100C 000-154-037 6pin-6pin, 10m
MJ-A6SPF0011-050C 000-159-690 6pin-4pin, 5m
MJ-A6SPF0011-100C 000-159-691 6pin-4pin, 10m
Control Unit
Separate Kit
OP06-15-1.5 NEW 006-559-140 For desktop, with 1.5 m
OP06-15-5 NEW 006-559-150 For desktop, with 5 m
OP02-83-1.5 001-413-600 For flush mount, with 1.5 m
cable
OP02-83-5 001-413-610 For flush mount, with 5m cable
Flush mount kit
OP06-16 006-556-300 For unibody type
OP06-17 006-556-310 For separated display unit
OP06-18 006-556-320 For control unit
Tank
06-007-1570-2 001-428-120 Steel, 1m
SHJ-0001-2 001-428-150 Steel, 1.8m
06-007-1571-2 001-241-270 Steel, 3.5m
06-021-4024-0 001-428-260 FRP, 1m
06-007-1573-0 600-715-730 FRP, 1.8m
OP10-5 000-019-283 Aluminum, 1m
Fairing 06-021-4502 001-159-790-10 For an FRP ship
Soundome Shaft 06-007-1591 001-261-030 3m

vi
This page is intentionally left blank.

1-1
1. MOUNTING
NOTICE
Do not apply paint, anti-corrosive sealant
or contact spray to coating or plastic
parts of the equipment.
Those items contain organic solvents that
can damage coating and plastic parts,
especially plastic connectors.
Necessary tools and materials
To install the units, prepare the tools and materials shown below.
Necessary Tools
Name Specification Qty Remarks
Wrench
For M10 (Hex. size 17
mm)
2 Recommended: double offset
wrench
For M20 (Hex. size 30
mm)
2
For M8 (Hex. size 13 mm) 1
For M6 (Hex. size 10 mm)) 1
For M36 (Hex. size 55
mm)
1*
Pipe Wrench 55 mm 2*
Ball Wrench For M5 (Hex. size 4 mm) 1 Supplied with the hull unit.
Phillips-head
Screwdriver
#1 1
#2 1
Socket Driver For M4 (Hex. size 7 mm) 1
Cutter Knife - 1
Nipper - 1
Crimp Tool - 1 For FV2-4
Soldering Iron - 1 If needed for wiring
Liquid Gasket TB1121 or TB1184
(ThreeBond Holdings Co.,
Ltd.
1 Liquid gasket may not be supplied
with the product because of
export restrictions in each country.
If not included, prepare specified
liquid gasket locally.
*: Prepare two pipe wrenches or one pipe wrench and one wrench (M36).

1. MOUNTING
1-2
Necessary Materials
Name Specification Qty Remarks
Power Cable DPYCYS-2.5 2
Ground Wire IV-2sq. 2
Prepare the sufficient cable length
according to the mounting location.
Crimping Terminal FV2-4 2 For the ground wire
10 A (For 12 VDC)
5 A (For 24VDC)
1 Connect between the transceiver
unit and power source.
30 A (For 12VDC)
DC Breaker
15 A (For 24VDC)
1 Connect between the hull unit and
power source.
Vinyl Tape - -
Solder - -
If needed for wiring
1.1 Monitor Unit/Control Unit
This searchlight sonar has two types of shipments, unibody type which is
shipped with monitor unit, and blackbox type which is shipped without a monitor
unit, but has an interface unit. For blackbox type, see page 1-5.
The control unit can be installed together with the monitor unit, or independently
of the monitor unit. For separate installation, the optional monitor kit is required.
These units can be installed on a tabletop or flush mounted in a console or
panel.
1.1.1 General mounting considerations
• Keep the monitor unit out of direct sunlight.
• Select a location where the unit(s) can easily be operated while observing the
fishing ground or area surrounding the vessel.
• For maintenance and checking purposes, leave sufficient space at the sides
and rear of the unit and leave slack in cable. (Refer to the outline drawing at
the back of this manual.)

1. MOUNTING
1-3
1.1.2 Mounting Unibody type
1. Fasten the mounting base to the mounting location with four self-tapping
screws (5X20).
FRONT
Mounting base
2. Fasten the bracket at the rear of monitor/control unit with four binding screws
(M4x10).
1
12 2
3
34
4
Bracket (rear view)
Bracket, rear view
3. Coat threads of upset screws (M6x16, 2 pcs.) used to fasten bracket to
mounting base.
4. Fasten the bracket to the mounting base with two upset screws. (Use the
upper holes to tilt the monitor unit 20°; lower holes to tilt it 9°.)
Upset Screw
Bracket
Mounting base
For 9 tilt
For 20 tilt
Fastening bracket to mounting base

1. MOUNTING
1-4
Flush mounting

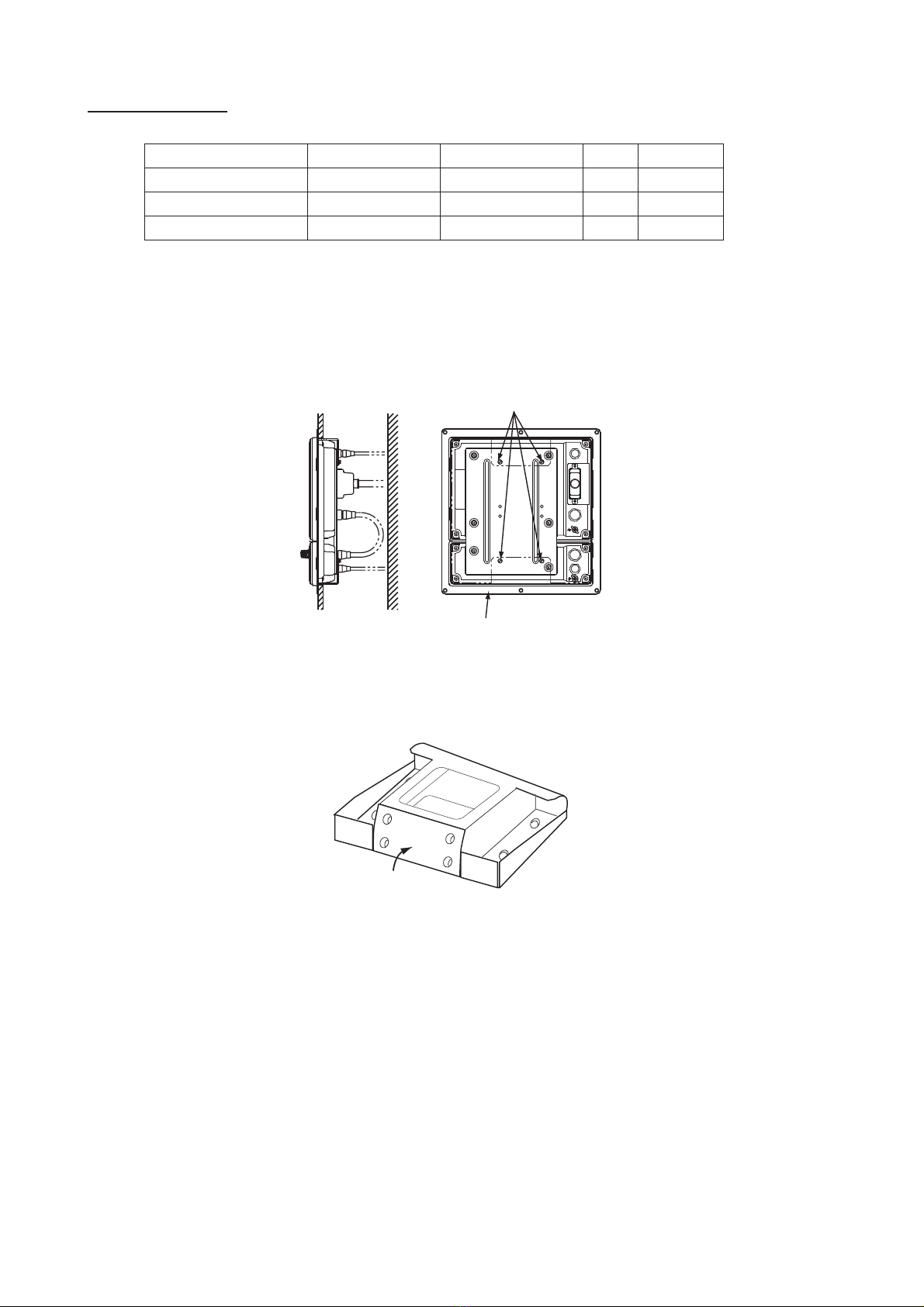

Flush mounting for unibody (Type: OP06-16, Code no.: 006-556-300)
Name Type Code No. Qty Remarks
Fixing metal 06-021-1311-2 100-279-612-10 1
Self-tapping screw 5x20 000-162-609-10 6
Hex. bolt M4x12 000-162-939-10 4
1. Cut out a hole (W287 x H297) in the mounting location.
2. Fasten monitor/control unit with the fixing metal (supplied) and four hex. bolts
(M4x12, supplied).
3. Fasten the fixing metal assembled at step 2 to hole made at step 1 with six
self-tapping screws (5x20, supplied).
Hex. bolts
Fixing metal
1.1.3 Mounting separated monitor unit
1. Fasten the mounting base to the mounting location with four self-tapping
screws (5x20).
FRONT
Mounting base
2. Dismount the coupling plate to separate monitor unit from control unit.

1. MOUNTING
1-5
3. Attach the bracket at rear of the monitor unit with four binding screws
(M4x10).
12
34
12
34
Bracket (rear view)
Bracket, rear view
4. Coat threads of upset screws (M6x16, 2 pcs.) used to fasten bracket to
mounting base.
5. Fasten the bracket to the mounting base with two upset screws. (Use the
upper holes to tilt the monitor unit 20°; lower holes to tilt it 9°.)

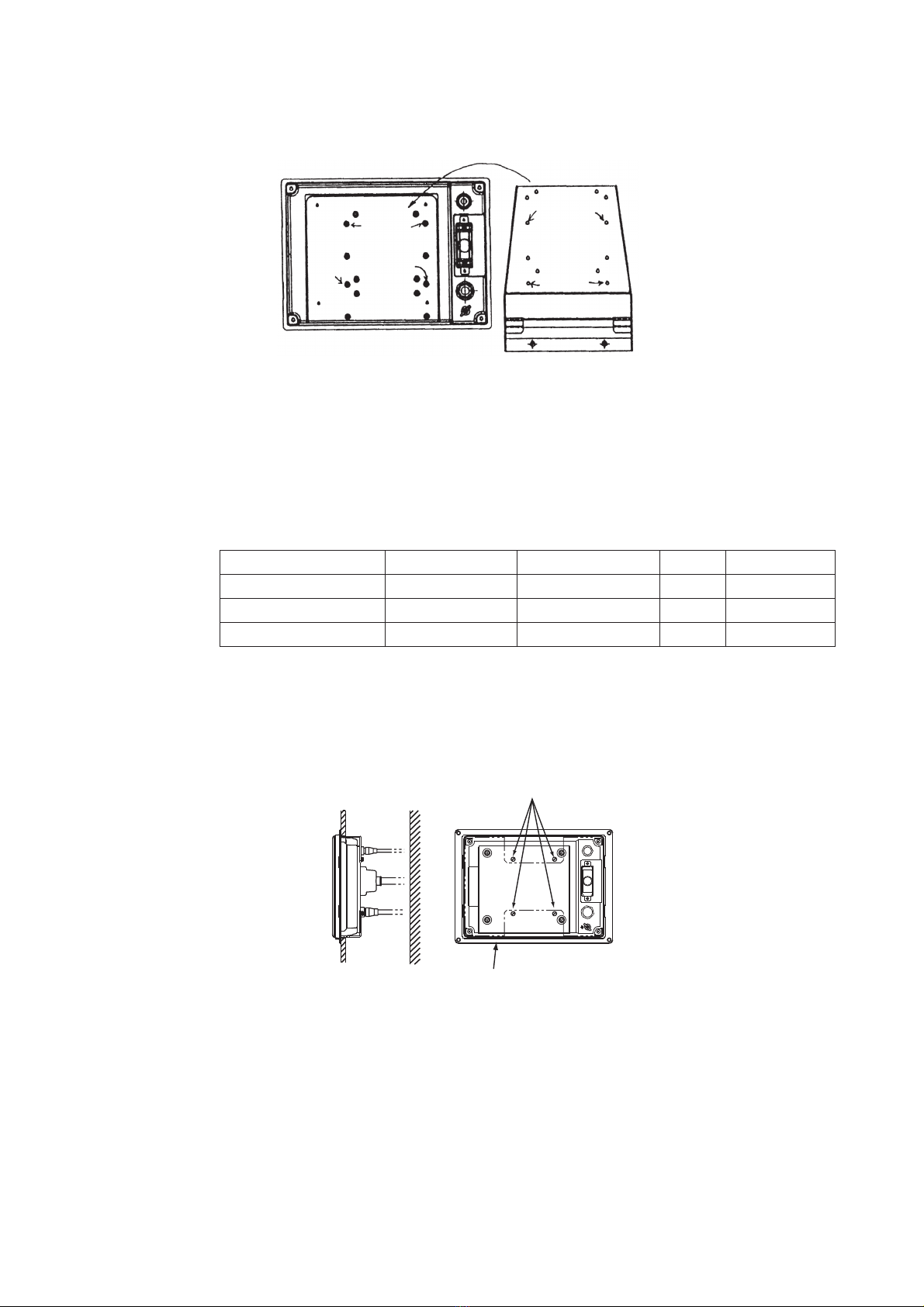

Flush mounting for monitor unit (Type: OP06-17, Code no. 006-556-310)
Name Type Code No. Qty Remarks
Fixing metal 06-021-1321-2 100-279-622-10 1
Self-tapping screw 5x20 000-162-609-10 4
Hex. bolt M4x12 000-162-939-10 4
1. Cut out a hole (W287 x H207) in the mounting location.
2. Fasten the fixing metal (supplied) to the monitor unit with four hex. bolts
(M4x12, supplied).
3. Fasten the fixing metal assembled at step 2 to hole made at step 1 with four
self-tapping screws (5x20, supplied).
Hex. bolts
Fixing metal

1. MOUNTING
1-6
1.1.4 Blackbox type
The blackbox type requires a VGA monitor, connected via the interface unit
IF-8000. Supply commercial monitor and interconnection cable (Max. length 15
m with Dsub-15P connectors of male, three rows of 15 pins). The monitor used
should satisfy the specifications shown below.
• VGA type
• ANALOG RGB 0.7 Vpp, positive polarity
• TTL level H, V, Negative polarity
Note: The LCD monitor MU-151C does not require the interface unit IF-8000.
For details, see the operator’s manual for MU-151C.
1.2 Control Unit
For blackbox type, fix the control unit to the mounting plate (supplied as
accessories).
See the parts list of FP06-01120 and outline drawings at the back of this manual.
1. Fix the mounting plate to the place selected with two self-tapping screws
(5X20, supplied).
2. Fix the bracket to the control unit with two hex. screws (M4X12, supplied).
3. Insert the screwdriver from the top of the mounting plate holes and then
tighten two hex. screws (M4X12) loosely.
4. Attach the control unit to the mounting plate, and fasten two hex. screws
tightly.
5. Attach two cosmetic caps to the holes at the top of the mounting plate.
Cable entrance hole
Mounting plate Cable
Tapping screws (5X20)
Fasten the screws to fix
the bracket.
Bracket
Bracket
Insert to the hex.
screws tightened
at step 3.
Cable can be passed this direction.
6. Attach hard cover to protect the control unit.
How to remove the hard cover
Place your thumbs at the locations shown with
circles in the illustration at right, and then lift the
cover while pressing it with your thumbs.

1. MOUNTING
1-7
To mount the control unit separate from the monitor unit, the optional control unit
separate kit is required. Mount the control unit same as the above procedure.
See the outline drawing at the back of this manual to mount.
Type: OP06-15-1.5 NEW Code no.: 006-559-140: with 1.5 m cable
Type: OP06-15-5 NEW Code no.: 006-559-150: with 5 m cable
Name Type Code no. Qty Remarks
MJ-A10SPF0002-015 000-142-878 For 1.5 m cableCable
MJ-A10SPF0002-050 000-131-411
1
For 5 m cable
Bracket 06-021-2112 100-281-880-10 1
Mounting Plate 06-021-2111-1 100-279-741-10 1
Self-tapping Screw 5x20 000-162-608-10 2
Cosmetic Cap DP-687 000-165-997-10 2
Hex. bolt M4x12 000-162-939-10 4
Flush mounting for control unit
Type: OP02-83-1.5, Code no.: 001-413-600 (1.5 m cable)
Type: OP03-83-5, Code no.: 001-413-610 (5m cable)
Name Type Code No. Qty Remarks
Fixing metal 06-021-2101-2 100-279-732-10 1
Self-tapping screw 5x20 000-162-609-10 4
Hex. bolt M4x12 000-162-939-10 2
MJ-A10SPF0002-015 000-142-878 1 1.5 m
Cable assembly
MJ-A10SPF0002-050 000-131-411 1 5 m
Select
one.
1. Cut out a hole (W287 x H87) in the mounting location.
2. Fasten the fixing metal to the control unit with two hex. bolts (M4x12,
supplied).
3. Fasten the fixing metal assembled at step 2 to holes made at step 1 with four
self-tapping screws (5x20, supplied).
Hex. bolts
Fixing metal

1. MOUNTING
1-8
1.3 Transceiver Unit
1.3.1 General mounting considerations
• The mounting location should be well ventilated and dry.
• The unit can be mounted on a bulkhead or the deck.
• The maximum cable length between the transceiver unit and the raise/lower
drive unit is 50 m.
• The maximum cable length between the transceiver unit and the monitor
(interface) unit is 10 m.
• Keep the transceiver unit out of splash.
1.3.2 Mounting method
Fasten the transceiver unit with four self-tapping screws (5X20).
For bulkhead mounting, do as follows:
1. Tighten upper self-tapping screws so there is 5 mm clearance between
bottom of screw head and bulkhead.
2. Hook the transceiver unit on the upper screws.
3. Tighten the upper screws followed by the lower screws.
475
428
340
296.5+116.5
82
455+1
4- 6
FIXING HOLES
LED
Transceiver unit

1. MOUNTING
1-9
1.4 Hull Unit
NOTICE
The flange of the retraction tank
must be parallel with the waterline.
The keel of the ship may not be
parallel with the ship’s draft.
NOTICE
Install the hull unit away from the
places subject to water splash and
rain.
Fire or damage to the unit can result.
If necessary, waterproof the unit.
1.4.1 General mounting considerations
• Noise and air bubbles will affect performance.
• Do not turn on the equipment with the transducer exposed to air. Exposing the
transducer to air may damage it.
1.4.2 Installation position considerations
Discussion and agreement are required with the dockyard and ship owner in
deciding the location for the hull unit. When deciding the location, take into
account the following points:
• Select an area where propeller noise, cruising noise, bubbles and interference
from turbulence are minimal. Generally, the point at 1/3 to 1/2 of the ship’s
length from the bow or near the keel is the best. If the hull unit cannot be
installed on the keel, the center of the retraction tank should be within 1 meter
of the keel to prevent a rolling effect.
For a wooden vessel: Install the hull unit off the keel.
For other than a wooden vessel: On-the-keel installation is advantageous in
comparison with off-the-keel.
Mounting range
1/2
1/3
Keel
Within 1 m
Retraction tank
For a wooden vessel
Keel
Within 1 m
Retraction tank
For other than a wooden vessel
• Select a place where interference from the transducers of other sounding
equipment is minimal. The hull unit should be at least 2.5 meters away from
the transducers of other sounding equipment.
• An obstacle in the fore direction not only causes a shadow zone but also
aerated water, resulting in poor sonar performance. Be sure to locate the
transducer well away from any obstacle in the fore direction.

1. MOUNTING
1-10
Welding bead
Welding bead
Mounting method
A typical mounting method is shown in the outline drawing at the back of this
manual. Consult ship’s owner, dockyard and user to determine appropriate
mounting method. Pay attention to safety (strength, watertightness) first,
followed by ease of maintenance and inspection.
1.4.3 Retraction tank
Note: For installation of the retraction tank on a wooden vessel, see Appendix 1
and Appendix 2.
Tank length
Shorten the retraction tank so the transducer is lowered into water as deep as
possible. Pay particular attention to the tank length Lt. Determine the length of
the main shaft.
• Length of main shaft = Lt + 200 mm (for 400 stroke)
• Length of main shaft = Lt + 50 mm (for 250 stroke)
Note: When the retraction tank is constructed locally, finish it so that welding
beads do not protrude on the inner surface of the tank. The tank guide will
hit the bead, burning out the raise/lower motor. Also, do not position the
welding bead in the ship’s fore-aft line.

1. MOUNTING
1-11

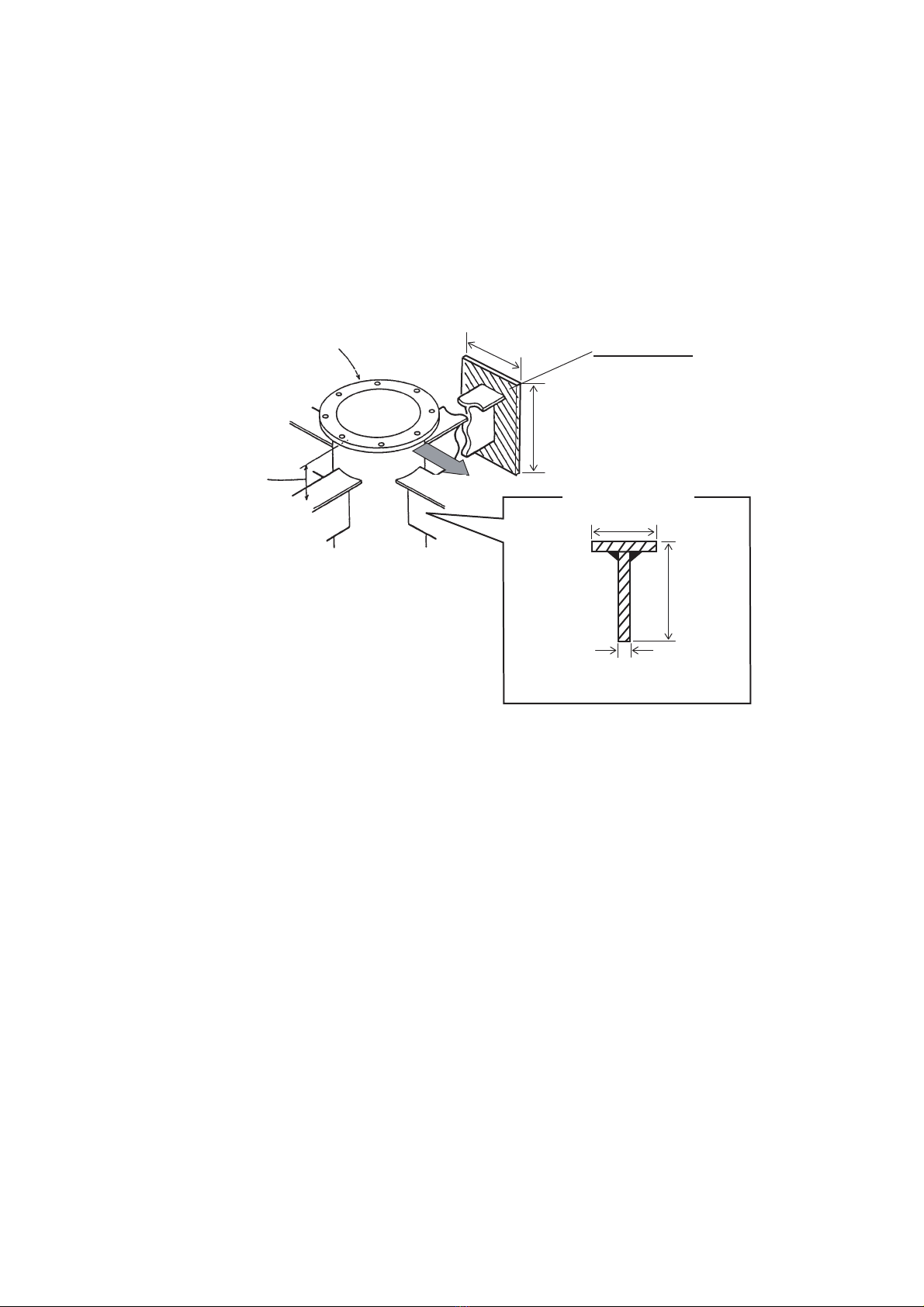

Guideline for the installation on a steel or aluminum hull
When the retraction tank is installed on a steel or aluminum hull, follow the
guideline shown below and see the outline drawing at the back of this manual.
• The flange of the retraction tank must be parallel with the waterline.
• Fit a doubling plate (a plate to reinforce the hull plate) of 600 mm or more
diameter to the outside of the hull plate (see the figure below). For the
doubling plate, use the same material and thickness as hull plate.
Retraction tank
Doubling plate
Hull plate
• Weld four reinforcement plates to the retraction tank.
Li
Li: The length of the tank
Bow
Reinforcement plate
t
Min. 100
(Unit: mm)
Min. 500
Min. 250
Thickness (t): More than hull plate
Hull plate Doubling plate:
Fit it to the outside of the hull plate.

1. MOUNTING
1-12
• If the length of the retraction tank (Li) is more than 1 m, install at least one
reinforcement rib to prevent damage of the tank and vessel by sea accident.
One reinforcement rib should be installed toward the ship’s bow (see the
figure below). It is recommended that four reinforcement ribs are installed.
• For the reinforcement ribs, fit doubling plates to the location where the
reinforcement ribs are welded to the bulkhead of the vessel (see the figure
below).
Bow
Min. 100
Min. 150
t
Min. 200
Retraction tank Doubling plate
Thickness: More than hull plate
Min. 100
(Unit: mm)
Min. 150
Thickness (t): More than hull plate
Reinforcement rib
