SAFETY INSTRUCTIONS
WARNING
ELECTRICAL SHOCK HAZARD
Do not open the equipment
unless totally familiar with
electrical circuits and
service manual.
Only qualified personnel
should work inside the
equipment.
WARNING
Install the specified transducer tank
in accordance with the installation
instructions. If a different tank is to be
installed the shipyard is solely respon-
sible for its installation, and it should
be installed so the hull will not be
damaged if the tank strikes an object.
The tank or hull may be damaged if the
tank strikes an object.
If a steel tank is installed on a wooden
or FRP vessel, take appropriate
measures to prevent electrolytic
corrosion.
Electrolytic corrosion can damage the
hull.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or equipment damage. The
voltage rating of the equipment appears
on the label above the power connector.
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or equipment damage.
Be sure no water leaks in at the trans-
ducer installation site.
Water leakage can sink the vessel. Also
confirm that the transducer will not loosen
by ship's vibration. The installer of the
equipment is solely responsible for the
proper installation of the equipment.
FURUNO will assume no responsibility for
any damage associated with improper
installation.

ii
CAUTION
Observe the following compass safe
distances to prevent deviation of a
magnetic compass:
Ground the equipment to
prevent electrical shock and
mutual interference.
Display
unit
Standard
compass
2.2 m 1.6 m
WORKING WITH THE SONAR OIL
Precautions
• Keep oil away from eyes. Wear protective
gloves when working with the oil. The oil
can cause inflammation of the eyes.
• Do not touch the oil. Wear protective
gloves when working with the oil. The oil
can cause inflammation of the skin.
• Do not ingest the oil. Diarrhea or vomiting
can result.
• Keep the oil out of reach of children.
Emergency
• If the oil enters eyes, flush with clean
water about 15 min. Consult a physician.
• If the oil contacts skin, wash with soap
and water.
• If the oil is ingested, see a physician
immediately.
Disposal of oil and its container
Dispose of oil and its container in accord-
ance with local regulations. For further
details, contact place of purchase.
Storage
Seal container to keep out foreign
material. Store in dark place.
Steering
compass

iii
TABLE OF CONTENTS
EQUIPMENT LISTS................................................................................................... iv
SYSTEM CONFIGURATION...................................................................................v
MOUNTING
1.1 Hull Unit..................................................................................................................... 1-1
1.2 Transceiver Unit ...................................................................................................... 1-13
1.3 Display Unit ............................................................................................................. 1-14
1.4 Grounding the Display Unit and Transceiver Unit ................................................... 1-14
1.5 Motion Sensor MS-100 (Option) ............................................................................. 1-15
1.6 External Interface (Option) ...................................................................................... 1-15
1.7 LogarithmAmplifier Video Sounder ........................................................................ 1-17
1.8 Clinometer BS-704 (option)..................................................................................... 1-19
WIRING
2.1 Wiring Among Units................................................................................................... 2-1
2.2 Synchronizing Transmission with Echo Sounder or Other Sonar ............................. 2-4
ADJUSTMENTS
3.1 General Checks ........................................................................................................ 3-1
3.2 Adjustment of Transceiver Unit ................................................................................. 3-2
3.3 Heading Alignment .................................................................................................... 3-3
3.4 Adjustment of Motion Sensor, Clinometer................................................................. 3-4
3.5 Soundome Painting ................................................................................................... 3-5
3.6 LED Status ................................................................................................................ 3-6
CHANGING SPECIFICATIONS
4.1 System Menu ............................................................................................................ 4-1
INSTALLATION MATERIALS, SPARE PARTS, ACCESSORIES .... A-1
OUTLINE DRAWINGS............................................................................................D-1
INTERCONNECTION DIAGRAM ...................................................................... S-1

iv
EQUIPMENT LISTS
Standard Supply
emaNepyT.oNedoCytQskrameR
tinUyalpsiD073-HC–1
tinUreviecsnarT143-HC–1 enotceles,zHk261/311/18/06
tinUlluH243-HC–1 ,CDV23/42,zHk261/311/18/06 m8.3/2.2/71.1htgneltfahS
slairetaMnoitallatsnI
00110-60PC754-860-000 tceleS eno )ylppusdradnats(m51:htgnelelbaC
01110-60PC854-860-000m03:htgnelelbaC
02110-60PC954-860-000m05:htgnelelbaC
straPerapS00010-60PS454-860-000tes1
seirosseccA00610-60PF064-860-000tes1revoclyniv,dooH

vvvvvvvvvvvvv
v
Optional Equipment
emaNepyT.oNedoCskrameR
rosneSnoitoM001-SM
retemonilC407-SB
xoBlortnoCetomeR343-HC
knaTnoitcarteRleetS0751-700-60660-560-000m0.1
knaTnoitcarteRleetS1000-JHS346-660-000m8.1
knaTnoitcarteRleetS1751-700-60070-560-000m5.3
knaTnoitcarteRPRF2200-JHS446-660-000m1
knaTnoitcarteRPRF3751-700-60760-560-000m8.1
knaTnoitcarteRmunimulA5-01PO367-960-000slairetam.tsnihtiw,m1
reifitceR2-B6471-UR934-030-000deriuqerstes2,CAV022/011
ecafretnIS/EA0011-IV508-120-000
eldnaH07-30PO024-324-800
rekaepsduoLRW50-CS651-631-000mho4
ylbmessAelbaC050-2100FPS6A-JM424-431-000nip6-nip6,m5,1-3704S46
ylbmessAelbaC001-2100FPS6A-JM718-331-000nip6-nip6,m01,1-1704S46
ylbmessAelbaC050-1100FPS6A-JM442-231-000nip4-nip6,m5,1-2029S30
ylbmessAelbaC001-1100FPS6A-JM633-231-000nip4-nip6,m01,1-6229S30
elbaCdetsiwTriap-5P5x2.0C-BS-VVEPS-OC154-065-000m5
elbaCdetsiwTriap-5P5x2.0C-BS-VVEPS-OC254-065-000m01
elbaCdetsiwTriap-5P5x2.0C-BS-VVEPS-OC714-065-000m51
elbaCdetsiwTriap-5P5x2.0C-BS-VVEPS-OC868-301-000m02
elbaCeroc-846504S60061-621-000 neewtebelbacfonoisnetxeroF ,tinureviecsnartdnatinulluh htgnelyficeps
retliF02620-20PF092-700-200
ecafretnIS/ElanretxE31-60PO554-860-000
ecafretnIrotinoMlanretxE41-60PO654-860-000

vi
SYSTEM CONFIGURATION
DISPLAY UNIT
CH-370
NOTE 1: Two sets of rectifiers are necessary for AC mains.
NOTE 2: DC ship's mains only. For AC ship's mains, the power
is supplied directly from the rectifier unit to the trans-
ceiver unit.
OPTIONAL SUPPLY STANDARD SUPPLY
LOUDSPEAKER
SC-05WR
REMOTE CONTROL BOX
CH-343
External
Interface
OP06-13
(Built-in)
External
Interface
OP06-14
(Built-in)
EXTERNAL
MONITOR
: Connector to fitted at installation
: Connector fitted at factory
: Crimp-on lug to be fitted at installation
MOTION
SENSOR
MS-100 or Clinormeter
BS-704
250V-DPYCYS-2
250V-DPYCYS-2
24-32V DC
06S4067 15/30/50M
250V-DPYCYS-2
250V-DPYCYS-2
250V- DPYCYS-2
02S8040 6M

viiviiviiviiviiviiviiviiviiviiviiviivii
vii
Hull unit assembly combination
Power Freq. Type Code No.
113kHz
113kHz
Standard Option
Power Freq. Type Code No.
Power Freq. Type Code No.
Power Freq. Type Code No.
Type Code No. Type Code No. Type Code No.
Mat. Type Code No.
Steel
Alum.
Mat. Type Code No.
Steel Steel
Mat. Type Code No.
5.3m cable3.7 m cable
2.7 m cable
113
113 113
R
/
L
D
R
I
V
E
U
N
I
T
S
H
A
F
T
S
O
U
N
D
O
M
E
T
A
N
K

This page is intentionally left blank.

1-1
MOUNTING
1.1 Hull Unit
General mounting considerations
• Noise and air bubbles will affect performance.
• Keep the transducer away from oil. Oil can corrode the cable.
• Do not expose the transducer to hot water. Hot water can damage the trans-
ducer.
• Do not turn on the equipment with the transducer exposed to air. Exposing the
transducer to air may damage it.
Installation position considerations
Discussion and agreement are required with the dockyard and ship owner in
deciding the location for the hull unit. When deciding the location, take into ac-
count the following points:
• Select an area where propeller noise, cruising noise, bubbles and interference
from turbulence are minimal. Generally, the point at 1/3 to 1/2 of the ship’s
length from the bow or near the keel is the best. On-the-keel installation is
advantageous for minimizing oil consumption in comparison with off-the-keel.
If the hull unit cannot be installed on the keel, the center of the retraction tank
should be within 1 meter of the keel to prevent a rolling effect.

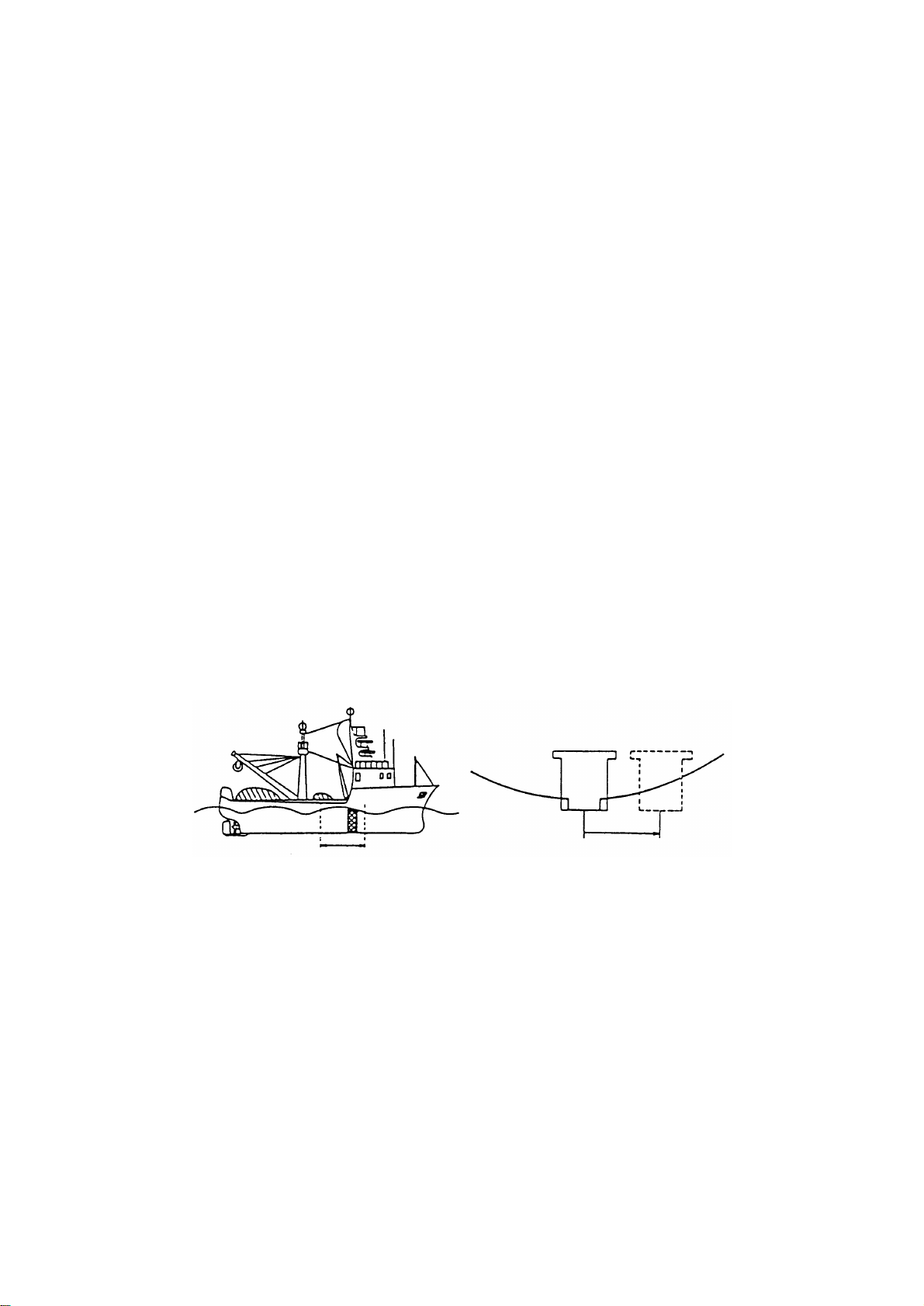

1/2 1/3 Within 1 m
Figure 1-1 Installation location for hull unit
• Selecta placewhere interferencefrom thetransducers ofother soundingequip-
ment is minimal. The hull unit should be at least 2.5 meters away from the
transducers of other sounding equipment.
• An obstacle in the fore direction not only causes a shadow zone but also aer-
ated water, resulting in poor sonar performance. Be sure to locate the trans-
ducer well away from any obstacle in the fore direction.

1-2
Mounting method
A typical mounting method is shown in the outline drawing at the back of this
manual.Consultship’sowner,dockyardanduser todetermineappropriate mount-
ing method. Pay attention to safety (strength, watertighness) first, followed by
ease of maintenance and inspection.
Tank length
Shorten the transducer tank so the trans-
ducer is lowered into water as deep as pos-
sible.
Pay particular attention to the tank length Lt.
Determine the length of the main shaft as
describedin theparagraph“Assembling and
mounting of hull unit.”
Note 1: Do not shorten the 1 meter retrac-
tiontank.Shortening it mayalso necessitate
shortening of the top part of the main shaft,
thereby destroying the watertight construc-
tion of the 1.17 meter shaft.
Note 2: When the retraction tank is con-
structedlocally, finishitso thatweldingbeads
do not protrude on the inner surface of the
tank. The tank guide will hit the bead, burn-
ing out the raise/lower motor. Also, do not
position the welding bead in the ship’s fore-
aft line.
Note 3: Use of other manufacturer’s tank is
permitted. However, the dimensions should
be the same as those in the transducer tank
outline drawing.
Mounting of transducer tank
Installthe transducer tankreferring to thehull
unit outline drawings at the back of this
manual.
Note: Locate one of the bolt holes 10°to port
to minimize mechanical shock at the raise/
lower block during pitching and rolling.
Cable gland
Washer
Gasket
Main shaft
(1.17 m)
Welding bead
Welding bead
Figure 1-1 Transducer tank
len
g
th and weldin
g
bead
10°
Figure 1-2
Transducer tank

1-3
Assembling and mounting of hull unit
The hull unit is shipped disassembled as the parts shown in the hull unit kit on
pages 1-10 and 1-11. Assemble the hull unit as shown in the procedure below.
Necessary tools
emaNnoitacificepSskrameR
hcnerW)mm71ezis.xeH(01MroF
hcnerW)mm02ezis.xeH(02MroF
hcnerWepiPmm55
hcnerWllaBmm4ezisxeHtiktinulluhhtiwdeilppuS

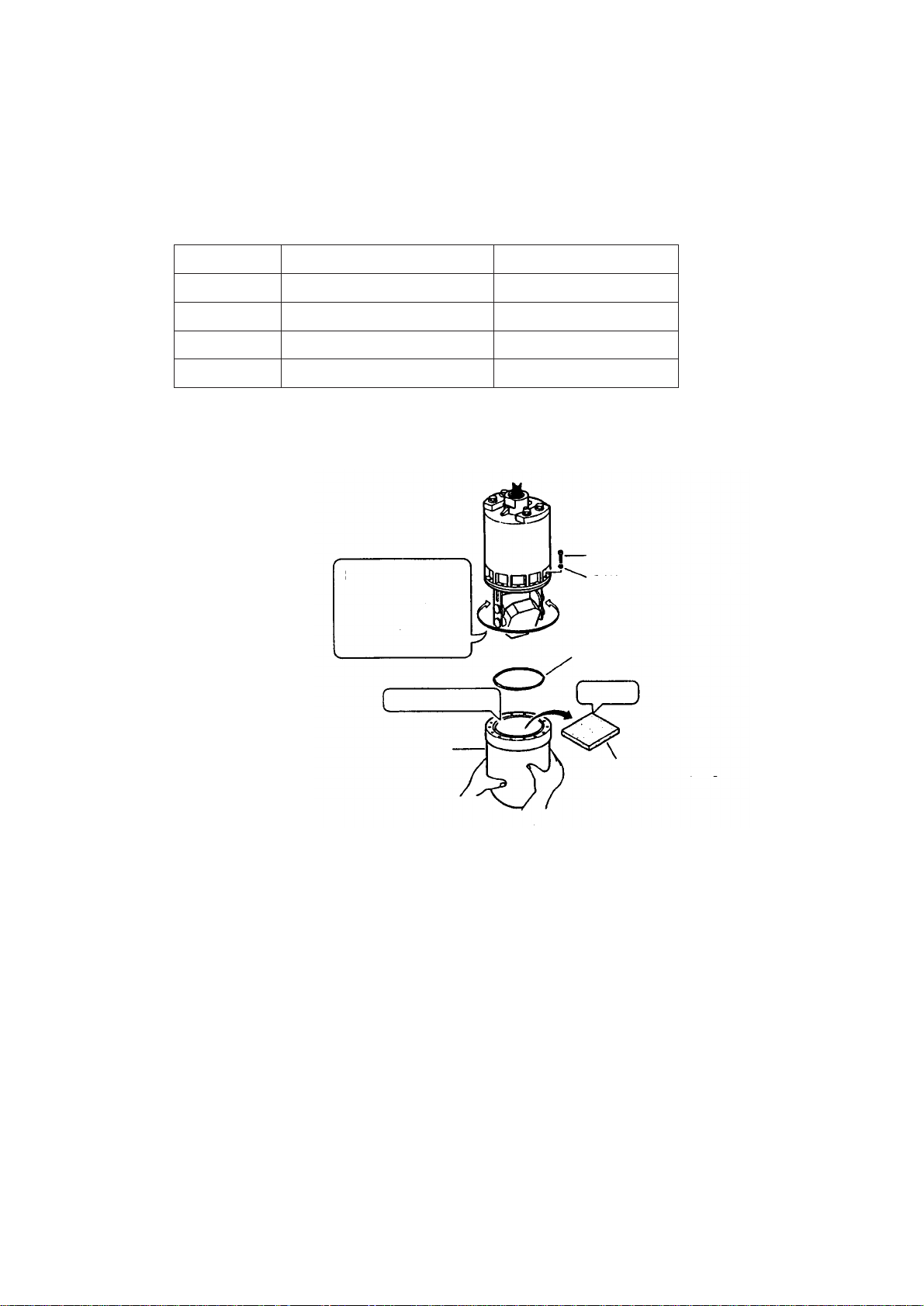

1. Unscrew 10 pieces of socket head cap screws with the ball wrench (supplied)
to detach the soundome.
Rotate 3 or 4 turns
by hand to make
sure that turning
mechanisms are
functioning properly.
Apply Kinoruster.
Socket head cap screw
(10 pcs, M5 x 30)
Spring washer
Protective sponge
Remove
SOUNDOME
O-ring
Kinoruster: Anti-crevice
corrosion sealant (supplied)
Figure 1-3 Detaching the soundome

1-4
2. Fill the soundome with sonar oil 6 cm below the top of the dome. (Use only
the specified sonar oil. Use of other sonar oils may affect performance.) Reat-
tach the soundome.
Sonar oil
Use packing material
to support soundome.
Ball
wrench
5 cm
CAUTION
WORKING WITH THE SONAR OIL
Precautions
• Keep oil away from eyes. Wear protective
gloves when working with the oil. The oil
can cause inflammation of the eyes.
• Do not touch the oil. Wear protective
gloves when working with the oil. The oil
can cause inflammation of the skin.
• Do not ingest the oil. Diarrhea or vomiting
can result.
• Keep the oil out of reach of children.
Emergency
• If the oil enters eyes, flush with clean water
about 15 minutes. Consult a physician.
• If the oil contacts skin, wash with soap and
water.
• If the oil is ingested, see a physician
immediately.
Disposal of oil and its container
Dispose of oil and its container in accord-
ance with local regulations. For further
details, contact place of purchase.
Storage
Seal container to keep out foreign
material. Store in dark place.
Figure 1-4 Filling the soundome with sonar oil
3. Shorten the main shaft by the length of Lt + 110 mm, where Lt is the length of
the retraction tank. When the retraction tank length is 1 meter do not shorten
the 1.17 meter main shaft.
Supplied Length: 1.17 m (2.2 m, 3.8 m)
Lt + 110 mm
Take care not to
scratch. Chamfer edge to
protect O-ring from
damage.
Figure 1-5 How to shorten the main shaft
)zHk(ycneuqerF
0618311261
L4lioranoS )330-428-000( oNseYseYseY
L4lioranosrepuS )865-408-000( seYoNoNoN

1-5
4. Fasten the main shaft to the soundome assembly as follows:
a) Attach screw lock nut to main shaft.
b) Fully screw main shaft into the soundome neck, and then unscrew by four
turns. Coat threads with adhesive (HIGH SUPER).
c) Screw in main shaft completely and tighten the lock nut with spanner.
d) Tighten socket-set screw on lock nut.
e) Fasten two reinforce metal fittings to connect the main shaft and the
soundome assembly securely (Not using the stopper washer).
While holding soundome neck with pipe
wrench, tighten lock nut with wrench.
Lock nut
Apply adhesive
(HIGH SUPER).
Set screw
Reinforcement
metal fittings M10 ×100
SW, PW, Nut
Reinforcement
metal fittings
Figure 1-6 How to fasten main shaft to soundome assembly

1-6
5. Clean the main shaft and pass it through the main body flange.
Check that O-ring
is in position.
Main body flange
Figure 1-7 Passing main shaft through the main body flange
6. Set the grease cotton to the main body flange and tighten the grease cotton
retainer temporarily.
Wind grease cotton
onto main shaft and
cut it as shown below.
Space joints of grease
cotton 120°apart and push
them into body flange.
Flat washer
Figure 1-8 Installing grease cotton on the main shaft
7. Temporarilyfasten thefasteningband ontothemain shaftatthe locationshown
below.
Lt:Tank Length
Fastening band
Lt - 430 mm
Figure 1-9 Fastening the fastening band on the main shaft
8. Inscribe bow mark at the top of the main shaft. Pass pipe clamp through the
main shaft and install washer, gasket, and cable gland.

1-7
Inscribe bow mark,
referring to the bow mark
on the soundome.
Gasket
Flat washer
Cable gland
Pipe cap
For 2.2 m, 3.8 m shaft
Tighten cable gland for
gap of approx. 3 mm.
3
70
Hold here with
pipe wrench.
Pipe clamp
Figure 1-10 Passing pipe clamp, gasket, flat washer and cable gland on main shaft

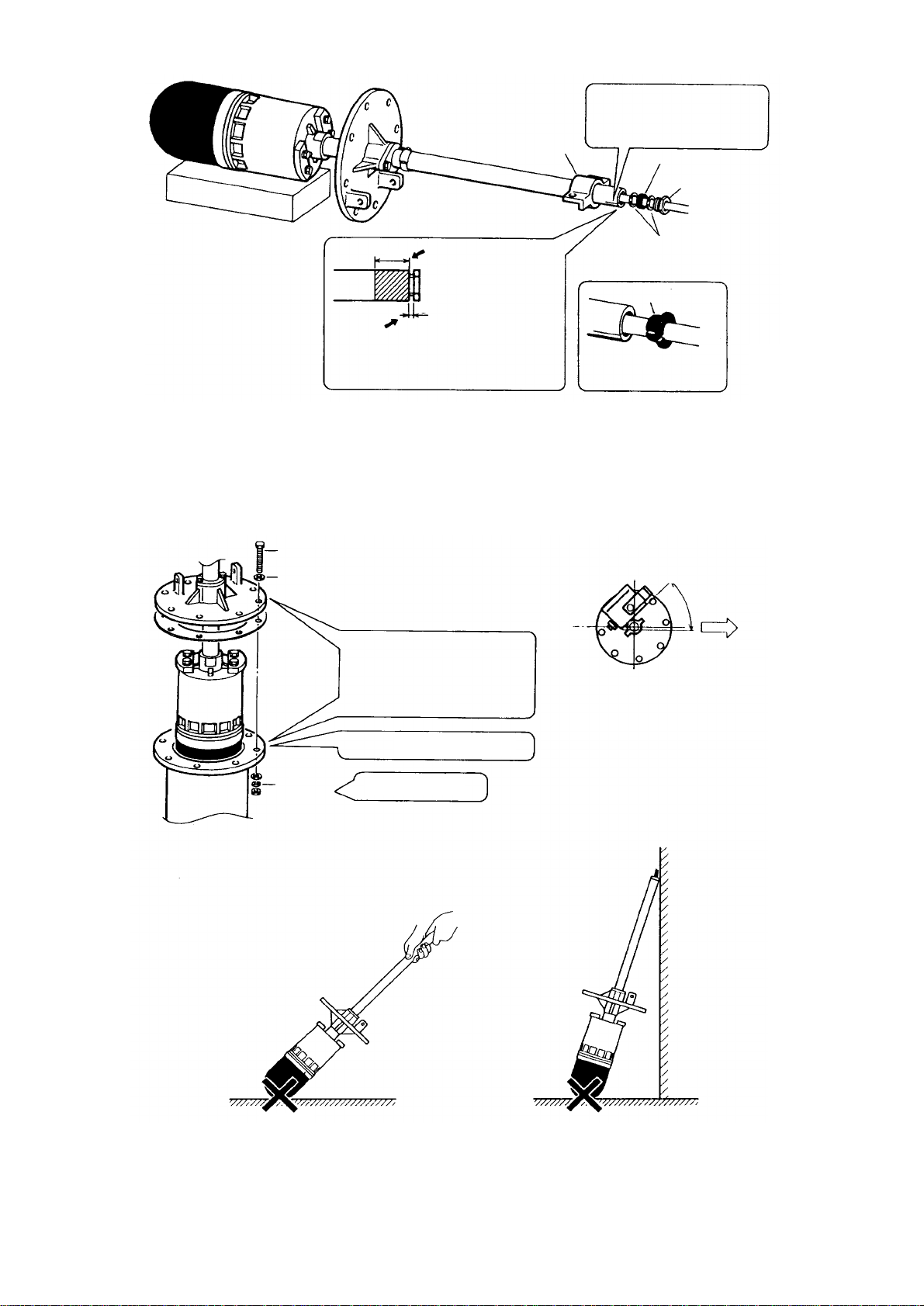

9. Fasten the hull unit to the transducer tank, orienting it so the ship’s fore-aft
line crosses the front panel of the raise/lower drive block at an angle of ap-
proximately 45 degrees.
M20 x 90 (8 pcs)
M20 Flat washer
Outer edges of main body
flange and tank should be
in line with one another.
Wipe off foreign material.
Apply Kinoruster.
M20 F.W.
M20 S.W.
M20 Nut
CAUTION:
1. Do not drag hull unit on floor.
2. Do not rest hull unit against wall.
Orient the hull unit as above
to minimize shock and vibration
on the raise/lower drive block
when ship is pitching and
rolling.
BOW
45°
Figure 1-11 Fastening the hull unit to the transducer tank

1-8
10.Install the raise/lower drive block as follows:
a) Rotate the main shaft so the bow mark faces ship’s bow.
b) Install the raise/lower drive block onto the main body flange.
c) Fix the main shaft with the shaft retainer.
d) Loosen the fastening band, slide it up to the shaft retainer and fasten it.
e) Check that the distance from the top of the main shaft to the top of the
shaft retainer is as follows:
1.17 m main shaft: 75 mm
Main shaft cut at Lt + 110 mm: 15 mm
If not as shown above, loosen shaft retainer and fastening band to adjust the
distance. This will place the bottom of the soundome 10 mm above the bot-
tom of the retraction tank when the soundome is retracted.
Raise/lower
drive block Shaft retainer
Bow
mark
Fastening band
Fastening band
Fasten for a gap of
approximately 1 mm.
1.17 m shaft: 75 mm
Shortened shaft: 15 mm
10 mm
Figure 1-12 Installing the raise/lower drive block
11.Tighten the grease cotton retainer for a gap of 7 to 9 mm.

1-9
7 to 9 mm
Grease cotton retainer
Grease cotton
Figure 1-13 Tightening the grease cotton retainer

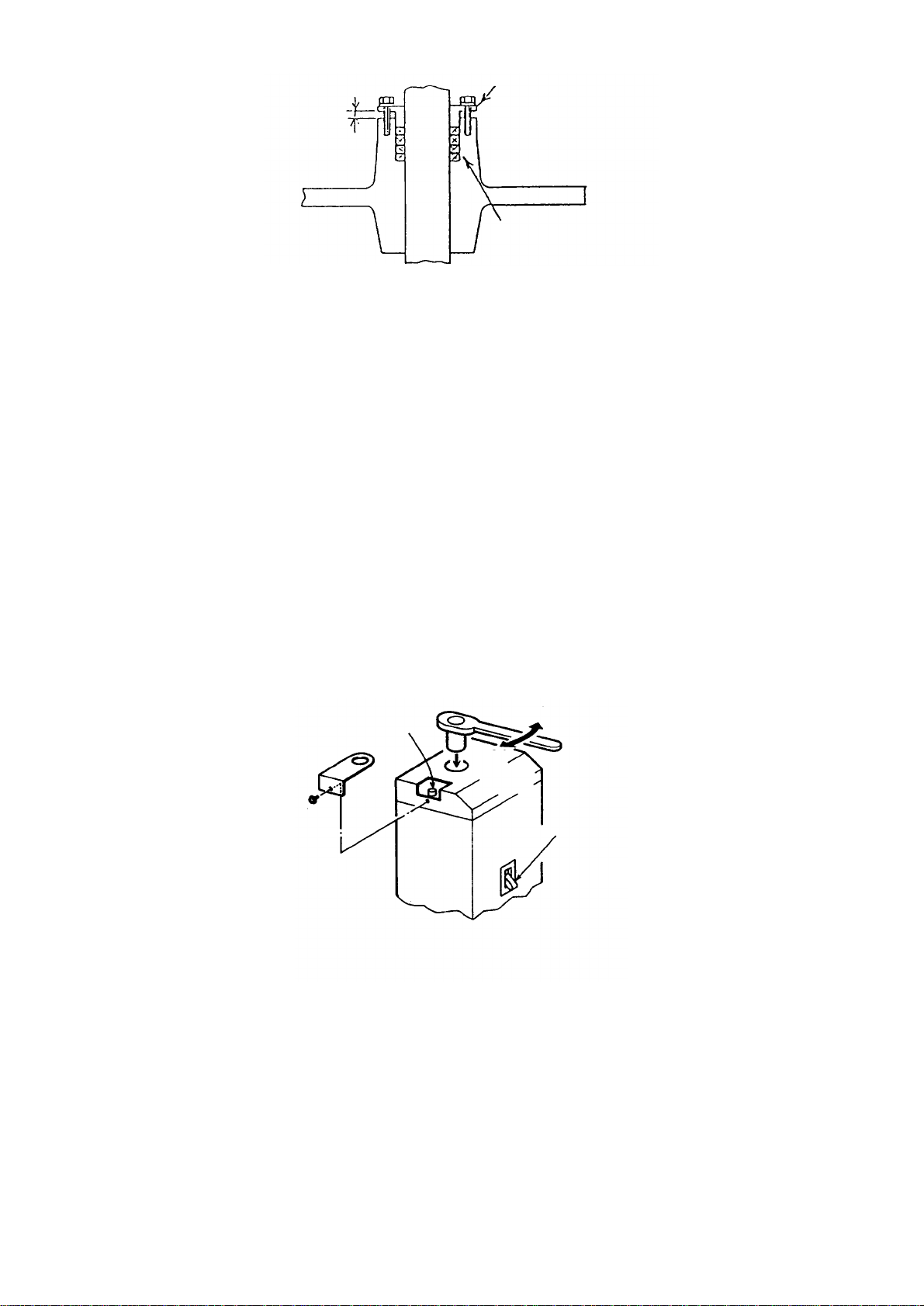

Checking manual raise/lower of transducer with hand
crank
Perform this check after all wiring has been completed. Ship’s mains power must
applied to the hull unit, otherwise the magnetic brake of the raise/lower motor
activates, disabling the manual raise/lower gears.
1. Turn off the breaker on the hull unit.
2. Detach the brake-off switch cover.
3. Set hand crank to the screw shaft gear and turn it while pressing the brake-off
switch.
4. The transducer should rise/lower smoothly with even force in upper to lower
limits. If not, the centers of the main body flange and the retraction tank are
not aligned.Adjust the hull mounting position if necessary.
Brake Off
switch
Breaker
Raise
Lower
Raising/lower manually without
connecting ship's mains may
damage motor.
Figure 1-14 How to use the hand crank

1-10

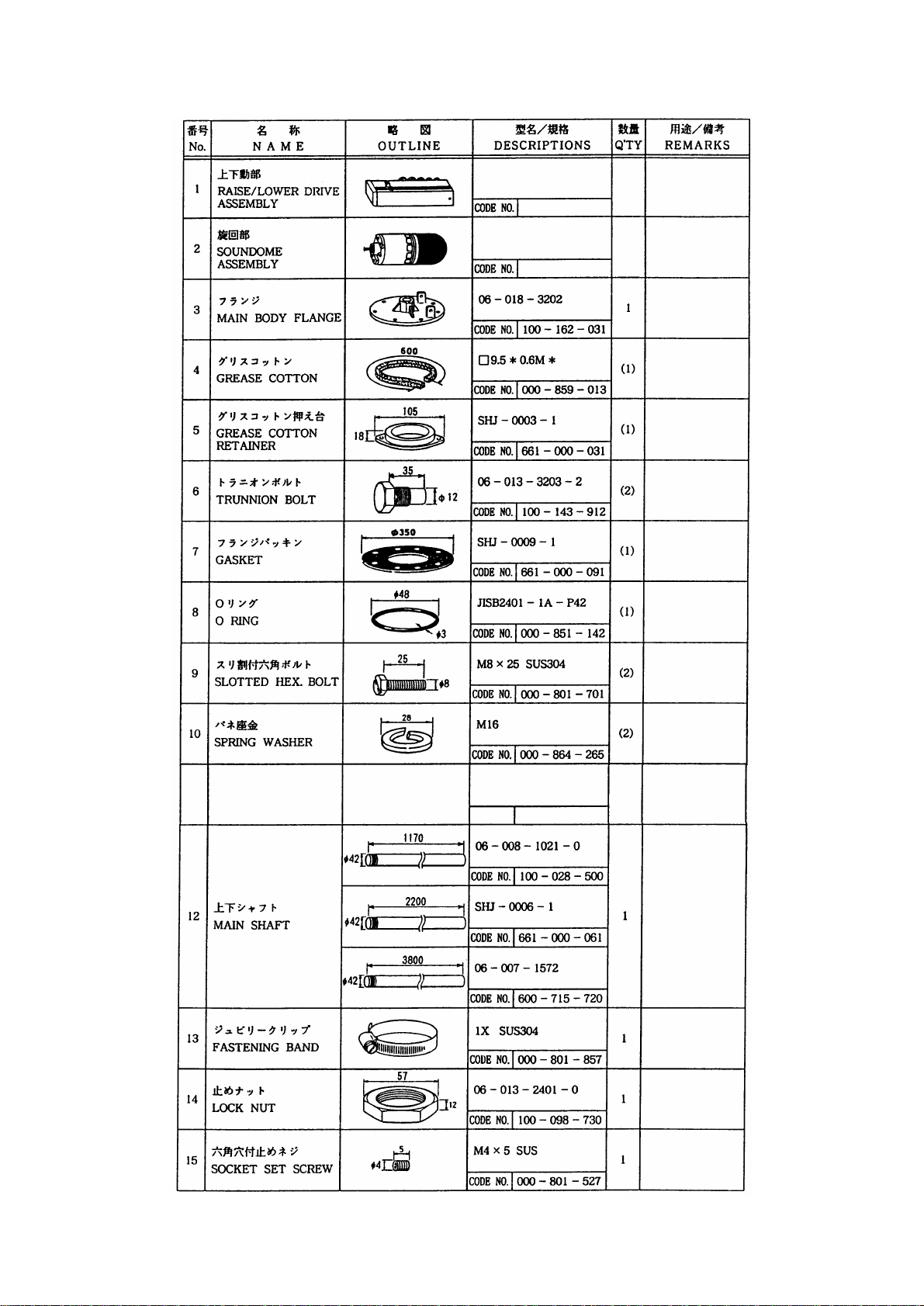

Hull unit installation materials
