Installation Manual
Color Scanning Sonar
Model FSV-85-MARK-2
SAFETY INSTRUCTIONS ........................i
SYSTEM CONFIGURATION ..................iii
EQUIPMENT LISTS.................................v
1. HOW TO INSTALL THE SYSTEM ..1-1
1.1 Hull Unit ..............................................1-1
1.2 Processor Unit ..................................1-11
1.3 Control Unit .......................................1-12
1.4 Transceiver Unit................................1-17
1.5 Raise/Lower Control Box .................1-18
1.6 Control Box Extension Box ..............1-19
1.7 Attachment Kit (option) .....................1-19
1.8 How to Fill the Soundome with
Antifreeze..........................................1-21
1.9 FRP Tank (option).............................1-22
1.10 Sub Control Unit (option) ..................1-24
2. WIRING............................................2-1
2.1 How to Use the Crimping Tool,
Pin Extractor .......................................2-1
2.2 How to Connect Units .........................2-2
2.3 Processor Unit ....................................2-5
2.4 Control Unit .......................................2-11
2.5 Transceiver Unit................................2-12
2.6 Raise/Lower Control Box ..................2-16
2.7 Control Box Extension Box ...............2-18
3. ADJUSTMENTS AND CHECKS .....3-1
3.1 How to Access the System Menu .......3-1
3.2 How to Change the Displayed
Language ............................................3-1
3.3 Selecting Monitor Resolution ..............3-2
3.4 How to Set Up for Two Monitors.........3-3
3.5 How to Set Up a Vertical Monitor........3-4
3.6 How to Change the Frequency
Setting.................................................3-4
3.7 How to Register the Transducer
Position ...............................................3-5
3.8 How to Check the Hull Unit.................3-6
3.9 How to Adjust the Heading .................3-9
3.10 How to Configure the Own Ship
Mark ..................................................3-10
3.11 Others Menu .....................................3-11
APPENDIX 1 JIS CABLE GUIDE.....AP-1
APPENDIX 2 INSTALLATION
CHECK LIST ..............AP-2
PACKING LISTS ................................. A-1
OUTLINE DRAWINGS ........................ D-1
INTERCONNECTION DIAGRAMS ..... S-1

The paper used in this manual
is elemental chlorine free.
・FURUNO Authorized Distributor/Dealer
9 52 Ashihara cho,
Nishinomiya, 662 8580, JAPAN
A
:
JUL
2021
.
Printed in Japan
All rights reserved.
Pub. No.
IME-13670-A
(
TEHI
)
FSV-85-MA K-2-70/80
0 0 0 1 9 8 9 0 4 1 0

i
SAFETY INSTRUCTIONS
The installer must read the safety instructions before attempting to install the equipment.
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
DANGER
WARNING
CAUTION
Warning, Caution Prohibitive Action Mandatory Action
WARNING
DANGER
WARNING
Keep away from raise/lower shaft in
hull unit when it is moving.
Gears will cause serious injury. In case of
an emergency, press the EMERGENCY
STOP button to stop the raising or
lowering of the transducer.
Confirm that there is no person below
the transducer before raising or
lowering the transducer.
Do not open the equipment unless
totally familiar with electrical circuits
and service manual.
High voltage exists inside the equipment,
and a residual charge remains in
capacitors several minutes after the
power is turned off. Improper handling
can result in electrical shock.
Turn off the power at the mains
switchboard before beginning the
installation.
Fire, electrical shock or serious injury can
result if the power is left on or is applied
while the equipment is being installed.
Do not install the equipment where it
may get wet from rain or water splash.
Water can cause fire or electrical shock,
or damage the equipment.
Be sure no water leaks in at the hull
unit.
Water leakage can sink the vessel. Also
confirm that the transducer will not
loosen by ship's vibration. The installer of
the equipment is solely responsible for
the proper installation of the equipment.
FURUNO will assume no responsibility
for any damage associated with improper
installation.
If a steel tank is installed on a wooden
or FRP vessel, take appropriate
measures to prevent electrolytic
corrosion.
Electrolytic corrosion can damage the
hull.
Install the specified transducer tank in
accordance with the installation
instructions. If a different tank is to be
installed the shipyard is solely
responsible for its installation, and it
should be installed so the hull will not
be damaged if an object strikes the
tank.
The tank or hull may be damaged if the
tank strikes an object.
Be sure to power each unit with
proper voltage.
Connection of an improper power supply
can cause fire or damage the equipment.

SAFETY INSTRUCTIONS
ii
Maximum speed while the transducer
is projected or being raised or lowered
is as below, to prevent damage to the
transducer.
Ground the equipment to prevent
electrical shock and mutual
interference.
Observe the following compass safe
distances to prevent magnetic
compass deviation:
CAUTION CAUTION
WORKING WITH THE SONAR OIL
Precautions
• Keep the oil away from eyes. Wear
protective glasses when working with
the oil. The oil can cause inflammation
of the eyes.
• Do not touch the oil. Wear protective
gloves when working with the oil. The
oil can cause inflammation of the skin.
• Do not ingest the oil. Diarrhea or
vomiting can result.
• Keep the oil out of reach of children.
• For further details, see the material
safety data sheet (MSDS).
Emergency
• If the oil enters eyes, flush with clean water
for about 15 min. Consult a physician.
• If the oil contacts skin, wash with soap and
water.
• If the oil is ingested, see a physician
immediately.
• Keep the oil out of reach of children.
• For other information, see the safety data
sheet (SDS).
Disposal of oil and its container
• Dispose of oil and its container in
accordance with local regulations. For further
details, contact the place of purchase.
Storage
• Seal container to keep out foreign materials.
Store in dark place.
Projected Raising/
Lowering
18 kn 15 kn
Standard
compass
Steering
compass
2.15 m 1.35 m
Processor Unit
0.30 m 0.30 m
Control Unit
Unit
Sub Control Unit 0.90 m 0.55 m
Remote Controller 0.30 m 0.30 m

iii

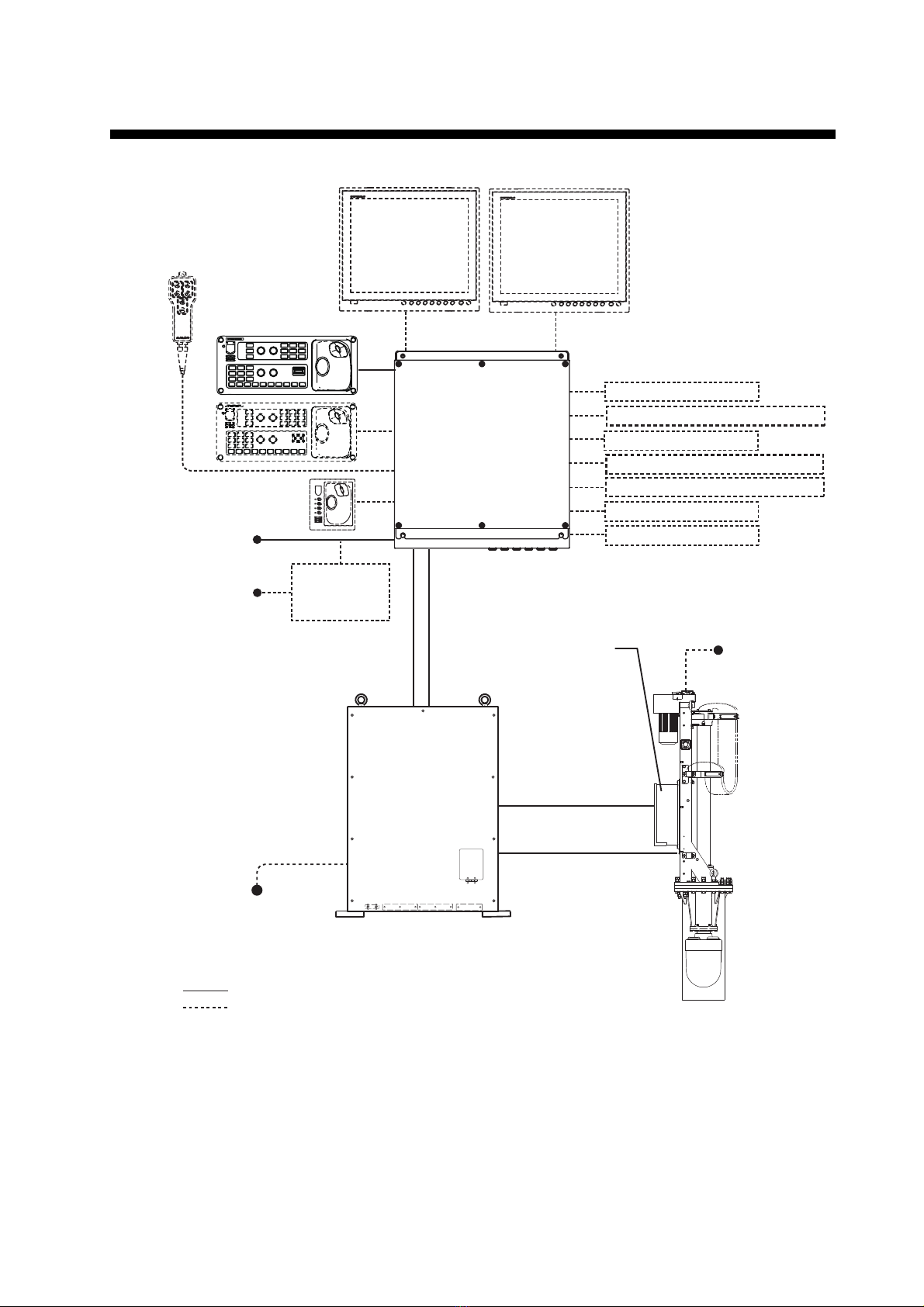

SYSTEM CONFIGURATION
REMOTECONTROLLER
REMOTECONTROLLER
㻯㼛㼚㼠㼞㼛㼘㻌㼁㼚㼕㼠
㻲㻿㼂㻙㻤㻡㻜㻝㻙㻹㻷㻙㻞
Remote Controller
FSV-854-MK-2
Switching Hub
External KP
Gyro Compass䠄AD-100䠅
NMEA0183 devices (max. five units)
USB 3.0 devices (max. two units㻕
USB 2.0 devices (max. two units㻕
Speaker
Hull Unit
䠄80kHz䠅
FSV-8471-MK2
FSV-8472-MK2
FSV-8481-MK2
FSV-8482-MK2
Transceiver Unit
FSV-851C-MK2
200-220 VAC
3
I , 50/60 Hz
100/110/115/
220/230 VAC,
1
I , 50/60 Hz
*
䠖Use the optional Control Box Extension Box (FSV-2560) to extend the distance between the
raise/lower control box and the hull unit.
Raise/Lower
Control Box
FSV-8520-MK2
*
Processor Unit
FSV-8503-MK2
100-230 VAC
1ø, 50-60 Hz
AC/DC Power
Supply Unit
PR-241
12-24 VDC
Sub Control Unit
FSV-853
:
Standard supply
: Optional or local supply

SYSTEM CONFIGURATION
iv
Equipment identification tables
Transducer
FSV-8422-MK2 FSV-8423-MK2
Frequency 80 kHz
Dome Yes (thickness: 8mm) No
Nameplate Yes (Unit type and serial no.)
Color of binding tape Yellow
Cable fabrication, label Yes (Unit name and serial no.)
Color of unit Black
Dome label Yes -
Dome (flange) stamping No -

v
EQUIPMENT LISTS
Standard supply
Name Type Code No. Qty Remarks
Control Unit FSV-8501-MK2 - 1 With 10 m cable
Processor Unit FSV-8503-MK2 - 1
Transceiver FSV-851C-MK2 - 1
Hull Unit FSV-8471-MK2 -
1
800 travel, 80 kHz with dome
FSV-8472-MK2 - 800 travel, 80 kHz less dome
FSV-8481-MK2 - 1100 travel, 80 kHz with dome
FSV-8482-MK2 - 1100 travel, 80 kHz less dome
Installation
Materials
CP10-06000 000-067-071 1
CP10-09600 000-036-274 1 For Control Unit
CP10-09700 000-036-275 1 For Processor Unit
CP10-07011 001-005-660 1 For Transceiver Unit
Spare Parts SP26-00301 001-080-860 1 For Processor Unit
SP10-03101 007-008-530 1 For Transceiver Unit
SP10-04201 001-269-280 1 For Hull Unit

EQUIPMENT LISTS
vi
Optional supply
Name Type Code No. Remarks
Control Unit FSV-8501-MK2 - With 10 m cable
Remote Controller FSV-854-MK2 - Inst. Mat. CP10-07401
Sub Control Unit FSV-853 -
Control Box
Extension Box
FSV-2560 -
AC/DC Power
Supply Unit
PR-241 -
Speaker SEM-21Q -
Retraction Tank OP10-28 000-067-177 Steel
OP10-29 000-067-178 FRP, includes liquid gasket
000-034-852 FRP, without liquid gasket
Attachment Kit OP10-30 000-067-179
Ferrite Core OP86-11 001-594-450 For PR-241
5-Pair Cable 10S2380 *10M* 001-196-330-10 For between the
processor unit and
the transceiver
10 m
10S2380 *20M* 001-196-340-10 20 m
10S2380 *30M* 001-196-350-10 30 m
10S2380 *40M* 001-196-360-10 40 m
10S2380 *50M* 001-196-370-10 50 m
10S2380 *60M* 001-196-380-10 60 m
10S2380 *100M* 001-196-390-10 100 m
Cable Assembly HDMI-TO-DVI-L=5.3M 001-407-180 DVI-HDMI cable 5.3 m
HDMI-TO-DVI-L=10.3M 001-407-170 10.3 m
Installation
Materials
CP10-10100 000-036-244 LAN cable 10 m
CP10-10110 000-036-245 15 m
CP10-10120 000-036-246 30 m
CP10-10130 000-036-247 40 m
CP10-10140 000-036-248 50 m
CP10-10150 000-036-722 100 m
Flushmount Kit FP03-09870 008-535-630

1-1
1. HOW TO INSTALL THE SYSTEM
1.1 Hull Unit
Note 1: The control box on the hull unit contains a inertial measurement unit. Handle
the hull unit carefully.
Note 2: Handle the transducer carefully. Rough handling will damage its sensitive
components.
1.1.1 Installation considerations
Decide the location of the hull unit through consultation with the dockyard and ship
owner. When deciding the location, the following points should be taken into account.

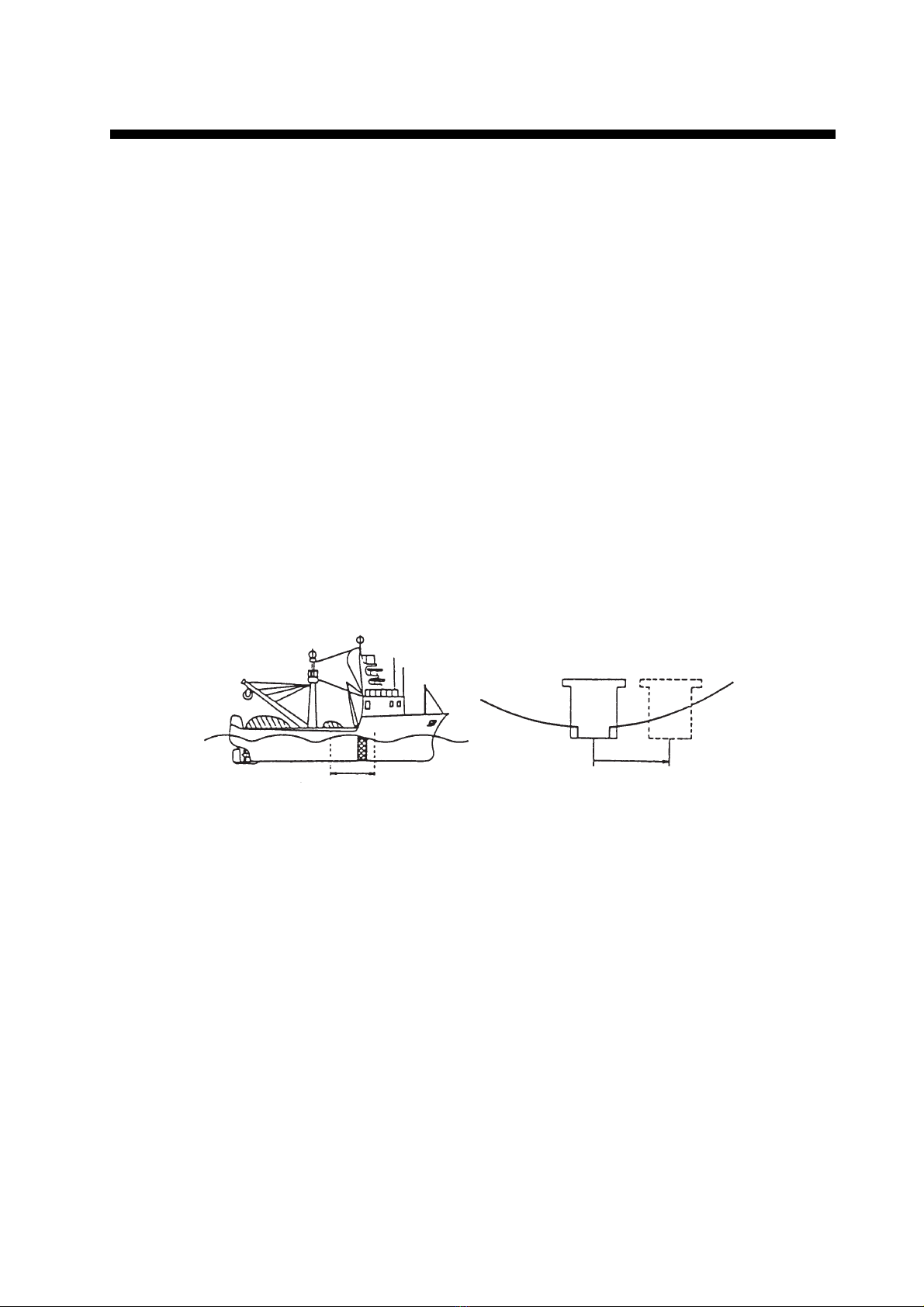

• Select an area where propeller noise, cruising noise, air bubbles and interference
from turbulence are at a minimum. Generally, the point at 1/3 to 1/2 of the ship's
length from the bow on or near the keel is optimum. On-the-keel installation is ad-
vantageous for minimizing oil consumption in comparison with off-the-keel. If the
hull unit can not be installed on the keel, the center of the retraction tank should be
within 600 mm from the keel to prevent a rolling effect. For large ship with deep
draft, the hull unit can be installed at the bow.
• Select a place where the hull bottom is flat and the draft is sufficiently deep. Normal-
ly, the transducer should protrude at least 500 mm beyond the keel to minimize the
effect of air foam and bubbles.
• Select a place where interference from other transducers is minimal. The hull unit
should be at least 2.5 m away from the transducers of other equipment.
• No obstacle should be in the fore direction since it causes a shadow zone and aer-
ated water, resulting in poor sonar performance.
• The physical distance between the hull unit and the transceiver unit should be no
more than 5 m.
• The space shown in the figure on the next page is required around the hull unit for
wiring and maintenance.
1/2 1/3
Within 600 mm

1. HOW TO INSTALL THE SYSTEM
1-2
• If the ambient temperature around the unit will be below 0°C, provide the sonar
compartment with a heater to keep the temperature above 0°C.
Note: After you mount the hull unit, be sure to install anti-vibration stays, referring to
page 1-5.
1200 mm (48’’)
Compartment
500 mm (20”)
500 mm (20”)
500 mm (20”)

1. HOW TO INSTALL THE SYSTEM
1-3
1.1.2 Guideline for how to shorten the retraction tank
Shorten the tank as necessary so that the transducer positions well below the keel
when it is fully lowered. The following table provides guidelines for shortening the tank.
Refer also to the retraction tank installation drawing at the back of this manual.
Note 1: Adjust the position for the TX limit switch, according the retraction tank length.
For how to adjust the position for the TX limit switch, see section 1.1.4.
Note 2: When maximum length is removed and "D" is minimum, the effect of air foam
is minimized because the transducer fully protrudes in water.
Guidelines for installation of the retraction tank
• If the keel plate on the inside of the hull is not adequate for installing the retraction
tank, install a secondary keel plate.
• Install the retraction tank where the keel plate and hull frame intersect.
• If there is no suitable location where the hull frame and keel intersect, install suitable
“T” shaped reinforcement ribs, then weld the base of the frame to the reinforcement
ribs and the sides of the reinforcement ribs to the hull walls or other nearby
reinforcement ribs. The reinforcement ribs should be secured in the fore, aft, port
and starboard directions.
• Install the reinforcement ribs as near as possible to the top of the retraction tank,
allowing 150 to 200 mm space for tightening of nuts and bolts.
• Fit a doubling plate (a plate added to another to give extra strength or stiffness) to
the location where the retraction tank is welded to the hull bottom. While it is
recommended that both sides attach to the hull, consult with the installer
regarding length and diameter.
Cut 0-50 mm
from the end.
Note that the length
"D" must be less than
1200 mm.
Cut 0-50 mm
from the end.
Note that the length
"D" must be less than
1000 mm.
Same as left.
Same as left.
Cut
0-50 mm
from the
end.
Cut
0-50 mm
from the
end.
800 mm
stroke
Stroke
DD
Installation
Method
1100 mm
stroke Same as left.
Same as left.

1. HOW TO INSTALL THE SYSTEM
1-4
• The thickness for doubling plates and reinforcement ribs is 12 mm minimum.

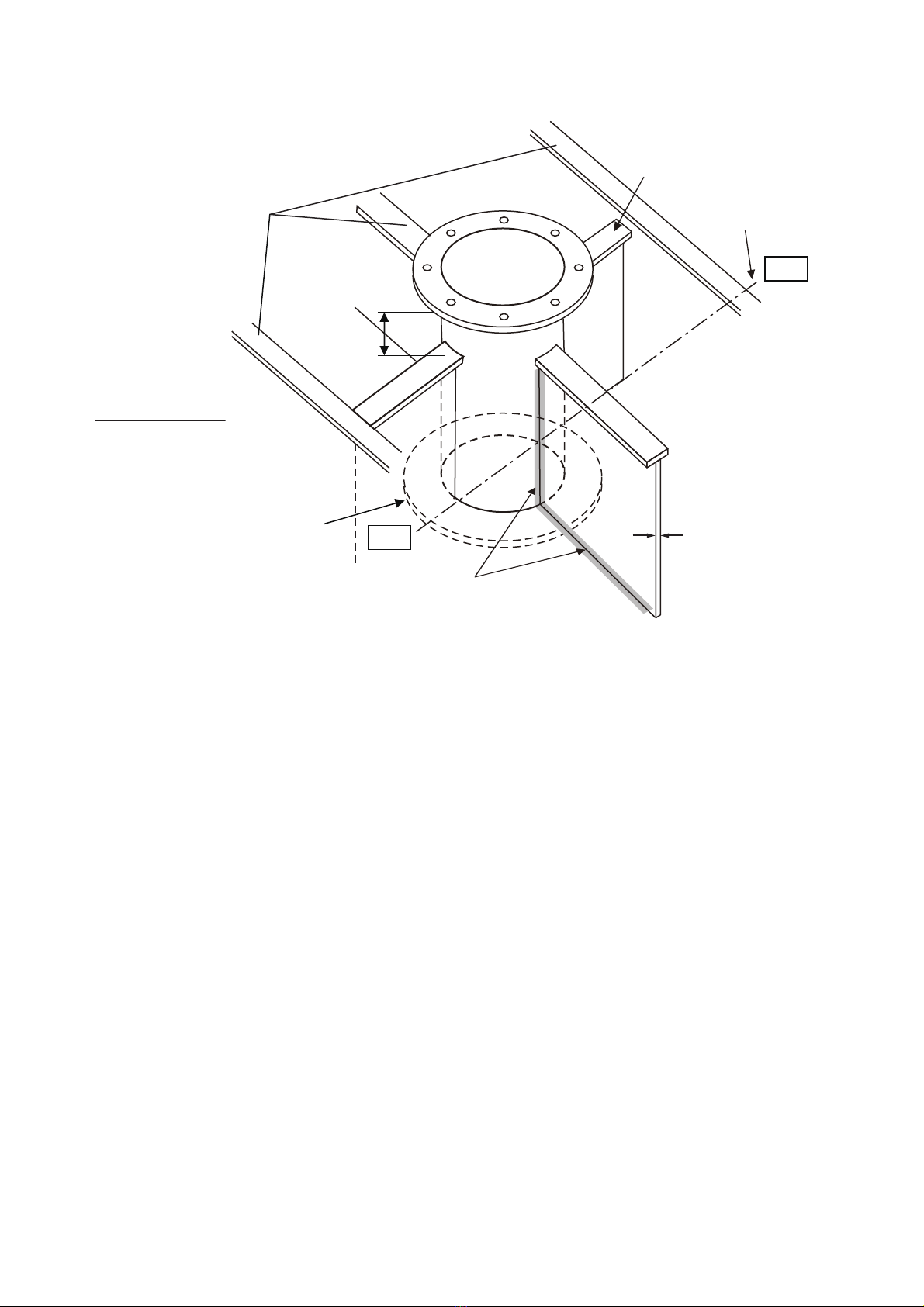

Reinforcement ribs
No. of ribs: Minimum 4
Thickness: at least 12 mm
150-200mm
Reinforcement rib
added along keel line
Keel line
Doubling plate
Bow
Stern
Fit doubling plates where the retraction
tank meets the frame and keel.
Ship’s framework
Minimum 12 mm

1. HOW TO INSTALL THE SYSTEM
1-5
1.1.3 How to install the hull unit on the retraction tank
Weld the retraction tank and allow sufficient time for cooling. Install the hull unit as fol-
lows:
Prepare the materials and tools as shown below.
1. Clean the flange and O-ring groove of the retraction tank (welded to hull). Use
waste cloths moistened with ethyl alcohol.
2. Coat the O-ring and O-ring groove with lithium grease, then place the O-ring in its
groove on the tank flange.
3. Orient the hull unit so that the bow mark (inscribed on its flange) points toward the
ship's bow.
Note: If the bow mark on the hull unit flange is not facing the ship's bow, rotate the
transducer so that the bow mark on the transducer points toward the ship’s bow
(see section 3.9).
4. Confirm the following points, then place the hull unit on the retraction tank.
• Clean the flange platform.
• Wipe the undersurface of the hull unit flange with clean waste cloths.
• Keep O-ring in its groove.
Name Remarks
Screw wrench M20 (opposite side 30 mm)
Ethyl alcohol 99.5%
Waste cloths
Lithium grease For O-ring and drive shaft Common lithium grease
(the equivalent of Daphne Grease MP #2 (IDEMITSU
KOSAN CO.,LTD))
Molytone grease For gear and bearing Molytone grease #2
(by SUMICO LUBRICANT CO., LTD)

1. HOW TO INSTALL THE SYSTEM
1-6
5. Coat the threads of the bolts with a slight amount of lithium grease to prevent
scorching, then secure the hull unit to the retraction tank, referring to the following
figure.
Hex nut
Hex nut
Spring
washer
Flat
washer
O-ring
Flat washer
Hex bolt Hex nut
Hex nut
Spring washer
Flat washer
Detailed view: Bow side (Four places)
O-ring
Flat washer
Spring washer
Hex nut
O-ring
Flat washer
Spring washer
Hex nut
Hex bolt
Retraction tank
Flat
washer
Hex bolt
Detailed view: Bow side (11 places),
Stern side (One place)
Hex nut
Hex nut
Spring wash
Flat washer
Bow mark
Torque
230N•m
Torq ue
230N•m

1. HOW TO INSTALL THE SYSTEM
1-7
How to remount the emergency switch
The emergency switch is attached to the starboard side of the hull unit. If the starboard
side clearance is not sufficient for switch operation, the switch may be remounted on
the port side.
1. Unfasten the four screws to remove the box base.
2. Unfasten the two screws to remove the box cover.
3. Remount the emergency switch to the port side.
4. Secure the emergency switch cable, using the three wiring bands. Wiring band
must be secured to the hull unit, using pan head screws (M4×12).
Screw (4 pcs)
Emergency switch
Box baseBox base
Box coverBox cover
Screw (2 pcs)
Box base (rear side)Box base (rear side)
Wiring band
Wiring band

1. HOW TO INSTALL THE SYSTEM
1-8

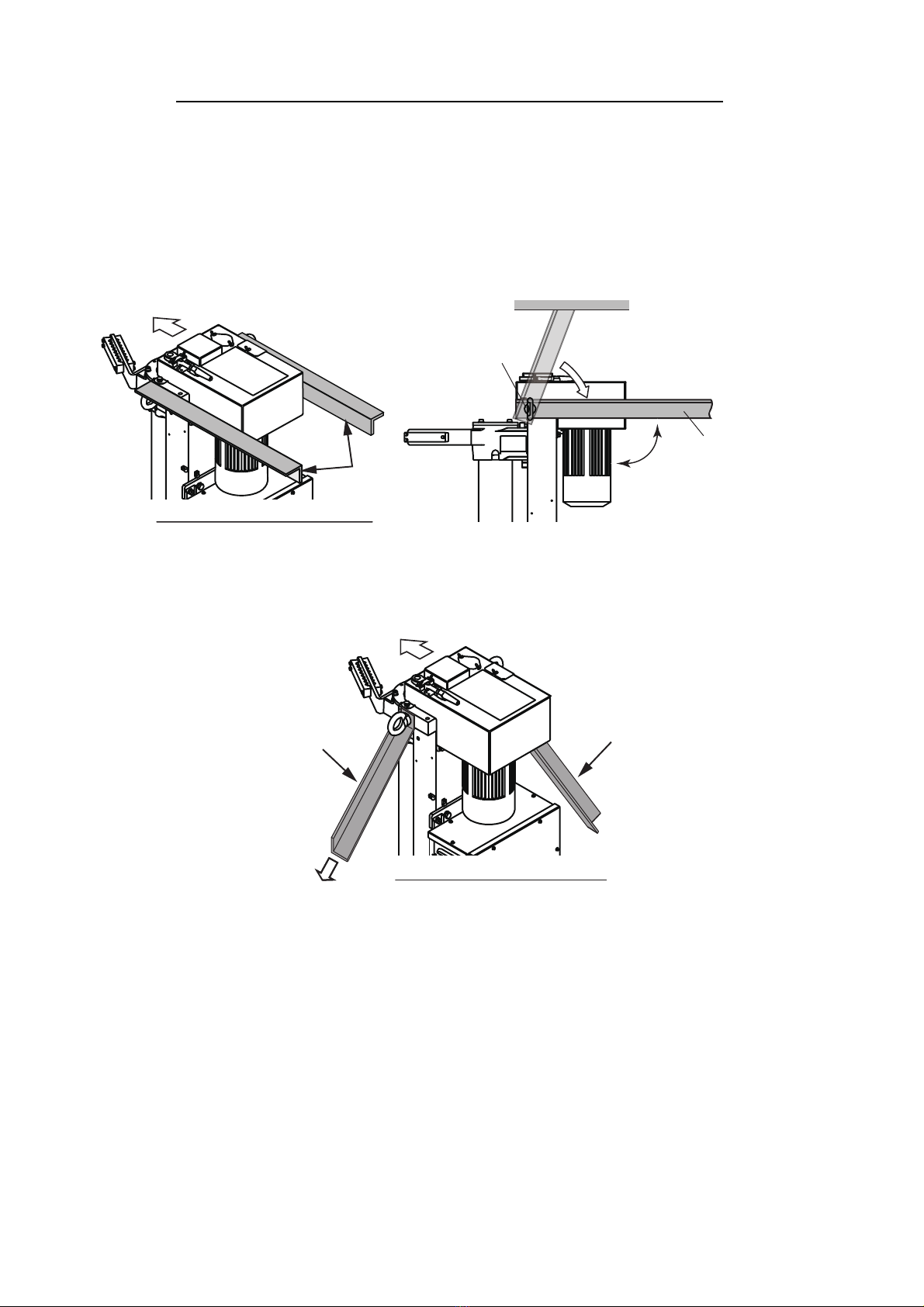

How to install the stays (anti-vibration and anti-shock measures)
This measure must be done after installing the hull unit to prevent damage from vibra-
tion or impact shock to the transducer. Stays should be as sturdy as possible
(75×75×9 mm minimum recommended). Install a minimum of two stays, one in the aft
direction, one in the fore direction. Where possible install two more stays (one in the
port and one in the starboard direction), making a total of four stays. Where the hull
unit is installed off center from the bow-stern line, install the stays at right angles with
the bow mark on the hull unit.
Where horizontal installation of the stays is not possible, install the stays in a diagonal
manner to reduce vibration in the hull unit.
Bow mark
Stay
Recommended stay installation
Eye bolt
Ceiling beam
Stays installed diagonally have
their effectiveness reduced.
Install stays as close to
horizontal as possible.
Stay
90°
Bow mark
Stay
Non-horizontal stay installation
Stay
Secured to ship’s
hull frame work.

1. HOW TO INSTALL THE SYSTEM
1-9
1.1.4 How to adjust the TX limit switch position
Adjust the TX limit switch position so that the switch is turned on where the transmit-
ting face of the transducer is projected from the hull unit.

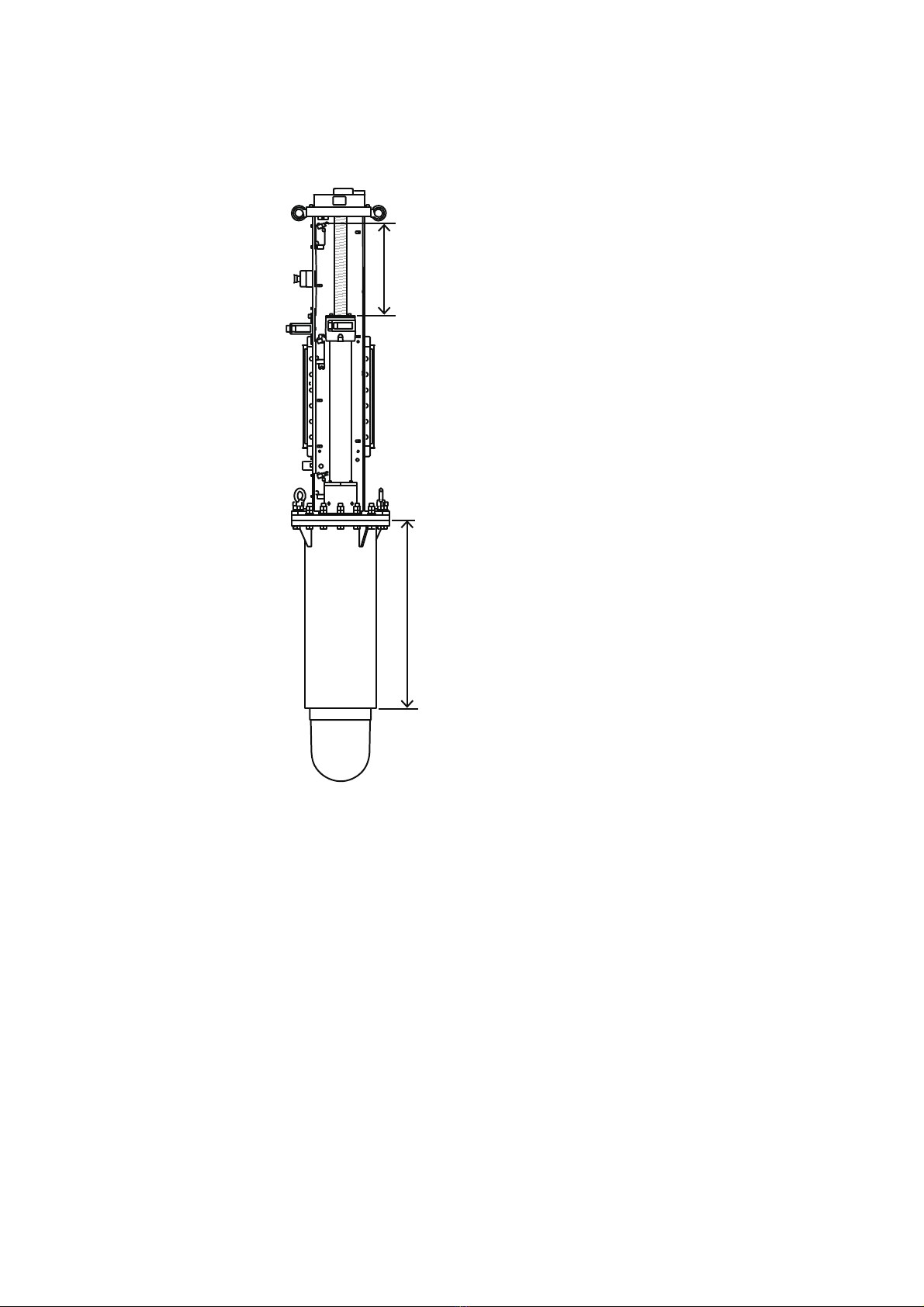

Distance to the transmitting position (A) can be selected from 450 mm, 425 mm, 400
mm, 375 mm or 350 mm. The distance to the transmitting position can be calculated
with the following formula. Select the value closest to the calculation.
• A = T- 450 mm
For example, when the tank length (T) is 820 mm, the calculated value is “ A = 820 -
450 = 370 mm”. Therefore, adjust the TX limit switch so that the distance to the trans-
mitting position is 375 mm.
Note: The transducer can transmit when the transducer is projected 300 mm from the
retraction tank.
Tank length (T)
Distance to the transmitting position 䠄A䠅䠖
450 mm, 425 mm, 400 mm㻘㻌375 mm or
350 mm

1. HOW TO INSTALL THE SYSTEM
1-10

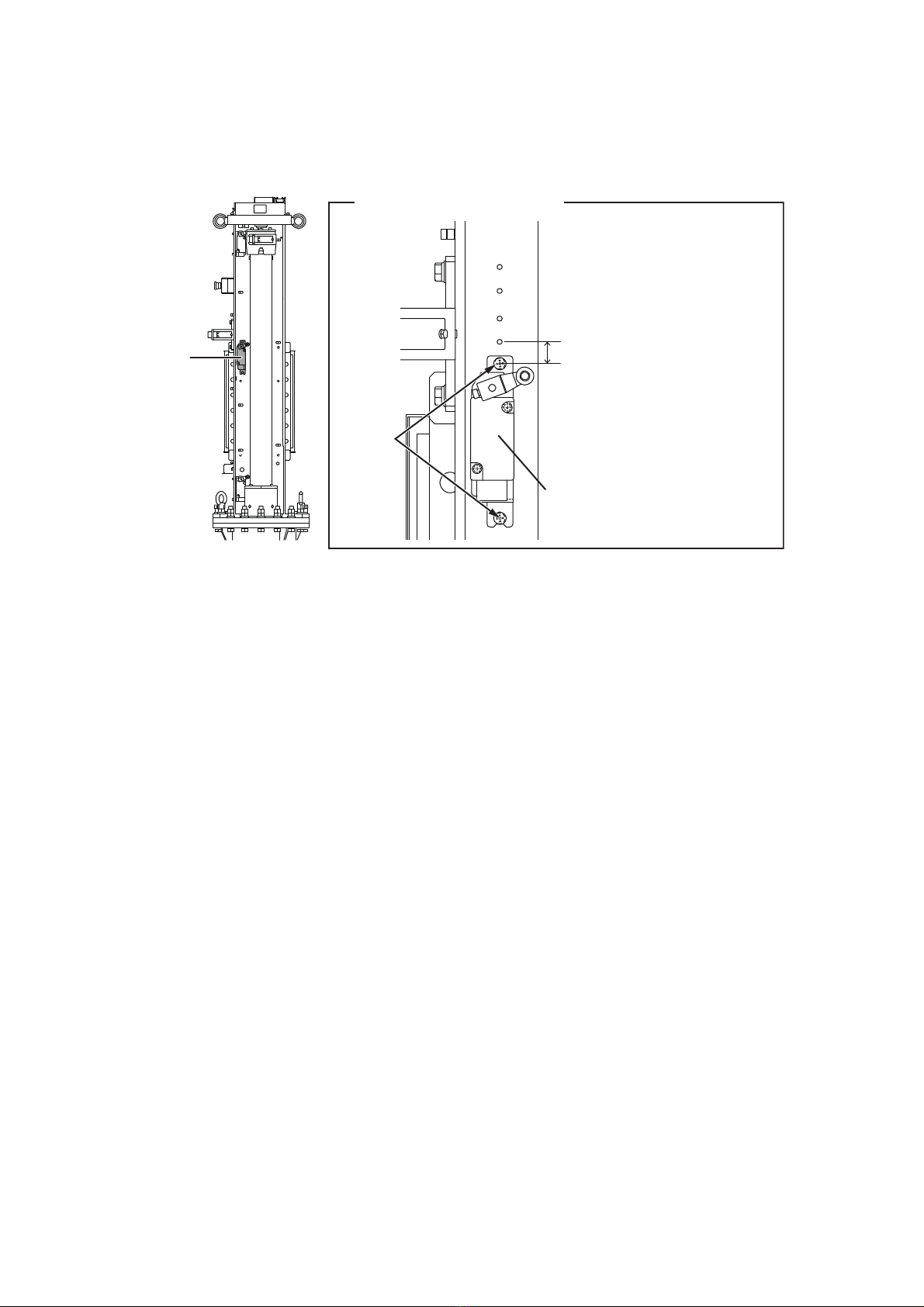

At factory default, the distance to the transmitting position is 450 mm (tank length: 900
mm). To adjust the distance to the transmitting position, unfasten the two mounting
screws (M6) to remount the TX limit switch.
TX limit
switch
Detailed view: TX limit switch
25 mm:
Screw holes for mounting
TX limit switch are prepared
at 25 mm intervals. You can
raise the TX limit switch
position max 100 mm .
TX limit switch
(factory default position)
Mounting
screw (M6,
2 pcs)

1. HOW TO INSTALL THE SYSTEM
1-11
1.2 Processor Unit
The processor unit can be installed on a deck or bulkhead.
Mounting considerations
Select a mounting location, keeping in mind the following points:
• Locate the unit out of direct sunlight and away from heat sources.
• Locate the unit away from places subject to water splash and rain.
• Select a mounting location considering the length of the cables to be connected to
the unit.
• Select a location where shock and vibration are minimal.
• Be sure the mounting location is strong enough to support the weight of the unit.
• Referring to the outline drawings at the back of this manual, allow sufficient space
for maintenance and service.
• A magnetic compass will be affected if the unit is placed too close to the magnetic
compass. Observe the compass safe distances at the front of this manual to prevent
interference to a magnetic compass.
• For the bulkhead installations, secure the unit so that the cable entrance faces
downward.
1.2.1 Deck mount
1. Drill four pilot holes in the mounting location for mounting screws (M6 bolts or
coach screws φ6), referring to the outline drawing at the back of this manual.
2. Secure the unit using the four mounting screws (supplied locally).
Mounting screw
(M6 bolt, coach
screw Ø6䠅

1. HOW TO INSTALL THE SYSTEM
1-12
1.2.2 Bulkhead mount
1. Drill four pilot holes in the mounting location for mounting screws (M6 bolts or
coach screws φ6), referring to the outline drawing at the back of this manual.
2. Screw two mounting screws (supplied locally) into the lower pilot holes. Leave 5
mm of thread visible.
3. Set the notches of the unit onto the screws fastened at step 2.
4. Screw two mounting screws (supplied locally) into the upper fixing holes.
5. Fasten all screws tightly to secure the unit in place.

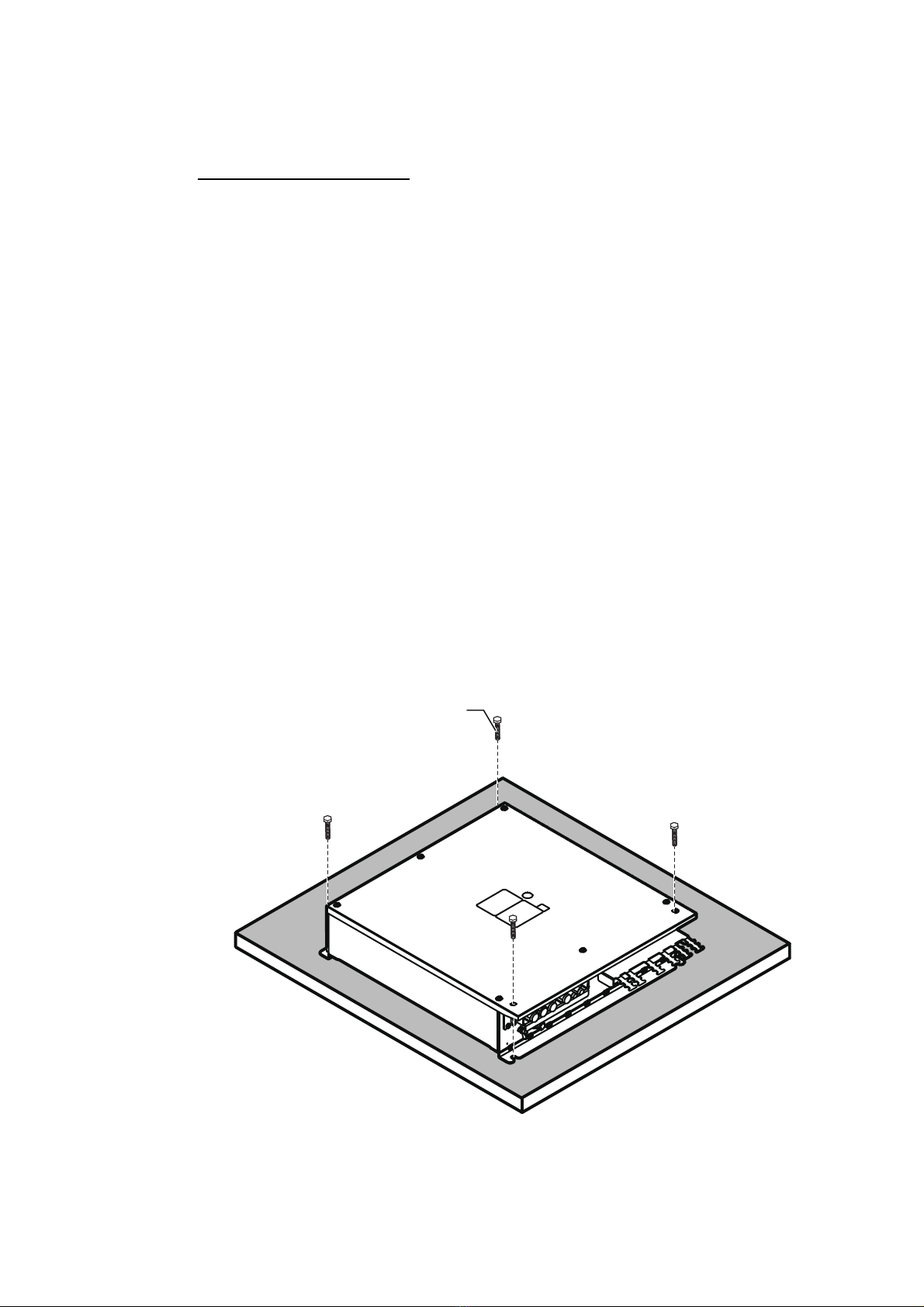

1.3 Control Unit
The control unit has following three mounting methods:
• Tabletop mounting: The unit is secured from the underside.
• Tabletop mounting with KB fixture: The unit is secured from the topside.
• Flush mounting
Mounting considerations
• Select a location where the unit can easily be operated.
• Locate the unit out of direct sunlight.
• Locate the unit away from places subject to water splash and rain.
• Select a location where shock and vibration are minimal.
• Select a mounting location considering the length of the cable.
• Referring to the outline drawings at the back of this manual, allow sufficient space
for maintenance and service.
• A magnetic compass will be affected if the unit is placed too close to the magnetic
compass. Observe the compass safe distances at the front of this manual to prevent
interference to a magnetic compass.
• For flush installations, select a location where the surface is flat.
Mounting screw
(M6 bolt, coach
screw Ø6䠅Detailed view
Set the notches of the unit to
the screws.
