COLOR SCANNING SONAR
MODEL CSH-7

FIRST EDITION : MAY 1997
 D : NOV. 5,1998
Your Local Agent/Dealer
FURUNO ELECTRIC CO ., LT D .
c
9-52, Ashihara-cho,
Nishinomiya, Japan 662
Telephone: [phone]
Telefax: 0798-65-4200
All rights reserved.
Printed in Japan
PUB. No. IME-13020-D
CSH-7
(TATA)

iiiiiiiiiiiii
i
SAFETYINSTRUCTIONS
Do not work inside the
equipment unless totally
familiar with electrical
circuits.
Hazardous voltage which can
shock exists inside the equip-
ment.
Turn off the power at the
mains switchboard before
beginning the installation.
Post a sign near the switch
to indicate it should not be
turned on while the equip-
ment is being installed.
Fire or electrical shock can
result if the power is left on or
is applied while the equip-
ment is being installed.
WARNING
Install the display unit and transceiver
unit where they will not be exposed to
water splash or rain.
Fire or electrical shock can result if water
leaks inside those units.
Ensure no water leaks through the
mounting location for the transducer.
The ship may sink if water leaks through the
mounting location. Check the location care-
fully at installation.
The retraction tank should be con-
structed of the specified material and
installed in accordance with the pro-
cedures set forth in this manual. Use of
other material or procedure is the
responsibility of the shipyard. In any
case the tank should be installed so
the hull will not be seriously damaged
in the event the tank is struck by an
object.
CAUTION
Use the proper fuse.
Use of a wrong fuse can result in fire or
permanent equipment damage.
Replace zinc block near the transducer
yearly.
If not replaced corrosion between trans-
ducer and main shaft may result.
Do not exceed speed noted in the speci-
fications when operating the equipment
or lowering or raising the transducer.
The transducer may become damaged.
Ground the equipment to
prevent mutual interference.
POSSIBILITY OF INJURY
1. If breaker (hull unit) trips do the
following:
1) Turn off power swich on hull unit.
2) Wait 60 sec after breaker has tripped.
3) Press breaker.
2. Turn off hull unit before using hand
crank.
WARNING
POSSIBILITY OF WATER LEAKAGE
To prevent loss of main shaft of the hull
unit and water leakage tighten bolts fixing
shaft retainer for torque of 2000-2500 N•
cm and tighten fastening band for torque
600-800 N•cm.

ii

iii
TABLEOFCONTENTS
SYSTEM CONFIGURATION .................................................................................. iii
MOUNTING
1.1 General Mounting and Handling Considerations ............................................................1-1
1.2 Mounting the Hull Unit ...................................................................................................1-2
1.3 Mounting the Transceiver Unit......................................................................................1-11
1.4 Mounting the Display Unit ............................................................................................1-11
1.5 Grounding the Display Unit and Transceiver Unit ........................................................1-12
WIRING
2.1 Wiring Diagram ...............................................................................................................2-1
2.2 Wiring the Hull Unit ........................................................................................................2-2
2.3 Wiring the Transceiver Unit.............................................................................................2-3
2.4 Wiring the Display Unit...................................................................................................2-4
2.5 Synchronizing Transmission with Other Equipment .......................................................2-5
2.6 How to Unplug the XH Connector ..................................................................................2-7
CHECKS ANDADJUSTMENTS
3.1 General Checks................................................................................................................3-1
3.2 Heading Alignment ..........................................................................................................3-3
3.3 Sea Trial ...........................................................................................................................3-4
INSTALLATION OF INTERFACE MODULE CSH-7050 (option)
4.1 Introduction .....................................................................................................................4-1
4.2 Installation .......................................................................................................................4-2
ASSEMBLING TRANSCEIVER FRAME (Option).................................... 5-1
DRAWINGS
Equipment Lists ....................................................................................................................A-1
Outline Drawings..................................................................................................................D-1
Interconnection Diagram ...................................................................................................... S-1
Schematic Diagram............................................................................................................... S-2

iv

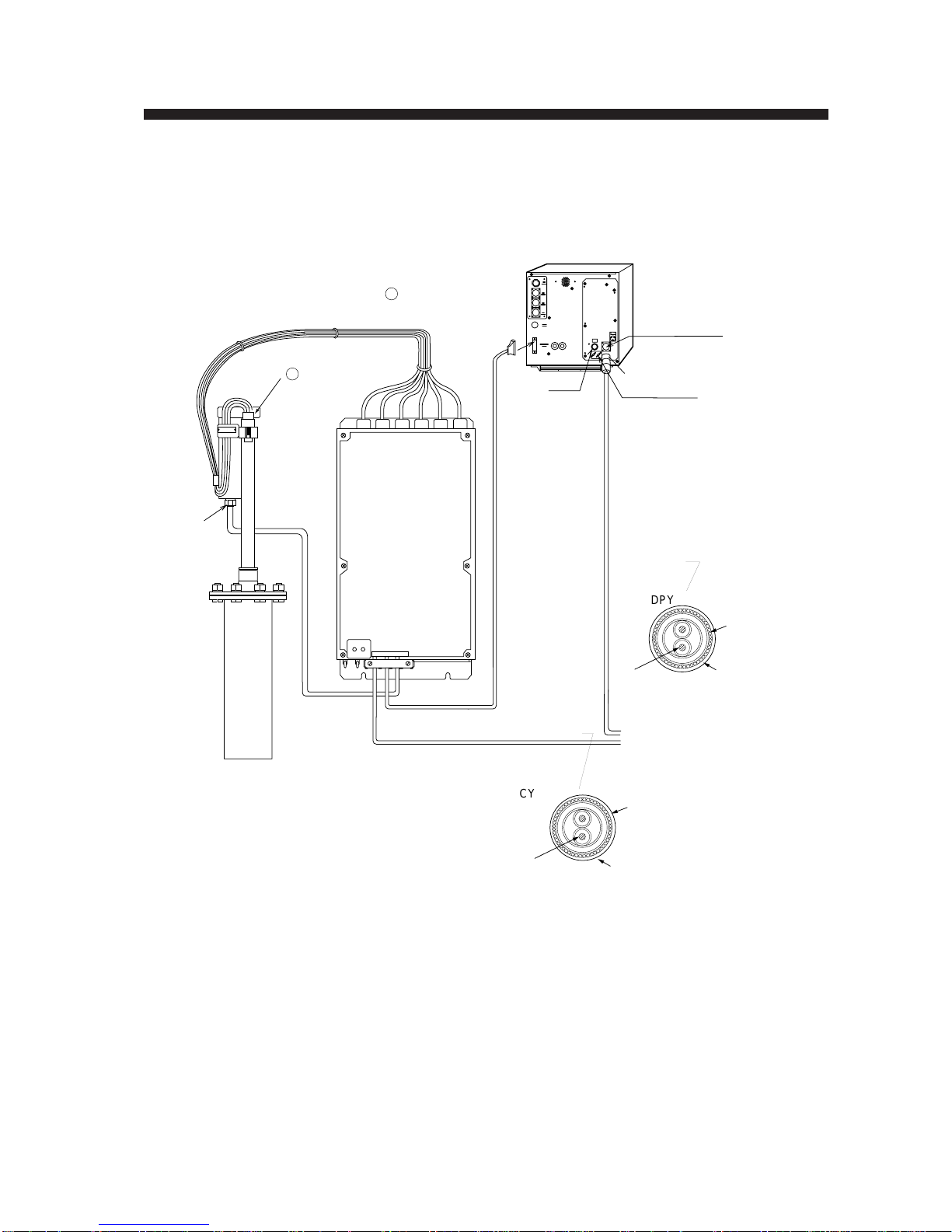

SYSTEMCONFIGURATION

v
Equipment Lists
Standard Supply
emaNepyTytQssaM )gk( skrameR
1tinUyalpsiD0107-HSC101
2reviecsnarT tinU 0207-HSC15.11
3tinUlluH0307-HSC 146ekortsmm006
1307-HSC06ekortsmm004
4noitallatsnI slairetaM 00040-01PC tes1 elbacm5sulp10040-01PCtceleS eno
01040-01PCelbacm01sulp10040-01PC
02040-01PCelbacm51sulp10040-01PC
03040-01PCelbacm03sulp10040-01PC
5seirosseccA01340-30PFtes1
6straPerapS00320-01PStes1
7etomeR rellortnoC 0407-HSCtes100240-01PCslairetam.tsnihtiW
Optional Equipment
emaNepyTytQ.oNedoCskrameR
1eludoMecafretnI0507-HSCtes1— tinuyalpsidnitliuB
2emarFreviecsnarT tiK 41-01PO1046-039-600.ceDmorfelbaliavA 7991
3reifitceR4243-UR1—
4knaTnoitcarteR5-01POtes1367-960-000dnaknatmunimulA teksagnoitalusni
5revoCtsuD1042-340-411030-561-001
6dooH02130-30PF1011-932-800tinuyalpsidrof

1-1
MOUNTING
1.1 General Mounting and Handling Considerations
• Be sure the power supply matches equipment voltage rating. Improper power supply will
damage the equipment.
• Locate the transducer where the affects of noise and air bubbles are minimal. Noise and air
bubbles will affect performance.
• When selecting a mounting location keep the following points in mind:
• Keep equipment out of direct sunlight.
• Keep equipment away from air conditioner.
• The useable temperature range of the display unit is 0°–50°C.
• Provide sufficient ventilation.
• Select location where vibration is minimal.
• Locate the equipment away from magnets and magnetic materials.
• Keep the transducer away from oil. Oil can corrode the cable.
• Do not expose the transducer to hot water. Hot water can damage the transducer.
• Do not turn on the equipment with the transducer exposed to air. Exposing the transducer to
air may damage it.

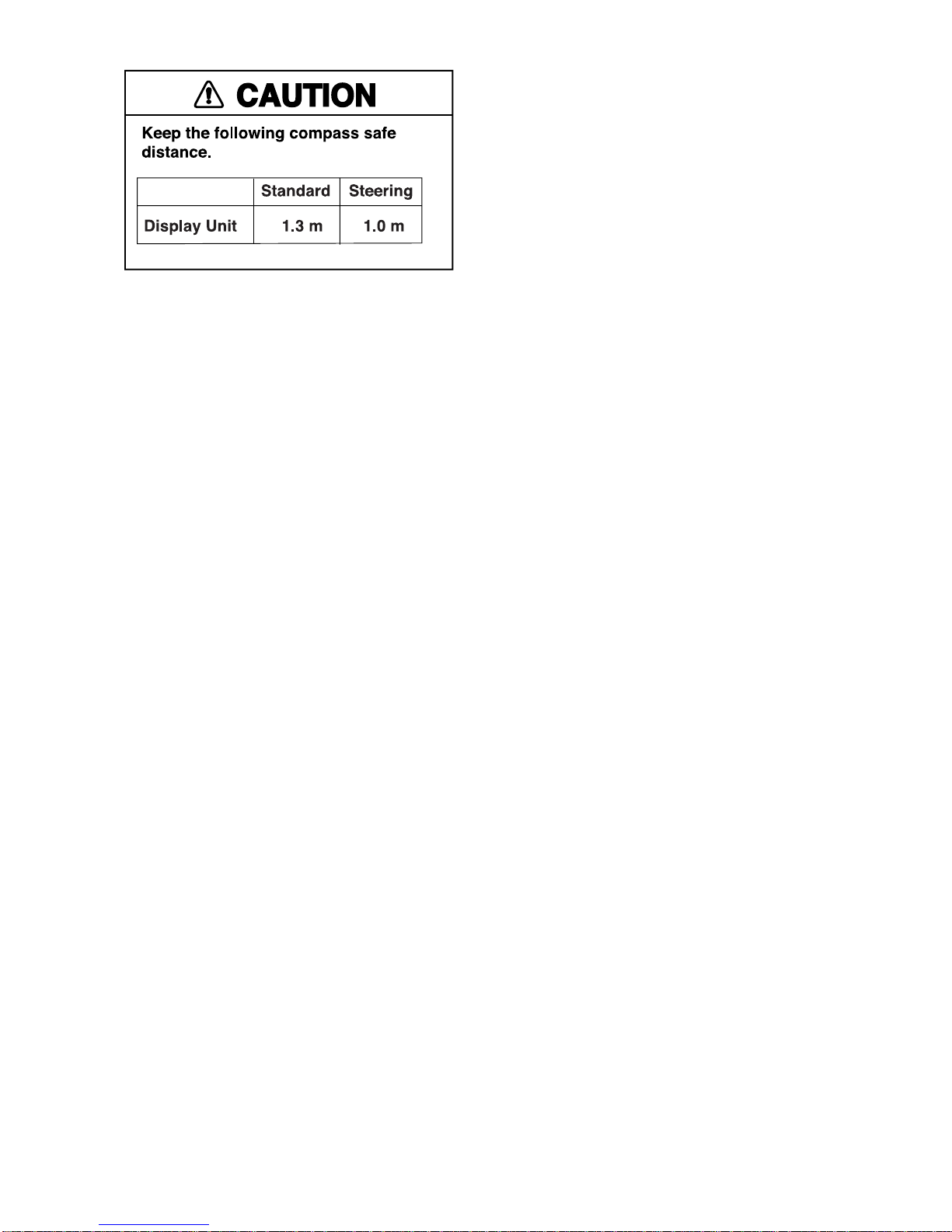

• Magnetic compass performance will be affected if it is placed too close the display unit.
Observe the compass safe distances shown below to prevent deviation of a magnetic com-
pass.
Standard compass: 1.3 m
Steering compass: 1.0 m

1-2
1.2 Mounting the Hull Unit
Location
Discussion and agreement are required with the dockyard and ship owner in deciding the loca-
tion for the hull unit. When deciding the location, take into account the following points:
• Select an area where propeller noise, cruising noise, bubbles and interference from turbu-
lence are minimal. Generally, the point at 1/3 to 1/2 of the ship’s length from the bow or near
the keel is the best. On-the-keel installation is advantageous for minimizing oil consumption
in comparison with off-the-keel. If the hull unit cannot be installed on the keel, the center of
the retraction tank should be within 1 meter of the keep to prevent a rolling effect.
1/2 1/3 Within 1 m
Figure 1-1 Installation location for hull unit
• Select a place where interference from the transducers of other sounding equipment is mini-
mal.The hull unit should be at least 2.5 meters away from the transducers of other sounding
equipment.
• An obstacle in the fore direction not only causes a shadow zone but also aerated water,
resulting in poor sonar performance. Be sure to locate the transducer well away from any
obstacle in the fore direction.
• The following space is required around the hull unit for wiring and maintenance. If the
transducer is to be operated in ambient temperature below 0°C, the sonar compartment must
be provided with a heater to keep the temperature above 0°C.
BOW
Direction
400800
400 800
45°
If the space shown is not available,
leave at least 50 cm in fore
direction.
Figure 1-2 Hull unit maintenance space

1-3
Installation of the retraction tank
The retraction tank is 1000 mm in length as supplied. Shorten the tank referring to the table
below so the transducer fully protrudes beyond the keel when it is lowered. Refer to pages D-1
to D-6 for details.
Figure 1-3 How to shorten the retraction tank
Reletion of tank length and shft length
Shaft supplied 945 1300 1550 2350
Shaft/Cut length Shaft
length Cut length Shaft length Cut length Shaft length Cut length Shaft length Cut length
Hull Unit Tank
length
400
Stroke 550 945 0
600
Stroke
750 1300 0
800 1365 185
850 1415 135
900 1465 85
950 1515 35
1000 1550 0
1100 1665 685
1200 1765 585
1300 1865 485
1400 1965 385
1500 2065 285
1600 2165 185
1700 2265 85
1800 2350 0

1-4

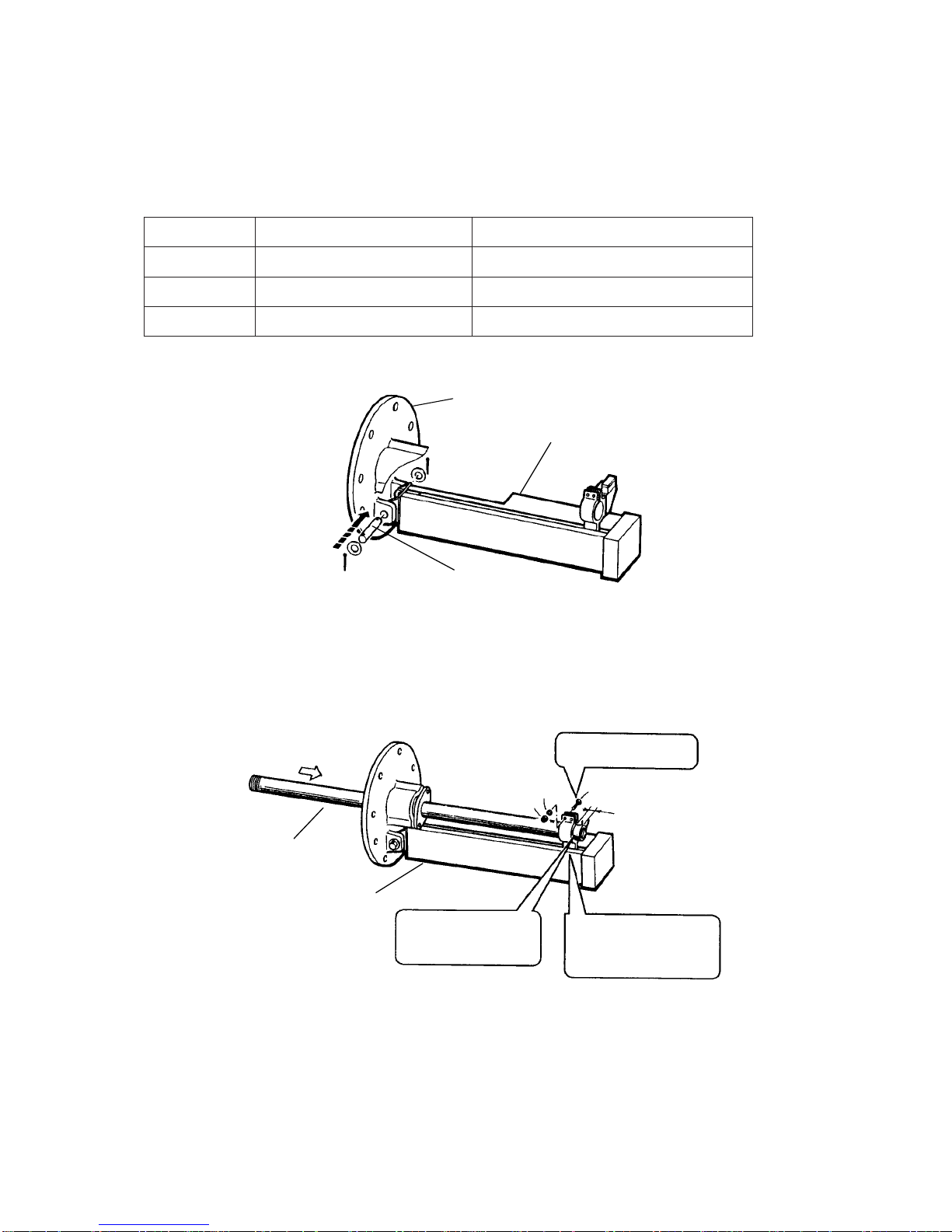

Assembly and installation of the hull unit
The hull unit is shipped disassembled as the parts shown on pages 1-8 and 1-9. Assemble the
hull unit as follows:
Necessary tools
traPeziSskrameR
hcnerW)mm71ezisxeH(01MroF.dednemmocersihcnerwdne-elbuoD
hcnerW)mm03ezisxeH(02MroFdnalgelbacgninetsafroF
hcnerWepiPmm55egnalfydobniamgnixifroF
1. Fasten the raise/lower drive assembly to the main body flange with the trunnion shaft.
Split pin Trunnion
shaft
Main body
flange
Raise/lower
drive assy.
Flat washer
Flat washer
Figure 1-4 How to fasten raise/lower drive assy. to main body flange
2. Coat the top of the main shaft with a small amount of grease. Pass the main shaft through the
main body flange, and fix it temporarily with the shaft retainer. (The shaft retainer should be
secure enough to prevent shaft rotation.)
Main shaft
Raise/lower
drive assy. Wipe off grease
before tightening
shaft retainer.
Main shaft should
protrude by 15 mm from
top of shaft retainer.
Grease threads.
M10
M10 Spring washer M 10 x 35
15 mm
Figure 1-5 Passing main shaft through the raise/lower drive assy.

1-5

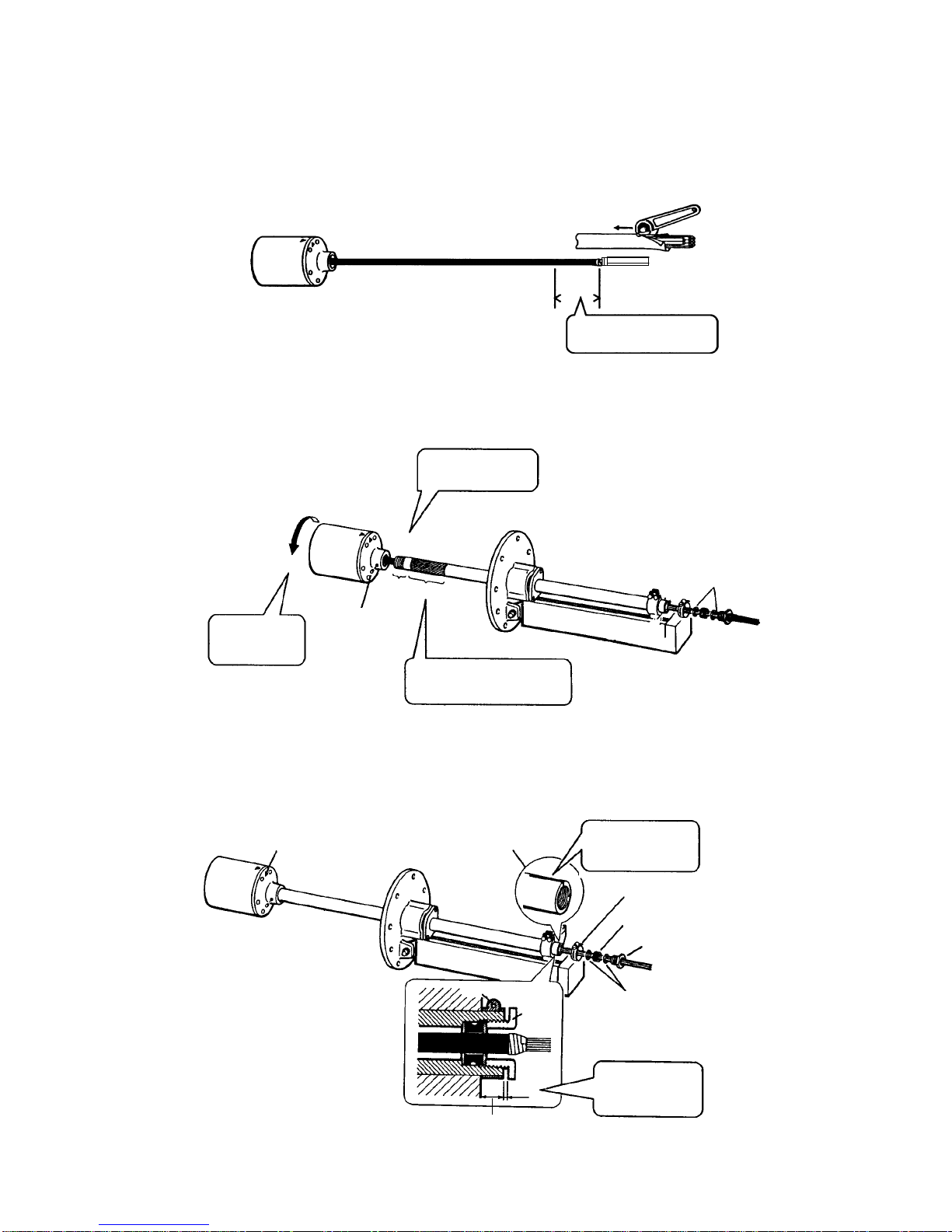

3. Remove sheath of transducer cable by the length shown below. Tape the end of the sheath
with vinyl tape.
Raise/lower shaft length is 1550 mm or more (for 600 stroke): Removal not necessary.
Raise/lower shaft length is 1300 mm: Remove by 250 mm.
Raise/lower shaft length is 945 mm: Remove by 650 mm.
Use suitable roller
knife to cut sheath.
Figure 1-6 Removing sheath with roller knife
4. Fasten the main shaft to the transducer.
Coat 50 mm of
shaft with grease.
Rotate trans-
ducer to screw
in main shaft. Hold here with pipe
wrench.
Socket set screw
M5 x 10, 2 pcs.
If it is difficult to pass the transducer
cables through the flat washers of
the cable gland, unbind the transducer
cables and pass them one by one.
Flat washer
Note: Screw shaft 50 mm
into transducer flange.
50 mm 140 mm
Figure 1-7 Fastening main shaft to transducer
5. Inscribe bow mark on the top end of the main shaft and install fastening band and cable
gland.
BOW mark BOW mark
Shaft
retainer
Inscribe line refer-
ring to bow mark
on transducer.
Fastening band *
Gasket
Cable gland
Flat Washer
Tighten cable
gland for gap
of 3 mm.
Fastening band
Cable
gland
15 mm
3 mm
* Tighten fastening band
for torque of 600–800 N•
cm.
Figure 1-8 Inscribing bow mark,
installing fastening band and
cable gland

1-6

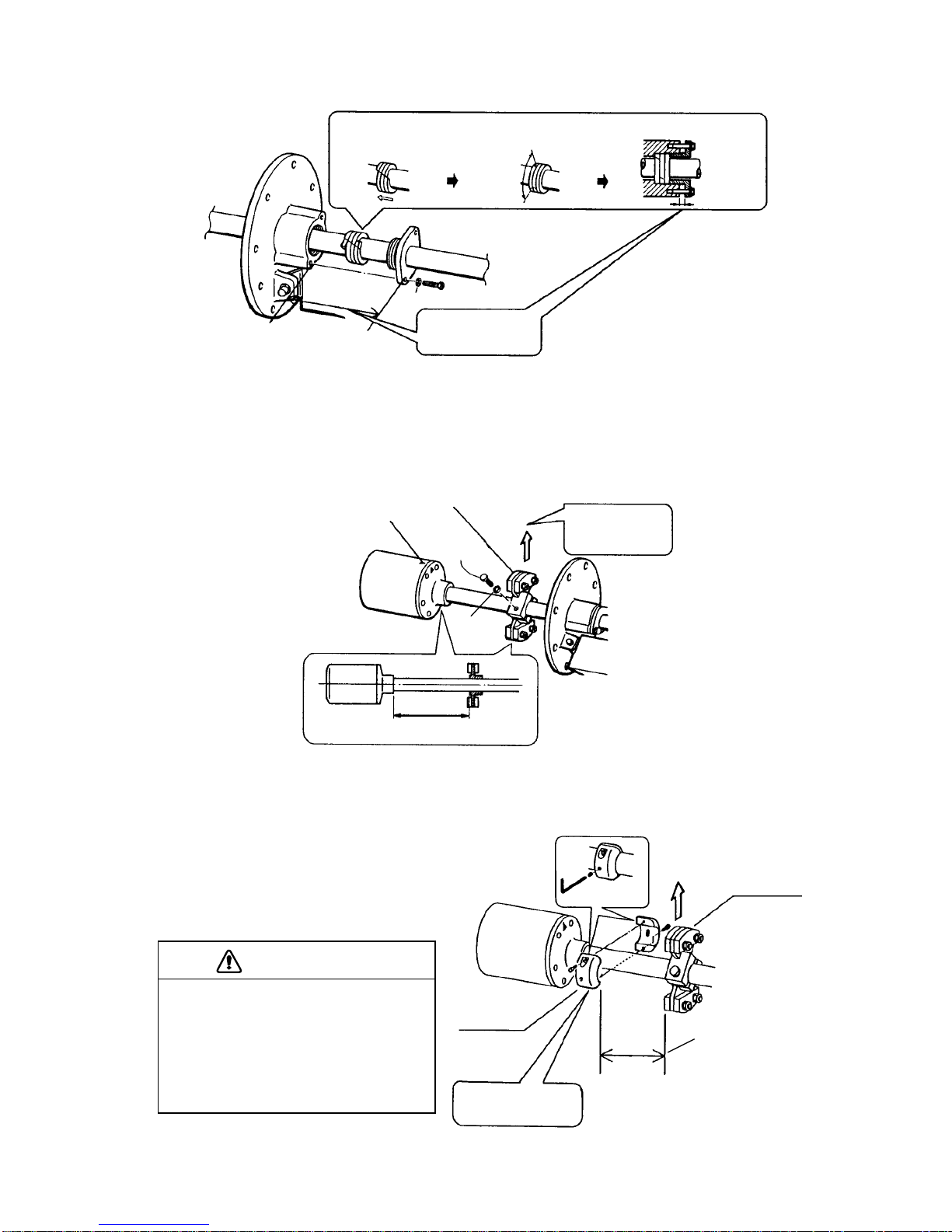

6. Set grease cotton to main body flange and tighten the grease cotton retainer.
Wind grease cotton
onto main shaft and
cut as below.
Space joints of cotton at 120°and push into
main body flange.
Tighten grease
cotton retainer for
gap of 7 to 9 mm.
Flat washer
Figure 1-9 Setting grease cotton
7. Attach the tank guide. The distance between the top of the transducer flange and the bottom
of the tank guide body should be 340 mm for 600 m travel type and 140 mm for 400 mm
travel type.
Bow mark Tank guide Align with bow
mark on trans-
ducer flange.
340 mm (for 600 mm travel type)
140 mm (for 400 mm travel type)
M10 x 55
M10 SW*
* Spring washer
Figure 1-10 Installing the tank guide
8. Attach zinc block to main shaft..
CAUTION
The zinc block near the transducer must
be replaced yearly.
The junction between the transducer and
main shaft may corrode, which can result
in loss of the transducer or water leakage
inside the ship.
Ship's bowTank guide
Zinc block
Orient round end
to tank guide side.
Attach zinc block
as close as possible
to tank guide.
Figure 1-11 Attaching zinc block

1-7

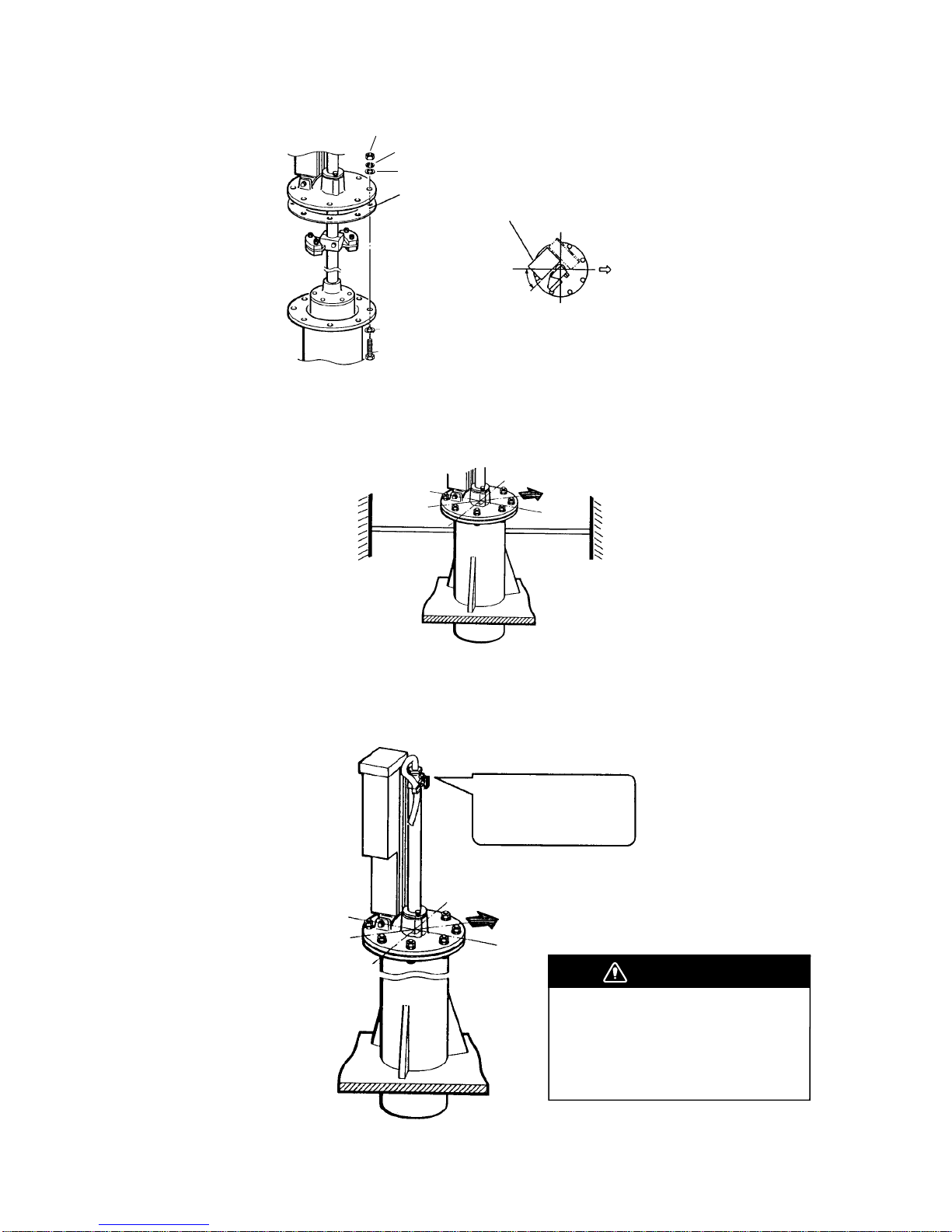

9. Fasten the hull unit to the retraction tank. Orient it so the ship’s fore-aft line crosses the front
panel of the raise/lower drive assy. at an angle of approximately 45°.
Raise/lower
drive assy
M20 Flat washer
Gasket
M20 Flat washer
M20 x 80
Orient the hull unit as shown.
This will reduce shock and
vibration, caused by ship's
pitching and rolling, at the
raise/lower drive assy.
BOW
M20 Nut
M20 Spring washer
Figure 1-12 Fastening the hull unit to the retraction tank
10.Fix anti-vibration stays to the retraction tank.
Anti-vibration
stay
Figure 1-13 Fixing anti-vibration stays to retraction tank
11.Orient the main shaft so that the bow mark faces ship’s bow and fix it securely with the shaft
retainer.
Loosen shaft retainer
and rotate main shaft
so the bow mark on
it faces ship's bow.
Bow mark
Ship's bow
Figure 1-14 Orienting the main shaft
WARNING
POSSIBILITY OF WATER LEAKAGE
To prevent loss of main shaft of the hull
unit and water leakage tighten bolts fixing
shaft retainer for torque of 2000-2500 N
•
cm and tighten fastening band for torque
600-800 N
• cm.

1-8

1-9

1-10

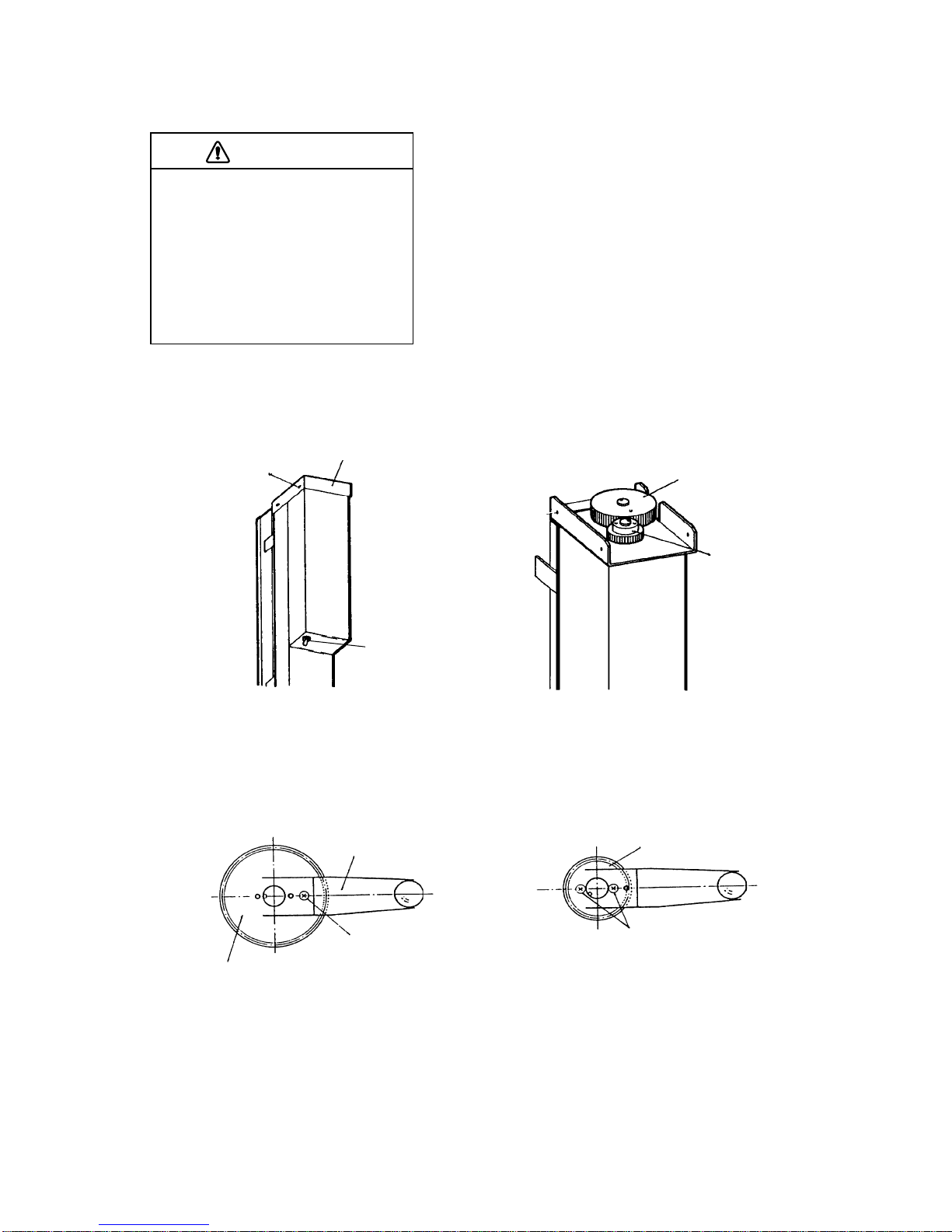

How to use the hand crank
CAUTION
POSSIBILITY OF INJURY
1. If breaker (hull unit) trips do the
following:
1) Turn off power swich on hull unit.
2) Wait 60 sec after breaker has tripped.
3) Press breaker.
2. Turn off hull unit before using hand
crank.
1. Turn off the POWER switch on the hull unit.
2. Remove the gear cover on the hull unit.
Gear cover
POWER switch
M4 x 8,
4 pcs. Screw shaft
gear
Motor
gear
OFF [ON
Figure 1-15 Hull unit
3. Attach the hand crank onto the screw shaft gear or motor gear depending on circumstance.
a) When crank is attached to shaft gear
(Requires greater force but less turns.)
Hand crank
Shaft gear
Tighten screw.
(Use screw from
cover.)
Shaft moves 600 mm
per 120 turns of crank.
Motor gear
Tighten screws.
(Use screw from
cover.)
Shaft moves 600 mm
per 210 turns of crank.
b) When crank is attached to motor gear
(Requires less force but more turns.)
Figure 1-16 Attaching the hand crank

1-11
1.3 Mounting the Transceiver Unit
• The transceiver unit generates heat so the mounting location should be well ventilated and
dry.
• The unit is only designed for wall mounting. The unit weighs 14 kg so reinforce the mount-
ing location if necessary.
• Secure the maintenance space shown in the figure below for ease of maintenance and ser-
vice.
340
(645)#100
645
#100
4- ∅ 10
13620±1
210±1
2748 (570)
Fixing hole
Figure 1-17 Transceiver unit mounting dimensions
Note: The transceiver unit can be mounted on the hull unit with Transceiver Frame Kit (op-
tion). See page 5-1 for details.
1.4 Mounting the Display Unit
Select the mounting location considering the following condi-
tions:
• Select a location where the display unit can be easily oper-
ated while observing the fishing ground or area surrounding
the vessel.
• Locate the unit at least 1 meter away from a magnetic
compass and equipment which contains magnets (radar
magnetron, loudspeaker, high power transformer).
• Select a location not exposed to direct sunlight, water splash or hot air.
• Select a location which accommodates the viewing angle shown below.
Cap
CRT
45°
45°
Figure 1-18 Display unit
viewing angle

1-12
1.5 Grounding the Display Unit and Transceiver Unit
Ground the equipment with a copper plate.
Ground the equipment to
prevent mutual interference.
CAUTION
SCREEN FOCUS
Earth
terminal
DISPLAY UNIT
Earth
terminal
TRANSCEIVER UNIT
Figure 1-19 Location of earth terminals on display unit and transceiver unit

2-1
WIRING
2.1 Wiring Diagram
352461
-+
SCREEN FOCUS
*1
Power connector
Earth terminal
Fuse
Pre-connected
VV-S 0.5x10C
3 m
10S1915, 6.6 m
10S1903,5 m
10S1904,10 m
10S1905,15 m
10S1925,30 m
250V-DPYCY-3.5
or equivalent
250V-
DPYCY-1.25
or equivalent
Ship’s mains
24 VDC
TRANSCEIVER
UNIT
DISPLAY UNIT
*1
*1 Fabricate cable in field.
For shaft length of 1300 or 945 mm,
remove outer sheath until point a below.
a
,
,
,
DPYCY-1.25
Armar
Vinyl sheath
Conductor
S=1.25 mm2
φ =1.35 mm
,
,
DPYCY-3.5 Armar
Vinyl sheath
Conductor
S=3.5 mm2
φ =2.4 mm
Figure 2-1 Wiring diagram
