USER MANUAL
PHW-250
Pro-Head-Wash
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
For your own safety, please read this user manual carefully before you initial start-up.
Every person involved with the installation, operation and maintenance of this device has to
- be qualilfied
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- include every supplementay update with the original manual
INTRODUCTION
Thank you for having chosen a FUTURELIGHT PHW-250. You will see you have acquired a powerful and
versatile device.
Unpack your PHW-250.
Before you initial start-up, please make sure that there is no damage caused by transportation. Should there
be any, consult your dealer and do not use the device.
SAFETY INSTRUCTIONS
CAUTION!
Be careful with your operations. With a dangerous voltage you can suffer a dangerous
electric shock when touching the wires!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning
notes written in this user manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.

51838700X18NXS_V_1_0_E.DOC
4/23
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it
on immediately. The arising condensation water might damage your device. Leave the device switched off
until it has reached room temperature.
This device falls under protection-class I. The power plug must only be plugged into a protection class I
outlet.
Never let the power-cord come into contact with other cables! Handle the power-cord and all connections
with the mains with particular caution!
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the
power-cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the
power-cord by the plug. Never pull out the plug by tugging the power-cord.
During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily
mean that the device is defective.
Caution: During the operation, the housing becomes very hot.
Danger of burning! Never install the device on a highly flammable surfaces (e.g. fair carpet)!
HEALTH HAZARD!
Never look directly into the light source, as sensitive persons may suffer an
epileptic shock (especially meant for epileptics)!
Keep away children and amateurs!
OPERATING DETERMINATIONS
This device is a moving-head spot for creating decorative effects. This product is only allowed to be operated
with an alternating current of 230 V, 50 Hz and was designed for indoor use only.
This device is designed for professional use, e.g. on stages, in discotheques, theatres etc.
Lighting effects are not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
Do not shake the device. Avoid brute force when installing or operating the device.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always hold the
fixture at the transport handles.
When choosing the installation-spot, please make sure that the device is not exposed to extreme heat,
moisture or dust. There should not be any cables lying around. Please make sure that the unit cannot be
touched or bumped. You endanger your own and the safety of others!
The symbol
---m
determines the minimum distance from lighted objects. The minimum distance
between light-output and the illuminated surface must be more than this value.
The device must only be installed on a non-flammable surface. In order to safeguard sufficient ventilation,
leave 50 cm of free space around the device. Please note that heat-sensitive objects may be deformed or
damaged by the emitted heat.

51838700X18NXS_V_1_0_E.DOC
5/23
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the
fixture.
For overhead use (mounting height >100 cm), always fix the fixture with an appropriate safety-rope. Fix the
safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly
fastened.
The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may
explose and emit a high ultraviolet radiation, which may cause burns.
The maximum ambient temperature ta= 45° C must never be exceeded.
Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualified for operating the device. Most damages are the result of unprofessional operation!
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
Never remove the serial barcode from the device as this would make the guarantee void.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
circuit, burns, electric shock, lamp explosion, crash etc.
DESCRIPTION OF THE DEVICE
Features
Multi-function Washlight
DMX-controlled operation or stand alone operation with Master/Slave-function • Sound-controlled via built-in
microphone • 48 preprogrammed scenes in Program Run for stand alone operation • Number of scenes in
Program Run can be changed individually • The scenes in Program Run can be modified via the Control
Board or via an external controller and loaded into the memory • CMY colour mixture • Motorised colour-
wheel with additional 4 discrete dichroic filters plus open • Switchable colour change (mode 1: only full
colours, mode 2: colour-change at every position) • Rainbow-effect with adjustable speed in both directions •
Macro-function for combinations between CMY-colour mixture and colour-wheel • Frost-filter for softer beam
• Beam-shape effect: wide and flat beam can steplessly be rotated by 180° • Strobe-effect of 1-13 flash per
sec. • Control-Board with 4-digit display and foil-keyboard for adjusting the DMX-starting address, Pan/Tilt-
Reverse, Program, Reset, lamp on/off • Remotely switching of the lamp • Built-in demo sequence •
Preprogrammed variable/random strobe and dimmer pulse effects • Black-out while Head moving or
CMY/colour/beam-shaping changing • Remotely controllable speed of PAN /TILT movement for easy
programming • Remote reset function • Motorized zoom • Mechanic dimmer • Exact positioning via 16 bit
Pan/Tilt movement resolution • For MSD 250 or MSD 250/2 or MSD 200 lamp • DMX-control via every
standard DMX-controller

51838700X18NXS_V_1_0_E.DOC
6/23
Overview
(1) Projector head
(2) Fresnell-lens
(3) Yoke
(4) Base
(5) Control Board
(6) Carrying handle
(7) Housing screw
(8) Mode/Enter-button
(9) Down-button
(10) Up-button
(11) Display
(12) DMX-Out socket
(13) DMX-In socket
(14) Power supply
(15) Fuseholder
(16) Ventilation fan

51838700X18NXS_V_1_0_E.DOC
7/23
INSTALLATION
Installing/Replacing the lamp
DANGER TO LIFE!
Only install the lamp with the device switched off!
Unplug from mains before!
For the installation, you need one MSD/HSD 200 GY-9.5, MSD/HSD 250 GY-9.5 or MSD 250/2 GY-9.5
lamp.
The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection
gloves, helmet with sight, leather apron).
The lamp has to be replaced when it is damaged
or deformed due to the heat!
CAUTION!
The lamp life given by the manufacturer must never be exceeded. This is why you need to take notes on the
operational time of the lamp and replace the lamp in time.
Keep exchanged lamp in a protective container and remove accordingly.
During the operation, the lamp reaches temperatures of up to 600° C.
Before replacing the lamp, unplug mains lead and let the lamp cool down (approx. 10 minutes).
During the installation do not touch the glass-bulbs bare-handed! Please follow the lamp manufacturer's
notes!
Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the device
was not designed for. Damages caused by non-observance are not subject to warranty.

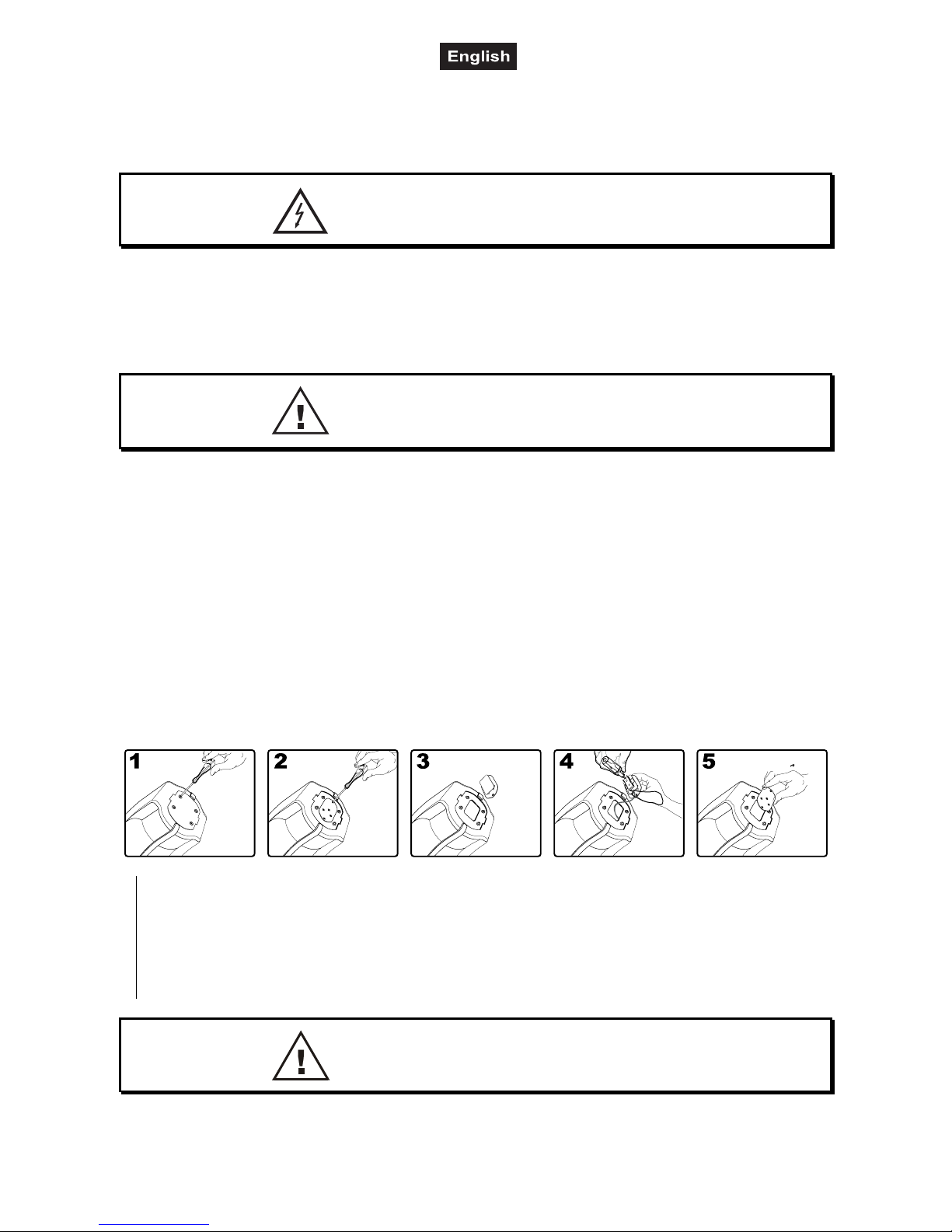

Procedure:
Step 1: Unscrew the fixation screws of the lamp cover and remove it.
Step 2: Unscrew the screws X, Y of the lamp holder and remove it.
Step 3: If replacing the lamp, remove the old lamp from the lamp holder.
Step 4: Insert the lamp into the lamp holder.
Step 5: Replace the lamp holder and tighten the screws X, Y.
Step 6: Adjust the lamp as described under lamp adjustment.
Step 7: Replace the lamp cover and tighten the fixation screws.
Do not operate this device with opened cover!

51838700X18NXS_V_1_0_E.DOC
8/23
Lamp adjustment
The lampholder is aligned at the factory. Due to differences between lamps, fine adjustment may improve
light performance.
Strike the lamp, open the shutter, set the dimmer intensity onto 100 % and direct the light towards a flat
surface (wall). Center the hot-spot (the brightest part of the beam) using the 3 adjustment screws "A, B, C”.
Turn one screw at a time to drag the hot-spot diagonally across the projected image. If you cannot detect a
hot-spot, adjust the lamp until the light is even.
To reduce a hot-spot, pull the lamp in by turning all three screws "A, B, C” clockwise ¼-turn at a time until
the light is evenly distributed.
If the light is brighter around the edge than it is in the center, or if light output is low, the lamp is too far back
in the reflector. "Push” the lamp out by turning the screws "A, B, C” counterclockwise ¼-turn at a time the
light is bright and evenly distributed.
Rigging
DANGER TO LIFE!
Please consider the EN 60598-2-17 and the respective national norms during the
installation! The installation must only be carried out by an authorized dealer!
The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight
for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net.
This secondary safety attachment must be constructed in a way that no part of the installation can fall down
if the main attachment fails.
When rigging, derigging or servicing the fixture staying in the area below the installation place, on bridges,
under high working places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by an
expert before taking into operation for the first time and after changes before taking into operation another
time.
The operator has to make sure that safety-relating and machine-technical installations are approved by an
expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by a
skilled person once a year.
Procedure:
The projector should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to)
calculating working load limits, installation material being used, and periodic safety inspection of all
installation material and the projector. If you lack these qualifications, do not attempt the installation yourself,
but instead use a professional structural rigger. Improper installation can result in bodily injury and.or
damage to property.
The projector has to be installed out of the reach of people.
If the projector shall be lowered from the ceiling or high joists, professional trussing systems have to be
used. The projector must never be fixed swinging freely in the room.
Caution: Projectors may cause severe injuries when crashing down! If you have doubts concerning the
safety of a possible installation, do NOT install the projector!
Before rigging make sure that the installation area can hold a minimum point load of 10 times the projector's
weight.

51838700X18NXS_V_1_0_E.DOC
9/23
DANGER OF FIRE!
When installing the device, make sure there is no highly-inflammable
material (decoration articles, etc.) within a distance of min. 0.5 m.
CAUTION!
Use 2 appropriate clamps to rig the fixture on the truss.
Follow the instructions mentioned at the bottom of the base.
Make sure that the device is fixed properly! Ensure that
the structure (truss) to which you are attaching the fixtures is secure.
The Moving-Head can be placed
directly on the stage floor or rigged in
any orientation on a truss without
altering its operation characteristics
(see the drawing).
The fixture’s base enables to be
mounted in two ways.
For overhead use (mounting height
>100 cm), always install a safety-rope
that can hold at least 12 times the
weight of the fixture. You must only use
safety-ropes with quick links with screw
cap. Pull the safety-rope through the
hole on the bottom of the base and
over the trussing system etc. Insert the
end in the quick link and tighten the
fixation screw.
The maximum drop distance must
never exceed 20 cm.
A safety rope which already hold the strain of a crash or which is defective must not be used again.
(1) Omega-holders
(2) Clamp
(3) Safety-rope
(4) Quick-lock fastener

51838700X18NXS_V_1_0_E.DOC
10/23
Screw one clamp each via a M12 screw and nut onto the Omega-holders.
Insert the quick-lock fasteners of the first Omega-holder into the respective holes on the bottom of the
device. Tighten the quick-lock fasteners fully clockwise. Install the second Omega-holder.
DANGER TO LIFE!
Before taking into operation for the first time, the installation has to be approved by an expert!
DMX-512 connection / connection between fixtures
The wires must not come into contact with each other, otherwise
the fixtures will not work at all, or will not work properly.
Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with
the fixture or one fixture with another.
Occupation of the XLR-connection:

51838700X18NXS_V_1_0_E.DOC
11/23
If you are using controllers with this occupation, you can connect the DMX-output of the controller directly
with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other
XLR-outputs, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always
connect one output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ωresistor
between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
Connection with the mains
Connect the device to the mains with the enclosed power supply cable.
The occupation of the connection-cables is as follows:
Cable Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
The earth has to be connected!
If the device will be directly connected with the local power supply network, a disconnection switch with a
minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
Lighting effects must not be connected to dimming-packs.
OPERATION
After you connected the effect to the mains, the PHW-250 starts running. During the Reset, the motors are
trimmed and the device is ready for use afterwards.
Stand Alone operation
In the Stand Alone mode, the PHW-250 can be used without controller.
Disconnect the PHW-250 from the controller and call the internal program.
1.Press [ENTER] for 3 seconds to enter the main menu "MODE" (display flashing)
2.Press [ENTER] and select “RUN” by pressing [UP] button.
3.Press [ENTER] and select “AUTO” by pressing [UP] button.
4.Press [ENTER] and select “ALONE” by pressing [UP] button.
5.Press [ENTER] to confirm, the display shows “AU-A”.
6.Press [EXIT/DN] in order to return to the main menu.
Please refer to the instructions under Control Board, Main functions, menus Run and Edit.
DMX-controlled operation
You can control the projectors individually via your DMX-controller. Every DMX-channel has a different
occupation with different features. The individual channels and their features are listed under DMX-protocol.
Addressing
The Control Board allows you to assign the DMX starting address, which is defined as the first channel from
which the PHW-250 will respond to the controller.
If you set, for example, the address to channel 15, the PHW-250 will use the channel 15 to 28 for control.
Please, be sure that you don’t have any overlapping channels in order to control each PHW-250 correctly
and independently from any other fixture on the DMX-chain.
If several PHW-250 are addressed similarly, they will work synchronically.

51838700X18NXS_V_1_0_E.DOC
12/23
Press the Up/Down-buttons for setting the desired starting address. Now you can start operating the PHW-
250 via your lighting controller.
Note:
After switching on, the PHW-250 will automatically detect whether DMX 512 data is received or not. If the
data is received, the the display will show "A.001" with the actually set address. If there is no data received
at the DMX-input, the display flashes "A.001" with the actually set address.
This situation can occur if:
- the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input of the PHW-250.
- the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap
in the input connector.
Note:
It’s necessary to insert the XLR termination plug (with 120 Ohm) in the last lighting in the link in order to
ensure proper transmission on the DMX data link.
DMX-protocol
Control channel 1 - Horizontal movement (Pan) (within 630°)
Push slider up in order to move the head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be
stopped at any position you wish.
Control channel 2 - Vertical movement (Tilt) (within 265°)
Push slider up in order to move the head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be
stopped at any position you wish.
Control channel 3 - Pan/Tilt-speed
DMX-value Feature
0-14 Maximum speed
15-225 Decreasing speed
226-235 Blackout with Pan/Tilt-movement
236-245 Blackout with colour-change
246-255 No function
Control channel 4 - Colour-wheel 1
Linear colour change following the movement of the slider. In this way you can stop the colour-wheel in any
position.
DMX-value Feature
0-25 Open/white
26-51 Deep red
52-77 Blue
78-103 Green
104-127 Orange
128-188 Forwards rainbow effect with decreasing speed
189-194 No rotation
195-255 Backwards rainbow effect with increasing speed
Control channel 5 – Cyan
DMX-value Feature
0-255 Cyan (0=white, 255=cyan)
Control channel 6 – Magenta
DMX-value Feature
0-255 Magenta (0=white, 255=magenta)

51838700X18NXS_V_1_0_E.DOC
13/23
Control channel 7 – Yellow
DMX-value Feature
0-255 Yellow (0=white, 255=yellow)
Control channel 8 – Effect-wheel
DMX-value Feature
0-70 Full beam
71-180 Beam shaper
181-255 Frost filter
Control channel 9 – Zoom
DMX-value Feature
0-255 Zoom 28° - Zoom 7°
Control channel 10 - Shutter, strobe
DMX-value Feature
0-31 Shutter closed
32-63 Dimmer control activated (channel 11)
64-95 Strobe-effect with increasing speed (max. 13 flashes/sec.)
96-127 No function (shutter open)
128-159 Pulse-effect in sequences
160-191 No function (shutter open)
192-223 Random strobe-effect with increasing speed
224-255 Shutter permanently open (no dimmer control)
Control channel 11 - Dimmer intensity
DMX-value Feature
0 - 255 Gradual adjustment of the dimmer intensity from 100 to 0 %
Control channel 12 - Switching the lamp, Reset, internal programs
DMX-value Feature
0-15 Normal colour-change, search position via shortest distance
16-31 Normal colour-change, search position clockwise
32-47 Colour-change at every position, search position via shortest distance
48-63 Colour-change at every position, search position clockwise
64-79 Lamp on
80-95 Reset
96-111 Internal program 1
112-127 Internal program 2
128-143 Internal program 3
144-159 Internal program 4
160-175 Internal program 5
176-191 Internal program 6
192-207 Internal program 7
208-223 Internal program 8
224-239 Lamp off
240-255 No function
Control channel 13 - Pan-movement with 16 Bit-resolution
Control channel 14 - Tilt-movement with 16 Bit-resolution

51838700X18NXS_V_1_0_E.DOC
14/23
Control Board
The Control Board offers several features: you can simply set the starting address, switch on and off the
lamp, run the pre-programmed program or make a reset.
The main menu is accessed by pressing the Enter-button for 3 seconds until the display starts flashing.
Browse through the menu by pressing the Up-button. Press the Enter-button in order to select the desired
menu. You can change the selection by pressing the Up-button. Confirm every selection by pressing the
Enter-button. You can leave every mode by pressing the Exit-button. The functions provided are described in
the following sections.


Default settings shaded.

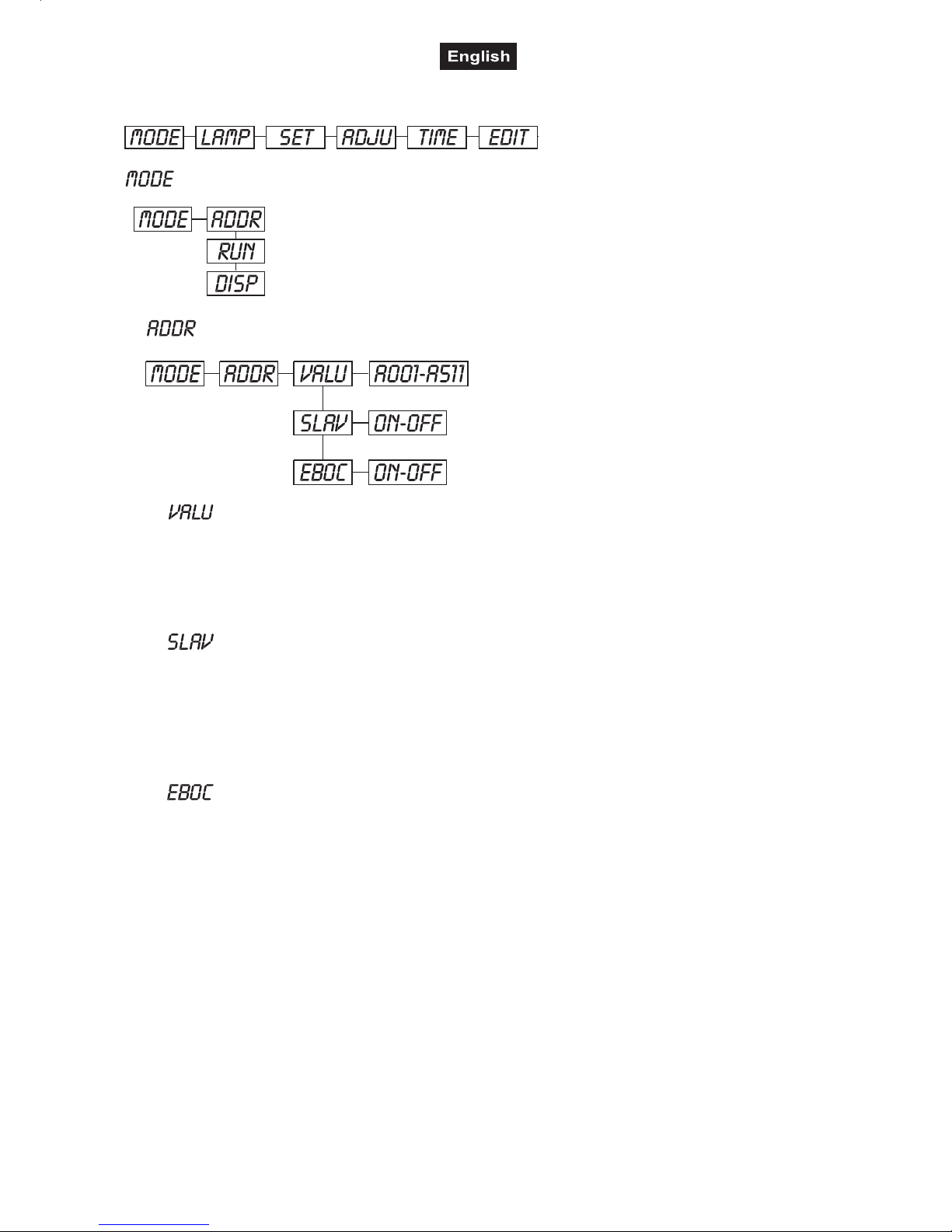

Main
menu Sub menu Extension Display Function
VALU


A001~A511 (AXXX) DMX address setting
SLAV ON/


OFF (SLAV) Slave setting
ADDR
EBOC


ON/OFF Change DMX address via
external controller

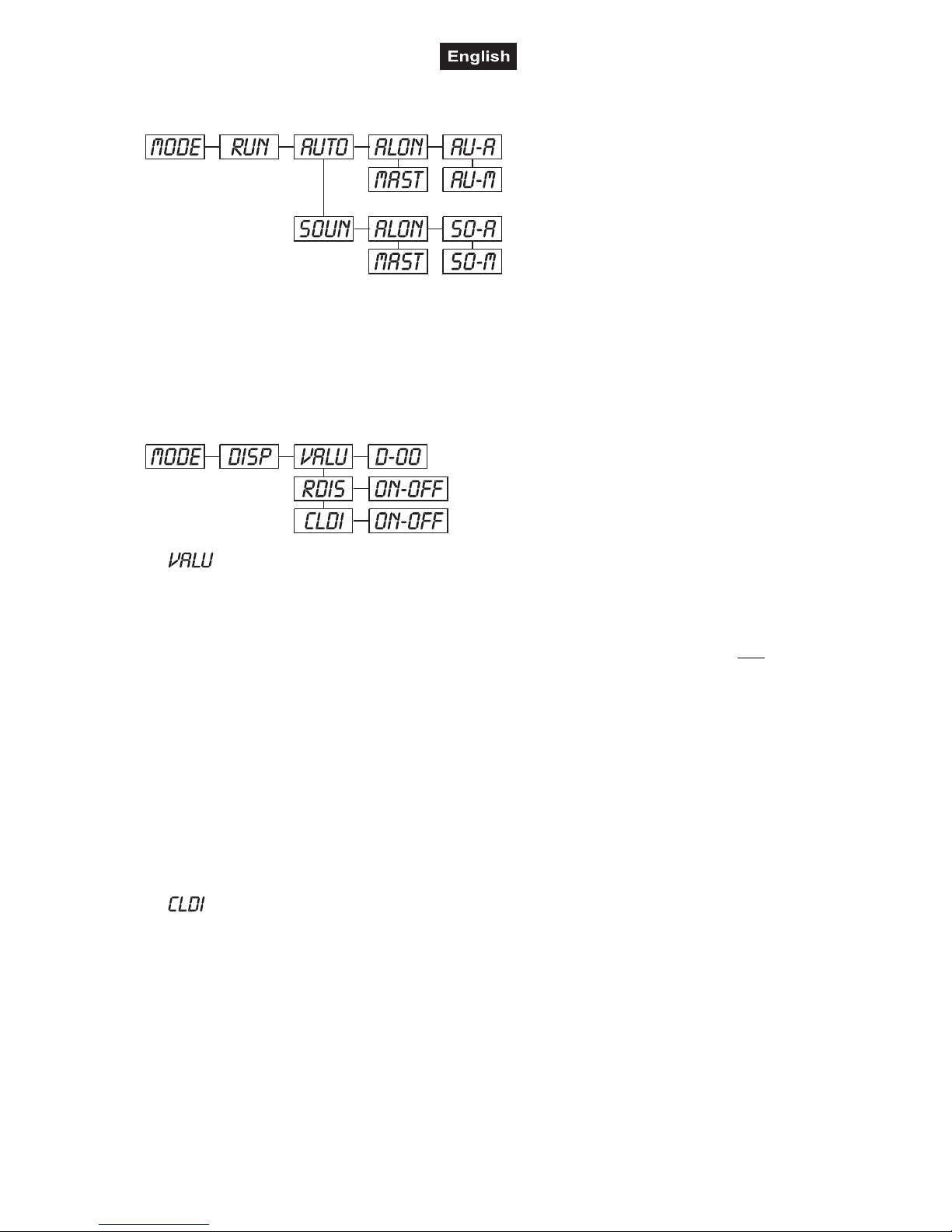

AUTO ALON (AU-A) Automatic Program Run
in Stand Alone
MAST (AU-M) Automatic Program Run
as Master
SOUN ALON (SO-A) Sound-controlled Program
Run in Stand Alone
RUN
MAST (SO-M) Sound-controlled Program
Run as Master
VALU D-00 ~ D-30 (DXX)


D-15
Display the DMX 512 value
of each channel
RDIS ON/


OFF Reverse display
0MODE
DISP
CLDI


ON/OFF Shut off LED display
OPEN


ON/OFF Lamp on/off
ONLI


ON/OFF Lamp on/off via controller
1LAMP
DELA


D–00 ~ D-59 Delay lamp on
RPAN ON/


OFF Pan Reverse
RTIL ON/


OFF Tilt Reverse
16BI


ON/OFF Switch 16 bit/8 bit
REST ON/


OFF Reset
LODA ON/


OFF Restore factory settings
2SET
VER V-1.0~V-9.9 Software version
LADJ ON/


OFF Lamp adjustment

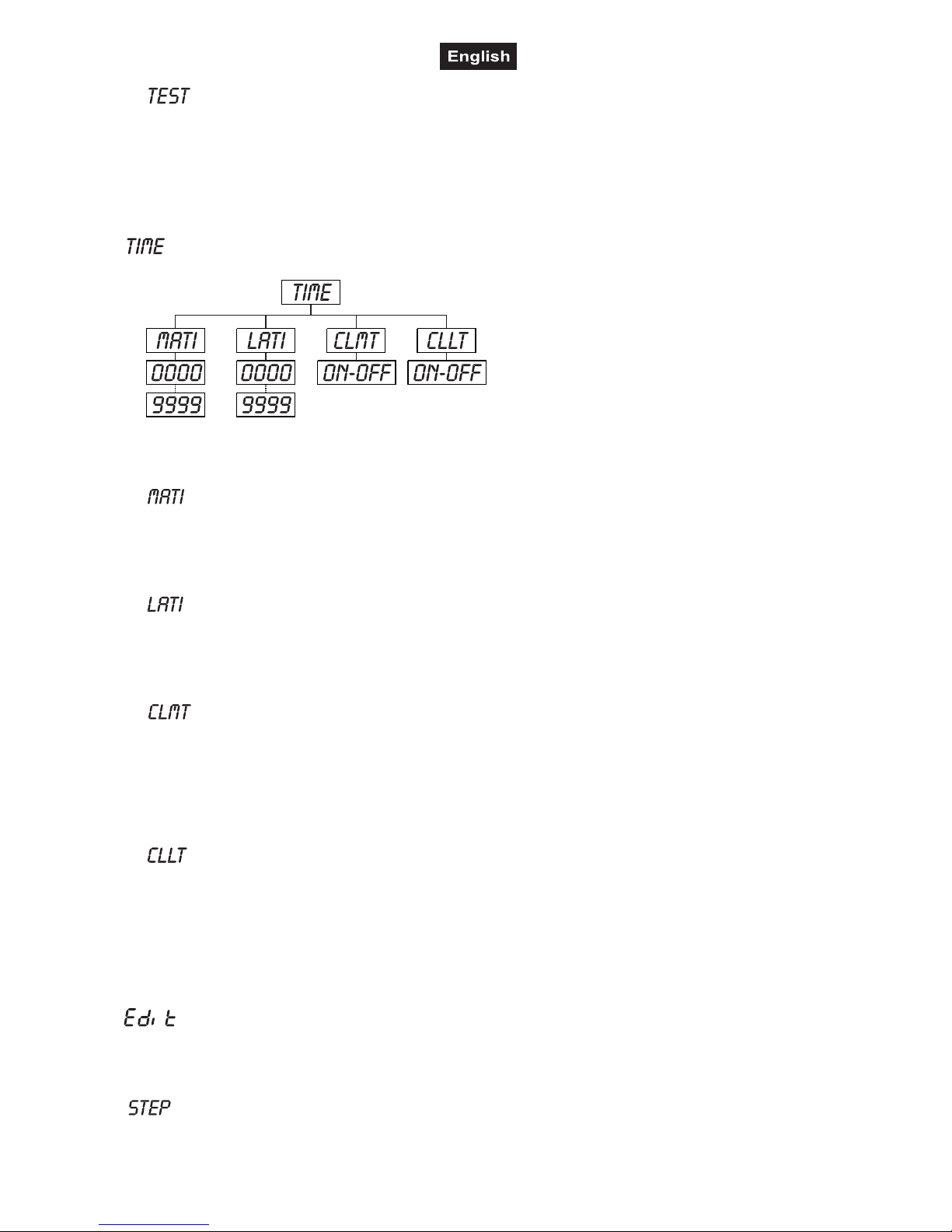

3ADJU TEST T–01 ~ T–30 Test function of each
channel
MATI


0000~9999 (hours) Fixture running time
LATI


0000~9999 (hours) Lamp running time
CLMT ON/OFF Clear fixture time
4TIME
CLLT ON/OFF Clear lamp time

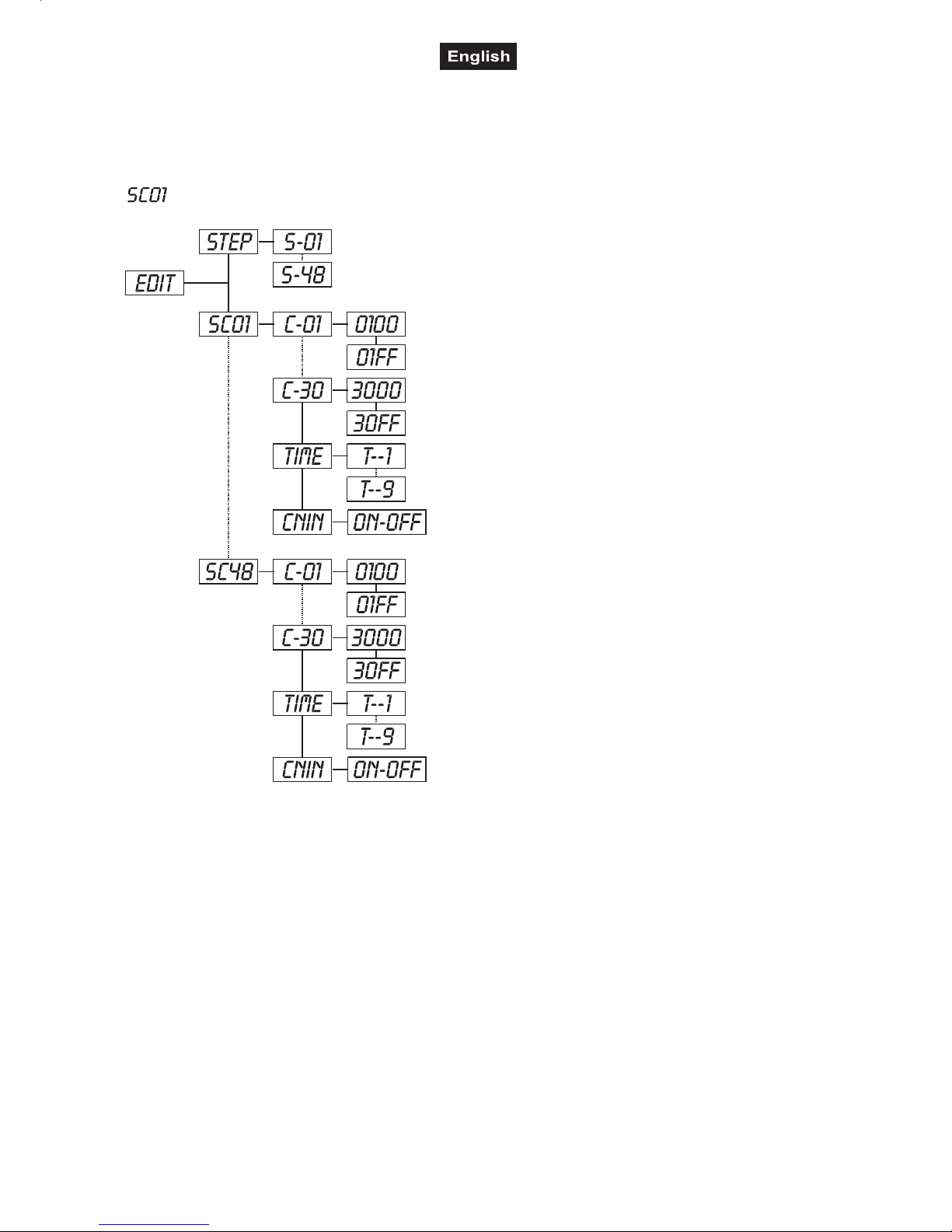

STEP SC–01 ~ SC–48 Steps of Program Run
C–01 ~ C30 01XX (00~FF)
30XX (00~FF)
Edit the channels of each
scene
TIME (sec.) T – – X (1~9) Time for each scene
5EDIT SC01
~
SC48 CNIN ON/OFF Edit program via controller

51838700X18NXS_V_1_0_E.DOC
15/23
Main functions
- Main menu 0
♦
Press [ENTER] for 3 seconds to enter the main menu "MODE" (display
flashing)
♦
Press [ENTER] and select "ADDR", “RUN” or "DISP" by pressing [UP]
button.
♦
Press [ENTER] for selecting the desired sub menu.
- DMX address setting, Slave setting
- DMX address setting
With this function, you can adjust the desired DMX-address via the Control Board.
♦
Select “VALU“ by pressing [UP] button.
♦
Press [ENTER], adjust the DMX address by pressing [UP] or [DN].
♦
Press [ENTER] to confirm.
♦
Press [EXIT/DN] in order return to main menu.
- Slave setting
With this function, you can define the device as slave.
♦
Select “SLAV” by pressing [UP] button.
♦
Press [ENTER], the display shows “ON” or “OFF”.
♦
Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t.
♦
Press [ENTER] to confirm.
♦
Press [EXIT/DN] in order to return to the main menu.
- DMX address setting via controller
With this function, you can adjust the desired DMX-address via an external controller.
♦
Select “EBOC“ by pressing [UP] button.
♦
Press [ENTER], the display shows “ON” or “OFF”.
♦
Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t.
♦
Press [ENTER] to confirm.
♦
Press [EXIT/DN] in order to return to the main menu.
♦
On the controller, set the DMX-value of channel 1 to "7".
♦
Set the DMX-value of channel 2 to "7"or "8". When set to "7" you can adjust the starting address
between 1 and 255. When set to "8" you can adjust the starting address between 256 and 511.
♦
Set the DMX-value of channel 3 to the desired starting address. If you want to set the starting
address to 57, set channel 1 to "7", channel 2 to "7" and channel 3 to "57". If you want to set the
starting address to 420, set channel 1 to "7", channel 2 to "8" and channel 3 to "164" (256+164=420).
♦
Wait for approx. 20 seconds and the unit will carry out a reset. After that, the new starting address is
set.
Run
- Program Run, Master setting
With the function "RUN", you can run the internal program. You can set the number of steps under Step.
You can edit the individual scenes under Edit. You can run the individual scenes either automatically

51838700X18NXS_V_1_0_E.DOC
16/23
(AUTO), i.e. with the adjusted Step-Time or sound-controlled (SOUN). The selection "ALON" means
Stand Alone-mode and "MAST" that the device is defined as master.
♦
Select "AUTO" or "SOUN" by pressing [UP].
♦
Press [ENTER] for selecting the desired extension menu.
♦
Select "ALON" or "MAST" by pressing [UP].
♦
Press [ENTER] to confirm.
♦
Press [EXIT/DN] in order to return to the main menu.
Disp
- Display the DMX-value, Reverse display, Shut off LED display
- Display the DMX 512 value of each channel
With this function you can display the DMX 512 value of each channel.
♦
Select "VALU" by pressing [UP].
♦
Press [ENTER] to confirm; the display shows“D-00”. In this setting, the DMX-adjustment of every
channel will be displayed.
♦
Press [UP] in order to select the desired channel. If you select “D-14” the display will only show the
DMX-value of the 14th channel.
♦
Press [ENTER] to confirm.
♦
The display shows"D-XX“, ”X” stands for the DMX-value of the selected channel.
♦
Press [ENTER] or [EXIT/DN] to exit.
rDis
- Reverse display
With this function you can rotate the display by 180°.
♦
Select "rDIS" by pressing [UP].
♦
Press [ENTER], the display shows“ON” or “OFF”.
♦
Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t; the display will
rotate by 180°.
♦
Press [ENTER] or [EXIT/DN] to exit.
- Shut off LED display
With this function you can shut off the LED display after 2 minutes.
♦
Select "CLDI" by pressing [UP].
♦
Press [ENTER], the display shows“ON” or “OFF”.
♦
Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t.
♦
Press [ENTER] or [EXIT/DN] to exit.

51838700X18NXS_V_1_0_E.DOC
17/23
Lamp
- Main menu 1
♦
Press [ENTER] for 3 seconds to enter the main menu (display flashing).
♦
Press [UP] to select “LAMP”.
- Lamp on/off
With this function you can switch the lamp on or off via the Control Board.
♦
Select "OPEN" by pressing [UP] button.
♦
Press [ENTER], the display shows“ON” or “OFF”.
♦
Press [UP] to select “ON” if you wish to switch on the lamp or “OFF” if you wish to switch off the lamp.
♦
Press [ENTER] to confirm.
♦
Press [EXIT/DN] in order to return to the main menu.
- Lamp on/off via external controller
With this function you can switch the lamp on or off via an external controller.
♦
Select “ONLI” by pressing [UP] button.
♦
Press [ENTER], the display shows“ON” or “OFF”.
♦
Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t.
♦
Press [ENTER] to confirm.
♦
Press [EXIT/DN] in order to return to the main menu.
- Delay lamp on
With this function you can delay the lamp ignition.
♦
Select "DELA" by pressing [UP] button.
♦
Press [ENTER] to confirm; the display shows “D-00”. In this setting, the lamp will be ignited
immediately.
♦
Press [UP] to select the desired delay between "00" and "59" minutes. If you select “D-03” the lamp
will be ignited after 3 minutes.
♦
Press [ENTER] to confirm.
♦
Press [EXIT/DN] in order to return to the main menu.
- Main menu 2
♦
Press [ENTER] for 3 seconds to enter the main menu (display flashing).
♦
Press [UP] to select “SET”.
rpan
- Pan Reverse
With this function you can reverse the Pan-movement.
♦
Select “rPAN” by pressing [UP] button.
♦
Press [ENTER], the display shows“ON” or “OFF”.
♦
Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t.
♦
Press [ENTER] or.
rtil
- Tilt Reverse
With this function you can reverse the Tilt-movement.

51838700X18NXS_V_1_0_E.DOC
18/23
♦
Select “rTIL” by pressing [UP] button.
♦
Press [ENTER], the display shows“ON” or “OFF”.
♦
Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t.
♦
Press [ENTER] or [EXIT/DN] to exit.
- Switch 16 bit/8 bit
With this function you can switch the device from 16 bit to 8 bit resolution.
♦
Select “16BI” by pressing [UP] button.
♦
Press [ENTER], the display shows“ON” or “OFF”.
♦
Press [UP] to select “ON” in order to set 16 bit, or “OFF” in order to set 8 bit. The channels PAN Fine
and TILT Fine will be disabled.
♦
Press [ENTER] or [EXIT/DN] to exit.
Rest
- Reset
With this function you can Reset the device via the Control Board.
♦
Select “rEST” by pressing [UP] button.
♦
Press [ENTER], the display shows“ON” or “OFF”.
♦
Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t.
♦
Press [ENTER] or [EXIT/DN] to exit.
- Restore factory settings
With this function you can restore the factory settings of the device. All settings will be set back to the
default values (shaded). Any edited scenes will be lost.
♦
Select “LODA” by pressing [UP] button.
♦
Press [ENTER], the display shows“ON” or “OFF”.
♦
Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t.
♦
Press [ENTER] to confirm.
♦
Press [EXIT/DN] in order to return to the main menu.
Ver
- Software version
With this function you can display the software version of the device.
♦
Select “VER” by pressing [UP] button.
♦
Press [ENTER], the display shows “V-X.X”, “X.X“ stands for the version number, e.g. “V-1.0”, “V-2.6”.
♦
Press [ENTER] or [EXIT/DN] in order to return to the main menu.
- Main menu 3
♦
Press [ENTER] for 3 seconds to enter the main menu (display flashing).
♦
Press [UP] to select “ADJU”.
- Lamp adjustment
With this function you can adjust the lamp via the Control Board. The shutter opens and the lamp can be
adjusted. In this mode, the device will not react to any control signal.
♦
Select “LADJ” by pressing [UP] button.
♦
Press [ENTER], the display shows“ON” or “OFF”.
♦
Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t.
♦
Press [ENTER] to confirm.
♦
Press [EXIT/DN] in order to return to the main menu.

51838700X18NXS_V_1_0_E.DOC
19/23
- Test function of each channel
With this function you can test each channel on its (correct) function.
♦
Select “tESt” by pressing [UP] button.
♦
Press [ENTER], the display shows“T-XX”, “X” stands for the channel number.
♦
The current channel will be tested.
♦
Select the desired channel by pressing [UP] button.
♦
Press [ENTER] or [EXIT/DN] to exit.
- Main menu 4
♦
Press [ENTER] for 3 seconds to enter the main menu (display flashing).
♦
Press [UP] to select “TIME”.
- Fixture running time
With this function you can display the running time of the device.
♦
Select “MATI” by pressing [UP] button.
♦
Press [ENTER], the display shows“XXXX”, “X“ stands for the number of hours.
♦
Press [ENTER] or [EXIT/DN] to exit.
- Lamp running time
With this function you can display the running time of the lamp.
♦
Select “LATI” by pressing [UP] button.
♦
Press [ENTER], the display shows“XXXX”, “X“ stands for the number of hours.
♦
Press [ENTER] or [EXIT/DN] to exit.
- Clear fixture time
With this function you can clear the running time of the device.
♦
Select “CLMT” by pressing [UP] button.
♦
Press [ENTER], the display shows“ON” or “OFF”.
♦
Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t.
♦
Press [ENTER] to confirm.
♦
Press [EXIT/DN] in order to return to the main menu.
- Clear lamp time
♦
With this function you can clear the running time of the lamp. Please clear the lamp time every time you
replace the lamp.
♦
Select “CLLT” by pressing [UP] button.
♦
Press [ENTER], the display shows“ON” or “OFF”.
♦
Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t.
♦
Press [ENTER] to confirm.
♦
Press [EXIT/DN] in order to return to the main menu.
- Main menu 5
♦
Press [ENTER] for 3 seconds to enter the main menu (display flashing).
♦
Press [UP] to select “EDIT”.
- Define the number of steps in Run
With this function you can define the number of steps in the Program Run.

51838700X18NXS_V_1_0_E.DOC
20/23
♦
Select “STEP” by pressing [UP] button.
♦
Press [ENTER], the display shows“S-XX”, “X” stands for the total amount of steps you want to save, so
you can call up to 48 scenes in “RUN”. For example if the “XX” is 05, it means that “RUN” will run the first 5
scenes you saved in “EDIT”.
♦
Press [ENTER] to save and exit.
- Editing the channels of the individual scenes
With this function you can edit the program to be called up in Run.
a) Editing via the Control Board
♦
Select “SC01” by pressing [UP] button.
♦
Press [ENTER], the display shows “SCXX”, “X” stands
for the scene no. to be edited.
♦
Change the scene no. by pressing [UP].
♦
Press [ENTER], the display shows “C-XX”, “XX” stands
for the channel no. Such as “C-01”, it means you are
editing channel 1 of the selected scene.
♦
Select the channel no. you would like to edit by pressing
[UP].
♦
Press [ENTER] to enter editing for the selected channel
, the fixture reacts to your settings. The display shows the
DMX value of the edited channel. Such as “ 11XX”, it
stands for channel 11 of the current scene, the DMX value
is XX , XX is a hexadecimal number value “01-FF”.
♦
Adjust the desired DMX value by pressing [UP] or [DN].
♦
Press [ENTER] in order to edit other channels of this
scene.
♦
Repeat above steps until you finish setting all the DMX
values for all channels of this scene.
♦
Once all the channels completed, the display will flash
“tIME”.
♦
Press [ENTER] to edit the time needed, the display
shows “t--X”,“X” stands for the time needed to run the
current scene, value “1-9”. For example, “t--2” means you
need 2 seconds to run the current scene.
♦
Adjust the desired time by pressing [UP].
♦
Press [ENTER] to save the settings for the scene you
are editing, the display will change to the next scene
automatically.
♦
Repeat above steps to edit and other scenes, you can
edit and save a maximum of 48 scenes.
♦
Press [EXIT/DN] to exit. The number of steps can be defined under “STEP” and the scenes can be called
up under “RUN”
b) Editing via the external controller
♦
Call up the first scene in your controller now.
♦
Select “SC01” by pressing [UP] button.
♦
Press [ENTER], the display shows “SC01”.
♦
Press [ENTER], the display shows “C-01”.
♦
Select "CNIN" by pressing [UP].
♦
Press [ENTER], the display shows "OFF".
♦
Press [UP], the display shows "ON".
♦
Press [ENTER], the display shows "SC02". You successfully downloaded the first scene.
♦
Adjust the Step-time as described above.
♦
Call up the second scene in your controller now.
♦
Repeat steps 5-11 until all desired scenes are downloaded.
♦
Press [EXIT/DN] to exit. The number of steps can be defined under “STEP” and the scenes can be called
up under “RUN”
