Automatic Blood Pressure Monitor Gamma
TM
Model M3-W
INSTRUCTION BOOK
Thank you for choosing our Automatic Blood Pressure
Monitor Gamma
ТМ designed on the basis of the most advanced
technologies. The device you are holding now is your reliable
assistant. You can measure your blood pressure with this monitor
as accurately and precisely as an experienced doctor or a skilled
nurse would do it.
We are sure that having appraised worthily the high quality
and reliability of this device you will become a regular user of the
products of Gamma Trade Mark.
Before starting to use this device please study the instruction
need to correctly measure your blood pressure and pulse.
Regular blood pressure control allows for reliable and
complications caused by blood pressure abnormalities.
ATTENTION
This blood pressure monitor is designed to carry out self-
control over blood pressure but NOT to make self-diagnosis
of hypertension/hypotension. Please DO NOT diagnose by
yourselves basing on the measurement results obtained with the
blood pressure monitor. Please DO NOT execute self-treatment
of high/low blood pressure and DO NOT change the methods
prescribed without consulting your doctor.

4
CONTENT
1. Features of Automatic Blood Pressure Monitor Model
M3-W
1.1. Components of your blood pressure monitor kit
1.2. Description of the blood pressure monitor
2. Getting ready for measurement
2.1. Inserting the batteries
2.2. Cu connection
3. Measurement Procedure
3.1. Fitting the cu
3.2. Measuring procedure
3.3. Reading measurement results
3.4. Discontinuing a measurement
3.5. Irregular Heartbeat Detector
4. Memory function
5. Error Messages/Troubleshooting
6. Care and maintenance
7. Technical specications
8. Warrantee
9. Important information on blood pressure and its
measurement
9.1. What is blood pressure?
9.2. Which values are normal?
9.3. What can be done to lower/maintain the level of blood
pressure?

5
1. Features of Automatic Blood Pressure Monitor
Model M3-W
1.1. Components of your blood pressure monitor kit
The blood pressure monitor kit includes Automatic Blood Pressure
kit box.
1.2. Description of the blood pressure monitor

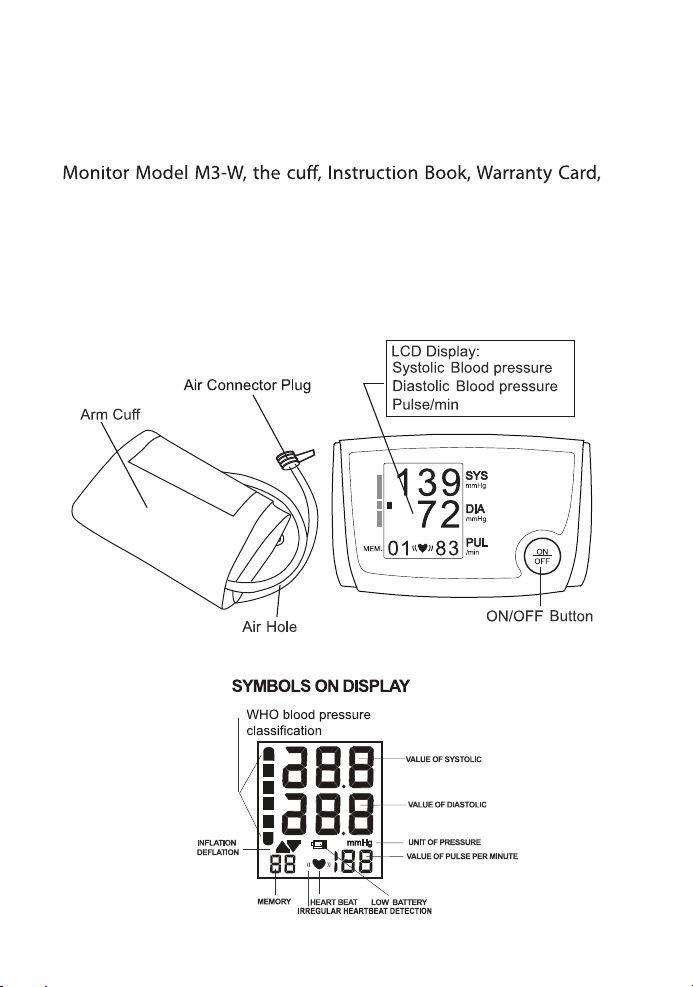

Measuring unit Model M3-W

6
2. Getting ready for measurement
2.1. Inserting the batteries
To insert batteries
1. Remove the battery cover.
2. Insert new batteries into the battery compartment as
shown, taking care that the polarities(+) and (-)are correct.
3. Close the battery cover, Use only LR6, AA batteries.
CAUTION
• Insert the batteries as shown in the battery compartment. If
not, the device will not work.
• When (LOW BATTERY mark) blinks in the display, replace all
batteries with new ones. Do not mix old and new batteries. It
may shorten the battery life, or cause the device to malfunc-
tion.
(LOW BATTERY mark) does not appear when the batteries
run out.
• After the battery warning appears, the device is blocked
until the batteries have been replaced.
• Battery life varies with the ambient temperature and may be
shorten at low temperatures.
• If the blood pressure monitor is not used for more then a week,
remove the batteries from the device.
• The battery may leak and cause a malfunction of the device.
4x1.5V Batteries
(LR6 or AA)

7
• Do not use rechargeable batteries.
• Disposal and empty battery to the authorized collection party
subject to the regulation of each individual territory
device are for testing monitor performance and may have a short-
er life.
the device as shown in the picture.
3. Measurement Procedure
ATTENTION
• Find time (5-10 min.) to relax by sitting in a quiet atmosphere
for some time before measurement.
blood pressure. Make sure you are in a comfortable, relaxed
position and do not activate any muscles in the arm during
measurement.
• Always measure on the same arm (normally left).
not roll the sleeve since it can squeeze your hand and this can
lead to false results.

8
• Use only clinically approved original cu.
• If you want to follow the results of your blood pressure meas-
urements, always perform measurements at the same time of
day, since blood pressure changes during the course of day.
• Measurements should be done after a 5 minute rest to ensure
accuracy.

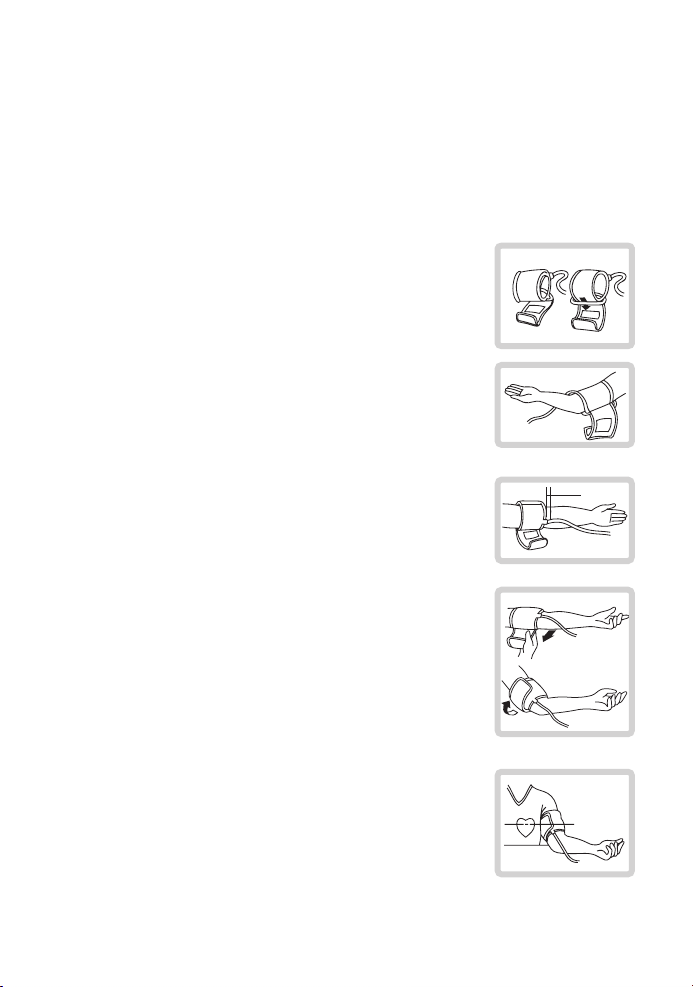

3.1. Fitting the cu
1. Pass the end of the cu through the at
metal ring so that a loop is formed, and the
velcro faces outwards.
2. Place the cu over the left upper arm
so that tube is closer to your lower arm.
3. Lay the cu on the arm so that the low-
er edge of the cu lies approximately 2 to 3
cm above the elbow.
4. Tighten the cu by pulling the end and
close the cu by axing the velcro. There
should be little free space between the arm
and the cu. Cu that does not t properly
results in false measurement values. Cloth-
ing must not restrict the arm. Any piece of
clothing which does must be removed.
5. Lay your arm on a table so the cu is at
the same height as your heart. If the upper
arm artery lies considerably lower or higher
than the heart, a false higher or lower blood
pressure will be measured! A variation of 15
cm between cu and heart level can result in
a reading error of + or - 10mm Hg.
Make sure the tube is not kinked.
2-3cm

9
6. Remain seated quietly for two minutes
before you begin the measurement.
3.2. Measuring procedure
To carry out measurement
1. Press the “ON/OFF“ button, the display shows “0”, Ination
icon ashes on dis¬play when it it begins to inate.
During the ination, please do not move
2. Automatic deation after measurement, and display the
blood pressure,heart rate, and blood pressure indicator
• Mistake, display “E” please refer the instruction about
troubleshooting.
• When cu remove during the measurement, please x the
cu and test again.
• Stop the measurement in emergency, please press “ON/
OFF“ button. Automatic deation at the same time.
3. Power o. Press “ON/OFF“ button, to cut o the power.

10
3.3. Reading measurement results
When the measurement has been
concluded, a long beep tone sounds. The
measured systolic and diastolic blood
pressure values, as well as the pulse are
now displayed.
On the graphic indicator the element
showing level of arterial pressure on a
scale of World Health Organization is dis-
played
3.4. Discontinuing a measurement
If it is necessary to interrupt a blood
pressure measurement for any reason
(e.g the patient feels unwell), the “ON/
OFF“ button can be pressed at any time.
The device then immediately lowers the
3.5. Irregular Heartbeat Detector (IHD-technology)
This function indicates allorhythmic heartbeating. If the symbol
of IHD
appears on the display that means that certain abnormal-
ity in heart beat frequency was detected during the measurement. In
this case, the result may deviate from your normal blood pressure –
repeat the measurement. In most cases, this is no cause for concern.
However, if the symbol appears on a regular basis (e.g. 3-5 times
a week with measurements taken daily) we advise you to tell your
doctor. Please show your doctor the following explanation:
SYS
blood
pressure
DIA
blood
pressure
Pulse
Grade 3 hypertension (severe)
Grade
2 hypertension (moderate
Grade
1 hypertension (mild)
Highnormal
Normal
Optimal

11
Information for the doctor on frequent appearance of the Ir-
regular Heartbeat Detector
This instrument is an oscillometric blood pressure monitor that
also analyses pulse frequency during measurement. The instrument
is clinically tested.
The symbol
is displayed after the measurement, if pulse ir-
regularities occur during measurement. If the symbol appears
more frequently (e.g. several times per week on measurements per-
formed daily) we recommend the patient to seek medical advice.
The instrument does not replace a cardiac examination, but
serves to detect pulse irregularities at an early stage.
4. Memory function
1. Press the “ON/OFF” button 3 seconds, a memory
read out the latest measurements, “ON/OFF”for the
buttons (UP).
2. Press the“ON/OFF”button to turn o the device.
• If forget to turn it o automatically power o in one minute.
• Memory can store 30 last measurements. It will deletes the earli-
est one automatically
5. Error Messages/Troubleshooting
If an error occurs during a measurement, the
measurement is discontinued and a corresponding
error code is displayed (picture:error no. 2)
Other possible errors and their solutions
If problems occur when using the device, the following points
should be checked:
ERROR
DISPLAY POSSIBLE CAUSE HOW TO CORRECT
Nothing is displayed
When you push the
POWER button or bat-
tery icon ash
No battery installation
Battery worn out
The polarities of batteries
placed wrongly
Insert batteries
Replace new batteries
Insert new batteries in accordance
to this instruction

12
E1: can’t normally
Increase pressure
Check your cu if any air
leakage
Replace cu with new one
E2 E4: have shaking
while measurement
Hand or body shaking while
measurement
Keeping static and correct gesture
to measure again
E3 inate pressure
too high
Re-measurement or send back
to Service Center for re-calibrate
pressure
Battery icon on Battery low power Replace battery and measure again
The systolic pressure
Value or diastolic Pres-
sure value too high
1. The arm cu was held lower
than your heart
2. The arm cu was not at-
tached properly
3. You moved your body or
spoke during measurement
Keeping correct position and
gesture to measure again
The systolic pressure
Value or diastolic Pres-
sure value too low
1. The arm cu was held higher
than your heart
2. You moved your body or
Spoke during measurement
Keeping correct position and
gesture to measure again
Note
Blood pressure is subject to uctuations even in healthy peo-
ple. Please remember that comparable blood pressure meas-
urements always require the same time and the same condi-
tions! These are normally quiet conditions.
ATTENTION
Should any technical malfunctions arise in the blood pressure
monitor, please contact the point of sale where you bought the
device or Service Centre. Never attempt to repair the instru-
ment yourself!
Any unauthorized opening of the instrument invalidates all
warrantee claims.

13
6. Care and maintenance

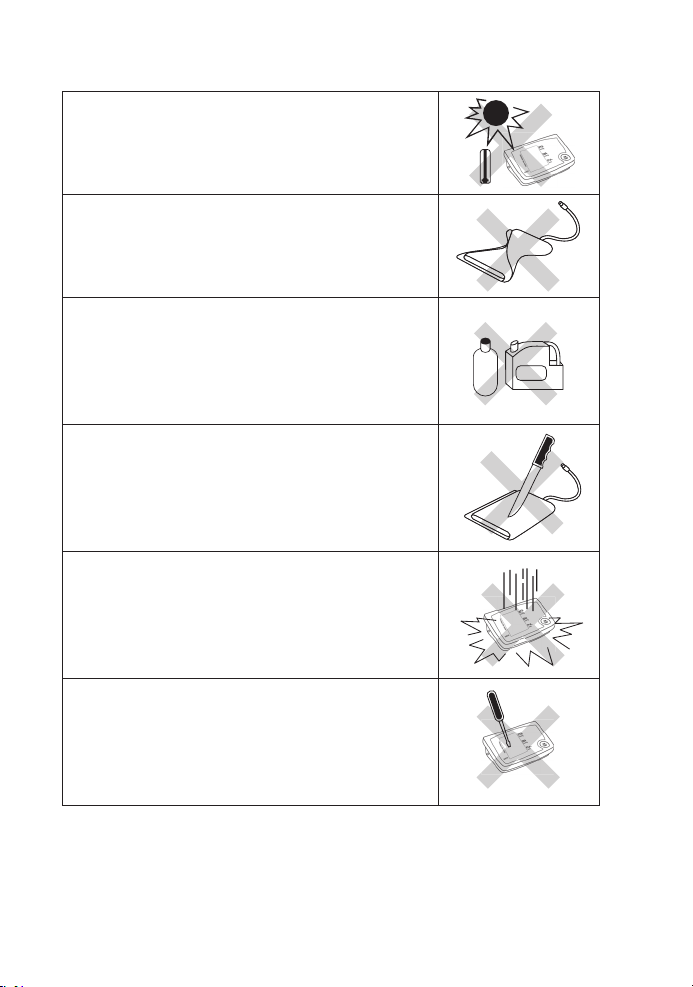

Do not expose the device to either extreme
temperatures, humidity, dust or direct
sunlight. Store the device at least 2 m from
sources of electromagnetic elds.
Handle the cu carefully and avoid all
types of stress through twisting or buck-
ling in order not to damage the sensitive
air-tight bubble.
Clean the device with a soft, dry cloth. Do
not use gas, thinners or similar solvents.
Spots on the cu can be removed carefully
with a damp cloth and soapsuds. Do not
submerge the cu in water!
Handle the tube carefully. Keep the hose
away from sharp edges.
Do not drop the monitor or treat it roughly
in any way.
Never open the monitor! Otherwise the
manufacturer’s calibration will be spoiled.
Note:
According to international standards, your monitor should be
checked for calibration every 2 years.

14
7. Technical specications
Measuring Method:483 g (with batteries)
Indication:Digital LCD display
Measuring Range:Pressure:(30-280) mmHg Pulse:
(40-199) Beat/min
Accuracy:Static Pressure:±3mmHg
Pulse:±5%
Memory:30 memories
Power supply:4x1.5V Batteries(LR6 or AA)
Operating condition:+5°C~+40°C 30%RH~80%RH
Storage condition:-20°C~+55°C 10%RH~93%RH
Dimensions:Approx 138(W)X89(H)X47(D)
mm
Weight:Approx, 345g, excluding bat-
teries
Classication:Type BF
Upper arm circumference:(22-32) cm
* Specications may be changed without notice in the event
of improvement being made!
8. Warranty
Your Automatic Blood Pressure Monitor Model M3-W is war-
ranted for 3 years from date of purchase. The warranty doesn’t
cover the cu.
Servise life of the device is 10 years after date of purchase with
following all operating instructions.
The warranty does not apply to damage caused by improper
handling, accidents, not following the operating instructions or
self-maintained alterations made to the device.
The warrantee is only valid upon presentation of the warran-
tee card which was correctly lled in and sealed.

15
9. Important information on blood pressure and its
measurement
9.1. What is blood pressure?
Blood pressure is the pressure that your blood extends to the
vascular walls. Blood pressure is necessary to provide for constant
provides for their normal functioning. The heart performs the
function of a “pump”, sending blood to the blood vessels. Each
heart beat creates a certain level of the blood pressure.
There are 2 kinds of blood pressure: a systolic (upper) one,
which corresponds to the heartbeat pushing blood into the arte-
riae; and a diastolic (lower) one, which means the blood pressure
between two heartbeats.
factors – time of day, person’s condition, physical or mental activ-
ity, environment, etc.
SYS blood pressure
DIA blood pressure

16
Day-Night Fluctuations of the Blood Pressure
An increase of blood pressure increases the burden onto the
heart, aects blood vessels making their walls thick and less elas-
tic. One of the features of the hypertension is its ability to remain
unnoticed for the patient at its early stages. That’s why the self-
control of the blood pressure is so important. With the illness
progressing, headaches and regular dizziness appear, the sight
declines, the functioning of vitalses (encephalon, heart, kidneys,
blood vessels) breaks down. Without special treatment the com-
plications of hypertension might be kidney damages, breast-pang,
paralytic stroke, aphasia, dementia, heart attack and stroke.
9.2. Which values are normal?
The world standard as for the norms of the blood pressure is
the Classication* of the World Health Organization (WHO):
Blood
Pressure
Category
Systolic
Blood
Pressure
(mmHg)
Systolic
Blood
Pressure
(mmHg)
Recommen-
dation
blood pres-
sure too low
< 100 < 60 Consult your
doctor
blood pres-
sure optimum
100 … 120 60 … 80 Self-check
170
160
150
140
130
120
110
100
90
80
70
60
50
40
8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 2.00 4.00 6.00 8.00
SYS blood pressure
DIA blood pressure

17
blood pres-
sure normal
120 … 130 80 … 85 Self-check
blood pres-
sure slightly
high
130 … 140 85 … 90 Consult your
doctor
blood pres-
sure too high
140 … 160 90 … 100 Seek medical
advice
blood pres-
sure far too
high
160 … 180 100 … 110 Seek medical
advice
blood pres-
sure danger-
ously high
> 180 > 110 Urgently
seek medical
advice!
* printed with curtailments
• The diagnosis of hypertension requires from the patient to
combine medical treatment prescribed by the doctor and
mode of life correction.
• People with normal pressure and high normal pressure are rec-
ommended to carry out self-control of their tension in order
to timely take measures to decrease the blood pressure level
down to the optimal one without using any medications.
• For people more than 50 years old high level of systolic blood
pressure (higher than 140 mmHg) is more crucial than diasto-
lic pressure.
• Even with blood pressure being normal, people run the bigger
risk of hypertension development with advancing age.
ATTENTION
If you have normal results of blood pressure measured under
calm conditions but your results are excessively high when meas-
ured under the conditions of physical or mental exhaustion, this
might be a sign of so called brittle (that is unstable) hypertension.
If you suspect that, please consult your doctor.

18
When measured correctly, if diastolic blood pressure is more
than 120 mmHg, it is necessary to call the doctor immediately.
9.3.What can be done to lower/maintain the level of blood
pressure?
Recommendation
How much the
systolic blood
pressure can be
lowered
- Try to maintain the weight which is
considered standard for your age. De-
crease overweight if any!
5 – 20 mmHg with
every 10 kilos of
weight reduction
- Avoid salt overuse (it’s recommend-
ed to use no more than 6 g per day)!
2 – 8 mmHg
- Avoid eating fat food! Introduce to
your diet some food that is rich in di-
etary ber (fruits, vegetables)
8 – 14 mmHg
- Refuse from smoking outright!
- Use only limited amount of alcohol
(bier – 350 g, or vine – 150 g, or vodka
– 50 g)!
- Restrain the usage of caeine (cof-
fee)!
2 – 4 mmHg

19
- After medical examination please
regularly go in for sports, with the fol-
lowing restrictions:
• go in for endurance exercises not
strengthening exercises.
• do not train till complete exhaus-
tion.
• if you have any chronic diseases
and/or you are older than 40 please
consult your doctor before you start
going in for sports.
- Spend at least half an hour out in the
open air every day.
4 – 9 mmHg

20
Автоматический измеритель артериального
давления GammaТМ Модель M3-W
ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ
Благодарим Вас за выбор нашего автоматического изме-
рителя артериального давления GammaТМ, созданного на ос-
нове самых передовых технологий. Прибор, который Вы дер-
жите в руках, является Вашим надежным помощником. С его
помощью Вы измерите артериальное давление так же точно,
как это сделал бы опытный врач или медсестра.
Мы уверены, что, по достоинству оценив качество и на-
дежность этого прибора, Вы станете постоянным пользовате-
лем продукции торговой марки Gamma
ТМ
.
Перед тем как начать пользоваться данным прибором,
внимательно прочитайте инструкцию. В ней Вы найдете всю
информацию, необходимую Вам для правильного проведе-
ния измерения артериального давления и пульса.
Регулярный контроль артериального давления позволяет
надежно и просто отслеживать состояние Вашего здоровья и
эффективно бороться с возможными осложнениями, вызван-
ными повышением или понижением артериального давле-
ния.
ВНИМАНИЕ
Данный измеритель артериального давления предназна-
чен для осуществления самоконтроля артериального дав-
ления, а не для самодиагностики гипертонии/гипотонии. Ни
в коем случае не ставьте диагноз самостоятельно на основе
результатов, полученных с помощью измерителя артериаль-
ного давления. Не занимайтесь самолечением артериального
давления и не меняйте самостоятельно прописанные методы
лечения, не проконсультировавшись предварительно с вра-
чом.

21

1.    -
   M3-W
1.1. 
1.2.     
2.   
2.1.  
2.2.  
3.  
3.1.   
3.2.  
3.3.   
3.4.  
3.5.      -
 (IHD)
4.  «»
5.   
6.   
7.  
8. 
9.      
9.1.    
9.2.   
9.3.     /
  
