4
!"#$%!#&'()*$$+(,-.//"-.(%$0&#$-(1!%%!(
%$+.*(/%!-#

Thank you for choosing our Automatic Blood Pressure Monitor 123324
ТМ designed on the basis of the most advanced technologies. The device
you are holding now is your reliable assistant. You can measure your blood
pressure with this monitor as accurately and precisely as an experienced
doctor or a skilled nurse would do it.
We are sure that having appraised worthily the high quality and reliability
of this device you will become a regular user of the products of 123324
Trade Mark.
Before starting to use this device please study the instruction book
carefully. The instruction book offers all information you need to correctly
measure your blood pressure and pulse.
Regular blood pressure control allows for reliable and easy health
monitoring and for effective combating possible complications caused by
blood pressure abnormalities.
!##.0#&$0
This blood pressure monitor is designed to carry out self-control over blood
pressure but NOT to make self-diagnosis of hypertension/hypotension.
Please DO NOT diagnose by yourselves basing on the measurement
results obtained with the blood pressure monitor. Please DO NOT execute
self-treatment of high/low blood pressure and DO NOT change the
methods prescribed without consulting your doctor.

5
EN
#!)*.($5('$0#.0#/
&%,$-#!0#(&05$-%!#&$0($0()*$$+(,-.//"-.(!0+(&#/(
%.!/"-.%.0#(666666666666666666666666666666666666666666666666666666666666666666666666666666666666 7
What Is Blood Pressure? ......................................................................... 6
Which Values Are Normal? ...................................................................... 7
!+8!0#!1./($5(!"#$%!#&'()*$$+(,-.//"-.(%$0&#$-
%$+.*(/%!-#(66666666666666666666666666666666666666666666666666666666666666666666666666666666666666 9
Blood Pressure Level Indicator................................................................ 9
Irregular Heartbeat Detection .................................................................. 9
Fuzzy Logic Measuring Technology ............. ........................................ 10
1.##&01(-.!+:(5$-(%.!/"-.%.0#(6666666666666666666666666666666666666666666 ;<
Safety Precautions ................................................................................ 10
Description of the Blood Pressure Monitor .............................................11
Inserting the Batteries............................................................................ 12
Using a Mains Adaptor .......................................................................... 13
Cuff Connectors ..................................................................................... 13
Setting the Date and Time ..................................................................... 14
%.!/"-.%.0#(,-$'.+"-.(6666666666666666666666666666666666666666666666666666666666 ;=
Fitting the Cuff ....................................................................................... 15
Measuring Procedure ............................................................................ 16
Reading measurement results............................................................... 16
Discontinuing a measurement ............................................................... 17
%.%$-:(5"0'#&$0(666666666666666666666666666666666666666666666666666666666666666666666666666 ;>
.--$-(%.//!1./?#-$")*./@$$#&01(666666666666666666666666666666666666666 ;A(
'!-.(!0+(%!&0#.0!0'.(6666666666666666666666666666666666666666666666666666666666666666 ;9
/:%)$*(&05$-%!#&$0(666666666666666666666666666666666666666666666666666666666666666666666 B<
#.'@0&'!*(/,.'&5&'!#&$0/(66666666666666666666666666666666666666666666666666666666666 B<
C!--!0#:(666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666 B;

6
&%,$-#!0#(&05$-%!#&$0((
$0()*$$+(,-.//"-.((
!0+(&#/(%.!/"-.%.0#
CD2E(&F()GHHI(,JKFFLJKM
Blood pressure is the pressure that your blood extends to the vascular
walls. Blood pressure is necessary to provide for constant blood ow
inside the body. Thanks to it the cells get oxygen that provides for their
normal functioning. The heart performs the function of a «pump», sending
blood to the blood vessels. Each heart beat creates a certain level of the
blood pressure.
There are 2 kinds of blood pressure: a systolic (upper) one, which
corresponds to the heartbeat pushing blood into the arteriae; and a
diastolic (lower) one, which means the blood pressure between two
heartbeats.
Blood pressure is subject to uctuations during the day even in healthy
people. The uctuations are inuenced by a number of factors – time of
day, person’s condition, physical or mental activity, environment, etc.
+2NO0PQDE(5GLREL2EPHSF(HT(EDK()GHHI(,JKFFLJK
An increase of blood pressure increases the burden onto the heart, affects
blood vessels making their walls thick and less elastic.
One of the features of the hypertension is its ability to remain unnoticed
for the patient at its early stages. That’s why the self-control of the blood
pressure is so important. With the illness progressing, headaches and
regular dizziness appear, the sight declines, the functioning of vitalses
(encephalon, heart, kidneys, blood vessels) breaks down. Without special
SET
H/M
M/D
MEM.
Systolic Pressure
Diastolic Pressure
Pulse

7
EN
treatment the complications of hypertension might be kidney damages,
breast-pang, paralytic stroke, aphasia, dementia, heart attack and stroke.
CDPRD(82GLKF(2JK(0HJ32GM
Monitoring your routine blood pressure trend helps you to know your
body condition. Human blood pressure naturally increases after reaching
middle age.
This symptom is a result of continuous ageing of the blood vessels. Further
causes include obesity, lack of exercise and cholesterol (LDL) adhering to
the blood vessels, diabetes. Rising blood pressure accelerates hardening
of the arteries, and the body becomes more susceptible to apoplexy and
coronary infarction.
Denitions and Classication of blood pressure levels according to
2007 ESH-ESC Practice Guidelines for the Management of Arterial
Hypertension: Data in mmHg.
Category Systolic
(mmHg) Diastolic (mmHg)
Optimal < 120 and < 80
Normal*3 120-129 and/or 80-84
High normal 130-139 and/or 85-89
Grade 1
hypertension 140-159 and/or 90-99
Grade 2
hypertension 160-179 and/or 100-109
170
160
150
140
130
120
110
100
90
80
70
60
50
40

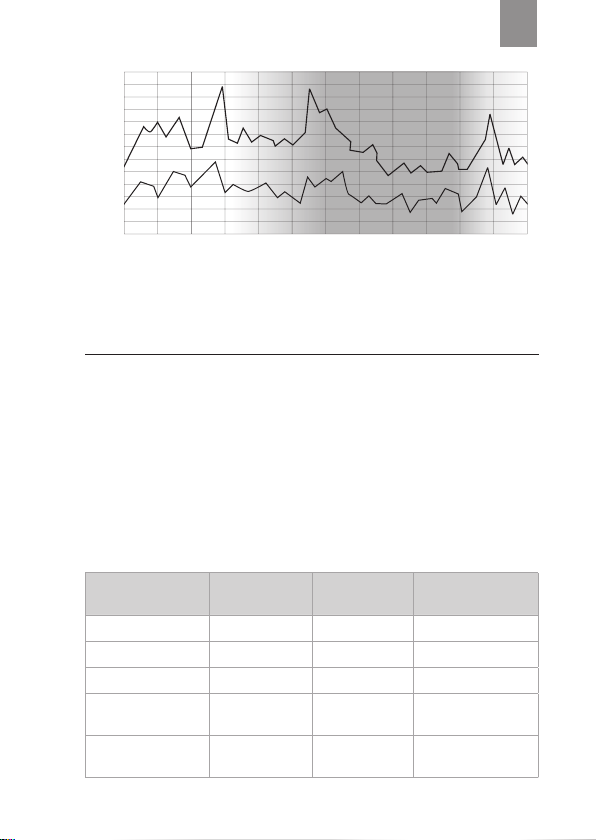

8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 2.00 4.00 6.00 8.00
DIA blood pressure
SYS blood pressure
Time (hours)
mmHg

8
Grade 3
hypertension ≥ 180 and/or ≥ 110
Isolated systolic
hypertension ≥ 140 and < 90
Isolated systolic hypertension should be graded (1, 2, 3) according to
systolic blood pressure values in the ranges indicated, provided that
diastolic values are < 90mmHg.
Source: The European Society of Hypertension and European Society of
Cardiology Task Force Members. 2007 ESH-ESC Practice Guidelines for
the Management of Arterial Hypertension. J Hypertens 2007; 25:1751-
1762.
• The diagnosis of hypertension requires from the patient to combine
medical treatment prescribed by the doctor and mode of life correction.
• People with normal pressure and high normal pressure are recom-
mended to carry out self-control of their tension in order to timely take
measures to decrease the blood pressure level down to the optimal one
without using any medications.
• For people more than 50 years old high level of systolic blood pressure
(higher than 140 mmHg) is more crucial than diastolic pressure.
• Even with blood pressure being normal, people run the bigger risk of
hypertension development with advancing age.
!##.0#&$0
If you have normal results of blood pressure measured under calm
conditions but your results are excessively high when measured under
the conditions of physical or mental exhaustion, this might be a sign of so
called brittle (that is unstable) hypertension. If you suspect that, please
consult your doctor.
When measured correctly, if diastolic blood pressure is more than 120 mmHg,
it is necessary to call the doctor immediately.

9
EN
!+8!0#!1./($5(!"#$%!#&'(
)*$$+(,-.//"-.(%$0&#$-((
%$+.*(/%!-#
)GHHI(,JKFFLJK(*KUKG(&SIPR2EHJ(
Blood pressure level indicator is located along the left side in the
display. The classication corresponds to ESH (European Society of
Hypertension) ranges described in the table of the section «Which values
are normal?». After the measurement there appears the bars in the left
part of the display: green zone - optimal blood pressure, yellow - elevated,
orange - too high, red - dangerously high. This function helps you to self-
orient in the measurement results.
&JJKQLG2J(@K2JEVK2E(+KEKREPHS
This function indicates allorhythmic heartbeating. If the symbol of IHD
appears on the display that means that certain abnormality in heart beat
frequency was detected during the measurement.
In this case, the result may deviate from your normal blood pressure -
repeat the measurement. In most cases, this is no cause for concern.
However, if the symbol appears on a regular basis (e.g. several times
a week with measurements taken daily) we advise you to tell your doctor.
Please show your doctor the following explanation:
&STHJ32EPHS(THJ(EDK(IHREHJ( HS( TJKWLKSE( 2XXK2J2SRK( HT( EDK( &JJKQLG2J(
@K2JEVK2E(+KEKREHJ6
This instrument is an oscillometric blood pressure monitor that also
analyses pulse frequency during measurement. The instrument is
clinically tested.
The symbol is displayed after the measurement, if pulse irregularities
occur during measurement. If the symbol appears more frequently
(e.g. several times per week on measurements performed daily) we
recommend the patient to seek medical advice. The instrument does not
replace a cardiac examination, but serves to detect pulse irregularities at
an early stage.

10
5LYYN(*HQPR(%K2FLJPSQ(#KRDSHGHQN
This unit uses the oscillometric method to detect your blood pressure.
Before the cuff starts inating, the device will establish a baseline cuff
pressure equivalent to the air pressure. This unit will determine the
appropriate ination level based on pressure oscillations, followed by cuff
deation.
During the deation, the device will detect the amplitude and slope of the
pressure oscillations and thereby determine for you the systolic blood
pressure, diastolic blood pressure, and pulse.
1.##&01(-.!+:((
5$-(%.!/"-.%.0#
/2TKEN(,JKR2LEPHSF
1. Use this device ONLY for the intended use described in this manual.
2. Do NOT use accessories which are not specied by the manufacturer.
3. Do NOT use the device if it is not working properly or damaged.
4. Do NOT use the equipment where aerosol sprays are being used, or
where oxygen is being administered.
5. Do NOT use under any circumstances on newborns.
6. This device does NOT serve as a cure for any symptoms or diseases.
The data measured are for reference only. Always consult your doctor
to have the results interpreted.
7. Keep the equipment and its exible cord away from hot surfaces.
8. Do NOT apply the cuff to areas other than the place directed.
9. Proper maintenance and periodically calibration are essential to the
longevity of your device. If you are concerned about your accuracy of
measurement, please contact local customer service for help.
10. This system is intended for individuals age 18 or above.
11. Do not use it for diagnosis of hypertension or testing on newborns,
babies, young children or persons who cannot express their consent.
12. If you have been diagnosed with a severe arrhythmia or irregular
heartbeat, atrial or ventricular premature beats or atrial brillation,
measurements made with this instrument should only be evaluated
after consultation with the doctor or your healthcare professionals.


11
EN
'H3XHSKSEF(HT(:HLJ((


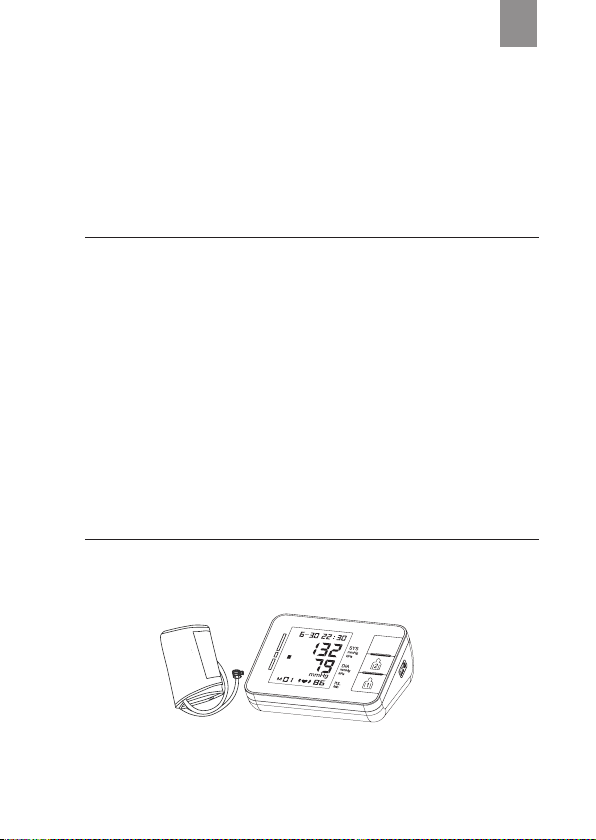

The blood pressure monitor kit includes Automatic Blood Pressure
Monitor Model Smart, the cuff, 4 batteries (AA), bag for storing of devices,
Instruction Book, Warranty Card, Kit Box, Bag, Adapter.
+KFRJPXEPHS(HT(EDK()GHHI(,JKFFLJK(%HSPEHJ
Air Connector Plug
LCD Display:
Date and Time
Systolic Blood pressure
Diastolic Blood pressure
Pulse/min
Measurement No.1
Measurement No.2
Air Hole
Arm Cuff
SET Button
SET
H/M
M/D
MEM.
Manual Adapter
!RRKFFHJNZ
'LTTZ
Smart offers a wide range rigid cuff Comfort measuring size: 22~42 cm, suitable for
most of arm circumferences.
Bag

12
&SFKJE(HJ(-KXG2RK()2EEKJPKF
1. Remove the battery cover.
2. Insert new batteries into the battery compartment as shown, taking care
that the polarities (+) and (-) are correct.
3. Close the battery cover. Use only LR6, AA batteries.
'!"#&$0
• Insert the batteries as shown in the battery compartment.
• When (LOW BATTERY mark) blinks in the display, replace all
batteries with new ones. Do not mix old and new batteries. lt may
shorten the battery life, or cause the device to malfunction.
• (LOW BATTERY mark) does not appear when the batteries run out.
• Battery life varies with the ambient temperature and may be shorter at
low temperatures.
• Remove the batteries if the device is not to be used for a long time.
/:%)$*/($0(+&/,*!:
Month/Date Hour/Minute
Value of systolic
Value of diastolic
Unit of pressure
Value of pulse per minute
Ination
Deation
Battery
WHO blood pressure
classication
Heart beat
Irregular heartbeat
detection

13
EN
• The batteries may leak and cause a malfunction.
• Use the specied batteries only. The batteries provided with the device
are for testing monitor performance and may have a shorter life.
0$#.Z(To prolong the batteries’ life the device switches off automatically
if no button is pressed for 1 minute. Otherwise you can switch it off by
pressing the START button.
"FPSQ(2S(%2PSF(!I2XEHJ
It is possible to operate Automatic Blood Pressure Monitor Model SMART
with a mains adaptor (output 6 V DC/ 500 mA).
1. Connect the micro plug to the socket at the device right side.
2. Plug the mains adapter (output 6 V DC/ 500 mA) to a 100-240 V
electrical power socket.
0$#.Z
• Please use the adaptor of Trademark 123324. Any other adaptor being
used, the service center is not considered responsible for the warranty
servicing/repair of the monitor.
• No power is taken from the batteries while the mains adaptor is con-
nected to the device.
• Please consult service center if you have questions relating to the mains
adaptor.
'LTT(RHSSKREPHS
Insert the cuff connector into the opening provided on the side of the
device as shown in the picture.
SET
H/M
M/D
MEM.

14
/KEEPSQ(EDK(+2EK(2SI(#P3K
1. Under Power Off. Press and hold “SET” button until the year number
displays and ashes on LCD to enter setting mode. And press key to
adjust the year. Conrm your selection by pressing “SET” button.
2. Following the same steps to choose year, month, day, hour, minutes,
units conversion (mnHg/kPa), press to change the value.
!##.0#&$0Z(!E(PSFE2GG2EPHS(HT(LSPE(RHSUKJFPHS(VK(2EE2SEPUK6(
'DHHFK(LSPEF(HT(3K2FLJK(33@Q6
%.!/"-.%.0#(,-$'.+"-.
!##.0#&$0
• Find time to relax by sitting in a quiet atmosphere for some time before
measurement.
• Efforts by the patient to support the arm can increase the blood pres-
sure. Make sure you are in a comfortable, relaxed position and do not
activate any muscles in the arm during measurement.
• Always measure on the same arm (normally left).
• Remove any garment that ts closely to your upper arm. Do not roll
the sleeve since it can squeeze your hand and this can lead to false
results.
• Use only clinically approved original cuff.
• If you want to follow the results of your blood pressure measurements,
always perform measurements at the same time of day, since blood
pressure changes during the course of the day.
year month day hour minute uni

15
EN
• Measurements should be done after a 5 minute rest to ensure ac-
curacy.
5PEEPSQ(EDK('LTT
1. Plug the cuff connector to the cuff socket on the device left side.
2. Stretch your left (right) arm in front of you with your palm facing up.
Slide and place the cuff onto your arm to let the air tube and artery
mark region toward the lower arm.
Wrap and tighten the cuff above your elbow. The artery mark on the
edge of the cuff should be approx. 0.8ʺ to 1.2ʺ (2 cm to 3 cm) above
your elbow. Align the tube over the main arteries on the inside.
3. Leave a little free space between the arm and the cuff: you should be
able to t two ngers between them. Remove all clothing covering or
constricting the measurement arm.
4. Press the hook material rmly against the pile material. The top and
bottom edges of the cuff should be tightened evenly around your
upper arm.

16
%K2FLJPSQ(,JHRKILJK
1. Press or button, the display shows “0”, Ination
icon ashes on display when it it begins to inate.
During the ination, please do not move.
2. Automatic deation after measurement, and display
the blood pressure,heart rate, and blood pressure
indicator.
• Mistake, display “E”, please refer the instruction about
troubleshooting.
• When cuff remove during the measurement, please
x the cuff and test again.
• Stop the measurement in emergency, please press
оr power. Automatic deation at the same time.
3. Power off. Press or ,to cut off the power.
-K2IPSQ(%K2FLJK3KSE(-KFLGEF
When the measurement has been concluded, the
measured blood pressure and pulse values are now
displayed.
The appearance of this symbol signies that an
irregular heartbeat was detected. This indicator is only
a caution.
It is important that you be relaxed, remain still and do
not talk during measurements.
On the graphic indicator the element showing level of arterial pressure on
a scale of World Health Organization is displayed
0HEKZ We recommend contacting your physician if you see this indicator
frequently.
SYS
blood
pressure
DIA
blood
pressure
Pulse
Grade 3 hypertension (severe)
Grade 2 hypertension
(moderate)
Grade 1 hypertension (mild)
High-normal
Normal
Optimal

17
EN
To prolong the batteries’ life the device switches off automatically if no
button is pressed for 1 minute. Otherwise you can switch it off by pressing
the or button.
+PFRHSEPSLPSQ(2(%K2FLJK3KSE(
If it is necessary to interrupt a blood pressure measurement for any reason
(e.g the patient feels unwell), the or button can be pressed at any
time. The device then immediately lowers the cuff pressure automatically.
%.%$-:(5"0'#&$0
1. Under power off. Hold or for 3 seconds , get into relative memory
mode, it reads the average of latest 3 measurements, press “SET” to nd
more memory.
2. Press or tо cut off the power.
• lf forget to turn it off. Automatically power off in one minute.
• More than 90 measurements, it will deletes the earliest one automatically
• The stored memory will not lose after replacing battery.
3. Delete memory (all the memory will be deleted) Showing
memory, hold or for 5 seconds, display « » means all
the memories have been deleted.

18
#-$")*./@$$#&01
lf you have trouble in using the unit please check the following points rst.
.--$-(+&/,*!: ,$//&)*.('!"/. @$C(#$('$-O
-.'#
Nothing is displayed.
When you push the
POWER button or
battery icon ash
No battery installation Insert batteries
Battery worn out Replace with new
batteries
The polarities of
batteries placed wrongly
Insert battery in the
correct polarities
E0
Testing pressure with
Clothes
Take off the clothes
and test it gain
The marker of arm cuff
is not in alignment
with the arm’s artery.
Align the marker of
arm cuff with the
arm’s artery, and
measure again.
E1: Can’t normally
increase pressure
Check your cuff for air
leakage
Replace cuff with
new one
E3: Inate pressure
too high
Remeasure or
send back to dealer
to recalibrate
E2 E4: Hand shaking
while measurement
Hand or body shaking
while measurement
Keep static position
and
measure again
Battery icon on Battery low power Replace battery
and measure again
The systolic pressure
Value or diastolic
Pressure value too
high
1.The cuff was held
lower than your heart
Keep correct
position and
measure again
2.The cuff was not
attached properly
3.You moved your
body or spoke during
measurement
The systolic pressure
value or diastolic pres-
sure value too low
1.The cuff was held
higher than your heart
2.You moved your
body or spoke during
measurement

19
EN
'!-.(!0+(%!&0#.0!0'.
To avoid the monitor attracting dirt, dust or other contaminants, wash and
dry your hands thoroughly before use.
'GK2SPSQ
• To clean the monitor exterior, wipe it with a cloth moistened with tap
water or a mild cleaning agent, then dry the device with a soft dry cloth.
Do NOT ush with water.
• Do NOT use organic solvents to clean the monitor.
• Do NOT wash the pressure cuff.
• Do NOT iron the pressure cuff.
%HSPEHJ(/EHJ2QK
• Storage condition: -20°C to 55°C (-4°F to 131°F), below 95% relative
humidity.
• Always store or transport the monitor in its original storage case.
• Avoid dropping or heavy impact.
• Avoid direct sunlight and high humidity.

20

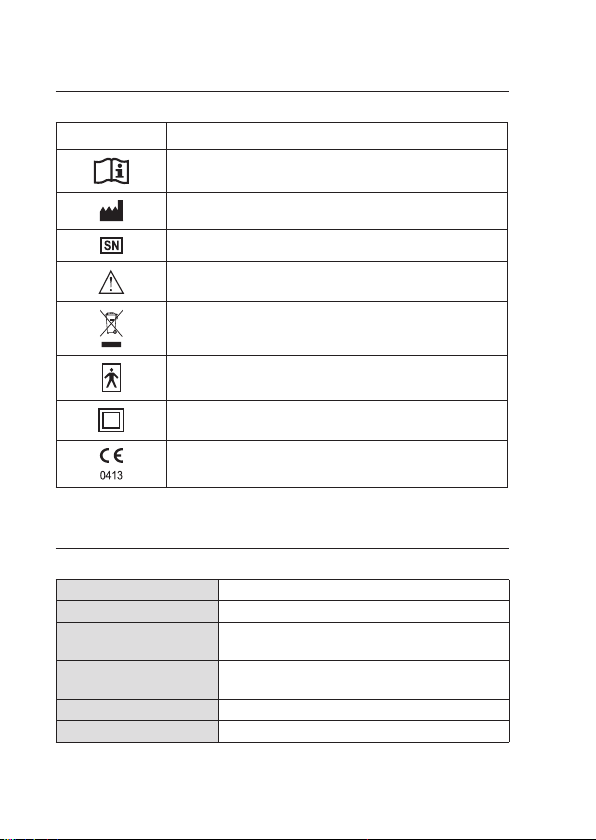

/:%)$*(&05$-%!#&$0(
/:%)$* -.5.-.0#
Consult instructions for use
Manufacturer
Serial number
Caution, consult accompanying documents
Dispose of in accordance with the requirements
of your country
Type BF Equipment
Class II
CE mark
#.'@0&'!*(/,.'&5&'!#&$0/
Measuring Method Oscillometric Measurement
Indication Digital LCD display
Measuring Range: Pressure: (30~280) mmHg
Pulse: (40~199) Beat/min
Accuracy: Static Pressure: ±3 mmHg
Pulse: ±5%
Memory: Memory for 90 measurements for 2 users
Power supply: 4x1.5V Batteries (LR6 or AA)
