Garmin TruSwing Instruction manual

   
󶘮󱠅󱙆󳽳󳸞󱠓󳧼󱯤
󶯸󺂴󱙆󳽳󳸞󱠓󳧼󱯢
   
  
 
󻸛󼐘󼓿󾖴󻺓󻟴󻺋
󳸞󱠓 


TruSwing ™
1
EN
Important Safety and
Product Information
WARNING
Failure to avoid the following potentially hazard-
ous situations could result in an accident or
collision resulting in death or serious injury.
Health Warnings
• Always consult your physician before be-
ginning or modifying any exercise program.
If you have a pacemaker or other implanted
electronic device, consult your physician
before using a heart rate monitor.
• The device, the heart rate monitor, and
other Garmin accessories are consumer
devices, not medical devices, and could
suffer from interference from external
electrical sources. The heart rate readings
are for reference only, and no responsibility
is accepted for the consequences of any
erroneous readings.
Battery Warnings
A lithium-ion battery can be used in this device.
If these guidelines are not followed, the internal
lithium-ion battery may experience a shortened
life span or may present a risk of damage to
the GPS device, re, chemical burn, electrolyte
leak, and/or injury.
• Do not leave the device exposed to a heat
source or in a hightemperature location,
such as in the sun in an unattended vehicle.

2
TruSwing ™
EN
To prevent damage, remove the device
from the vehicle or store it out of direct
sunlight, such as in the glove box.
• Do not disassemble, modify, remanufac-
ture, puncture or damage the device or
batteries.
• Do not immerse or expose the device to
water or other liquids, re, explosion, or
other hazard.
• Do not place in high temperature environ-
ments, such as a clothes dryer.
• Do not use a power and/or data cable that
is not approved or supplied by Garmin.
• Do not operate the device outside of the
temperature ranges specied in the printed
manual in the product packaging.
• When storing the device for an extended
time period, store within the temperature
ranges specied in the printed manual in
the product packaging.
• Do not remove or attempt to remove the
non-user-replaceable battery.
• Contact your local waste disposal depart-
ment to dispose of the device/battery in
accordance with applicable local laws and
regulations.
Product Environmental Programs
Information about Garmin’s product recycling
program and WEEE, RoHS, REACH, and other
compliance programs can be found at Garmin.
com/aboutGarmin/environment

TruSwing ™
3
EN
Industry Canada Compliance
Category I radio communication devices com-
ply with Industry Canada Standard RSS-210.
Category II radio communication devices com-
ply with Industry Canada Standard RSS-Gen.
This device complies with Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.
FCC Compliance
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reason-
able protection against harmful interference in
a residential installation. This equipment gener-
ates, uses, and can radiate radio frequency
energy and may cause harmful interference to
radio communications if not installed and used
in accordance with the instructions. However,
there is no guarantee that interference will
not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and

4
TruSwing ™
EN
on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equip-
ment and the receiver.
• Connect the equipment into an outlet that is
on a different circuit from the GPS device.
• Consult the dealer or an experienced radio/
TV technician for help.
This product does not contain any user-service-
able parts. Repairs should only be made by an
authorized Garmin service center. Unauthor-
ized repairs or modications could result in
permanent damage to the equipment, and void
your warranty and your authority to operate this
device under Part 15 regulations.
Limited Warranty
The Garmin standard limited warranty applies
to this accessory. For more information, go to
Garmin.com/support/warranty.html.

TruSwing ™
5
EN
TruSwing™ Quick Start
Manual
Getting Started
WARNING
See the in the manual for product warnings and
other important information.
Charging the Device
WARNING
This product contains a lithium-ion battery.
To prevent the possibility of personal injury or
product damage caused by battery exposure
to extreme heat, store the device out of direct
sunlight.
NOTICE
To prevent corrosion, thoroughly dry the USB
port, the weather cap, and the surrounding area
before charging or connecting to a computer.
The device is powered by a built-in lithium-ion
battery that you can charge using a USB port
on your computer.
1Pull up the weather cap from the USB
port .

6
TruSwing ™
EN
2Plug the small end of the USB cable into
the USB port on the device.
3Plug the large end of the USB cable into
the USB port on your computer.
4Charge the device completely.
The red LED ashes when charging. When
charging is complete, the red LED remains
on.
Turning On the Device
Hold the device key for one second.
Turning Off the Device
Hold the device key for approximately two
seconds.

TruSwing ™
7
EN
Status LEDs
LED Activity Status
Flashing red (for 5
seconds after turning
on)
The battery is low.
Flashing red (con-
nected to a power
source)
The device is charging.
Solid red (after
swinging)
A swing was recorded.
Solid red (connected
to a power source)
Charging is complete.
Alternating red and
blue
The device is in pairing
mode.
Solid red and blue A software update is in
progress.
Flashing blue The device is paired
with a compatible
mobile device.

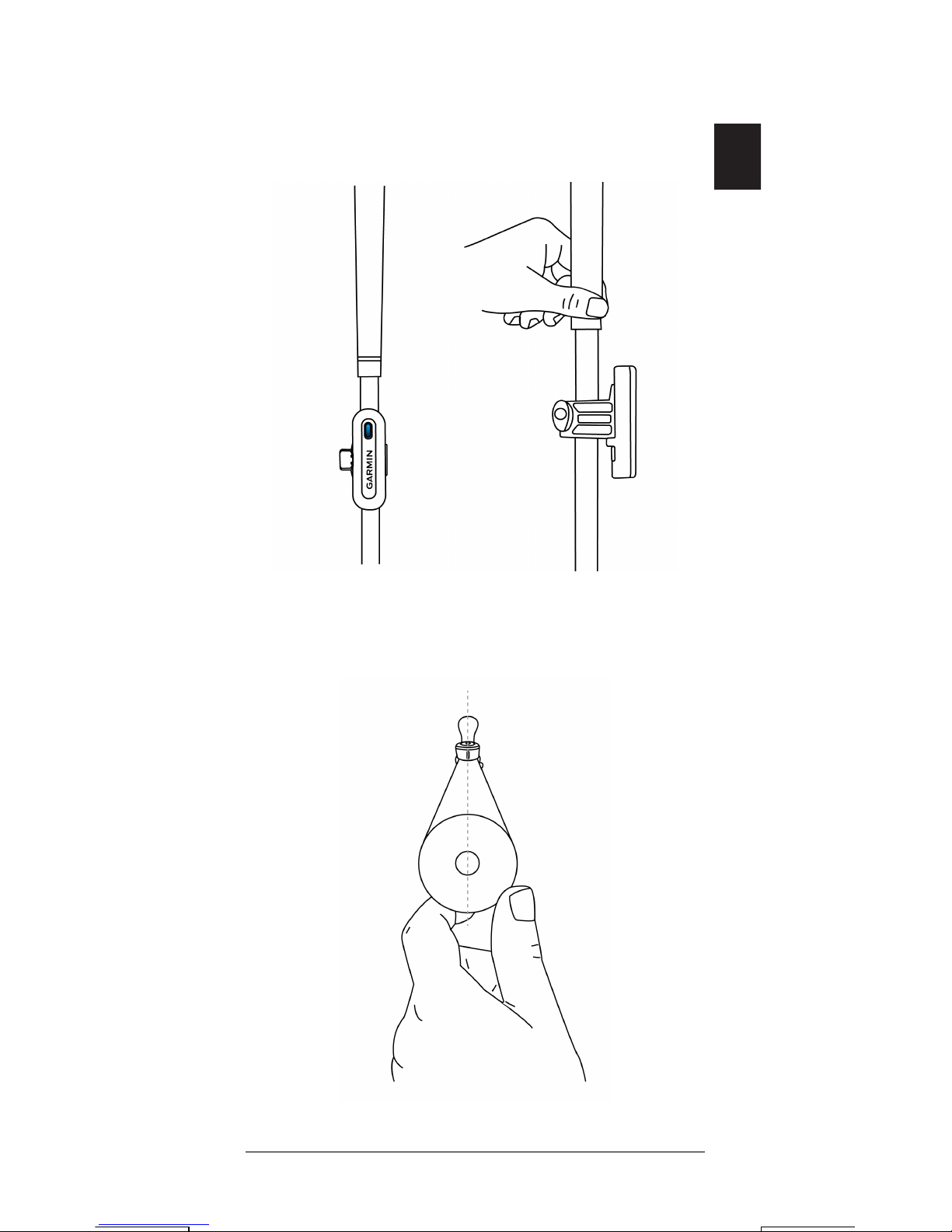

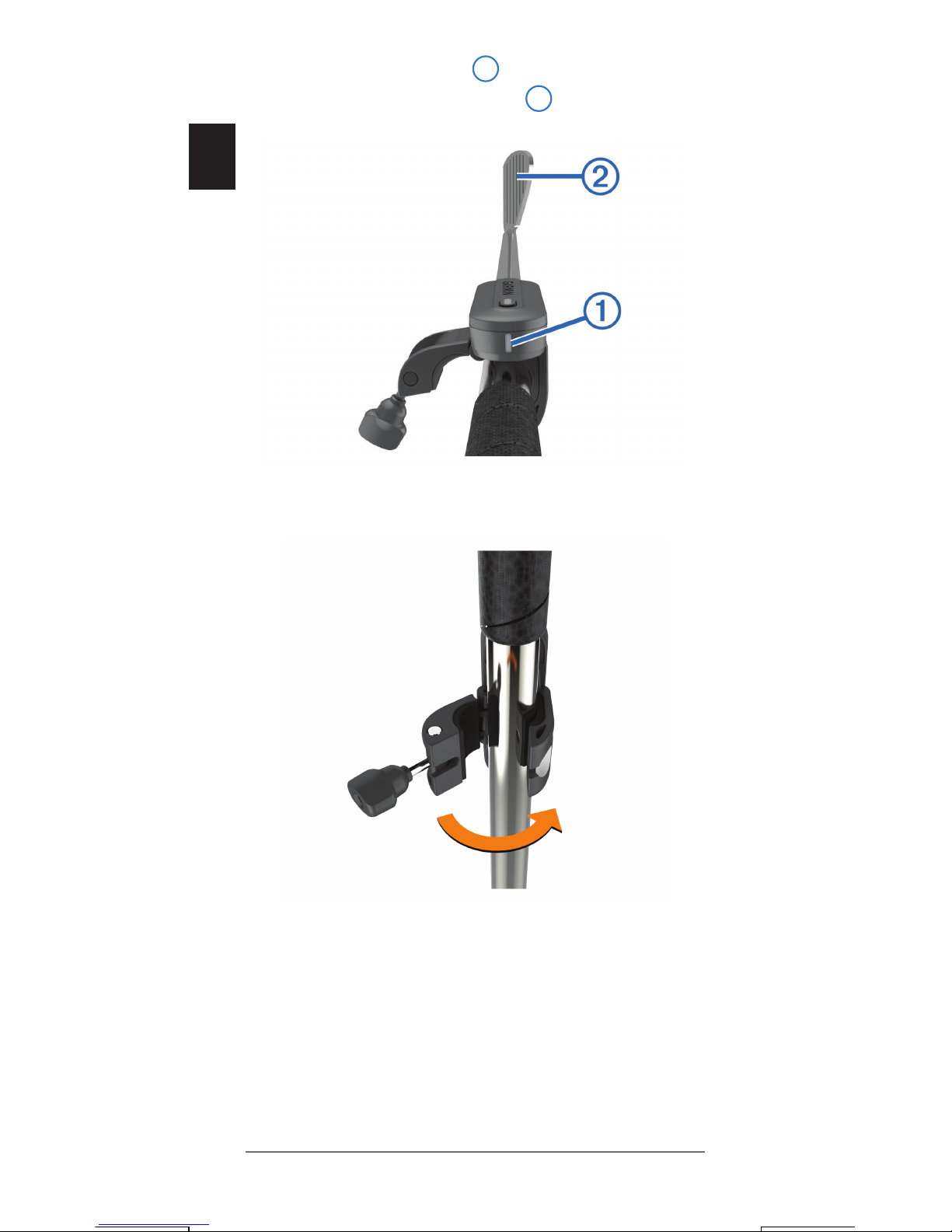

Attaching the Sensor to a Club
1Position the sensor on the shaft of your
club below the grip.

8
TruSwing ™
EN
2Align the guide line parallel to the
grooves on the club face .
3Close the clamp around the club.
4Tighten the thumbscrew so the device does
not move during use.

TruSwing ™
9
EN
TIP:
• Attach TruSwing below the grip with
LEDs facing up.
• Align the sensor to the club head as
accurately as possible.

10
TruSwing ™
EN
NOTICE
Do not attempt to reposition the device after
tightening the thumbscrew. You must remove
and reattach the device to adjust its position.
Device Pairing
Pairing mode is activated automatically each
time you turn on your TruSwing™ device. You
must pair your TruSwing device with a compat-
ible smartphone or a compatible Garmin®golf
device before you can record swings.
Pairing Your Smartphone
To get the most out of the TruSwing device, you
should pair it with your smartphone and com-
plete the setup using the Garmin Connect™
Mobile app.
NOTE: Unlike other Bluetooth®devices that
are paired from the Bluetooth settings on your
mobile device, your TruSwing device must be
paired directly through the Garmin Connect
Mobile app.
1Go to www.garminconnect.com/truswing on
your mobile browser.
2Follow the on-screen instructions to get the
app.
3Install and open the Garmin Connect
Mobile app.
4Follow the on-screen instructions to con-
nect your device.

TruSwing ™
11
EN
Pairing Multiple Devices with Your Smart-
phone
You can pair your TruSwing device and a
compatible Garmin golf watch with your phone
simultaneously. If your compatible Garmin golf
watch is capable of recording swing metrics,
data recorded on the watch and TruSwing
device will be synchronized with the Garmin
Connect Mobile app. Refer to the owner's
manual for your compatible Garmin golf watch
for more information.
Recording Your Swing
1Turn on the TruSwing device.
2On your paired mobile device, select a club.
3Hit a shot.
The device records your swing and uploads
data to your paired device automatically.
NOTE:
• After mounting the device, pause and aim
your club at the ball (for calibration) before
taking a swing.
• A collision must occur when the swing
reaches the point of impact; in other words,
the club must strike the ball in order for the
sensor to detect a valid shot.
• When taking a shot, make sure the top
of your backswing is high enough for a
smooth swing. The smoother the swing,
the more likely it is for the sensor to detect
a valid shot.
• For best results, you should make good
contact with the ball when swinging.

12
TruSwing ™
EN

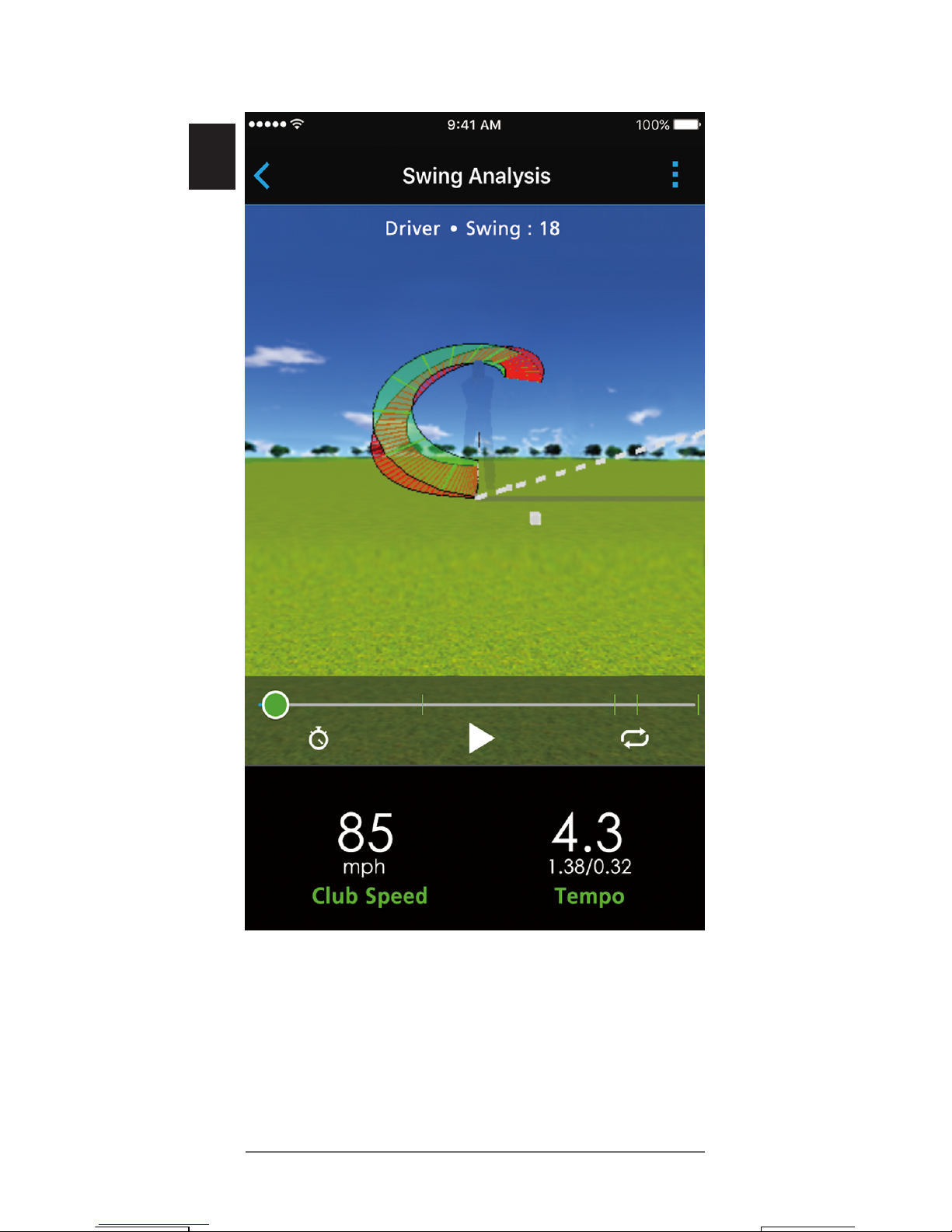

Swing Metrics

TruSwing ™
13
EN
Club Speed
The speed of the club head when it hits the ball.
TIP: According to a study conducted by the
United States Golf Association (USGA): The
club speed of amateur golfers averages
between 80 to 100 mph, and the club speed of
professional tour players is typically between

14
TruSwing ™
EN
115 to 130 mph. The current world record
holder for the longest drive, Jamie Sadlowski,
swings at more than 150 mph.
Amateur
Golfers
Profes-
sional
Golfers
Record
Holder
of the
Longest
Drive
Club
Speed
80-100
mph
115-130
mph
150+ mph
Driving
Distance
160-220
yards
240-300
yards
445 yards
Swing Tempo
The ratio of your backswing time to your down-
swing time. A 3 to 1 ratio, or 3.0, is the ideal
swing tempo based on studies of professional
golfers. You can achieve the ideal 3.0 tempo
using different swing timings, for example, 0.7

TruSwing ™
15
EN
sec./0.23 sec. or 1.2 sec./0.4 sec. Each golfer
may have a unique swing tempo based on the
golfer's ability and experience.
• Backswing Time The time from the start
of the swing to the top of your backswing.
• Downswing Time The time from the start
of the downswing to impact with the ball.

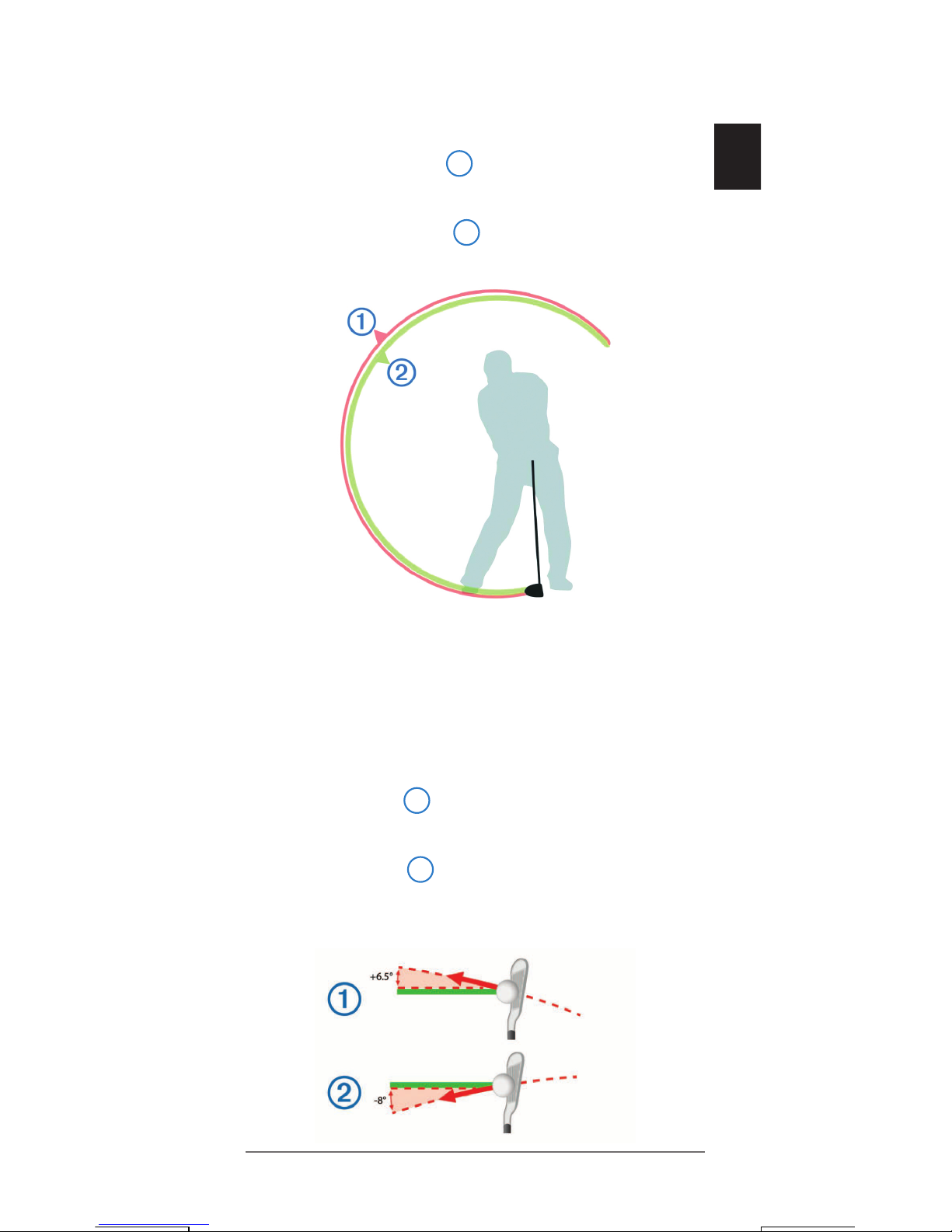

Club Path
A measurement of your club\'s horizontal
motion when viewed from overhead. The Club
Path and Face to Target angles affect the ball's
ight.
• In-out angle Indicates your club path is
angled away from you.
• Out-in angle Indicates your club path is
angled toward you.

16
TruSwing ™
EN

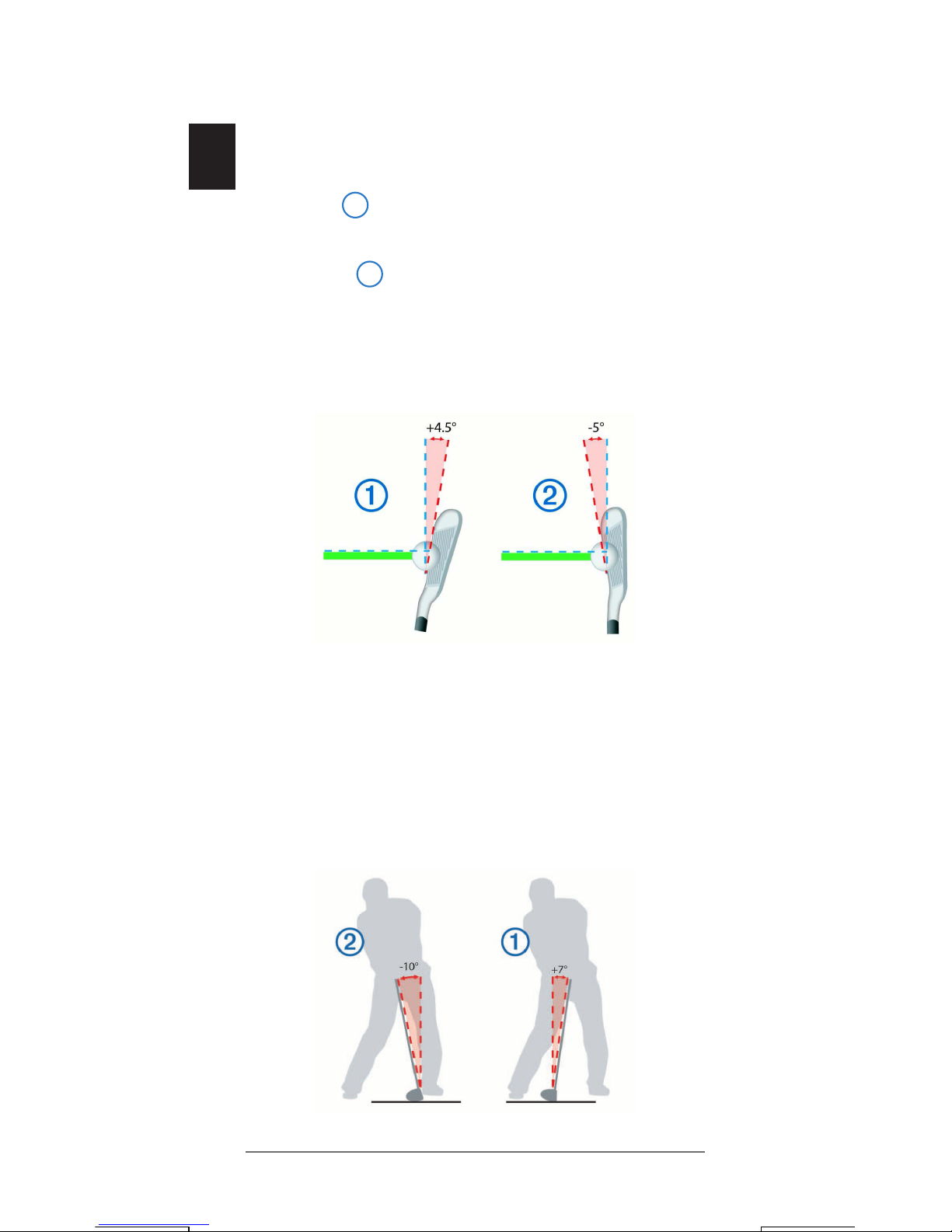

Face to Target
The angle of your club face in relation to your
club path. The Club Path and Face to Target
angles affect the ball’s ight.
• Open Indicates how far the club face is
angled away from you.
• Closed Indicates how far the club face is
angled toward you.
NOTE: The target path is the direction in which
the club face is pointed at the start of the swing.

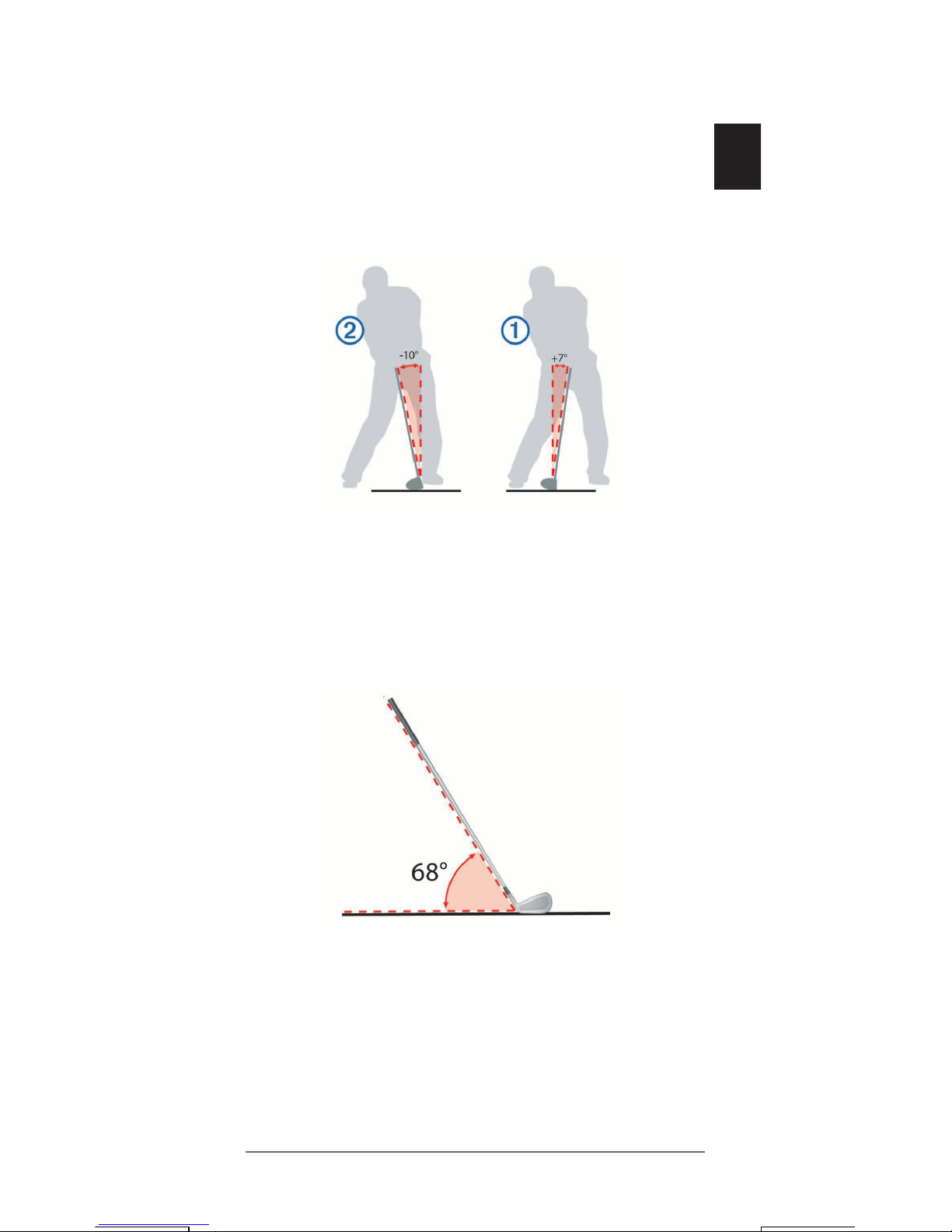

Shaft Lean at Address
The forward or backward angle at which you
are holding the club when at address, mea-
sured from a 90-degree vertical angle.

TruSwing ™
17
EN
Shaft Angle at Impact
The forward or backward angle at which you
are holding the club when hitting the ball,
measured from a 90-degree vertical angle. The
angle of shaft lean determines the amount of
dynamic loft in your swing.
Shaft Angle at Address
The angle between the shaft and the ground as
measured from the center of the shaft while the
club is at address.

18
TruSwing ™
EN
Shaft Angle at Impact
The angle between the shaft and the ground as
measured from the center of the shaft when the
club hits the ball.
Dynamic Loft
The loft angle of the selected club plus or minus
the dynamic loft created by the shaft lean at
impact with the ball.
Ball Flight
The combination of your club path and the club
face angle affect the ball's ight. This illustration
shows nine common club path and club face
angle combinations and their resulting ight
paths. You can improve the accuracy of your
ball's ight path by observing your recorded
club path and club face angle and adjusting
your swing.

TruSwing ™
19
EN
NOTE: The projected ight paths are most
accurate when striking the ball with the center
of the club face.
Target Line
--- Club Path
--- Club Face Angle
