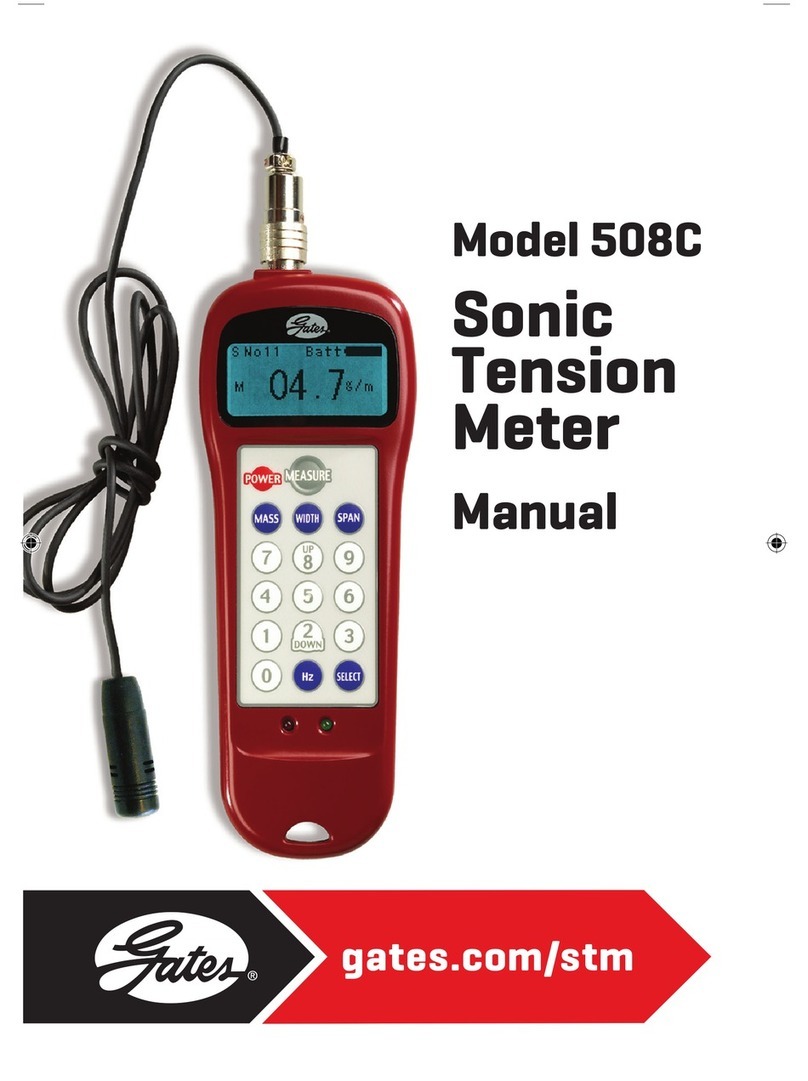

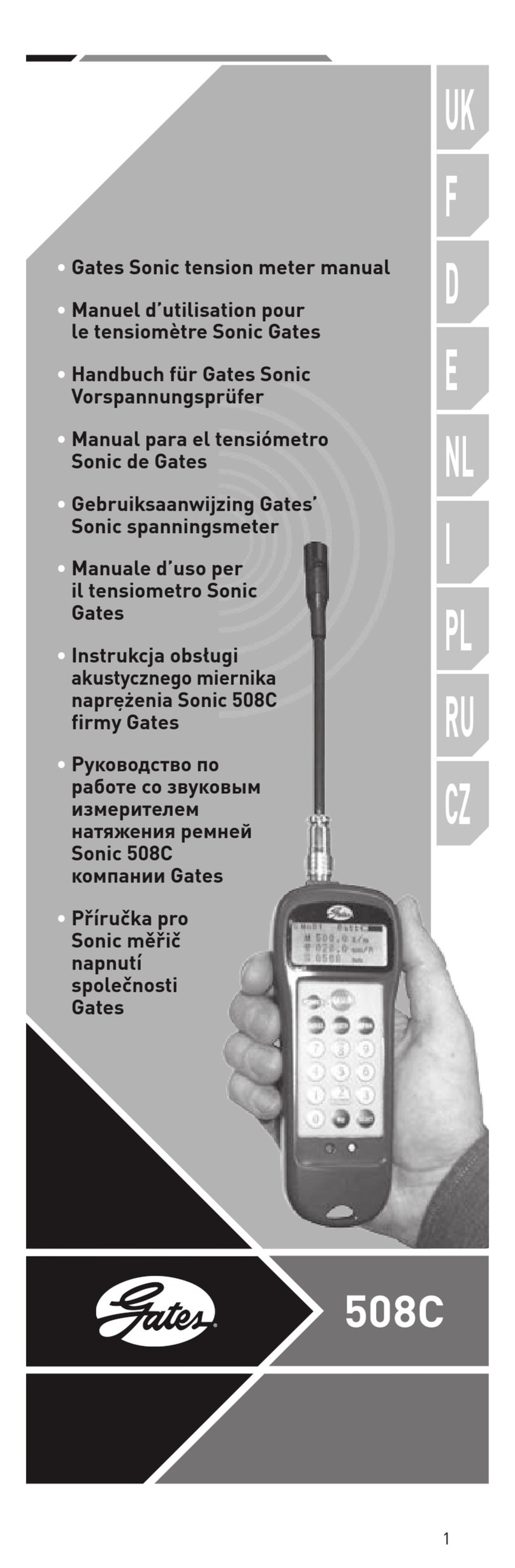

Gates 508C User manual

Gates Belt Tension Meter

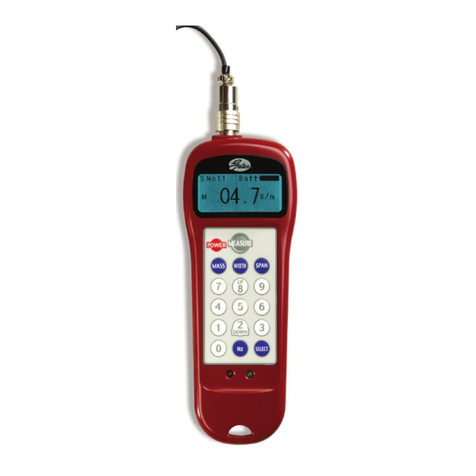

Sonic 508C

What’s
New?

SONIC 508C
New box design

SONIC 508C
New features

SONIC 507C SONIC 508C
New key path color

What’s in
the box?

SONIC 508C

SONIC 508C
Sonic 508C - package (PN 7420-00508)
+ Calibration sheet+ Sonic Tension meter manual

SONIC 508C
Sonic 508C - package (PN 7420-00508)

Sensors

SONIC 508C
Standard: flexible arm sensor (PN 7420-00206) - acoustic

SONIC 508C
Standard: flexible arm sensor (PN 7420-00206) - acoustic
Sensor connectorSensor head
₋Acoustic sensor
₋170 mm. arm length
₋Range: 10 –5.000 Hz

SONIC 508C
Optional: cord sensor (PN 7420-00204) - acoustic

SONIC 508C
Optional: cord sensor (PN 7420-00204) - acoustic
Sensor connector
Sensor head
₋Acoustic sensor
₋1.000 mm. cord length
₋Range: 10 –5.000 Hz

SONIC 508C
Optional: cord sensor (PN 7420-00212) - inductive

SONIC 508C
Optional: cord sensor (PN 7420-00212) - inductive
Sensor connector
Sensor head
₋Inductive/magnetic sensor
₋1.000 mm. cord length
₋Range: 10 –5.000 Hz
₋5 magnets included

SONIC 508C
›Magnets
–Use with inductive sensor
–Neodynium (NdFeB)
–9.5 mm. diameter
–1.6 mm. thickness

SONIC 508C

SONIC 508C

SONIC 508C
All sensors are compatible and can be installed on
the Gates Sonic Tension meter models:
Sonic 505C
Sonic 507C
Sonic 508C
