Gazebo penguin MARSEILLES 456201 User manual

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 1
Dimensions:
Overall: 10 ft deep x 14 ft wide x 8 ft 7 in height (305cm x 427cm x 261cm)
Tools required (not provided):
6ft (1.8m) stepladder, Phillips screwdriver, level, tape measure, mallet, safety gloves & glasses, hard
hat, tarp or protective material for placing parts on during assembly
MARSEILLES GAZEBO 10x14
(MODEL# 456201)
INSTALLATION MANUAL

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 2
10ft x 14ft / 3.05m x 4.27m Gazebo
Instruction Manual
IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY
For assistance with assembly, installation, parts, or customer service, contact Gazebo Penguin Customer
Service Department at the numbers listed below (English & French, Mon-Fri 8:00AM to 4:00PM EST):
Montreal: [phone] Elsewhere in Canada and the US: 1-800-737-7174
CARE AND MAINTENANCE:
In case of a defective or damaged part, or for any other questions concerning the product, please contact the
manufacturer directly.
Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
ROOF PANELS:
Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
Rinse using a garden hose and air dry. If removed, ensure thoroughly dry prior to storage.
Do not use pressure washer.
STRUCTURE:
Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
Rinse using a garden hose and air dry.
Do not use pressure washer.
If there are nicks, chips, and/or scratches, go to your local hardware store or home center and obtain a closest match
touch-up paint suitable for outdoor metal use. Follow instructions that come with the paint.
WARNING:
For outdoor use.
Snow should be regularly cleared from the roof and not allowed to accumulate.
Retain your proof of purchase for warranty purposes. Also keep the original boxes
until the installation of the gazebo is complete and correct.
PRIOR TO ASSEMBLY:
The foundation must be level, flat, and solid, such as concrete or asphalt.
Keep away from overhead utility lines, tree branches, and other structures.
Check for underground pipes or wires if digging or drilling is required.
Do not install near roof lines or other structures that could shed snow, ice, or excessive rain run-off onto the carport.
Assemble the gazebo as close to its final location as possible.
It is recommended to wear safety gloves, safety glasses, and hard hats for installation.
Do not hang from, climb on, or stand on the structure or roof.
Before assembly, read instructions and check that all parts are present in the boxes. If any parts are missing, refer to
warranty information on pg 15.
A 6ft (1.8mm) stepladder, Phillips screwdriver, tape measure, level, mallet, and a tarp to place parts on will be required
for assembly (not included).
Remove top protective film from roof panels prior to assembly; DO NOT remove bottom protective film until
ready to insert roof panels, so as to identify which side is on top.
ANCHORING INSTRUCTIONS:
Proper anchoring of the frame to the base is required for safety.
Any structure not anchored securely has the potential to fly away during high wind causing damage and safety hazard.
How the item is anchored, and the hardware and tools required, will vary based upon the set up location and are not
provided. Please check with your local hardware store if for the appropriate anchors for your surface.
Do not anchor to pavers / pavement slabs because they are not a solid foundation.
Periodically check the anchors to ensure they remain secure.
Consult with your local governing authority / local municipal codes regarding installation of temporary structures before
purchase or assembly. Some jurisdictions may require permits for, or otherwise regulate, installation and use.

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 3
PART
QTY
DIAGRAM
PART
QTY
DIAGRAM
(16-023)
LEG
A
4
(16-035)
RIGHT ROOF
JOINT
E-1
4
(16-024)
BEAM, 10’ SIDE
B-1
2
(16-036)
CENTER ROOF
JOINT, 14’ SIDE
E-3
2
(16-025)
BEAM, 10’ SIDE
B-2
2
(16-037)
LEFT UPPER
CROSSBAR
F
4
(16-026)
BEAM, 14’ SIDE
B-5
2
(16-038)
RIGHT UPPER
CROSSBAR
F-1
4
(16-027)
BEAM, 14’ SIDE
B-6
2
(16-039)
CENTER UPPER
CROSSBAR, 14’
SIDE
F-3
2
(16-028)
REGULAR
RAFTER
C
6
(16-040)
LEFT LOWER
CROSSBAR
G
4
(16-029)
CORNER
RAFTER
C-1
3
(16-041)
RIGHT LOWER
CROSSBAR
G-1
4
(16-030)
CORNER
RAFTER
C-2
1
(16-042)
CENTER LOWER
CROSSBAR, 14’
SIDE
G-3
2
(16-031)
LEFT EDGING
D
4
(16-043)
FOOT PLATE
H
4
(16-032)
RIGHT EDGING
D-1
4
(16-044)
CORNER BRACE
I
4
(16-033)
CENTER
EDGING, 14’ SIDE
D-3
2
(16-045)
CORNER BRACE
I-1
4
(16-034)
LEFT ROOF
JOINT
E
4
(16-046)
CORNER BRACE
I-2
4

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 4
PART
QTY
DIAGRAM
PART
QTY
DIAGRAM
(16-047)
CORNER COVER
J
4
(15-040)
CURTAIN HOOKS
R
40
(16-048)
JOINT COVER
J-1
4
(16-057)
SCREEN
CURTAINS
S
2
(sold
separat
ely)
(11-655)
CORNER
BRACKET
K
4
(16-058)
SCREEN
CURTAINS
S-1
2
(sold
separat
ely)
(11-654)
RAFTER END
CAP
K-1
4
(16-059)
PRIVACY
CURTAINS
T
2
(sold
separat
ely)
(16-049)
CENTRAL HUB
L
1
(16-060)
PRIVACY
CURTAINS
T-1
2
(sold
separat
ely)
(16-050)
TOP CAP
M
1
(15-049)
BOLT AND
WASHER
U
57
M6x20mm
(16-051)
LEFT UPPER
ROOF PANEL
N
4
(16-061)
BOLT AND
WASHER
U-1
26
M6x12mm
(16-052)
RIGHT UPPER
ROOF PANEL
N-1
4
(16-062)
SCREW
V
64
M5x16mm
(16-053)
LEFT LOWER
ROOF PANEL
O
4
(15-050)
SQUARE HEAD
BOLT
W
30
M6x10mm
(16-054)
RIGHT LOWER
ROOF PANEL
O-1
4
(15-054)
ACORN NUT
W-1
30
M6
(16-055)
CENTER UPPER
ROOF PANEL, 14’
SIDE
P
2
(08-182)
10mm KEY
X
1
(16-056)
CENTER LOWER
ROOF PANEL, 14’
SIDE
P-1
2

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 5
STEP 01:
(Pieces: Ax4, Hx4)
(Hardware: Ux12)
1. a) Install the legs (A) onto the foot plates (H)
using 3 bolts (U) each.
STEP 02 (optional):
(Pieces: B-1 x2, B-2 x2, B-5 x2, B-6 x2)
(Hardware: Rx40)
NOTE: This step to be done only if curtains have also been
purchased.
2. Insert 4 curtain hooks (R) into each track on beams (B-1,
B-2) and 6 curtain hooks (R) into each track on beams (B-5,
B-6). The track closest to the beam is for privacy curtains,
the track furthest from the beam is for screen curtains. Make
sure the hooks point towards the inside of the gazebo.

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 6
STEP 03:
(Pieces: B-1 x2, B-2 x2, B-5 x2, B-6 x2)
(Hardware: U-1 x16)
3. a) Insert beam (B-1) into beam (B-2) and attach with 2 bolts
and washers (U-1).
b) Insert beam (B-5) into beam (B-6) and attach with 2 bolts
and washers (U-1).
c) Repeat for all beams.
STEP 04:
(Pieces: Ax4, B-1 x2, B-2 x2, B-5 x2, B-6 x2)
(Hardware: Ux24)
4. a) Install beams (B-5, B-6) between 2 legs (A), using at each
end 2 bolts and washers (U) on the inside and 1 bolt and
washer (U) on the outside.
b) Install beams (B-1, B-2) between the above sections, using
bolts and washers (U) as above.

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 7
STEP 05:
(Pieces: Jx4, J-1 x4)
(Hardware: Vx32)
5. a) Install the corner covers (J) using 4 screws (V) at each corner joint.
b) Install the joint covers (J-1) using 4 screws (V) at each beam joint.
STEP 06:
(Pieces: Ix4, I-1 x4, I-2 x4)
(Hardware: Ux8, Vx32)
6. a) Install corner brace (I) using 2 bolts and washers (U) at each
corner.
b) Install corner braces (I-1, I-2) using 8 screws (V) at each
corner.

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 8
STEP 07:
(Pieces: Cx6, C-1 x3, C-2 x1)
(Hardware: Wx20)
7. Insert 2 bolts (W) into the bottom of each rafter (C, C-1,
C-2) and slide them towards the center. These will be used
in Step 16.
STEP 08:
(Pieces: Lx1, C-1 x3, C-2 x1)
(Hardware: U-1 x4)
8. Install the 4 corner rafters (C-1, C-2) at each corner of
the central hub (L) using bolt and washer (U-1).
NOTE: Rafter (C-2) can be placed at any corner.

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 9
STEP 09:
(Hardware: Ux4)
9. a) Raise the roof structure assembled in step 8 and hold securely in place (i.e. use a
stepladder as support).
b) Secure the ends of each corner rafter (C-1, C-2) to the inside of each leg (A) using bolt
and washer (U).

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 10
STEP 10:
(Pieces: Cx6)
(Hardware: U x6, U-1 x6)
10. a) Attach each rafter (C) to the central hub (L) using 1 bolt and washer (U-1).
b) Attach the other end of each rafter (C) to the beams (B-1, B-2, B-5, B-6) using 1 bolt and
washer (U).

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 11
STEP 11:
(Pieces: Mx1)
(Hardware: U-1 x3)
11. Install the top cap (M) onto central hub (L) using 3 bolts and washers (U).
VIEWED FROM BELOW
VUE DU BAS

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 12
STEP 12:
(Pieces: Nx4, N-1 x4, Px2)
12. Insert the upper roof panels (N, N-1, P) into the top groove of the rafters (C, C-1, C-2) as per
the diagram. Start from one corner of the structure and go around until all panels are in.
NOTE: Each roof panel comes covered in protective film, one side of which is printed to show
it is UV-treated. Make sure that the UV-treated side faces the sun. The protective film should
only be removed just prior to installation, so as to know which side is which.
M-1
M

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 13
STEP 13:
(Pieces: Ex4, E-1 x4, E-3 x2)
13. Insert the roof joints (E, E-1, E-3) against the upper roof panels (N, N-1, P), with the ends in
the bottom groove of the rafters (C, C-1, C-2) as per the diagram. Start from one corner of the
structure and go around until all roof joints are completely inserted against the upper roof
panels.

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 14

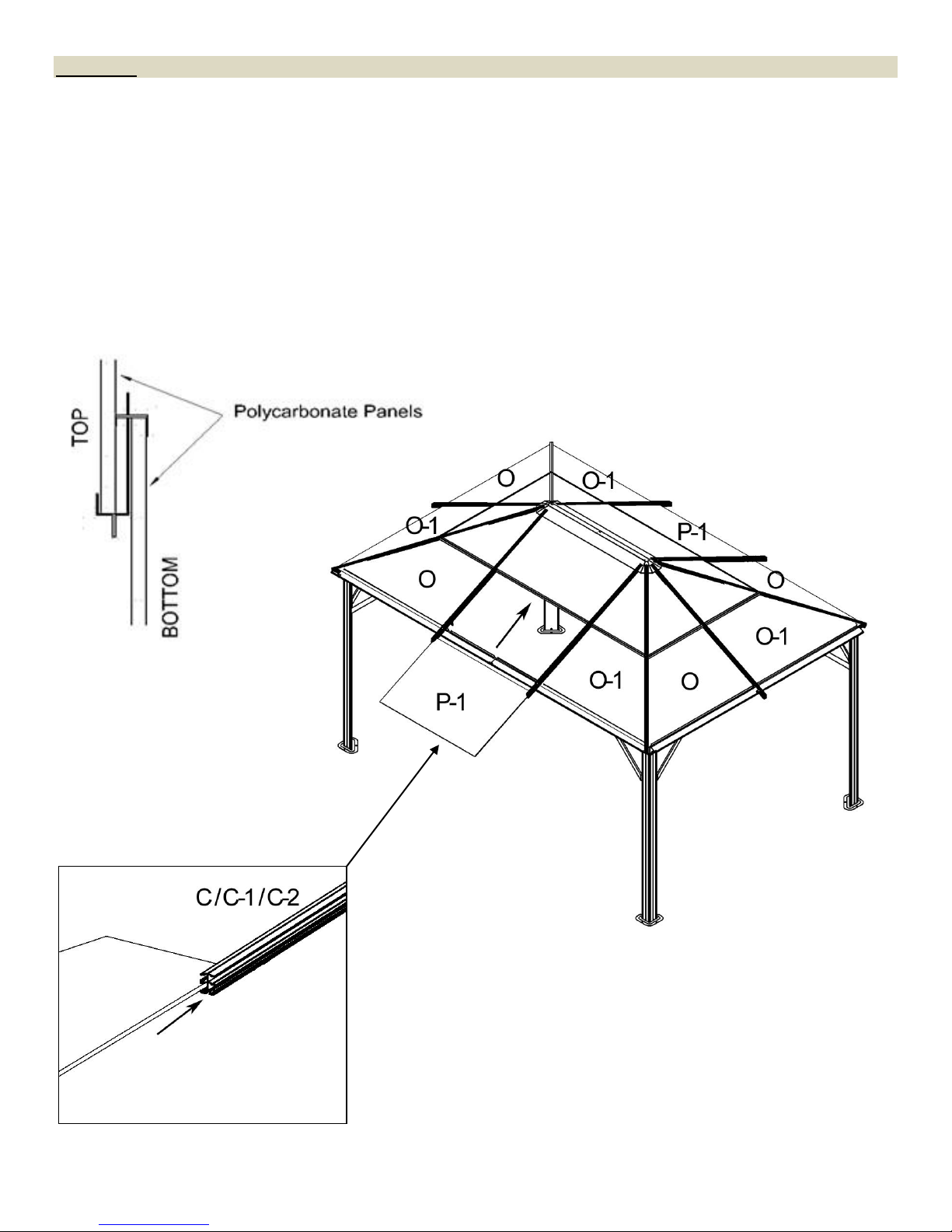

STEP 14:
(Pieces: Ox4, O-1 x4, P-1 x2)
14. Insert the lower roof panels (O, O-1, P-1) into the bottom groove of the rafters (C, C-1, C-2) as
per the diagram. Start from one corner of the structure and go around until all panels are
completely in the roof joints.
NOTE: Each roof panel comes covered in protective film, one side of which is printed to show
it is UV-treated. Make sure that the UV-treated side faces the sun. The protective film should
only be removed just prior to installation, so as to know which side is which.

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 15
STEP 15:
(Pieces: Dx4, D-1 x4, D-3 x2, Kx4, K-1 x6)
(Hardware: Wx10, W-1 x10)
15. a) Starting in one corner, insert a bolt (W) into the bottom slot of the rafter, install the end of
an edging (D or D-1), and hold in place with acorn nut (W-1).
b) Go around the gazebo, inserting a bolt (W) at each rafter and installing the end of the
previous edging plus one end of the next edging, and secure with either a rafter cap (K-1) or
corner bracket (K), and an acorn nut (W-1).
c) When reaching the final edging, remove the acorn nut (W-1) from the first corner, install
the end of the final edging and a corner bracket (K), and re-secure the acorn nut.

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 16
STEP 16:
(Pieces: Fx4, F-1 x4, F-3 x2, Gx4, G-1 x4, G-3 x2)
(Hardware: W-1 x20)
16. a) Starting in one corner, locate the bolts (W) previously inserted into the bottom slot of the
rafter during Step 7, install the end of an upper crossbar (F or F-1) onto the higher bolt, and
hold in place with acorn nut (W-1).
b) Go around the gazebo, locating a bolt (W) at each rafter and installing the end of the
previous crossbar plus one end of the next crossbar, and secure with an acorn nut (W-1).
Slide the bolts (W) up and down the rafter as needed to properly position the crossbars.
c) When reaching the final upper crossbar, remove the acorn nut (W-1) from the first corner,
install the end of the final upper crossbar, and re-secure the acorn nut.
d) Repeat steps a) to c) for the lower crossbars (G, G-1, G-3).

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 17
STEP 17 (optional):
(Pieces: Sx2, S-1 x2, Tx2, T-1 x2)
NOTE: This step to be done only if curtains have also been purchased.
17. Hang each piece of the screen curtain (S, S-1) and/or privacy curtain (T, T-1) from the hooks
(R) installed in Step 2, such that the curtain tie aligns with the leg (A), as shown below. When
not in use, the curtains may be gathered and tied around the legs.
NOTE: If both screen and privacy curtains are being installed, ensure that the privacy curtains
are on the outside.
FINAL NOTES (IMPORTANT):
Make sure all screws and bolts are tightened.
If conditions are windy, you may have to add cable guides at the corners and secure or temporarily
remove the curtains, if any.

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 18
MAINTENANCE NOTES
1. In case of a defective or damaged part, or for any other questions concerning the product, please
contact the manufacturer directly.
2. Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
3. The product should not be installed adjacent to trees or a sloped roof. Snow and ice may slide onto the
roof and cause it to collapse.
4. While the product is designed for 4 seasons use, the snow must be cleared from the roof on a regular
basis.
ONE YEAR LIMITED WARRANTY
This product has been designed and manufactured to meet the highest standards of quality and durability.
Subject to the Conditions for Exercising the Warranty and the Limitations on the Warranty set forth below, it is
warranted to be free of material and manufacturing defects for a period of one year from the date of purchase.
Should the product become damaged, or the warranty period has expired, please contact Gazebo Penguin
Customer Service Department for a complete schedule of replacement parts and prices.
CONDITIONS FOR EXERCISING THE WARRANTY
In order to properly exercise your warranty, please comply with the following:
Retain your proof of purchase and the original boxes, as these may be required for any warranty
claim. Carefully inspect the contents of the carton for missing or damaged components. Should you
discover damaged or missing parts, do not return the product to the place of purchase, but contact
Gazebo Penguin Customer Service Department at the numbers listed below (English, French &
Spanish, Mon-Fri 8:00AM to 4:00PM EST):
Montreal: [phone]
Elsewhere in Canada and the US: 1-800-737-7174
NOTE: Damages/missing parts must be reported within 30 days of delivery.
LIMITATIONS ON THE WARRANTY
1. The product is not warranted against damages due to vandalism, abuse, or falling or thrown objects.
2. The product is not warranted against damages due to extreme weather conditions, such as
thunderstorms, hail, strong wind or snow storms, or any other acts of God.
3. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s
written instructions enclosed with the product.
4. The product is not warranted in the event it has been improperly anchored.
5. We reserve the right to replace or repair any defective product or parts at our discretion.

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 19
Dimensions:
Global: 10 pi profond x 14 pi large x 8 pi 7 po haut (305cm x 427cm x 261cm)
Outils requis (pas inclus):
Escabeau 6pi (1.8m), tournevis Phillips, niveau, mètre à ruban, maillet, gants, lunettes, et casque de
sécurité, une bâche pour placer les pièces durant l’assemblage
GAZEBO MARSEILLES 10x14
(MODÈLE # 456201)
GUIDE D’INSTALLATION

456201.MARSEILLES 10X14.160209.GP.ENG.FR.HOM HOM-HP 20
10pi x 14pi / 3.05m x 4.27m Gazebo
Guide d’installation
IMPORTANT: GARDEZ POUR RÉFÉRENCE FUTURE, LISEZ ATTENTIVEMENT
Pour assistance avec l’assemblage, l’installation, pièces, et service à la clientèle, appelez Gazebo Penguin aux
numéros ci-dessous (Anglais et Français, Lun-Ven 8:00 à 16:00 HNE):
Montréal: [phone] Ailleurs au Canada et les États-Unis: 1-800-737-7174
NOTES D’ENTRETIEN:
En cas de pièce défectueuse ou endommagée, ou pour toute autre question concernant le produit, veuillez contacter le
manufacturierdirectement.
Veuillez avoir les numéros de pièces et la liste de pièces en main quand vous commandez les pièces de remplacement.
PANNEAUX DU TOIT:
Nettoyez doucement avec de l’eau et du savon écologiquement sain, avec une éponge ou une débarbouillette.
N’utilisez pas de matériel abrasif, brosses métalliques, produits chimiques ou javellisant, ou détergents sévères.
Rincez avec un tuyau d’arrosage et sécher à l’air. Si démontés, assurer que les panneaux soient complètement secs
avant l’entreposage.
N’utilisez pas de nettoyeur à haute pression.
STRUCTURE:
Nettoyez doucement avec de l’eau et du savon écologiquement sain, avec une éponge ou une débarbouillette.
N’utilisez pas de matériel abrasif, brosses métalliques, produits chimiques ou javellisant, ou détergents sévères.
Rincez avec un tuyau d’arrosage et sécher à l’air.
N’utilisez pas de nettoyeur à haute pression.
S’il y a des entailles et/ou des égratignures, obtenez de votre magasin de quincaillerie ou centre maison local de la
peinture de retouche bonne pour le métal et l’extérieur. Suivez les instructions qui viennent avec la peinture.
AVERTISSEMENT:
Pour usage a l’extérieur.
La neige devrait être régulièrement enlevée du toit, et ne devrait pas être laissée à accumuler.
Gardez votre preuve d’achat pour votre garantie. Gardez aussi les boites originales jusqu'à
ce que l’installation du gazebo soit complété et correct.
AVANT L’ASSEMBLAGE:
La fondation devrait être plate, solide, et à niveau, par exemple en ciment ou en asphalte.
Gardez loin des lignes électriques, branches d’arbres, et autres structures en surplomb.
Vérifiez pour les tuyaux ou câbles souterraines s’il est nécessaire de creuser ou de percer des trous.
N’installez pas près des toits ou autres structures où la neige, la glace, ou l’eau de pluie excessive peuvent tomber sur
l’abri.
Faites l’assemblage de l’abri aussi près de l’emplacement final que possible.
Il est recommandé de porter des gants, des lunettes, et des casques de sécurité pour l’installation.
Ne pas vous suspendre de la structure ou du toit, ni grimper ou marcher dessus.
Avant l’assemblage, lisez attentivement les instructions et vérifiez que toutes les pièces soient présentes dans les
boites. S’il y a des pièces manquantes, voir l’information sur la garanti à la page 15.
Un escabeau de 6pi (1.8m), tournevis Phillips, mètre à ruban, niveau, maillet, et une bâche pour placer les pièces seront
requises pour l’assemblage (non incluses).
Retirer le film protecteur du haut des panneaux de toit avant l’assemblage; NE RETIRER PAS le film protecteur
du bas avant l’insertion des panneaux, pour pouvoir différencier le haut et le bas.
INSTRUCTIONS POUR L’ANCRAGE DE L’ABRI:
L’ancrage approprié de la structure est nécessaire pour la sécurité.
Toute structure qui n’est pas ancré correctement peut s’envoler dans les vents forts, causant des dommages et des
risques de sécurité.
La méthode d’ancrage, et la quincaillerie et outils requises, dépendra de la location de l’installation et ne sont pas
incluses. Veuillez vérifier avec votre magasin de quincaillerie local pour les ancrages appropriés.
N’ancrez pas la structure à des pavés ou des dalles, car ceux-ci ne sont pas une fondation solide.
Vérifiez périodiquement pour assurer que les ancrages restent sécurisés.
Consultez avec votre gouvernement ou municipalité locale concernant l’installation de structures temporaires avant
l’achat ou l’assemblage. Certaines juridictions peuvent requérir un permit, ou autrement règlementer, leur installation et
utilisation.
