Gazebo penguin W12091/2MR-12 User manual

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 1
W1209½MR-12 SAND
W1209½MR-32 SLATE
ASSEMBLY INSTRUCTIONS
10 X 12 SOLARIUM
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
FOR FUTURE REFERENCE,
TAKE PICTURES OF ALL SIX SIDES OF EACH OF THE BOXES UPON RECEIPT.
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
Assembly by two or three adults is suggested.
Requires 96” clearance at the wall
Base Dimensions 144’’x 118’’,
Largest Dimensions 144’’x122’’ (see pg.22)
APPROX.

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 2
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
FOR FUTURE REFERENCE,
TAKE PICTURES OF ALL SIX SIDES OF EACH OF THE BOXES UPON RECEIPT.
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
10ft x 12ft / 3.05m x 3.66m Solarium
Instruction Manual
IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY
For assistance with assembly, installation, parts, or customer service, contact Gazebo Penguin Customer
Service Department at the numbers listed below (English & French, Mon-Fri 8:00 AM to 4:00 PM EST):
Montreal: [phone] Elsewhere in Canada and the US: 1-800-737-7174
WARNING:
For outdoor use.
Snow should be regularly cleared from the roof and not allowed to accumulate.
Retain your proof of purchase for warranty purposes. Also keep the original boxes
until the installation is complete and correct.
The unit may take more than 4 hours and 3 people are required for this assembly.
PRIOR TO ASSEMBLY:
Please don't destroy boxes until completely assembled.
The foundation must be level, flat, and solid, such as concrete or asphalt.
Keep away from overhead utility lines, tree branches, and other structures.
Check for underground pipes or wires if digging or drilling is required.
Do not install near roof lines or other structures that could shed snow, ice, or excessive rain run-off onto the roof top.
Assemble the structure as close to its final location as possible.
It is recommended to wear safety gloves, safety glasses, and hard hats for installation.
Do not hang from, climb on, or stand on the structure or roof.
Before assembly, read instructions and check that all parts are present in the boxes. If any parts are missing, refer to warranty
information.
A 6ft (1.8m) stepladder, Phillips screwdriver, tape measure, level, mallet, and a tarp to place parts on will be required for
assembly (not included).
Remove top protective film from roof panels prior to assembly; DO NOT remove bottom protective film until ready to insert roof
panels, so as to identify which side is on top.
ANCHORING INSTRUCTIONS:
Proper anchoring of the frame to the base and the wall is required for safety.
Any structure not anchored securely has the potential to fly away during high wind causing damage and safety hazard.
How the item is anchored, and the hardware and tools required, will vary based upon the set up location and are not provided.
Please check with your local hardware store if for the appropriate anchors for your surface.
Do not anchor to pavers / pavement slabs because they are not a solid foundation.
Periodically check the anchors to ensure they remain secure
CARE AND MAINTENANCE:
In case of a defective or damaged part, or for any other questions concerning the product, please contact the manufacturer
directly.
Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
ROOF PANELS:
Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
Rinse using a garden hose and air dry. If removed, ensure thoroughly dry prior to storage.
Do not use pressure washer.
STRUCTURE:
Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
Rinse using a garden hose and air dry.
Do not use pressure washer.
If there are nicks, chips, and/or scratches see the part # of the paint in the parts list to obtain a matching touch-up paint.
Consult with your local governing authority / local municipal codes regarding installation of temporary structures before
purchase or assembly. Some jurisdictions may require permits for, or otherwise regulate, installation and use.

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 3
MAINTENANCE NOTES
1. In case of a defective or damaged part, or for any other questions concerning the product, please
contact the manufacturer directly.
2. Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
3. The product should not be installed adjacent to trees or a sloped roof. Snow and ice may slide onto the
roof and cause it to collapse.
4. While the product is designed to stay assembled year long, the roof must be kept free of accumulation
of snow.
ONE YEAR LIMITED WARRANTY
This product has been designed and manufactured to meet the highest standards of quality and durability.
Subject to the Conditions for Exercising the Warranty and the Limitations on the Warranty set forth below, it is
warranted to be free of material and manufacturing defects for a period of one year from the date of purchase.
Missing and damage due to transportation is not covered by the manufacture warranty. Should the product
become damaged, or the warranty period has expired, please contact Gazebo Penguin Customer Service
Department for a complete schedule of replacement parts and prices.
CONDITIONS FOR EXERCISING THE WARRANTY
The warranty only applies to the original purchaser with the bill.
In order to properly exercise your warranty, please comply with the following:
Carefully inspect the contents of the carton for missing or damaged components. Should you discover
damaged or missing parts, do not return the product to the place of purchase, but contact Gazebo
Penguin Customer Service Department at the numbers listed below:
Montreal: [phone] Elsewhere: 1-800-737-7174
You can also find a claim form to fill out online:
https://abrispenguin.com/assemblyinstructions/
NOTE: Damages/missing parts must be reported within 30 days of delivery. If claimed after your
request might be rejected.
LIMITATIONS ON THE WARRANTY
1. The product is not warranted against damages due to vandalism, abuse, falling or thrown objects, or
accumulation of snow.
2. The product is not warranted against damages due to extreme weather conditions, such as
thunderstorms, hail, strong wind or snow storms, or any other acts of God.
3. Leaking due to heavy rain may happen, please refer to the instruction manual for window positions and
information on how to evacuate the water.
4. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s written
instructions enclosed with the product.
5. The product is not warranted in the event it has been improperly anchored.
6. We reserve the right to replace or repair any defective product or parts at our discretion.
7. No change to the unit is allowed. This will void your warranty.

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 4

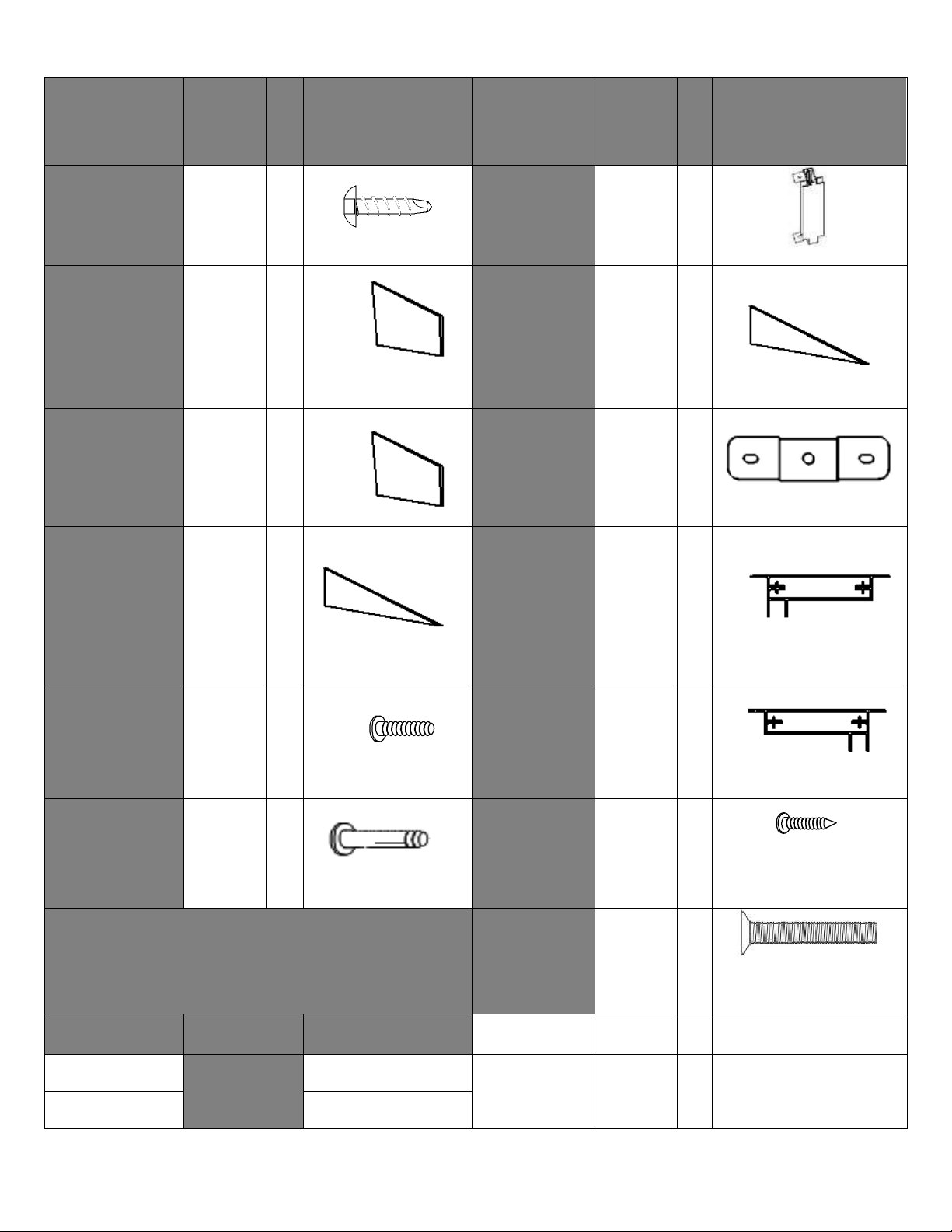

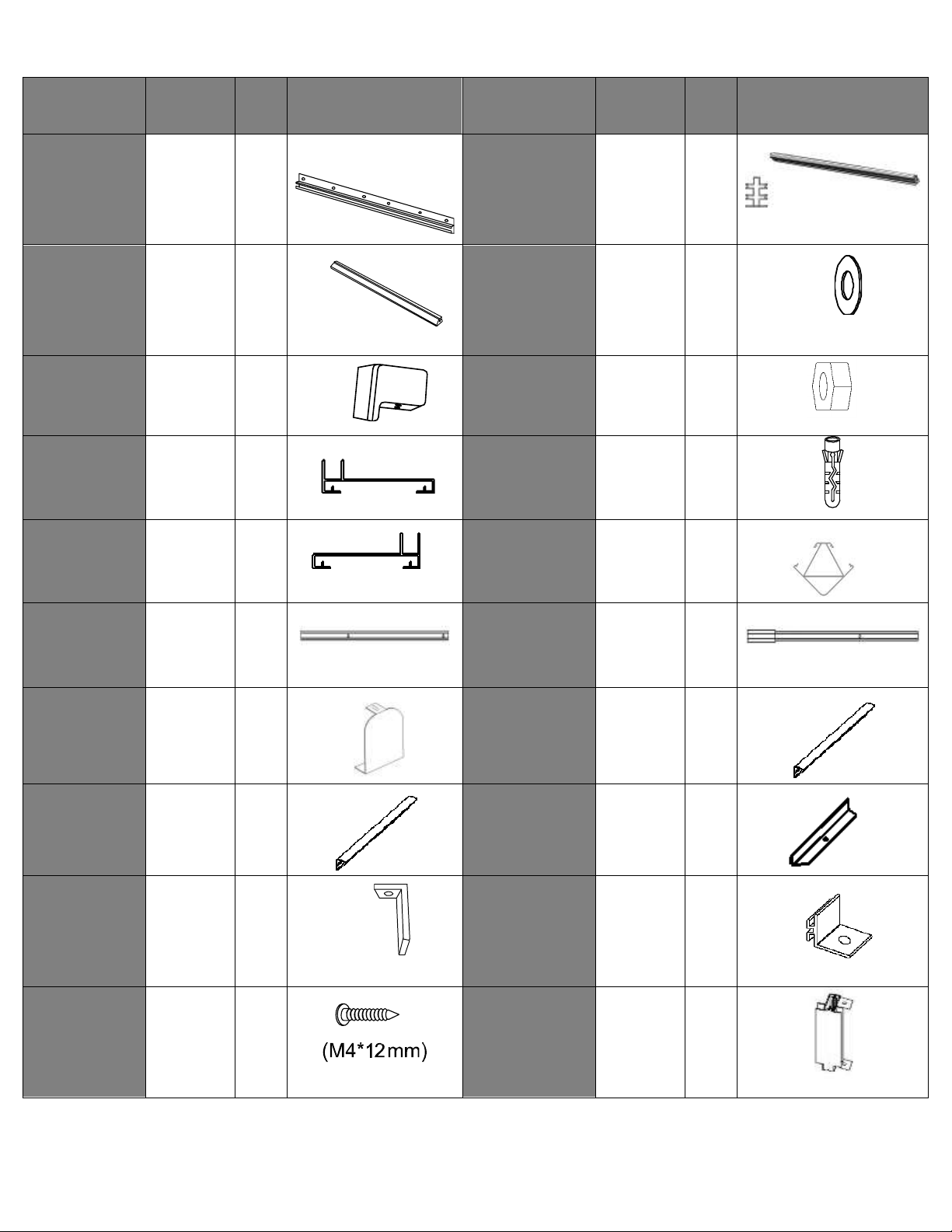

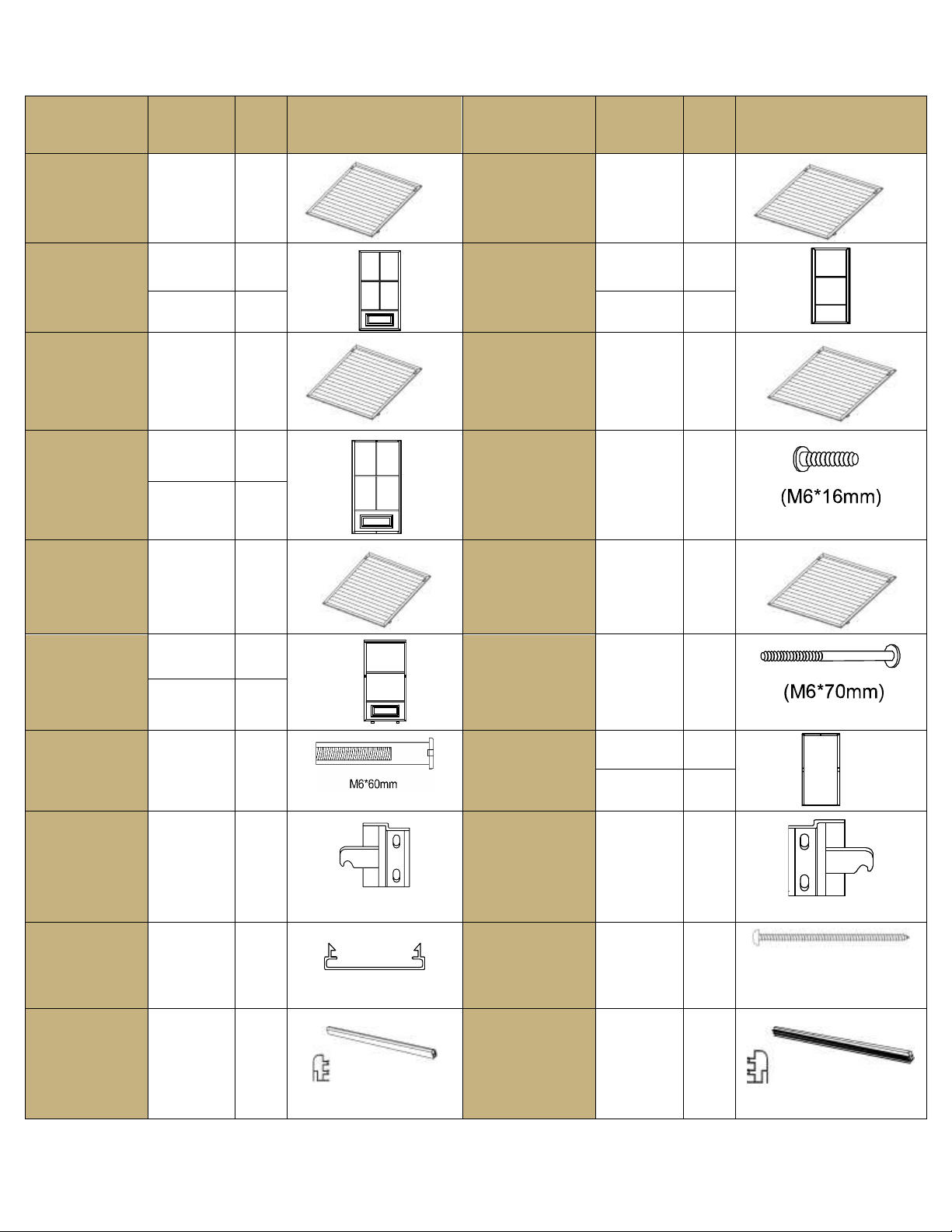

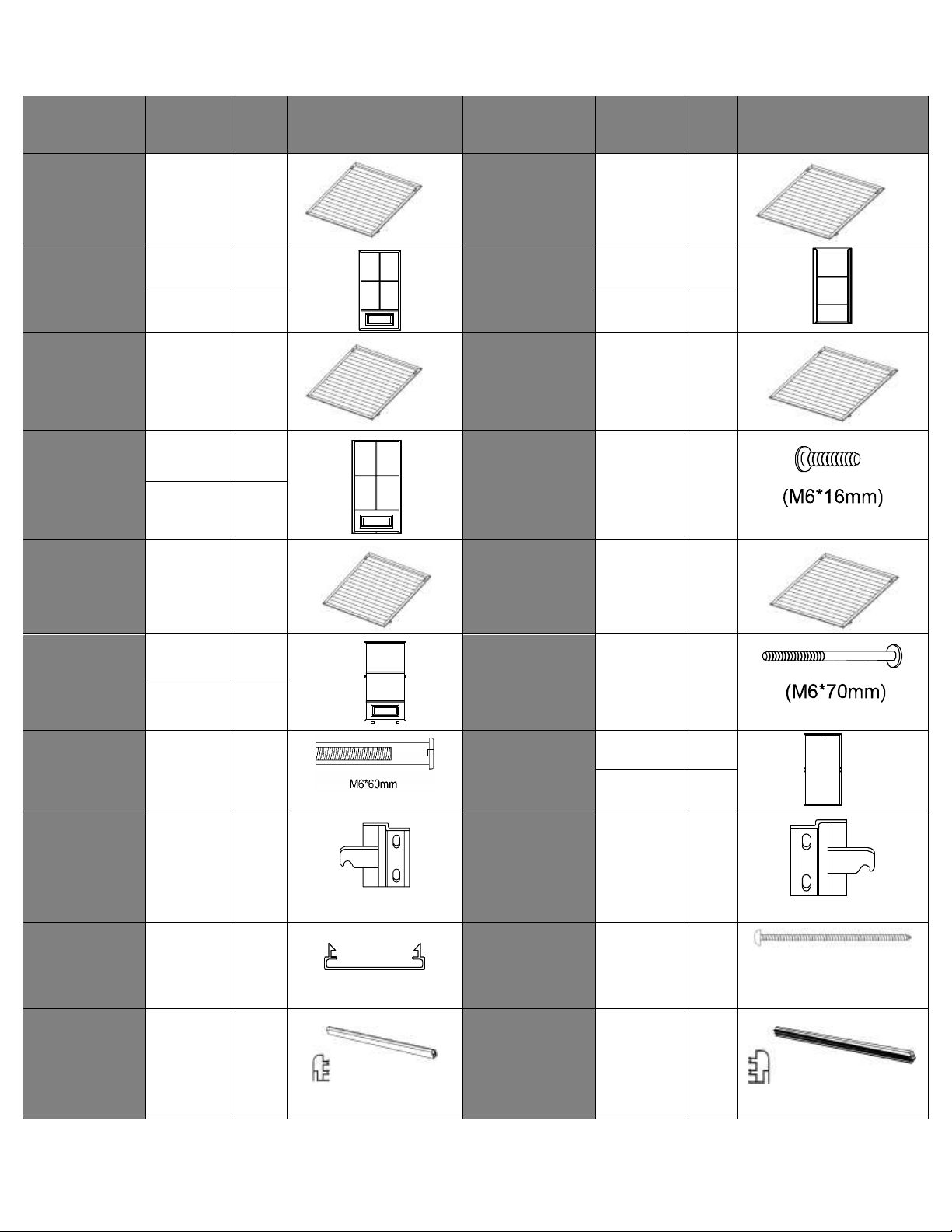

SOLARIUM W1209 ½ MR SAND (see page 7 for Slate parts)
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
19-054-12
ROOF PANEL
(47.1 x 43.7)
A
1
2
19-062-12
ROOF PANEL
(45.6”x 43.7”)
A1
1
1
10-496-12
REGULAR
FRAME
A-3
3
2
12-141-12
HALF FRAME
A-3 1/2
3
1
4
1
4
1
19-063-12
ROOF PANEL
(47.1 x 43.7)
B
1
2
19-064-12
ROOF PANEL
(45.6”x 43.7”)
B1
2
1
10-497-12
FRAME NEXT
TO DOOR
B-3
(Has more
holes)
3
1
08-158-12
BOLT
Bb-3
5
42
4
1
19-065-12
ROOF PANEL
(47.2”x 43.7”)
C
2
2
19-066-12
ROOF PANEL
(45.7”x 43.7”)
C1
2
1
10-498-12
SLIDING
DOOR
C-3
3
1
08-161-12
BOLT
Cc-3
5
18
4
1
12-037-12
FEMALE
BOLT
Cc-3-2
5
12
10-499-12
SLIDING DOOR
FRAME
D-3
3
1
4
1
08-169-12
LEFT DOOR
LATCH
Dd-L-3
5
2
08-165-12
RIGHT DOOR
LATCH
Dd-R-3
5
2
11-544-12
CONNECTING
PIECE
E-3
5
12
19-052-12
SCREW
Ee-3
5
14
(M6*63.5mm)
19-074-12
LEFT
ROOF BAR
(124”)
F
5
1
19-075-12
RIGHT
ROOF BAR
(124”)
F1
5
1

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 5
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
11-545-12
TOP DOOR
RAIL
(89.7”)
F-3
5
2
19-076-12
REGULAR
ROOF BAR
(124”)
G
5
2
11-546-12
BOTTOM
DOOR RAIL
(88.5”)
G-3
5
2
08-187
WASHER
Gg-3
5
24
08-138-12
PLASTIC
STOPPER
H-3
5
4
12-161
NUT
Hh-3
5
4
12-142-12
LEFT SIDE
RECEIVER
I-3
5
1
08-193-12
PLASTIC PLUG
Ii-3
5
14
12-143-12
RIGHT SIDE
RECEIVER
J-3
5
1
10-502-12
CORNER
CONNECTOR
K-3
5
2
19-041-12
LEFT
CROSSBEAM
(59.8”) L-1
5
1
19-042-12
RIGHT
CROSSBEAM
(83”)L-2
5
1
19-043-12
ROOF
RAFTER CAP
M
5
4
19-039-12
WALL TRACK
(72.5”)
ML-3
5
1
19-038-12
WALL TRACK
(72.5”)
MR-3
5
1
10-505-12
TRACK JOINT
N-3
5
1
08-134-12
UPPER DOOR
RAIL END
CAP
Nn
5
4
10-506-12
RAFTER
BRACKET
O-3
5
2
08-135-12
SCREW
Oo-3
5
4
19-048-12
LEFT GABLE
JOINT
P-3
5
1

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 6
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
13-045-12
SELF-TAPPING
SCREW
PQ-3
5
4
19-049-12
RIGHT GABLE
JOINT
Q-3
5
1
19-077
LEFT BACK
GABLE PANEL
Rr-3
3
1
19-078
LEFT FRONT
GABLE
PANEL
Ss-3
3
1
19-079
RIGHT BACK
GABLE PANEL
Tt-3
3
1
15-125-12
MOUNTING
BRACKET
U-3
(ASSEMBLED ON
ROOF BAR G)
5
2
19-080
RIGHT FRONT
GABLE PANEL
Uu-3
3
1
19-050-12
LEFT WALL
GUIDE
(93.5”)
Vv-3
5
1
12-047-12
BOLT
Ww
5
12
M5*15mm
19-051-12
RIGHT WALL
GUIDE
(93.5”)
Ww-3
5
1
10-529-12
SCREW FOR
FIXING TO
WALL
Xx-3
5
18
08-156-12
SCREW
Z-3
5
8
M4*16mm
*NOT INCLUDED IN THE BOX
21-040-12
BOLT
Cc-3-1
5
4
M6*70mm
DESCRIPTION
COLOUR
PART #
SPRAY PAINT
SAND
11-699
PAINT PEN
18-245

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 7
SOLARIUM W1209 ½ MR SLATE
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
19-054-32
ROOF PANEL
(47.1 x 43.7)
A
1
2
19-062-32
ROOF PANEL
(45.6”x 43.7”)
A1
1
1
10-496-32
REGULAR
FRAME
A-3
3
2
12-141-32
HALF FRAME
A-3 ½
3
1
4
1
4
1
19-063-32
ROOF PANEL
(47.1 x 43.7)
B
1
2
19-064-32
ROOF PANEL
(45.6”x 43.7”)
B1
2
1
10-497-32
FRAME NEXT
TO DOOR
B-3
(Has more
holes)
3
1
08-158-32
BOLT
Bb-3
5
42
4
1
19-065-32
ROOF PANEL
(47.2”x 43.7”)
C
2
2
19-066-32
ROOF PANEL
(45.7”x 43.7”)
C1
2
1
10-498-32
SLIDING
DOOR
C-3
3
1
08-161-32
BOLT
Cc-3
5
18
4
1
12-037-32
FEMALE
BOLT
Cc-3-2
5
12
10-499-32
SLIDING DOOR
FRAME
D-3
3
1
4
1
08-169-32
LEFT DOOR
LATCH
Dd-L-3
5
2
08-165-32
RIGHT DOOR
LATCH
Dd-R-3
5
2
11-544-32
CONNECTING
PIECE
E-3
5
12
19-052-32
SCREW
Ee-3
5
14
(M6*63.5mm)
19-074-32
LEFT
ROOF BAR
(124”)
F
5
1
19-075-32
RIGHT
ROOF BAR
(124”)
F1
5
1

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 8
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
11-545-32
TOP DOOR
RAIL
(89.7”)
F-3
5
2
19-076-32
REGULAR
ROOF BAR
(124”)
G
5
2
11-546-32
BOTTOM
DOOR RAIL
(88.5”)
G-3
5
2
08-187
WASHER
Gg-3
5
24
08-138-32
PLASTIC
STOPPER
H-3
5
4
12-161-32
NUT
Hh-3
5
4
12-142-32
LEFT SIDE
RECEIVER
I-3
5
1
08-193-32
PLASTIC PLUG
Ii-3
5
14
12-143-32
RIGHT SIDE
RECEIVER
J-3
5
1
10-502-32
CORNER
CONNECTOR
K-3
5
2
19-041-32
LEFT
CROSSBEAM
(59.8”) L-1
5
1
19-042-32
RIGHT
CROSSBEAM
(83”)L-2
5
1
19-043-32
ROOF
RAFTER CAP
M
5
4
19-039-32
WALL TRACK
(72.5”)
ML-3
5
1
19-038-32
WALL TRACK
(72.5”)
MR-3
5
1
10-505-32
TRACK JOINT
N-3
5
1
08-134-32
UPPER DOOR
RAIL END
CAP
Nn
5
4
10-506-32
RAFTER
BRACKET
O-3
5
2
08-135-32
SCREW
Oo-3
5
4
19-048-32
LEFT GABLE
JOINT
P-3
5
1

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 9
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
13-045-32
SELF-TAPPING
SCREW
PQ-3
5
4
19-049-32
RIGHT GABLE
JOINT
Q-3
5
1
19-077
LEFT BACK
GABLE PANEL
Rr-3
3
1
19-078
LEFT FRONT
GABLE
PANEL
Ss-3
3
1
19-079
RIGHT BACK
GABLE PANEL
Tt-3
3
1
15-125-32
MOUNTING
BRACKET
U-3
(ASSEMBLED ON
ROOF BAR G)
5
2
19-080
RIGHT FRONT
GABLE PANEL
Uu-3
3
1
19-050-32
LEFT WALL
GUIDE
(93.5”)
Vv-3
5
1
12-047-32
BOLT
Ww
5
12
M5*15mm
19-051-32
RIGHT WALL
GUIDE
(93.5”)
Ww-3
5
1
10-529-32
SCREW FOR
FIXING TO
WALL
Xx-3
5
18
08-156-32
SCREW
Z-3
5
8
M4*16mm
*NOT INCLUDED IN THE BOX
21-040-32
BOLT
Cc-3-1
5
4
M6*70mm
DESCRIPTION
COLOUR
PART #
SPRAY PAINT
SLATE
18-125
PAINT PEN
18-126

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 10

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 11
TOOLS REQUIRED:
Screwdriver (Philips #2)
Knife
File (smooth)
Needle-nosed pliers
Rubber mallet
Step ladder (minmum 6' in height)
Spatula
Power drill
Tube of silicon
Drill bit 5/16" cement
(according to surface)
Round file + flat
2”x4”x8” wood
BEFORE STARTING:
Ensure that you have a solid base,
such as concrete or wooden deck,
not slanted more than 1” per 8’. Avoid
installing unit adjacent to trees or a sloped
roof, as snow and ice may slide onto the
solarium and cause it to collapse.
Please don't destroy boxes until completely assembled.

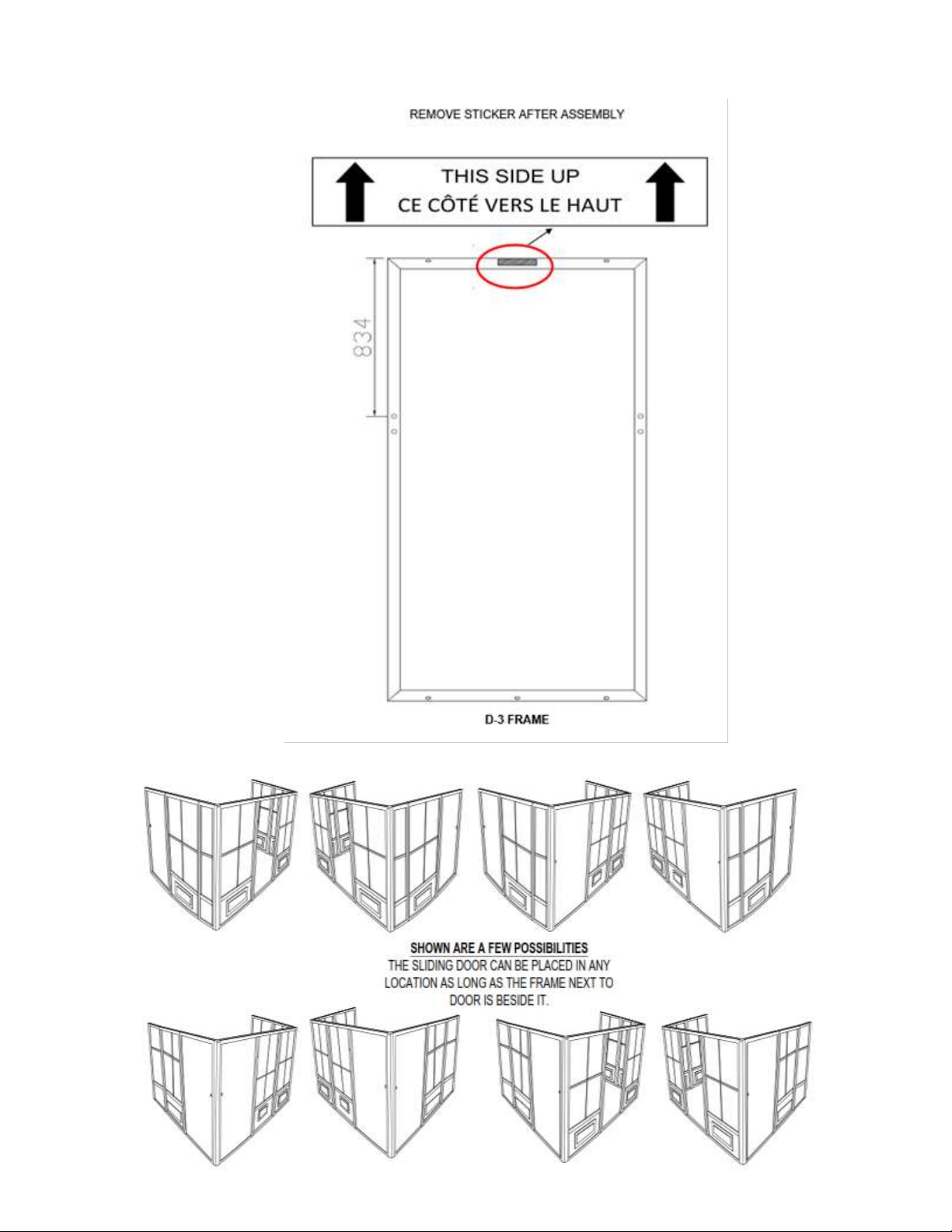

STEP #1
Decide the position of the door frames before assembly according to where you intend to slide the
door. At the front of the solarium, use frame D3 for the opening of the door and B3 for the direction
of the door when open. Ensure frames A-3 ½ are at the front of the sides. Use E3 between frame
ends and use two (2) K3 joints for corners, with the screw hole upward.
Look for the sticker that will show you which side is up. (See sketches on page 7)
NOTE: When sliding the connectors, shake the frame so that they will slide easily. Do not use tools to
force. If needed, clean the paint with a file and make sure the ends of the frame and joints are not bent
or warped. If so, use the needle-nosed pliers to straighten.
STEP #2
Slide the vertical guides Vv-3 left and Ww-3 right
into the 2 ends of the frames along the grooves,
shaking while sliding for easier movement.

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 12
ASSEMBLE PIECES
BEFORE SCREWING
THEM TO THE WALL
STEP #4
Set polycarbonate exposed side on the outside over horizontal left guide I-3, use one (1) Rr-3
panel, one (1) P-3 joint and one (1) Ss-3 panel, then do the right side with one (1) Tt-3 panel, one
(1) Q-3 joint and one (1) Uu-3 panel over the J-3 horizontal guide. Secure P-3 and Q-3 to I-3 and J-
3 respectively with self-tapping screws (PQ-3).
STEP #3
Assemble ML-3, O-3, N-3, and MR-3 as shown
and position evenly above vertical guides, at 96’’
from the ground. Secure wall track and vertical
tracks to brick or cement wall by drilling through
the aluminum, at intervals of 16”(minimum) and
using screws Xx-3. Insert the 2 horizontal guides,
I3 & J3 at the top of the frame. Make sure the 2
frames are at the correct level, if not, use shims to
compensate. Do not use tools to force.
NOTE:
Once the wall track is in place,
apply silicon along the top of
the wall track and at the joint
of the two tracks.
Silicon is not supplied.

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 13
STEP #5

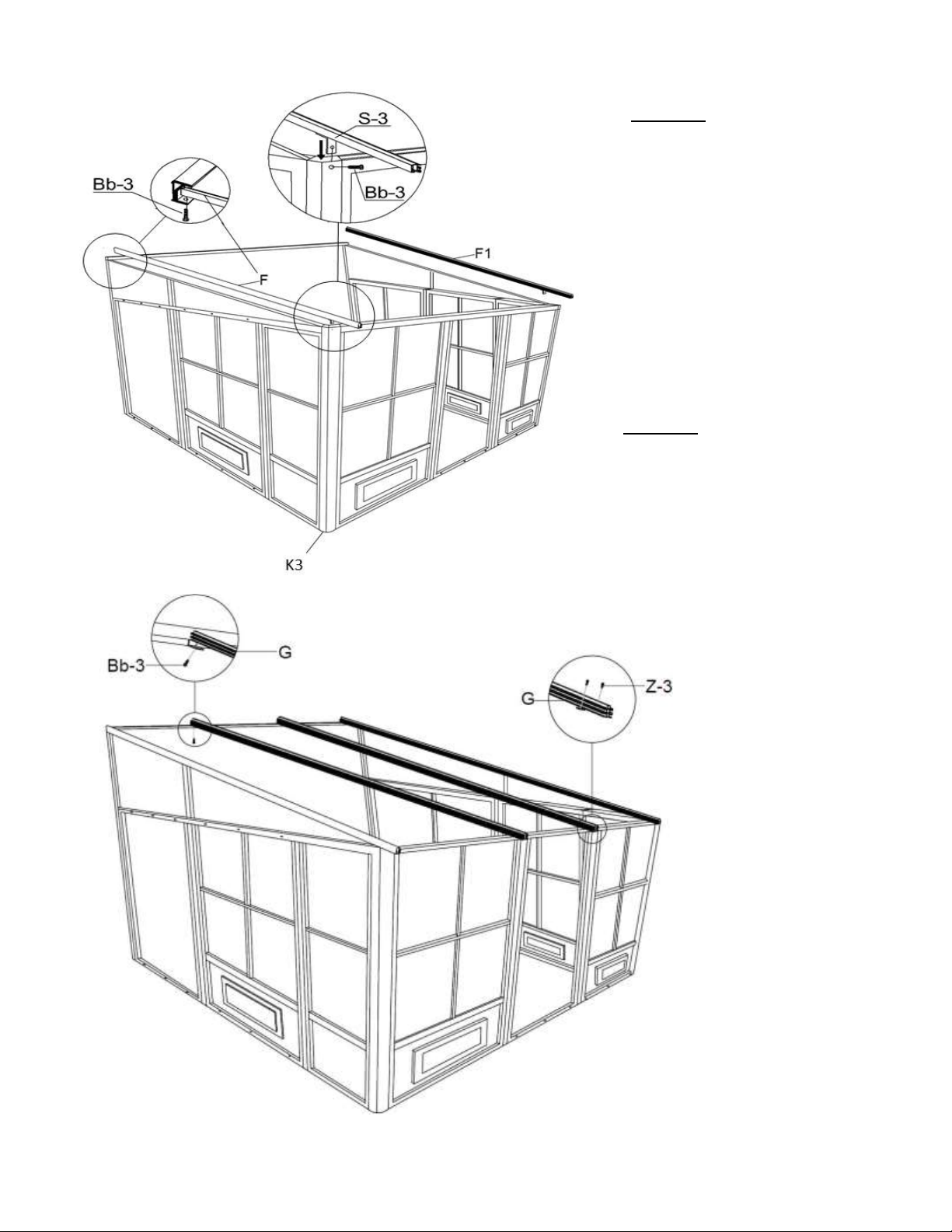

Set left rafter F over last bracket
then secure it with Bb-3 screw and
continue screwing through joint K-3
with the Bb-3 screw. Secure to Q-3
bracket with self-tapping screw
(PQ-3).Repeat on right side with
rafter F1.
STEP #6
Set G rafters over the bracket with
Bb-3 screws at the top and two (2)
Z-3 screws over the preset
brackets on the rafters.
Set G rafter on each joint and use
Z-3 screws manually. Do not use
power drill to screw Z-3.

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 14
STEP #7
DOOR UNIT(S) MUST BE
ASSEMBLED INSIDE OF
SOLARIUM.
Slide upper door track F-3 into
wheels of sliding door C-3. Slide
lower door track G-3 and make
sure inserts are close enough to
the frame to attach. Use bolt
Bb-3 to affix the plastic stopper
H-3 on each end of top door rail
F-3. Use Oo-3 screws to affix
upper door rail and cap Nn, at
each end of top rail door.

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 15
STEP #8

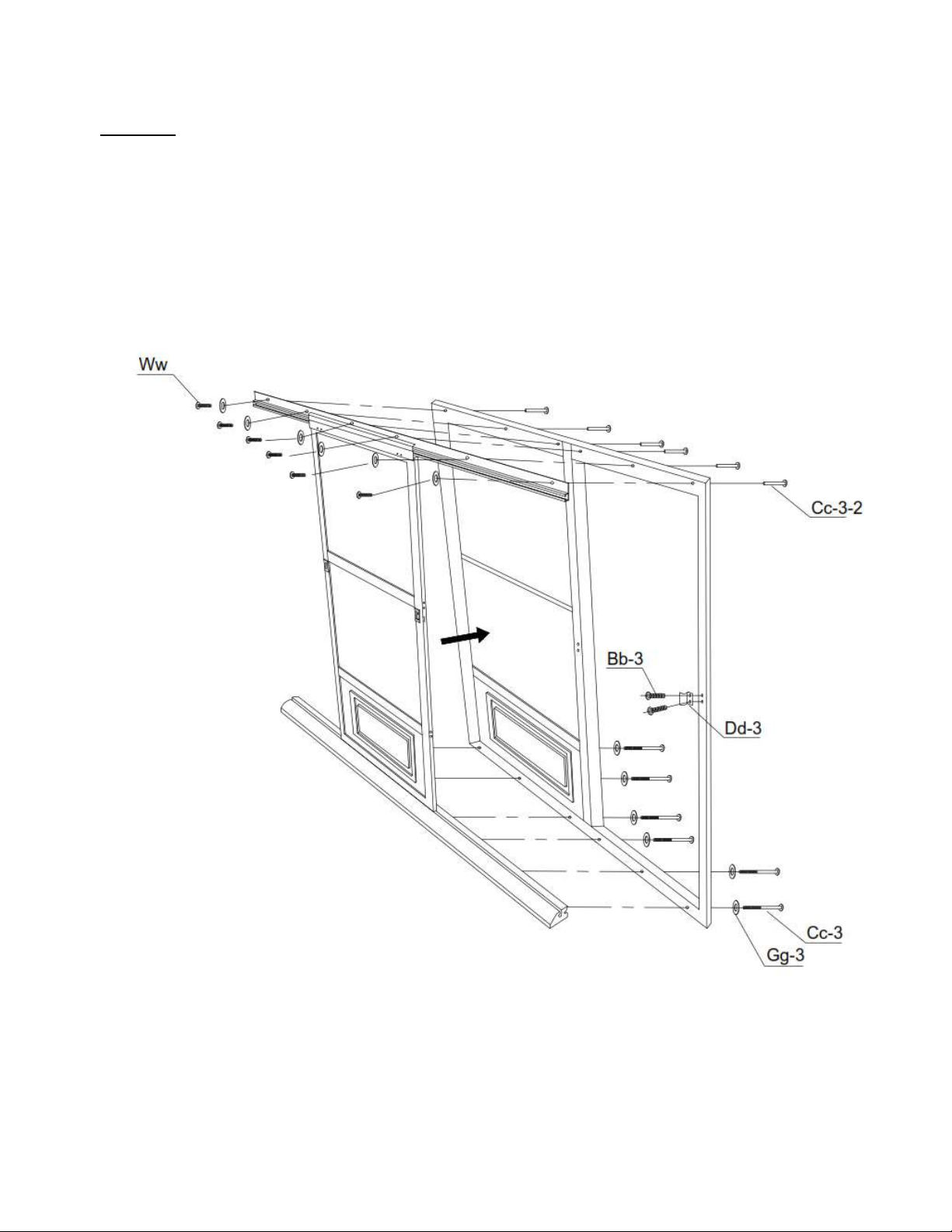

Lift up door and track inside of solarium then set it over the door opening by screwing at the top. First
use bolts (Ww) and washers (Gg-3) on the inside and female bolts (Cc-3-2) on the outside for the top
assembly. See diagram below. Attach lower track with bolts (Cc-3) and washers (Gg-3). Set up door
latch on the side required for your door to lock, adjust latch as required.

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 16
STEP #9

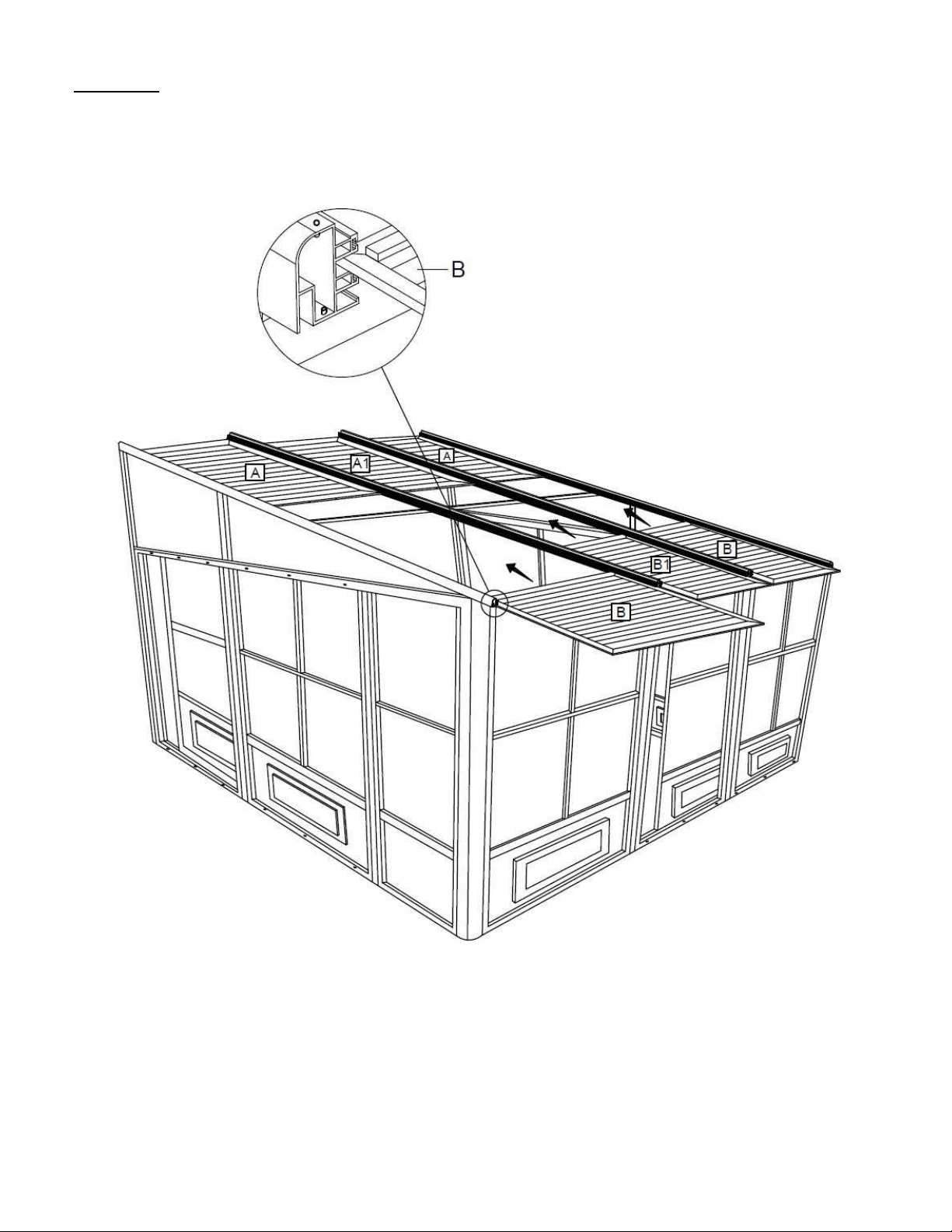

Slide roof panels (A, A1) onto lower track of rafters (F, F1, G).

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 17
STEP #10
Slide roof panels (B, B1) onto middle track of rafters (F, F1, G).

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 18
STEP #11
Set roof panels (C, C1) onto rafters (F, F1, G).
Bb-3

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 19
STEP #12
Close front end of rafters using brackets (M) with 2 bolts (Bb-3) for each.
Slide back down middle and lower roof panels (A, A1, B, B1)
STEP #13
Install crossbeams (L1, L2) under rafters (F, F1, G).
Use Cc-3 screws + Hh-3 nuts for the splice, then secure to the rafter with Cc-3 screws. Make sure it’s tight.
Cc-3-1

ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION 20
STEP #14
Anchor the solarium to the deck or floor securely using screws and shields supplied.
See diagram below.
SPECIAL NOTES
To remove a screen, remove the two
(2) screws at the top of the frame then
pull sideways to the opposite end of the
handles to remove. To remove wind
panels, push or pull to one side, making
sure that locking pin is not locked then
remove panels gently, panels are easy
to remove.
CLEANING INSTRUCTIONS:
Use only mild or warm soapy water, no
strong or abrasive cleaning products.
Be sure to remove heavy snow and/or
ice.
WARNING:
1) Do not use a BBQ or any other
flammable product inside the
solarium.
2) Remove snow from the roof.
