Gazebo penguin 91008 User manual

Owner’s Manual
MODELS
91008 91109 91210 91311 91412
Gazebo Penguin., St. Laurent,QC.,H4T 1K2
Pièce noZZZ-115 REV O FORM 2007/01/12T L:\WP51\INSTRUCTIONS\GAZEBO INSTRUCTION BOOKS\GAZEBO PENGUIN\91008 91412 ROUND 2017.doc
CAUTION:
Before attempting to install this gazebo,
read this manual and follow all its Safety
Rules and Installation Instructions.
Please don't destroy boxes until completely
assembled
Safety Instructions
Pre-assembly
Installation
Cleaning
Maintenance & Storing
Replacement Parts
[email protected]

2
Safety Instructions
1. Do not attempt to assemble the screenhouse under windy
conditions.
2. In the event of strong winds or storms are forecasted,
disassemble and store in a safe place. Minimum precaution
requires removal of the roof.
3. While this screenhouse meets CPAI Code 84 requirements for
flame retardency, keep open flames and inflammable materials
outside and at a safe distance from your screenhouse.
1. Prior to assembly:
Retain the packing carton for off-season storage.
A. To safely and easily assemble the screenhouse, a minimum of
two people are needed. You will need medium-sized slot head
and square screwdrivers and a sturdy chair or 5-6 foot stepladder.
B. You should erect your Abris Penguin screen room on as level
a spot as possible.
C. Remove the vinyl roof, roof tubes, vinyl hinges and the door
hardware box and inventory parts as follows.
D. Completely open vinyl roof and lay on a flat surface,
preferably in direct sunlight to allow folds and creases to
disappear.
E. Set packing carton upright and remove wall assembly.
F. Unfold wall assembly like an accordion.
2. To assemble the wall:
A. Form a rough circle with screening on the outside
like diagram.
B. Position opening
where you desire door.
With a header plate at the
top.
C. Line up the edge of the
doorframe and another frame so the frames are almost
touching.
D. Holding one end of
the vinyl hinge vertically
above two frames slowly
insert simultaneously into
both frames until
completely inserted.
3. Installation of metal tube
tips:
A. Take brackets and
screw to frame as
illustrated.
4. Assembly of roof to frame:
You will need two people and a stool or ladder.
A. One person should be on the stool or stepladder in
the center of the screen room holding hubs angled
downward, parallel with top of the wall panel. See
illustration below.
B. The second person starts to take the tubes in order as
per the appropriate diagram, place them on the hub and
tube tip.
C. Place the tube tip through the tube tip bracket as top
illustration shows.
DOOR

3
N.B. After the first few poles have been installed, you will
have to apply a slight pressure to flex the tubes when
attaching to the panels. After completely inserting all the
poles the roof will be domed shaped.
5. To install the roof:
To make sure your roof is taut, please read instructions
prior to attempting installations of the roof.
The vinyl laminated roof material is cut and sewn by hand in
the same manner as clothes. Slight variations in the sections
of the roof can be present.
The roof may shrink slightly after approximately three (3)
seasons, after which there should not be anymore shrinking.
If you find the roof tight due to abnormal shrinking, and is
hard or impossible to install, the roof tubes can be shortened
by taking a hacksaw and cutting off ½” or whatever is
required to make it fit properly.
A. Unfold vinyl roof and spread evenly on the ground with
seams of binding up (on the outside surface). Flip roof over
the tubes from the side so the seams are face down. Allow
time for fabric to “relax”. Install roof. Make sure to line
up the door opening and the door.

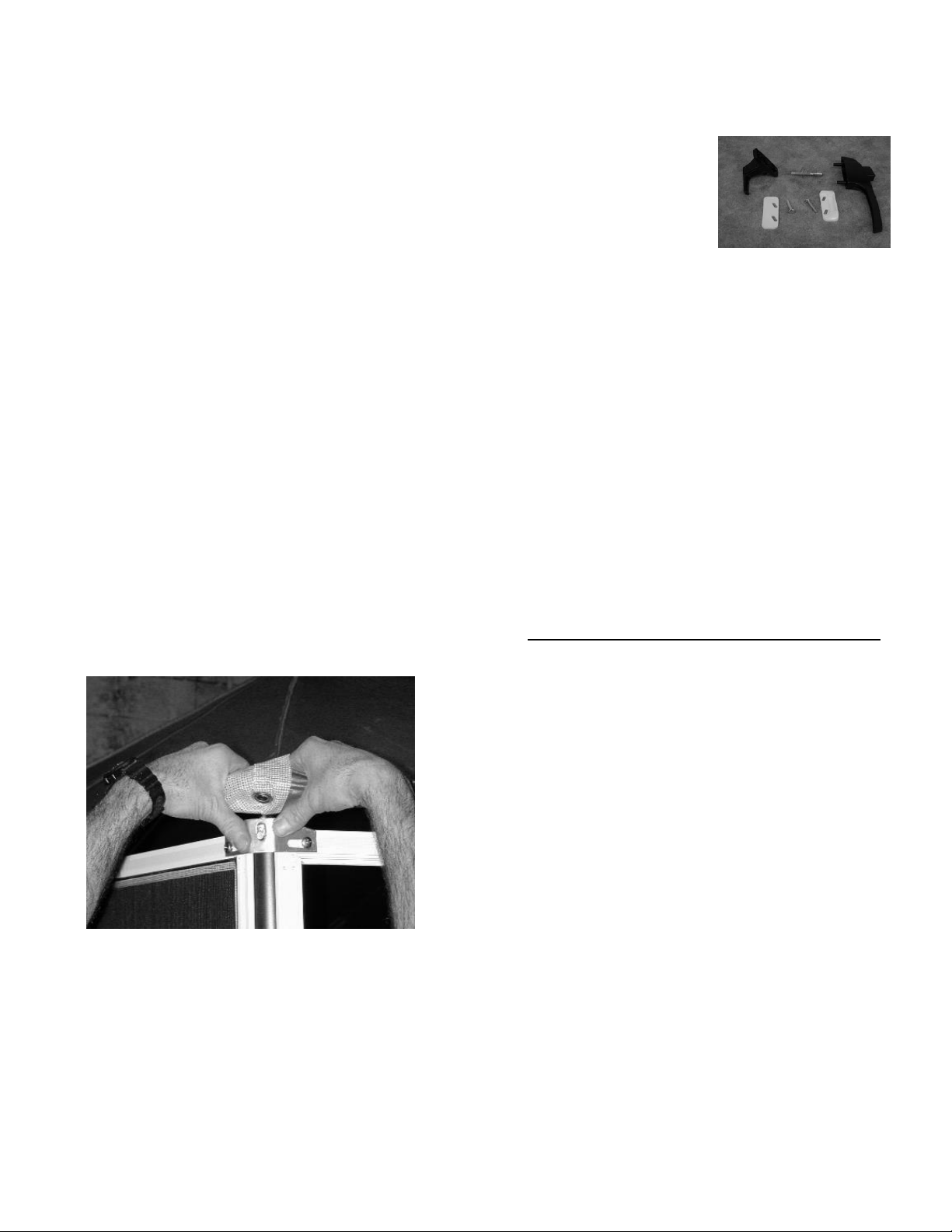

B. Place grommets over one tube tip by grasping the
material with both hands and pressing both thumbs on the
frame for leverage, pull the top toward you and secure
grommet to the tube tip.
C. Repeat step 5B for the grommet on the opposite side until
done all around.
D. If adjustments are needed, simply turns the nut on the
metal tube tip with a ¾” open wrench until roof is tight.
N.B. It is common for small needle holes to be visible; the
vinyl has been stitched. Vinyl material is not like cloth
fibres it will not contract after being pierced with a sewing
needle. During the first several rains, it may leak.
However, the thread used has a cotton wrap that expands
when it gets wet so it should close the needle holes and stop
the leaks. If the leaks continue, apply a liquid sealer (not
supplied).
6. To install door latch:
A. On the doorframe there are three holes supplied for
mounting the door latch.
B. Assemble components as
per sketch in box. You may
need to cut pin to size.
C. With the door in the
closed position, drill holes for
striker plate, put on frame and
adjust so door can close and open freely.
7. To anchor screenhouse:
A. Verify that all walls are straight while paying special
attention to the doorframe.
B. Take hold down brackets (85-8) and slide into the
frame. Two (2) brackets per frame fastened with screws
(not supplied).
C. If you are setting the room up in your backyard not on
concrete or wooden deck, you will need to order a lawn
anchor kit.
8. Cleaning and storing
A. You must disassemble the Gazebo for the winter
by reversing the assembly techniques.
B. Clean the roof before storage by using a mild detergent,
add warm water, and scrub with a medium bristle brush.
Rinse thoroughly.
C. IMPORTANT –Be certain that the top fabric and
ribbed webs are thoroughly dry before folding. Moisture,
if trapped in folds, will cause rot and mildew.
IMPORTANT NOTES:
WIND: in the event of strong winds or storms are
forecast, remove roof entirely. SNOW: Roof must be
removed after seasonal use.
NOTE: Because the roof is a vinyl laminate, under certain
conditions it may display a slight relaxing effect causing
slight depressions. Should water collect in these
depressions remove by standing inside the screenhouse and
pushing the roof upward and outward.
FLAME RETARDANCY: While this screenhouse meets
CPAI Code 84 for flame retardancy, keep open flames and
inflammable materials outside and at a safe distance.

4
Parts List
If replacement parts are not available from your
PRICES SUBJECT TO CHANGE
WITHOUT NOTICE
dealer, order directly from the factory.
Cat. No. Description List price
85-003 Door handles for round room $ 40.65
85-008 Hold down bracket $ 6.30
set 6 pcs
85-011 Vinyl hinge (74”) $ 9.50
85-014 Replacement fibreglass 44” x 75” $ 16.27
85-015 T-Spline to retain cloth $ 6.30
85-018 Replacement Fabric for privacy panel 44” (White) $ 15.20
85-019 Replacement Fabric for privacy panel 44” (Clear) $ 15.20
85-021 Hinges for spring door $ 2.94
85-022 Bottom Spring for privacy panel $ 1.98
set 2 pcs
85-023 Handle for privacy panel $ 5.10
set 2 pcs
85-057 Frame with screening $156.63
87-106 Roof for 91008 $439.92
85-078 8 hole hub for 91008 $ 57.89
99-107 59 5/8” pole for 91008 $ 11.19
87-108 Roof for 91109 $ 426.83
85-081 9 hole hub for 91009 $ 60.25
99-109 66 ½” pole for 91009 $ 12.35
87-110 Roof for 91210 $589.49
85-085 10 hole hub for 91210 $ 82.88
99-111 74 ¼” pole for 91210 $ 13.79
87-112 Roof for 91311 $ 562.28
85-089 11 hole hub for 91311 $ 74.43

5
99-113 80 7/8” pole for 91311 $ 15.02
87-114 Roof for 91412 $ 641.09
85-093 12 hole hub for 91412 $ 78.10
85-098 Hinge door and frame fits all round rooms $352.73
99-115 87 3/8” pole for 91412 $ 16.22
95-239 Metal tube tip and nut $ 5.30
94-220 135°side bracket with metal tube tip $ 8.40
94-222 149° side bracket with metal tube tip $ 8.40
94-221 142° side bracket with metal tube tip $ 8.40
85-099 Privacy Panel 44” (White) 34 ½” x 42” $ 54.73
85-101 Privacy Panel 44” (Clear) 34 ½” x 42” $ 56.64
96-418 Privacy Panel 44” (White) 34 ½” x 42” $ 76.62
85-121 Privacy panel for round door (White) 31 7/16” x 40” $ 54.73
85-122 Privacy panel for round door (Clear) 31 7/16” x 40” $ 56.64
96-421 Privacy panel for round door (White)31 7/16” x 40” $ 76.62
GENERAL INFORMATION
Please print or type your name and address plainly, so it
will be easy to read. Indicate stock number and
description or items as they appear in parts list. Quebec
residents add G.S.T and T.V.Q. others add G.S.T. only.
All merchandise sold F.O.B. shipping point + handling
of $15.00 minimum or 5% of purchase cost.
Minimum order $25.00. NO C.O.D. SHIPMENT
IMPORTANT
Each item on our parts list has been carefully selected
and is guaranteed to be as represented. Our ability to fill
your orders may be affected by conditions beyond our
control. We do not assume any liability for delays in or
failure to make delivery due to conditions beyond our
control, including delays of carriers, accidents, strikes,
etc. or any other unavoidable cause.
We may be forced to partially fill your order and back-
order the balance. In this event, please bear with us –we
will always do our very best to supply you promptly. No
substitutions will be made without written approval. No
merchandise can be returned for credit without our
authorization. Returns must be prepaid.

6
All sizes are approximate
ROUND ROOMS
91008- 10`dia
91109- 11`dia
91210- 12`dia
91311- 13`dia
91412- 14`dia
PART# DESCRIPTION
85-078 8 HOLE HUB
1
---
---
---
---
85-081 9 HOLE HUB
---
1
---
---
---
85-085 10 HOLE HUB
---
---
1
---
---
85-089 11 HOLE HUB
---
---
---
1
---
85-093 12 HOLE HUB
---
---
---
---
1
94-220 135° SIDE BRACKET
8
---
---
---
---
94-221 142° SIDE BRACKET
---
9
10
---
---
94-222 149° SIDE BRACKET
---
---
---
11
12
95-239 METAL TUBE TIP ½ ”
8
9
10
11
12
95-242 NUTS 1/2”
8
9
10
11
12
95-218 SCREW 1/4”x1-1/4”
16
18
20
22
24
95-226 NUTS 1/4”
16
18
20
22
24
85-003 HANDLES
1
1
1
1
1
85-008 HOLD DOWN BRACKET
14
16
18
20
22
99-107 POLE 59 5/8”
8
---
---
---
---
99-109 POLE 66 1/2”
---
9
---
---
---
99-111 POLE 74 1/4”
---
---
10
---
---
99-113 POLE 80 7/8”
---
---
---
11
---
99-115 POLE 87 3/8”
---
---
---
---
12
ROOF (COLOUR CHOICES)
87-
106
87-
108
87-
110
87-
112
87-
114
Date : _________________ Packed by : _____________________________
