Gazebo penguin 43202-22 User manual

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 1
43202-22 BROWN
43202-32 SLATE
10’x12’ GAZEBO
ASSEMBLY INSTRUCTIONS
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
Assembly With More Than One Person Recommended
Base Dimensions 11’3”x 8’9”
Largest Dimensions 9’9”x 11’11”
Overall Height 108.5’’
APPROX.

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 2
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
10ft x 12ft / 3.048m x 3.66m GAZEBO
Instruction Manual
IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY
For assistance with assembly, installation, parts, or customer service, contact Gazebo Penguin Customer
Service Department at the numbers listed below (English & French, Mon-Fri 8:00 AM to 4:00 PM EST):
Montreal: [phone] Elsewhere in Canada and the US: 1-800-737-7174
Consult with your local governing authority / local municipal codes regarding installation of temporary structures before
purchase or assembly. Some jurisdictions may require permits for, or otherwise regulate, installation and use.
WARNING:
For outdoor use.
Snow should be regularly cleared from the roof and not allowed to accumulate.
Retain your proof of purchase for warranty purposes. Also keep the original boxes
until the installation is complete and correct.
The unit may take more than 4 hours and 3 people are required for this assembly.
PRIOR TO ASSEMBLY:
Please don't destroy boxes until completely assembled.
The foundation must be level, flat, and solid, such as concrete or asphalt.
Keep away from overhead utility lines, tree branches, and other structures.
Check for underground pipes or wires if digging or drilling is required.
Do not install near roof lines or other structures that could shed snow, ice, or excessive rain run-off onto the roof top.
Assemble the structure as close to its final location as possible.
It is recommended to wear safety gloves, safety glasses, and hard hats for installation.
Do not hang from, climb on, or stand on the structure or roof.
Before assembly, read instructions and check that all parts are present in the boxes. If any parts are missing, refer to warranty
information.
A 6ft (1.8m) stepladder, Phillips screwdriver, tape measure, level, mallet, and a tarp to place parts on will be required for assembly
(not included).
Remove top protective film from roof panels prior to assembly; DO NOT remove bottom protective film until ready to insert roof
panels, so as to identify which side is on top.
ANCHORING INSTRUCTIONS:
Proper anchoring of the frame to the base and the wall is required for safety.
Any structure not anchored securely has the potential to fly away during high wind causing damage and safety hazard.
How the item is anchored, and the hardware and tools required, will vary based upon the set-up location and are not provided.
Please check with your local hardware store if for the appropriate anchors for your surface.
Do not anchor to pavers / pavement slabs because they are not a solid foundation.
Periodically check the anchors to ensure they remain secure
CARE AND MAINTENANCE:
In case of a defective or damaged part, or for any other questions concerning the product, please contact the manufacturer directly.
Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
ROOF PANELS:
Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
Rinse using a garden hose and air dry. If removed, ensure thoroughly dry prior to storage.
Do not use pressure washer.
STRUCTURE:
Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
Rinse using a garden hose and air dry.
Do not use pressure washer.
If there are nicks, chips, and/or scratches see the part # of the paint in the parts list to obtain a matching touch-up paint.

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 3
MAINTENANCE NOTES
1. In case of a defective or damaged part, or for any other questions concerning the product, please contact the
manufacturer directly.
2. Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
3. The product should not be installed adjacent to trees or a sloped roof. Snow and ice may slide onto the roof and cause it
to collapse.
4. While the product is designed to stay assembled year long, the roof must be kept free of accumulation of snow.
ONE YEAR LIMITED WARRANTY
This product has been designed and manufactured to meet the highest standards of quality and durability. Subject to
the Conditions for Exercising the Warranty and the Limitations on the Warranty set forth below, it is warranted to be free
of material and manufacturing defects for a period of one year from the date of purchase. Missing and damage due to
transportation is not covered by the manufacture warranty. Should the product become damaged, or the warranty period
has expired, please contact Gazebo Penguin Customer Service Department for a complete schedule of replacement
parts and prices.
CONDITIONS FOR EXERCISING THE WARRANTY
The warranty only applies to the original purchaser with the bill.
In order to properly exercise your warranty, please comply with the following:
Carefully inspect the contents of the carton for missing or damaged components. Should you discover damaged
or missing parts, do not return the product to the place of purchase, but contact Gazebo Penguin Customer
Service Department at the numbers listed below:
Montreal: [phone]
Elsewhere: 1-800-737-7174
You can also find a claim form to fill out online:
https://abrispenguin.com/assemblyinstructions/
NOTE: Damages/missing parts must be reported within 30 days of delivery. If claimed after your request might
be rejected.
LIMITATIONS ON THE WARRANTY
1. The product is not warranted against damages due to vandalism, abuse, falling or thrown objects, or accumulation of
snow.
2. The product is not warranted against damages due to extreme weather conditions, such as thunderstorms, hail, strong
wind or snow storms, or any other acts of God.
3. Leaking due to heavy rain may happen, please refer to the instruction manual for window positions and information on
how to evacuate the water.
4. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s written instructions
enclosed with the product.
5. The product is not warranted in the event it has been improperly anchored.
6. We reserve the right to replace or repair any defective product or parts at our discretion.
7. No change to the unit is allowed. This will void your warranty.

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 4
Before You Assemble the Gazebo
PLEASE DON'T DESTROY BOXES UNTIL COMPLETELY ASSEMBLED
Please verify the content of each box against the list of parts.
It is important that this gazebo be anchored on a solid base with the provided screws.
Otherwise, please ensure that you use anchors sufficient for your surface.
The gazebo should not be installed adjacent to trees or a sloped roof. Snow and ice may slide
onto the gazebo and cause it to collapse.
Tools required (not provided)
6ft(1.8m) Step ladder
Robinson #2 Screwdriver
Mallet
Safety Gloves & Glasses
Tarp or protective material for
placing parts on during assembly
Tape Measure
Levelling Shim
Step 1:

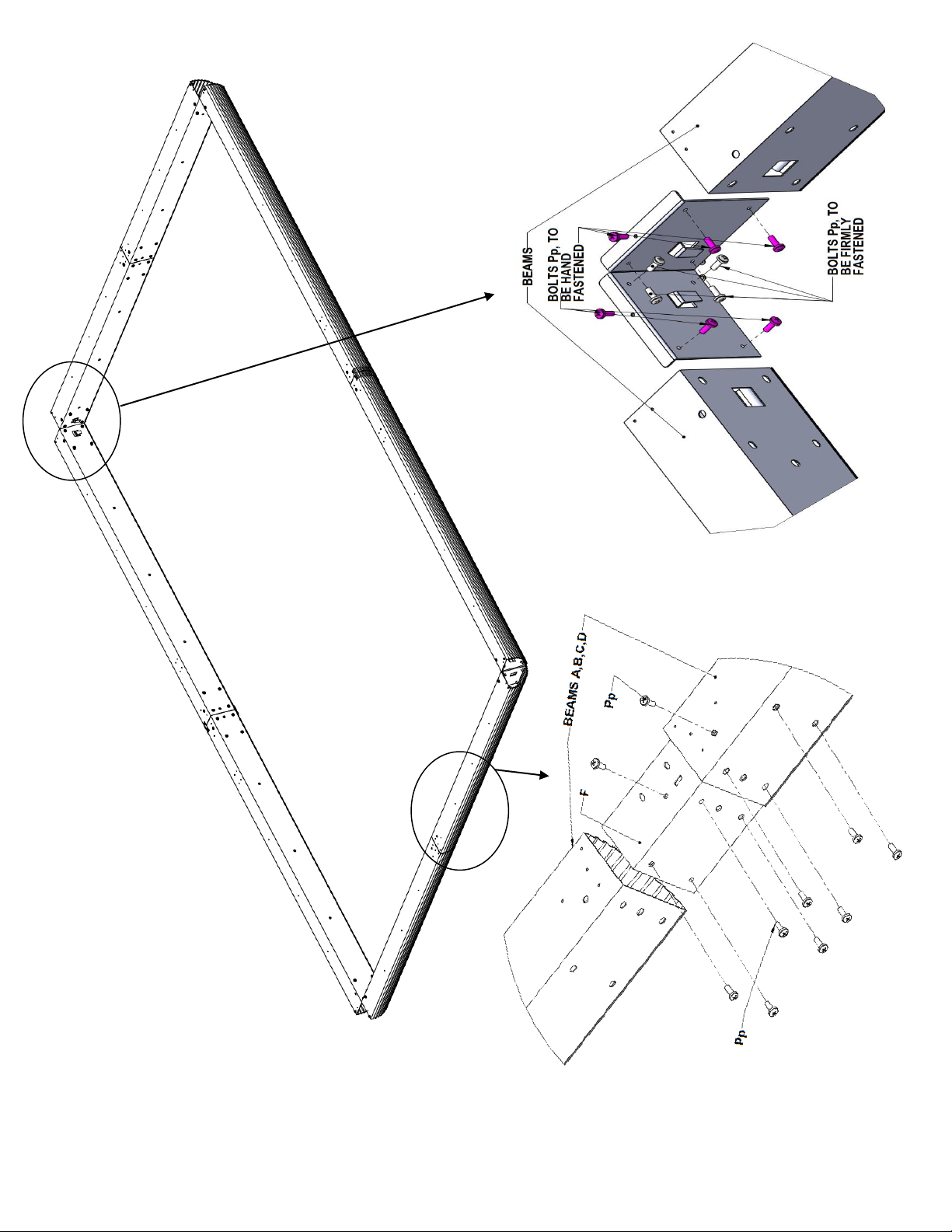

1. Assemble Beams “A” and “B” using Center Plate “F”, by sliding it inside the beams and
securely tighten with 10 Bolts “Pp”. Repeat with Beams “C” and “D”, also using Center Plate
“F”.

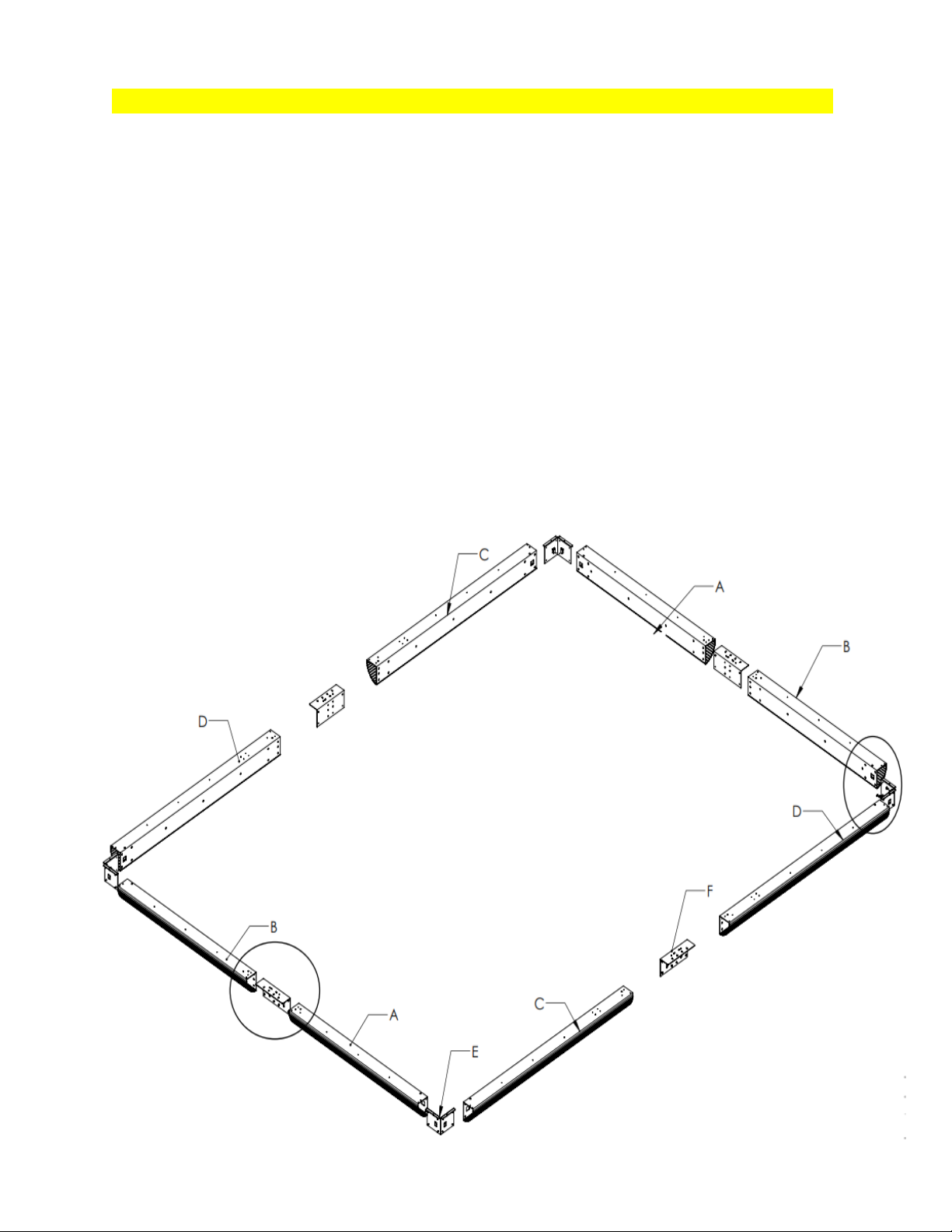

2. Lay out the assembled Beams in a rectangle and join at each corner with a Corner Plate “E”,
by sliding it inside the beams and tighten it with 4 Bolts “Pp”tightly and hand fasten remaining
6 Bolts in pink. –see image on pg. 5

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 5
D

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 6
Step 2:
For each leg “G”, attach foot plate “H” using 3 bolts “Pp”.
Step 3:

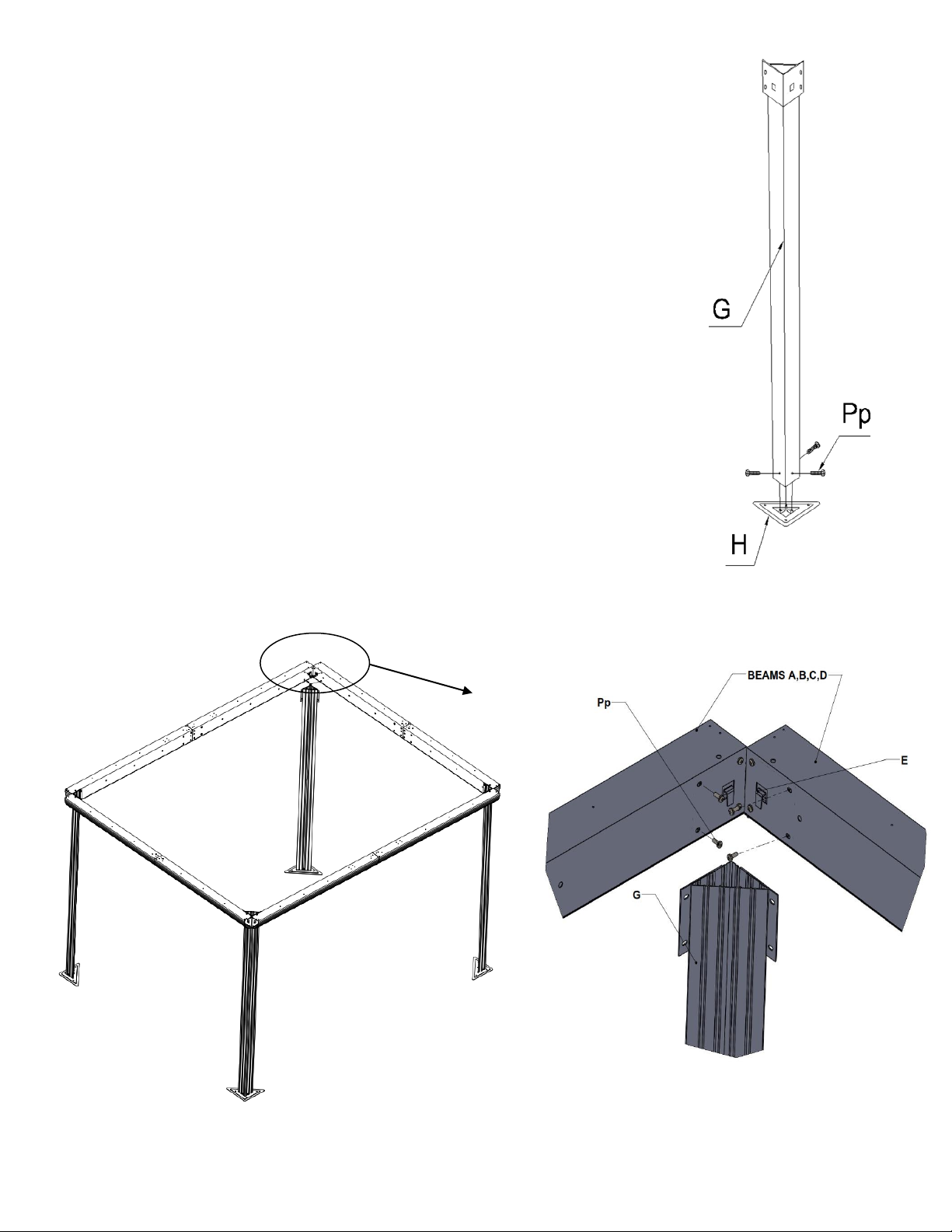

1. Unscrew 4 Pp Bolts as shown below, have someone lift the Beam
assembly and attach each Leg “G” into a Corner, again securing each using 4 Bolts “Pp”.
2. Repeat until all four Legs are in place.

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 7
Step 4:
1. Install Middle Cover “J” at each of the 4 beam junctions, using 4 Screws “Qq” each.
2. Install Corner Cover “I” at each of the corners, using 4 Screws “Qq” each.

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 8

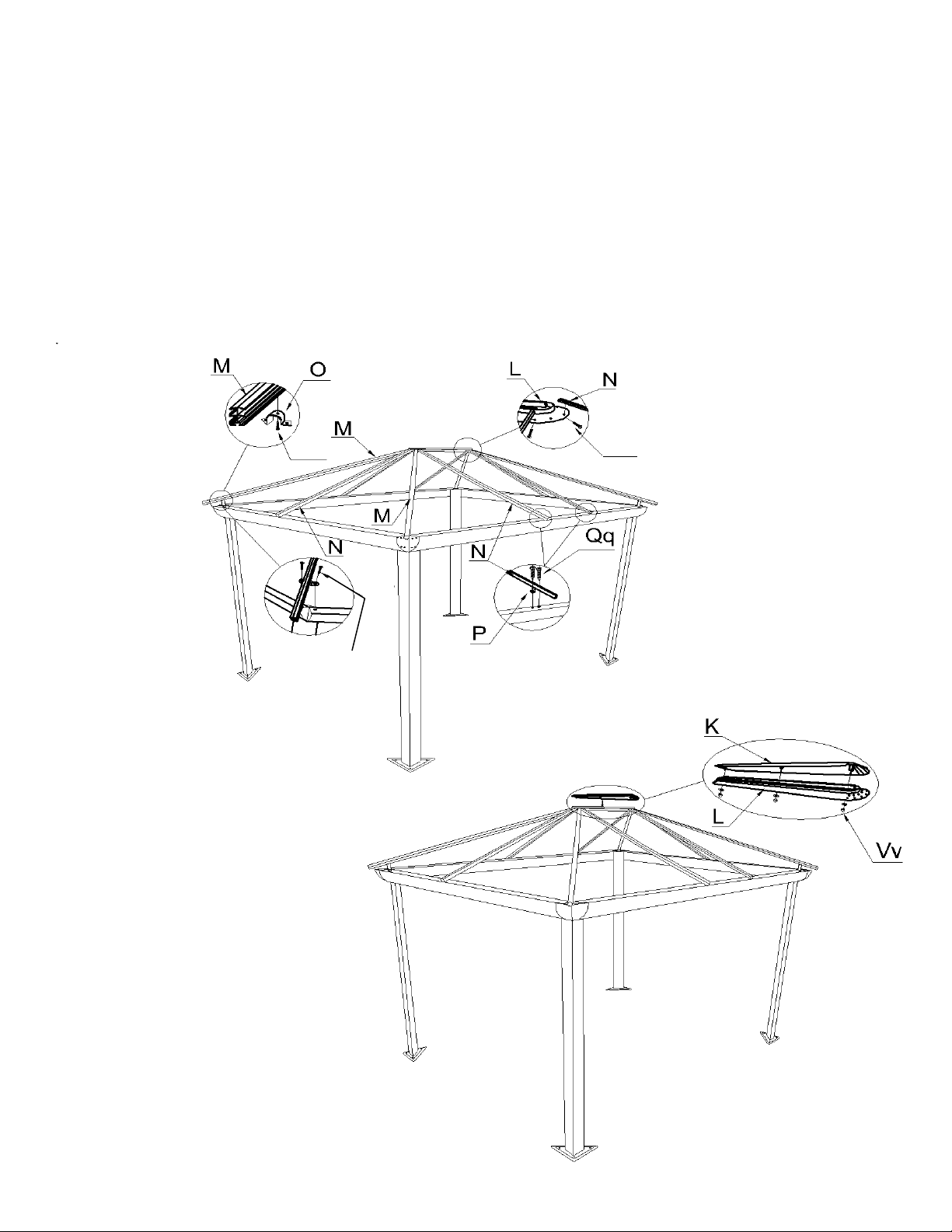

Step 5:
1. Attach Mounting Brackets “O” and “P” to Rafters “M” and “N” respectively. Use threaded hole
about 8 ½”& 5”from end of rafter.
2. Lift Central Hub “L” to a height of about 110” (2.79m) at the center of the gazebo. (Caution: this
part may be heavy, use support as needed)
3. Attach one end of Rafter “M” to the hub using 2 Bolt “Pp”. Attach other end with Mounting
Bracket to the corner of the beam assembly with 2 Bolts “Pp”. Use the set of holes closest to
the inside. Repeat with remaining “M” Rafters.
4. Similarly, attach one end of Rafter “N” to the hub using 2 Bolt “Pp”. Attach other end with
Mounting Bracket to the beam assembly with 2 Screws “Qq”. Use the set of holes closes to the
inside. Repeat with remaining “N” Rafters.
Step 6:
1. Once all rafters are in
place, install top cap “K”
over central hub “L”. Use
flat washers and acorn nuts
“Vv” to secure tightly.
Pp
Pp
Pp

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 9

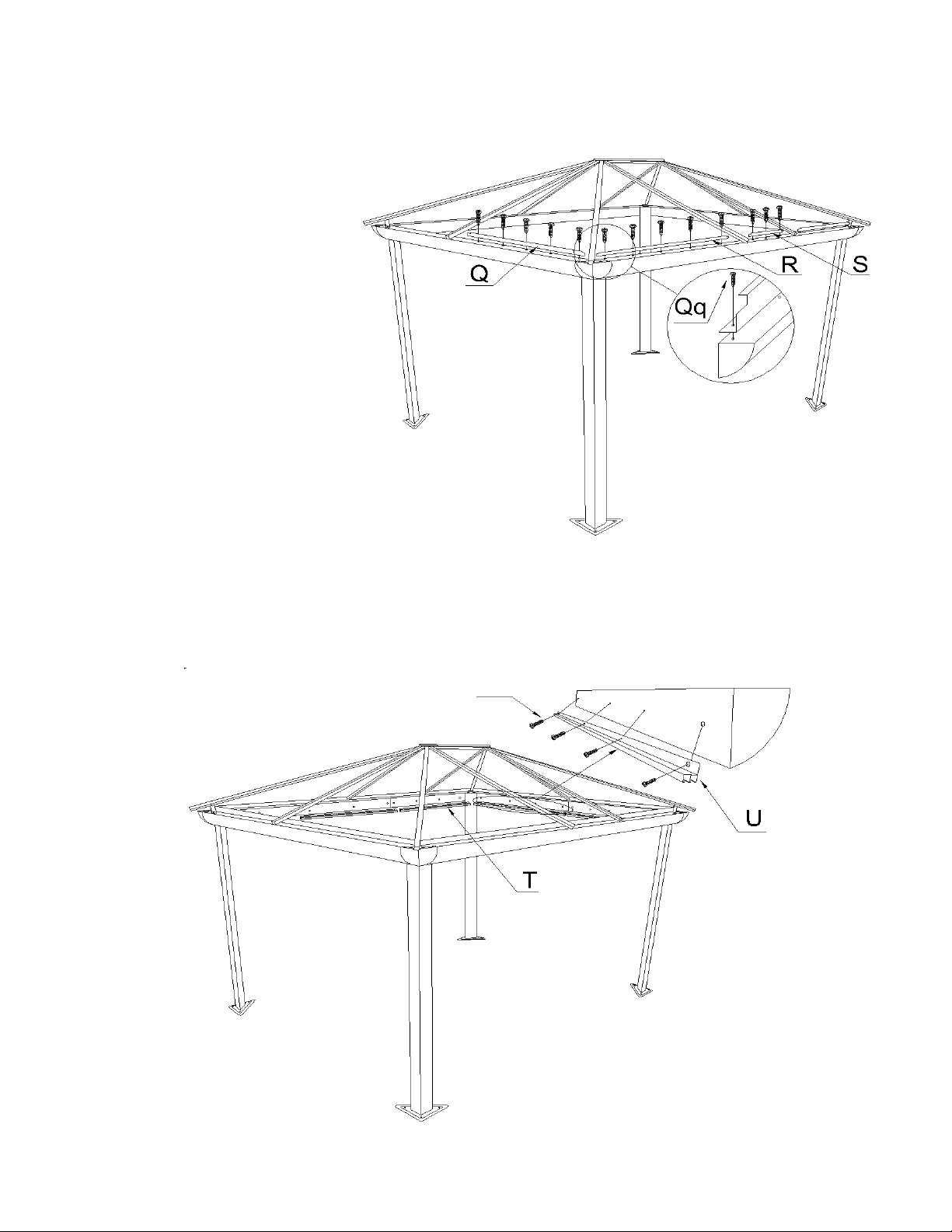

Step 7:
1. Install the flashings “Q”,
“R”, and “S” onto the beam
assembly, using screws
“Qq” on the inside. The
notched end of a flashing
will always go in a corner of
the gazebo.
Step 8:
1. Install the curtain rails “T” and “U” on the inside of the beam assembly using bolts “Pp”.
Pp

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 10

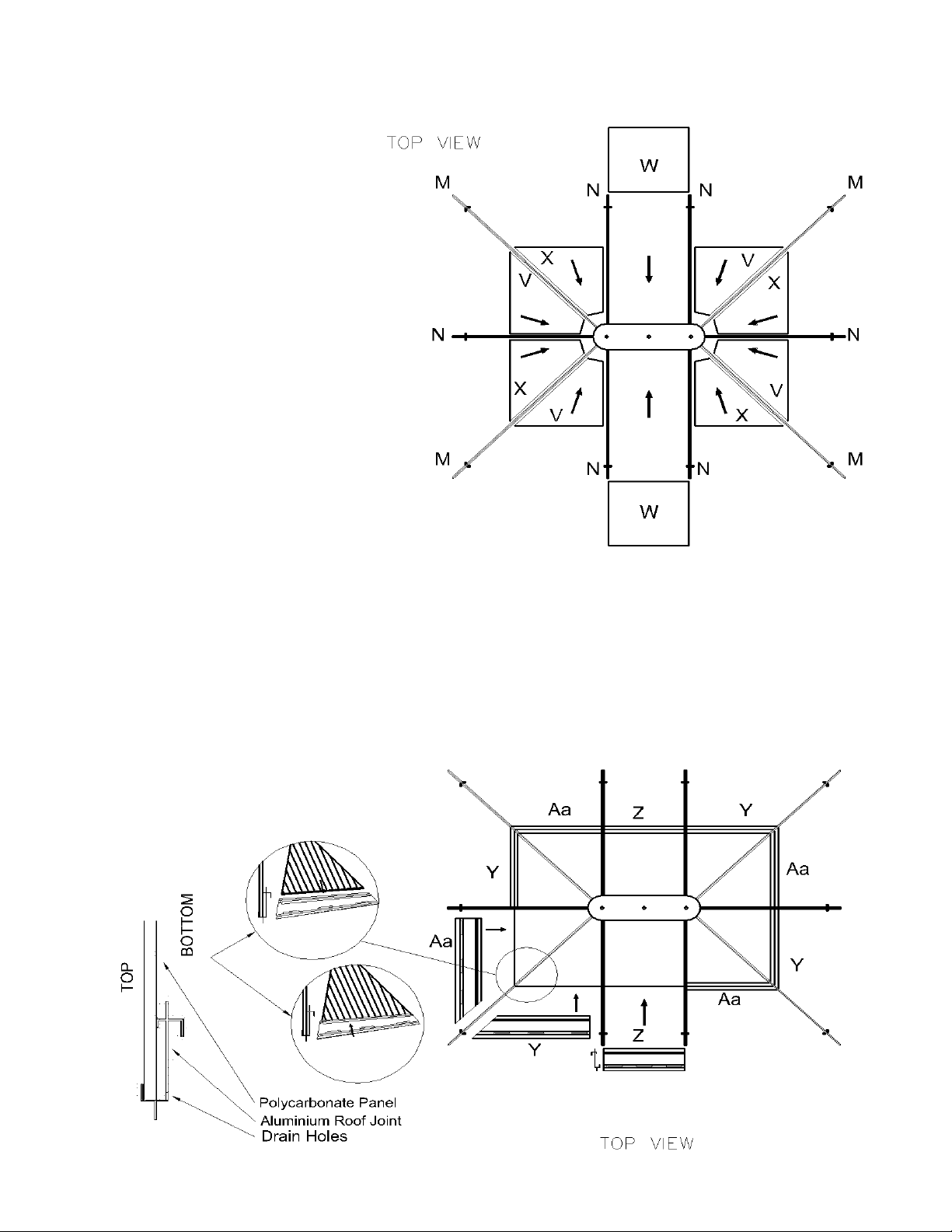

Step 9:
1. Slide the indicated
polycarbonate panels into the
spaces between the rafters,
using the top groove of each
rafter. Ensure the side meant
to face the sun is on the
outside. Use a rubber hammer
to carefully tap each panel
into the grooves.
Step 10:
1. Insert the middle roof joints in between the rafters and slide them up under the polycarbonate
panels. Tap lightly to ensure the panel is fully in the slot. Seen from above, most of the joint as
well as the drain holes should be beneath the roof panels.
2. To adjust the middle joints to line up : once all polycarbonate roof panels are in place, use a
small piece of wood and hammer, then tap down on the middle of the joint bringing it down and
holding at the same time the joint and top polycarbonate.
3. Do not tap too hard.

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 11
Step 11:
1. Slide the remaining polycarbonate roof panels in the lower groove of the rafters and into the
lower slot of the roof joints. Tap to make sure panels fit securely and do not extend past the
ends of the rafters.

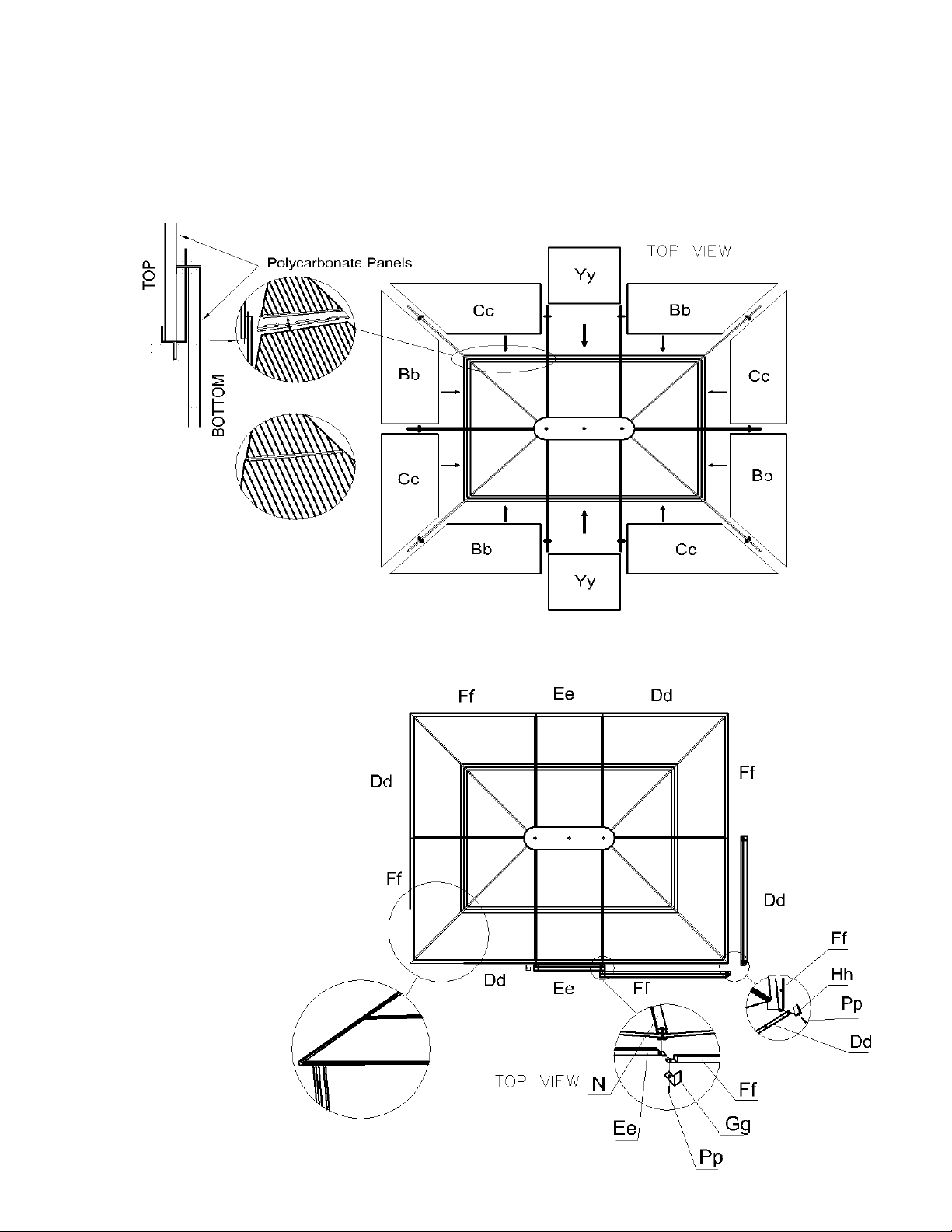

Step 12:
1. Starting from any
end, install all
edgings, with end
caps “Gg” or “Hh”
at each junction or
corner espectively.
Use bolts “Pp” to
secure.

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 12
Step 13:
1. Install the upper
crossbars on the
interior of the roof
using bolts “Pp”,
following the
shaped ends and
letters. Do not
tighten bolts
immediately;
install loose and
tighten once all
crossbars are in
place.
2. Repeat this step
with the lower
crossbars.
Step 14:

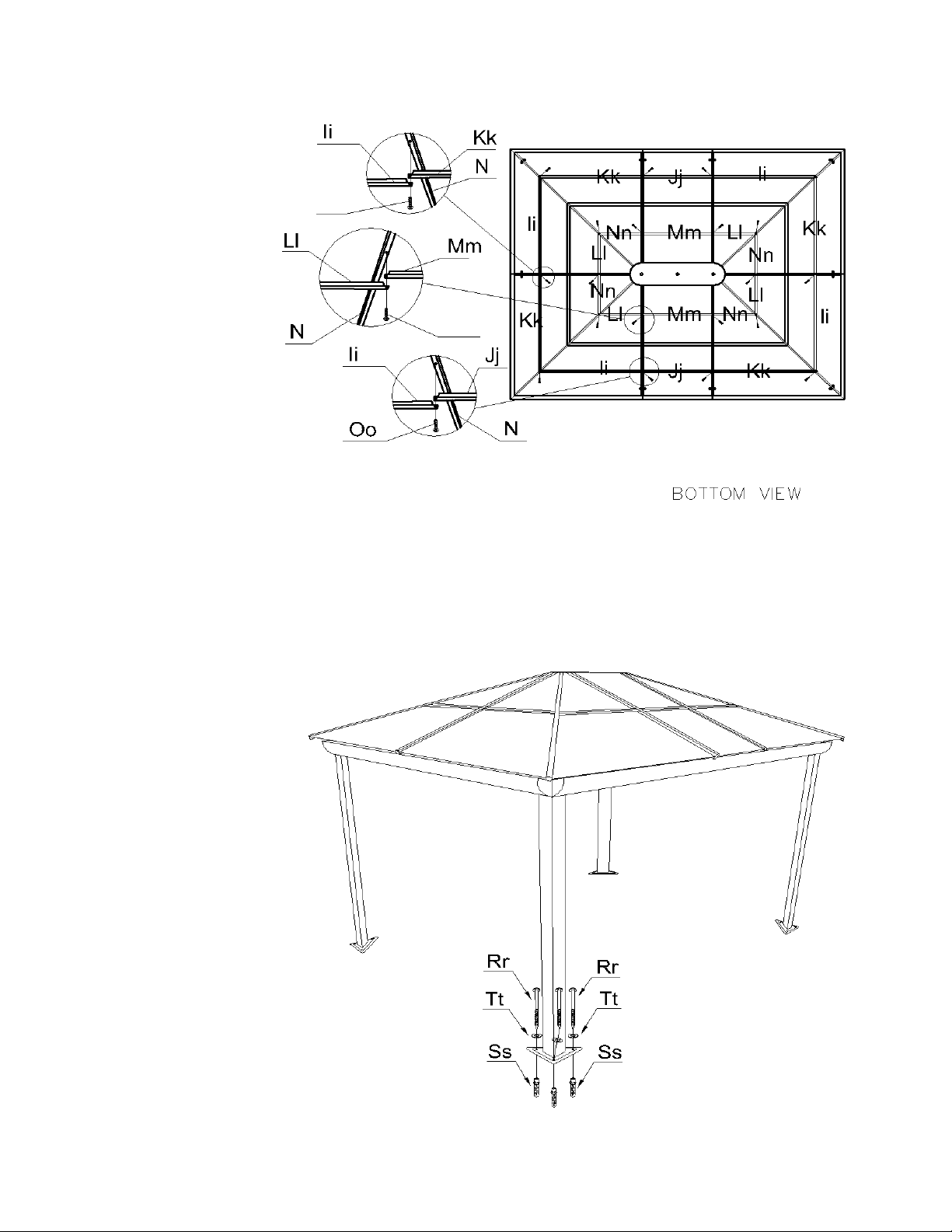

1. Secure each foot plate
into the ground using
screws “Rr” and washers
“Tt”.
2. Use lag shields (Ss) if
needed for harder
surfaces.
Pp
Pp
Pp

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 13
Step 15:
Install the screen curtains “Ww” in the interior groove of the curtain rails, using the provided hooks.
Install the privacy curtains “Xx” in the exterior groove of the rails. Once the hooks are in, use curtain
rail caps “Uu” to close ends of curtain rails.
IMPORTANT NOTES:
Make sure all screws and bolts are tight.
If conditions are windy, you may have to add cable guides at the corners.

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 14

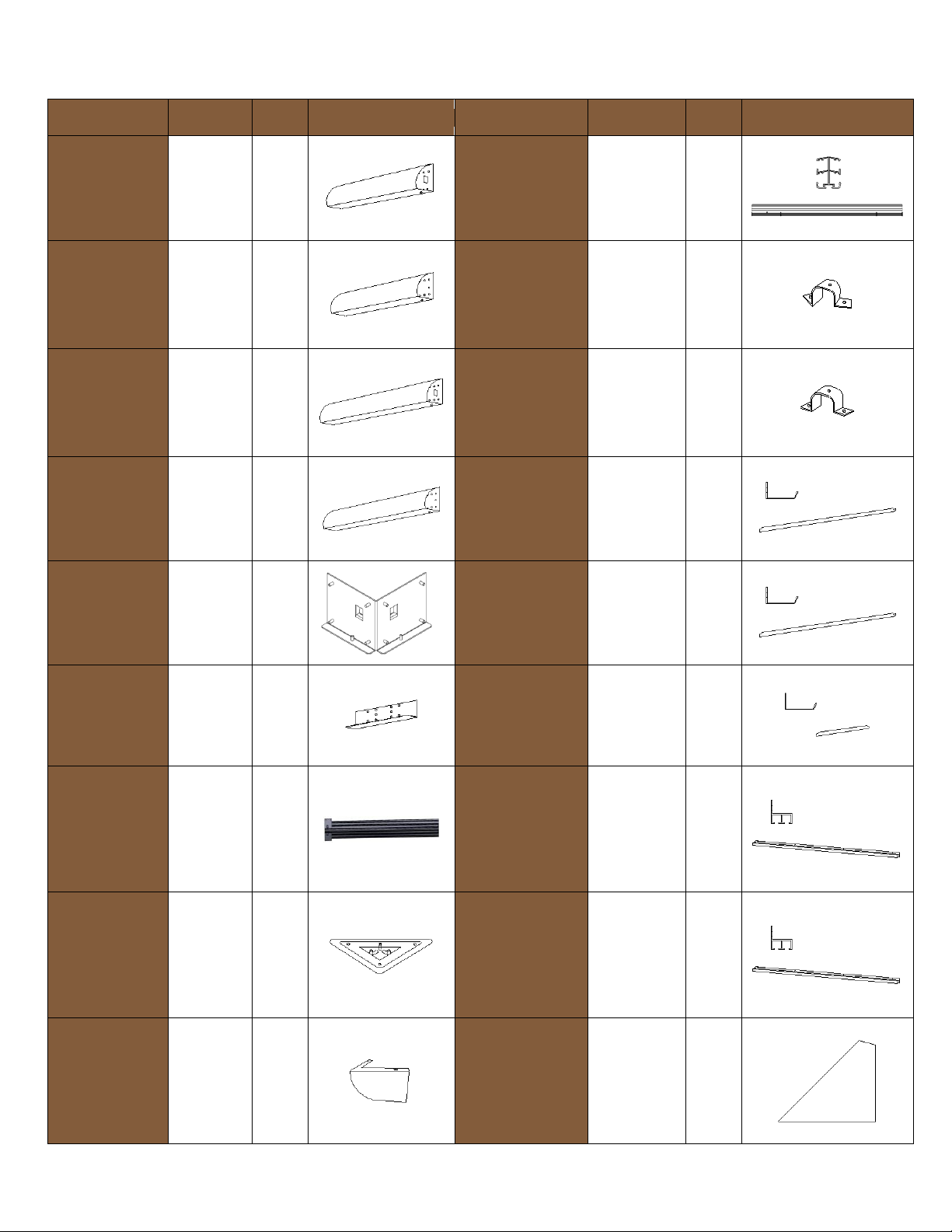

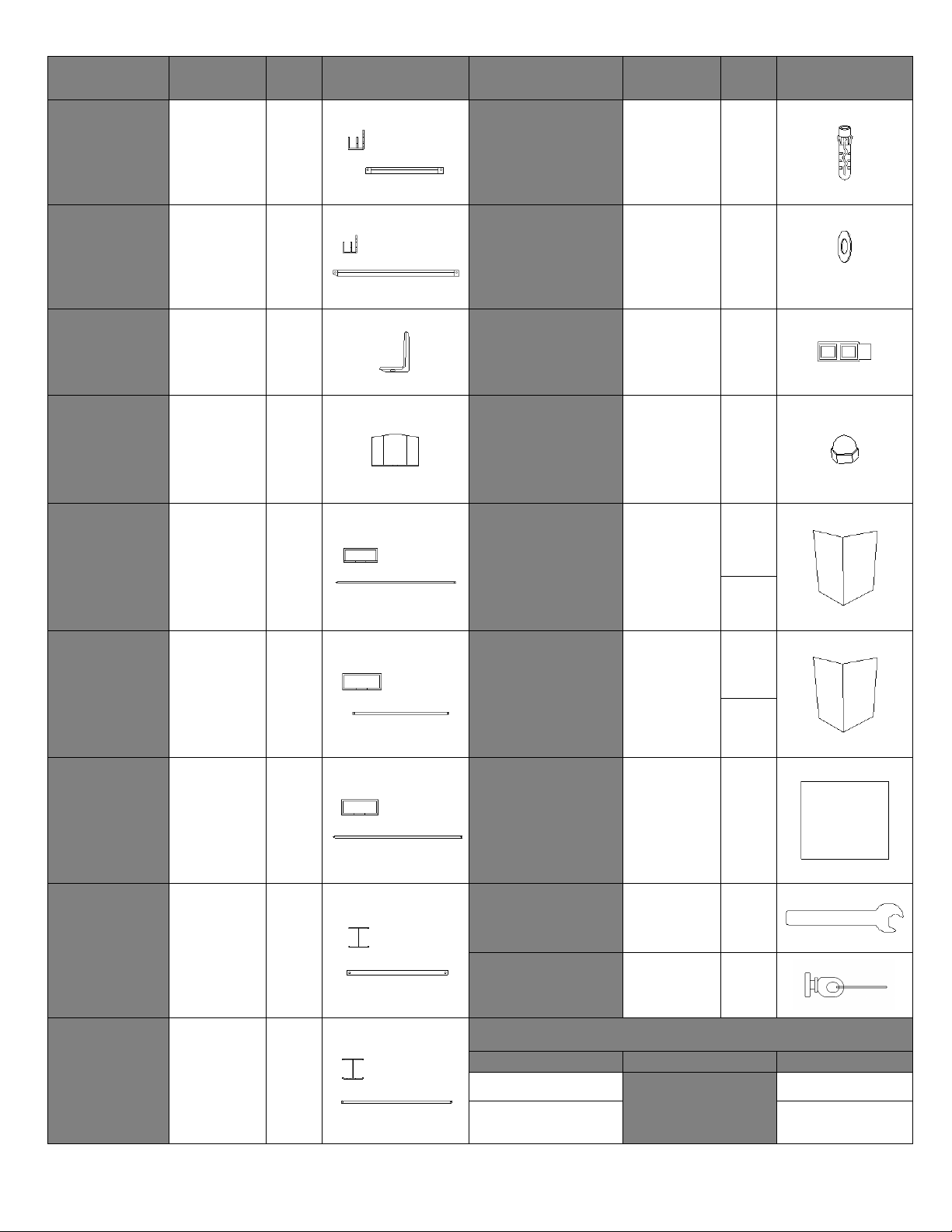

43200 BROWN (see page 17 for Slate parts)

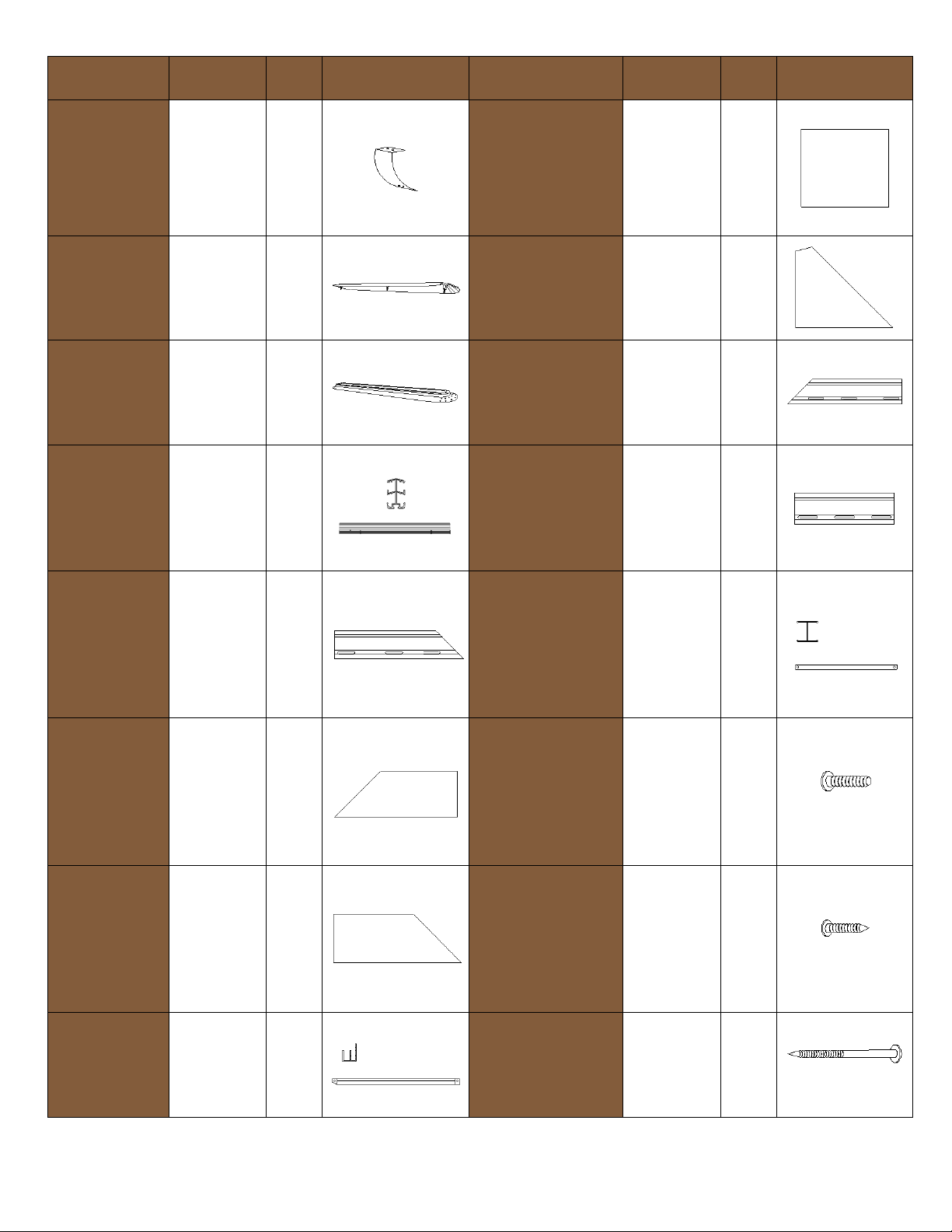

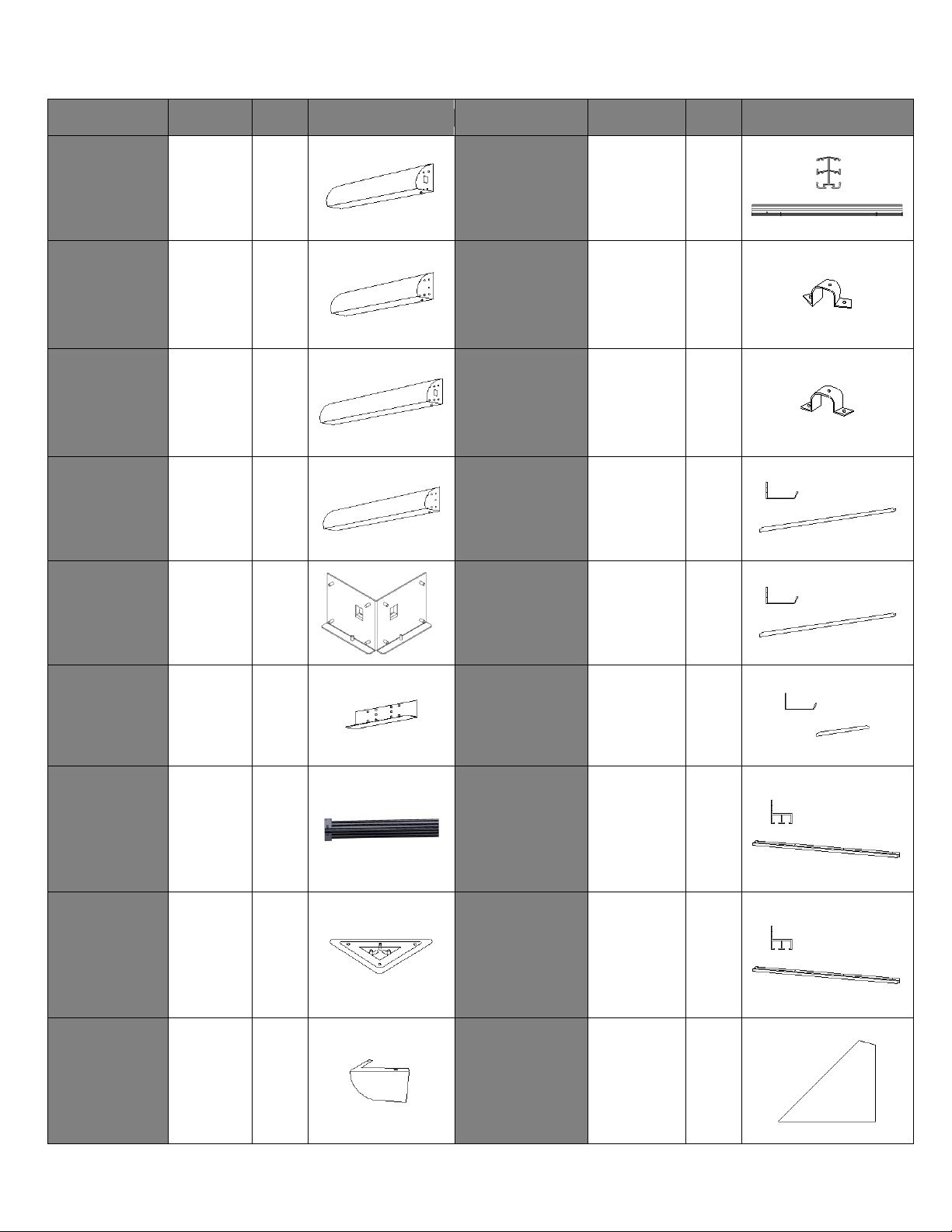

PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-624-22)
52 ¾”
TOP LEFT
BEAM
A
3
2
(11-637-22)
60 3/8”
ROOF
RAFTER
N
2
6
(11-625-22)
52 ¾”
TOP RIGHT
BEAM
B
3
2
(12-030-22)
RAFTER M
MOUNTING
BRACKET
O
2
4
(11-626-22)
65 ½”
TOP LEFT
BEAM
C
3
2
(12-031-22)
RAFTER N
MOUNTING
BRACKET
P
2
6
(11-627-22)
65 ½”
TOP RIGHT
BEAM
D
3
2
(11-638-22)
55 ¼”
RIGHT
FLASHING
Q
2
4
(11-628-22)
CORNER
PLATE
E
3
4
(11-639-22)
55 ¼”
LEFT
FLASHING
R
2
4
(11-629-22)
CENTER
PLATE
F
3
4
(11-640-22)
25 3/8”
CENTER
FLASHING
S
2
2
(11-630-22)
81 ½”
LEG
G
3
4
(11-641-22)
60 ½”
CURTAIN
RAIL, 12’
SIDE
T
2
4
(11-631-22)
FOOT
PLATE
H
3
4
(11-642-22)
47 ¾”
CURTAIN
RAIL, 10’
SIDE
U
2
4
(11-632-22)
CORNER
COVER
I
3
4
(11-643-22)
30”x30”
LEFT UPPER
ROOF
PANEL
V
1
4

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 15
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-633-22)
MIDDLE
COVER
J
3
4
(11-644-22)
29 ½”x25 ½”
MIDDLE
UPPER ROOF
PANEL
W
1
2
(11-634-22)
37 ¼”
TOP CAP
K
2
1
(11-645-22)
30”x30”
RIGHT UPPER
ROOF PANEL
X
1
4
(11-635-22)
34 ¼”
CENTRAL
HUB
L
2
1
(11-646-22)
30 ¾”
LEFT MIDDLE
ROOF JOINT
Y
2
4
(11-636-22)
83”
ROOF
RAFTER
M
2
4
(11-647-22)
25 ½”
CENTER
MIDDLE ROOF
JOINT
Z
2
2
(11-648-22)
30 ¾”
RIGHT
MIDDLE
ROOF
JOINT
Aa
2
4
(11-661-22)
17 ½”
RIGHT UPPER
CROSSBAR
Nn
2
4
(11-649-22)
33”x58 1/8”
LEFT
LOWER
ROOF
PANEL
Bb
1
4
(08-158-22)
BOLT
Pp
3
182
(M6x16mm)
(11-650-22)
33”x58 1/8”
RIGHT
LOWER
ROOF
PANEL
Cc
1
4
(08-156-22)
SCREW
Qq
3
92
(M4x16mm)
(11-651-22)
58 7/8”
LEFT
EDGING
Dd
2
4
(08-167-22)
SCREW
Rr
3
12
(M6x100mm)

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 16
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-652-22)
26 ¾”
CENTER
EDGING
Ee
2
2
(08-193-22)
PLASTIC PLUG
Ss
3
12
(11-653-22)
58 7/8”
RIGHT
EDGING
Ff
2
4
(08-187-22)
WASHER
Tt
3
15
(M6)
(11-654-22)
RAFTER
CAP
Gg
2
6
(11-697-22)
CURTAIN RAIL
CAP
Uu
3
8
(11-655-22)
CORNER
END
BRACKET
Hh
2
4
(08-189-22)
ACORN NUT
Vv
3
3
(11-656-22)
44”
LEFT
LOWER
CROSSBAR
Ii
2
4
(11-695-22)
SCREEN/MOU
STIQUAIRE
Ww
2
2
Left
2
Right
(11-657-22)
26 ¾”
MIDDLE
LOWER
CROSSBAR
Jj
2
2
(11-696-22)
PRIVACY
CURTAIN
Xx
2
2
Left
2
Right
(11-658-22)
44”
RIGHT
LOWER
CROSSBAR
Kk
2
4
(11-706-22)
33”x25 ½”
MIDDLE
LOWER ROOF
PANEL
Yy
1
2
(11-659-22)
17 ½”
LEFT
UPPER
CROSSBAR
Ll
2
4
10 mm KEY
3
1
(11-705-22)
CURTAIN
HOOKS
3
88
(11-660-22)
26 ¾”
MIDDLE
UPPER
CROSSBAR
Mm
2
2
*NOT INCLUDED IN THE BOX
DESCRIPTION
COLOUR
PART #
SPRAY PAINT
BROWN
11-726
PAINT PEN
18-184

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 17
43200-32 SLATE
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-624-32)
52 ¾”
TOP LEFT
BEAM
A
3
2
(11-637-32)
60 3/8”
ROOF
RAFTER
N
2
6
(11-625-32)
52 ¾”
TOP RIGHT
BEAM
B
3
2
(12-030-32)
RAFTER M
MOUNTING
BRACKET
O
2
4
(11-626-32)
65 ½”
TOP LEFT
BEAM
C
3
2
(12-031-32)
RAFTER N
MOUNTING
BRACKET
P
2
6
(11-627-32)
65 ½”
TOP RIGHT
BEAM
D
3
2
(11-638-32)
55 ¼”
RIGHT
FLASHING
Q
2
4
(11-628-32)
CORNER
PLATE
E
3
4
(11-639-32)
55 ¼”
LEFT
FLASHING
R
2
4
(11-629-32)
CENTER
PLATE
F
3
4
(11-640-32)
25 3/8”
CENTER
FLASHING
S
2
2
(11-630-32)
81 ½”
LEG
G
3
4
(11-641-32)
60 ½”
CURTAIN
RAIL, 12’
SIDE
T
2
4
(11-631-32)
FOOT
PLATE
H
3
4
(11-642-32)
47 ¾”
CURTAIN
RAIL, 10’
SIDE
U
2
4
(11-632-32)
CORNER
COVER
I
3
4
(11-643-32)
30”x30”
LEFT UPPER
ROOF
PANEL
V
1
4

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 18
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-633-32)
MIDDLE
COVER
J
3
4
(11-644-32)
29 ½”x25 ½”
MIDDLE
UPPER ROOF
PANEL
W
1
2
(11-634-32)
37 ¼”
TOP CAP
K
2
1
(11-645-32)
30”x30”
RIGHT UPPER
ROOF PANEL
X
1
4
(11-635-32)
34 ¼”
CENTRAL
HUB
L
2
1
(11-646-32)
30 ¾”
LEFT MIDDLE
ROOF JOINT
Y
2
4
(11-636-32)
83”
ROOF
RAFTER
M
2
4
(11-647-32)
25 ½”
CENTER
MIDDLE ROOF
JOINT
Z
2
2
(11-648-32)
30 ¾”
RIGHT
MIDDLE
ROOF
JOINT
Aa
2
4
(11-661-32)
17 ½”
RIGHT UPPER
CROSSBAR
Nn
2
4
(11-649-32)
33”x58 1/8”
LEFT
LOWER
ROOF
PANEL
Bb
1
4
(08-158-32)
BOLT
Pp
3
182
(M6x16mm)
(11-650-32)
33”x58 1/8”
RIGHT
LOWER
ROOF
PANEL
Cc
1
4
(08-156-32)
SCREW
Qq
3
92
(M4x16mm)
(11-651-32)
58 7/8”
LEFT
EDGING
Dd
2
4
(08-167-32)
SCREW
Rr
3
12
(M6x100mm)

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 19
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-652-32)
26 ¾”
CENTER
EDGING
Ee
2
2
(08-193-32)
PLASTIC PLUG
Ss
3
12
(11-653-32)
58 7/8”
RIGHT
EDGING
Ff
2
4
(08-187-32)
WASHER
Tt
3
15
(M6)
(11-654-32)
RAFTER
CAP
Gg
2
6
(11-697-32)
CURTAIN RAIL
CAP
Uu
3
8
(11-655-32)
CORNER
END
BRACKET
Hh
2
4
(08-189-32)
ACORN NUT
Vv
3
3
(11-656-32)
44”
LEFT
LOWER
CROSSBAR
Ii
2
4
(11-695-32)
SCREEN/MOU
STIQUAIRE
Ww
2
2
Left
2
Right
(11-657-32)
26 ¾”
MIDDLE
LOWER
CROSSBAR
Jj
2
2
(11-696-32)
PRIVACY
CURTAIN
Xx
2
2
Left
2
Right
(11-658-32)
44”
RIGHT
LOWER
CROSSBAR
Kk
2
4
(11-706-32)
33”x25 ½”
MIDDLE
LOWER ROOF
PANEL
Yy
1
2
(11-659-32)
17 ½”
LEFT
UPPER
CROSSBAR
Ll
2
4
10 mm KEY
3
1
(11-705-32)
CURTAIN
HOOKS
3
88
(11-660-32)
26 ¾”
MIDDLE
UPPER
CROSSBAR
Mm
2
2
*NOT INCLUDED IN THE BOX
DESCRIPTION
COLOUR
PART #
SPRAY PAINT
SLATE
18-125
PAINT PEN
18-126

ZZZ-202.43202.0114-21.GP.EN.doc WEB VERSION 20
NOTE: The Dimensions Are Approximate.
