12’x14’ GAZEBO
ASSEMBLY INSTRUCTIONS
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
Assembly with more than one person recommended
Tools required (not provided):
6ft (1.8m) stepladder, Robinson #2 Screwdriver, mallet, safety gloves & glasses, tarp or
protective material for placing parts on during assembly, tape measure, 1'X2"X4" wood.
[e-mail]

1
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI
Before you assemble the Gazebo
Please don't destroy boxes until completely assembled.
Please verify the content of each box against the list of parts.
It is important that this gazebo be anchored on a solid base with the provided screws.
Otherwise, please ensure that you use anchors sufficient for your surface.
The gazebo should not be installed adjacent to trees or a sloped roof. Snow and ice may
slide onto the gazebo and cause it to collapse.

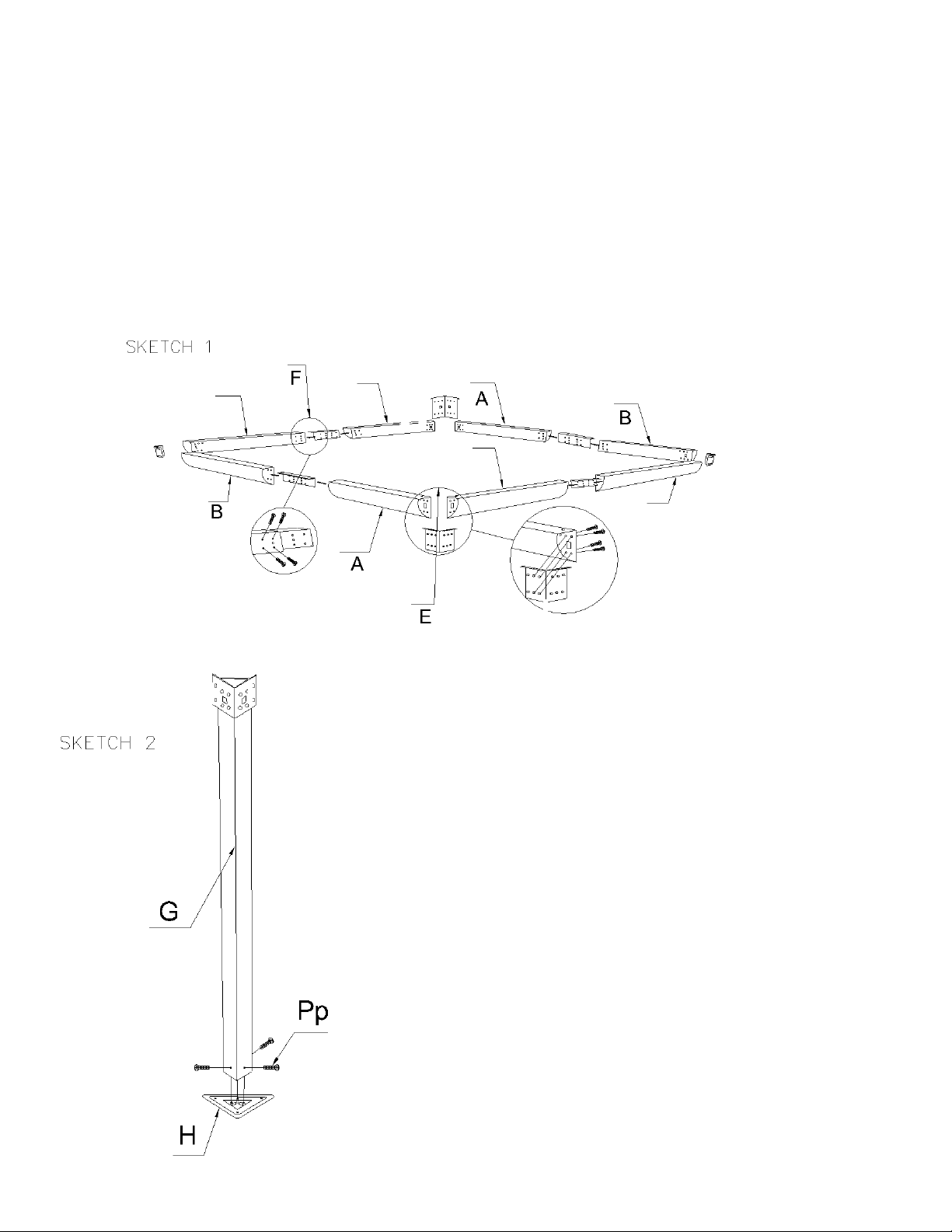

Step 1:
Assemble beams “A” and “B” using center plate “F”, securing tightly with 8 bolts “Pp”. Repeat with
beams “C” and “D”, also using center plate “F”. Lay out the assembled beams in a rectangle and join
at each corner with a corner plate “E”, again securing tightly with 8 bolts “Pp”.
Step 2:
For each leg “G”, attach foot plate “H” using 3 bolts “Pp”.
D
C
C
D

2
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI
Step 3:
Have someone lift the beam assembly and attach each leg “G” into a corner, securing each using 4
bolts “Pp”. Repeat until all four legs are in place.
Step 4:
Install middle joint cover
“J” at each of the 4 beam
junctions, using 4 screws
“Qq” each.
Install corner cover “I” at
each of the corners,
using 4 screws “Qq”
each.

3
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI

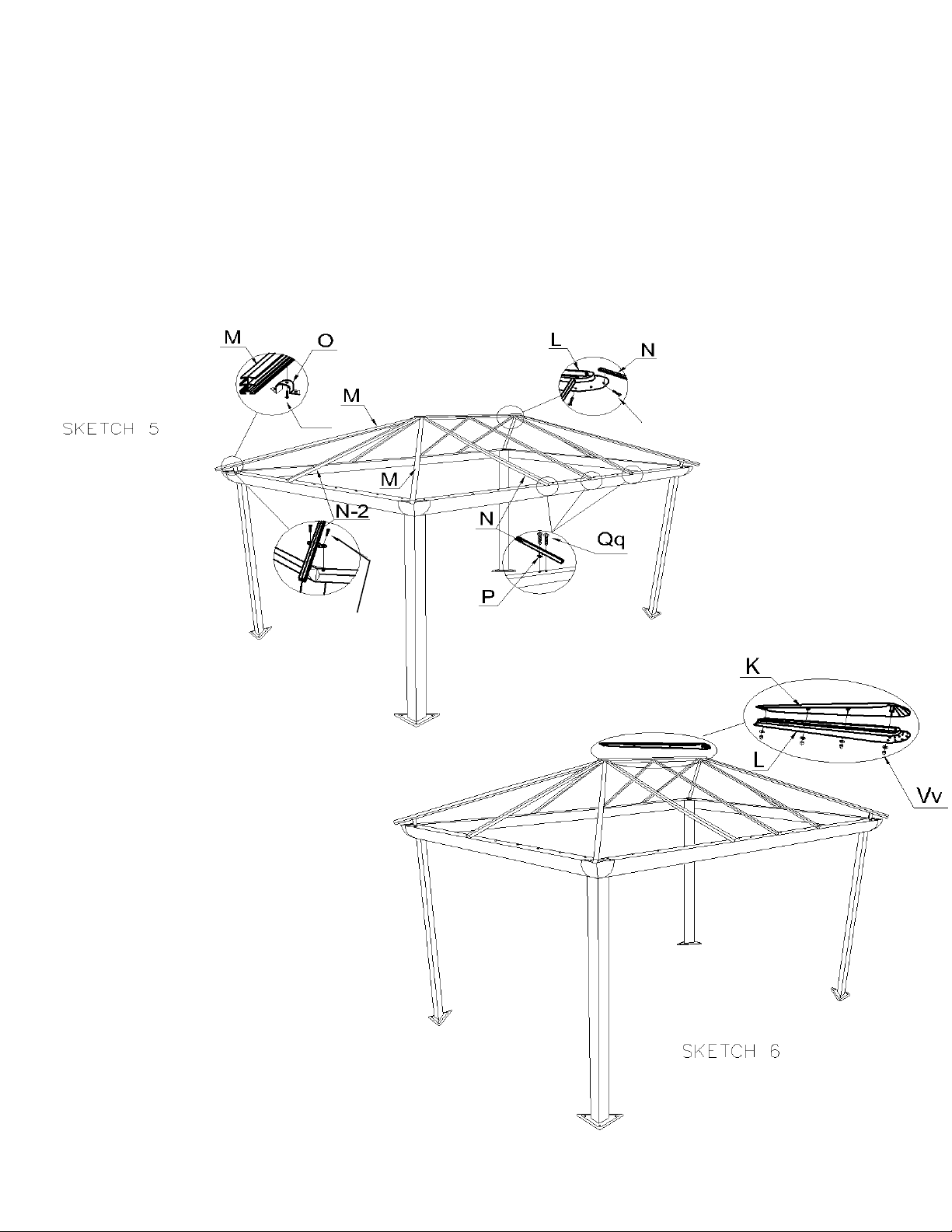

Step 5:
Attach mounting brackets “O” to rafters “M”, and mounting brackets “P” to rafters “N” and “N-2”. Use
threaded hole about 8” from end of rafter.
Lift central hub “L” to a height of about 110” (2.79m) at the center of the gazebo. (Caution: this part
may be heavy, use support as needed)
Attach one end of rafter “M” to the hub using 1 bolt “Pp”. Attach other end with mounting bracket to
the corner of the beam assembly with 2 bolts “Pp”. Use the set of holes closest to the inside. Repeat
with remaining “M” rafters.
Similarly, attach one end of rafter “N” to the hub using 1 bolt “Pp”. Attach other end with mounting
bracket to the beam assembly with 2 screws “Qq”. Use the set of holes closest to the inside. Repeat
with remaining “N” and “N-2” rafters.
Step 6:
Once all rafters are in place, install top
cap “K” over central hub “L”. Use flat
washers and acorn nuts “Vv” to
secure tightly.
Pp
Pp
Qq

4
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI

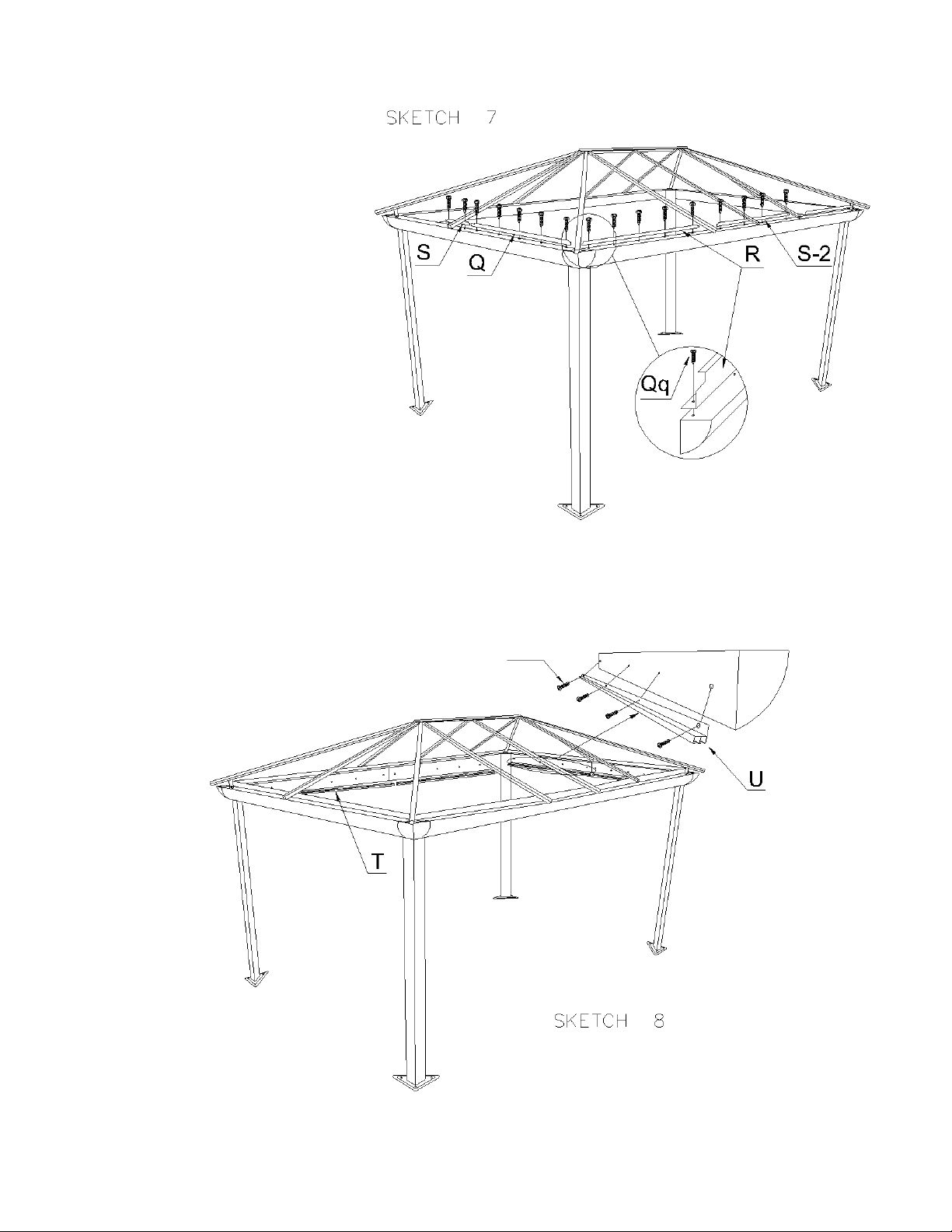

Step 7:
Install the flashings “Q”, “R”, “S”,
and “S-2” onto the beam assembly,
using screws “Qq” on the inside.
The notched end of a flashing will
always go in a corner of the
gazebo.
Step 8:
Install the curtain rails “T” and “U” on the inside of the beam assembly using bolts “Pp”.
Pp

5
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI
Step 9:
Slide the indicated polycarbonate
panels into the spaces between the
rafters, using the top groove of
each rafter. Ensure the side meant
to face the sun is on the outside.
Use a rubber hammer to carefully
tap each panel into the grooves.
Step 10:
Insert the middle roof joints in between the rafters and slide them up under the polycarbonate panels.
Tap lightly to ensure the panel is fully in the slot. Seen from above, most of the joint as well as the
drain holes should be beneath the roof panels.
To adjust the middle joints to line up : once all polycarbonate roof panels are in place, use a small
piece of wood and hammer, then tap down on the middle of the joint bringing it down and holding at
the same time the joint and top polycarbonate.
Do not tap too hard.

6
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI

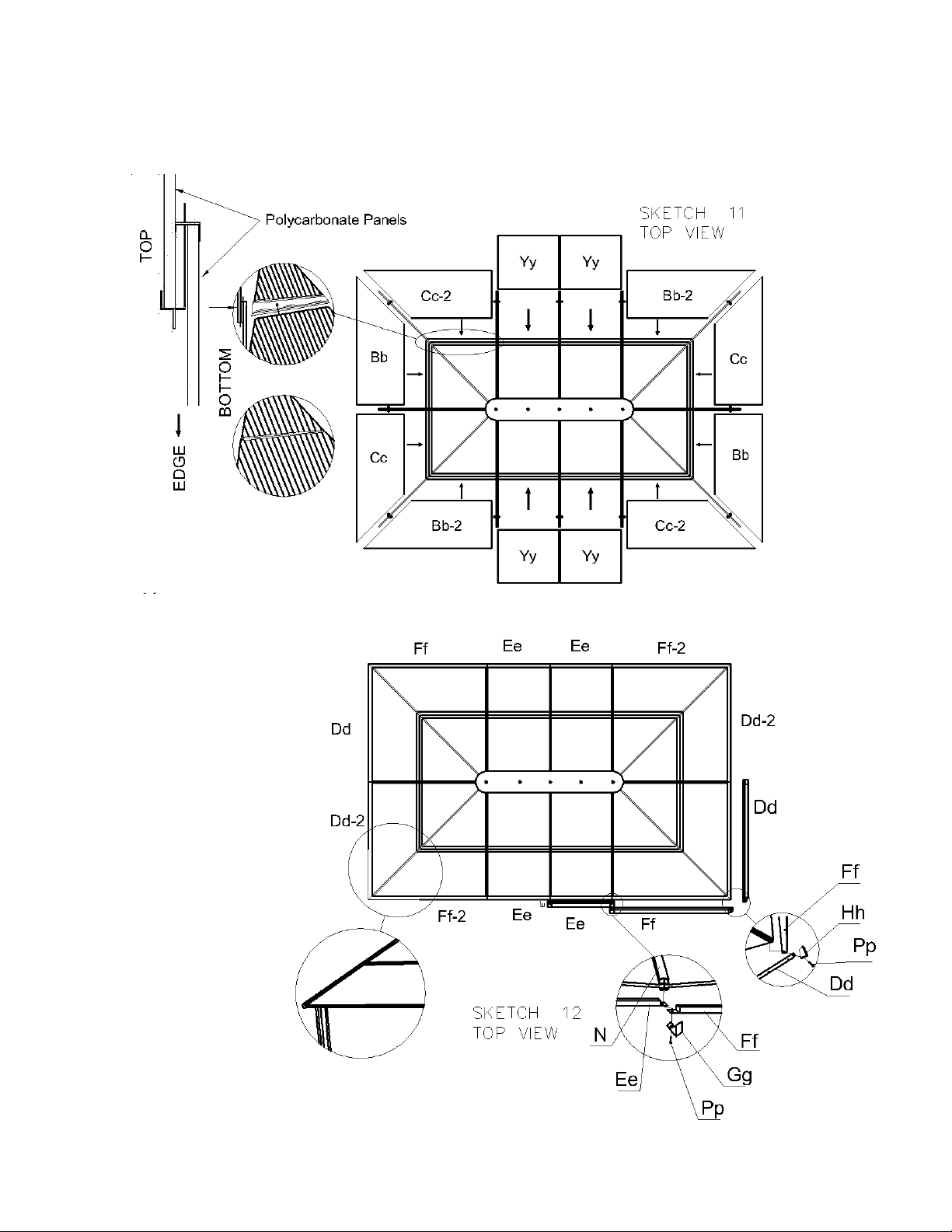

Step 11:
Slide the remaining polycarbonate roof panels in the lower groove of the rafters and into the lower slot
of the roof joints. Tap to make sure panels fit securely and do not extend past the ends of the rafters.
Step 12:
Starting from any end,
install all edgings, with
end caps “Gg” or “Hh” at
each junction or corner
respectively. Use bolts
“Pp” to secure.

7
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI
Step 13:
Install the
upper
crossbars on
the interior of
the roof using
bolts “Pp”,
following the
shaped ends
and letters. Do
not tighten bolts
immediately;
install loose
and tighten
once all
crossbars are
in place.
Repeat this
step with the
lower
crossbars.
Step 14:
a) Secure each foot plate into
the ground using screws “Rr”
and washers “Tt”.
b) Use lag shields (Ss) if
needed for harder surfaces.
Pp
Pp
Pp

8
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI

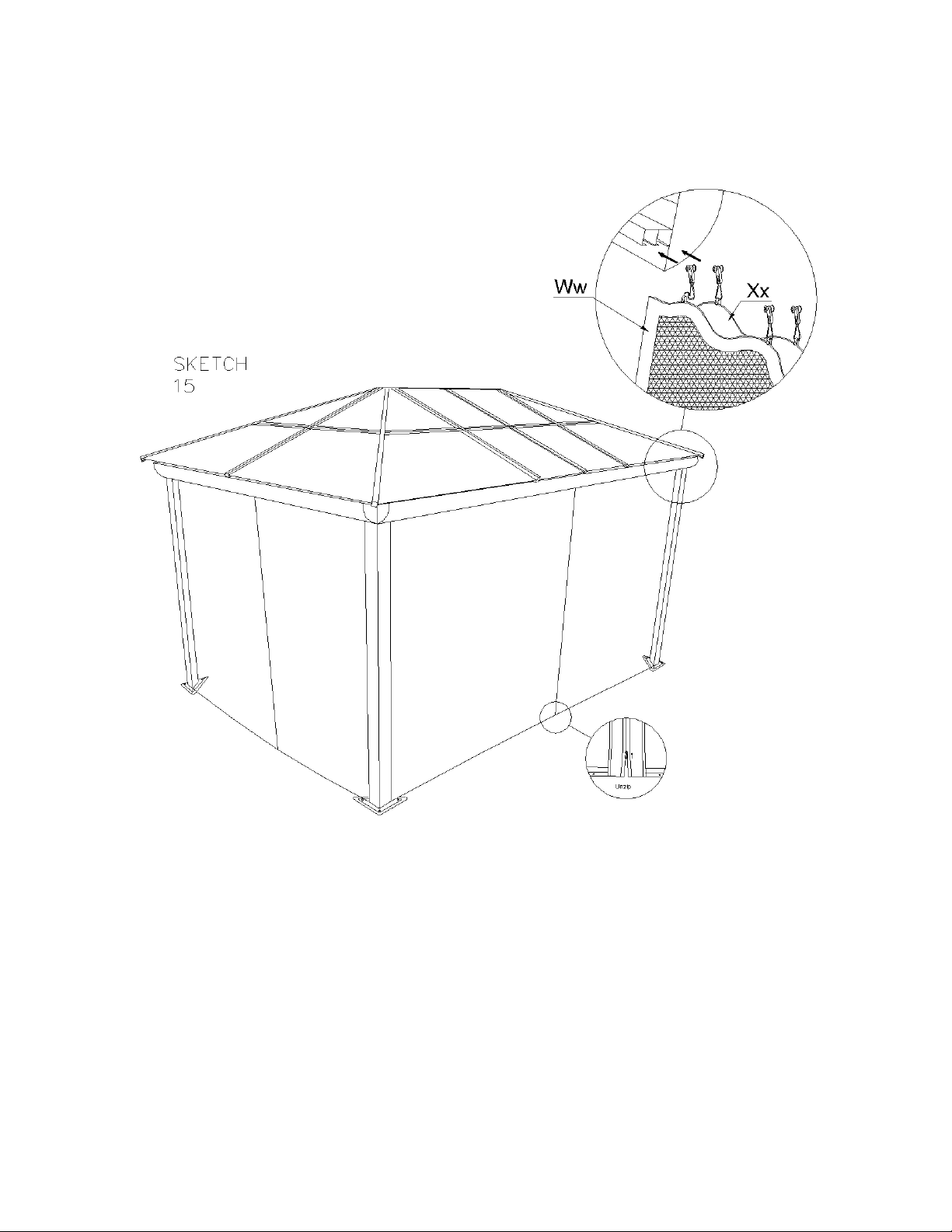

Step 15:
Install the screen curtains “Ww” in the interior groove of the curtain rails, using the provided hooks.
Install the privacy curtains “Xx” in the exterior groove of the rails. Once the hooks are in, use curtain
rail caps “Uu” to close ends of curtain rails.
IMPORTANT NOTES:
Make sure all screws and bolts are tight.
If conditions are windy, you may have to add cable guides at the corners.

9
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI

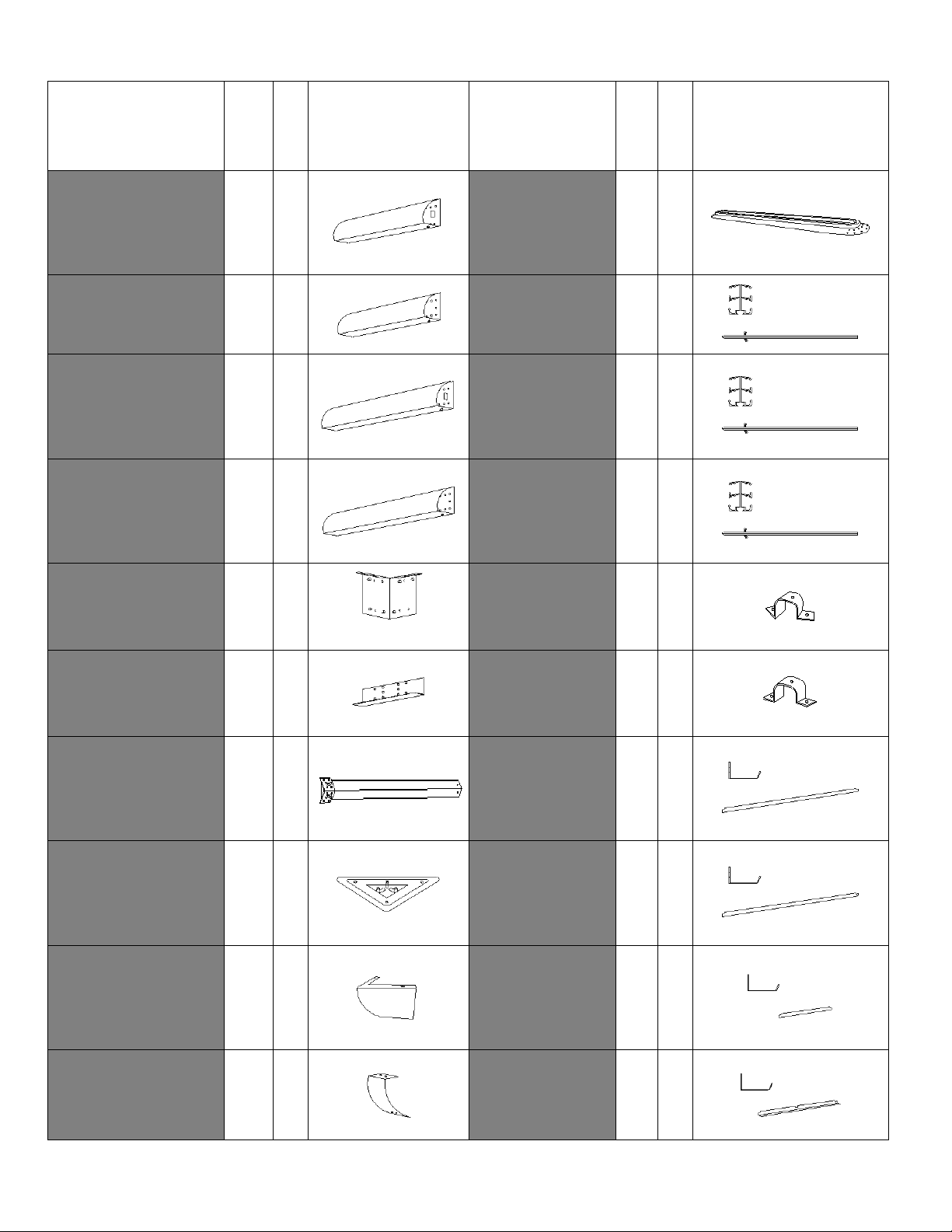

43224-22 DARK BROWN PARTS LIST

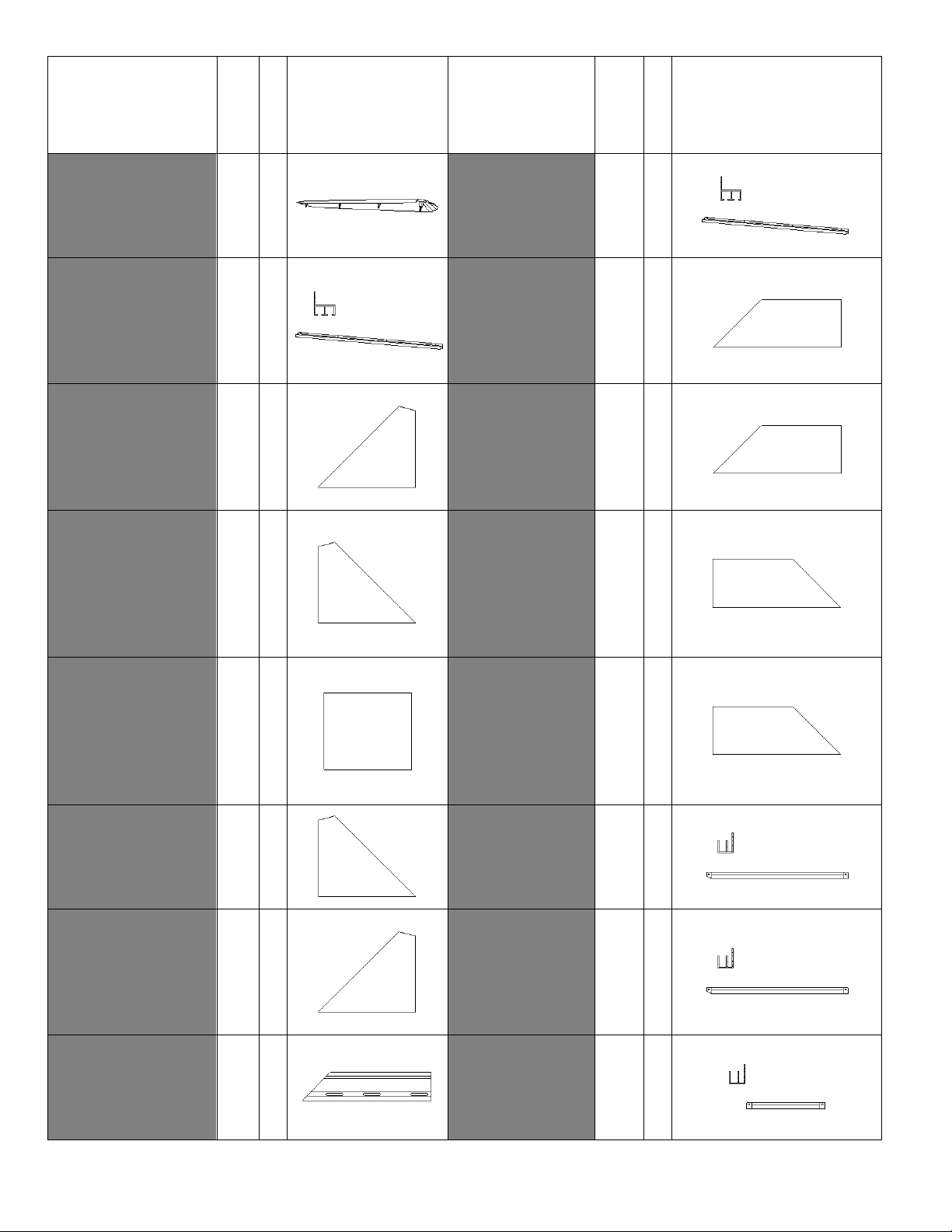

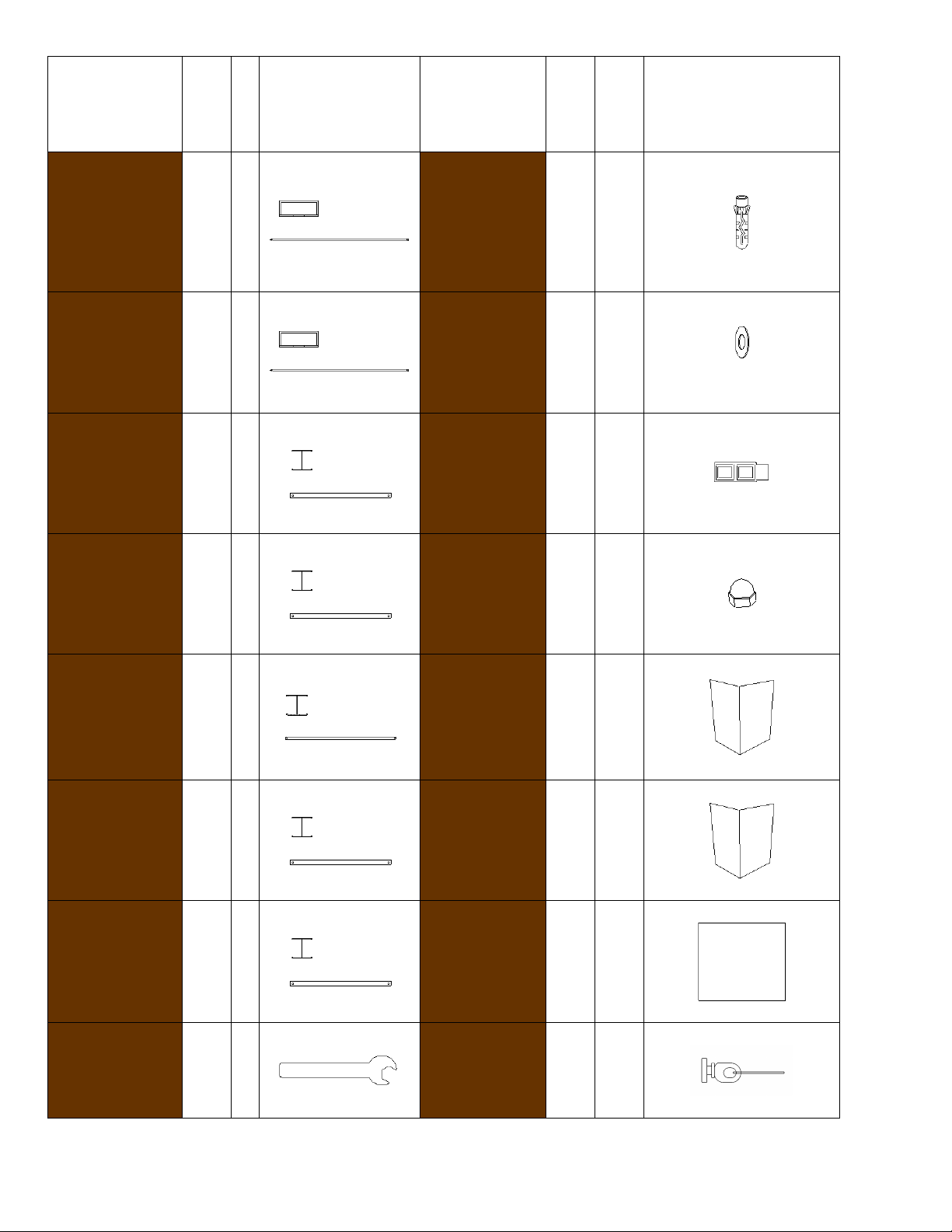

PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-626-22)
65 ½”
TOP LEFT BEAM
A
3
2
(11-665-22)
60”
CENTRAL
HUB
L
2
1
(11-627-22)
65 ½”
TOP RIGHT BEAM
B
3
2
(11-731-22)
92 5/8”
ROOF RAFTER
M
2
4
(11-662-22)
78 ¼”
TOP LEFT BEAM
C
3
2
(11-708-22)
73 ¾”
ROOF
RAFTER
N
2
6
(11-663-22)
78 ¼”
TOP RIGHT
BEAM
D
3
2
(11-637-22)
60 3/8”
ROOF
RAFTER
N-2
2
2
(11-628-22)
CORNER PLATE
E
3
4
RAFTER M
MOUNTING
BRACKET
O
2
4
(11-629-22)
CENTER PLATE
F
3
4
RAFTER N
MOUNTING
BRACKET
P
2
8
(11-630-22)
81 ½”
LEG
G
3
4
(11-638-22)
55 ¼”
RIGHT
FLASHING
Q
2
4
(11-631-22)
FOOT PLATE
H
3
4
(11-639-22)
55 ¼”
LEFT
FLASHING
R
2
4
(11-632-22)
CORNER COVER
I
3
4
(11-640-22)
25 3/8”
CENTER
FLASHING
S
2
2
(11-633-22)
MIDDLE COVER
J
3
4
(11-709-22)
51”
CENTER
FLASHING
S-2
2
2

10
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-664-22)
63”
TOP CAP
K
2
1
(11-666-22)
73 ¼”
CURTAIN
RAIL, 14’ SIDE
T
2
4
(11-641-22)
60 ½”
CURTAIN RAIL,
12’ SIDE
U
2
4
(11-678-22)
32 ¼”x72”
LEFT LOWER
PANEL, 12’
SIDE
Bb
1
2
(11-674-22)
31”x38”
LEFT UPPER
PANEL, 12’ SIDE
V
1
2
(11-721-22)
39”x57 ½”
LEFT LOWER
PANEL, 14’
SIDE
Bb-2
1
2
(11-711-22)
31”x38”
RIGHT UPPER
PANEL, 12’ SIDE
V-2
1
2
(11-679-22)
32 ¼”x72”
RIGHT
LOWER
PANEL, 12’
SIDE
Cc
1
2
(11-734-22)
37”x25 ½”
MIDDLE UPPER
ROOF PANEL
W
1
4
(11-722-22)
39”x57 ½”
RIGHT
LOWER
PANEL, 14’
SIDE
Cc-2
1
2
(11-675-22)
37 ½”x30 ½”
RIGHT UPPER
PANEL, 14’ SIDE
X
1
2
(11-680-22)
72 5/8”
LEFT EDGING,
12’ SIDE
Dd
2
2
(11-712-22)
37 ½”x30 ½”
LEFT UPPER
PANEL, 14’ SIDE
X-2
1
2
(11-715-22)
72 5/8”
RIGHT
EDGING, 12’
SIDE
Dd-2
2
2
(11-676-22)
38 ½”
LEFT MID ROOF
JOINT, 12’ SIDE
Y
2
2
(11-652-22)
26 ¾”
CENTER
EDGING
Ee
2
4

11
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-713-22)
38 ½”
RIGHT MID
ROOF JOINT
12’ SIDE
Y-2
2
2
(11-653-22)
58 7/8”
RIGHT
EDGING,
14’ SIDE
Ff
2
2
(11-647-22)
25 ½”
CENTER
MIDDLE
ROOF JOINT
Z
2
4
(11-651-22)
58 7/8”
LEFT
EDGING,
14’ SIDE
Ff-2
2
2
(11-677-22)
31”
RIGHT MID
ROOF
JOINT, 14’
SIDE
Aa
2
2
(11-654-22)
RAFTER
CAP
Gg
2
8
(11-714-22)
31”
LEFT MID
ROOF
JOINT, 14’
SIDE
Aa-2
2
2
(11-655-22)
CORNER
END
BRACKET
Hh
2
4
(11-682-22)
43 ¼”
LEFT LOWER
CROSSBAR,
14’ SIDE
Ii
2
2
(08-158-22)
BOLT
Pp
3
196
(M6x16mm)
(11-717-22)
43 ¼”
RIGHT
LOWER
CROSSBAR,
14’ SIDE
Ii-2
2
2
(08-156-22)
SCREW
Qq
3
108
(M4x16mm)
(11-657-22)
26 ¾”
MIDDLE
LOWER
CROSSBAR
Jj
2
4
(08-167-22)
SCREW
Rr
3
12
(M6x100mm)

12
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-683-22)
53 ½”
RIGHT
LOWER
CROSSBAR,
12’ SIDE
Kk
2
2
(08-193-22)
PLASTIC
PLUG
Ss
3
12
(11-718-22)
53 ½”
LEFT LOWER
CROSSBAR,
12’ SIDE
Kk-2
2
2
(08-187-22)
WASHER
Tt
3
16
(M6)
(11-685-22)
20 ½”
RIGHT UPPER
CROSSBAR,
12’ SIDE
Ll
2
2
(11-697-22)
CURTAIN
RAIL CAP
Uu
3
8
(11-720-22)
20 ½”
LEFT UPPER
CROSSBAR,
12’ SIDE
Ll-2
2
2
(08-189-22)
ACORN
NUT
Vv
3
4
(11-660-22)
26 ¾”
MIDDLE
UPPER
CROSSBAR
Mm
2
4
(11-686-22)
SCREEN/M
OUSTIQUAI
RE
Ww
2
4
(11-659-22)
17 ½”
LEFT UPPER
CROSSBAR,
14’ SIDE
Nn
2
2
(11-687V)
PRIVACY
CURTAIN
Xx
2
4
(11-661-22)
17 ½”
RIGHT UPPER
CROSSBAR,
14’ SIDE
Nn-2
2
2
(11-698-22)
38”x25 ½”
MIDDLE
LOWER
ROOF PANEL
Yy
1
4
10 mm KEY
3
1
(11-705)
CURTAIN
HOOKS
3
96

13
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI
43224-32 SLATE PARTS LIST
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-626-32)
65 ½”
TOP LEFT BEAM
A
3
2
(11-665-32)
60”
CENTRAL
HUB
L
2
1
(11-627-32)
65 ½”
TOP RIGHT BEAM
B
3
2
(11-731-32)
92 5/8”
ROOF RAFTER
M
2
4
(11-662-32)
78 ¼”
TOP LEFT BEAM
C
3
2
(11-708-32)
73 ¾”
ROOF
RAFTER
N
2
6
(11-663-32)
78 ¼”
TOP RIGHT
BEAM
D
3
2
(11-637-32)
60 3/8”
ROOF
RAFTER
N-2
2
2
(11-628-32)
CORNER PLATE
E
3
4
RAFTER M
MOUNTING
BRACKET
O
2
4
(11-629-32)
CENTER PLATE
F
3
4
RAFTER N
MOUNTING
BRACKET
P
2
8
(11-630-32)
81 ½”
LEG
G
3
4
(11-638-32)
55 ¼”
RIGHT
FLASHING
Q
2
4
(11-631-32)
FOOT PLATE
H
3
4
(11-639-32)
55 ¼”
LEFT
FLASHING
R
2
4
(11-632-32)
CORNER COVER
I
3
4
(11-640-32)
25 3/8”
CENTER
FLASHING
S
2
2
(11-633-32)
MIDDLE COVER
J
3
4
(11-709-32)
51”
CENTER
FLASHING
S-2
2
2

14
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-664-32)
63”
TOP CAP
K
2
1
(11-666-32)
73 ¼”
CURTAIN
RAIL, 14’ SIDE
T
2
4
(11-641-32)
60 ½”
CURTAIN RAIL,
12’ SIDE
U
2
4
(11-678-32)
32 ¼”x72”
LEFT LOWER
PANEL, 12’
SIDE
Bb
1
2
(11-674-32)
31”x38”
LEFT UPPER
PANEL, 12’ SIDE
V
1
2
(11-721-32)
39”x57 ½”
LEFT LOWER
PANEL, 14’
SIDE
Bb-2
1
2
(11-711-32)
31”x38”
RIGHT UPPER
PANEL, 12’ SIDE
V-2
1
2
(11-679-32)
32 ¼”x72”
RIGHT
LOWER
PANEL, 12’
SIDE
Cc
1
2
(11-734-32)
37”x25 ½”
MIDDLE UPPER
ROOF PANEL
W
1
4
(11-722-32)
39”x57 ½”
RIGHT
LOWER
PANEL, 14’
SIDE
Cc-2
1
2
(11-675-32)
37 ½”x30 ½”
RIGHT UPPER
PANEL, 14’ SIDE
X
1
2
(11-680-32)
72 5/8”
LEFT EDGING,
12’ SIDE
Dd
2
2
(11-712-32)
37 ½”x30 ½”
LEFT UPPER
PANEL, 14’ SIDE
X-2
1
2
(11-715-32)
72 5/8”
RIGHT
EDGING, 12’
SIDE
Dd-2
2
2
(11-676-32)
38 ½”
LEFT MID ROOF
JOINT, 12’ SIDE
Y
2
2
(11-652-32)
26 ¾”
CENTER
EDGING
Ee
2
4

15
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-713-32)
38 ½”
RIGHT MID
ROOF JOINT
12’ SIDE
Y-2
2
2
(11-653-32)
58 7/8”
RIGHT
EDGING, 14’
SIDE
Ff
2
2
(11-647-32)
25 ½”
CENTER
MIDDLE
ROOF JOINT
Z
2
4
(11-651-32)
58 7/8”
LEFT
EDGING, 14’
SIDE
Ff-2
2
2
(11-677-32)
31”
RIGHT MID
ROOF
JOINT, 14’
SIDE
Aa
2
2
(11-654-32)
RAFTER
CAP
Gg
2
8
(11-714-32)
31”
LEFT MID
ROOF
JOINT, 14’
SIDE
Aa-2
2
2
(11-655-32)
CORNER
END
BRACKET
Hh
2
4
(11-682-32)
43 ¼”
LEFT LOWER
CROSSBAR,
14’ SIDE
Ii
2
2
(08-158-32)
BOLT
Pp
3
196
(M6x16mm)
(11-717-32)
43 ¼”
RIGHT
LOWER
CROSSBAR,
14’ SIDE
Ii-2
2
2
(08-156-32)
SCREW
Qq
3
108
(M4x16mm)
(11-657-32)
26 ¾”
MIDDLE
LOWER
CROSSBAR
Jj
2
4
(08-167-32)
SCREW
Rr
3
12
(M6x100mm)

16
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-683)
53 ½”
RIGHT
LOWER
CROSSBAR,
12’ SIDE
Kk
2
2
(08-193)
PLASTIC
PLUG
Ss
3
12
(11-718)
53 ½”
LEFT LOWER
CROSSBAR,
12’ SIDE
Kk-2
2
2
(08-187)
WASHER
Tt
3
16
(M6)
(11-685)
20 ½”
RIGHT UPPER
CROSSBAR,
12’ SIDE
Ll
2
2
(11-697)
CURTAIN
RAIL CAP
Uu
3
8
(11-720)
20 ½”
LEFT UPPER
CROSSBAR,
12’ SIDE
Ll-2
2
2
(08-189)
ACORN
NUT
Vv
3
4
(11-660)
26 ¾”
MIDDLE
UPPER
CROSSBAR
Mm
2
4
(11-686)
SCREEN/
MOUSTIQ
UAIRE
Ww
2
4
(11-659)
17 ½”
LEFT UPPER
CROSSBAR,
14’ SIDE
Nn
2
2
(11-687)
PRIVACY
CURTAIN
Xx
2
4
(11-661)
17 ½”
RIGHT UPPER
CROSSBAR,
14’ SIDE
Nn-2
2
2
(11-698)
38”x25 ½”
MIDDLE
LOWER
ROOF
PANEL
Yy
1
4
10 mm KEY
3
1
(11-705)
CURTAIN
HOOKS
3
96

17
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI

18
ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI
MAINTENANCE NOTES
1. In case of a defective or damaged part, or for any other questions concerning the product, please
contact the manufacturer directly.
2. Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
3. The product should not be installed adjacent to trees or a sloped roof. Snow and ice may slide onto the
roof and cause it to collapse.
4. While the product is designed for 4 seasons use, the roof must be kept free of accumulation of snow.
ONE YEAR LIMITED WARRANTY
This product has been designed and manufactured to meet the highest standards of quality and durability.
Subject to the Conditions for Exercising the Warranty and the Limitations on the Warranty set forth below, it is
warranted to be free of material and manufacturing defects for a period of one year from the date of purchase.
Should the product become damaged, or the warranty period has expired, please contact Gazebo Penguin
Customer Service Department for a complete schedule of replacement parts and prices.
CONDITIONS FOR EXERCISING THE WARRANTY
The warranty only applies to the original purchaser with the bill.
In order to properly exercise your warranty, please comply with the following:
Carefully inspect the contents of the carton for missing or damaged components. Should you discover
damaged or missing parts, do not return the product to the place of purchase, but contact Gazebo
Penguin Customer Service Department at the numbers listed below:
Montreal: [phone] Elsewhere: 1-800-737-7174
You can also find a claim form to fill out online :
http://www.abrispenguin.com/forms.html
LIMITATIONS ON THE WARRANTY
1. The product is not warranted against damages due to vandalism, abuse, falling or thrown objects, or
accumulation of snow.
2. The product is not warranted against damages due to extreme weather conditions, such as
thunderstorms, hail, strong wind or snow storms, or any other acts of God.
3. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s
written instructions enclosed with the product.
4. The product is not warranted in the event it has been improperly anchored.
5. We reserve the right to replace or repair any defective product or parts at our discretion.
