Gazebo penguin 43204MR-22 User manual

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 1
43204MR-22 BROWN
43204MR-32 SLATE
METAL ROOF 10’x14’ GAZEBO
ASSEMBLY INSTRUCTIONS
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
FOR FUTURE REFERENCE,
TAKE PICTURES OF ALL SIX SIDES OF EACH OF THE BOXES UPON RECEIPT.
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
Assembly With Two Or More Adults Recommended
Base Dimensions 8’9”x 13’ 4”
Largest Dimensions 9’9”x 14’
Overall Height 108.5’’
APPROX.

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 2
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
FOR FUTURE REFERENCE,
TAKE PICTURES OF ALL SIX SIDES OF EACH OF THE BOXES UPON RECEIPT.
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
10ft x 14ft / 3.048m x 4.26m GAZEBO
Instruction Manual
IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY
For assistance with assembly, installation, parts, or customer service, contact Gazebo Penguin Customer
Service Department at the numbers listed below (English & French, Mon-Fri 8:00 AM to 4:00 PM EST):
Montreal: [phone] Elsewhere in Canada and the US: 1-800-737-7174
Consult with your local governing authority / local municipal codes regarding installation of temporary structures before
purchase or assembly. Some jurisdictions may require permits for, or otherwise regulate, installation and use.
WARNING:
For outdoor use.
Snow should be regularly cleared from the roof and not allowed to accumulate.
Retain your proof of purchase for warranty purposes. Also keep the original boxes
until the installation is complete and correct.
The unit may take more than 4 hours and 3 people are required for this assembly.
PRIOR TO ASSEMBLY:
Please don't destroy boxes until completely assembled.
The foundation must be level, flat, and solid, such as concrete or asphalt.
Keep away from overhead utility lines, tree branches, and other structures.
Check for underground pipes or wires if digging or drilling is required.

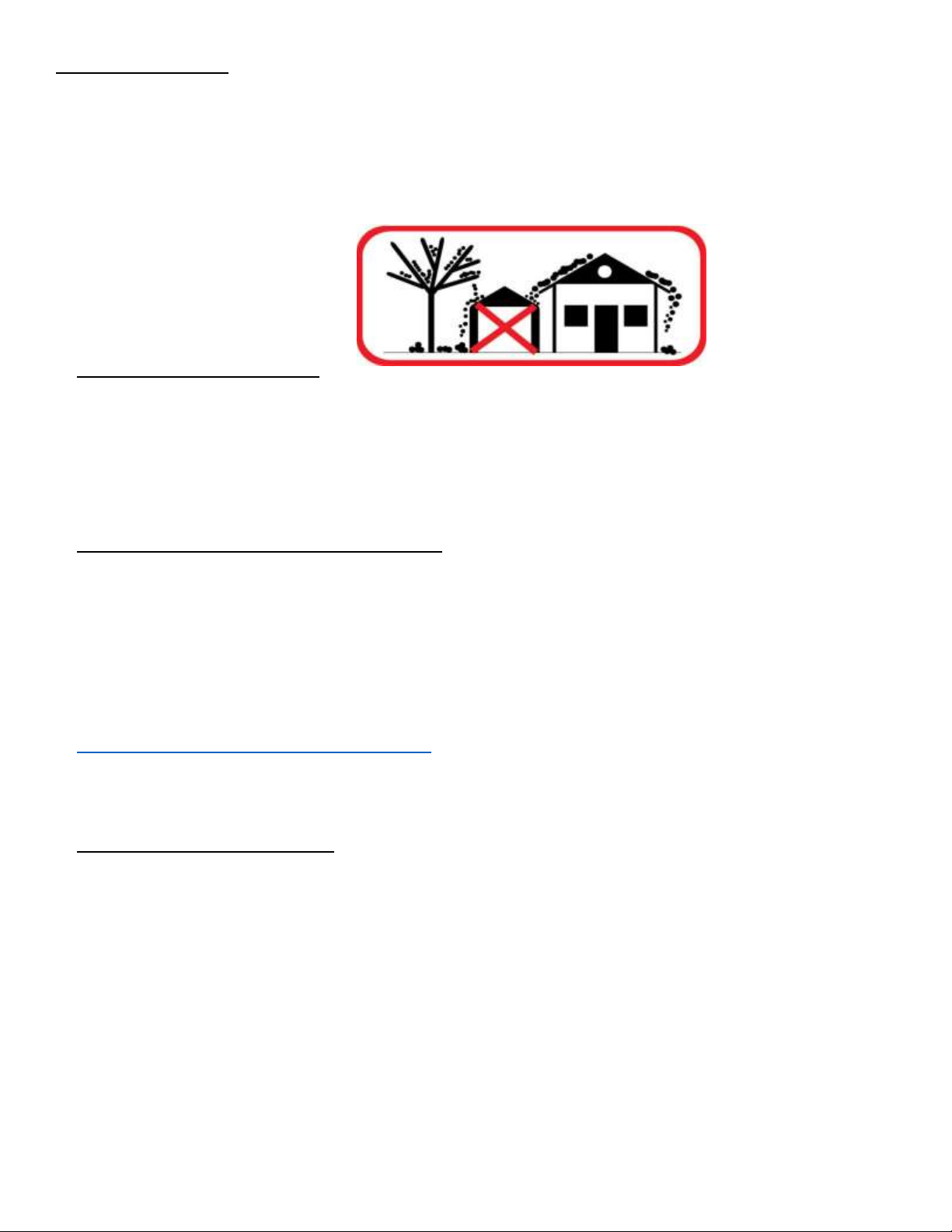

Do not install near roof lines or other structures that could shed snow, ice, or excessive rain run-off onto the roof top.
Assemble the structure as close to its final location as possible.
It is recommended to wear safety gloves, safety glasses, and hard hats for installation.
Do not hang from, climb on, or stand on the structure or roof.
Before assembly, read instructions and check that all parts are present in the boxes. If any parts are missing, refer to warranty
information.
A 6ft (1.8m) stepladder, Phillips screwdriver, tape measure, level, mallet, and a tarp to place parts on will be required for assembly
(not included).
Remove top protective film from roof panels prior to assembly; DO NOT remove bottom protective film until ready to insert roof
panels, so as to identify which side is on top.
ANCHORING INSTRUCTIONS:
Proper anchoring of the frame to the base and the wall is required for safety.
Any structure not anchored securely has the potential to fly away during high wind causing damage and safety hazard.
How the item is anchored, and the hardware and tools required, will vary based upon the set-up location and are not provided.
Please check with your local hardware store if for the appropriate anchors for your surface.
Do not anchor to pavers / pavement slabs because they are not a solid foundation.
Periodically check the anchors to ensure they remain secure
CARE AND MAINTENANCE:
In case of a defective or damaged part, or for any other questions concerning the product, please contact the manufacturer directly.
Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
ROOF PANELS:
Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
Rinse using a garden hose and air dry. If removed, ensure thoroughly dry prior to storage.
Do not use pressure washer.
STRUCTURE:
Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
Rinse using a garden hose and air dry.
Do not use pressure washer.
If there are nicks, chips, and/or scratches see the part # of the paint in the parts list to obtain a matching touch-up paint.

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 3
MAINTENANCE NOTES
1. In case of a defective or damaged part, or for any other questions concerning the product, please contact the
manufacturer directly.
2. Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
3. The product should not be installed adjacent to trees or a sloped roof. Snow and ice may slide onto the roof and cause it
to collapse.
4. While the product is designed to stay assembled year long, the roof must be kept free of accumulation of snow.
ONE YEAR LIMITED WARRANTY
This product has been designed and manufactured to meet the highest standards of quality and durability. Subject to
the Conditions for Exercising the Warranty and the Limitations on the Warranty set forth below, it is warranted to be free
of material and manufacturing defects for a period of one year from the date of purchase. Missing and damage due to
transportation is not covered by the manufacture warranty. Should the product become damaged, or the warranty period
has expired, please contact Gazebo Penguin Customer Service Department for a complete schedule of replacement
parts and prices.
CONDITIONS FOR EXERCISING THE WARRANTY
The warranty only applies to the original purchaser with the bill.
In order to properly exercise your warranty, please comply with the following:
Carefully inspect the contents of the carton for missing or damaged components. Should you discover damaged
or missing parts, do not return the product to the place of purchase, but contact Gazebo Penguin Customer
Service Department at the numbers listed below:
Montreal: [phone]
Elsewhere: 1-800-737-7174
You can also find a claim form to fill out online:
https://abrispenguin.com/assemblyinstructions/
NOTE: Damages/missing parts must be reported within 30 days of delivery. If claimed after your request might
be rejected.
LIMITATIONS ON THE WARRANTY
1. The product is not warranted against damages due to vandalism, abuse, falling or thrown objects, or accumulation of
snow.
2. The product is not warranted against damages due to extreme weather conditions, such as thunderstorms, hail, strong
wind or snow storms, or any other acts of God.
3. Leaking due to heavy rain may happen, please refer to the instruction manual for window positions and information on
how to evacuate the water.
4. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s written instructions
enclosed with the product.
5. The product is not warranted in the event it has been improperly anchored.
6. We reserve the right to replace or repair any defective product or parts at our discretion.
7. No change to the unit is allowed. This will void your warranty.

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 4
43204MR GAZEBO BROWN (see page 7 for slate parts)

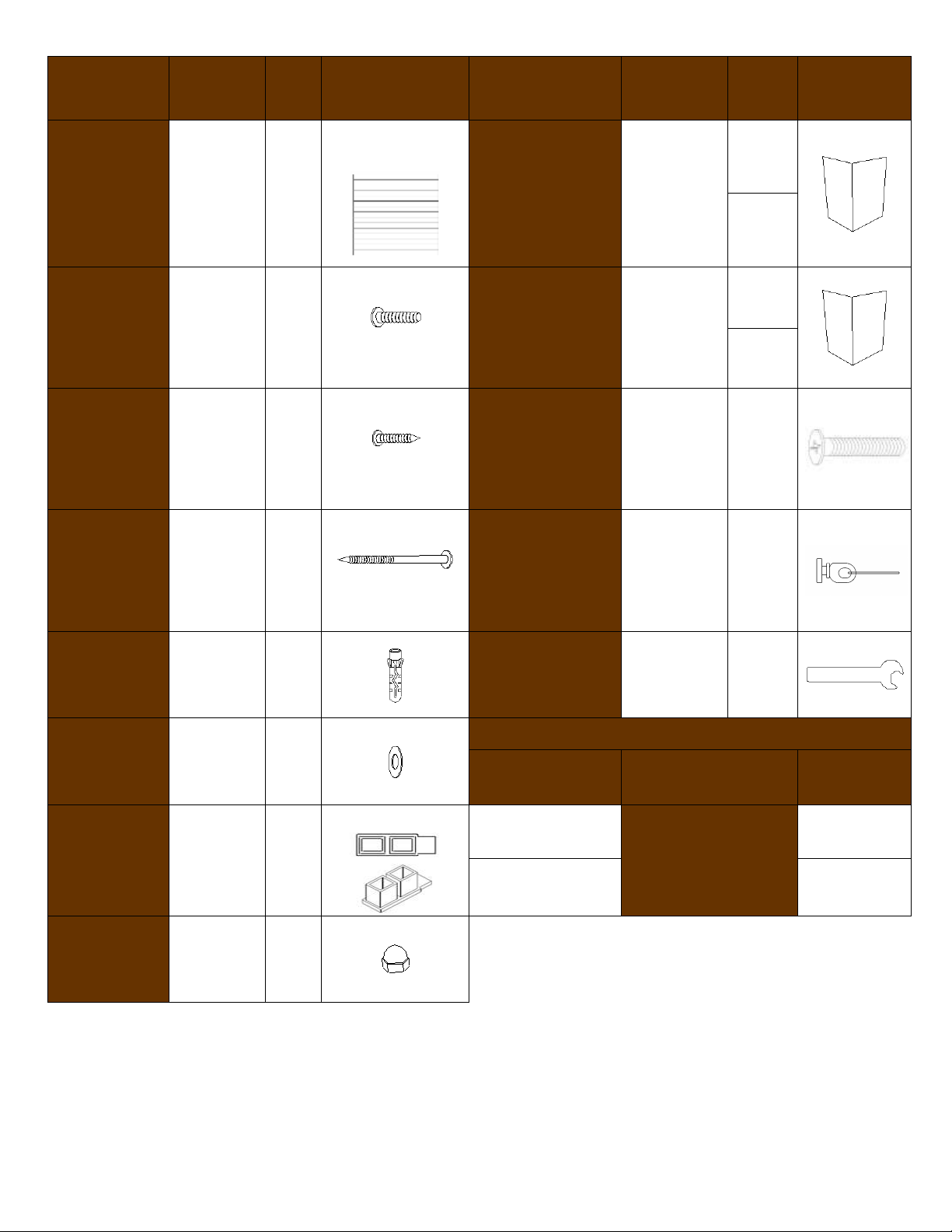

PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-624-22)
52 ¾” TOP
LEFT BEAM
A
3
2
(20-021-22)
60”
CENTRAL HUB
L
4
1
(11-625-22)
52 ¾”
TOP RIGHT
BEAM
B
3
2
(20-013-22)
83”
ROOF
RAFTER
L1
4
4
(11-662-22)
78 ¼”
TOP LEFT
BEAM
C
3
2
(20-014-22) 60
3/8”
ROOF
RAFTER
L2
4
8
(11-663-22)
78 ¼”
TOP RIGHT
BEAM
D
3
2
(20-015-22)
FINISHING BAR
M
4
4
(11-628-22)
CORNER
PLATE
E
3
4
(20-016-22)

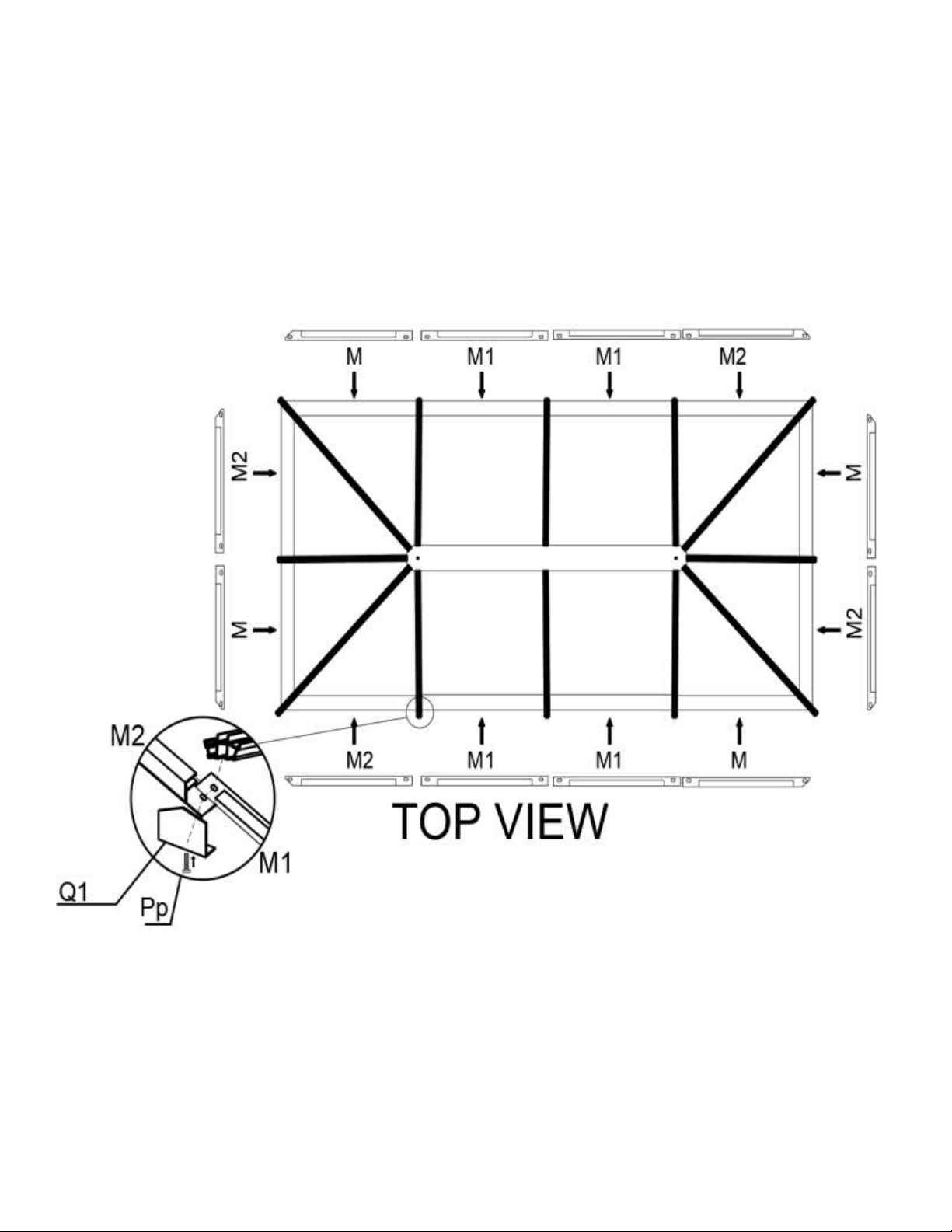

FINISHING BAR
M1
4
4
(11-629-22)
CENTER
PLATE
F
3
4
(20-065-22)
FINISHING BAR
M2
4
4
(11-630-22)
81 ½”
LEG
G
3
4
(20-017-22)
SOLIDIFYING
BAR
N
4
4
(11-631-22)
FOOT
PLATE
H
3
4
(20-018-22)
SOLIDIFYING
BAR
N1
4
4
(11-632-22)
CORNER
COVER
I
3
4
(20-019-22)
SOLIDIFYING
BAR
N2
4
4
(11-633-22)
MIDDLE
COVER
J
3
4
(12-030-22)
MOUNTING
BRACKET
O
4
4
(11-664-22)
63”
TOP CAP
K
4
1
(20-012-22)
60 3/8”
COVER ROOF
BAR
O1
4
8

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 5
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(20-011-22)
83”
COVER
ROOF BAR
O2
4
4
(20-069-22)
51”
CENTER
FLASHING
S
4
2
(12-031-22)
MOUNTING
BRACKET
P
4
8
(11-666-22)
73 ¼”
CURTAIN
RAIL,
14’ SIDE
T
4
4
18-067-22
SOLIDIFYING
BAR
BRACKET
P1
4
8
(11-642-22)
47 ¾”
CURTAIN
RAIL,
10’ SIDE
U
4
4
20-060-22
SOLIDIFYING
BAR
BRACKET
P2
4
4
(20-007-22)
RIGHT
LOWER ROOF
PANEL
V
1
4
(20-070-22)
55 ¼”
RIGHT
FLASHING
Q
4
4
(20-008-22)
LEFT LOWER
ROOF PANEL
V1
1
4
(17-053-22)
FINISHING
END
Q1
4
8
(20-005-22)
MIDDLE
LOWER ROOF
PANEL
W
2
4
(19-097-22)
CORNER
BRACKET
Q2
4
4
(20-009-22)
RIGHT UPPER
ROOF PANEL
X
2
4
(20-071-22)
55 ¼” LEFT
FLASHING
R
4
4
(20-010-22)
LEFT UPPER
ROOF PANEL
X1
2
4

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 6
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(20-006-22)
MIDDLE
UPPER
ROOF
PANEL
Y
2
4
(11-667-22)
SCREEN/
MOUSTIQUAIRE
Ww
4
2
Left
2
Right
(08-158-22)
BOLT
Pp
3
226
(M6x16mm)
(11-668-22)
PRIVACY
CURTAIN
Xx
4
2
Left
2
Right
(08-156-22)
SCREW
Qq
3
108
(M4x16mm)
(16-118-22)
SCREW M6x36
Oo1
3
52
(08-167-22)
SCREW
Rr
3
12
(M6x63.5mm)
(11-705-22)
CURTAIN
HOOKS
3
96
(08-193-22)
PLASTIC
PLUG
Ss
3
12
(08-182)
10 mm KEY
3
1
(08-187-22)
WASHER
Tt
3
15
(M6)
*NOT INCLUDED IN THE BOX
DESCRIPTION
COLOUR
PART #
(11-697-22)
CURTAIN
RAIL CAP
Uu
3
8
SPRAY PAINT
BROWN
11-726
PAINT PEN
18-184
(08-189-22)
ACORN
NUT
Vv
3
3

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 7
43204MR GAZEBO SLATE
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(11-624-32)
52 ¾”
TOP LEFT
BEAM
A
3
2
(20-021-32)
60”
CENTRAL
HUB
L
4
1
(11-625-32)
52 ¾”
TOP RIGHT
BEAM
B
3
2
(20-013-32)
83”
ROOF
RAFTER
L1
4
4
(11-662-32)
78 ¼”
TOP LEFT
BEAM
C
3
2
(20-014-32)
60 3/8”
ROOF
RAFTER
L2
4
8
(11-663-32)
78 ¼”
TOP RIGHT
BEAM
D
3
2
(20-015-32)
FINISHING BAR
M
4
4
(11-628-32)
CORNER
PLATE
E
3
4
(20-016-32)
FINISHING BAR
M1
4
4
(11-629-32)
CENTER
PLATE
F
3
4
(20-065-32)
FINISHING BAR
M2
4
4
(11-630-32)
81 ½”
LEG
G
3
4
(20-017-32)
SOLIDIFYING
BAR
N
4
4
(11-631-32)
FOOT
PLATE
H
3
4
(20-018-32)
SOLIDIFYING
BAR
N1
4
4
(11-632-32)
CORNER
COVER
I
3
4
(20-019-32)
SOLIDIFYING
BAR
N2
4
4
(11-633-32)
MIDDLE
COVER
J
3
4
(12-030-32)
MOUNTING
BRACKET
O
4
4
(11-664-32)
63”
TOP CAP
K
4
1
(20-012-32)
60 3/8”
COVER ROOF
BAR
O1
4
8

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 8
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(20-011-32)
83”
COVER
ROOF BAR
O2
4
4
(20-069-32)
51”
CENTER
FLASHING
S
4
2
(12-031-32)
MOUNTING
BRACKET
P
4
8
(11-666-32)
73 ¼”
CURTAIN
RAIL,
14’ SIDE
T
4
4
18-067-32
SOLIDIFYING
BAR
BRACKET
P1
4
8
(11-642-32)
47 ¾”
CURTAIN
RAIL,
10’ SIDE
U
4
4
20-060-32
SOLIDIFYING
BAR
BRACKET
P2
4
4
(20-007-32)
RIGHT
LOWER ROOF
PANEL
V
1
4
(20-070-32)
55 ¼”
RIGHT
FLASHING
Q
4
4
(20-008-32)
LEFT LOWER
ROOF PANEL
V1
1
4
(17-053-32)
FINISHING
END
Q1
4
8
(20-005-32)
MIDDLE
LOWER ROOF
PANEL
W
2
4
(19-097-32)
CORNER
BRACKET
Q2
4
4
(20-009-32)
RIGHT UPPER
ROOF PANEL
X
2
4
(20-071-32)
55 ¼” LEFT
FLASHING
R
4
4
(20-010-32)
LEFT UPPER
ROOF PANEL
X1
2
4

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 9
PART
PACKED
IN BOX
QTY
DIAGRAM
PART
PACKED
IN BOX
QTY
DIAGRAM
(20-006-32)
MIDDLE
UPPER
ROOF
PANEL
Y
2
4
(11-667-32)
SCREEN/
MOUSTIQUAIRE
Ww
4
2
Left
2
Right
(08-158-32)
BOLT
Pp
3
226
(M6x16mm)
(11-668-32)
PRIVACY
CURTAIN
Xx
4
2
Left
2
Right
(08-156-32)
SCREW
Qq
3
108
(M4x16mm)
(16-118-32)
SCREW M6x36
Oo1
3
52
(08-167-32)
SCREW
Rr
3
12
(M6x63.5mm)
(11-705-32)
CURTAIN
HOOKS
3
96
(08-193-32)
PLASTIC
PLUG
Ss
3
12
(08-182)
10 mm KEY
3
1
(08-187-32)
WASHER
Tt
3
15
(M6)
*NOT INCLUDED IN THE BOX
DESCRIPTION
COLOUR
PART #
(11-697-32)
CURTAIN
RAIL CAP
Uu
3
8
SPRAY PAINT
SLATE
18-125
PAINT PEN
18-126
(08-189-32)
ACORN
NUT
Vv
3
3

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 10
Before You Assemble the Gazebo
Please don't destroy boxes until completely assembled.
For future reference, take pictures of all six sides of each of the boxes upon receipt.
Please verify the content of each box against the list of parts.
It is important that this gazebo be anchored on a solid base with the provided screws.
Otherwise, please ensure that you use anchors sufficient for your surface.
The gazebo should not be installed adjacent to trees or a sloped roof. Snow and ice may slide
onto the gazebo and cause it to collapse.
Tools required (not provided)
6ft (1.8m) Stepladder
Robinson #2 Screwdriver
Mallet
Safety Gloves & Glasses
Tarp or protective material for placing
parts on during assembly
Tape Measure
Leveling Shim
Step 1:
1. Assemble Beams “A” and “B” using Center Plate “F”, securing tightly with 8 Bolts “Pp”. Repeat
with Beams “C” and “D”, also using Center Plate “F”.
2. Lay out the assembled Beams in a rectangle and join at each corner with a Corner Plate “E”,
again securing tightly with 8 Bolts “Pp”.

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 11

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 12
Step 2:
For each Leg “G”, attach Foot Plate “H” using 3 Bolts “Pp”.
Step 3:
1. Unscrew 4 Pp Bolts as shown below, have someone lift the Beam assembly and attach each
Leg “G” into a Corner, again securing each using 4 Bolts “Pp”.
2. Repeat until all four Legs are in place.

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 13
Step 4:
1. Install Middle Cover “J” at each of the 4 beam junctions, using 4 Screws “Qq” each.
2. Install Corner Cover “I” at each of the corners, using 4 Screws “Qq” each.

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 14

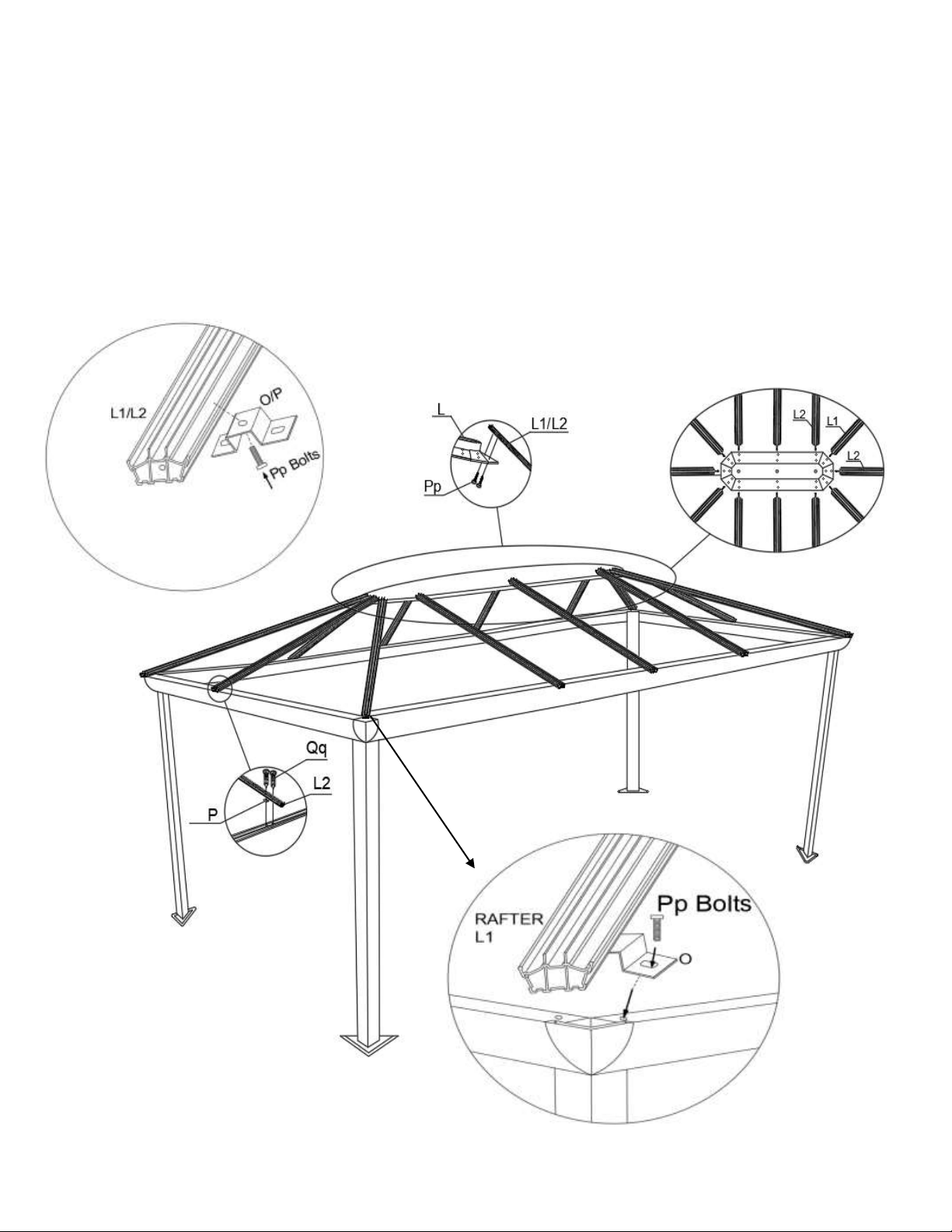

Step 5:
1. Screw Mounting Bracket (O) to Rafter (L1) and Bracket (P) to Rafter (L2) using the second last
single insert from under the rafter using Bolt (Pp)
2. Attach Roof Rafters (L1, L2) to the Central Hub (L) using Bolt (Pp).
3. Use Screws (Qq) to affix the Rafters (L2) onto the top of the structure going through the
Mounting Brackets (P) attached to the Rafters.
4. Then, use Bolts (Pp) to affix the Rafters (L1) onto the top of the structure going through the
Mounting Brackets (O) attached to the Rafters.
Note: Rafters must be affixed where hole screws are closer to the center

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 15
Step 6:
1. Install the Flashings “Q”,
“R”, and “S” onto the
Beam assembly, using
Screws “Qq” on the
inside. The notched end
of a Flashing will always
go in a corner of the
gazebo.
Step 7:
1. Install the Curtain Rails “T” and “U” on the inside of the beam assembly using Bolts “Pp”.
Pp

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 16
Step 8:
1. Place Finishing Bars (M, M1) next to each other and align the pre-drilled holes in each bar one
on top of the other.
2. Place Finishing End & Corner Bracket (Q1, Q2) over the aligned holes and secure with Bolts
(Pp).
3. Repeat process with all Finishing Bars as illustrated.
4. In order to finish the installation of the last Finishing Bar (M) you have to unscrew the first Bolts
(Pp) at your starting point and place (Q1, Q2) then re-install the Bolt (Pp).

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 17

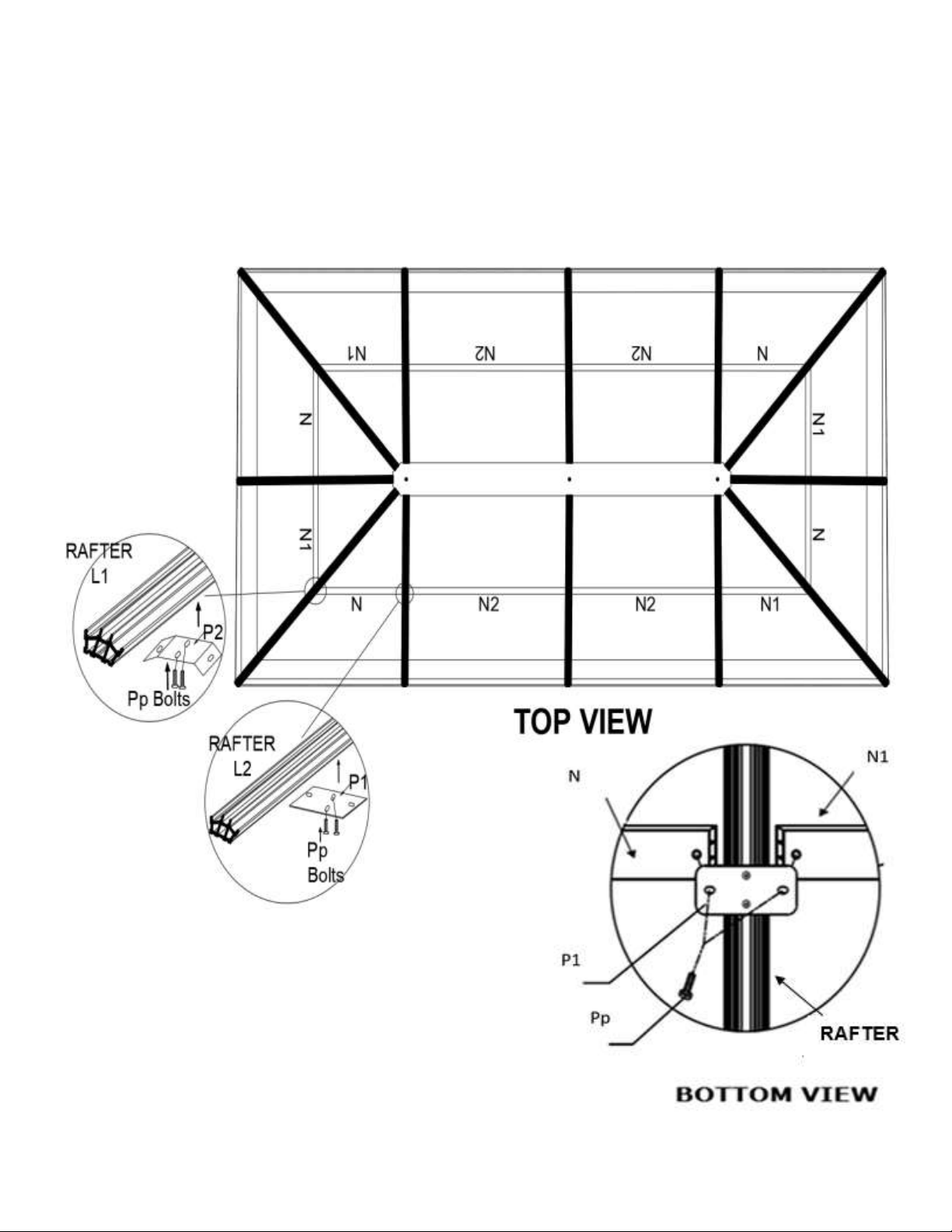

Step 9:
1. From the inside of the Gazebo, install the Solidifying Bar (N, N1, N2) as illustrated using the
Bolts (Pp).
2. Each Bolt (Pp) must be inserted into the inserts of the Rafters.

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 18
Step 10:
1. Install the Bottom Roof Panels (V, V1, W) by sliding them onto finishing bars (M, M1, M2).
Step 11:
Install first Upper Roof Panel (Y) by sliding it on top of Roof Rafters (L1, L2).
Note: Roof Panel must be held in place until it is secured with the Cover Cap.
Y

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 19

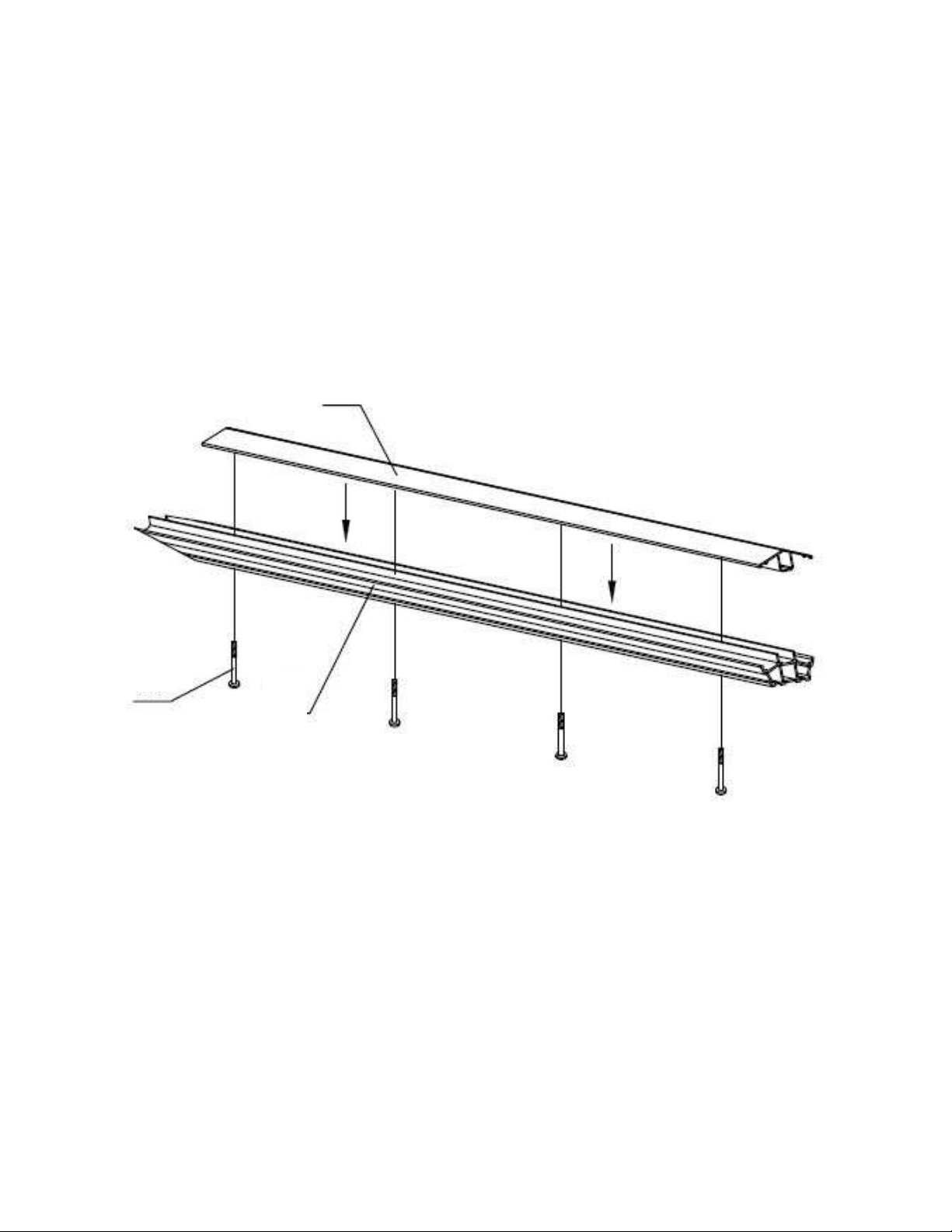

Step 12:
1. Once the installation of the panel is complete, install a Cover Roof Bar (O1, O2) onto the roof
Rafter (L1, L2) with the help of Bolts (Oo1).
2. Place Cover Roof Rafter on top of Roof Rafter, but do not completely screw it until both panels
connected to the Roof Rafter are placed.
L1/L2
O1/O2
Oo1

ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION 20

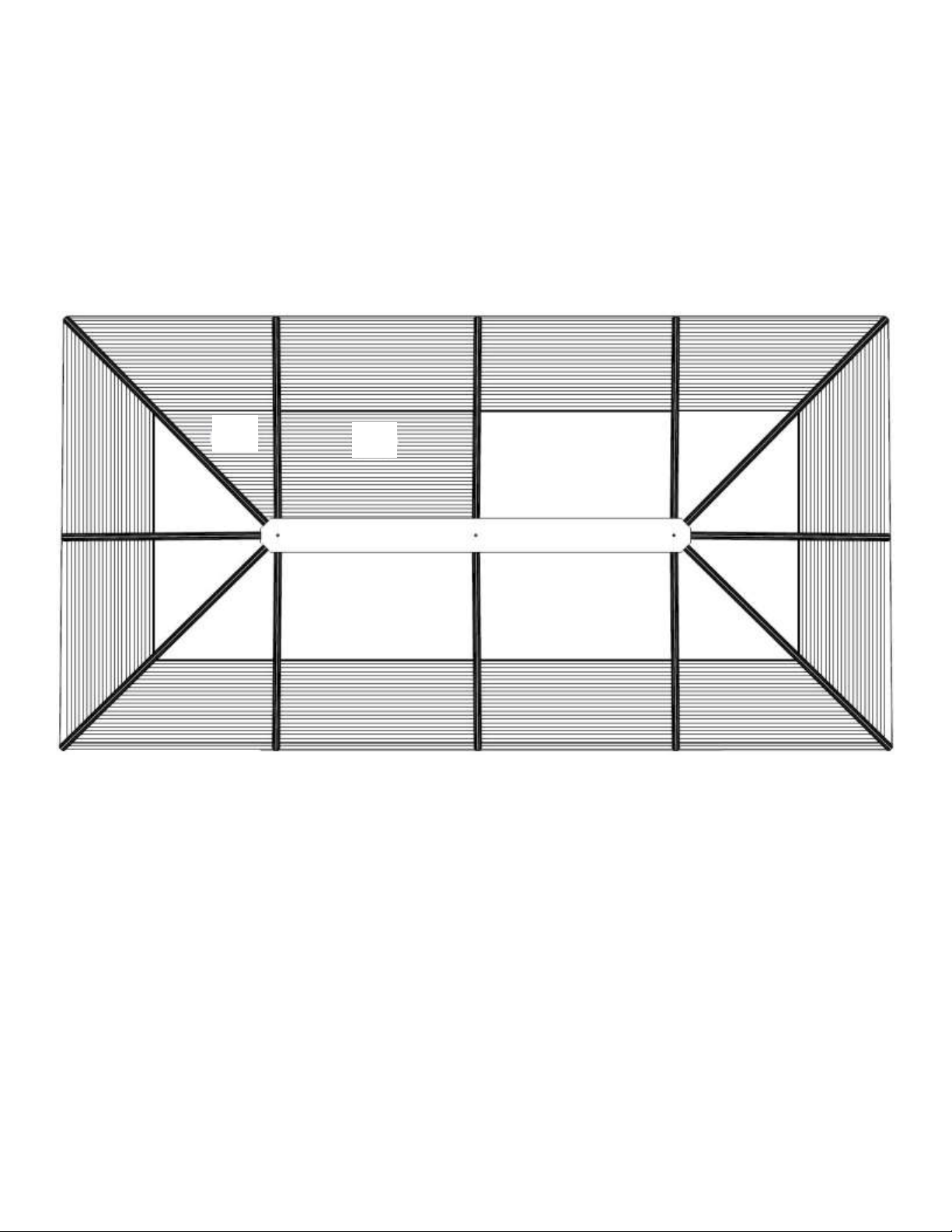

Step 13:
1. Install the next Upper Roof Panel (X) by sliding it on top of roof Rafters (L1, L2) then secure
with mutual Cover Roof Bar.
2. Continue to install the other panels one at time until the last section.
X
Y
TOP VIEW
