GE GEP-09CA User manual

GEP-09CA
GEP-09HA
GEP-12CA
GEP-12HA
Installation and User Manual
Instructions d’installation et
Guide de l’utilisateur
Instrucciones de instalación y
Manual del usuario

TABLE OF CONTENTS
AIR CONDITIONER SAFETY ....................................................................................................................................... 2
PARTS AND FEATURES .............................................................................................................................................. 3
INSTALLATION REQUIREMENTS ................................................................................................................................ 3
Tools and Parts .................................................................................................................................................. 3
Location Requirements ...................................................................................................................................... 4
Electrical Requirements ...................................................................................................................................... 4
INSTALLATION INSTRUCTIONS ................................................................................................................................. 5
Step 1 - Unpack Air Conditioner ........................................................................................................................... 5
Step 2 - Install Exhaust Nozzle to Main Window Panel ............................................................................................. 5
Step 3 - Install Main Window Panel and Extension Panels ......................................................................................... 5
Step 4 - Attach Exhaust Hose to the Exhaust Nozzle .............................................................................................. 6
Step 5 - Connect Exhaust Hose to the Air Conditioner ........................................................................................... 6
Step 6 - Complete Installation ............................................................................................................................. 6

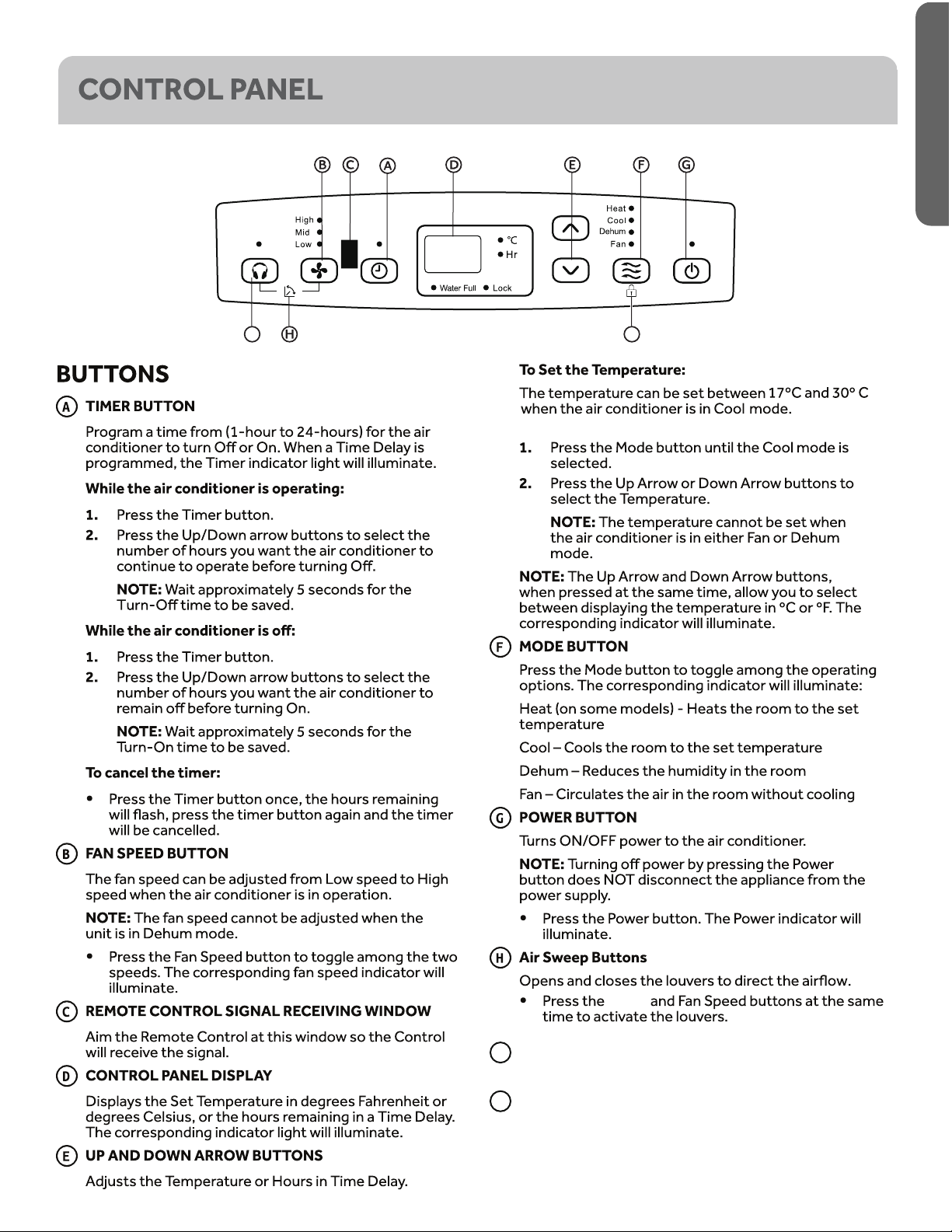

CONTROL PANEL ...................................................................................................................................................... 7
Buttons ............................................................................................................................................................ 7

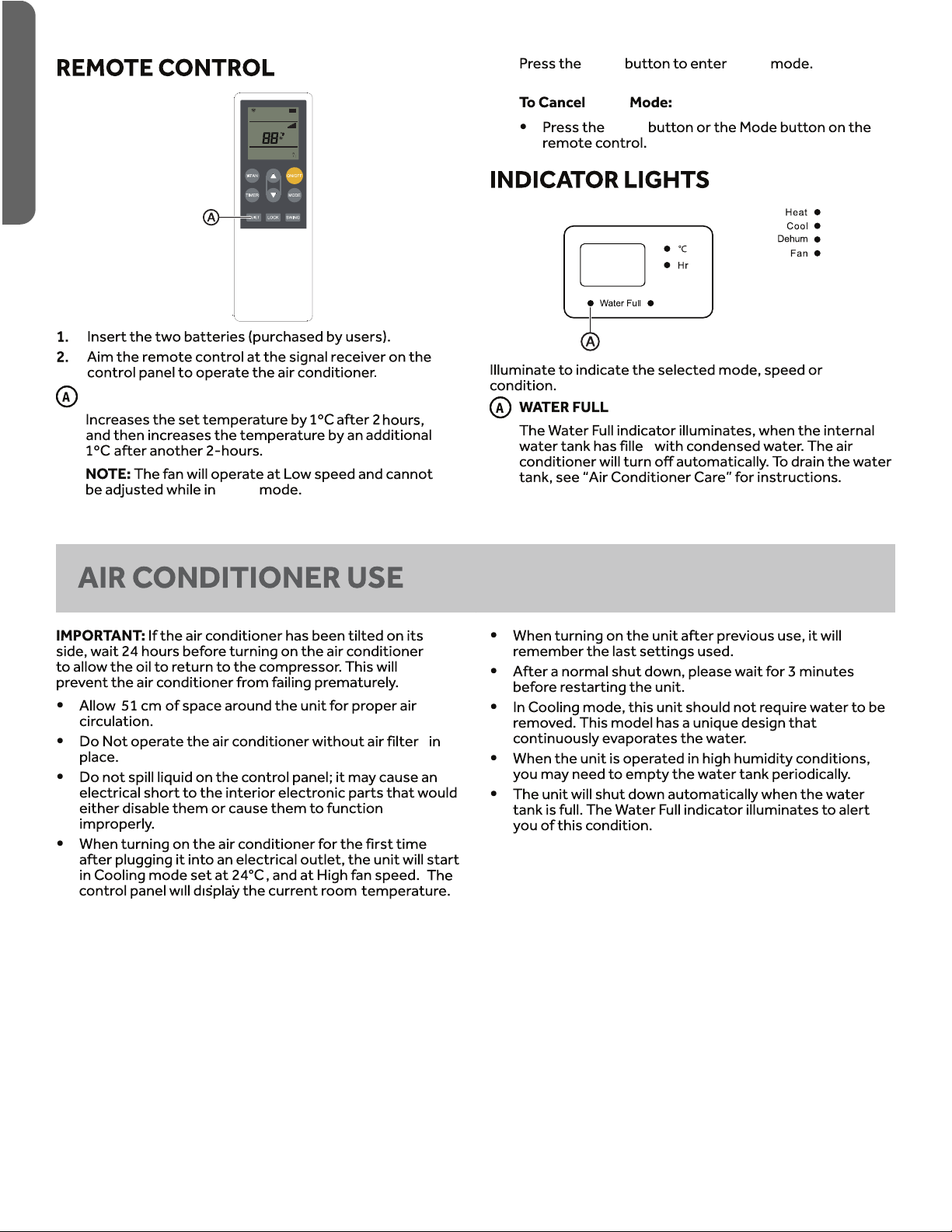

Remote Control ................................................................................................................................................. 8
Indicator Lights ................................................................................................................................................. 8
AIR CONDITIONER USE ............................................................................................................................................. 8
AIR CONDITIONER CARE ......................................................................................................................................... 11
Cleaning ......................................................................................................................................................... 11
Air Filters ........................................................................................................................................................ 11
Internal Water Tank .......................................................................................................................................... 11
Storage ........................................................................................................................................................... 11
TROUBLESHOOTING .............................................................................................................................................. 12
1
ENGLISH
RECORD KEEPING
Thank you for purchasing this GE Appliances product. This user
manual will help you get the best performance from your new air
conditioner.
For future reference, record the model and serial number located on
the label on the side of your air conditioner, and the date of
purchase.
Staple your proof of purchase to this manual to aid in obtaining war-
ranty service if needed.
_______________________________________
Model number
_______________________________________
Serial number
_______________________________________
Date of purchase
DRAINAGE INSTRUCTION ......................................................................................................................................... 9
SPECIFICATION ........................................................................................................................................................ 13

AIR CONDITIONER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
DANGER
WARNING
CAUTION
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will
follow the safety alert symbol and either the word “DANGER,” “WARNING” or “CAUTION.”
These words mean:
An imminently hazardous situation. You could be killed or seriously injured if you don’t
immediately follow instructions.
A potentially hazardous situation which, if not avoided, could result in death or serious
bodily injury.
A potentially hazardous situation which, if not avoided, may result in moderate or minor
injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what
can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire electrical shock, injury to persons, or damage when using the air conditioner,
follow basic precautions, including the following:
•Read all of the instructions before using this appliance.
•Plug into a grounded outlet only.
•Do not remove ground contacts from the power cord
plug.
•Do not use an adapter.
•Do not use an extension cord.
•Do not operate the air conditioner if it has a damaged
cord or plug, if it is not working properly, or if it has
been damaged or dropped.
•The air conditioner should be serviced only by
qualified service personnel. Call an authorized service
company for examination, repair, or adjustment.
•Disconnect power before cleaning.
NOTE: Turning o power by pressing the Power button
does NOT disconnect the appliance from the power
supply.
•Do not install or use the air conditioner in any area where
the atmosphere contains combustible gases or where the
atmosphere is contaminated. Avoid any chemicals coming
in contact with your air conditioner.
•Do not store anything directly on top of the air conditioner.
•Use two or more people to move and install air conditioner.
•Never operate the air conditioner without the filter in
place.
•Do not use the air conditioner near a bathtub, shower or
wash basin or other wet area.
READ AND SAVE THESE INSTRUCTIONS
2
ENGLISH

＠
RTS AND FEATURES
c
 




 
-e in Dehum Mode





。 

INSLLI。NREQUIREMENTS
T。。LS AND RTS
  
。
TOOLS NEEDED

RTS SUPPLIED
。
3
。

•Exhaust
Nozzle (1) •Exhaust Hose (1) •Hose Connector
(1)
•Flat Screws (2)
1 for extension panels
1 for nozzle •Remote Control
LOCATION REQUIREMENTS
•Place the air conditioner on a flat level surface in a
location that is at least 51 cm from any wall.
NOTE: A minimum clearance of 51 cm from the air
conditioner to the wall must be maintained to ensure
proper airflow
•Maintain a minimum 51 cm clearance around the air
conditioner to not block airflow
•Keep the air conditioner free of any obstructions such as
drapes, curtains, blinds, etc.
•The exhaust hose should be free of any obstructions.
•Do not place the air conditioner on an unstable or raised
surface because it could fall and cause damage or injury.
•Do not place the air conditioner in direct sunlight or near
a heat source such as baseboard heaters, stoves, etc.
•The window panel can be installed in a window with a
minimum 51 cm to a maximum 101.6 cm opening.
(51 cm)
(51 cm)
ELECTRICAL REQUIREMENTS
POWER SUPPLY CORD
Wiring Requirements
•220 Volt, 50Hz, 16-amp fused grounded outlet
•The use of a time-delay fuse or time-delay circuit breaker
is recommended.
•Use a dedicated circuit only.
NOTE: Do not operate any other electrical
appliances on this circuit or you may trip the circuit
breaker/fuse.
If this power supply cord is damaged, it cannot be repaired. It
must be replaced with a cord from the product manufacturer.
4
ENGLISH
WARNING
Electrical Shock Hazard
Plug into a grounded outlet only.
Do not remove the ground contacts from the power
cord plug.
Do not use an adapter.
Do not use an extension cord.
Ïäìïøõè÷o followthese instructions can result in death,
fire òõèïèæ÷õìæäï shock.

REQUIRED GROUNDING METHOD
This air conditioner must be grounded. The air conditioner is
equipped with a power supply cord that has a grounding
plug. The power supply cord must be plugged into a mating,
grounded outlet, and grounded in accordance with all local
codes and ordinances.
220V
16 Amp
INSTALLATION INSTRUCTIONS
STEP 1 - UNPACK AIR
CONDITIONER
WARNING
Excessive Weight Hazard
Use two or more people to move and install air
conditioner.
Failure to do so can result in back or other injury.
•Remove packaging materials. Save the carton and the
foam packaging for storing the air conditioner when not
in use.
NOTE: There are NO packing materials inside the
air conditioner to remove—Do Not open the cabinet.
•Properly dispose of/recycle all packing material.
•Handle the air conditioner gently.
•Keep the air conditioner upright and level. Do not set the
air conditioner on its side, front, back or upside down.

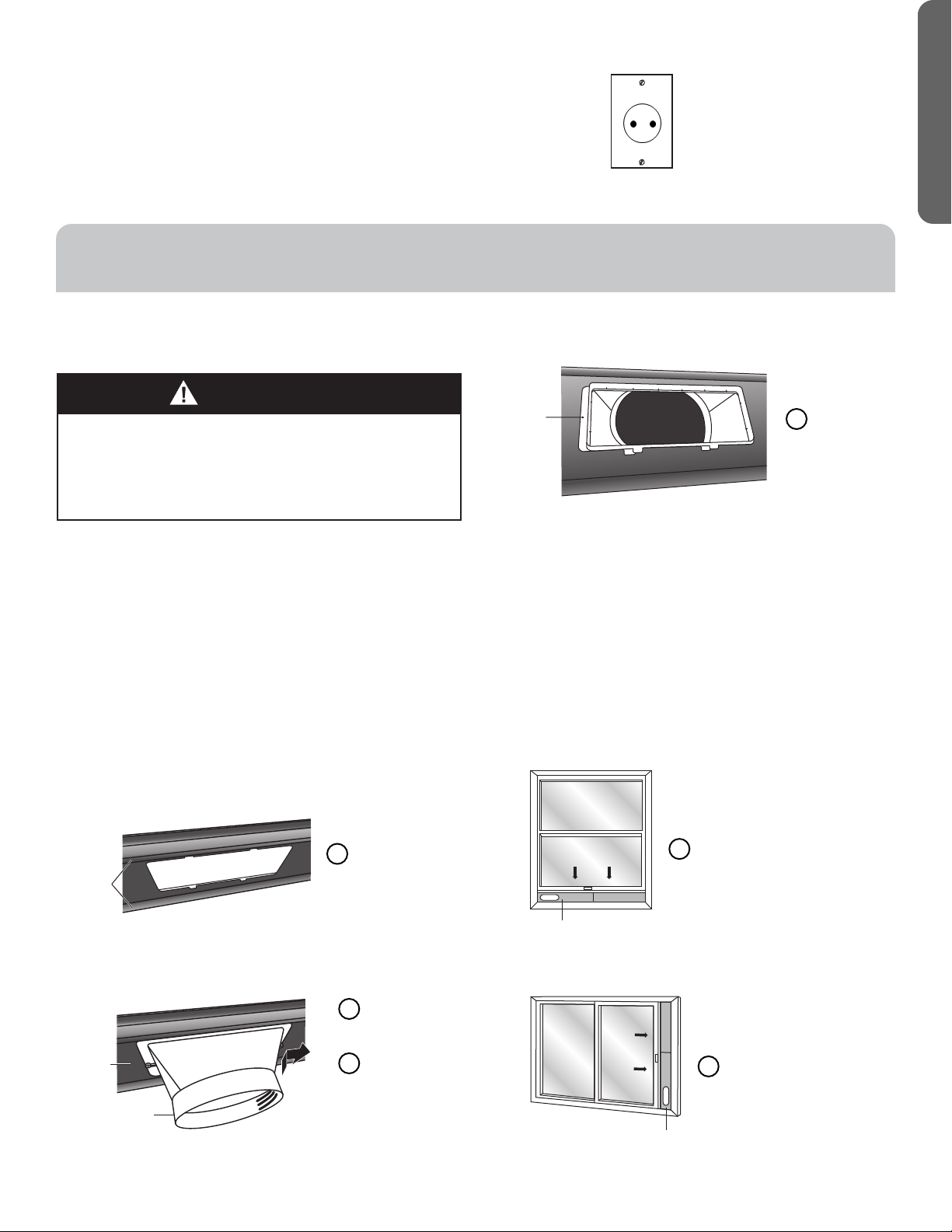

STEP 2 - INSTALL EXHAUST
NOZZLE TO MAIN WINDOW PANEL
1. Hold the main window panel so that the L-shaped edges
of the panel are facing you.
a
AL-Shaped
Edges
2. Align the exhaust nozzle with the slots in the opening,
and then insert and slide the nozzle to access the hole
from the back of the main window panel.
b
a
AMain
Window
Panel
BExhaust
Nozzle
3. Turn the main window panel over, so that the nozzle is
away from you. Insert a fla screw through the hole to
fasten the window panel to the adapter.
a
A Flat
Screw
STEP 3 - INSTALL MAIN WINDOW
PANEL AND EXTENSION PANELS
NOTE: Depending on the size of your window opening,
use the main panel and one or both of the extension
panels.
1. Open the window and place the main window panel into
the window.
NOTE: The window assembly is designed to
accommodate either a vertical slide or horizontal
slide window.
Vertical Slide Window
a
AMain Window Panel
Horizontal Slide Window
a
AMain Window Panel
2. Adjust the extension panel to t the width or height
of the window as shown.
5
ENGLISH

NOTE: Some window installations may require the
extension panels to be trimmed.

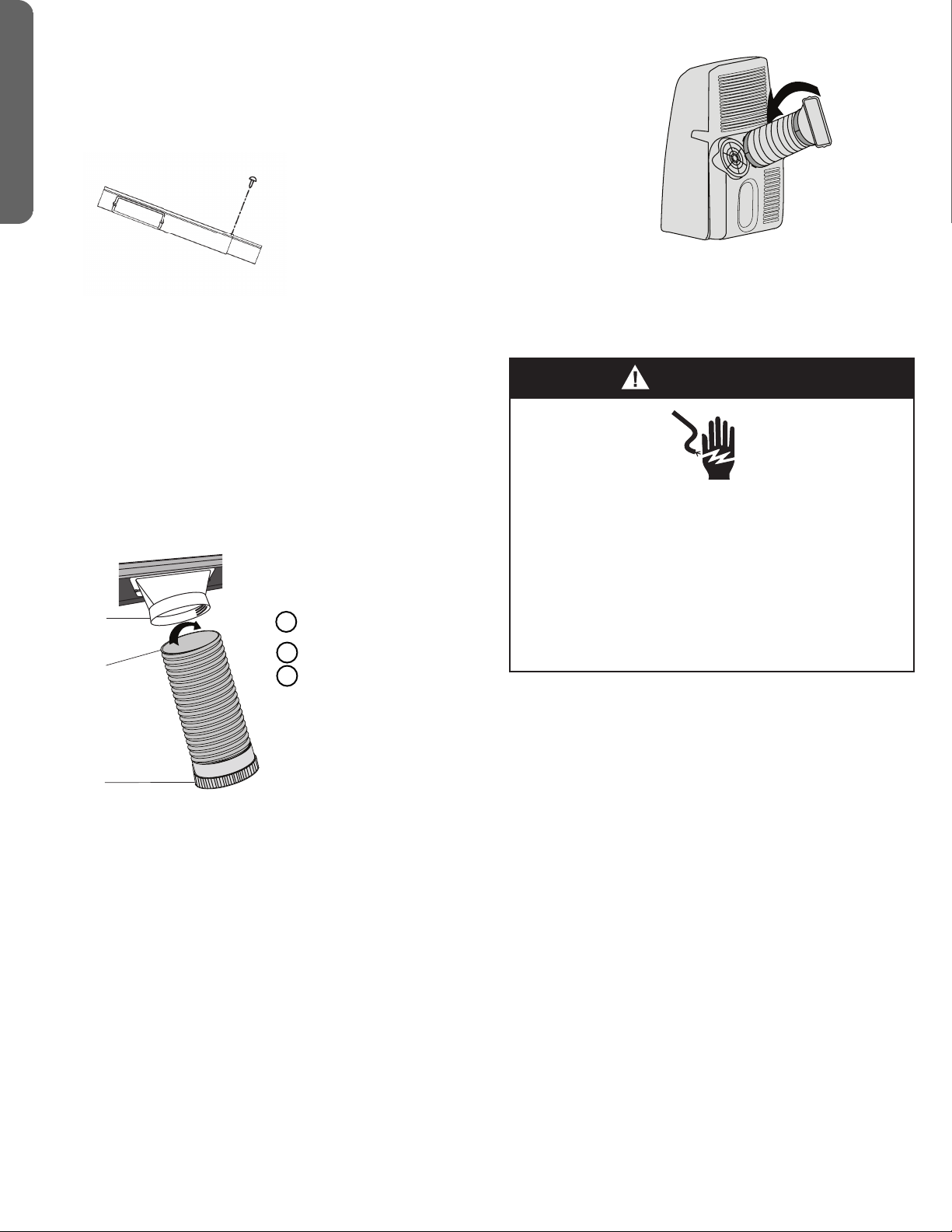

3. Use one flat screw to secure the main panel to
the extension panel.
STEP 4 - ATTACH EXHAUST HOSE
TO THE EXHAUST NOZZLE
1. Grasp both ends of the exhaust hose and gently pull to
expand the hose.
6
ENGLISH
NOTE: Do not attach additional hoses to extend the
length. This would decrease cooling efficien and
may damage the air conditioner.
2. Using a counterclockwise motion, attach the open end
of the exhaust hose to the exhaust nozzle.
c
b
aA Exhaust Nozzle
B Hose (open end)
C Hose (connector
end)
STEP 5 - CONNECT EXHAUST HOSE
TO THE AIR CONDITIONER
IMPORTANT: When connecting the hose, the air
conditioner must be close enough to the window that
you will not dislodge the window seal plate. Once the
hose is connected, move the air conditioner 20" (51 cm)
from the wall.
1. Align the notches on the connector end of the exhaust
hose with the ridges in the opening on the back of the
air conditioner.
2. Using a counterclockwise motion, screw the exhaust
hose (connector end) into the air outlet located on the
back of the air conditioner.
STEP 6 - COMPLETE INSTALLATION
WARNING
Electrical Shock Hazard
Plug into a grounded outlet only.
Do not remove the ground contacts from the
power cord plug.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire or electrical shock.

I J
I
J
Mute Button
Child Lock Button
Press mute button, fan will be low and quiet.
Mute
Press mode button for 3 seconds to start the child lock
function,while "lock "indicator lights up; and press mode
button for 3 seconds to cancel the function.
7
ENGLISH

QUIET SWING
TIMER
COOL DEHUM
HEAT
FAN
SLEEP
QUIET BUTTON
Quiet
Quiet
d
Quiet
Quiet
Quiet
Lock
ENGLISH
8

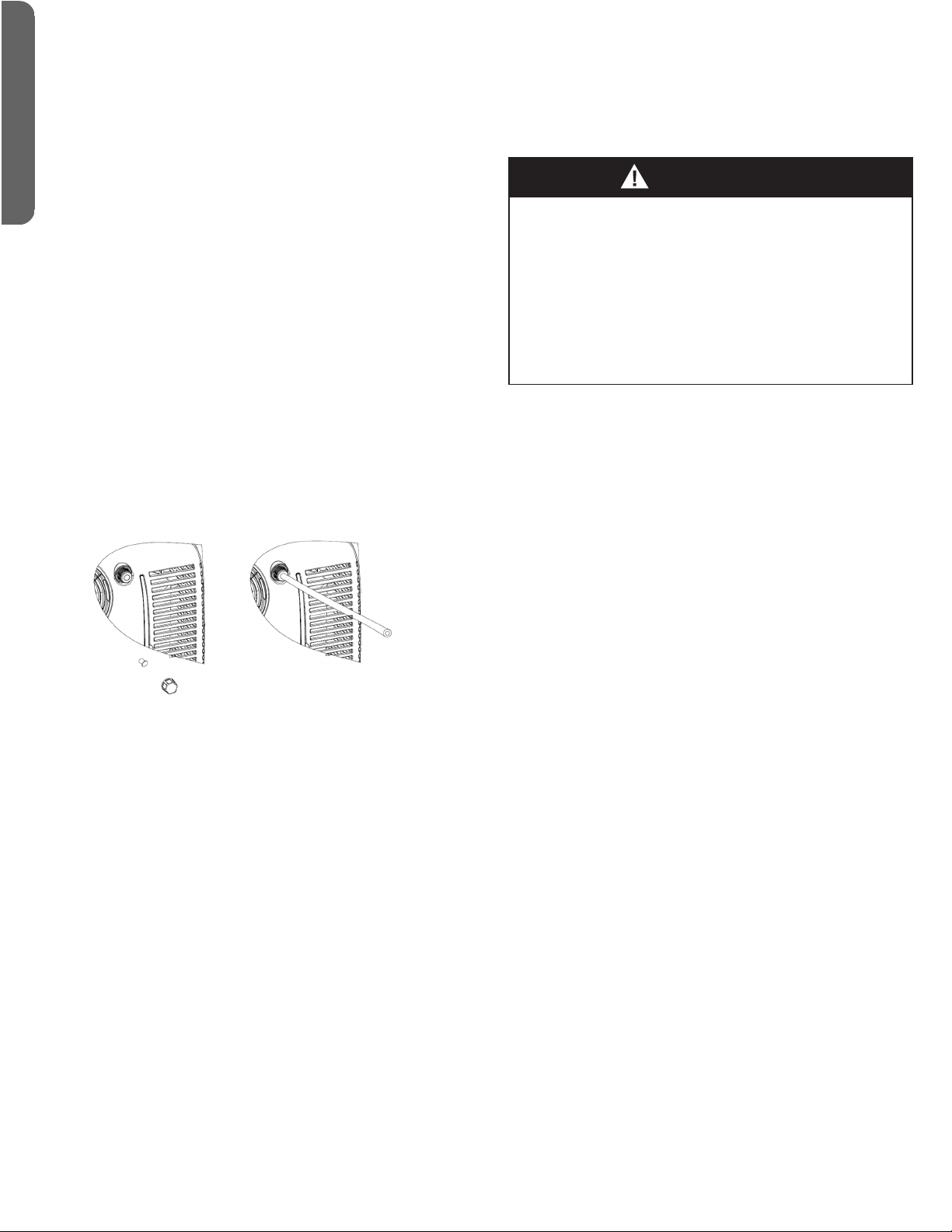

DRAINAGE INSTRUCTION
9
This portable air conditioner has two drain ports - an
upper drain port and a lower drain port. It also has two
drainage methods that can be used: manual drainage and
continuous drainage.
MANUAL DRAIN IN COOLING MODE
This unit is designed with a highly efficient self-
evaporative system and it is suggested to use manual
drainage in cooling mode. Condensate will recycle in the
unit to cool the condenser and enhance cooling
performance. However in extreme humidity, the water
tank in the chassis will fill up and “FL” will show on the LED
display. When this happens the water tank needs to be
drained manually from lower drain port.
1. Put a shallow tray below the lower drain port at the back
of the unit.
2. Screw off the drain port cover and then remove the
water stopper to allow water flow into the tray.
3. After water has stopped flowing, plug in the water
stopper back in and screw the drain port cover back onto
the drain port tightly.
NOTE:
•To avoid leaks, if it is necessary to move the unit always
turn off the unit and make sure it is drained properly
before moving.
•If the drain port cover or water stopper are damaged
during use, they should be replaced with new ones.
•Tilt the unit slightly backwards when draining.
•If the shallow tray has insufficient capacity to hold all
the water that is draining, block the drain port with the
water stopper before the tray is full, empty the tray,
and then restart the draining process.
•The water stopper and drain port cover must be fitted
properly to avoid leakages.
CONTIOUOUS DRAIN IN HEATING MODE
We strongly recommend to use this method, and drain from
the lower drain port if the unit is being used in heating mode,
because self-evaporative cooling system does not work in
heating mode.
1.Screw off the drain port cover and remove the water
stopper.
2.Connect drain-hole with 13mm external diameter PVC
drain hose, inserted as deep as possible to avoid leakages .
3.Pull the end of the drain hose to a drain outlet within the
home, or to the outside of the home.
NOTE:
•The drain hose must be installed before unit starts
working.
•The drain hose should be routed so that it cannot be
accidentally accessed during normal use. It should also
be laid as straight as possible, with no sharp bends that
would restrict water flow. The entire drain hose should
also be kept at a level below that of the drain port.
ENGLISH
Choke Hazard
Keep the drain cover and the water stopper stored
safely, out of the sight and reach of infants and children,
when continuous drainage has been adopted.
WARNING

1.Screw off the drain cover and unplug the water stopper
2.Connect drain-hole with 13mm external diameter PVC
drain hose, into depth of 8mm-10mm .
3.Pull the end of the drain hose to a drain outlet within the
home, or to the outside of the home.
NOTE:
•Drain hose must be installed before unit starts
working.
•The drain hose should be routed so that it cannot be
accidentally accessed during normal use. It should
also be laid as straight as possible, with no sharp
bends that would restrict water flow. The entire drain
hose should also be kept at a level below that of the
drain port.
CONTINUOUS DRAIN IN DEHUMIDIFICATION MODE:
The upper drain port is the best.
Choke Hazard
Keep the drain cover and the water stopper stored
safely, out of the sight and reach of infants and children,
when continuous drainage has been adopted.
ENGLISH
9
10
WARNING

AIR CONDITIONER CARE
WARNING
Electrical Shock Hazard
Disconnect power before cleaning.
Failure to do so can result in death or electrical shock.
CLEANING
1. Unplug or disconnect power.
2. Use only a soft cloth dampened with water to clean the
cabinet.
NOTE:
•Do not use a liquid or spray cleaner to clean the
air conditioner.
•DO NOT use chemicals, abrasives, ammonia,
chlorine bleach, concentrated detergents,
solvents or scouring pads. Some of these
chemicals/items may damage and/or discolor
your air conditioner.
3. Dry thoroughly with a soft cloth.
4. Plug in or reconnect power.
AIR FILTERS
The air filter should be cleaned at least once a week for your
unit to operate at optimum efficienc
IMPORTANT: Do Not operate the air conditioner without
air filter in place.
1. Unplug or disconnect power.
2. Pull on the tabs to slide out the filter from the back of
the air conditioner.
NOTE: The secondary filter are accessible once
the main filter are removed.
3. Wash or vacuum the dust from the air filters
NOTE: If washed, gently shake the filte to remove
the excess water and dust particles trapped in the
filter
4. Reinstall the filters
5. Plug in or reconnect power.
INTERNAL WATER TANK
The Water Full indicator illuminates, when the internal water
tank has fille with condensed water.
To Empty the Internal Water Tank:
1. Unplug or disconnect power.
2. Place a shallow 1 quart or larger pan (not included) below
the lower drain located on the back (near the bottom) of
the air conditioner.
3. Remove the cap and the rubber plug and drain the water
tank.
4. Re-insert the drain plug and screw the cap snugly into
place.
5. Plug in or reconnect power.
STORAGE
If the unit is not being used for a long period of time:
1. Unplug or disconnect power.
2. Drain the water from the water tank. See “Air
Conditioner Care.”
3. Use the original packaging to repack the unit to avoid a
buildup of dust or dirt.
4. Store the air conditioner in a cool, dry location.
11
ENGLISH

12
TROUBLESHOOTING
First try the solutions suggested here to possibly avoid the cost of a service call.
PROBLEM POSSIBLE CAUSE(S) SOLUTION
Unit does not start or
operate Power supply cord is not plugged into an outlet. Plug the power cord into a grounded 3 prong outlet.
Power supply cord has tripped. Press and release the RESET button on the power
supply cord.
The Power button has not been pressed. Press the Power button on the Control Panel or
Remote Control to turn ON the air conditioner.
There is no power to the electrical outlet. Plug a working lamp into the outlet to check for
power.
A household fuse has blown or a circuit breaker
has tripped. Replace the fuse or reset the circuit breaker.
The control was programmed for a Time Delay. Cancel the Time Delay. See “Control Panel.”
The batteries in the remote control are dead. Replace the batteries.
The internal water tank is full.
NOTE: The air conditioner automatically turns
òģäñç÷ëèàä÷èõÏøïïìñçìæä÷òõìïïøðìñä÷èö÷ò
alert you of this condition.
Empty the water tank. See “Air Conditioner
Care.”
Remote control is not
working Batteries are dead. Replace the batteries.
Batteries are installed incorrectly. Make sure the batteries are inserted in the correct
position.
Air conditioner i work-
ing but the room is not
cooling.
The room temperature is hot.
NOTE: On extremely hot and humid days,the air
conditioner will take longer to cool the room.
Êïïòú÷ìðèéòõ÷ëèõòòð÷òæòòïúëèñüòøĤõö÷÷øõñ
on the unit.
Make sure the air conditioner has an adequate
BTU rating for the size of the room being cooled.
The control is set incorrectly to Fan or Dehum
mode. Set the Mode to Cool and the Fan Speed to High.
Êìõĥòúìöõèö÷õìæ÷èç Ûèðòùèäñüòåö÷äæïèö÷ò÷ëèäìõĥòúäñçõèçìõèæ÷
äìõĥòúéòõøñìéòõðæòòïìñê
Temperature set too high. Lower the set temperature.
ÊìõĤï÷èõöäõèçìõ÷üòõõèö÷õìæ÷èç Ìïèäñ÷ëèäìõĤï÷èõÜèèēÊìõÌòñçì÷ìòñèõÌäõèĔ
Air conditioner installed incorrectly Check the exhaust hose and window panel for
proper installation.
Doors and windows are open. Close the doors and windows to the room being
cooled to prevent cooled air from escaping.
ENGLISH

SPECIFICATION
IMPORTANT INFORMATION REGA-
RDING THE REFRIGERANT USED
This product contains the fluorinated greenhouse gas
R410a, contained in a hermetically sealed system.
GEP-09CA /GEP-09HA MODELS
Charge = 0.355 kg,
GWP = 2088,
CO2 Equivalent = 0.74 tones
GEP-12CA /GEP-12HA MODELS
Charge = 0.61 kg,
GWP = 2088,
CO2 Equivalent = 1.27 tones
EUROPEAN REGULATIONS
CONFORMITY FOR THE MODELS
WEEE
In accordance with the directive of the European
parliament, herewith we inform the consumer about the
dis-posal requirements of the electrical and electronic
products.
DISPOSAL REQUIREMENTS:
Your air conditioning product is marked with this
symbol. This means that electrical and electronic
products shall not be mixed with unsorted
household waste. Do not try to dismantle the
system yourself : the dismantling of the air
conditioning system,treatment of the refrigerant,
of oil and of other part must be done by a qualified
installer in accordance with relevant local and
national legislation. Air conditioners must be
treated at a specialized treatment facility for reuse,
recycling and recovery. By ensuring this product is
disposed of correctly, you will help to prevent
potential negative consequences for the
environment and humen health. Please contact the
installer or local authority for more information.
Battery must be removed from the remote
controller and disposed of separately in
accordance with relevant local and national
legislation.
13
ENGLISH
