GE Arize Element Series User manual

1
Horticulture LED Lighting System
Installation Guide
Arize ElementTM Top Light
BEFORE YOU BEGIN / AVANT DE COMMENCER
Read these instructions completely and carefully. Lisez attentivement ces instructions dans leur intégralité.
WARNING / AVERTISSEMENT
RISK OF ELECTRIC SHOCK
• Turn power o before installation, inspection, cleaning or removal.
And follow appropriate lock out/tag out safety procedure.
• Properly ground electrical enclosure.
• Follow all National Electric Codes (NEC) and local codes.
• This product must be installed in accordance with the applicable
installation code by a person familiar with the construction and
operation of the product and the hazards involved.
• The installation and associated structures are subject to
approval by the authority having jurisdiction.
• Use only with components identied in this document.
• Suitable for dry, damp, and wet locations; Do not immerse
any component.
• Wear suitable Personal Protective Equipment (PPE) during
installation/maintenance. Highly recommend safety glasses,
helmet and leather glove for luminaire mounting.
• Luminaire design for Greenhouse only.
RISK OF FIRE
• Minimum 3 inch distance from light module & driver to any
combustible material.
• Minimum 3 inch clearance between, light module & driver,
light module & light module, driver & driver.
• The light module shall be installed lens down with a
minimum 5 inch distance to anything below.
• All cables including connectors shall not be concealed or
extended through a wall, oor, ceiling, or other parts of the
building structure; located above a suspended ceiling or
dropped ceiling; permanently axed to the building structure.
• Cables shall be routed so that they are not subject to strain
and are protected from physical damage; visible over their
entire length; and used within their rated ampacity as
determined for the maximum temperature of the installed
environment specied in the instructions.
• For safe operation, and to maximize the longevity of the
luminaire; ensure that the light module and driver are
clean and free of dirt, dust, oil, or any other debris prior
to operation. Do not apply any kind of lm on the lens or
otherwise cover the driver or light engine in any way.
RISQUE DE CHOC ELECTRIQUE
• Coupez l’alimentation avant l’inspection, l’installation ou la
désinstallation.
• Reliez correctement le boîtier électrique à la mise à la terre.
• Suivre tous les codes électriques locaux applicables.
• Ce produit doit être installé selon le code d’installation
pertinent, par une personne qui connaît bien le produit et son
fonctionnement ainsi que les risques inhérents.
• L’installation et les structures associées sont soumises à
l’approbation des autorités compétentes.
• Utilisez uniquement avec les composants identiés dans ce document.
• Convient aux endroits secs, humides et mouillés. Ne doit pas être
immergé.
• Portez les équipements de protection individuelle appropriés
pendant l’installation et la maintenance. L’utilisation de
lunettes de sécurité, d’un casque et des gants de cuir pour le
montage du luminaire est fortement recommandée.
• Luminaire conçu pour serres seulement.
RISQUE D’INCENDIE
• Distance minimale de 3 pouces entre l’équipement d’éclairage
et toute matière combustible.
• Distance minimale de 3 pouces entre tout équipement
d’éclairage, module d’éclairage ou module d’alimentation.
• Le luminaire doit être installé avec l'objectif pointé vers le bas
avec une distance minimale de 5 pouces entre le luminaire et
tout objet.
• Les câbles et connecteurs ne doivent pas être dissimulés à
l’intérieur, ou passer à travers, d’un mur, d’un plancher, d’un
plafond ou de toute autre partie de la structure du bâtiment; ne
doivent pas être placés au-dessus d’un plafond suspendu; ne
doivent pas faire partie intégrante de la structure du bâtiment.
• Les câbles doivent être installés de façon à être protégés
contre l’étirement et tout autre bris physique; visibles sur
toute leur longueur; utilisés dans la limite de leur courant
admissible, déterminée pour les limites de température de
l’environnement spéciées dans le guide d’instruction.
• Pour une opération sécurisée et pour maximiser la longévité
du luminaire; S'assurer que le module d'éclairage et le module
d'alimentation sont propres et sans saleté, poussière, huile ou
autres débris avant l'opération. Ne pas appliquer tout type de
lm sur les lentilles et ne pas couvrir le module d'alimentation
ou le module d'éclairage de quelconque manière.
For Commercial or Industrial use only.
0°C
45°C
Suitable for operation in an ambient temperature
between 32°F (0°C) and 113°F (45°C).
A mechanical ventilation or cooling system is
required to maintain the temperature within the
growing space below 113°F (45°C) when the light
module is in operation.
Opération compatible avec un environnement à
temperature ambiante controlée entre 32°F (0°C)
et 113°F (45°C).
l’utilisation d’un système de contrôle de la
température sera nécessaire pour garder la serre sous
les 113°F (45°C) lorsque le luminaire est en function.

2
Base Kit Components Supplied
1
1
2
2
3
3
Top Light module
Driver with brackets
2 x 0.8 ft. support cables with carabiners
Specications
Driver Input Ratings
Description Detailed Description
Typical Operating
Voltages at 50/60Hz
(VAC)
Maximum
Current (A)
Power
Factor
GEHTL-HPPR4-2NZ1 Top light 4 ft purple reproductive, 641W 120/208/240/277 5.3/3.1/2.7/2.3 > 0.9
GEHTL-HPPB4-2NZ1 Top light 4 ft purple balanced, 641W 120/208/240/277 5.3/3.1/2.7/2.3 > 0.9
GEHTL-MPPR4-2NZ1 Top light 4 ft purple reproductive, 345W 120/208/240/277 2.9/1.7/1.4/1.2 > 0.9
GEHTL-MPPB4-2NZ1 Top light 4 ft purple balanced, 345W 120/208/240/277 2.9/1.7/1.4/1.2 > 0.9
GEHTL-HPPR4-3NZ1 Top light 4 ft purple reproductive, 627W 277/347/480 2.3/1.8/1.3 > 0.9
GEHTL-HPPB4-3NZ1 Top light 4 ft purple balanced, 627W 277/347/480 2.3/1.8/1.3 > 0.9
GEHTL-MPPR4-3NZ1 Top light 4 ft purple reproductive, 337W 277/347/480 1.2/1.0/0.7 > 0.9
GEHTL-MPPB4-3NZ1 Top light 4 ft purple balanced, 337W 277/347/480 1.2/1.0/0.7 > 0.9
Description Detailed Description Components
GEHAK-NN-EB-N0 Light module 2’ UL remote mount kit 2 X 2 ft support cable + 3 ft UL DC cable + 2 Carabiners
GEHAK-NN-AC-N0 Light module 5’ UL remote mount kit 2 X 5 ft support cable + 6 ft UL DC cable+ 2 Carabiners
GEHAK-NN-BD-N0 Light module 10’ UL remote mount kit 2 X 10 ft support cable + 12 ft UL DC cable+ 2 Carabiners
GEHAK-DN-NN-N0 Driver 2¾” square member bracket 2 X 2¾” square brackets
GEHAK-BN-NN-N0 Driver 2¾” pipe member bracket 2 X 2¾” pipe brackets
GEHAK-AN-NN-N0 Driver 1 3/8” pipe member bracket 2 X 1 3/8” pipe brackets
GEHAK-NN-NE-N0 Driver universal wire mount kit 2 X 1ft driver support cables
*WAC 60 Wireless area controller 1 Router
Accessories
ATTENTION / ATTENTION
• Installation instructions and specications for
accessories can be found in the accessory package.
• Les instructions d’installation et spécications pour les accessoires
se retrouvent dans le kit d’accessoires.
*A single WAC60 supports up to 200 xtures. Customer needs to purchase WAC60 accordingly.

3

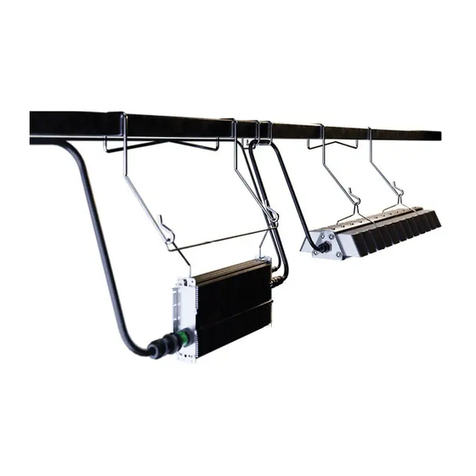

Sample Base Installation Diagram
CAUTION / ATTENTION
Always wear safety gloves while handling light modules. Portez toujours des gants de protection lorsque vous manip-
ulez les luminaires.
Unistrut
Structural member
AC line
Plants Plants
Top Light Module
Support
Cable
Structure
DRIVER
Installation
1Install the support cables
A) At rst end of light module, wrap non carabiner
end of support cable around structural member.
B) Pass carabiner through support cable loop to
create a noose.
Repeat with second support cable at other end of
light module.
Structural member
A
A
B
B
2Install the light module
A) Attach rst carabiner to the 1/4’’ round hole
on one side of the light module. Repeat on
other side of light module.
B) Ensure both carabiners are through the hole
and both gates are closed.
Hanging the Light Module
NOTE: Ensure greenhouse structures and members are rated for loads created by light modules and drivers.
Suitable min. 2 mm diameter suspension cable required to complete installation.
DRIVER DRIVER

4
4
3Rotate driver so that the brackets can engage with
the structural member. Lower driver into position.
Lift driver so that the structural member is
between the brackets.
NOTE: The base driver mounting kit is for a 1 5/8’’ square structural member. For other structural
members, see accessories or contact your account manager.
Hanging the Driver
5Connect light module to driver output
Mate male connector from module with female
connector from DC output of driver.
Secure blue lock nut by turning
counterclockwise until tight ensuring water
tight seal and good connection.
6Connect driver input to AC line
Connect the green wire to the incoming ground
conductor. Connect the black wire to Line 1 and
white wires to Neutral or Line 2 of the incoming
AC line.
Driver Output
Electrical Connections
Driver Input
Electrical Connections
AC line
Driver output
To driver input
Male
Light module
Secure locknut
Driver
Female
WARNING / AVERTISSMENT
RISK OF ELECTRICAL SHOCK: Turn power OFF before inspection, installation or removal.
RISQUE DE CHOC ELECTRIQUE: Coupez l’alimentation avant l’inspection, l’installation ou la désinstallation.

5
Connection Schematic
1
2 3
Record IEEE Addresses
Record each Zigbee module’s IEEE address
(last 4 or 5 digits) with their physical locations.
This information will be useful during the
commissioning process for a marked-up copy
of the facility oor plan showing the identity
and location of each Zigbee module.
Initialize the ZigBee module
A) If not already powered up, energize the Zigbee
module by applying power to the driver input.
NOTE: If the Zigbee module has never join a network
(e.g. for new devices), go directly to section “Adding
the Zigbee modules to the Control Scope Manager.”
Otherwise, perform step 2B.
B) Press and hold the RESET button for a minimum
of 10 seconds to reset the unit.
Adding the Zigbee modules to the Control
Scope Manager
For new devices, the Zigbee module must rst
be energized by applying power to the driver
input and joined to a network and congured
by following the instructions and online help
provided with the “Control Scope Manager”
(CSM) application.
Zigbee Module
IEEE Address
Reset Button
WARNING /
AVERTISSEMENT
Ambient temperature surrounding each
driver must be lower than 113°F (45°C).
/ La température ambiante autour de
chaque module d’alimentation ne doit pas
excéder 113°F (45°C).
Driver Input Wire
Colors
Black = Line 1
White = Neutral or Line 2
Yellow/Green = Ground
Light engine
AC line
Use proper circuit
protection level
Optional 3’, 6’ or 12’ inter-connection cable
NOTE: Maximum cumulative length of inter-connection cable is 12 feet.
Driver
*White = Neutral or Line 2
* * *
Driver Driver Driver Driver
N
3-Phase Y
REPEAT FOR ENTIRE CIRCUIT BALANCING OUT EACH PHASE
3-Phase ∆
L3
L2
L1
Driver Driver
Green Green Green Green Green Green Black Black Black Black Black Black White White White White White White

GE and the GE Monogram are trademarks of the General Electric Company and are used under license. Information provided is subject to
change without notice. All values are design or typical values when measured under laboratory conditions, and GE makes no warranty or
guarantee, express or implied, that such performance will be obtained under end-use conditions. © 2019 GE Current, a Daintree company.
www.LED.com HORT121 (Rev 12/17/19) A-1020191
Save These Instructions
Use only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the in-
struction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
This Class [A] RFLD complies with the Canadian standard ICES-005. /CeDEFR de la classe [A] est conforme à la NMB-005 du Canada.
Electrical products must not be thrown out with domestic waste. They must be taken to
a communal collecting point for environmentally friendly disposal in accordance with
local regulations. Contact your local authorities or stockist for advice on recycling. The
packaging material is recyclable. Dispose of the packaging in an environmentally friendly
manner and make it available for the recyclable material collection-service.
RISK GROUP 2 - CAUTION / ATTENTION - RAYONNEMENT LUMINEUX GROUPE 2
Possibly hazardous optical radiation emitted from this product. Do not stare at operating lamp. May be harmful to the eyes.
Le rayonnement lumineux émis par ce produit est potentiellement dangereux. Ne pas regarder la lumière émise
directement car elle pourrait occasionner des dommages aux yeux.
For the latest install guides for your product go to:
https://products.currentbyge.com/horticulture/arize-element
[email protected]
Visit www.LED.com
Call us today! 1-888-MY-GE-LED
Email us: hor[email protected]
Save These Instructions
Use only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the in-
struction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
This Class [A] RFLD complies with the Canadian standard ICES-005. /CeDEFR de la classe [A] est conforme à la NMB-005 du Canada.
