GE D60 User manual

GE
Grid Solutions
Instruction Manual
Product version: 7.4x
GE publication code: 1601-0089-AE3 (GEK-130978B)

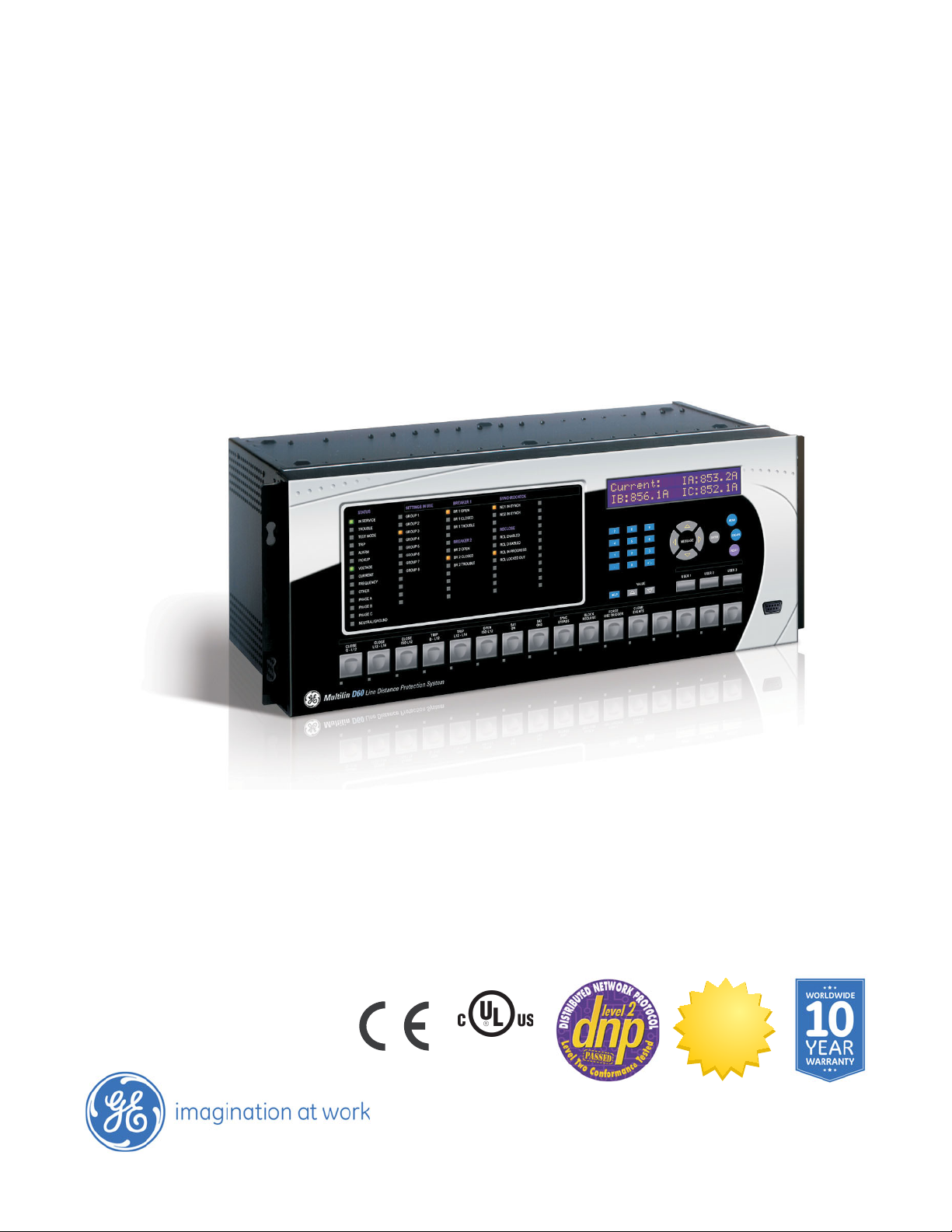

D60
Line Distance Protection System
1601-0089-AE3
LISTED
52TL
IND.CONT. EQ.
E83849
IISO 9001
G
N
E
I
L
M
I
U
T
L
T
E
S
I
R
G
E
E D
R

Copyright © 2017 GE Multilin Inc. All rights reserved.
D60 Line Distance Protection System Instruction Manual for version 7.4x.
D60, FlexLogic, FlexElement, FlexCurve, FlexAnalog, FlexInteger, FlexState, EnerVista,
CyberSentry, HardFiber, Multilin, and GE Multilin are trademarks or registered trademarks
of GE Multilin Inc.
The contents of this manual are the property of GE Multilin Inc. This documentation is
furnished on license and may not be reproduced in whole or in part without the permission
of GE Multilin. The content of this manual is for informational use only and is subject to
change without notice.
Part number: 1601-0089-AE3 (April 2017)

D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL iii
D60 Line Distance Protection System
Table of contents
1 INTRODUCTION 1.1 Safety symbols and definitions..................................................................... 1-1
1.1.1 General cautions and warnings.................................................................................... 1-1
1.2 For further assistance .................................................................................... 1-2
2PRODUCT
DESCRIPTION
2.1 Product description......................................................................................... 2-1
2.2 Security.............................................................................................................. 2-3
2.3 Order codes ...................................................................................................... 2-7
2.3.1 Order codes with enhanced CT/VT modules........................................................... 2-8
2.3.2 Order codes with process bus modules ..................................................................2-12
2.3.3 Replacement modules.....................................................................................................2-16
2.4 Signal processing...........................................................................................2-19
2.4.1 UR signal processing ........................................................................................................2-19
2.5 Specifications ................................................................................................. 2-21
2.5.1 Protection elements..........................................................................................................2-21
2.5.2 User-programmable elements ....................................................................................2-29
2.5.3 Monitoring..............................................................................................................................2-31
2.5.4 Metering..................................................................................................................................2-32
2.5.5 Inputs .......................................................................................................................................2-33
2.5.6 Power supply........................................................................................................................2-35
2.5.7 Outputs....................................................................................................................................2-35
2.5.8 Communication protocols..............................................................................................2-37
2.5.9 Inter-relay communications..........................................................................................2-38
2.5.10 CyberSentry security.........................................................................................................2-40
2.5.11 Environmental......................................................................................................................2-40
2.5.12 Type tests...............................................................................................................................2-41
2.5.13 Production tests..................................................................................................................2-41
2.5.14 Approvals ...............................................................................................................................2-42
2.5.15 Maintenance.........................................................................................................................2-42
3 INSTALLATION 3.1 Unpack and inspect......................................................................................... 3-1
3.2 Panel cutouts.................................................................................................... 3-2
3.2.1 Horizontal units ..................................................................................................................... 3-2
3.2.2 Vertical units........................................................................................................................... 3-3
3.2.3 Rear terminal layout ........................................................................................................... 3-8

iv D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
TABLE OF CONTENTS
3.3 Wiring ..............................................................................................................3-10
3.3.1 Typical wiring.......................................................................................................................3-10
3.3.2 Dielectric strength .............................................................................................................3-11
3.3.3 Control power......................................................................................................................3-11
3.3.4 CT/VT modules ....................................................................................................................3-12
3.3.5 Process bus modules ....................................................................................................... 3-13
3.3.6 Contact inputs and outputs ..........................................................................................3-14
3.3.7 Transducer inputs and outputs...................................................................................3-25
3.3.8 RS232 faceplate port........................................................................................................3-26
3.3.9 CPU communication ports ............................................................................................3-27
3.3.10 IRIG-B.......................................................................................................................................3-29
3.4 Direct input and output communications ................................................3-30
3.4.1 Description............................................................................................................................3-30
3.4.2 Fiber: LED and ELED transmitters...............................................................................3-33
3.4.3 Fiber laser transmitters...................................................................................................3-33
3.4.4 G.703 interface....................................................................................................................3-34
3.4.5 RS422 interface...................................................................................................................3-38
3.4.6 RS422 and fiber interface ..............................................................................................3-40
3.4.7 G.703 and fiber interface................................................................................................3-41
3.4.8 IEEE C37.94 interface .......................................................................................................3-41
3.4.9 C37.94SM interface...........................................................................................................3-44
3.5 Activate relay .................................................................................................3-47
3.6 Install software ..............................................................................................3-48
3.6.1 EnerVista communication overview .........................................................................3-48
3.6.2 System requirements.......................................................................................................3-49
3.6.3 Install software....................................................................................................................3-50
3.7 Add device to software.................................................................................3-51
3.7.1 Set IP address in UR..........................................................................................................3-51
3.7.2 Configure serial connection..........................................................................................3-57
3.7.3 Configure Ethernet connection...................................................................................3-58
3.7.4 Configure modem connection.....................................................................................3-60
3.7.5 Automatic discovery of UR devices...........................................................................3-60
3.8 Connect to the D60........................................................................................3-61
3.8.1 Connect to the D60 in EnerVista.................................................................................3-61
3.8.2 Use Quick Connect via the front panel RS232 port............................................3-62
3.8.3 Use Quick Connect via a rear Ethernet port..........................................................3-63
3.9 Set up CyberSentry and change default password.................................3-63
3.10 Import settings...............................................................................................3-64
4 INTERFACES 4.1 EnerVista software interface......................................................................... 4-1
4.1.1 Introduction .............................................................................................................................4-1
4.1.2 Settings files ............................................................................................................................4-1
4.1.3 Event viewing..........................................................................................................................4-2
4.1.4 File support ..............................................................................................................................4-2
4.1.5 EnerVista main window .....................................................................................................4-3
4.1.6 Protection summary window..........................................................................................4-4
4.1.7 Settings templates................................................................................................................4-5
4.1.8 Secure and lock FlexLogic equations..........................................................................4-9
4.1.9 Settings file traceability...................................................................................................4-12
4.2 Front panel interface ....................................................................................4-15
4.2.1 Front panel display............................................................................................................4-15
4.2.2 Front panel keypad...........................................................................................................4-16
4.2.3 Menu navigation ................................................................................................................4-16
4.2.4 Menu hierarchy...................................................................................................................4-16

TABLE OF CONTENTS
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL v
4.2.5 Changing settings ..............................................................................................................4-17
4.2.6 Faceplate................................................................................................................................4-19
4.2.7 LED indicators ......................................................................................................................4-20
4.2.8 Custom LED labeling.........................................................................................................4-24
4.2.9 Breaker control....................................................................................................................4-28
4.2.10 Change passwords............................................................................................................4-30
4.2.11 Invalid password entry ....................................................................................................4-31
4.3 Logic diagrams...............................................................................................4-31
4.4 FlexLogic design and monitoring using Engineer....................................4-32
4.4.1 Design logic...........................................................................................................................4-34
4.4.2 Send file to and from device .........................................................................................4-44
4.4.3 Monitor logic.........................................................................................................................4-45
4.4.4 View front panel and print labels................................................................................4-46
4.4.5 Generate connectivity report........................................................................................4-47
4.4.6 Preferences ...........................................................................................................................4-47
4.4.7 Toolbars ..................................................................................................................................4-51
5 SETTINGS 5.1 Settings menu .................................................................................................. 5-1
5.2 Overview ........................................................................................................... 5-4
5.2.1 Introduction to elements .................................................................................................. 5-4
5.2.2 Introduction to AC sources .............................................................................................. 5-6
5.3 Product setup................................................................................................... 5-7
5.3.1 Security ..................................................................................................................................... 5-7
5.3.2 Display properties ..............................................................................................................5-25
5.3.3 Clear relay records.............................................................................................................5-27
5.3.4 Communications ................................................................................................................5-28
5.3.5 Modbus user map ..............................................................................................................5-92
5.3.6 Real time clock.....................................................................................................................5-93
5.3.7 Fault reports .........................................................................................................................5-97
5.3.8 Oscillography........................................................................................................................5-99
5.3.9 Data logger ........................................................................................................................5-101
5.3.10 Demand ...............................................................................................................................5-103
5.3.11 User-programmable LEDs ..........................................................................................5-104
5.3.12 User-programmable self-tests .................................................................................5-107
5.3.13 Control pushbuttons......................................................................................................5-108
5.3.14 User-programmable pushbuttons..........................................................................5-109
5.3.15 Flex state parameters...................................................................................................5-114
5.3.16 User-definable displays................................................................................................5-115
5.3.17 Direct inputs and outputs............................................................................................5-117
5.3.18 Teleprotection...................................................................................................................5-123
5.3.19 Installation..........................................................................................................................5-124
5.4 Remote resources........................................................................................5-124
5.4.1 Remote resources configuration .............................................................................5-124
5.5 System setup................................................................................................5-126
5.5.1 AC inputs .............................................................................................................................5-126
5.5.2 Power system....................................................................................................................5-127
5.5.3 Signal sources...................................................................................................................5-128
5.5.4 Breakers...............................................................................................................................5-131
5.5.5 Disconnect switches......................................................................................................5-135
5.5.6 FlexCurves...........................................................................................................................5-138
5.5.7 Phasor Measurement Unit..........................................................................................5-145
5.6 FlexLogic........................................................................................................5-165
5.6.1 FlexLogic operands ........................................................................................................5-165
5.6.2 FlexLogic rules ..................................................................................................................5-181
5.6.3 FlexLogic evaluation ...................................................................................................... 5-181

vi D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
TABLE OF CONTENTS
5.6.4 FlexLogic example..........................................................................................................5-181
5.6.5 FlexLogic equation editor............................................................................................ 5-186
5.6.6 FlexLogic timers............................................................................................................... 5-186
5.6.7 FlexElements ..................................................................................................................... 5-186
5.6.8 Non-volatile latches.......................................................................................................5-191
5.7 Grouped elements .......................................................................................5-192
5.7.1 Overview ............................................................................................................................. 5-192
5.7.2 Setting group 1................................................................................................................. 5-193
5.7.3 Line pickup ......................................................................................................................... 5-193
5.7.4 Distance............................................................................................................................... 5-196
5.7.5 Power swing detect (ANSI 68).................................................................................... 5-217
5.7.6 Load encroachment...................................................................................................... 5-226
5.7.7 Phase current ................................................................................................................... 5-227
5.7.8 Neutral current................................................................................................................. 5-239
5.7.9 Wattmetric ground fault.............................................................................................. 5-247
5.7.10 Ground current ................................................................................................................ 5-251
5.7.11 Negative sequence current........................................................................................ 5-254
5.7.12 Breaker failure (ANSI 50BF)......................................................................................... 5-260
5.7.13 Voltage elements ............................................................................................................ 5-270
5.7.14 Sensitive directional power........................................................................................ 5-279
5.8 Control elements .........................................................................................5-282
5.8.1 Overview ............................................................................................................................. 5-282
5.8.2 Trip bus ................................................................................................................................ 5-282
5.8.3 Setting groups .................................................................................................................. 5-284
5.8.4 Selector switch................................................................................................................. 5-286
5.8.5 Trip output.......................................................................................................................... 5-292
5.8.6 Underfrequency (ANSI 81U)........................................................................................ 5-298
5.8.7 Overfrequency (ANSI 81O) .......................................................................................... 5-299
5.8.8 Frequency rate of change (ANSI 81R).................................................................... 5-300
5.8.9 Synchrocheck (ANSI 25) ............................................................................................... 5-301
5.8.10 Autoreclose (ANSI 79).................................................................................................... 5-307
5.8.11 Digital elements............................................................................................................... 5-320
5.8.12 Digital counters................................................................................................................ 5-323
5.8.13 Monitoring elements ..................................................................................................... 5-325
5.8.14 Pilot schemes.................................................................................................................... 5-350
5.9 Inputs/outputs .............................................................................................5-373
5.9.1 Contact inputs.................................................................................................................. 5-373
5.9.2 Virtual inputs..................................................................................................................... 5-375
5.9.3 Contact outputs............................................................................................................... 5-376
5.9.4 Virtual outputs.................................................................................................................. 5-379
5.9.5 Resetting ............................................................................................................................. 5-379
5.9.6 Direct inputs and outputs ........................................................................................... 5-380
5.9.7 Teleprotection inputs and outputs ......................................................................... 5-383
5.10 Transducer inputs/outputs........................................................................5-385
5.10.1 DCmA inputs...................................................................................................................... 5-385
5.10.2 RTD inputs .......................................................................................................................... 5-386
5.10.3 DCmA outputs .................................................................................................................. 5-387
5.11 Testing ...........................................................................................................5-391
5.11.1 Test mode function ........................................................................................................5-391
5.11.2 Test mode forcing........................................................................................................... 5-391
5.11.3 Phasor Measurement Unit test values.................................................................. 5-392
5.11.4 Force contact inputs ..................................................................................................... 5-393
5.11.5 Force contact outputs .................................................................................................. 5-393
6 ACTUAL VALUES 6.1 Actual values menu.........................................................................................6-1

TABLE OF CONTENTS
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL vii
6.2 Front panel........................................................................................................ 6-3
6.3 Status................................................................................................................. 6-4
6.3.1 Contact inputs ....................................................................................................................... 6-4
6.3.2 Virtual inputs........................................................................................................................... 6-4
6.3.3 RxGOOSE boolean inputs.................................................................................................. 6-5
6.3.4 RxGOOSE DPS inputs .......................................................................................................... 6-5
6.3.5 Teleprotection inputs.......................................................................................................... 6-5
6.3.6 Contact outputs .................................................................................................................... 6-5
6.3.7 Virtual outputs ....................................................................................................................... 6-6
6.3.8 RxGOOSE status.................................................................................................................... 6-6
6.3.9 RxGOOSE statistics .............................................................................................................. 6-6
6.3.10 Autoreclose ............................................................................................................................. 6-7
6.3.11 Digital counters ..................................................................................................................... 6-7
6.3.12 Selector switches.................................................................................................................. 6-7
6.3.13 Flex States................................................................................................................................ 6-7
6.3.14 Ethernet .................................................................................................................................... 6-8
6.3.15 Real time clock synchronizing........................................................................................ 6-8
6.3.16 Direct inputs............................................................................................................................ 6-9
6.3.17 Direct devices status .......................................................................................................... 6-9
6.3.18 Teleprotection channel tests ........................................................................................6-10
6.3.19 Remaining connection status.......................................................................................6-10
6.3.20 Parallel Redundancy Protocol (PRP)...........................................................................6-11
6.3.21 TxGOOSE status ..................................................................................................................6-11
6.4 Metering ..........................................................................................................6-12
6.4.1 Metering conventions.......................................................................................................6-12
6.4.2 Sources....................................................................................................................................6-16
6.4.3 Synchrocheck.......................................................................................................................6-22
6.4.4 Tracking frequency............................................................................................................6-22
6.4.5 Frequency rate of change..............................................................................................6-23
6.4.6 FlexElements.........................................................................................................................6-23
6.4.7 RxGOOSE analogs ..............................................................................................................6-24
6.4.8 Wattmetric ground fault.................................................................................................6-24
6.4.9 Phasor Measurement Unit.............................................................................................6-24
6.4.10 PMU aggregator..................................................................................................................6-25
6.4.11 Transducer inputs and outputs ...................................................................................6-25
6.4.12 Distance..................................................................................................................................6-25
6.5 Records............................................................................................................6-27
6.5.1 Fault reports .........................................................................................................................6-27
6.5.2 Event records .......................................................................................................................6-28
6.5.3 Oscillography........................................................................................................................6-29
6.5.4 Data logger ...........................................................................................................................6-29
6.5.5 Phasor measurement unit records............................................................................6-30
6.5.6 Breaker maintenance.......................................................................................................6-30
6.6 Product information......................................................................................6-31
6.6.1 Model information..............................................................................................................6-31
6.6.2 Firmware revisions ............................................................................................................6-32
7 COMMANDS AND
TARGETS
7.1 Commands menu ............................................................................................ 7-1
7.1.1 Virtual inputs........................................................................................................................... 7-2
7.1.2 Clear records .......................................................................................................................... 7-2
7.1.3 Set date and time................................................................................................................. 7-3
7.1.4 Relay maintenance.............................................................................................................. 7-3
7.1.5 Phasor Measurement Unit one-shot........................................................................... 7-4
7.1.6 Security ..................................................................................................................................... 7-6
7.2 Targets menu ................................................................................................... 7-6

viii D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
TABLE OF CONTENTS
7.2.1 Target messages...................................................................................................................7-7
7.2.2 Relay self-tests .......................................................................................................................7-7
8 APPLICATION OF
SETTINGS
8.1 Overview ...........................................................................................................8-1
8.1.1 Introduction .............................................................................................................................8-1
8.1.2 Impact of memory polarization .....................................................................................8-1
8.1.3 High-set overcurrent elements ......................................................................................8-1
8.2 Distance elements (stepped distance scheme).......................................... 8-2
8.2.1 Phase distance.......................................................................................................................8-2
8.2.2 Ground distance....................................................................................................................8-3
8.3 Protection signaling schemes .......................................................................8-5
8.3.1 Overview ...................................................................................................................................8-5
8.3.2 Direct under-reaching transfer trip (DUTT) ...............................................................8-6
8.3.3 Permissive under-reaching transfer trip (PUTT)......................................................8-6
8.3.4 Permissive over-reaching transfer trip (POTT).........................................................8-6
8.3.5 Hybrid POTT scheme (HYB-POTT)...................................................................................8-7
8.3.6 Directional comparison blocking...................................................................................8-8
8.3.7 Directional comparison unblocking .............................................................................8-8
8.4 Series compensated lines ............................................................................8-10
8.4.1 Introduction ..........................................................................................................................8-10
8.4.2 Distance..................................................................................................................................8-11
8.4.3 Ground directional overcurrent ..................................................................................8-12
8.4.4 High-set phase overcurrent..........................................................................................8-12
8.5 Phase distance through power transformers..........................................8-13
8.5.1 Phase distance protection.............................................................................................8-13
8.5.2 Example..................................................................................................................................8-14
9 THEORY OF
OPERATION
9.1 Distance elements...........................................................................................9-1
9.1.1 Overview ...................................................................................................................................9-1
9.1.2 Phasor estimation.................................................................................................................9-2
9.1.3 Distance characteristics....................................................................................................9-2
9.1.4 Fast distance algorithm.....................................................................................................9-7
9.1.5 Memory polarization ...........................................................................................................9-8
9.1.6 Distance elements analysis .............................................................................................9-9
9.2 Phase distance applied to power transformers.......................................9-12
9.2.1 Description............................................................................................................................9-12
9.2.2 Example..................................................................................................................................9-16
9.3 Ground directional overcurrent..................................................................9-18
9.3.1 Description............................................................................................................................9-18
9.3.2 Example..................................................................................................................................9-19
9.4 Series-compensated lines............................................................................9-19
9.4.1 Description............................................................................................................................9-19
9.5 Single-pole tripping.......................................................................................9-23
9.5.1 Overview ................................................................................................................................9-23
9.5.2 Phase selection...................................................................................................................9-26
9.5.3 Communications channels for pilot-aided schemes ........................................9-28
9.5.4 Permissive echo signaling..............................................................................................9-34
9.5.5 Pilot scheme / phase selector coordination..........................................................9-35
9.5.6 Cross-country fault example........................................................................................9-36
9.6 Fault locator ...................................................................................................9-37
9.6.1 Fault type determination................................................................................................9-37
10 MAINTENANCE 10.1 Monitoring.......................................................................................................10-1

TABLE OF CONTENTS
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL ix
10.1.1 Devices with Site Targets................................................................................................10-1
10.1.2 Data with Modbus Analyzer ..........................................................................................10-1
10.2 General maintenance ...................................................................................10-3
10.2.1 In-service maintenance ..................................................................................................10-3
10.2.2 Out-of-service maintenance.........................................................................................10-3
10.2.3 Unscheduled maintenance (system interruption)...............................................10-3
10.3 Retrieve files...................................................................................................10-3
10.3.1 CyberSentry security event files..................................................................................10-4
10.4 Copy settings to other device .....................................................................10-5
10.5 Compare settings ..........................................................................................10-5
10.5.1 Compare against defaults .............................................................................................10-5
10.5.2 Compare two devices.......................................................................................................10-6
10.6 Back up and restore settings ......................................................................10-6
10.6.1 Back up settings..................................................................................................................10-7
10.6.2 Restore settings ..................................................................................................................10-9
10.7 Upgrade software........................................................................................10-11
10.8 Upgrade firmware .......................................................................................10-12
10.9 Replace module ...........................................................................................10-13
10.10 Battery...........................................................................................................10-14
10.10.1 Replace battery for SH/SL power supply .............................................................10-14
10.10.2 Dispose of battery...........................................................................................................10-15
10.11 Clear files and data after uninstall ..........................................................10-19
10.12 Repairs...........................................................................................................10-19
10.13 Storage ..........................................................................................................10-20
10.14 Disposal.........................................................................................................10-20
AFLEXANALOG
OPERANDS
A.1 FlexAnalog items .............................................................................................A-1
B RADIUS SERVER
CONFIGURATION
B.1 RADIUS server configuration .........................................................................B-1
C COMMAND LINE
INTERFACE
C.1 Command line interface .................................................................................C-1
D MISCELLANEOUS D.1 Warranty ...........................................................................................................D-1
D.2 Revision history ...............................................................................................D-1
ABBREVIATIONS
INDEX

x D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
TABLE OF CONTENTS

D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 1-1
D60 Line Distance Protection System
Chapter 1: Introduction
Introduction
This chapter outlines safety and technical support information.
1.1 Safety symbols and definitions
Before attempting to install or use the device, review all safety indicators in this document to help prevent injury,
equipment damage, or downtime.
The following safety and equipment symbols are used in this document.
1.1.1 General cautions and warnings
The following general safety precautions and warnings apply.
Follow the requirements of this manual, including adequate wiring size and type, terminal torque settings, voltage,
current magnitudes applied, and adequate isolation/clearance in external wiring from high to low voltage circuits.
Use the device only for its intended purpose and application.
Ensure that all ground paths are uncompromised for safety purposes during device operation and service.
Ensure that the control power applied to the device, the AC current, and voltage input match the ratings specified on
the relay nameplate. Do not apply current or voltage in excess of the specified limits.
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
Indicates practices not related to personal injury.
Ensure that all connections to the product are correct so as to avoid accidental risk of shock
and/or fire, for example such as can arise from high voltage connected to low voltage terminals.

1-2 D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
FOR FURTHER ASSISTANCE CHAPTER 1: INTRODUCTION
1
Only qualified personnel are to operate the device. Such personnel must be thoroughly familiar with all safety
cautions and warnings in this manual and with applicable country, regional, utility, and plant safety regulations.
Hazardous voltages can exist in the power supply and at the device connection to current transformers, voltage
transformers, control, and test circuit terminals. Make sure all sources of such voltages are isolated prior to
attempting work on the device.
Hazardous voltages can exist when opening the secondary circuits of live current transformers. Make sure that
current transformer secondary circuits are shorted out before making or removing any connection to the current
transformer (CT) input terminals of the device.
For tests with secondary test equipment, ensure that no other sources of voltages or currents are connected to such
equipment and that trip and close commands to the circuit breakers or other switching apparatus are isolated,
unless this is required by the test procedure and is specified by appropriate utility/plant procedure.
When the device is used to control primary equipment, such as circuit breakers, isolators, and other switching
apparatus, all control circuits from the device to the primary equipment must be isolated while personnel are working
on or around this primary equipment to prevent any inadvertent command from this device.
Use an external disconnect to isolate the mains voltage supply.
Personal safety can be affected if the product is physically modified by the end user. Modifications to the product
outside of recommended wiring configuration, hardware, or programming boundaries is not recommended end-use
practice. Product disassembly and repairs are not permitted. All service needs to be conducted by the factory.
1.2 For further assistance
For product support, contact the information and call center as follows:
GE Grid Solutions
650 Markland Street
Markham, Ontario
Canada L6C 0M1
Worldwide telephone: [phone]
Europe/Middle East/Africa telephone: [phone]
North America toll-free: 1 800 547 8629
Fax: [phone]
Worldwide e-mail: multilin.tec[email protected]
Europe e-mail: multil[email protected]
Website: http://www.gegridsolutions.com/multilin
When contacting GE by e-mail, optionally include a device information file, which is generated in the EnerVista software by
clicking the Service Report button.
LED transmitters are classified as IEC 60825-1 Accessible Emission Limit (AEL) Class 1M. Class 1M
devices are considered safe to the unaided eye. Do not view directly with optical instruments.
This product is rated to Class A emissions levels and is to be used in Utility, Substation Industrial
environments. Not to be used near electronic devices rated for Class B levels.

CHAPTER 1: INTRODUCTION FOR FURTHER ASSISTANCE
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 1-3
1

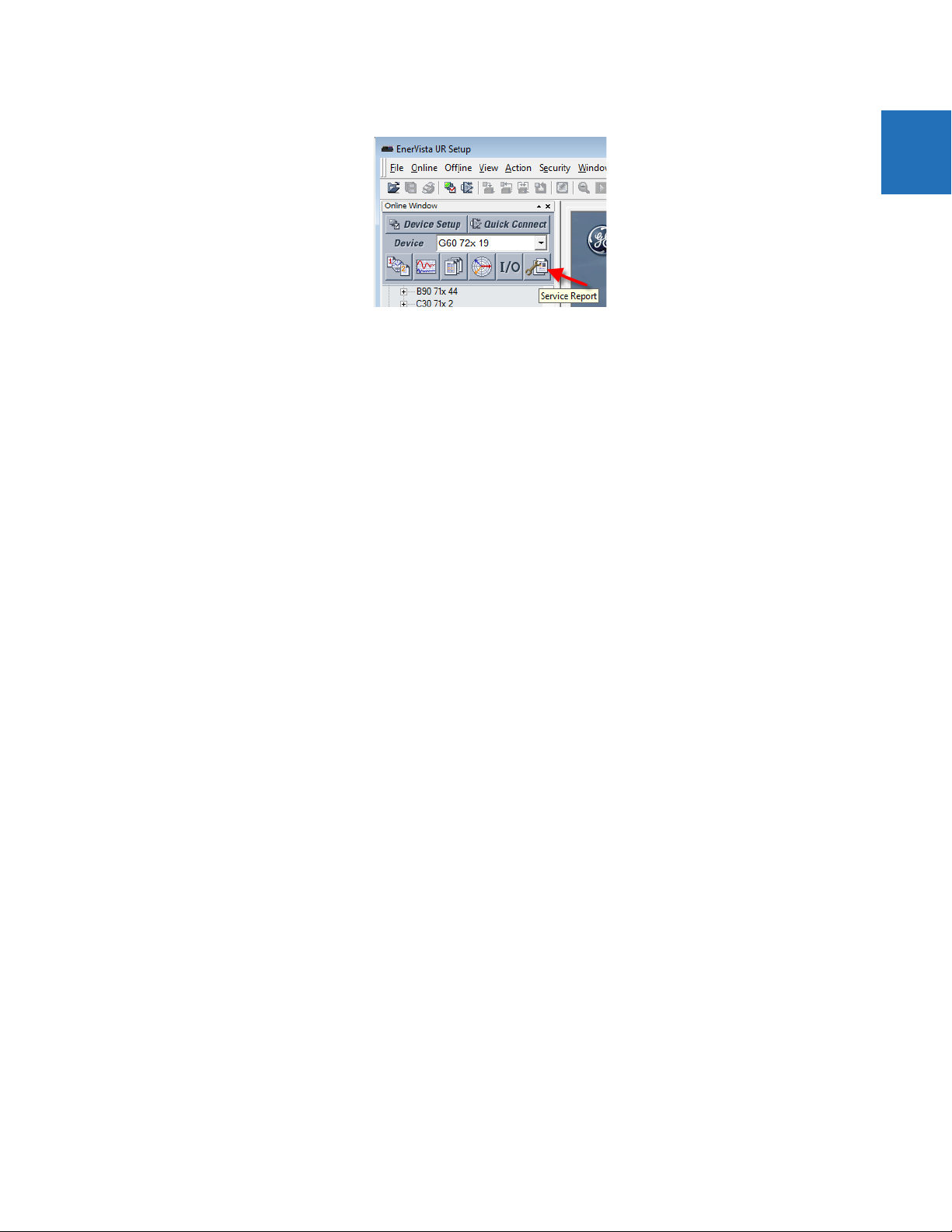

Figure 1-1: Generate service report

1-4 D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
FOR FURTHER ASSISTANCE CHAPTER 1: INTRODUCTION
1

D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 2-1
D60 Line Distance Protection System
Chapter 2: Product description
Product descript ion
This chapter outlines the product, order codes, and specifications.
2.1 Product description
The D60 Line Distance Protection System is part of the Universal Relay (UR) series of products. It is a microprocessor-based
relay for use on transmission lines of any voltage level, without, with, and in the vicinity of series compensation, in three-
pole and single-pole tripping applications. The primary function of the relay consists of five phase and ground distance
zones of protection, either mho or quadrilateral as per user selection, with built-in logic for the five common pilot-aided
schemes. The distance elements are optimized to provide good measurement accuracy with fast operating time, even
when used with capacitive voltage transformers (CVTs), and can be supervised by detection of power swings. The relay
also provides directional ground overcurrent elements, which are commonly used as part of an overall line protection
system.
D60 phase distance zones can be configured to work with voltages and currents fed from VTs and CTs located
independently from one another on either side of a three-phase power transformer. The relay compensates accordingly to
preserve reach and correct target information regardless of the location and type of fault. This feature allows backup
protection applications for generators and power transformers.
A close-into-fault (or switch-on-to-fault) function is performed by the line pickup element. Out-of-step tripping, three-pole/
single-pole dual-breaker autoreclosing, synchrocheck, fault location, and many other functions are also available. In
addition, overcurrent and undervoltage protection, fault diagnostics, power metering, and remote terminal unit (RTU)
functions are provided. The D60 provides phase, neutral, and ground time overcurrent protection. The time overcurrent
functions can be programmed with multiple curve shapes or FlexCurve™ for optimum coordination.
Voltage, current, and power metering is built into the relay as a standard feature. Current parameters are available as total
waveform root mean square (RMS) magnitude, or as fundamental frequency only RMS magnitude and angle (phasor).
Diagnostic features include an event recorder capable of storing 1024 time-tagged events, oscillography capable of
storing up to 64 records with programmable trigger, content and sampling rate, and data logger acquisition of up to 16
channels, with programmable content and sampling rate. The internal clock used for time-tagging can be synchronized
with an IRIG-B signal, using the Simple Network Time Protocol (SNTP) over the Ethernet port, or using the Precision Time
Protocol (PTP). This precise time stamping allows the sequence of events to be determined throughout the system. Events
can also be programmed (via FlexLogic™ equations) to trigger oscillography data capture that can be set to record the
measured parameters before and after the event for viewing on a computer PC. These tools significantly reduce
troubleshooting time and simplify report generation in the event of a system fault.

2-2 D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
PRODUCT DESCRIPTION CHAPTER 2: PRODUCT DESCRIPTION
2
Several options are available for communication. A faceplate RS232 port can be used to connect to a computer for the
programming of settings and the monitoring of actual values. The rear RS485 port allows independent access by operating
and engineering staff. It can be connected to system computers with baud rates up to 115.2 kbps. All serial ports use the
Modbus RTU protocol. The IEC 60870-5-103 protocol is supported on the RS485 interface. IEC 60870-5-103, DNP, and
Modbus cannot be enabled simultaneously on this interface. Also only one of the DNP, IEC 60870-5-103, and IEC 60870-5-
104 protocols can be enabled at any time on the relay. When the IEC 60870-5-103 protocol is chosen, the RS485 port has a
fixed even parity and the baud rate can be either 9.6 kbps or 19.2 kbps. The 100Base-FX or 100Base-TX Ethernet interface
provides fast, reliable communications in noisy environments. The Ethernet port supports IEC 61850, IEC 61850-90-5,
Modbus/TCP, TFTP, and PTP (according to IEEE Std. 1588-2008 or IEC 61588), and allows access to the relay via any
standard web browser (D60 web pages). The IEC 60870-5-104 protocol is supported on the Ethernet port. The Ethernet
port also supports the Parallel Redundancy Protocol (PRP) of IEC 62439-3 (clause 4, 2012) when purchased as an option.
Secure Routable GOOSE (R-GOOSE) is supported with software options.
Settings and actual values can be accessed from the front panel or EnerVista software.
The D60 uses flash memory technology that allows field upgrading as new features are added. Firmware and software are
upgradable.
The following single-line diagram illustrates the relay functionality using American National Standards Institute (ANSI)
device numbers.
Table 2-1: ANSI device numbers and functions supported
Device
number Function Device number Function
21G Ground distance 51_2 Negative-sequence time overcurrent
21P Phase distance 52 AC circuit breaker
25 Synchrocheck 59C Compensated overvoltage
27P Phase undervoltage 59N Neutral overvoltage
27X Auxiliary undervoltage 59P Phase overvoltage
32N Wattmetric zero-sequence directional 59X Auxiliary overvoltage
49 Thermal overload protection 59_2 Negative-sequence overvoltage
50BF Breaker failure 67N Neutral directional overcurrent
50DD Current disturbance detector 67P Phase directional overcurrent
50G Ground instantaneous overcurrent 67_2 Negative-sequence directional overcurrent
50N Neutral instantaneous overcurrent 68 Power swing blocking
50P Phase instantaneous overcurrent 78 Out-of-step tripping
50_2 Negative-sequence instantaneous overcurrent 79 Automatic recloser
51G Ground time overcurrent 81R Rate of change frequency
51N Neutral time overcurrent 81U/O Under/overfrequency
51P Phase time overcurrent

CHAPTER 2: PRODUCT DESCRIPTION SECURITY
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 2-3
2
Figure 2-1: Single-line diagram
Table 2-2: Other device functions
2.2 Security
The following security features are available:
Function Function Function
Breaker arcing current (I2t) Fault detector and fault report Setting groups (6)
Breaker control Fault locator Synchrophasor (PMU)
Breaker flashover FlexElements™ (8) Time synchronization over IRIG-B or IEEE
1588
Contact inputs (up to 96) FlexLogic equations Time synchronization over SNTP
Contact outputs (up to 64) IEC 60870-5-103 communications Transducer inputs and outputs
Control pushbuttons IEC 61850 communications Trip bus
CT failure detector IEC 62351-9 data and communications
security User-definable displays
CyberSentry™ security Line pickup User-programmable LEDs
Data logger Load encroachment User-programmable pushbuttons
Demand Metering: current, energy, frequency,
power, power factor, voltage, harmonics,
THD
User-programmable self-tests
Digital counters (8) Modbus user map Virtual inputs (64)
Digital elements (48) Non-volatile latches Virtual outputs (96)
Direct inputs and outputs (32) Non-volatile selector switch VT fuse failure
Disconnect switches Open pole detector
DNP 3.0 or IEC 60870-5-104 Comms Oscillography
Event recorder Pilot schemes

2-4 D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
SECURITY CHAPTER 2: PRODUCT DESCRIPTION
2
• Password security — Basic security present by default
• EnerVista security — Role-based access to various EnerVista software screens and configuration elements. The
feature is present by default in the EnerVista software.
• CyberSentry security — Advanced security available using a software option. When purchased, the option is
automatically enabled, and the default Password security and EnerVista security are disabled.
2.2.0.1 EnerVista security
The EnerVista security management system is a role-based access control (RBAC) system that allows an administrator to
manage the privileges of multiple users. This allows for access control of UR devices by multiple personnel within a
substation and conforms to the principles of RBAC as defined in ANSI INCITS 359-2004. The EnerVista security
management system is disabled by default to allow the administrator direct access to the EnerVista software after
installation. It is recommended that security be enabled before placing the device in service.
Basic password or enhanced CyberSentry security applies, depending on purchase.
2.2.0.2 Password security
Password security is a basic security feature present by default.
Two levels of password security are provided: command and setting. Use of a password for each level controls whether
users can enter commands and/or change settings.
The D60 supports password entry from a local or remote connection. Local access is defined as any access to settings or
commands via the faceplate interface. This includes both keypad entry and the through the faceplate RS232 port. Remote
access is defined as any access to settings or commands via any rear communications port. This includes both Ethernet
and RS485 connections. Any changes to the local or remote passwords enables this functionality.
When entering a settings or command password via EnerVista or any serial interface, the user must enter the
corresponding connection password. If the connection is to the back of the D60, the remote password must be used. If the
connection is to the RS232 port of the faceplate, the local password applies.
Password access events are logged in the Event Recorder.
2.2.0.3 CyberSentry security
CyberSentry embedded security is available using a software option (Level 1) that provide advanced security services.
When the option is purchased, the basic password security is disabled automatically.
CyberSentry provides security through the following features:
• An Authentication, Authorization, Accounting (AAA) Remote Authentication Dial-In User Service (RADIUS) client that is
centrally managed, enables user attribution, provides accounting of all user activities, and uses secure standards-
based strong cryptography for authentication and credential protection
• A Role-Based Access Control (RBAC) system that provides a permission model that allows access to UR device
operations and configurations based on specific roles and individual user accounts configured on the AAA server (that
is, Administrator, Supervisor, Engineer, Operator, Observer roles)
• Security event reporting through the Syslog protocol for supporting Security Information Event Management (SIEM)
systems for centralized cybersecurity monitoring
• Strong encryption of all access and configuration network messages between the EnerVista software and UR devices
using the Secure Shell (SSH) protocol, the Advanced Encryption Standard (AES), and 128-bit keys in Galois Counter
Mode (GCM) as specified in the U.S. National Security Agency Suite B extension for SSH and approved by the National
Institute of Standards and Technology (NIST) FIPS-140-2 standards for cryptographic systems
CyberSentry user roles
CyberSentry user roles (Administrator, Engineer, Operator, Supervisor, Observer) limit the levels of access to various UR
device functions. This means that the EnerVista software allows for access to functionality based on the user’s logged in
role.

CHAPTER 2: PRODUCT DESCRIPTION SECURITY
D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 2-5
2
Example: Administrative functions can be segmented away from common operator functions, or engineering type access,
all of which are defined by separate roles (see figure) so that access of UR devices by multiple personnel within a
substation is allowed.
Figure 2-2: CyberSentry user roles
The table lists user roles and their corresponding capabilities.
Table 2-3: Permissions by user role for CyberSentry
Roles Administrator Engineer Operator Supervisor Observer
Complete access Complete access
except for
CyberSentry
Security
Command
menu Authorizes writing Default role
Device Definition R R R R R
Settings
|---------- Product Setup
|--------------- Security
(CyberSentry) RW R R R R
|--------------- Supervisory See table notes R R See table
notes R
|--------------- Display Properties RW RW R R R
|--------------- Clear Relay Records
(settings) RW RW R R R
|--------------- Communications RW RW R R R
|--------------- Modbus User Map RW RW R R R
|--------------- Real Time Clock RW RW R R R
|--------------- Oscillography RW RW R R R
|--------------- Data Logger RW RW R R R
|--------------- Demand RW RW R R R
|--------------- User-Programmable
LEDs RW RW R R R
|--------------- User-Programmable
Self Tests RW RW R R R
|--------------- Control Pushbuttons RW RW R R R
|--------------- User-Programmable
Pushbuttons RW RW R R R
|--------------- Flex state
Parameters RW RW R R R
|--------------- User-Definable
Displays RW RW R R R
|--------------- Direct I/O RW RW R R R

2-6 D60 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
SECURITY CHAPTER 2: PRODUCT DESCRIPTION
2
Table Notes:
RW = read and write access
R = read access
Supervisor = RW (default), Administrator = R (default), Administrator = RW (only if Supervisor role is disabled)
NA = the permission is not enforced by CyberSentry security
|--------------- Teleprotection RW RW R R R
|--------------- Installation RW RW R R R
|---------- System Setup RW RW R R R
|---------- FlexLogic RW RW R R R
|---------- Grouped Elements RW RW R R R
|---------- Control Elements RW RW R R R
|---------- Inputs / Outputs RW RW R R R
|--------------- Contact Inputs RW RW R R R
|--------------- Contact Input
threshold RW RW R R R
|--------------- Virtual Inputs RW RW R R R
|--------------- Contact Outputs RW RW R R R
|--------------- Virtual Outputs RW RW R R R
|--------------- Resetting RW RW R R R
|--------------- Direct Inputs RW RW R R R
|--------------- Direct Outputs RW RW R R R
|--------------- Teleprotection RW RW R R R
|--------------- Direct Analogs RW RW R R R
|--------------- Direct Integers RW RW R R R
|---------- Transducer I/O RW RW R R R
|---------- Testing RW RW R R R
|---------- Front Panel Labels Designer NA NA NA NA NA
|---------- Protection Summary NA NA NA NA NA
Commands RW RW RW R R
|---------- Virtual Inputs RW RW RW R R
|---------- Clear Records RW RW RW R R
|---------- Set Date and Time RW RW RW R R
User Displays R R R R R
Targets R R R R R
Actual Values R R R R R
|---------- Front panel labels designer R R R R R
|---------- Status R R R R R
|---------- Metering R R R R R
|---------- Transducer I/O R R R R R
|---------- Records R R R R R
|---------- Product Info R R R R R
Maintenance RW RW R R R
|---------- Modbus Analyzer NA NA NA NA NA
|---------- Change front panel RW RW RW R R
|---------- Update firmware Yes No No No No
|---------- Retrieve file Yes No No No No
Roles Administrator Engineer Operator Supervisor Observer
