Ge F60 ur series User manual

832762A2.CDR

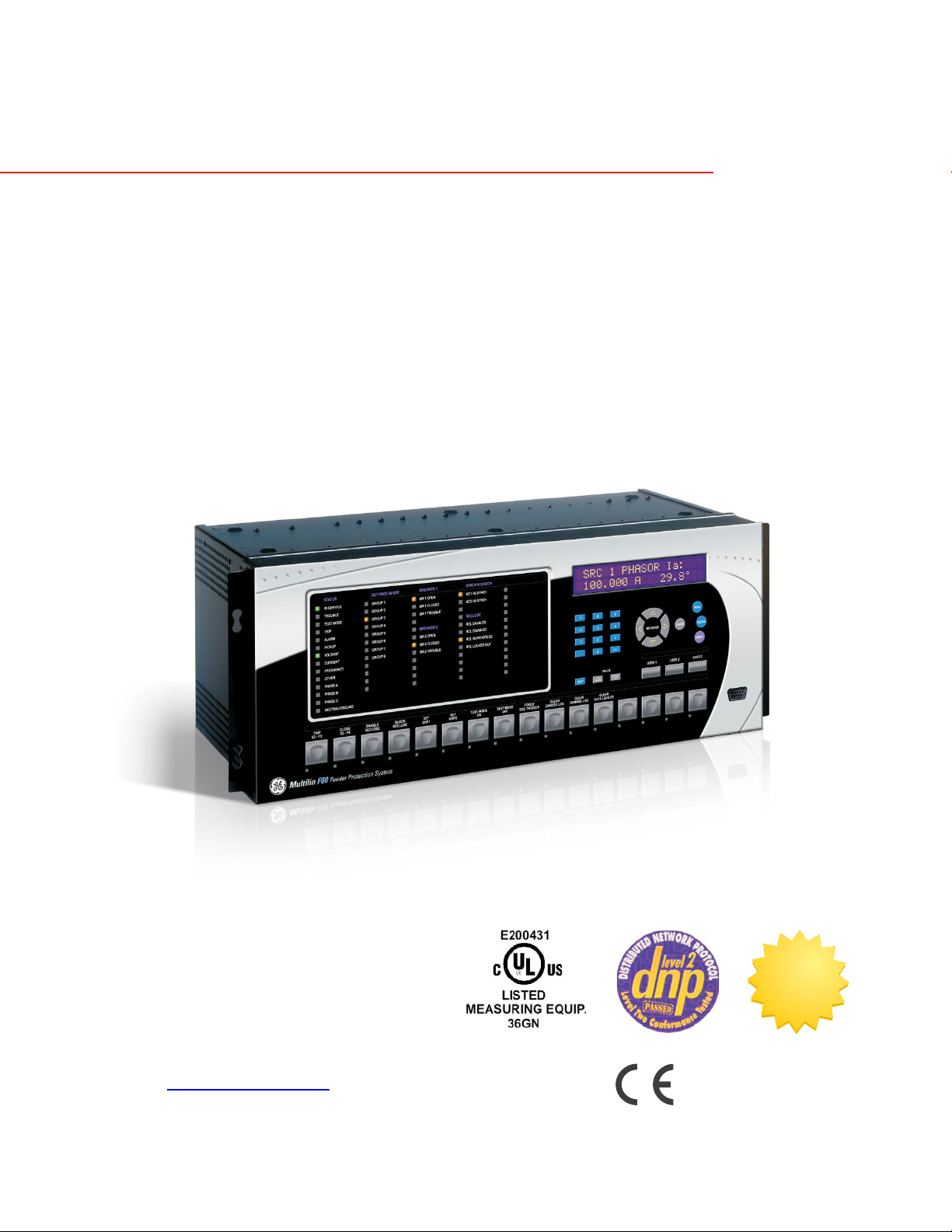

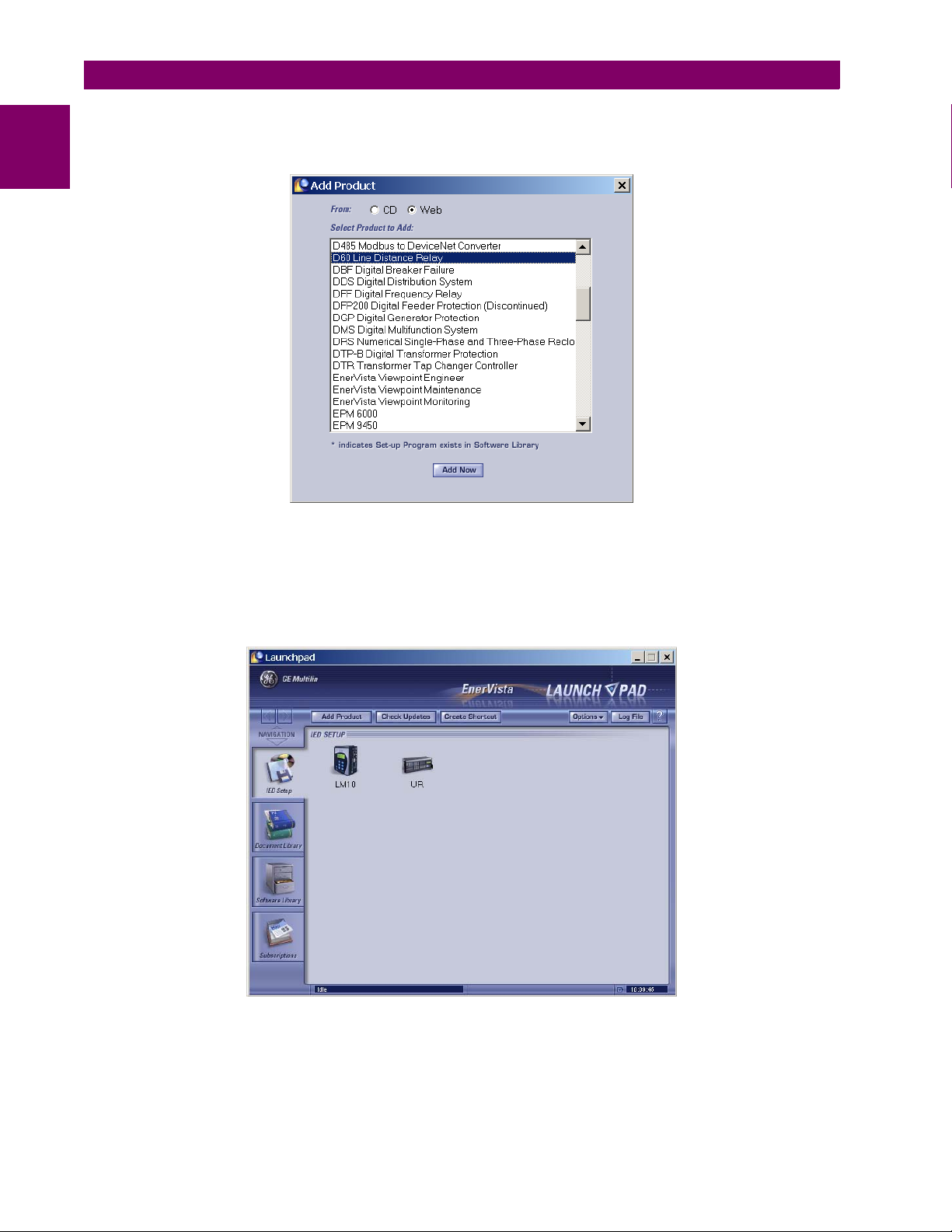

F60 Feeder Protection System

UR Series Instruction Manual

F60 Revision: 5.4x

Manual P/N: 1601-0093-R1 (GEK-113345)

GE Multilin

215 Anderson Avenue, Markham, Ontario

Canada L6E 1B3

Tel: (905) 294-6222 Fax: (905) 201-2098

Internet: http://www.GEmultilin.com

GE Industrial Systems

Title Page

ISO9001:2000

GE Multilin's Quality Management

System is registered to

ISO9001:2000

QMI # 005094

UL # A3775

*1601-0093-R1*

GE Industrial Systems

ADDENDUM

This addendum contains information that relates to the F60 Feeder Protection System, version 5.4x. This addendum

lists a number of information items that appear in the instruction manual GEK-113345 (revision R1) but are not included

in the current F60 operations.

The following functions/items are not yet available with the current version of the F60 relay:

• Signal Sources SRC 5 and SRC 6

Version 4.0x and higher releases of the F60 relay includes new hardware (CPU and CT/VT modules).

• The new CPU modules are specified with the following order codes: 9E, 9G, 9H, 9J, 9K, 9L, 9M, 9N, 9P, and 9R.

• The new CT/VT modules are specified with the following order codes: 8F, 8G, 8H, 8J 8L, 8M, 8N, 8R.

The following table maps the relationship between the old CPU and CT/VT modules to the newer versions:

The new CT/VT modules can only be used with the new CPUs (9E, 9G, 9H, 9J, 9K, 9L, 9M, 9N, 9P, 9R), and the old CT/

VT modules can only be used with the old CPU modules (9A, 9C, 9D). To prevent any hardware mismatches, the new

CPU and CT/VT modules have blue labels and a warning sticker stating “Attn.: Ensure CPU and DSP module label

colors are the same!”. In the event that there is a mismatch between the CPU and CT/VT module, the relay will not

function and a DSP ERROR or HARDWARE MISMATCH error will be displayed.

All other input/output modules are compatible with the new hardware.

With respect to the firmware, firmware versions 4.0x and higher are only compatible with the new CPU and CT/VT mod-

ules. Previous versions of the firmware (3.4x and earlier) are only compatible with the older CPU and CT/VT modules.

MODULE OLD NEW DESCRIPTION

CPU 9A 9E RS485 and RS485 (Modbus RTU, DNP)

9C 9G RS485 and 10Base-F (Ethernet, Modbus TCP/IP, DNP)

9D 9H RS485 and redundant 10Base-F (Ethernet, Modbus TCP/IP, DNP)

-- 9J RS485 and multi-mode ST 100Base-FX

-- 9K RS485 and multi-mode ST redundant 100Base-FX

-- 9L RS485 and single mode SC 100Base-FX

-- 9M RS485 and single mode SC redundant 100Base-FX

-- 9N RS485 and 10/100Base-T

-- 9P RS485 and single mode ST 100Base-FX

-- 9R RS485 and single mode ST redundant 100Base-FX

CT/VT 8A 8F Standard 4CT/4VT

8B 8G Sensitive Ground 4CT/4VT

8C 8H Standard 8CT

8D 8J Sensitive Ground 8CT/8VT

-- 8L Standard 4CT/4VT with enhanced diagnostics

-- 8M Sensitive Ground 4CT/4VT with enhanced diagnostics

-- 8N Standard 8CT with enhanced diagnostics

-- 8R Sensitive Ground 8CT/8VT with enhanced diagnostics

Addendum

GE Multilin F60 Feeder Protection System v
