GE Monogram ZV42 User manual

0 ner's
Manual
StainlessSteel
ProfessionalIsland
Range Hood
Models:
ZV42
ZV54
Monogram.com

Consumer Information
Professional Island Range Hood
Contents Consumer Information
Important Phone Numbers ................ !1
Model and Serial Numbers .................. 2
Problem Solver .......................... 9, 10
Product Registration ....................... 2
Safety Instructions ..................... 3, 4, 6

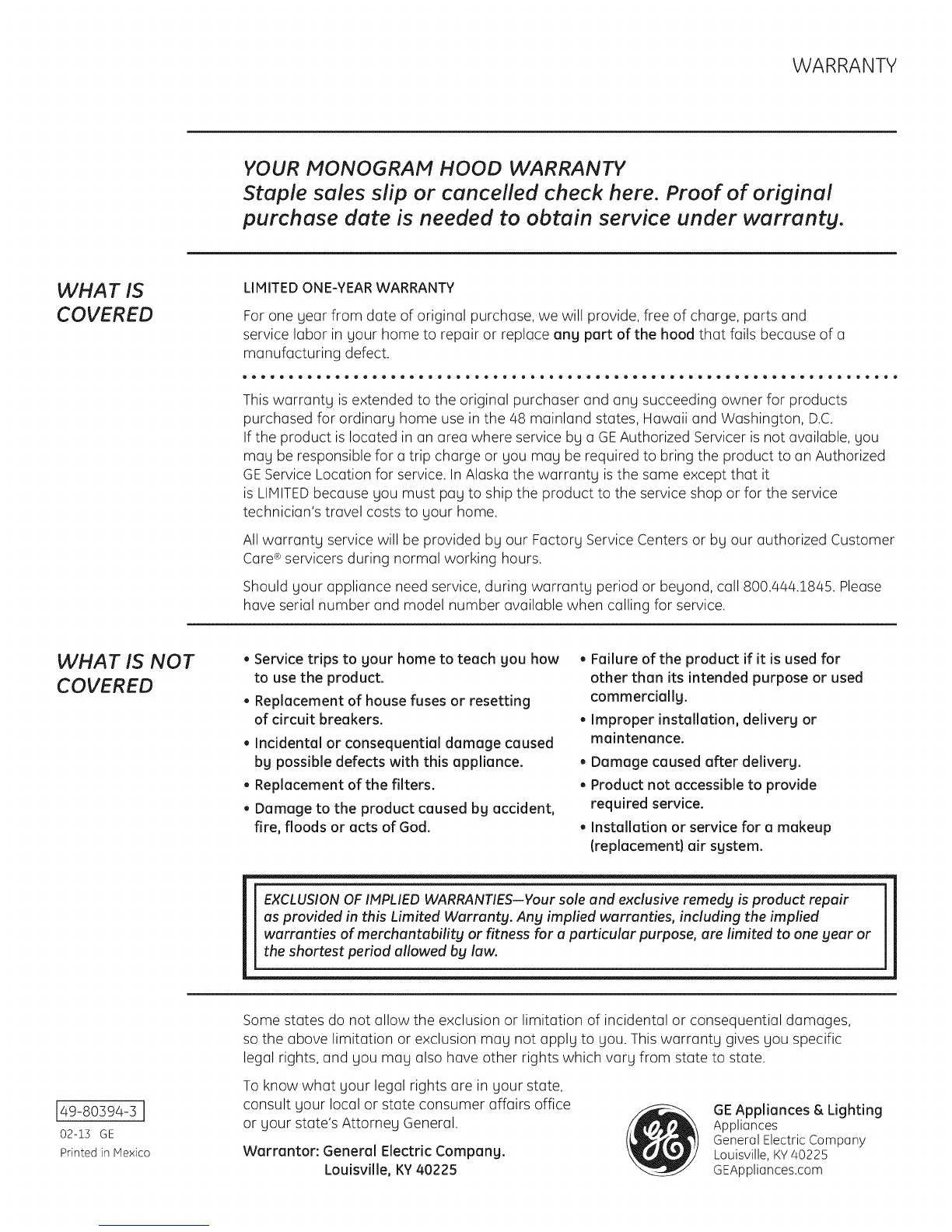

Warranty ........................ Buck Cover
Controls and Features ..................... 5
Care and Cleaning
Baffle Grease Filters......................... 7
Drip Trays .................................. 7
Light Bulbs................................. 6

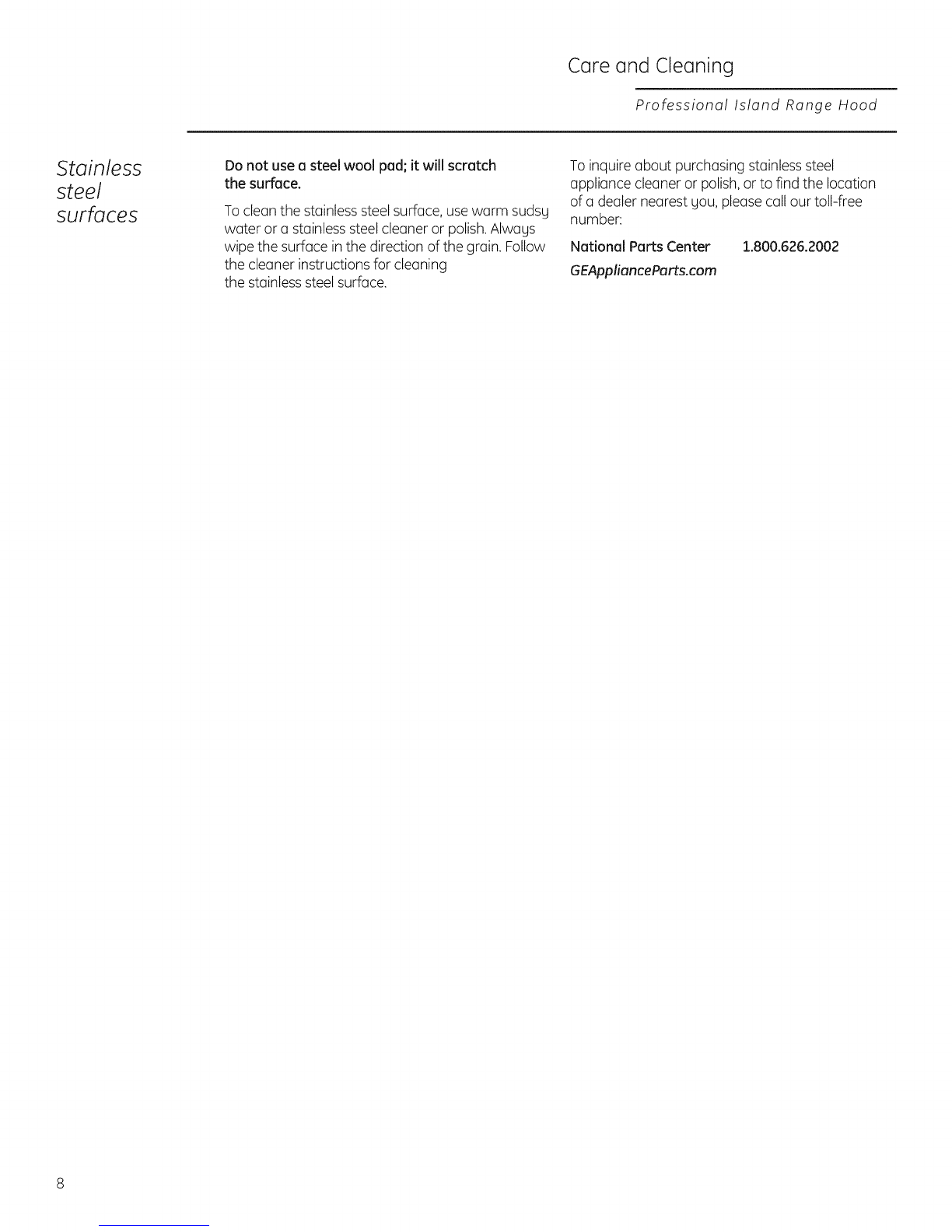

Stainless Steel Surfaces ..................... 8
Before using
your stainless
steel hood
Read this manual carefully. It is intended to help
you operate and maintain your new professional
range hood properly.
Keep it handy for answers to your questions.
If you don't understand something or need more
help, there isa list of toll-free consumer service
numbers included in the back section of this
manual.
Visit our Website at: GEAppliances.com
Write down
the model
& serial
numbers
You'll find them on a label on the hood.
These numbers are also on the Consumer
Product Ownership Registration Card packed
separately with your hood.
Use these numbers in any correspondence or
service calls concerning your hood.
Before sending in this card, please write these
numbers here:
Model Number
Serial Number
If you received
a damaged
hood
Immediately contact the dealer (or builder) that
sold you the hood.
Save time
&money
Before you request service, check the Problem
Solver in the back of this manual. It lists causes of minor operating problems that
you can correct yourself.
If _lou need
service
To obtain service, see the Consumer Services
page in the back of this manual.
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some steps
to follow for further help.
FIRST,contact the people who serviced your
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT,if you are still not pleased, write all the
details-including your phone number-to:
Hanager, Customer Relations
GEAppliances
Appliance Park
Louisville, KY40225

IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
SAFETY PRECAUTIONS
.,..vwr_._l._u: ToREDUCETHERISKOF
FIRE,ELECTRICSHOCKORINJURYTO PERSONS,
OBSERVETHE FOLLOWING:
A. Usethis unit onlg in the manner intended
bg the manufacturer. If gou have questions,
contact the manufacturer.
B. Beforeservicing or cleaning unit, switch
power off at servicepanel and lock the service
disconnecting means to prevent power from
being switched on accidentallg. When the service
disconnecting means cannot be locked,securelg
fasten a prominent warning device,such as a tag,
to the servicepanel.
C. Donot usethis unit with ang solid-state speed
control device.
D. Thisunit must be grounded.
,_CAUTION: FORGENERAL
VENTILATINGUSEONLY.DONOT USETO
EXHAUSTHAZARDOUSOREXPLOSWEMATERIALS
AND VAPORS.
_WARNING: ToREDUCETHERISKOF
INJURYTO PERSONSINTHE EVENTOFA RANGE
TOPGREASEFIRE,OBSERVETHE FOLLOWING*:
A.SMOTHERFLAMESwith a close-fitting lid,cookie
sheet or metal trag, then turn off the burner. BE
CAREFULTO PREVENTBURNS.If the flames do
not go out immediatelg, EVACUATEANDCALLTHE
FIREDEPARTMENT.
B. NEVERPICKUPA FLAMINGPAN--Youmay be
burned.
C. DONOTUSEWATER,including wet dishcloths or
towels-a violent steam explosion will result.
D. Usean extinguisher ONLYif:
1.You know you have a ClassABCextinguisher,
and you already know how to operate it.
2.Thefire issmall and contained in the area
where it started.
3.Thefire department is being called.
4.You can fight the fire with your back to an exit.
*Based on "Kitchen Firesafet_ published by
NFPA.
AI An^m_ll_m,,"
,,_w_r_l,t,i,_u:TOREDUCETHER,sKOF
A RANGETOPGREASEFIRE:
A. Neverleave surface units unattended at high
settings. Boiloverscause smoking and greasy
spilloversthat may ignite. Heat oilsslowly on low
or medium settings.
B.Always turn hood ONwhen cooking at high heat
or when flamb_ing food (i.e.CrepesSuzette,
CherriesJubilee, PeppercornBeefFlambG).
C.Cleanventilating fans frequently. Greaseshould
not be allowed to accumulate on fan or filter.
D. Useproper pan size.Always usecookware
appropriate for the sizeof the surface element.
WARNING: ToREDUCETHERiSKOF
FIRE,ELECTRICSHOCKORINJURYTO PERSONS,
OBSERVETHE FOLLOWING:
a. Installation work and electrical wiring must be
done by qualified person(s)in accordance with all
applicable codes and standards, including fire-
related construction.
B.Sufficientair isneeded for proper combustion and
exhaustingof gasesthrough theflue (chimneg)of
fuel burning equipment to prevent back drafting.
Followthe heating equipment manufacturer's
guidelineand safetgstandards such asthose
publishedbg the National FireProtection
Association(NFPA),and the American Societg
for Heating,Refrigerationand Air Conditioning
Engineers(ASHRAE),and the localcode authorities.
Whenapplicable, installang makeup (replacement)
air sgstem in accordance with local building code
requirements.VisitGEAppliances.comfor available
makeup air solutions.
C.When cutting or drilling into wall or ceiling,do
not damage electrical wiring and other hidden
utilities.
D. Ductedfans must always bevented to the
outdoors.
_WARNING: ToREDUCETHERISKOF
FIRE,USEONLYMETALDUCTWORK.
. Donot attempt to repair or replace any part of
your hood unless it isspecifically recommended
inthis manual. Allother servicingshould be
referredto a qualified technician.
READ AND SAVE THESE INSTRUCTIONS. 3

INSTRUCTIONS DE SI CURITIIMPORTANTES
LISEZTOUTES LES INSTRUCTIONS AVANT D'UTILISERVOTRE APPAREIL
PRL-CAUTIONS EN P1ATIL-REDE SL-CURITL-
LAVERTISSEMENT:
POUR RI_DUIRELE RISQUE D'INCENDIE,
DE SECOUSSEELECTRIQUE OU DE BLESSURE
CORPORELLE, OBSERVEZ LESPRI_CAUTIONS
SUIVANTES :
A.N'utilisezcet opporeil que de Io moni@repr@vue
por lefobricont. Sivous oyez desquestions, oppelez
le fobricont.
B.Avont de r@porerou de nettoger votre opporeil,
d@bronchezle couront ou niveou du ponneou
de service et verrouillez les m@conismesde
d@bronchementde service pour @vitertout
bronchement occidentel ou couront. Sivous
ne pouvez pos verrouiller les m@conismesde
d@bronchementde service,ottochez soigneusement
un overtissement bien visible,comme une @tiquette,ou
ponneou de service.
C.N'utilisezjomois cet opporeil ovec un m@conisme
de r@glogede Iovitesse _semi-conducteurs.
D. Cetopporeil doit @trebien mis_ Ioterre.
LATTENTION., UNIQUEMENT
#,USAGE DE VENTILATION GI_NERALE. N'UTILISEZ
JAMAIS POUR L'I_CHAPPEMENT
DE MATII_RES ET DE VAPEURS EXPLOSIVES.
d VERTISSEMENT :
POUR REDUIRE LE RISQUE DE BLESSURE
CORPORELLE SI DE LA GRAISSE PREND FEU SUR
LA SURFACE DE CUISSON DU FOUR, SUIVEZ LES
INSTRUCTIONS SUIVANTES* :
A.ETOUFFEZLESFLAMMESovec un couvercle qui
convient, unet61e_ biscuitsou un ploteou en m@tol,
puis @teignez/ebrOleur.FAITESBtENATTENTIONDENE
PASVOUSBRULER.Silesflommes ne s'@teignentpos
imm@diotement,SORTEZETAPPELEZLESPOMPIERS.
B.NEDEPLACEZJAMAtSUNECASSEROLLEOUt FLAMBE--
Vous pouvez vous brOler.
C.N'UTILISEZJAMAISD'EAU,en porticulier de serviette ou
de chiffon mouill@-il se produiro
une explosion violente de vopeur brOIonte.
D. N'UTILISEZUNEXTINCTEURque si:
1.Vousoyez un extincteur de closseABCet vous
sovezcomment rutiliser;
2. Lefeu est r@duitet confin@_ rendroit oOil
ocommenc@;
3.Vous ovez d@j_oppel@les pompiers;
4.Vous combottez les flommes en tournont le
dos_ une sortie.
* Bos@sur rouvroge intitul@<<KitchenFireSofetg Tips>>
publi@por Io NFPA.
AVERTISSEMENT".
RI_DUISEZLE RISQUE D'UN FEU DE GRAISSESUR
LA SURFACE DE CUISSON DU FOUR :
A.Ne Ioissezjomois sons surveillonceles unit_s de cuisson
de surfoce a une temp@roture@[e-mail]
occosionne des d@bordementsfumonts et groisseux qui
peuvent prendre feu.Chouffez a feu doux lessubstonces
huileuses,ovec un r@glogebos ou mogen.
B.Mettez toujours Iohotte en morche quond vous
cuisinez_ houte temp@rotureou quond vous foites
flomber des oliments (p.ex.cr_pes Suzette,cerises
Jubilee,Boeuf flomb@Peppercorn).
C.Nettogez lesm@conismesde ventilotion [e-mail]
ne fout pos permettre une occumulotion de groissesur
le ventiloteur ou sur lefiltre.
D. Utilisezune cosserole de bonne toille.Utiliseztoujours
un ustensilede cuisine qui convienne ou diom@trede
I'@l@mentde cuisson.
d VERTISSEMENT •.
POUR RI_DUIRELE RISQUE D'INCENDIE,
DE SECOUSSEELECTRIQUE OU DE BLESSURE
CORPORELLE, OBSERVEZ LESPRI_CAUTIONS
SUIVANTES :
A.Vousdevezfoire ex@cutertousles trovoux d'instollotion
et de c(_bloge@lectriquepor unepersonne quolifi@e,
conform@ment_ tousles codes et les normesen vigueur,
en porticulierceux de construction retotifsoux incendies.
B.Vous devez ossezd'oir pour ovoir une bonne
combustion et permettre r@vocuotiondes goz por
le conduit de chemin@edu mot@rielde combustion
du corburont, ofin d'@vitertout retour d'oir. Suivezles
directives du fobricont de mot@rielde combustion et
les normes de s@curit@comme cellespubli@espor Io
Notionol FireProtection Associotion (NFPA)et rAmericon
Societgfor Heoting, Refrigerotion ond AirConditioning
Engineers(ASHRAE),oinsi que les modolit@sdes
codes Iocoux.Lecos @ch@ont,instollez un sgst_me de
compensotion d'oir (remplocement) conform@ment oux
conditions des codes Iocouxdu b_timent. Visitezlesite
GEAppliances.com pour conno_trelessolutions offertes
en moti_re de sgst_me de compensotion d'oir.
C.Sivous foites un trou ou une ouverture dons un mur ou
un plofond, n'endommogez pos lesills @lectriqueset les
outres instollotions coch@esde service public.
D. Vous devez toujours olimenter lesventiloteurs dons les
conduits en oir en provenonce de rext@rieur.
AVERTISSEMENT •.
POUR RI_DUIRELE RISQUED'INCENDIE, N'UTILISEZ
QUE DES CONDUITS EN METAL.
•N'essogezjomoisde remplocerou der_porerun
@l@mentdevotrehottesilepr@sentmonuelnele
recommonde [e-mail]
doit @treeffectu_ por un technicien quolifi&
LISEZ ET CONSERVEZ CES INSTRUCTIONS.

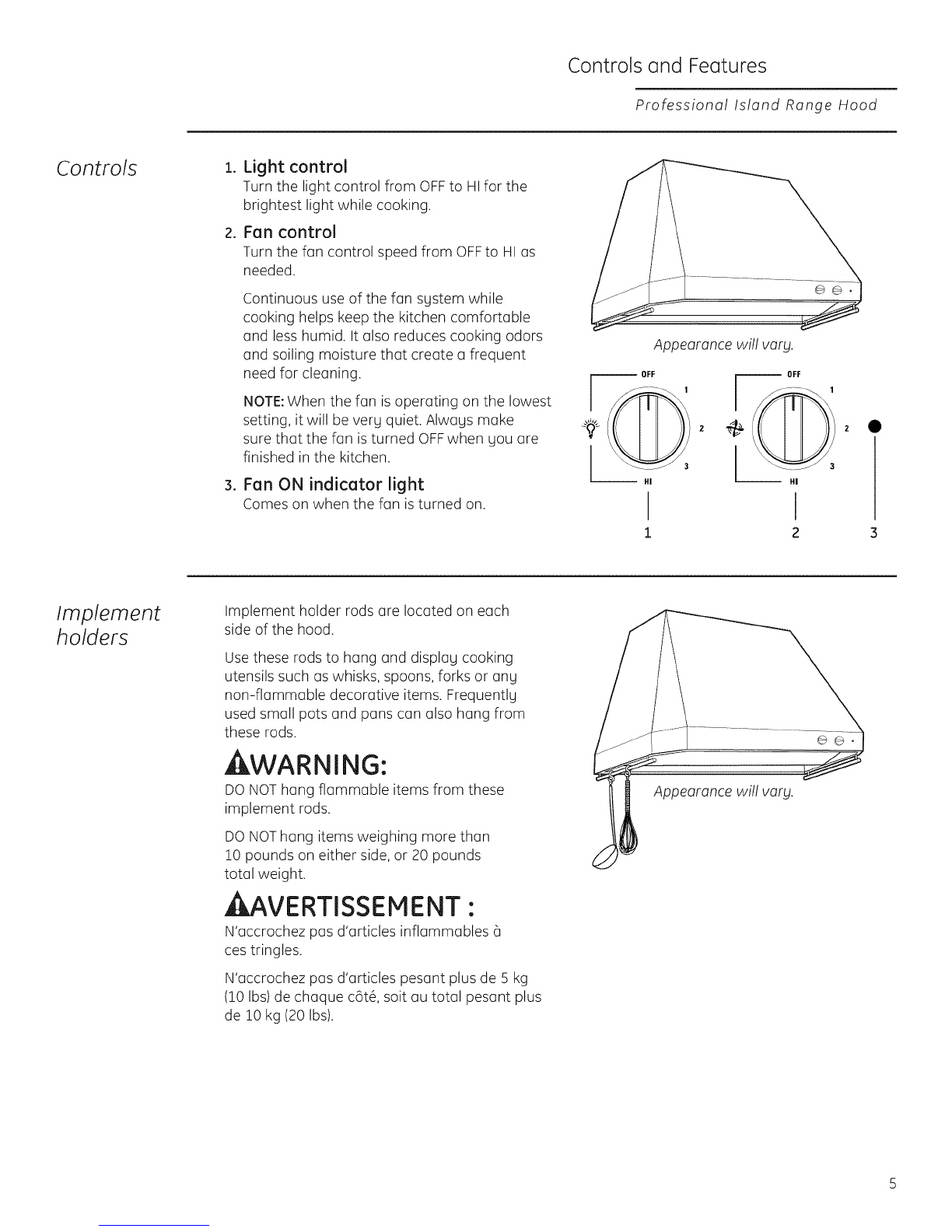

Controls and Features
Professional Island Range Hood
Controls 1. Light control
Turn the light control from OFFto HIfor the
brightest light while cooking.
2. Fan control
Turn the fan control speed from OFFto HI as
needed.
.
Continuous use of the fan sgstem while
cooking helps keep the kitchen comfortable
and less humid. It also reduces cooking odors
and soiling moisture that create a frequent
need for cleaning.
NOTE:When the fan isoperating on the lowest
setting, it will be verg quiet. Alwags make
sure that the fan is turned OFFwhen gou are
finished in the kitchen.
Fan ON indicator light
Comes on when the fan isturned on.
Appearance will vary.
-- HI
1
OFF
HI
I
2
2 •
Implement
holders Implement holder rods are located on each
side of the hood.
Use these rods to hang and displag cooking
utensils such as whisks, spoons, forks or ang
non-flammable decorative items. Frequentlg
used small pots and pans can also hang from
these rods.
AWARNING:
DO NOThang flammable items from these
implement rods.
DO NOThang items weighing more than
10 pounds on either side, or 20 pounds
total weight.
,I AVERTISSEMENT :
N'accrochez pas d'articles inflammables a
ces tringles.
N'accrochez pas d'articles pesant plus de 5 kg
(!0 Ibs)de chaque c6t6, soit au total pesant plus
de !0 kg (20 Ibs).
Appearance will vary.

Careand Cleaning
Professional Island Range Hood
For your
safety
Pour votre
securit
Before servicing or cleaning unit, switch
power off at service panel and lock the service
disconnecting means to prevent power from
being switched on accidentallg. When the service
disconnecting means cannot be locked, securelg
fasten a prominent warning device, such as a
tag, to the service panel.
Avant de r6parer ou de nettoger votre appareil,
d_branchez le courant au niveau du panneau
de service et verrouillez les m6canismes de
d6branchement de service pour 6viter tout
branchement accidentel au courant. Sivous
ne pouvez pas verrouiller les m6canismes
de d6branchement de service, attachez
soigneusement un avertissement bien visible,
comme une @iquette, au panneau de service.
Light bulbs The bulbs are located on the underside of
the hood.
To change the light bulbs:
1. Remove the trim ring by turning it
counterclockwise.
2. Grasp the bulb on the edges and remove
by turning it counterclockwise.
3. Replace with the same tupe and size bulb.
These 120 volt, 50 watt, par 16 halogen flood
bulbs, with standard base, are available at
specialtu lighting stores.
These bulbs can also be ordered from your
GEsupplier.
Order bulb no. WBO8×1OO28.

Careand Cleaning
Professional Island Range Hood
Baffle grease
filters and
drip trays
Island hood models have reusable metal grease
baffles and drip trags.
The metal baffles channel grease released bg
foods on the cooktop into the drip trags. The
baffles also help prevent flaming foods on the
cooktop from damaging the inside of the hood.
For this reason, the baffles must ALWAYS be in
place when the hood is used. The grease baffles
and drip trags should be cleaned once a month,
or as needed.
To clean the grease baffles and drip trags,
drain and wipe all excess grease with a drg paper
towel. Soak them and then swish them around
in hot water and detergent. Don't use ammonia
or ammonia products because theg will darken
the metal. Do not use abrasives or oven cleaners.
Rinse, shake and let them drg before replacing.
Theg mag also be cleaned
in an automatic dishwasher.
To remove:
Grasp both baffle knobs on each filter and
pull them up, forward and out. Grasp the
drip trag and carefullg lift it up and out of
the hood track.
To replace the drip trags:
1. Place and seat the drip trag into the
hood track.
2. Slide them left or right until all trags are
side-bg-side in place in the track.
To replace the baffles:
1. Hold the baffle at the bottom bg one of
the knobs.
.
.
Place the other end of the baffle against
the inside front of the hood.
Slide it up and push the bottom end back until
it firmlg seats into place.
Drip Trag
Track
_ DripTrag
Drip Trag Replacement
Baffle Replacement

Careand Cleaning
Professional Island Range Hood
Stainless
steel
surfaces
Do not use a steel wool pod; it will scratch
the surface.
Toclean the stainless steelsurface, usewarm sudsg
water or a stainlesssteel cleaner or polish.Alwags
wipe the surface in the direction of the grain. Follow
the cleaner instructions for cleaning
the stainless steel surface.
Toinquire about purchasing stainlesssteel
appliance cleaneror polish,or to find the location
of a dealer nearest gou,please callour toll-free
number:
National Parts Center
GEApplianceParts.com
1.800.626.2002

The Problem Solver
Professional Island Range Hood
Questions?
Use this
problem
solver!
PROBLEM POSSIBLE CAUSE
FANAND LIGHTSDO
NOTOPERATEWHEN
THE SWITCHESARE
TURNEDON e
THE BLOWERDOES
NOTWORK BUT
THE LIGHTSDO
2.
3.
4.
THE BLOWER FAILS
TO EXHAUSTTHE i.
SMOKE/STEAM/
ODORSADEQUATELY
2.
3.
4.
5.
6.
The hood was never electricallg connected bg the installer/
electrician/builder. Callthe electrician/installer/builder to
complete the installation. This is not covered bg warrantg.
A fuse mag be blown or a circuit breaker tripped. Replace the fuse
or reset the circuit breaker.
The blower motor wire harness was not connected or was not
connected properlg bg the installer/electrician/builder to its mating
connector located inside the hood on the top surface, to the left of
the blower assemblg.
1. Switch power off at service panel and lock the service disconnecting
means to prevent power from being switched on accidentallg. When
the service disconnecting means cannot be locked, securelg fasten a
prominent warning device, such as a tag, to the service panel.
Remove the filters and locate the blower wire harness connector.
Is it plugged into its mating connector?
If no, plug the blower motor connector into its mating connector on
the top of the hood. Switch the power back on. Check to see if the fan
now works.
If no, check the circuit breaker/fuse. If it is blown/tripped, replace/
reset it. Does the blower work now? If no, call GEfor service.
• Many factors could be the root cause for reduced air-flow.
Installation could be the problem: Your hood was designed to
meet specific ducting requirements. Refer to the Installation
Instructions or if gou do not have them, go to GEAppliances.com.
If gour duct length exceeds the manufacturer's requirements,
hood performance will suffer. Air-flow will also be reduced if the
house duct work is too small or there are too mang elbows in the
sgstem. Contact gour installer or builder.
Obstruction in duct work could be the problem: Hake sure nothing is
blocking the vent (bird nests or kinks in the duct work).
Damper blade mag not be opening. Make sure the tape is removed
from the damper blades and that it swings open freelg.
Damper blade on Wall or Roof Cap may not be opening. Contact
gour builder so theg can make sure the damper swings open freelg.
Dirtg filters/baffles-make sure filters (and all hood surfaces) are
kept clean of grease and dirt.
Sufficient makeup (replacement} air is required for exhausting
appliances to operate to rating. Check with local building codes,
which mag require or stronglg advise the use of makeup air."
Visit GEAppliances.com for available makeup air solutions.

The Problem Solver
Professionol Islond Ronge Hood
Questions?
Use this
problem
solver!
PROBLEM POSSIBLECAUSE
@
PART IS MISSING/
DAMAGED/
DEFECTIVE
DUCT COVER IS
MISSING
INSTALLATION
PART IS MISSING/
DAMAGED/
DEFECTIVE
Inthe unlikelg event thot o port would be missing, domoged or
defective, we con serve gou, the consumer, quicklg bg moiling these
ports to gou. We hove identified severol eosg-to-instoll ports.
These include: lumps, lump bezels, beffle filters, greose trogs, knobs,
utensil rods, Owner's Monuol ond Instollution Instructions.
Cell GEservice ond corefullg describe gour model number ond the
port gou need. The model number is Iocoted inside the hood chossis,
behind the boffle filter.
Chimneg kit ond duct covers for 8' ceiling instollotions ore included
with the hood.
For9' ond 10' ceilings, pleose order the following oppropriote kit:
-- 42" models, ZXa2DC10
-- 54" models, ZXSaDC10
Coil GEPorts. See Consumer Service poge in this monuol for o list
of phone numbers.
We provide o 10" round, verticel duct tronsition. This port con
be moiled out to the hood instoller if it is in some wog unuseble.
All other duct tronsitions, elbows, etc. must be purchused Iocollg.
We con olso moil out mong other ports thut come with the hood to
gout instoller. Cell GEService. See Consumer Service poge in this
manuel for u list of phone numbers. Ask them to moil the ports
onlg-no service coil required.
10
