GE GNSV25CBL Operating instructions

GE Appliances
Water Filtration System
215C1001P019 49-50057 07-00 JR
GE Answer Center ®800.626.2000
GNSV25CBL
GNSV30CWW
GNSV30CCC
GNSL05CBL
GN1S15CBL
Owner’s Manual and
Installation Instructions
GNSL05CBL and GN1S15CBL
are Tested and Certified by NSF
International against ANSI/NSF
Standard 42 for the reduction
of Particulate Class I, Chlorine
Class I, and Taste/Odor and
Standard 53 for the reduction of
Lead, Cyst, Turbidity, Asbestos,
and Lindane.
GNSV25CBL, GNSV30CWW and
GNSV30CCC are Tested and
Certified by NSF International
against ANSI/NSF Standard 42
for the reduction of Particulate
Class I, Chlorine Class I, and
Taste/Odor and Standard 53 for
the reduction of Lead, Cyst,
Turbidity, Asbestos, and VOC.
www.geappliances.com
Safety Information . . . . . . . . . . .2
Operating Instructions . . . .3–4
Specification Guidelines . . . . . . . . . . . . .3
Using the System . . . . . . . . . . . . . . . . . .4
Installation Instructions . .5–11
Battery Pack Installation . . . . . . . . . . . . .8
Faucet Installation . . . . . . . . . . . . . . . .7, 8
Feed Water Supply . . . . . . . . . . . . . . . . . .6
Filter Cartridge Installation or
Flush Procedure . . . . . . . . . . . . . . . .10–11
Important Recommendations . . . . . . . . . .5
Replacement . . . . . . . . . . . . . . . . . .10–11
Step-by-Step Instructions . . . . . . . . . .7–9
Tools/Materials Required . . . . . . . . . . . .5
Tubing Connections . . . . . . . . . . . . . . . . .9
Wall Mounting . . . . . . . . . . . . . . . . . . . . .9
Troubleshooting Tips
Before You Call For Service . . . . . . . . . . .12
Customer Service
Parts List/Catalog . . . . . . . . . . . . . .13–14
Service Telephone
Numbers . . . . . . . . . . . . . . . . . . . . . . . . .16
Warranty . . . . . . . . . . . . . . . . . . . . . . . .16
7221835

SAVE THESE INSTRUCTIONS
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
■ Install or store where it will not be exposed to temperatures
below freezing or exposed to any type of weather. Water
freezing in the system will damage it. Do not attempt to treat
water over 100°F.
WARNING: Discard all unused and packaging
material after installation. Small parts remaining after
installation could be a choke hazard.
■ Your Water Filtration system will withstand up to 125 pounds
per square inch (psi) water pressure. If your house water
supply pressure is higher than 100 psi, install a pressure
reducing valve before installing the Water Filtration system.
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
For your safety, the information in this manual must be followed to minimize the risk of
property damage or personal injury.
SAFETY PRECAUTIONS
■ Check with your local public works department for plumbing
codes. You must follow these guidelines as you install the
Water Filtration system.
■Use the Water Filtration system on a potable, safe-to-drink,
home COLD water supply only. The filter cartridges will not
purify the water, or make it safe to drink.
■ Do not use on a hot water supply (100°F. max.) .
WARNING: Do not use with water that is
microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system. Systems
certified for cyst reduction may be used on disinfected
water that may contain filterable cysts.
PROPER INSTALLATION
This Water Filtration system must be properly installed and located in accordance with the Installation Instructions
before it is used.
2
IMPORTANT!
Fill out and return the Consumer Product Registration Card that is packed with this product.
Write the model and serial numbers here:
#
#
You can find them on the sump bracket.
Staple sales slip or cancelled check here.
Proof of the original purchase date is needed to obtain service under the warranty.
IF YOU NEED SERVICE
Inside you will find many helpful hints on how to use and
maintain your water system properly. You’ll find many answers
to common problems in the Before You Call For Service section.
If you review our chart of Troubleshooting Tips first, you may not
need to call for service at all.
If you do need service, you can relax knowing help is only a
phone call away. A list of toll-free customer service numbers is
included in the back section.
OR
Visit our Website at www.geappliances.com
WARNING!

3
Specification guidelines.
Many bad tastes and/or odors are removed from water using activated carbon
filter cartridges. They are most often used to remove a chlorine taste and odor.
They can also reduce other undesirable elements from drinking water supplies,
such as organic chemical contaminants and lead.
NOTE: Small amounts of hydrogen sulfide (noticeable as “rotten egg” odor) may
be reduced by taste and odor filters for a short time, but the carbon media is
quickly exhausted. Other water conditioning equipment is usually required for
the continuous treatment of hydrogen sulfide.
For Model GN1S15CBL
FXULC Filter
(1250-Gallon Capacity)
Filter – White with
yellow end caps
•Reduces dirt, rust and
sediment
•Reduces unpleasant
tastes and odors
•Reduces Chlorine
•Reduces Lead
•Reduces Asbestos
•Reduces filterable
cysts (such as
cryptosporidium
and giardia)
•Reduces Lindane
(a pesticide)
•0.5 micron nominal
particulate reduction
For Model GNSL05CBL
FXSLC Filter Set
(1250-Gallon Capacity)
Filter I – White with no
end caps
Filter II – White with
yellow end caps
•Reduces dirt, rust and
sediment
•Reduces unpleasant
tastes and odors
•Reduces Chlorine
•Reduces Lead
•Reduces Asbestos
•Reduces filterable
cysts (such as
cryptosporidium
and giardia)
•Reduces Lindane
(a pesticide)
•0.5 micron nominal
particulate reduction
For Models GNSV25CBL,
GNSV30CWW and
GNSV30CCC
FXSVC Filter Set
(540-Gallon Capacity)
Filter I – White with gray
end caps
Filter II – White with
green end caps
•Reduces dirt, rust and
sediment
•Reduces unpleasant
tastes and odors
•Reduces Chlorine
•Reduces Lead
•Reduces Asbestos
•Reduces filterable
cysts (such as
cryptosporidium
and giardia)
•Reduces Volatile
Organic Chemicals
(VOC’s)
•1-micron absolute
particulate reduction
Minimum - Maximum Supply Water Pressure—40–125 pounds per square inch (psi)
Minimum - Maximum Supply Water Temperature—40–100°F.
Inlet - Outlet—3/8 ″ NPT, fittings and tubing included
Rated Service Flow—0.6 gpm (GNSL05CBL and GN1S15CBL)
0.5 gpm (GNSV25CBL, GNSV30CWW, and GNSV30CCC)
Depending on the treatment needed for a specific water supply, the water filtration system
can be customized using any combination of the preceding filter cartridge sets.
The Water Filtration system uses two filter cartridges.

About the water filtration system.
Using the Water Filtration System and About the Filter Cartridge
The countertop faucet dispenses filtered drinking water when opened. It has a
hand-operated, spring-loaded closed lever to prevent waste. You can keep the
faucet open by pushing upward on the lever to lock it against the faucet spout.
Filter Cartridge Life— Several variables determine how long the cartridges will
last in your Water Filtration system. These include:
How much water you use.
How much sediment, taste and/or odor, lead, or other unwanted substance,
is in the water.
No matter which Water Filtration system you have, you should replace the
cartridges every six months, when indicated by the electronic indicator light
on the base. In extremely poor water supplies, you may notice the return of
the unwanted substance in your water before the six months are up. In this
case the cartridges should be replaced immediately. If the system is also for
lead or chemical contaminant removal, it is MORE IMPORTANT to replace the
cartridges at least every six months.
NOTE: If the water supply contains high amounts of sediments, the carbon
filters may plug prematurely, reducing filtered water flow to the system faucet.
Cartridge replacement is needed to restore flow.
Electronic Indicator Light (not available on all models)— The electronic indicator
light on the base of the faucet is a six month timer that shows you when to
replace the filter cartridges. When the battery pack is first installed, the
indicator light will light briefly to show that the electronics are operating.
If this does not happen, the batteries may be installed backwards or the
leadwires are not connected.
After about six months, the indicator light begins to flash. It is time to replace
the filter cartridges. When replacing the filter cartridges, also replace the
batteries in the battery pack. Two “AA” batteries are required.
2
1
Filtered water faucet
Open
Indicator light
Lock
open
4

5
Installation Overview
Important Installation Recommendations
■ Check with your local public works department for plumbing
codes. You must follow their guides as you install the Water
Filtration system.
■ Use the Water Filtration system on a potable, safe-to-drink, home
COLD water supply only. The filter cartridges will not purify water
or make unsafe water safe to drink. DO NOT use on HOT water
(100° F. max.).
■ Protect the Water Filtration system and piping from freezing.
Water freezing in the system will damage it.
■ Your Water Filtration system will withstand up to 125 psi water
pressure. If your house water supply pressure is higher than
100 psi during the day (it may reach higher levels at night),
install a pressure reducing valve before the system.
WARNING: Do not use with water that is microbiologically
unsafe or of unknown quality without adequate
disinfection before or after the system. These systems are
certified for cyst reduction and may be used on disinfected
water that may contain filterable cysts. The water should be
tested periodically to verify that the system is performing
satisfactorily. Small parts remaining after the installation
could be a choke hazard. Discard safely.
■Slotted and Phillips screwdrivers
■Pliers and adjustable jaw wrench
■Hand or battery powered drill and 1 ⁄ 4 ″bit (saddle valve
installation)
■Electric drill and drill bit to drill 1″-1 1 ⁄ 4 ″hole (type as
required) if mounting hole is needed for faucet
CAUTION: To avoid damaging the sink, consult a qualified
plumber or installer for drilling procedures. Special drill
bits may be needed for porcelain or stainless steel.
Contents included with the product:
■Water filter assembly, including mounting bracket
and screws
■Product Literature (Owner’s Manual and Installation,
Product Data Sheet, Owner Product Registration Card)
■Water supply/saddle valve
■Filtered water faucet, for sink or countertop mounting
■Electronic indicator faucet base and battery pack
(not available on all models)
■3 ⁄ 8″tubing and fittings to make all needed connections
■Sump wrench
Filtered
water faucet
Sink
Battery pack
Hot
Shutoff valve
NOTE: To change the filter
cartridge, you must turn off the
water. A nearby shutoff valve is
convenient. Most sinks already
have shutoff valves on the
supply pipes.
Cold
Water supply valve
Washer
Adapter
Nut
Water in
Water out
Tubing
Mounting
screw (2)
Filter I
Filter II
Tubing
Locate the drinking water
system on the cold water
supply pipe, under the
kitchen and/or bathroom
sink, to filter the cold
drinking water.
Tools and Materials Required for Installation
Read entire manual. Failure to follow all guides and rules could cause personal injury or property damage.
Single Stage
Water out
Mounting
screw (2)
Nut
Insert
Water in
Tubing
Nut
Insert
Dual Stage
Installation Instructions.

6
Installation Instructions.
Feed Water Supply
Check and comply with local plumbing codes as you plan, then install a cold
feed water supply fitting. For new home installation using standard plumbing
fittings, see first two illustrations below. A typical installation for existing
homes using the saddle valve is shown in third illustration below.
A. PREFERRED INSTALLATION
Turn off the cold water supply.
Complying with plumbing codes, install a fitting on the cold water pipe to
adapt 3 ⁄ 8 ″OD tubing. A typical connection is shown in illustrations at right
(parts not included). Make sure a water supply valve is used.
2
1
B. OPTIONAL HOME INSTALLATION Where codes permit
*For 1/2" OD or larger metal tubing only.
NOTE: Codes in the state of Massachusetts require installation by a licensed
plumber and do not permit the use of the saddle valve. For installation, use
plumbing code 248-CMR of the Commonwealth of Massachusetts.
Turn off the cold water supply and attach saddle valve as shown in
illustration at right.
DANGER: To protect yourself from serious injury or fatal shock,
use a battery powered hand drill only to make the hole.
DO NOT USE AN ELECTRIC DRILL.
Close the water supply valve by turning the handle clockwise.
Open the main water supply valve and several house faucets to
purge air from the system. Close faucets when water runs smoothly.
3
2
1
Optional water supply connection (using saddle valve)*
*For 1/2" OD or larger metal tubing only.
Pre-drill
1⁄4″hole Seal—make sure the
seal is in place
Clamp X
Nut (2)—not
required if holes in
clamp are threaded
Valve
Handle
Tubing adapter
Washer
Compression nut
❵
Clamp Z
Preferred water supply connection
(using compression fitting)
Insert (not included)
Cold
water
pipe 3/8″tubing to inlet
Ferrule
Water supply valve
Typical location
Cold
water
Use to connect the tubing
Some threads
should be visible
Rubber gasket
Snug valve into
bracket.
DO NOT
OVERTIGHTEN.

7
Step-by-step installation instructions.
Faucet Installation for Model GN1S15CBL only
Be sure there is room underneath the sink to make the needed connections.
Select one of the following places to install the faucet:
—IN an existing sink spray attachment or soap dispenser hole.
—IN a hole to be drilled in the sink top.
—IN a hole to be drilled in the countertop, next to the sink.
NOTE: Looking at second illustration at right, be sure the faucet base will fit
flat against the surface at the selected location so the gasket will seal.
If drilling is needed, make a 3⁄ 4 ″to 1″ dia. hole. Be sure to use the proper
procedure for drilling porcelain or stainless steel. Special drill bits may
be needed.
Place small gasket, base and large gasket (in that order) onto the faucet
stem. Next, place lock washer and hex nut onto faucet stud.
Insert washer into tubing adapter. Securely tighten to faucet stud.
Feed the length of 3 ⁄ 8 ″OD tube from the bottom, up through
the mounting hole. Connect to the tubing adapter as shown in second
illustration, tightening the compression nut securely.
Remove the short shipping tube and insert the spout into the faucet body.
Rotate spout into place.
Lower the faucet assembly into place on the underside of the mounting
hole. Place the mounting bracket above the lock washer. While holding
the mounting bracket in place, securely tighten the hex nut.
6
5
4
3
2
1
Sink
Base
Lock washer
Faucet
Lever
Spout
Faucet
stud
Small gasket
Large gasket
Compression nut
Tubing adapter
Mounting bracket
Hex nut
Plastic
washer
3/8″tubing, (run
to
Filter II outlet)
Compression nut
ASSEMBLED

8
Electronic Faucet Installation (not available on all models)
Be sure there is room underneath the sink to make the needed connections.
Select one of the following places to install the faucet:
—IN an existing sink spray attachment or soap dispenser hole.
—IN a hole to be drilled in the sink top.
—IN a hole to be drilled in the countertop, next to the sink.
NOTE: Looking at fourth illustration at right, be sure the faucet base will
fit flat against the surface at the selected location so the gasket will seal.
The base may have to be angled sideways or diagonally.
If drilling is needed, make a 1″–1-1 ⁄ 4 ″dia. hole. Be sure to use the
proper procedure for drilling porcelain or stainless steel. Special drill bits
may be needed.
Looking at first illustration, insert a screw into the NON-SLOTTED
base mounting hole. Turn a flat nut a few turns onto the screw.
Position the base gasket over the mounting hole. Set the base on the
gasket, routing the leadwire through the mounting hole. Holding the
flat nut under the sink with one finger, tighten the screw until just snug.
Turn the remaining flat nut a few turns onto the other screw. Position the
screw in the slotted base mounting hole and tighten until snug. Make sure
the gasket position is properly aligned and carefully tighten both screws
until the base is held firmly in place. Do not overtighten and break the base.
Assemble the top faucet base and hex nut onto the faucet stud
(third illustration). Tighten the nut until snug.
Insert washer into tubing adapter. Securely tighten to faucet stud.
Feed the length of 3/8″ OD tubing from the bottom, up through the
faucet base. Connect to the tubing adapter as shown in fourth illustration,
tightening the compression nut securely.
Remove the short shipping tube and screw the spout into the faucet body.
Lower the faucet assembly and lock into place on the faucet base.
9
8
7
6
5
4
3
2
1
Faucet
base
Nut (2)
Screw (2)
1″–1-1/4″dia.
mounting hole
in sink or
countertop
Gasket
Faucet base
TOP VIEW
Screw (2)
Nut (2)
Base leadwire connector
(to battery pack)
3/8″tubing, (run
to Filter 2 outlet)
Faucet base
Compression nut
Washer
Hex nut
Top faucet
base
Faucet
Lever
Spout
Faucet stud
Compression nut
Tubing adapter
ASSEMBLED
Step-by-step installation instructions.
Battery Pack Installation and Connection
In a dry location, within reach of the electronic base 3′ leadwire, select a
place for the battery pack (see illustration on page 5). The battery pack
attaches to most surfaces, using the included “sticky-back” Velcro™ strip.
The battery pack uses two size “AA” batteries. Check to be sure they are
installed correctly. Then, remove the paper backing on the Velcro™ strip
and secure the pack in place.
Fasten electronic base leadwire and battery pack connector together.
3
2
1

Mounting Bracket to
Cabinet Wall
The bracket can be used as a
template for marking the
location of the mounting
screws. When determining
the location of the bracket
make sure you leave 1-1⁄2 ″
to 2 ″ of free area under the
sumps to allow for sump
removal and enough space on
either side to make the tubing
connections.
Filter I
Filter II
Sump
Mounting
screws
Tubing
connector
(outlet)
Tubing
connector
(inlet)
Mounting
bracket
Sump
7-9/16″
1-1/2″to 2″
Tubing Connections–Compression Style
Run the length of the 3⁄8″ tubing, connected to the bottom of the faucet,
to the filter system outlet (illustration above). Allow enough slack in the
tubing so that the unit can be easily removed.
Measure and cut the end of the tubing square using a sharp cutter or knife.
Remove any burrs (illustration A).
Inspect the end of the tubing, about 1 inch, to be sure there are no
imperfections. It may be necessary to cut the tubing again.
Slide plastic nut over the 3⁄8″ tubing.
Then slide plastic insert into 3⁄8″ tubing.
Insert the plastic tubing all the way to the bottom of the elbow. Tubing
must be fully inserted to avoid leaks.
Slide nut up to the elbow and thread on by hand until tight.
Repeat the procedure to connect the tubing between the filter system inlet
and the water supply/saddle valve (illustration in the Installation Overview
section).
IMPORTANT: Be sure to check for leaks at all connections. Tighten as
needed.
IMPORTANT: 24 hours after installation, check for any slow leaks that may
occur. Tighten connections as needed.
IMPORTANT: If unit is not going to be put into use immediately, turn off the
water supply valve.
NOTE: Avoid installing the unit where the tubing is pulled at a sharp angle.
This type of installation may cause the fittings to leak. If using tubing other
than what is supplied, be sure it is high quality, exact size and roundness,
and has a smooth surface.
11
10
9
8
7
6
5
4
3
2
1
Cut tubing square
End of tubing round and smooth, with no cuts, nicks
or flat spots (approximately 1 inch)
A
B
Mounting
screws
Tubing connector
(outlet)
Tubing connector
(inlet)
Mounting
bracket
Sump
2-3/4″
1-1/2″to 2″
Single Stage
Dual Stage
Tubing
Nut
Insert
Elbow
Sump
Tubing
Insert
Nut
Elbow
Head
9

10
About the water filtration system.
Filter Cartridge Installation or Replacement
CAUTION: Never remove the sumps when water pressure is in the Water
Filtration system.
Close the water supply/saddle valve to the filter. (See illustration in the
Installation Overview section for location of the water supply valve.)
Open the filtered water faucet.
Remove the sump, using the sump wrench tool provided, from the filter
head by rotating the sump as shown in the below illustration. Be careful,
the sump may be full of water. Be sure to keep the large o-ring seal.
If you are replacing a filter cartridge, remove and discard the used filter
cartridge.
Be sure the inside of the sump is clean. Thoroughly wash the inside of the
sump with hot, soapy water and rinse.
Remove the wrapper from the new filter cartridge and insert the filter
cartridge in the sump. Some cartridges fit either way, while others fit only
one way. Observe markings on the cartridge.
NOTE: The Water Filtration system may use two different types of filter
cartridges. Be sure to install them correctly. Filter I cartridge should always
be placed in the Filter I sump. Filter II cartridge should always be placed in the
Filter II sump. See page 3 for a complete list of filter performance
characteristics.
5
4
3
2
1
Filter I
Filter II
O-ring seal
Cartridge
Sump II
Sump
Sump I
Label
TURN SUMP
TO INSTALL
TURN SUMP
TO REMOVE
Head
Bracket
Turn sump wrench tool
provided clockwise to
remove sump
OUTLET
INLET
Lightly lubricate the o-ring seal in the sump with clean food grade
silicone grease (silicone grease is available through GE Parts and Services:
1-800-626-2002, Part Number: WS60X10005). Be sure it is fully seated in
its groove.
Hold the sump up to the filter head, aligning the center hole in the
cartridge with the protrusion on the bottom of the head. Failure to obtain
proper alignment may cause damage to the filter and/or filtration system,
which will degrade filter performance.
Being careful not to cross-thread, rotate the sump onto the filter head and
tighten securely by hand.
NOTE: If the sump will not tighten up to the head or if you feel resistance,
you may have the cartridge in upside down or misaligned. Take the
cartridge out and check for correct orientation or alignment and
reassemble.
Repeat steps 2 through 8 for the Filter II cartridge in the Filter II sump,
if necessary.
9
8
7
6
For Model GN1S15CBL
FXULC Filter
(1250-Gallon Capacity)
Filter – White with
yellow end caps
For Model GNSL05CBL
FXSLC Filter Set
(1250-Gallon Capacity)
Filter I – White with no
end caps
Filter II – White with
yellow end caps
For Models GNSV25CBL,
GNSV30CWW, &
GNSV30CCC
FXSVC Filter Set
(540-Gallon Capacity)
Filter I – White with
gray end caps
Filter II – White with
green end caps

11
Flush Procedure
Whenever water of unknown quality is passed through the GE Water Filtration
system, filter elements should be discarded and the filtration system flushed.
Circumstances that may require flushing the system are:
■Boil-water advisory.
■Flooding of the GE Water Filtration system.
■Long-term non-use.
The procedure for flushing the GE Water Filtration system is:
See Filter Cartridge Replacement section and follow steps 1, 2, 3, and 4.
Next, reinstall the sumps (without the filter elements), turn water on, and
flush water through the faucet for one minute.
Then, turn water off, remove sumps, empty water out of sumps and install
new filter elements.
Follow steps 5–11 in the Filter Cartridge Replacement section to complete.
4
3
2
1
Turn on the filtered water faucet. Then, slowly open the water
supply/saddle valve and allow the filter housing to fill.
Close the filtered water faucet. Then, check for leaks between the sump
and the head.
NOTE: If leaking, turn off the water supply and turn on the filtered water
faucet. Disassemble the filter housing and check the o-ring for cuts, flat
spots, etc., and sealing surfaces for foreign material. Clean the o-ring and
lightly lubricate with clean silicone grease. Carefully press into the groove
in the sump. Reassemble and check for leaks.
If you are replacing the batteries, remove, properly discard and install
two new “AA” alkaline batteries in the battery pack. Removing the
batteries or momentarily disconnecting the leadwires resets the six-month
electronic timer. It is recommended that you change your batteries at
least once a year.
The filter cartridges contain activated carbon. When new, turn on the
filtered water faucet for ten minutes to flush the system.
If your system does not have an electronic monitor, place filter change
label on sump, inside cabinet door, or in another convenient location.
Write in date of filter change for future reference. Filters should be
changed every six months.
14
13
12
11
10

12
Before you call for service…
Problem Possible Causes What To Do
Water contains tiny New filter cartridges contain •Turn on the filtered water faucet and allow these harmless
black particles activated carbon, which is a carbon particles to purge from the cartridge. Turn off the faucet
harmless black powder. when the water is clear.
Water has air bubbles Air in system after installation. •Will go away after water runs for a while.
and is cloudy
Indicator light on the Six months usage has occurred. •Replace both filter cartridges and batteries in the battery pack.
faucet base is flashing This is the maximum life of the
(not available on all models) filter cartridges.
Indicator light on the The faucet base leadwire •Connect.
faucet base is not working is not connected to the battery
(not available on all models) pack leadwire.
Batteries may need to be •Observe orientation markings on the holder and install
replaced or they may have been correctly. Replace batteries if they are old.
installed incorrectly.
Leadwires damaged. •Inspect and repair as needed.
Chlorine taste and /or The filter cartridges are no • Replace both filter cartridges.
odor in the product water longer removing chlorine
from the water supply.
Water dispenses Filter may have an integral •A slower flow (approx. 0.6 g/min.) is normal with this style of
very slowly flow restrictor. filter. If flow rate is unacceptable replace the filters with ones
that do not have integral flow restrictors (Filter Number
FXUTC).
The filters have been installed •A six-month change-out period is recommended.
for too long. Replace both filter cartridges.
The filter cartridges have •High sediment levels can cause premature clogging.
become clogged. Replace both filter cartridges.
Fittings are leaking Tubing may not be installed •Fully follow the installation instructions (page 9) and be sure
properly. the tubing is installed to the proper depth.
Troubleshooting Tips
Save time and money! Review the chart below
first and you may not need to call for service.

13
Parts List.
*NOTE: Codes in the state of Massachusetts
require installation by a licensed plumber and
do not permit the use of the saddle valve.
For installation, use plumbing code 248-CMR
of the Commonwealth of Massachusetts.
*
Electronic
Monitor
Faucet
General Electric parts catalog.
REF. NO. PART NO. PART DESCRIPTION
0001 WS02X10001 SCREW #10-14 X 3/4″88 88
0002 WS28X10010 MOUNTING BRACKET 1 1 1 1
0003 WS22X10008 NUT 3/8″TUBE 2 2 2 2
0004 WS22X10007 INSERT 3/8″TUBE 2 2 2 2
0005 WS02X10003 SCREW #10-14 X 1-1/4″22 22
0006 WS22X10002 ELBOW 3/8″NPT X 3/8″(compression) 2 2 2 2
0007 WS19X10011 HEAD 2 2 2 2
0008 WS03X10001 O-RING 3-3/8″ X 3-5/8″22 22
0009 WS30X10002 SUMP 2 2 2 2
0010 WS22X10003 NIPPLE 3/8″ NPT X 1-1/2″11 11
0012 WS07X10008 TUBING 3/8″ X 20 FT–WH 1 1 1 1
0014 WS02X10004 NUT 3/8″22 22
0015 WS03X10003 ADAPTER TUBING 2 2 2 2
0016 WS03X10002 WASHER 2 2 2 2
0017 WS15X10008 SADDLE VALVE /SUPPLY 1 1 1 1
0018 WS15X10002 FAUCET ASM. (monitored) (BLACK ON CHROME) 1 1 – –
WS10X10020 FAUCET ASM. (monitored) (WHITE ON WHITE) – – 1 –
WC10X10001 FAUCET ASM. (monitored) (BISQUE) – – – 1
0019 WS10X10008 TOP FAUCET BASE (BLACK) 1 1 – –
WS10X10010 TOP FAUCET BASE (WHITE) – – 1 –
WC10X10003 TOP FAUCET BASE (BISQUE) – – – 1
0020 WS02X10007 SCREW #6-32 X 1-3/8″22 22
0021 WS10X10002 BASE FAUCET KIT (BLACK) 1 1 – –
WS10X10021 BASE FAUCET KIT (WHITE) – – 1 –
WC10X10002 BASE FAUCET KIT (BISQUE) – – – 1
0022 WS02X10008 NUT 2 2 2 2
0023 WS08X10003 GASKET FAUCET 1 1 1 1
0024 WS06X10001 HOLDER BATTERY 1 1 1 1
0025 FXSLC FILTER SET–LEAD/CYST 1 – – –
FXSVC FILTER SET–VOC – 1 1 1
0200 WX5X140 WRENCH SUMP 1 1 1 1
0999 49-50057 PM MANUAL USE & CARE/
INSTALLATION 1 1 1 1
GG GG
NN NN
SS SS
LV VV
02 33
55 00
CC CC
BBWC
LLWC

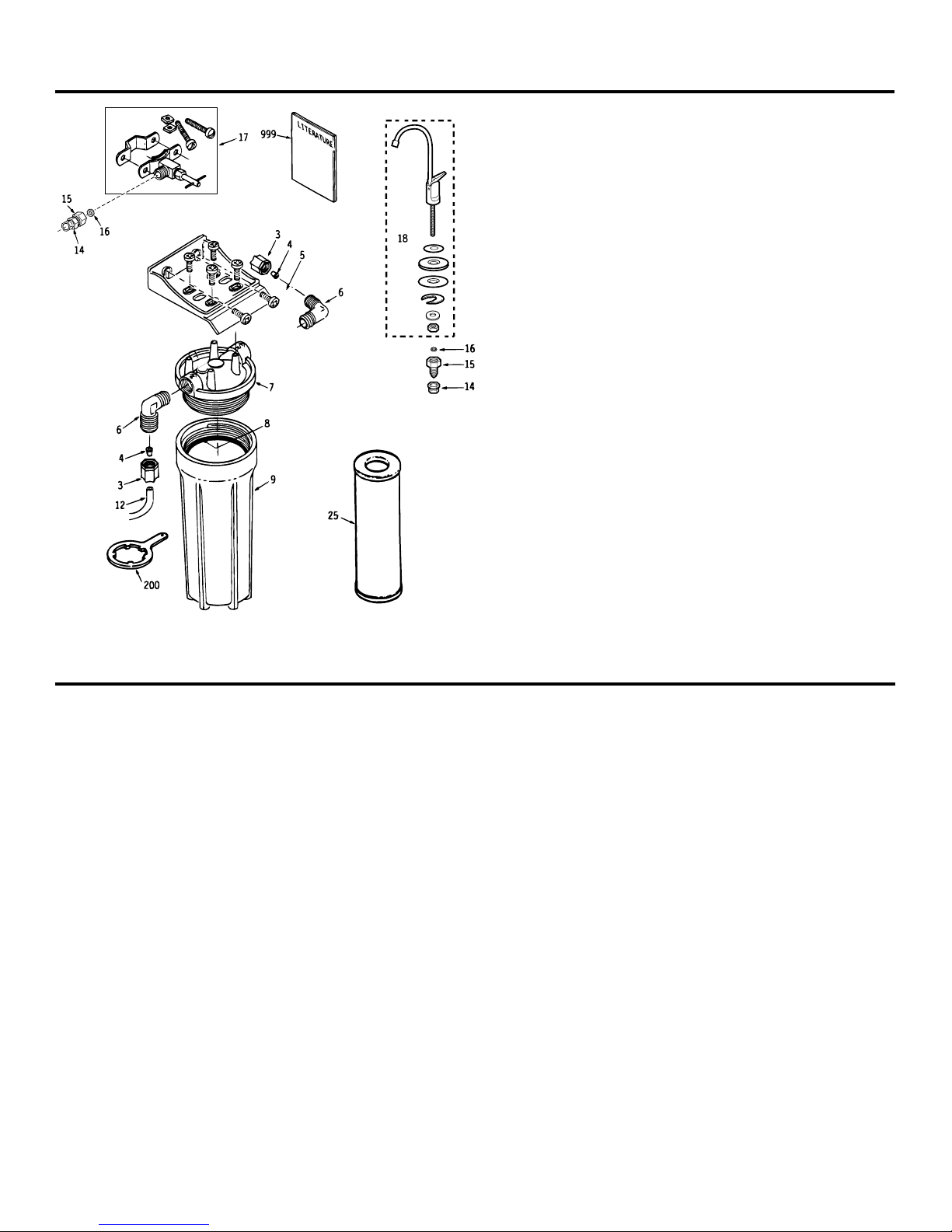

REF. NO. PART NO. PART DESCRIPTION
0001 WS02X10001 SCREW #10-14 X 3/4″4
0002 WS28X10010 MOUNTING BRACKET 1
0003 WS22X10008 NUT 3/8″ ΤUΒΕ 2
0004 WS22X10007 INSERT 3/8″ ΤUΒΕ 2
0005 WS02X10003 SCREW #10-14 X 1-1/4″2
0006 WS22X10002 ELBOW 3/8″ NPT X 3/8″ (compression) 2
0007 WS19X10011 HEAD 1
0008 WS03X10001 O-RING 3-3/8″ X 3-5/8″1
0009 WS30X10002 SUMP 1
0012 WS07X10008 TUBING 3/8″ X 20 FT–WH 1
0014 WS02X10004 NUT 3/8″2
0015 WS03X10003 ADAPTER TUBING 2
0016 WS03X10002 WASHER 2
0017 WS15X10008 SADDLE VALVE /SUPPLY 1
0018 WS15X10022 FAUCET ASM. (nonmonitored)
(BLACK ON CHROME) 1
0025 FXULC FILTER–LEAD/CYST 1
0200 WX5X140 WRENCH SUMP 1
0999 49-50057 PM MANUAL USE & CARE/
INSTALLATION 1
14
Parts List.
Saddle Valve*
*NOTE: Codes in the state of Massachusetts require
installation by a licensed plumber and do not permit the
use of the saddle valve. For installation, use plumbing
code 248-CMR of the Commonwealth of Massachusetts.
General Electric parts catalog.
G
N
1
S
1
5
C
B
L

15
Notes

GE Water Filtration System Warranty.
For The Period Of: GE Will Replace:
One Year Any part of the Water Filtration system (excluding filters) which fails due to a defect in materials or workmanship.
From the date of the During this full one-year warranty, GE will provide, free of charge, all labor and in-home service to replace the
original purchase defective part.
All warranty service provided by our SmartWater™ Authorized Servicer Network. For service, call 800-GE-CARES.
■Service trips to your home to teach you how to use the product.
■Improper installation.
■Failure of the product if it is abused, misused, or used for other
than the intended purpose or used commercially.
■Use of this product where water is microbiologically unsafe or of
unknown quality, without adequate disinfection before or after the
system. Systems certified for cyst reduction may be used on
disinfected water that may contain filterable cysts.
■Filter cartridges.
■Replacement of house fuses or resetting of circuit breakers.
■Damage to the product caused by accident, fire, floods or acts of
God.
■Incidental or consequential damage to personal property caused by
possible defects with this appliance.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use
within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you
specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights
are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
16
Service Telephone Numbers.
GE Answer Center
®
800.626.2000
The GE Answer Center® is open 24 hours a day, 7 days a week.
OR
Visit our Website at www.geappliances.com
In-Home Repair Service 800-GE-CARES (800-432-2737)
Expert GE repair service is only a phone call away.
Special Needs Service 800.626.2000
800-TDD-GEAC (800-833-4322)
GE offers, free of charge, a brochure to assist in planning a barrier-free kitchen for persons with limited mobility.
Service Contracts 800-626-2224
Parts and Accessories 800-626-2002
Service Satisfaction
If you are not satisfied with the service you receive from GE:
First, contact the people who serviced your appliance.
Next, if you are still not pleased, write all the details—including your phone number—to:
Manager, Customer Relations, GE Appliances, Appliance Park, Louisville, KY 40225
Purchase a GE service contract while your warranty is still in effect and you’ll receive a substantial discount.
GE Consumer Service will still be there after your warranty expires.
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted).
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to
qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
