GEA HG22e/125-4 User manual

D
GB
F
E
I
Ru
1
96188-11.2015-DGbFEIRu
engineering for a better world
GEA Compressor HG22e
Assembly instructions
HG22e/125-4 HG22e/125-4 S HGX22e/125-4 HGX22e/125-4 S
HG22e/160-4 HG22e/160-4 S HGX22e/160-4 HGX22e/160-4 S
HG22e/190-4 HG22e/190-4 S HGX22e/190-4 HGX22e/190-4 S
1
2
3
4
5
6
7
8
9
10
11
12
13

2
D
GB
F
E
I
Ru
96188-11.2015-DGbFEIRu
About these instructions
Read these instructions before assembly and before using the compressor. This will avoid misunder-
standings and prevent damage. Improper assembly and use of the compressor can result in serious
or fatal injury.
Observe the safety instructions contained in these instructions.
These instructions must be passed onto the end customer along with the unit in which the compres-
sor is installed.
GEA Bock GmbH
72636 Frickenhausen
GEA Bock GmbH
Benzstraße 7
72636 Frickenhausen
Germany
Telephone [phone]
Fax [phone]
[email protected]
www.gea.com
Manufacturer
Contact
Contents Page
1 Safety 4
 1.1 Identicationofsafetyinstructions
 1.2 Qualicationsrequiredofpersonnel
1.3 General safety instructions
1.4 Intended use
2 Product description 6
2.1 Short description
2.2 Name plate
2.3 Type key

D
GB
F
E
I
Ru
3
96188-11.2015-DGbFEIRu
Contents Page
3 Areas of application 8
3.1 Refrigerants
3.2 Oil charge
3.3 Limits of application
4Compressor assembly 10
4.1 Storage and transport
4.2 Setting up
4.3 Pipe connections
4.4 Pipes
4.5 Laying suction and pressure lines
4.6 Operating the shut-off valves
4.7 Operating mode of the lockable service connections
5 Electrical connection 13
5.1 Information for contactor and motor contactor selection
5.2 Connection of the driving motor
5.3 Circuit diagram for direct start 230 V Δ/ 400 V Y --> with MP10
5.4 Electronic trigger unit MP10
5.5 Connection of the electronic trigger unit MP10
5.6 Functional test of the electronic trigger unit MP10
5.7 Circuit diagram for direct start 230 V Δ/ 400 V Y --> with INT69 G
5.8 Electronic trigger unit INT69 G
5.9 Connection of the electronic trigger unit INT69 G
5.10 Functional test of the electronic trigger unit INT69 G
5.11 Start unloader
6 Commissioning 22
6.1 Preparations for start-up
6.2 Pressure strength test
6.3 Leak test
6.4 Evacuation
6.5 Refrigerant charge
6.6 Start-up
6.7 Avoiding slugging
6.8 Connection of oil level regulator
7 Maintenance 24
7.1 Preparation
7.2 Work to be carried out
7.3 Spare parts recommendation
7.4 Accessories
7.5 Extract from the lubricants table
7.6 Decommissioning
8 Technical data 26
9 Dimensions and connections 27
10 Declaration of installation 28
11 Service 29

4
D
GB
F
E
I
Ru
96188-11.2015-DGbFEIRu
1|Safety
1.2 Qualicationsrequiredofpersonnel
DANGER Indicates a dangerous situation which, if not avoided,
will cause immediate fatal or serious injury.
WARNING Indicates a dangerous situation which, if not avoided,
may cause fatal or serious injury.
CAUTION Indicates a dangerous situation which, if not avoided,
may cause fairly severe or minor injury.
ATTENTION Indicates a situation which, if not avoided,
may cause property damage.
INFO Important information or tips on simplifying work.
WARNING Inadequatelyqualied personnelposestheriskof accidents, the
consequencebeingserious orfatalinjury.Workoncompressors
isthereforereservedforpersonnelwhichisqualiedtoworkon
pressurized refrigerant systems:
• For example, a refrigeration technician, refrigeration mechatronic
engineer. As well as professions with comparable training, which
enables personnel to assemble, install, maintain and repair
refrigeration and air-conditioning systems. Personnel must be capable
of assessing the work to be carried out and recognising any potential
dangers.
1.1 Identicationofsafetyinstructions:

D
GB
F
E
I
Ru
5
96188-11.2015-DGbFEIRu
1|Safety
1.4 Intended use
1.3 General safety instructions
WARNING Risk of accidents.
Refrigerating compressors are pressurised machines and as such
call for heightened caution and care in handling.
The maximum permissible overpressure must not be exceeded,
even for testing purposes.
Risk of burns!
- Depending on the operating conditions, surface temperatures of
over 60°C on the discharge side or below 0°C on the suction side
can be reached.
- Avoid contact with refrigerant necessarily.
Contact with refrigerant can cause severe burns and skin
damage.
WARNING The compressor may not be used in potentially explosive
environments!
These assembly instructions describe the standard version of the compressor named in the title man-
ufactured by GEA. GEA refrigerating compressors are intended for installation in a machine (within
theEUaccordingtotheEUDirectives2006/42/ECMachineryDirective,97/23/ECPressureEquipment
Directive and 2006/95/EC – Low Voltage Directive).
Commissioning is permissible only if the compressor has been installed in accordance with these as-
sembly instructions and the entire system into which it is integrated has been inspected and approved
in accordance with legal regulations.
The compressors are intended for use in refrigeration systems in compliance with the limits of
application.
Onlytherefrigerantspeciedintheseinstructionsmaybeused.
Any other use of the compressor is prohibited!

6
D
GB
F
E
I
Ru
96188-11.2015-DGbFEIRu
1
2
3
4
5
6
7
8
9
10
11
12
13
2|Product description
• Semi-hermetic two-cylinder reciprocating compressor with oil pump lubrication.
• Suction gas cooled drive motor.
2.1 Short description
Name plate
Fig. 1
Fig. 2
Oil sight glass
Cylinder cover
Oil pump
Suction
shut-off valve
Drive section
Motor section
Dimension and connection values can be found in Chapter 9
Transport eyelet
Valve plate
Discharge
shut-off valve
Terminal box

D
GB
F
E
I
Ru
7
96188-11.2015-DGbFEIRu
2|Product description

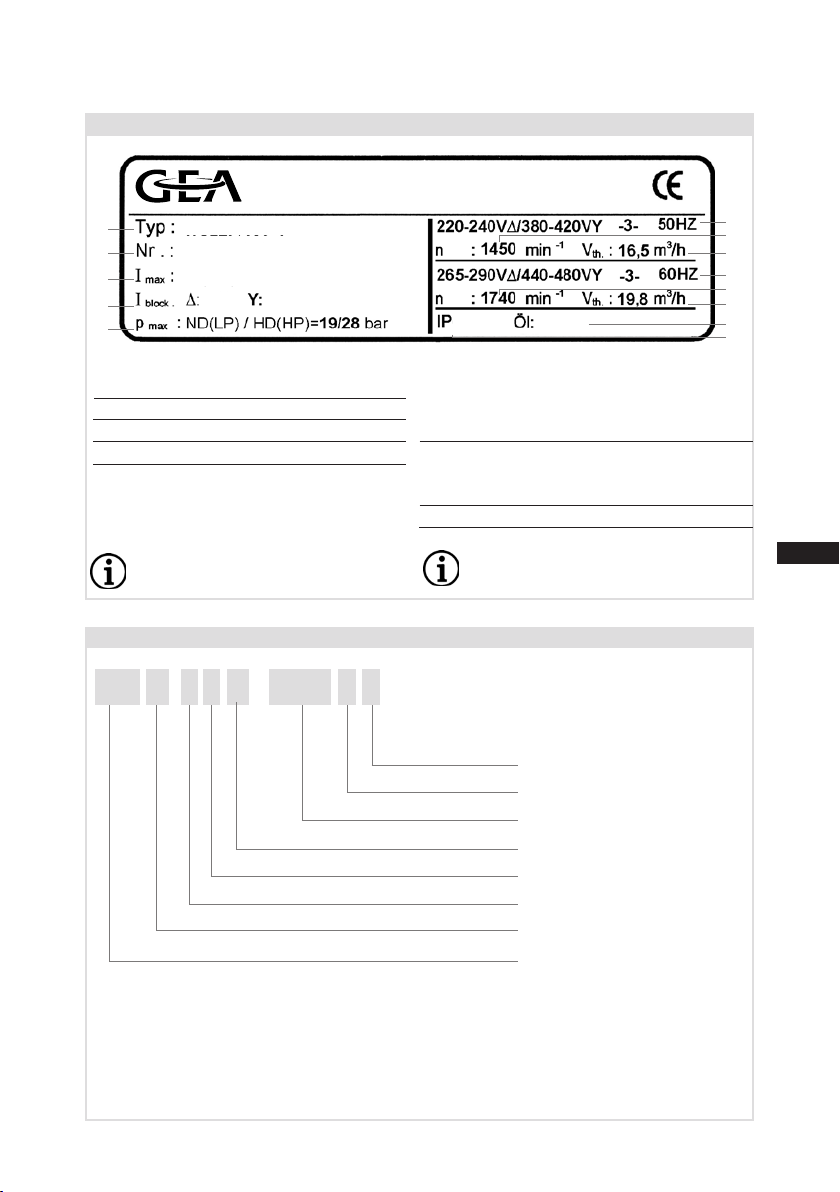

2.2 Name plate (example)
1 Typedesignation 6 Voltage,circuit,frequency
2 Machine number 7 Nominal rotation speed
3 maximum operating current 8 Displacement
4 Startingcurrent(rotorblocked) 9 Voltage,circuit,frequency
5 ND (LP): max. admissible operating 10 Nominal rotation speed
pressure (g) Low pressure side 11 Displacement
HD (HP): max. admissible operating  12 Oiltypelledatthefactory
pressur e(g) High pressure side 13 Terminal box protection type
Observe the limits of application Electrical accessories can change
diagrams! the IP protection class!
50 Hz
}
60 Hz
}
/
HG 22 e 190-4 SX
2.3 Type key (example)
¹) HG - Hermetic Gas-cooled (suction gas-cooled) for the normal- / air conditioning applications
²) X
- Ester oil charge (HFC refrigerant, e.g. R134a, R404A/R507, R407C)
³) S - More powerful motor, e.g. for air-conditioning applications
Motor variant ³)
Number of poles
Swept volume
e-series
Numbers of cylinders
Size
Oil charge ²)
Series ¹)
Typschild (Beispiel)
1
2
3
4
513
12
7
11
6
10
8
9
1 Typbezeichnung
2 Maschinennummer
3 maximaler Betriebsstrom
4 Anlaufstrom (Rotor blockiert)
5 ND (LP): max. zulässiger Stillstandsdruck
Saugseite
HD (HP): max. zulässiger Betriebsdruck
Hochdruckseite
Einsatzgrenzendiagramme beachten!
50 Hz
60 Hz
6 Spannung, Schaltung, Frequenz
7 Nenndrehzahl
8 Hubvolumen
9 Spannung, Schaltung, Frequenz
10 Nenndrehzahl
11 Hubvolumen
12 Werkseitig eingefüllte Ölsorte
13 Schutzart Klemmenkasten
HGX22e/190-4
SE 55
AS35830A001
13,8/8,0A
69A 40A
66
GEA Bock GmbH
72636 Frickenhausen, Germany
Fig. 3

8
D
GB
F
E
I
Ru
96188-11.2015-DGbFEIRu
3|Areas of application
Thecompressorsarelledatthefactorywiththefollowingoiltype:
- for R134a, R404A/R507, R407C FUCHS Reniso Triton SE 55
- for R22 FUCHS Reniso SP 46
Compressors with ester oil charge (FUCHS Reniso Triton SE 55) are marked with an X in the type
designation (e.g. HGX22e/190-4).
3.1 Refrigerants
• HFKW / HFC: R134a, R404A/R507, R407C
• (H)FCKW / (H)CFC: R22
3.2 Oil charge
INFO For refilling, we recommend the above oil types.
Alternatives: see lubricants table, Chapter 7.5
INFO For refilling, we recommend the above oil types.
Alternatives: see lubricants table, Chapter 7.5
ATTENTION The oil level must be in the
visible part of the sight glass;
damage to the compressor is
possible if overfilled or under-
filled! Fig. 4
max.
min.
0,6Ltr.
oil level ~
~
ATTENTION Compressor operation is possible within the operating limits
showninthediagrams.Pleasenotethesignicanceofthe
shaded areas. Thresholds should not be selected as design or
continuous operation points.
- Permissible ambient temperature (-20°C) - (+60°C)
- Max. permissible discharge end temperature 140°C.
- Max.permissibleswitchingfrequency8x/h.
- A minimum running time of 3 min. steady-state condition
(continuous operation) must be achieved.
For operation with supplementary cooling:
- Use only oils with high thermal stability.
- Avoid continuous operation near the threshold.
Foroperationwithfrequencyconverter:
- The maximum current and power consumption must not be
exceeded.Inthecaseofoperationabovethemainsfrequency,the
application limit can therefore be limited.
When operating in the vacuum range, there is a danger of air
entering on the suction side. This can cause chemical reactions,
a pressure rise in the condenser and an elevated compressed-gas
temperature. Prevent the ingress of air at all costs!
3.3 Limits of application

D
GB
F
E
I
Ru
9
96188-11.2015-DGbFEIRu

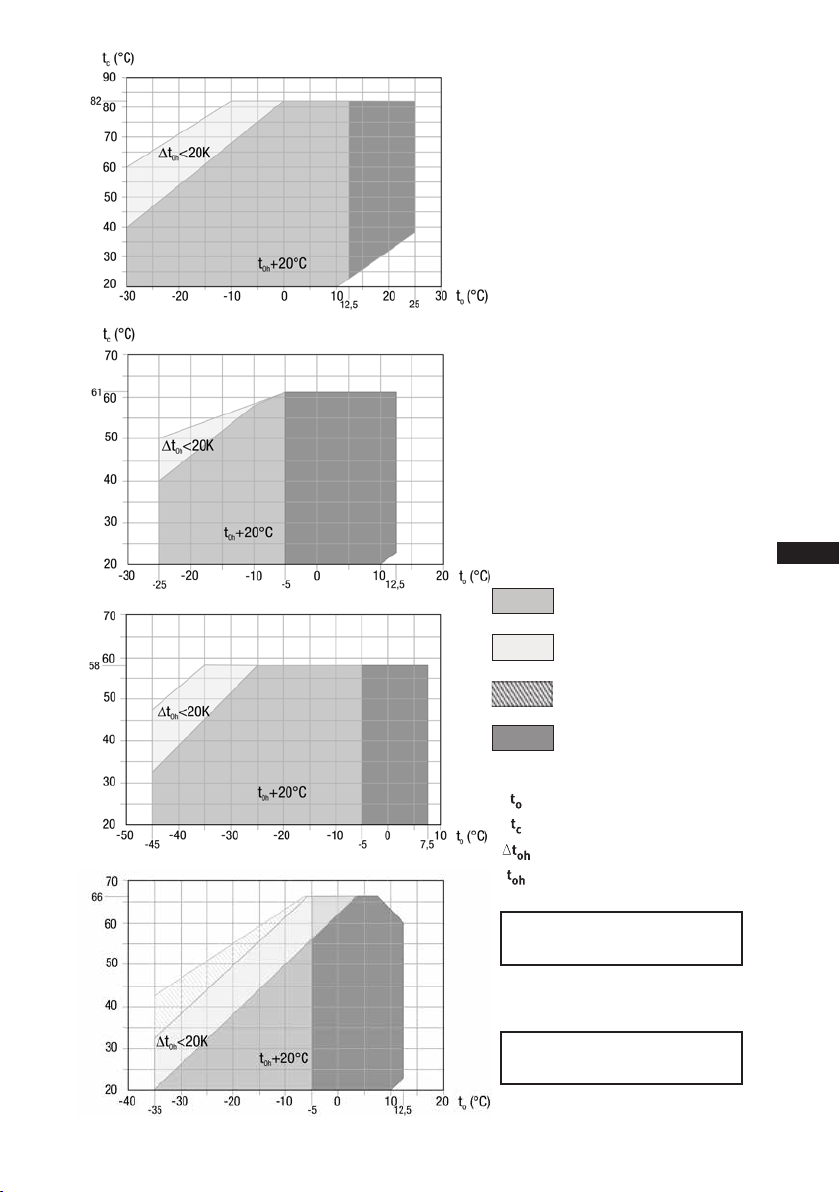

Evaporation temperature (°C)
Condensing temperature (°C)
Suction gas superheat (K)
Suction gas temperature (°C)
3|Areas of application
Design for other
areasonrequest
R134a
R407C
R404A/R507
R22
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Unlimited application range
Supplementary cooling or
reduced suction gas temperature
Supplementary cooling and
reduced suction gas temperature
Motor version S
(more powerful motor)
1) LP = Low pressure
HP = High pressure
Max. permissible operating
pressure (LP/HP)1): 19/28 bar

10
D
GB
F
E
I
Ru
96188-11.2015-DGbFEIRu
4|Compressor assembly
 Setuponanevensurfaceorframewithsufcientload-
bearing capacity.
Single compressor preferably on vibration damper.
Duplex and parallel circuits always rigid.
 Provideadequateclearanceformaintenancework.
 Ensureadequatecompressorventilation.
Do not use in a corrosive, dusty, damp atmosphere or a
combustible environment.
Fig. 11
Fig. 12
Fig. 13
F
E
D
C
B
A
1 2
3
4
F
E
D
C
4
3
2
1
A
B
Tol.-Ang. DIN ISO 2768-mK
Ra Rz
Maß Passung
Freigabe
Alternativbezug:
Baumustergeprüft
Teil inaktiv
Lieferantenzeichnung
-
-
K.-Auftrag:
PL:
Zeichnung ungültig
Entwicklungsstand
Teil keine Serie
120
400
±0.5
über 0.5
bis 6
Benzstraße 7 - 72636 Frickenhausen - Germany - www.bock.de
-
-
Unbemaßte Radien:
-
Diese Zeichnung ist unser Eigentum!
Sie darf ohne unsere Genehmigung weder nach-
gebildet, vervielfältigt, oder Dritten Personen zu-
gänglich gemacht werden. Der Nachbau nach
dieser Zeichnung, oder an Hand der nach dieser
Zeichnung hergestellten Gegenstände durch den
Abnehmer oder Dritte ist nicht gestattet.
Wir behalten uns alle Rechte, gemäß DIN ISO 16016
an dieser Zeichnung vor.
Bearb.
Datum
Änderungs-Nr.
Werkstoff:
Ausgangsteil, bzw. Rohteil:
-
-
Gepr.
Name Datum
19.04.
Werkstückkanten
DIN ISO 13715
Ersatz für:
Ersetzt durch:
Erstellt
2010
Geprüft
-
Kurz
Zone
1/x
Oberflächenbehandlung / Härte:
-
Blatt:
Änderungsbeschreibung
400
Benennung:
±0.8
1000
30 6
-
±0.3
120
30
±0.2
Zeichn.-Nr. Teile-Nr.
Oberflächenangaben ISO 1302
x.xxxx-xxxxx.x
Zust.
Gußtoleranzen:
Gewicht: (kg)
±0.1
Maßstab:
1:1
Wasserwaage
für Indesign
Der Lieferant muß sicherstellen, dass die Ware in
einwandfreiem Zustand angeliefert wird (Korrosions-
schutz, Verpackung für sicheren Transport).
Rz 25
Rz 160
s
25
z y x w u t
0,05
Rz 1,6
0,3
0,7
1,6
2
Rz 16
6,3
Rz 63
Rz 6,3
Rz 12,5
F:\user\kurz\3D Sachen\3D Teile\Zeichnungen\Wasserwaage

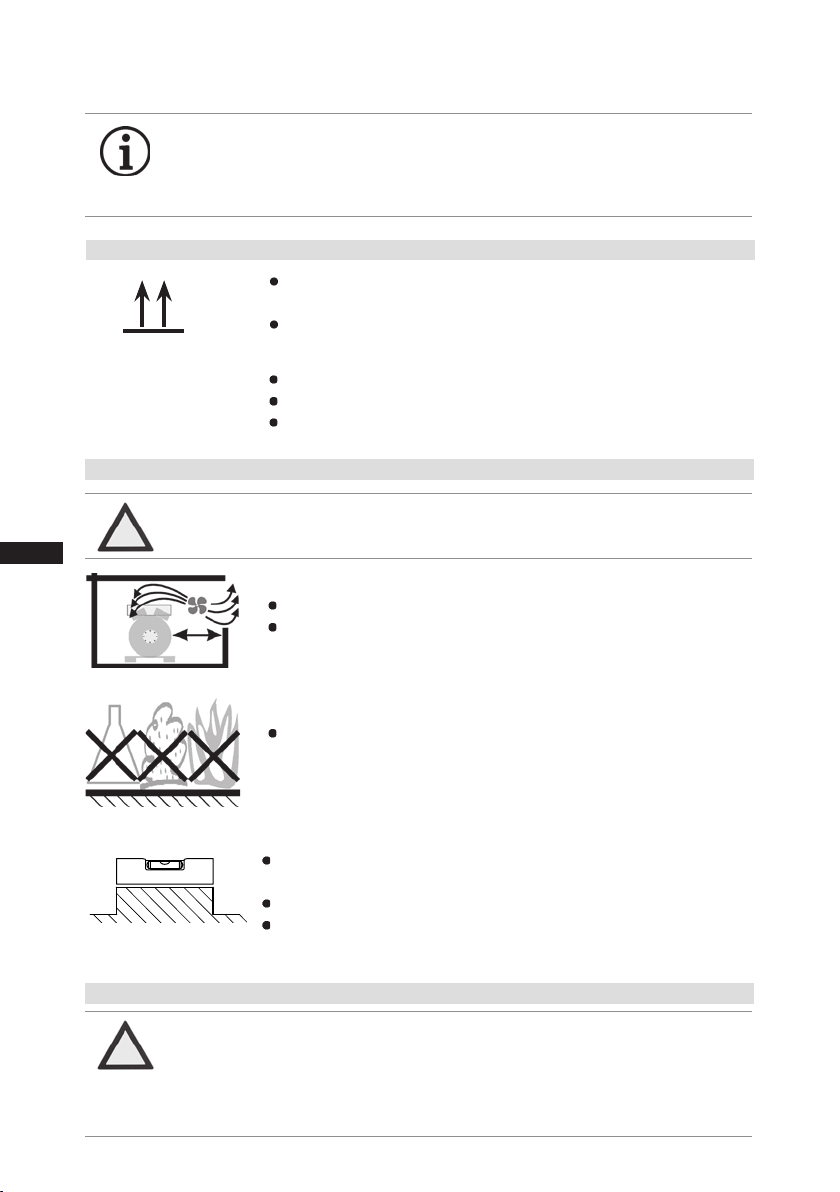

4.2 Setting up
?
4.1 Storage and transport
Use transport eyelet.
Do not lift manually!
Use lifting gear!
Storage at (-30°C) - (+70°C), maximum permissible relative humidity
10% - 95%, no condensation
Do not store in a corrosive, dusty, vaporous atmosphere or in a com-
bustible environment.
Fig. 10
Fig. 9

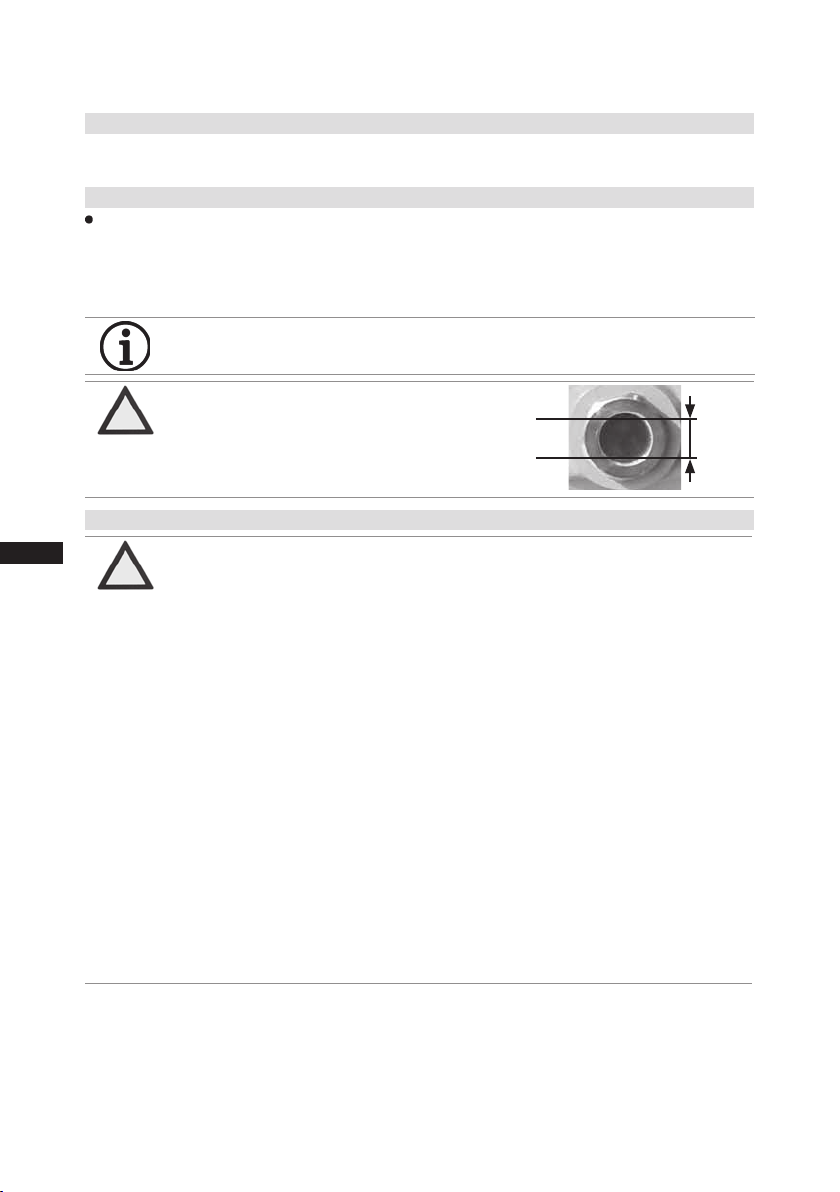

4.3 Pipe connections
ATTENTION Do not solder as long as the compressor is under pressure.
Superheating can damage the valve. Remove the pipe supports
therefore from the valve for soldering and accordingly cool the
valve body during and after soldering.
Only solder using inert gas to inhibit oxidation products (scale).
ATTENTION Attachments (e.g. pipe holders, additional units, fastening parts,
etc.) directly to the compressor are not permissible!
INFO Newcompressorsarefactory-lledwithinertgas(3barnitrogen).
Leave this service charge in the compressor for as long as possible
and prevent the ingress of air. Check the compressor for transport
damage before starting any work.

D
GB
F
E
I
Ru
11
96188-11.2015-DGbFEIRu
4|Compressor assembly

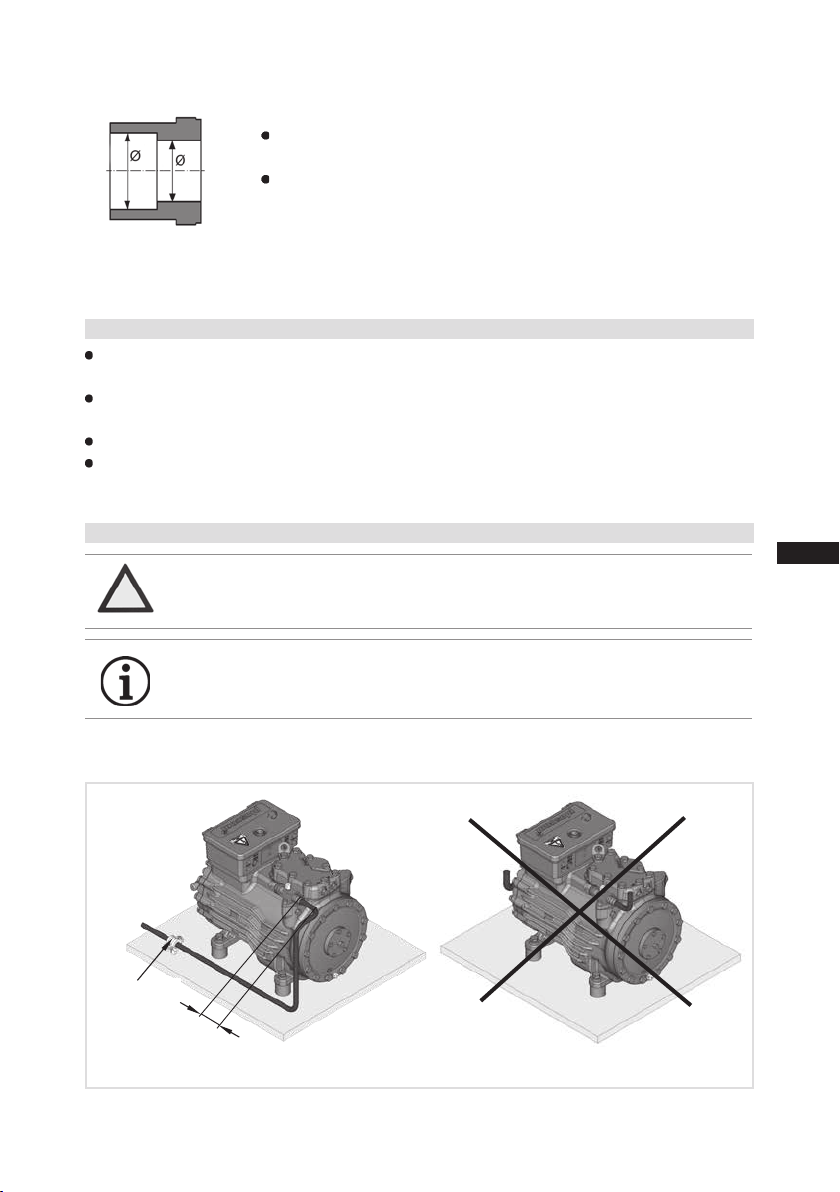

4.4 Pipes
Pipes and system components must be clean and dry inside and free of scale, swarf and layers of
rust and phosphate. Only use air-tight parts.
Lay pipes correctly. Suitable vibration compensators must be provided to prevent pipes being
cracked and broken by severe vibrations.
Ensure a proper oil return.
Keep pressure losses to an absolute minimum.
The pipe connections have graduated inside diameters so that pipes with
standart millimetre and inch dimensions can be used.
The connection diameters of the shut-off valves are rated for maximum
compressor output. Theactualrequiredpipecrosssectionmustbe
matched to the output. The same applies for non-return valves.
Fig. 14: graduated
internal diameter
4.5 Laying suction and pressure lines
A rule of thumb:Alwayslaytherstpipesectionstartingfromtheshut-offvalvedownwards and
parallel to the drive shaft.
ATTENTION Improperly installed pipes can cause cracks and tears, the result
being a loss of refrigerant.
INFO Proper layout of the suction and discharge lines directly after
the compressor is integral to the system’s smooth running and
vibration behaviour.
As short as
possible
Rigid
fixed point
Fig. 15

12
D
GB
F
E
I
Ru
96188-11.2015-DGbFEIRu
4|Compressor assembly
Pipe connection
Pipe connection
4.7 Operating mode of the lockable service connections
Fig. 18
Opening the shut-off valve:
Spindle: turn to the left (counter-clockwise) as far as it will go.
—> Shut-off valve completely opened / service connection closed.
Fig. 19
Opening the service connection
Spindle: Turn ½ - 1 turn to the right clockwise.
—> Service connection opened / shut-off valve opened.
Service connec-
tion closed
Connection
blocked
Spindle
Service connec-
tion opened
Spindle Connection
open
Compressor
Compressor
Valve spindle seal
Release
Tighten
Before opening or closing the shut-off valve, release the valve spindle seal by approx. ¼ of a turn
counter-clockwise.
After activating the shut-off valve, re-tighten the adjustable valve spindle seal clockwise.
Fig. 16 Fig. 17
4.6 Operating the shut-off valves
Afteractivatingthespindle,generallytthespindleprotectioncapagainandtightenwith14-16Nm.
This serves as a second sealing feature during operation.

D
GB
F
E
I
Ru
13
96188-11.2015-DGbFEIRu
5|Electrical connection
5.1 Information for contactor and motor contactor selection
Allprotectiondevicesandswitchingormonitoringunitsmustbettedinaccordancewiththelocal
safetyregulationsandestablishedspecications(e.g.VDE)aswellaswiththemanufacturer’sinfor-
mation. Motor protection switches are required! Motor contactors, feed lines, fuses and motor
protection switches must be rated on the basis of the maximum working current (see name plate).
For motor protection use a current-dependent and time-delayed overload protection device for moni-
toring all three phases. Set the overload protection device so that it must be actuated within 2 hours,
if there is 1.2 times the max. working current.

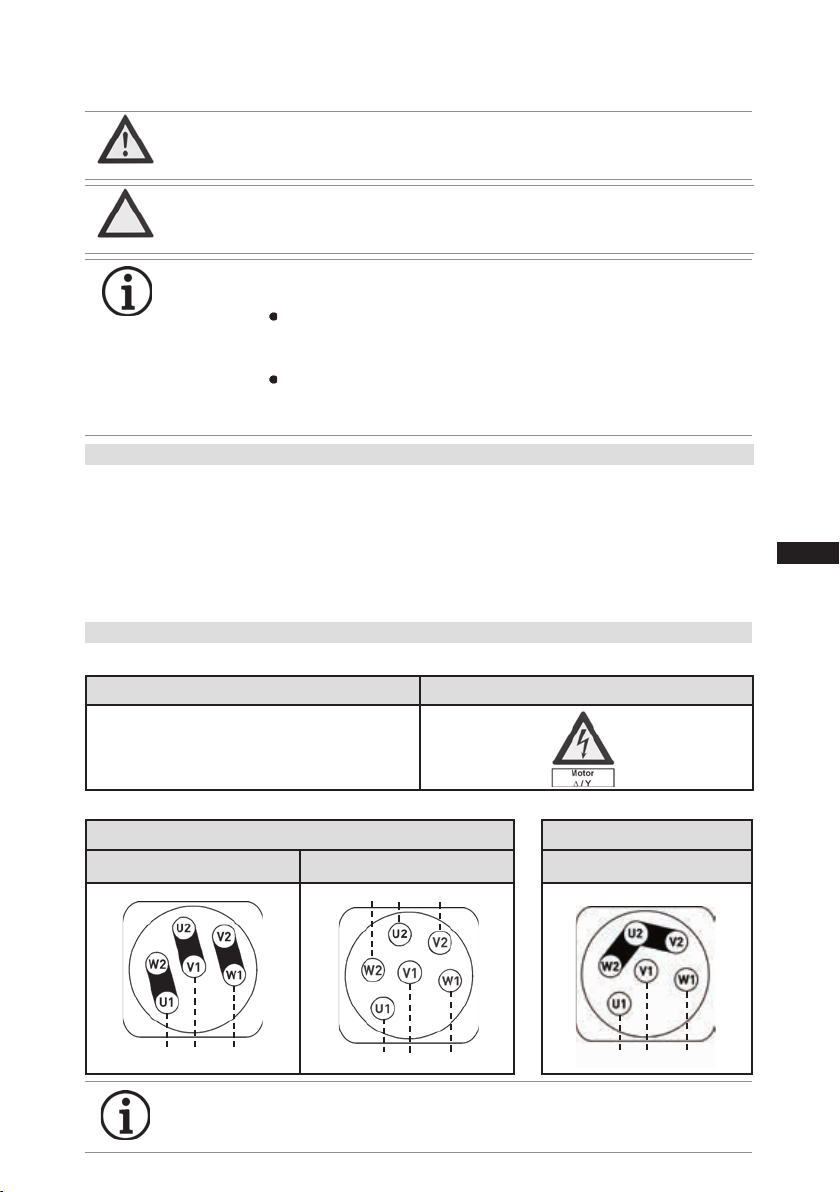

5.2 Connection of the driving motor
The compressor is designed with a motor for star-delta circuits.
Designation on the name plate Sticker on the terminal box
∆/ Y
Star-delta start-up is only possible on 230 V voltage supply. Example:
INFO Connect the compressor motor in accordance with the circuit diagram
(see inside of terminal box).
Use suitable cable entry point of the correct protection type (see
name plate) for routing cables into the terminal box. Insert the strain
reliefs and prevent chafe marks on the cables.
Comparethevoltageandfrequencyvalueswiththedataforthe
mains power supply.
Only connect the motor if these values are the same.
DANGER Risk of electric shock! High voltage!
Only carry out work when the electrical system is disconnected
from the power supply!
INFO The connection examples shown refer to the standard version. In
thecaseofspecialvoltages,theinstructionsafxedtotheterminal
box apply.
ATTENTION When attaching accessories with an electrical cable, a minimum
bending radius of 3 x the cable diameter must be maintained for
laying the cable.
230 V ∆
Direct start Star-delta start
400 V Y
Direct start only
Elektrischer Anschluss Electrical connection Raccordement électrique ∆/ Y
96027-11.06-DGbF
∆
Niedere Spannung
Low voltage
Bas voltage
Y
Hohe Spannung
High voltage
Haut voltage
L3
L1 L2
L3
L1 L2
Elektrischer Anschluss Electrical connection Raccordement électrique ∆/ Y
96027-11.06-DGbF
∆
Niedere Spannung
Low voltage
Bas voltage
Y
Hohe Spannung
High voltage
Haut voltage
L3
L1 L2
L3
L1 L2
L1 L2 L3
L1 L2 L3

14
D
GB
F
E
I
Ru
96188-11.2015-DGbFEIRu
5.3 Circuit diagramm for direct start 230 V ∆/ 400 V Y --> compressor with MP10
BT1 Cold conductor (PTC sensor) motor winding
BT2 Thermal protection thermostat (PTC sensor)
FC1 Load circuit safety switches
FC2 Control power circuit fuse
BP1 Safety chain (high/low pressure monitoring)
BP2 Release switch (thermostat/pressostat)
01234
56789
Urspr.
Ers.f.
Ers.d.
Anlagenbezeichnung
Οnderung
Vorblatt:
Datum
1
Name
Bearb.
Gepr.
Norm
HG34P
R410A/Co2
200308
Kommission:
Gesamtblatt:
Datum
27.05.2015
27.05.2015
11
Kelich
Name
Zeichnungsnummer:
Kundennummer:
Kunde:
Anlage
Bl. Gruppe:
=
2INT69_24V
Ort
Bl.
Fbl.
+
1 (ohne HA)
2HG34 FU+Box
27.05.2015ESSG_A1_35_01D
Klemmenkasten Verdichter
MP10
A1 Alarm Motorschutz
A2 Übertemperatur BT1, BT2
A3 Alarm Hochdruck
BT1
QA1
FC1
I> I> I>
QA2
PE
FC1
A1
X1 L1 L1 N N 43 43 11 12 14
L S M
X2123456
FC2
SF1
BT2
A2
BP1
P
PE
A3
BP2
P<
PE
QA2
12
EB1
QA2
3 4
L1.1
L2.1
L3.1
L1.2
N
PE
-EC1 3~
M
Θ
L1 L2 L3 N PE
Compressor terminal box
Fig. 20

D
GB
F
E
I
Ru
15
96188-11.2015-DGbFEIRu
QA1 Main switch
SF1 Control voltage switch
EC1 Compressor motor
QA2 Compressor contactor
MP10 Electronic trigger unit MP10
EB1 Oil sump heater
01234
56789
Urspr.
Ers.f.
Ers.d.
Anlagenbezeichnung
Οnderung
Vorblatt:
Datum
1
Name
Bearb.
Gepr.
Norm
HG34P
R410A/Co2
200308
Kommission:
Gesamtblatt:
Datum
27.05.2015
27.05.2015
11
Kelich
Name
Zeichnungsnummer:
Kundennummer:
Kunde:
Anlage
Bl. Gruppe:
=
2INT69_24V
Ort
Bl.
Fbl.
+
1 (ohne HA)
2HG34 FU+Box
27.05.2015ESSG_A1_35_01D
Klemmenkasten Verdichter
MP10
A1 Alarm Motorschutz
A2 Übertemperatur BT1, BT2
A3 Alarm Hochdruck
BT1
QA1
FC1
I> I> I>
QA2
PE
FC1
A1
X1 L1 L1 N N 43 43 11 12 14
L S M
X2123456
FC2
SF1
BT2
A2
BP1
P
PE
A3
BP2
P<
PE
QA2
1 2
EB1
QA2
3 4
L1.1
L2.1
L3.1
L1.2
N
PE
-EC1 3~
M
Θ
L1 L2 L3 N PE
A1 Alarm motor protection
A2 Overheating BT1, BT2
A3 Alarm high pressure

16
D
GB
F
E
I
Ru
96188-11.2015-DGbFEIRu
5|Electrical connection
PTC1 PTC2
Terminal box
Fig. 21

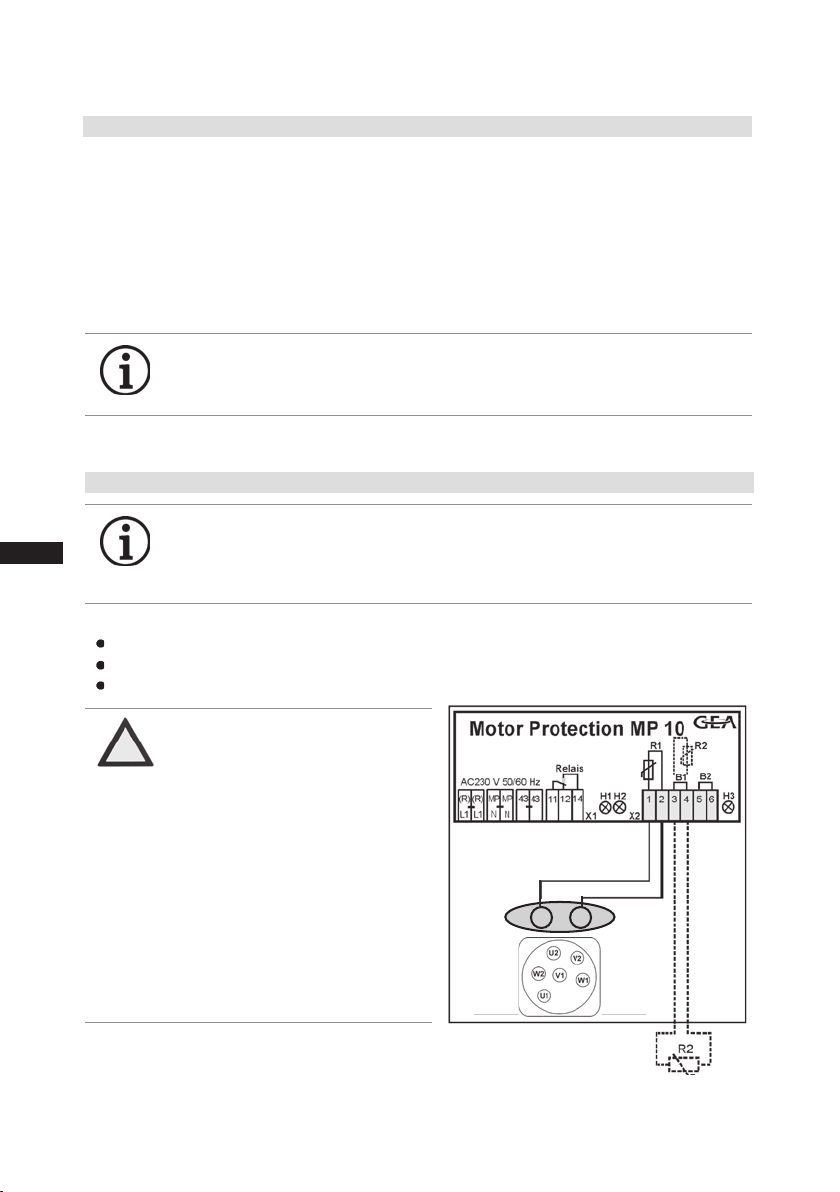

5.4 Electronic trigger unit MP10
Thecompressormotoristtedwithcoldconductortemperaturesensors(PTC)connectedtotheelec-
tronic trigger unit MP10 in the terminal box. Readiness to operate is signalled by the H3 LED (green)
after the power supply is applied. In the case of excess temperature in the motor winding, the unit
switches off the compressor and the H1 LED lights red.
The hot gas side of the compressor can also be protected against overtemperature using a thermal
protection thermostat (accessory). The H2 LED (red) is provided for the protection function.
The unit trips when an overload or inadmissible operating conditions occur. Find and remedy
the cause.

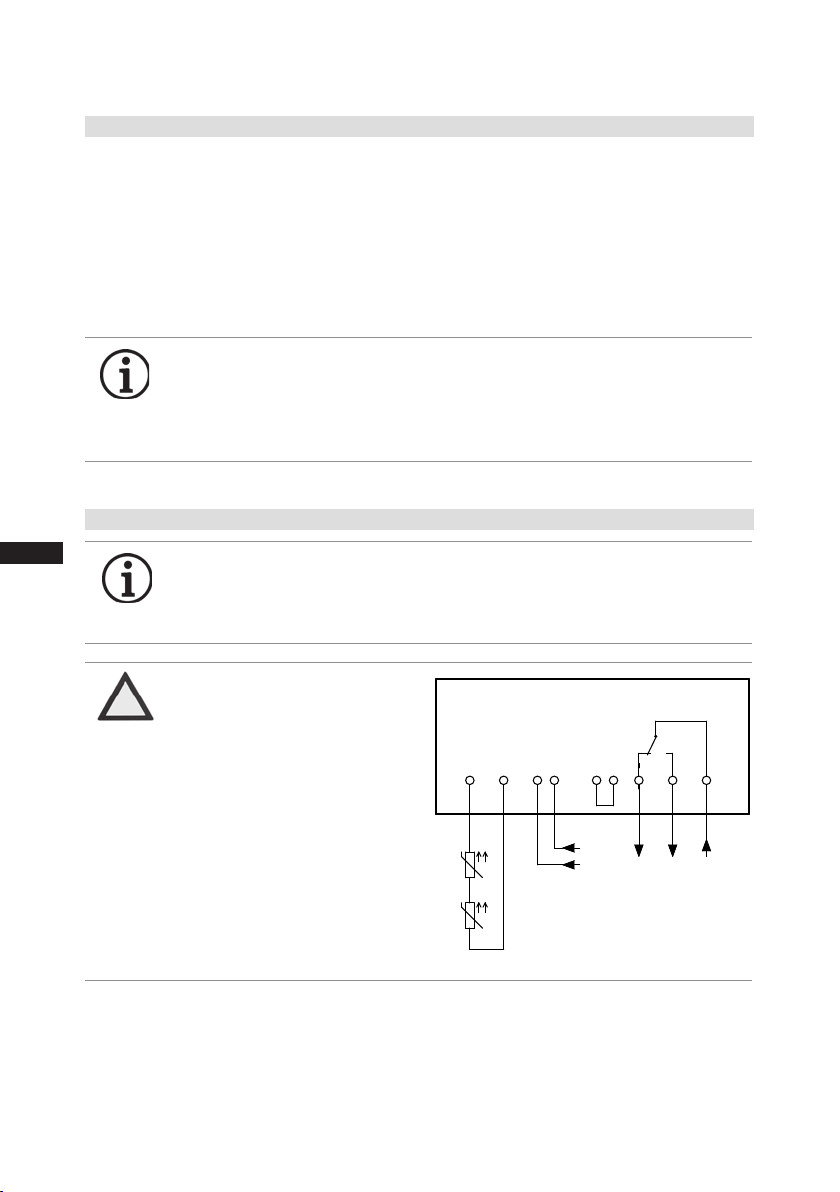

5.5 Connection of the trigger unit MP10
Temperature monitoring connections:
Motor winding: Terminals 1 - 2
Thermal protection thermostat: Terminals 3 - 4
Restart prevention: Terminals 5 - 6
INFO Theunithasarestartpreventiondevice.Afteryouhaverectiedthe
fault, interrupt the mains voltage. This unlocks the restart prevention
device and the LEDs H1 and H2 go out.
INFO Connect the trigger unit MP10 in accordance with the circuit dia-
gram. Protect the trigger unit with a delayed-action fuse (FC2) of
max. 4 A. In order to guarantee the protection function, install the
triggerunitastherstelementinthecontrolpowercircuit.
ATTENTION
Terminals 1 - 6 on the trigger
unit MP10 and terminals PTC 1
and PTC 2 on the compressor
terminal board must not come
into contact with mains voltage.
This would destroy the trigger
unit and PTC sensors.
The supply voltage at L1-N (+/-
for DC 24 V version) must be
identical to the voltage at termi-
nals 11, 12, 14 and 43.

D
GB
F
E
I
Ru
17
96188-11.2015-DGbFEIRu
5|Electrical connection
The compressor and the trigger unit MP10 are operational when the H3 LED (green) lights.
5.6 Function test of the trigger unit MP10
Pos Procedure LED H1 LED H2 LED H3
red red green
1•Interrupt power supply (L1 or SF1) OFF OFF OFF
•Release the motor temperature sensor connection (1 or 2)
•Release the hot gas temperature sensor (if installed) (3 or 4)
2•Restore the power supply (L1 or SF1) ON
•Function check of motor temperature sensor: operational ON
•Function check of hot gas temperature sensor: operational ON
3•Interrupt power supply again (L1 or SF1) OFF OFF OFF
•Reconnect terminals 1 or 2 and/or 3 or 4
4•Restore the power supply (L1 or SF1): OFF OFF ON
•MP10 is operational again
Before start-up, troubleshooting or making changes to the control power circuit, check the functionality
of the trigger unit:

18
D
GB
F
E
I
Ru
96188-11.2015-DGbFEIRu
01234
56789
Urspr.
Ers.f.
Ers.d.
Anlagenbezeichnung
Οnderung
Vorblatt:
Datum
2INT69
Name
Bearb.
Gepr.
Norm
HG34P
R410A/Co2
200308
Kommission:
Gesamtblatt:
Datum
27.05.2015
27.05.2015
11
Kelich
Name
Zeichnungsnummer:
Kundennummer:
Kunde:
Anlage
Bl. Gruppe:
=
2INT69_24V
Ort
Bl.
Fbl.
+
2INT69 (Ohne HA)
2INT69HR60
27.05.2015ESSG_A1_35_01D
Klemmenkasten Verdichter
A1 Alarm Motorschutz
A2 Übertemperatur BT1, BT2
A3 Alarm Hochdruck
INT69 G
BT1
QA1
FC1
I> I> I>
QA2
PE
FC1
A1
FC2
SF1
A2
BP1
P
PE
A3
BP2
P<
PE
QA2
12
EB1
QA2
3 4
L1
L2
L3
L1.1
N
PE
1112 14
L N B1 B2
-EC1 3~
M
Θ
BT2
L1 L2 L3 N PE
5.7 Circuit diagramm for direct start 230 V ∆/ 400 V Y --> compressor with INT69 G
Fig. 22
BT1 Cold conductor (PTC sensor) motor winding
BT2 Thermal protection thermostat (PTC sensor)
FC1 Load circuit safety switches
FC2 Control power circuit fuse
BP1 Safety chain (high/low pressure monitoring)
BP2 Release switch (thermostat/pressostat)
Compressor terminal box

D
GB
F
E
I
Ru
19
96188-11.2015-DGbFEIRu
01234
56789
Urspr.
Ers.f.
Ers.d.
Anlagenbezeichnung
Οnderung
Vorblatt:
Datum
2INT69
Name
Bearb.
Gepr.
Norm
HG34P
R410A/Co2
200308
Kommission:
Gesamtblatt:
Datum
27.05.2015
27.05.2015
11
Kelich
Name
Zeichnungsnummer:
Kundennummer:
Kunde:
Anlage
Bl. Gruppe:
=
2INT69_24V
Ort
Bl.
Fbl.
+
2INT69 (Ohne HA)
2INT69HR60
27.05.2015ESSG_A1_35_01D
Klemmenkasten Verdichter
A1 Alarm Motorschutz
A2 Übertemperatur BT1, BT2
A3 Alarm Hochdruck
INT69 G
BT1
QA1
FC1
I> I> I>
QA2
PE
FC1
A1
FC2
SF1
A2
BP1
P
PE
A3
BP2
P<
PE
QA2
1 2
EB1
QA2
3 4
L1
L2
L3
L1.1
N
PE
1112 14
L N B1 B2
-EC1 3~
M
Θ
BT2
L1 L2 L3 N PE
QA1 Main switch
SF1 Control voltage switch
EC1 Compressor motor
QA2 Compressor contactor
INT69 G Electronic trigger unit INT69 G
EB1 Oil sump heater
A1 Alarm motor protection
A2 Overheating BT1, BT2
A3 Alarm high pressure

20
D
GB
F
E
I
Ru
96188-11.2015-DGbFEIRu
5.8 Electronic trigger unit INT69 G
5.9 Connection of the trigger unit INT69 G
The compressor motor is tted with cold conductor temperature sensors (PTC) connected to the
electronic trigger unit INT69 G in the terminal box. In case of excess temperature in the motor
winding, the INT69 G deactivates the motor contactor. Once cooled, it can be restarted only if the
electronic lock of the output relay (terminals B1+B2) is released by interrupting the supply voltage.
The hot gas side of the compressor can also be protected against overtemperature using thermal
protection thermostats (accessory).
The unit trips when an overload or inadmissible operating conditions occur. Find and remedy
the cause.
INFO Therelay switching output isexecuted as aoating changeover
contact.Thiselectricalcircuitoperatesaccordingtothequiescent
current principle, i.e. the relay drops into a the idle position and
deactivates the motor contactor even in case of a sensor break or
open circuit.
INFO Connect the trigger unit INT69 G in accordance with the circuit dia-
gram. Protect the trigger unit with a delayed-action fuse (FC2) of
max. 4 A. In order to guarantee the protection function, install the
triggerunitastherstelementinthecontrolpowercircuit.
Οnderung
Klebeschilder
0
Datum Name
Datum
Bearb.
Gepr.
Norm
1
04.12.2009
Kelich
22.05.2015
Urspr.
2
Ers. f.
3
Ers. d.
4
Schaltplan
567
BOCK COMPRESSORS
8
=
+
9
Bl.
MP10 INt69 Bl.
MP10 INt69
INT69 G
Motor Protection MP10
Steuerstrom-
kreis
L
N
Steuerstrom-
kreis
L N 1112 14 B1 B2OG OG
+
-
BT1
Θ
X1 L1 L1 N N 43 43 11 12 14
L S M
X2123456
R1 R2
+
-
BT1
Θ
+
-
BT2
Θ
+
-
BT2
Θ
L
N
5|Electrical connection
Terminal box
Fig. 23
ATTENTION
Measure circuit BT1 and BT2
(PTC sensor) must not come
into contact with external
voltage.
This would destroy the trigger
unit INT69 G and PTC sensors.
Control circuit
