GEA Ariete NS3015P User manual

Revision:
Instructions Manual
Translation of the original instructions
Ariete NS3015P
#13490
0

Revision Index
This manual is the property of GEA Niro Soavi any reproduction, even partial, is prohibited.
Senza titolo-1
GEA Niro Soavi
REV. DESCRIPTION DATE SIGN
00 First issue 16/02/2018 ANC
 6SDUHSDUWOLVWXSGDWHG…………………………………
……………………………………………………………  $1&
…. ……………………………………………………………
…………………………………………………………… …………. …………
…. …………………………………………………………
………………………………………………………… …………. …………

Use and maintenance instructions
This manual is the property of GEA Niro Soavi. Any reproduction, even in part, is prohibited.
0C00SE5C
GEA Niro Soavi0.1
FOREWORD
Dear Customer,
we wish to thank you for selecting our product and ensure you our best assistance in order
to enable you to make the most of your machine.
Also, we remind you that a good understanding of the contents of this manual - through
careful reading of all sections - is essential for the correct, safe use and operation of the
machine you have purchased.
1RRQHVKRXOGRSHUDWHRUSHUIRUPPDLQWHQDQFHRQWKLVPDFKLQHZLWKRXW¿UVWKDYLQJUHDG
and understood the following Instructions for Use & Maintenance.
For any further support or information, you may contact us at the below listed address.
Yours faithfully,
GEA Mechanical Equipment Italia S.p.A.
Via A. M. da Erba Edoari 29, 43123 Parma - Italia
Tel. [phone]
Fax [phone]
e-mail: [email protected]
Internet: http://www.niro-soavi.com

Use and maintenance instructions
This manual is the property of GEA Niro Soavi. Any reproduction, even in part, is prohibited.
0C00SE5C
GEA Niro Soavi0.2
CONTENTS - SECTIONS
1. 7HFKQLFDO6SHFL¿FDWLRQV
2. General Information
3. Machine Operation and Use
4. Maintenance
5. List of Spare Parts
6. Wiring Diagrams
7. Documentation about Suppliers and Components
How to use the manual
This manual is made of separate sections as indicated in the list of CONTENTS.
Each section is divided into chapters and paragraphs, and pages are numbered separately in each
VHFWLRQ$VSHFL¿FOLVWRIFRQWHQWVLVJLYHQDWWKHEHJLQQLQJRIHDFKVHFWLRQ
The pictures and tables referred to in the text are numbered inside each section.
Before installing the machine you must be thoroughly familiar with the information given in Section
2, Chapter 2.8 and, in particular, paragraph 2.8.5.

Use and maintenance instructions
This manual is the property of GEA Niro Soavi. Any reproduction, even in part, is prohibited.
1C002E6C
GEA Niro Soavi1.1
SECTION 1
TECHNICAL SPECIFICATIONS
1.0. MACHINE DESCRIPTION
1.1. TECHNICAL DATA

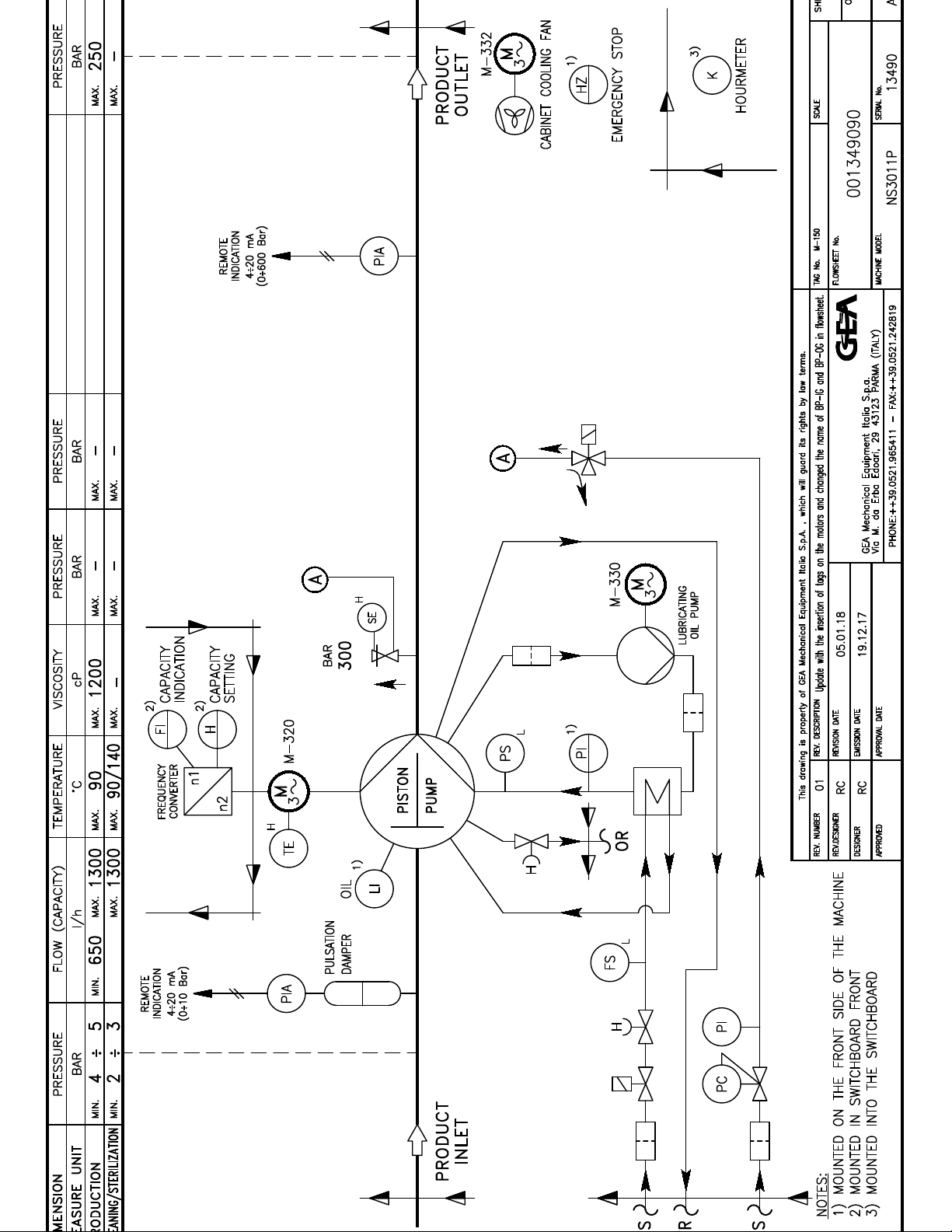

1.2. FLOW-SHEET
1.3. FLOW-SHEET LEGEND (SPEC 102)

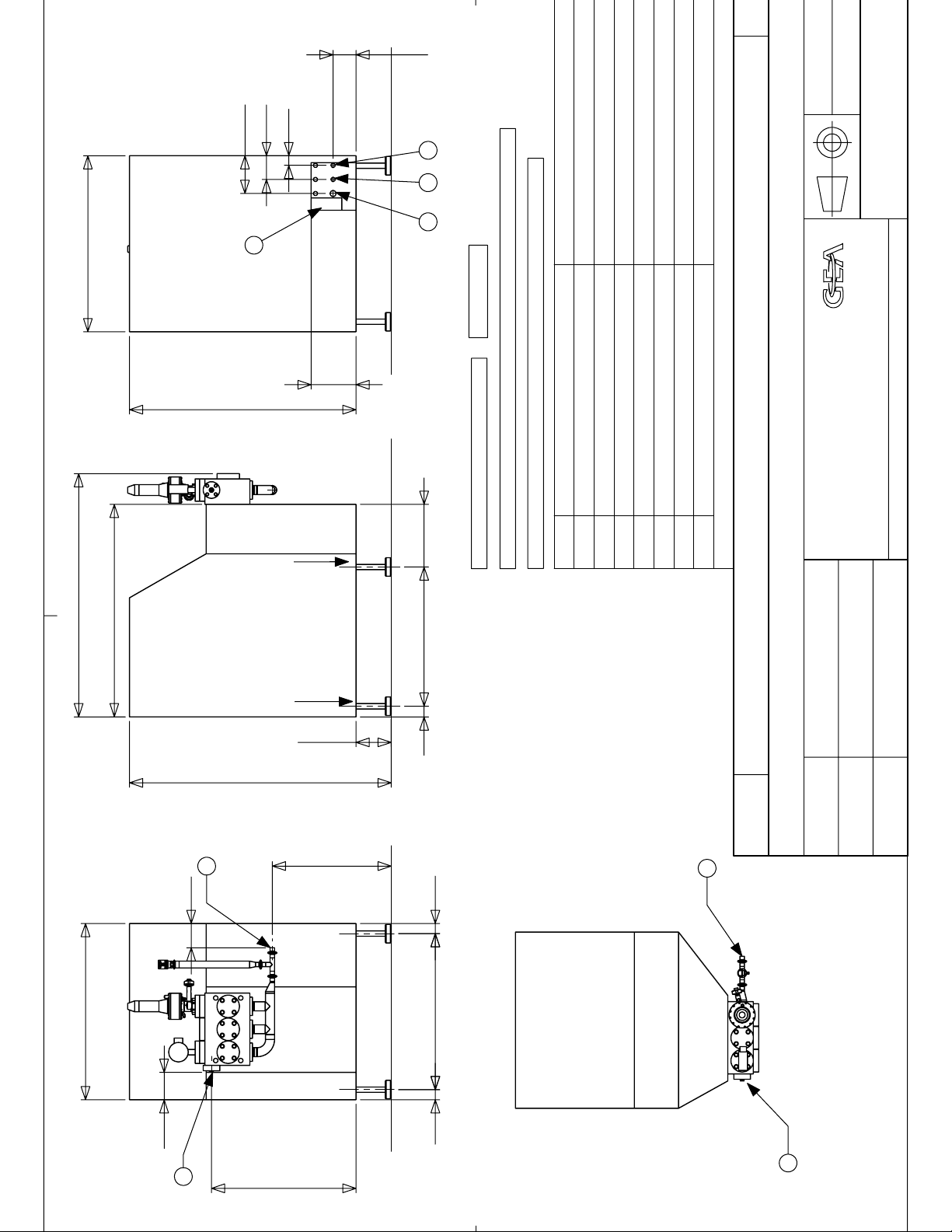

1.4. INSTALLATION DRAWING
1.5. CONSUMPTION SPECIFICATION

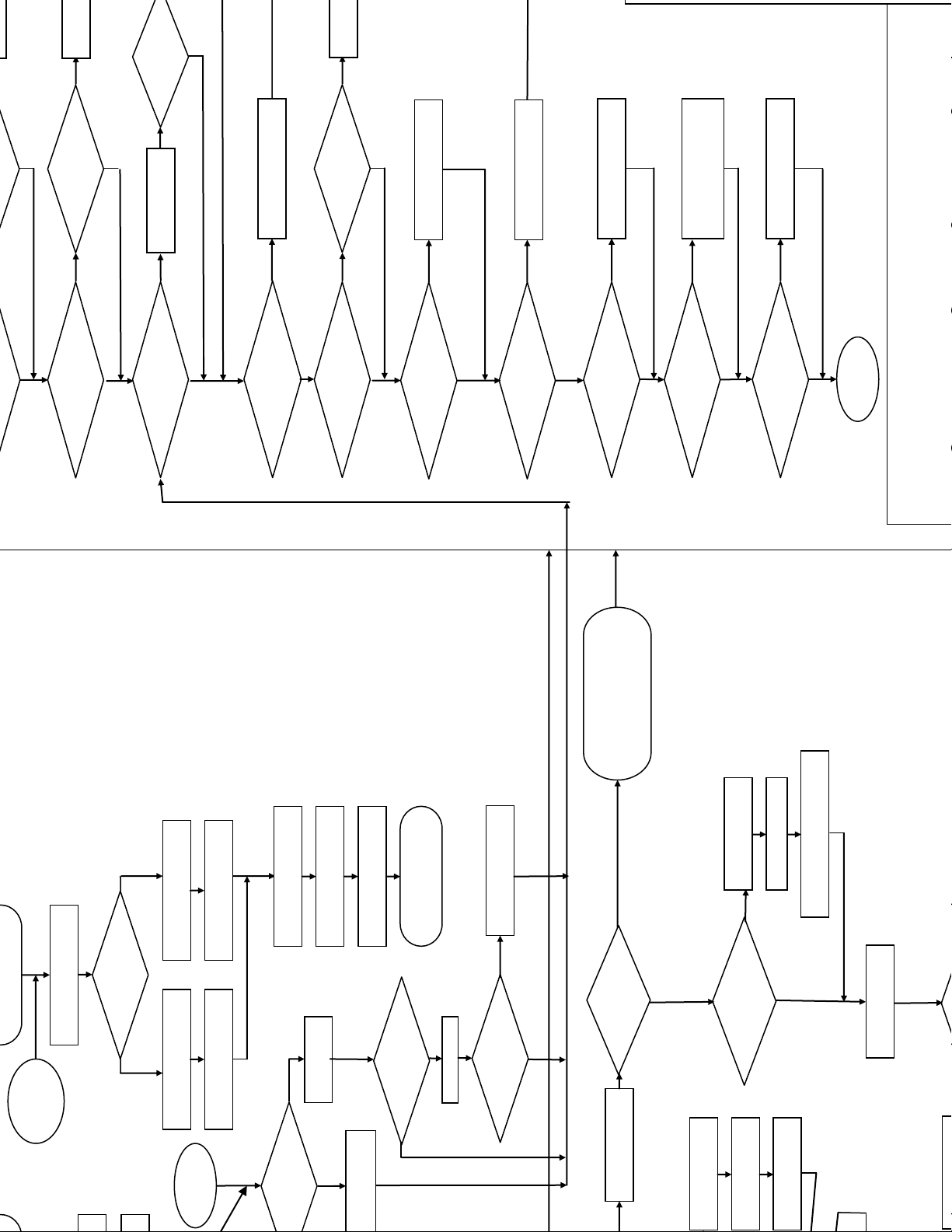

1.6. OPERATION SEQUENCE
1.7. DECLARATION OF CE CONFORMITY
1.8. FINAL TEST DATA REPORT ( MP10M20 )
1.9. AIRBORNE NOISE EMISSIONS
1.10. LUBRICANT (TT-0038)

Use and maintenance instructions
This manual is the property of GEA Niro Soavi. Any reproduction, even in part, is prohibited.
1C002E6C
GEA Niro Soavi1.0.1
1.0 Machine description
1.0.1 General description
The GEA Niro Soavi pump consists of a piston positive-displacement pump, equipped with automatic
VXFWLRQDQGGHOLYHU\VSULQJRSHUDWHGYDOYHVZKRVHIXQFWLRQLVWRWUDQVIHUÀXLGE\LQFUHDVLQJKHDG
$VUHJDUGVWKHVSHFL¿FFRQ¿JXUDWLRQRIWKHPDFKLQHPRGHOWHFKQLFDOGDWDDFFHVVRULHVDQGRSWLRQDO
features, please refer to the TECHNICAL SPECIFICATIONS enclosed in chapter 1.1 of this manual.
ATTENTION
The machine must not be used for uses other than those indicated in chapter 2 of this manual.
The manufacturer shall not be liable for personal injury or damages caused by improper use
of the machine.
1.0.2 Operation principle
7KHPDFKLQH¶VRSHUDWLRQSULQFLSOHLVVKRZQLQWKHGLDJUDPEHORZ
Fig. 2.1.1.A

Use and maintenance instructions
This manual is the property of GEA Niro Soavi. Any reproduction, even in part, is prohibited.
1C002E6C
GEA Niro Soavi1.0.2
1.0.3 Main machine components
7KHPDLQFRPSRQHQWVRIWKHPDFKLQHDUHVKRZQLQWKH¿JXUHVEHORZIRU³3XPS´PDFKLQHLQWKH
standard and optional versions).
8
3
942
1
11
FIG. A

Use and maintenance instructions
This manual is the property of GEA Niro Soavi. Any reproduction, even in part, is prohibited.
1C002E6C
GEA Niro Soavi1.0.3
FIG. B
Components of pump machine
Standard version= 1-2-3-4-8-9-11
Optional version = A-B
A
B
1
5
7
10

Use and maintenance instructions
This manual is the property of GEA Niro Soavi. Any reproduction, even in part, is prohibited.
1C002E6C
GEA Niro Soavi1.0.4
/HJHQG¿JXUHV$DQG%PDFKLQHFRPSRQHQWV3XPSW\SH
Standard units Notes
1) Compression head
2) Head pressure gauge
3) Head safety valve
4) Manifold unit
5) /XEULFDWLRQV\VWHP Option for NS2006 / NS3006
6) Water system (*)
7) 7UDQVPLVVLRQERG\
8) Motor drive
9) Cover panels
10) Control panel
11) On-machine electrical system
Optional units
A Suction pressure gauge
B6XFWLRQEXIIHUXQLW
C Partial aseptic system (*)
D Full aseptic system (*)
NOTE: The asterisk (*) indicates components in standard and optional versions that are not
VKRZQLQ¿JXUHV$DQG%

01/10/2005 - Rev. 2.2
1
GENERAL SPECIFICATIONS
1.1
Type of Machine
PUMP
1.2
Model
NS3011P
1.3
Version
ARIETE
1.4
Serial Number
13490
1.5
Execution
SANITARY
1.6
Special Features
/
1.7
Revision Index
0
1.8
Date
07/12/17
2
WORKING CONDITIONS
2.1
Product
BIOPESTICIDES
2.2
MAX Viscosity
500 cP
2.3
MAX Working Pressure
250 bar
2.4
Flow Rate Type
V F = Fixed; V = Variable; M = Multi
2.5
MIN Flow Rate
650 L/h @ 30,0 Hz
2.6
MAX Flow Rate
1300 L/h @ 60,1 Hz
2.7
MIN Feed Pressure
4-5 bar
2.8
MAX Backpressure
250 bar
2.9
MAX Product Temperature
90 °C
2.10
MAX CIP / SIP Temperature
140 °C
2.11
Ambient Conditions
40°C MAX; R.H. 40%; 1000 m above sea level
3
TECH FEATURES - COMPRESSION HEAD
3.1
Type
MONOBLOCK
3.2
Material
SAF2205
3.3
No. of Plungers
3
3.4
Plunger Material
CERAMIC
3.5
Plunger Diameter
35 mm
3.6
Plunger Stroke
60 mm
3.7
Pumping Valve Type
PVP 30
3.8
Pumping Valve Material
STELLITE GR.20
3.9
Pumping Valve Seat Material
STELLITE GR.20
3.10
Overpressure Valve Type
NSSRLV - PO
3.11
Overpressure Valve Setpoint
300
3.12
Packing Material
PEEK+KV+PEEK+SS
3.13
Gaskets Material
NITRILE FDA
3.14
Overpress.ValveType/INLINE
/
3.15
Overpr.ValveSetpoint/INLINE
/ bar
PAGE 1 / 2
GEA Niro Soavi S.p.A.
GEA NIRO SOAVI
MACHINE TECHNICAL
DATASHEET
TT-0120C

01/10/2005 - Rev. 2.2
4
TECH FEATURES - CONNECTIONS & ACCESSORIES
4.1
Connection INLET
DN25 DIN11851
4.2
Connection OUTLET
FLANGE 1/2" SCH.40S (AISI 316L)
4.3
Pulsation Dampener INLET
YES
4.4
Pulsation Dampener OUTLET
YES
4.5
Feeding Pump
/
5
TECH FEATURES - PRESSURE GAUGES
5.1
Pressure Gauge Inlet
TRANSD. 0-16 BAR (HART)
5.2
Pressure Gauge Compr. Head
TRANSD. 0-600 BAR (HART)
5.3
Pressure Gauge second Stage
/
5.4
Pressure Gauge Outlet
/
8
TECH FEATURES - LUBRICATION
8.1
Type
FORCED
8.2
Lubricating System
6,3 (L5)
8.3
Oil Cooling System
BPHE
7
TECH FEATURES - DRIVE END
7.1
RPM Crankshaft MIN
66
7.2
RPM Crankshaft MAX
131
7.3
Stroke
60 mm
7.4
Drive Type
GEAR BOX ROSSI RI125
7.5
Gearbox Speed Reduction Ratio
5
7.6
Main Motor (frame/type)
256T/4P
7.7
Main Motor Power
15,0 (20HP) kW
6
TECH FEATURES - HOMOGENIZING VALVES
6.1
No. of Stages
/
6.2
Type of Control
/
6.3
Homogenizing Valve Type
/
6.4
Homogenizing Valve Material
/
9
TECH FEATURES - ELECTRICAL SUPPLY
9.1
No. of Phases - MAIN
3
9.2
Voltage - MAIN
460 V
9.3
Frequency - MAIN
60 Hz
9.4
Voltage - AUX
24DC V
9.5
Frequency - AUX
/ Hz
PAGE 2 / 2
GEA Niro Soavi S.p.A.
GEA NIRO SOAVI
MACHINE TECHNICAL
DATASHEET
TT-0120C
