GEA ARIETE Specification sheet

OMOGENEIZZATORE/POMPA AD ALTA PRESSIONE
HOMOGENIZER/HIGH PRESSURE PUMP
ISTRUZIONI D’USO E MANUTENZIONE
INSTRUCTIONS FOR USE AND MAINTENANCE
BETRIEBSANLEITUNG
INSTRUCTIONS D’EMPLOI ET ENTRETIEN
INSTRUCCIONES PARA EL USO Y EL
MANTENIMIENTO
HANDLEIDING
Via M. da Erba Edoari, 29/A
43100 Parma, Italy
Tel: [phone]
Fax: [phone]
Internet: htttp://www.niro-soavi.it
E-mail: [email protected]

Niro Soavi S.p.A
FOREWORD
Dear Customer,
we wish to thank you for selecting our product and ensure you our best
assistance in order to enable you to make the most of your machine.
Also, we remind you that a good understanding of the contents of this manual -
through careful reading of all sections - is essential for the correct, safe use and
operation of the machine you have purchased.
No one should operate or perform maintenance on this machine without first
having read and understood the following Instructions for Use & Maintenance.
For any further support or information, you may contact us at the below listed
address.
Yours faithfully,
Niro Soavi S.p.A.
Via Mario da Erba Edoari 29/A - Parma, Italia
tel. [phone]
fax [phone]
e-mail: [email protected]
Internet: http://www.niro-soavi.it
0C00SE0C.DOC 0.0.1

Niro Soavi S.p.A
CONTENTS - SECTIONS
1. Technical Specifications
2. General Information
3. Machine Operation and Use
4. Maintenance
5. List of Spare Parts
6. Wiring Diagrams
7. Documentation about Suppliers and Components
HOW TO USE THE MANUAL
This manual is made of separate sections as indicated in the list of CONTENTS.
Each section is divided into chapters and paragraphs, and pages are numbered
separately in each section. A specific list of contents is given at the beginning of
each section.
The pictures and tables referred to in the text are numbered inside each section.
Before installing the machine you must be thoroughly familiar with the
information given in Section 2, Chapter 2.8 and, in particular, paragraph 2.8.5.
0C00SE0C.DOC 0.0.2

Niro Soavi S.p.A
SECTION 1
TECHNICAL SPECIFICATIONS
1.1. TECHNICAL DATA
1.2. FLOW-SHEET
1.3. FLOW-SHEET LEGEND (SPEC 102)
1.4. MACHINE INSTALLATION DRAWING
1.5. UTILITIES SPECIFICATIONS (SPEC 103)
1.6. RUNNING SEQUENCE (ONLY IF MACHINE IS SUPPLIED
WITHOUT ELECTRICAL POWER BOARD BY NIRO SOAVI)
1.7. ELECTRICAL SPECIFICATIONS
1.8. DECLARATION OF CONFORMITY “CE”
1c00se0c.doc 1.0.1

1.1 TECHNICAL DATA SHEET
1 GENERAL
1.1 Serial Number 4759
1.2 Kind of Machine HOMOGENIZER
1.3 Model ARIETE
1.4 Type NS3018H
1.5 Execution Aseptic
1.6 Special Features CGMP+ELECTRUPOLISHED+3A+FDA
1.7 MAX Operating Pressure 1000 bar
1.8 Flow Rate Type V
1.9 MIN Flow Rate 150 l/h @ 15,5 Hz
1.10 MAX Flow Rate 500 l/h @ 51,6 Hz
1.11 MIN Feed Pressure 6-7 bar
1.12 MAX Backpressure 5 bar
2 OPERATING CONDITIONS
2.1 Product
CELL RUPTURE(PRODUCT
SOLUTION IN WATER)
2.2 MAX Viscosity 2-3 cP
2.3 MAX Relative Humidity 40 %
2.4 Ambient Temperature 40 °C
2.5 MAX Altitude 1000 m
2.6 MAX operating temperature 90 °C
2.7 MAX temperature CIP / SIP 140 °C
3 TECHNICAL FEATURES
3.1 COMPRESSION BLOCK
3.1.1 Type MULTIBLOCK VHP
3.1.2 Number of plungers 3
3.1.3 Material of plungers CERAMIC
3.1.4 Plunger diameter 20 mm
3.1.5 Stroke 70 mm
3.1.6 Pumping valve type PVB 3\4"
3.1.7 Overpressure valve
SPRING LOADED
VALVE setpoint 1100 bar
3.1.8 Connection, Inlet 1" TRICLAMP
3.1.9 Connection, Outlet 1" TRICLAMP

3.2 HOMOGENIZING VALVE
3.2.1 Number of Stages 1
3.2.2 Type of actuator PNEUMATIC
3.2.3 Type of control PNEUMATIC
3.2.4 Homogenizing Valve Type 11,9-30 HP
3.3 DRIVE END
3.3.1 Main Motor (frame size; type) AC180M/4P
3.3.2 Main Motor Power 18,5 kW
3.3.3 RPM Crankshaft 44 MIN
3.3.4 RPM Crankshaft 145 MAX
3.3.5 Drive Type ROSSI REDUCER
3.3.6 Gearbox speed reduction ratio 5
3.4 LUBRICATION
3.4.1 Type FORCED
3.4.2 Lubricating system TP3A GR.1/6,1
3.4.3 Oil Cooling system YES
3.5 MAIN ELECTRICAL CIRCUIT
3.5.1 Number of phases 3
3.5.2 Voltage 400 V
3.5.3 Frequency 50 Hz
3.6 AUX ELECTRICAL CIRCUIT
3.6.1 Number of phases /
3.6.2 Voltage 24DC V
3.6.3 Frequency / Hz
4 OPTIONS
4.1 Suction side pulsation damper /
4.2 Delivery side pulsation damper /
4.3 Feeding pump /
4.4 Inlet pressure gauge /
4.5 Electric Power Board /
4.6 Overpressure Valve in Line / setpoint / Bar /

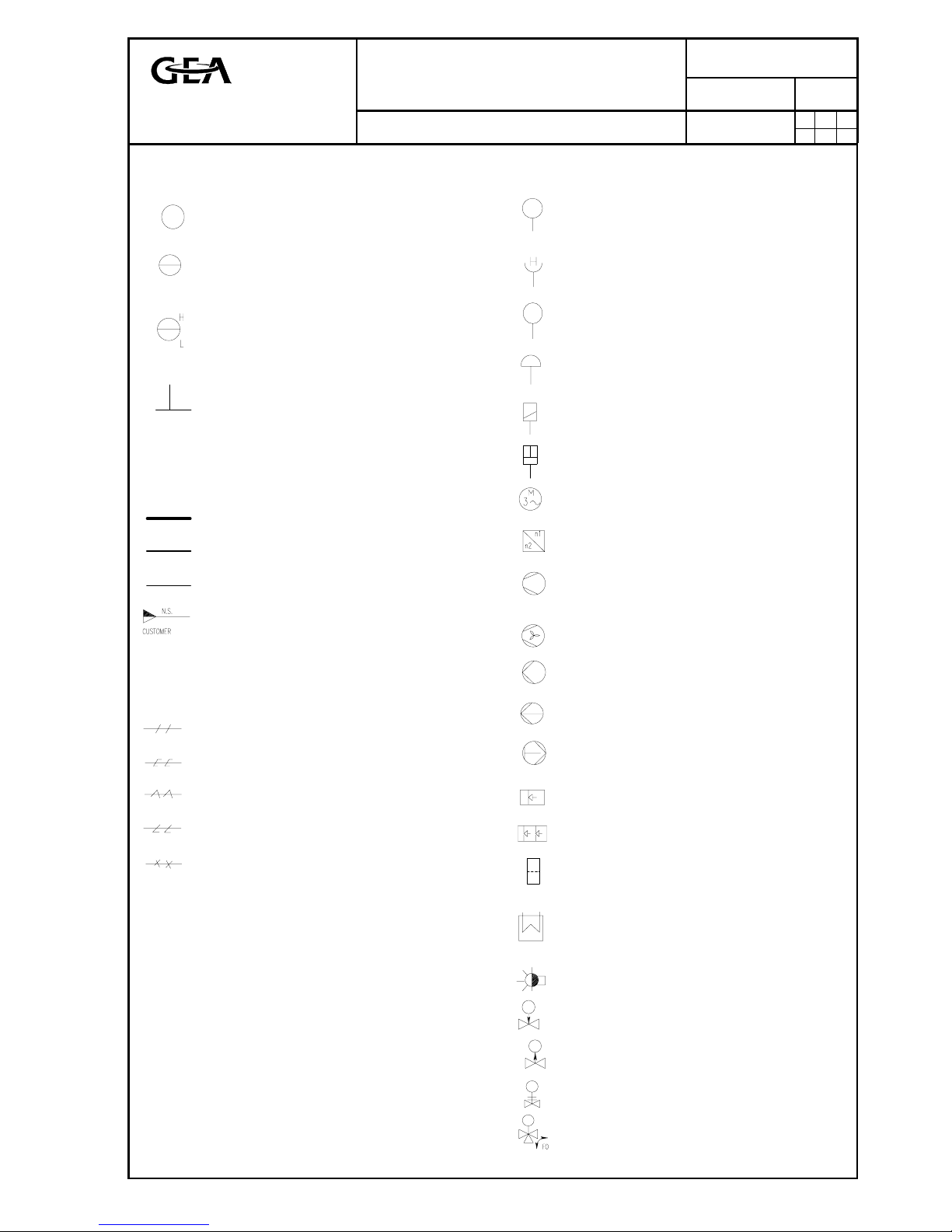

LEGEND
TO CONCEPT FLOW SHEET
SPEC - 102 C
____________________ REV.
DATE
Page 1 of 2 ____________________
SIG.
0
1. INSTRUMENT SYMBOLS
LOCAL
IN MAIN PANEL
LIMIT VALUE
H: HIGH OR OPEN
L: LOW OR CLOSED
POINT OF MEASUREMENT
WITHOUT INSTRUMENTATION
2. PROCESS LINES
PRIMARY FLOW LINE, GENERAL
SECONDARY FLOW LINE, GENERAL
MECHANICAL CONNECTION
SUPPLY LIMIT MARKER
3. INSTRUMENT SIGNAL LINES
GENERAL
ELECTRICAL
PNEUMATIC
HYDRAULIC
CAPILLARY
4. FLOW LINE ABBREVIATIONS
AS AIR SUPPLY
CIP CLEANING IN PLACE
CS CONDENSATE SUPPLY
CWS CHILLED WATER SUPPLY
ES ELECTRIC SUPPLY
GS GAS SUPPLY
NS NITROGEN SUPPLY
OS OIL SUPPLY
SS STEAM SUPPLY
WS WATER SUPPLY
. R RETURN
5. MACHINERY AND EQUIPMENT
AUTOMATIC ACTUATOR FOR REMOTE
CONTROL, GENERAL
MANUAL ACTUATOR NOT FOR REMOTE
CONTROL
AUTOMATIC ACTUATOR WITH INTEGRATED
MANUAL CONTROL FACILITY
DIAPHRAGM ACTUATOR
SOLENOID ACTUATOR
PISTON ACTUATOR
ELECTRIC AC MOTOR
ADJUSTABLE SPEED CONTROL
COMPRESSOR OR VACUUM PUMP,
GENERAL
FAN
PUMP FOR LIQUIDS GENERAL
CENTRIFUGAL PUMP
HIGH PRESSURE PUMP
1-STEP HOMOGENIZER
2-STEP HOMOGENIZER
FILTER, GENERAL
HEAT EXCHANGER WITHOUT CROSS
FLOW e.g. ELECTRIC HEATER
LIGHT SOURCE
VALVE CLOSES (FC)
VALVE OPENS (FO)
VALVE RETAINS POSITION
FAIL-OPEN INDICATION FOR A 3-WAY VALVE
T
H
PHONE : [phone] - FAX : [phone]
Niro-Soavi S.p.A.
via M. da Erba Edoari, 29/A
43100 PARMA (ITALY)
Specialty Products
Division

LEGEND
TO CONCEPT FLOW SHEETS
SPEC - 102 C
____________________ REV.
DATE
Page 2 of 2 ____________________
SIG.
6. LETTER CODE FOR IDENTIFICATION OF INSTRUMENT FUNCTIONS
FIRST LETTER SUCCEEDING LETTER (1)
MEASURED OR INITIATING VARIABLE MODIFIER DISPLAY OR OUTPUT FUNCTION
A ALARM
B DISPLAY OF STATE (2)
CCONTROLLING (4)
D DENSITY DIFFERENCE
E ALL ELECTRICAL VARIABLES (5) SENSING ELEMENT
F FLOW RATE RATIO
G GAUGING, POSITION OR LENGTH
H HAND (MANUALLY INITIATED) OPERATED
IINDICATING (3)
J SCAN
K TIME OR PROGRAMMED TIME
L LEVEL
M MOISTURE OR HUMIDITY
N USER'S CHOICE USER'S CHOICE
O USER'S CHOICE
P PRESSURE OR VACUUM TEST-POINT CONNECTION
Q QUALITY (5) INTEGRATE OR TOTALIZE INTEGRATING OR SUMMATING
R NUCLEAR RADIATION RECORDING
S SPEED OR FREQUENCY SWITCHING (2)
T TEMPERATURE TRANSMITTING
U MULTIVARIABLE MULTIFUNCTION UNIT
V VISCOSITY VALVE, DAMPER, ACTU, ELEMENT
W WEIGHT OR FORCE
X UNSPECIFIED (5) UNCLASSIFIED FUNCTIONS
Y VIBRATION COMPUTING RELAY, RELAY
ZEMERG. / SAFETY ACTING (2)
EXAMPLE : PDIRC DIFFERENTIAL PRESSURE INDICATION, RECORDING AND CONTROL
FIRST LETTER P, MODIFIER D, SUCCEEDING LETTERS I,R,C
1) NORMAL SEQUENCE OF SUCCEEDING LETTERS : B.I.R.C.T.Q.S.Z.A.
2) SIGNAL TYPE : ON/OFF
3) SIGNAL TYPE : CONTINUOUS
4) SIGNAL TYPE : NORMALLY CONTINUOUS. IF ON-OFF, S IS ADDED
5) A NOTE SPECIFIES THE MEASURED PROPERTY. E.g. FOR LETTER E, I, U, P OR F
PHONE : [phone] - FAX : [phone]
Niro-Soavi S.p.A.
via M. da Erba Edoari, 29/A
43100 PARMA (ITALY)
Specialty Products
Division
0

23.01.03 1
DATE REV.
1/220217 4759
JOB NIRO SOAVI MACHINE SERIAL NO.
Required Min Max
Pressure (Bar) 2 4
Temperature (°C) 10 60
Consumption (l/h) 75 95
Pressure (Bar)
Temperature (°C)
Consumption (l/h)
Pressure (Bar) 2 3
Temperature (°C) 1 4
Consumption (l/h) 120
Pressure (Bar)
Temperature (°C)
Consumption (l/h)
Required Min Max
Pressure (Bar) 5 10
Consumption(Nm3/h) 0
Pressure (Bar)
Temperature (°C)
Consumption(Nm3/h)
Required Min Max
Pressure (Bar)
(1)
Temperature (°C)
Consumption (kg/h)
Pressure (Bar)
(2)
Temperature (°C)
Consumption (kg/h)
V = 3x 400 Hz = 50
kW = 22
A = 45
Note :
WATER YES
NO
YES
PISTONS
LUBRICATING & COOLING FLUID
STERILE
CONDENSATE
SPEC-103C
UTILITY SPECIFICATION
SIG.
MIB
MACHINE MODEL
NS 3018HA
OIL EXCHANGER
GEAR BOX
YES
COMPRESSED AIR
STEAM
ELECTRICITY
Electrical supply (V/Hz)
Power absorbed (kW)
Current absorbed (A)
(1) THE CLIENT MUST INSTALL A PRESSURE REDUCER AT THE STEAM INLET CONNECTION TO ADAPT THE PRESSURE TO THE MACHINE'S REQUIREMENTS
NO
NO
STERILE CONDENSATE
PRODUCTION
PULSATION DAMPER
STERILE CONDENSATE
EXCHANGER NO
COMPRESSED AIR
Note : max. hardness < 15°fH ; max. particle size = 60 microns .
PHONE : [phone] - FAX : [phone]
Niro-Soavi S.p.A.
via M. da Erba Edoari, 29/A
43100 PARMA (ITALY)
Specialty Products
Division

Niro Soavi S.p.A
NIRO SOAVI S.p.A.
Via Mario da Erba Edoari 29/A - 43100 PARMA - ITALY
Tel [phone] - Fax [phone]
e-mail: [email protected]
DECLARATION OF CONFORMITY
MACHINE: HOMOGENIZER ARIETE
Model: NS3018H
Serial number: 4759
Machine TAG number 242X1100
Cabinet TAG number 242MC1100
Max Press. (MPa): 100
Rated Flow (dm3/h): 150-500
Year: 2003
The undersigned
DECLARES
under his own responsibility that the above mentioned Machine, object of this
declaration,
IS IN CONFORMITY
with the precepts of the following EEC directives and standard norms:
• 98/37/EEC
• 73/23/EEC and following updated 93/68 EEC
• 89/336/EEC
• EN 292-2/A1
• EN 60204-1
The above identified Machine has successfully passed all the trials and tests to
which it has been submitted.
PARMA 24/01/2003
D_ce_r2c baxter.doc 0.0.1

Niro Soavi S.p.A
SECTION 2
GENERAL INFORMATION - INDEX
2.1. SAFETY
2.1.1 SAFETY INFORMATION
2.1.2 PERSONNEL SAFETY
2.1.3 USE OF THE MACHINE IN DANGEROUS ZONES

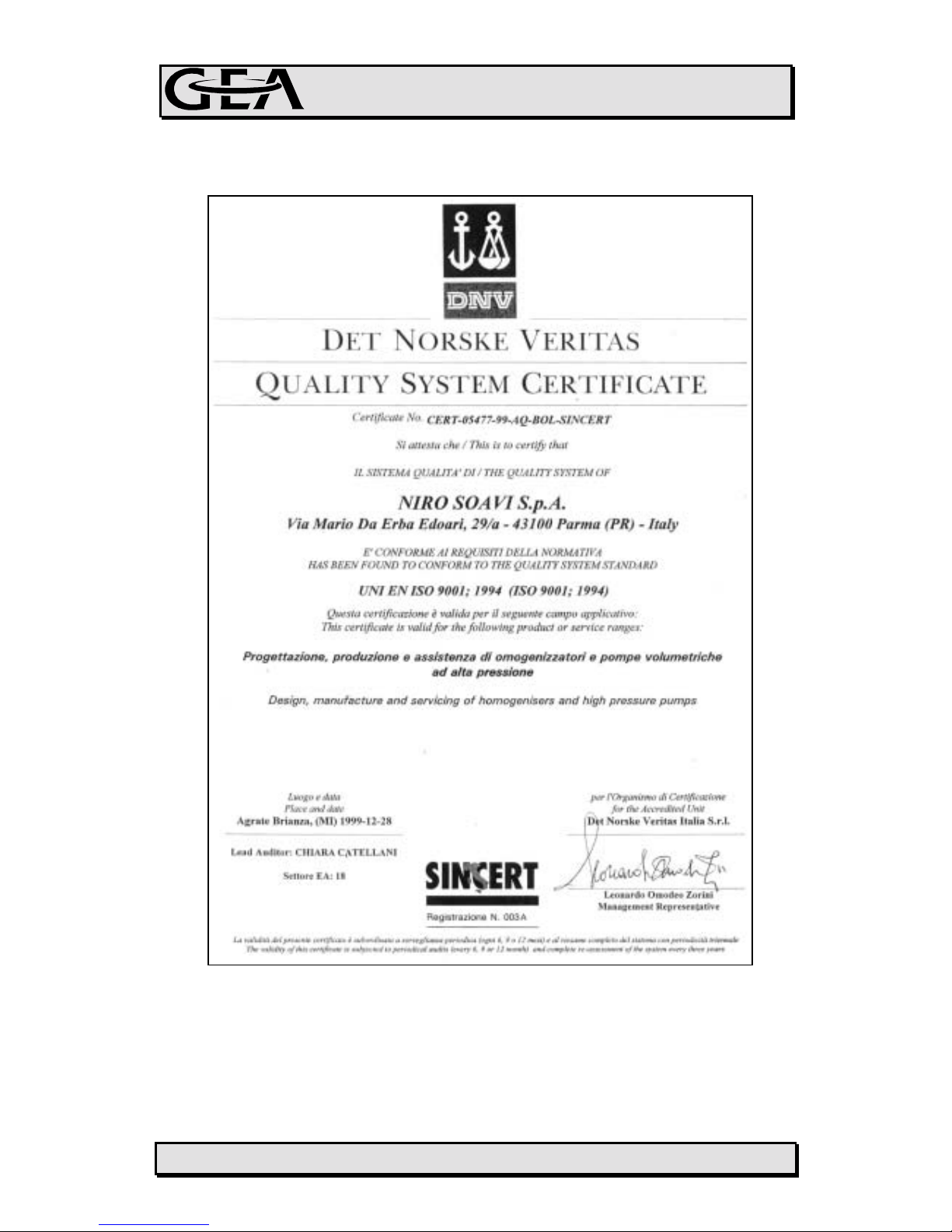

2.2. CE MARK AND ISO 9000 CERTIFICATION
2.3. IDENTIFICATION OF THE MACHINE
2.4. GUARANTEE
2.4.1 SCOPE OF THE GUARANTEE
2.4.2 DURATION OF THE GUARANTEE
2.4.3 APPLICATION OF THE GUARANTEE
2.4.4 EXCLUSIONS AND LIMITATIONS
2.4.5 HOW TO RETURN THE DEFECTIVE MATERIAL
2.5. HANDLING
2.6. RECEIVING AND CHECKING THE MACHINE
2.7. STORAGE
2.7.1 STORAGE BEFORE INSTALLATION
2.7.2 STORAGE FOR PERIODS LONGER THAN 3 MONTHS
2.8. INSTALLATION
2.8.1 POSITIONING
2.8.2 ACCESS TO THE INSIDE OF THE MACHINE
2.8.3 MACHINE LEVELING
2.8.4 CONNECTION TO UTILITIES AND PRODUCT LINE
2.8.5 INSTALLATION
2.8.6 POSITIONING THE ELECTRIC EQUIPMENT
2.8.7 ELECTRICAL CONNECTIONS
2.8.8 DIRECTION OF ROTATION OF ELECTRIC MOTORS
2.9. SPECIAL NOTES
2.9.1 CONTROL BOARD TO BE PROVIDED BY THE CUSTOMER
2.9.2 ELECTRIC MOTOR SUPPLIED BY THE CUSTOMER
2.10. NOTES ON MACHINE TEST
2.11. CLEANING THE MACHINE
2.12. DEMOLITION AND DISPOSAL
2.13. OPTIONS
2.13.1 SECOND STAGE HOMOGENIZING VALVE
2.13.2 ASEPTIC EXECUTION
2.13.2.1 STERILIZING THE MACHINE
2.13.2.2 REGULATING THE FLOW OF COOLING WATER
2.13.2.3 DESCALING AND WASHING
2.13.3 PARTIAL HOMOGENIZING SYSTEM
2.13.3.1 HOW THE BYPASS SYSTEM WORKS
2C001E0C.DOC 2.1.0

Niro Soavi S.p.A
2.1. SAFETY
These INSTRUCTIONS FOR USE & MAINTENANCE are part of the machine
and should accompany it throughout its service life until disposed of.
Before starting ANY operation, consult the relevant Section of these
INSTRUCTIONS.
Make sure that nobody has access to the machine before getting thoroughly
acquainted with these Instructions.
The only operations allowed are those described in these INSTRUCTIONS;
for any operation other than these, contact NIRO SOAVI Customer
Service.
CAUTION: Do not attempt tampering the calibration of any component or
part of the machine or to modify any parameter of programmable devices
unless expressly authorized in writing by NIRO-SOAVI.
Any calibration carried out by NIRO-SOAVI at the time of testing has the
purpose of ensuring the machine’s safety and troublefree operation: any
unauthorized modification will void the machine’s guarantee immediately.
Because the tampering of any safety device may undermine the safety of
the equipment, NIRO-SOAVI shall not be held liable for damages in case
of accidents resulting from such unauthorized modification.
Keep these INSTRUCTIONS FOR USE AND MAINTENANCE within the
operator's reach and make sure that their place of storage is suitable to
protect them from accidental damage.All operators must be thoroughly
familiar with the instructions given in this manual, comply with safety
regulations, use personal protection devices and avoid wearing clothes or
accessories which could get drawn into moving machine parts.
Operators must be familiar with the instructions given in this manual
before they can do any work on and with the machine.
WARNING: For safety during transport, the machine is supplied WITHOUT
LUBRICATION OIL. Before starting the machine fill with oil as described in
Section 4 -MAINTENANCE.
2C001E0C.DOC 2.1.1

Niro Soavi S.p.A
2.1.1 SAFETY INFORMATION
Although this machine has been designed to prevent all risks for operators the
possibility of risk for both personnel and materials or equipment is not excluded;
the general safety instructions and norms for operators and objects must be
observed scrupulously, taking every precaution to prevent accidents.
The machine must be used only if its state of preservation, operation and repair
is perfect and in compliance with what is required and specified in this manual.
Use of this machine is permitted only for the purposes for which it was
constructed and tested; use of the machine for purposes other that the ones
mentioned or beyond specified use limits shall relieve the manufacturer of all
responsibility in case of damage to persons or things and invalidate the
warranty.
Failure to service the machine according to the instructions provided in this
manual, or use of non-original spare parts, may lead to risks for the personnel
operating the machine.
2.1.2 PERSONNEL SAFETY
The machine must be used only by personnel members who are familiar with
the INSTRUCTIONS FOR USE AND MAINTENANCE and with the specific
technical information required to carry out their tasks, using suitable tools and
equipment; only authorized personnel are allowed to access, operate or service
the machine.
All members of personnel must wear clothes that are suitable to prevent
accidents due to clothing getting caught in moving machine parts or to contact
with sharp or pointed parts or with high temperatures.
Protection clothes, safety goggles and safety boots must be worn at all times.
We also recommend the use of personal protection devices to protect operators
from the noise that may be produced by the machine.
Operators must be familiar with the use of the equipment required to carry out
routine and extraordinary maintenance work.
In particular, these instructions must be read by all members of personnel who
may be operating or interacting with the machine, such as:
- Personnel in charge of transportation and handling the machine
- Personnel in charge of connecting the machine to supply mains
- The operator who is to use the machine
- Personnel in charge of servicing the machine
- Personnel who are to carry out machine tests and to check the
characteristics of the product treated.
2C001E0C.DOC 2.1.2

Niro Soavi S.p.A
2.1.3 USE OF THE MACHINE IN DANGEROUS ZONES
Use of the machine in dangerous zones is allowed only if the machine has been
designed specifically for use in such conditions using suitably certified
components.
Identification and classification of danger zones is the responsibility of the
customer who is required to specify them.
The factory electric system as well as ground and unipotential connections
must be designed so as to prevent any danger of explosion.
Where equipment for the detection of dangerous gas, liquids or vapors is used it
must installed by the user; the same applies to systems for ventilation and
exhaust of smoke and vapor from the danger zone.
All personnel must be aware of the potential hazards present in the danger
zone and connected with the use of dangerous products for the safety of
persons and of the environment.
Any tools and equipment used inside danger zones must be suitable for use in
these conditions; the user of the machine is responsible for selecting them and
making them available as well as for the way they are used.
It is extremely important to regularly check belt tension in order to prevent
dangerous overload or overheating as this could create a risk of fire or
explosion.
2C001E0C.DOC 2.1.3

Niro Soavi S.p.A
2.2. CE MARK AND ISO 9000 CERTIFICATION
The machine has been designed and built in accordance with EEC standards
on the safety of equipment (CEE/98/37).
NIRO-SOAVI guarantees that this machine complies with the above-mentioned
standard by marking the front of the machine with "CE" as shown in figure 2.2.1
here below, on the front part of the machine.
In Section 1 – TECHNICAL SPECIFICATIONS we have attached the
Declaration of Conformity CE of the machine.
TYPE S.N.
RATED FLOW
(
dm3/h
)
MAX PRESS.
Y
EAR
via M. da Erba Edoari, 29/A 43100 PARMA (ITALY)
Niro Soavi S.p.A.
FIGURE 2.2.1
In addition to this, NIRO SOAVI is certified according to UNI EN ISO 9001 for
design, manufacturing and servicing of homogenisers and high pressure
pumps, therefore your machine has been enginnereed and produced according
to approved quality procedures.
See figure 2.2.2 for the UNI EN ISO 9001 Quality System Certificate.
2C001E0C.DOC 2.2.1

Niro Soavi S.p.A
FIGURE 2.2.2
2C001E0C.DOC 2.2.2

Niro Soavi S.p.A
2.3. IDENTIFICATION OF THE MACHINE
The machine is identified by the name plate (fig.2.2.1) located on the front panel
(or on the pulley protection panel, for the Hercules versions without casing),
which includes
- the manufacturer's name
- model and type
- serial number.
The serial number is also punched on the compression head.
This number should always be quoted in any correspondence addressed to
NIRO-SOAVI's Customer Service in order to identify the machine properly.
2C001E0C.DOC 2.3.1

Niro Soavi S.p.A
2.4. GUARANTEE
If not specified otherwise in the order confirmation, the terms and conditions of
guarantee are as follows:
2.4.1 SCOPE OF THE GUARANTEE
NIRO-SOAVI guarantees the good quality and workmanship of its products and
shall - during the specified guarantee period - repair or replace free of charge
any part whose failure or premature wear and tear are the result of poor quality
of materials, defective workmanship or assembling.
The guarantee shall not apply to those parts whose failure or wear and tear are
due to:
- operator's negligence in checking the levels of the fluids, cleaning the filters,
providing the correct utility lines or improper feeding;
- insufficient infeed pressure in the machine;
- use of the machine with operating values exceeding the ones specified in
the contract, especially with respect to maximum pressure, flow, product
treated, operating and washing temperatures, feed pressure, specifications
of required utilities.
- use of inappropriate tools for the ordinary or extraordinary maintenance;
- failure to perform or incorrect maintenance;
- alterations or modifications carried out - whether directly or indirectly -
without the specific authorization in writing by NIRO-SOAVI;
- failure to comply with the INSTRUCTIONS FOR USE & MAINTENANCE.
- incorrect machine use, incorrect operating procedures and conditions
- incorrect machine installation or incorrect layout of feed line
- use of unsuitable components upstream or downstream the machine, and in
particular use of inadequate feed pump.
For this reason, we strongly recommend that the instructions contained in this
Manual are understood and followed, as a pre-condition for the correct and safe
use of the machine.
Using the machine and reading the INSTRUCTIONS FOR USE AND
MAINTENANCE imply integral acceptance of Warranty conditions.
For further information about application of the Warranty, see General Terms of
Sale.
2C001E0C.DOC 2.4.1
