Geberit AquaClean 147.038.SI.1 User manual

USER MANUAL
BEDIENUNGSANLEITUNG
MODE DʼEMPLOI
ISTRUZIONI PER L’USO

English............................................................................................................................ 4
Español .......................................................................................................................... 14
Português....................................................................................................................... 23
Suomi ............................................................................................................................. 32
Magyar............................................................................................................................ 41
Slovenščina ................................................................................................................... 50
Hrvatski .......................................................................................................................... 59
Srpski ............................................................................................................................. 68
Български...................................................................................................................... 77
Română .......................................................................................................................... 86
Türkçe............................................................................................................................. 95
中文 ................................................................................................................................. 104
5883451531-1 © 03-2019
967.376.00.0(01) 3

EN For your safety
Intended use
The shower toilet assigned to the wall-mounted control panel can be
operated by touching the touch-sensitive surface. Use for any other
purpose is deemed improper.
Misuse
Geberit accepts no liability for the consequences arising from misuse.
Explanation of essential information
The following signal word is used to refer to essential information.
Symbol Signal word and meaning
Symbol only.
Refers to important information.
45883451531-1 © 03-2019
967.376.00.0(01)

EN
Getting to know your device
The wall-mounted control panel at a glance

1 Wall-mounted control panel with anti-fingerprint coating, removable
2 Mounting plate for wall mounting
3 LED display
4 Release opening
The sensor buttons at a glance
Touching the relevant sensor button actuates the corresponding function on the assigned
shower toilet.

1 <Shower> sensor button
2 <+>/<-> sensor button
3 <Forwards>/<Backwards> sensor button
4 <Lady shower> sensor button
5 <Dryer> sensor button
6 <Odour extraction> sensor button
5883451531-1 © 03-2019
967.376.00.0(01) 5

EN How to use the device

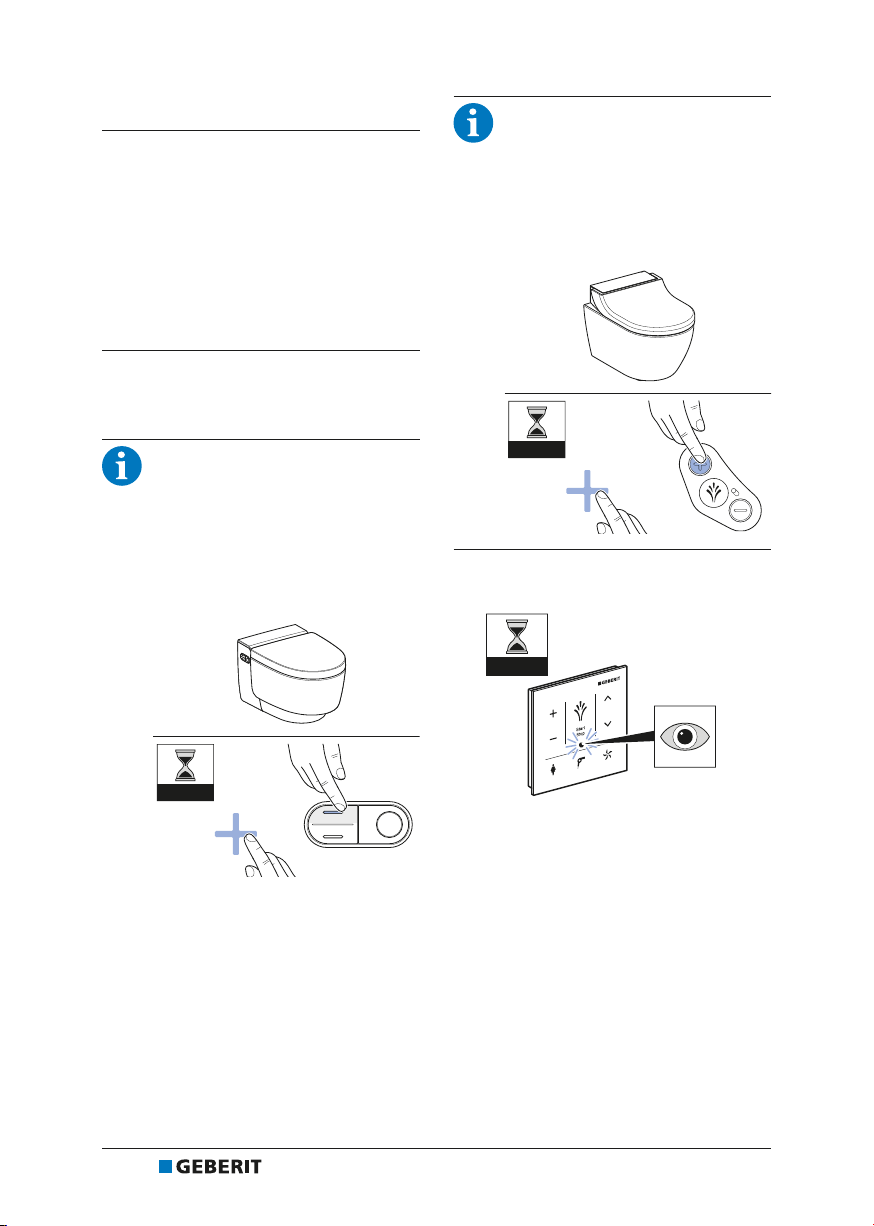

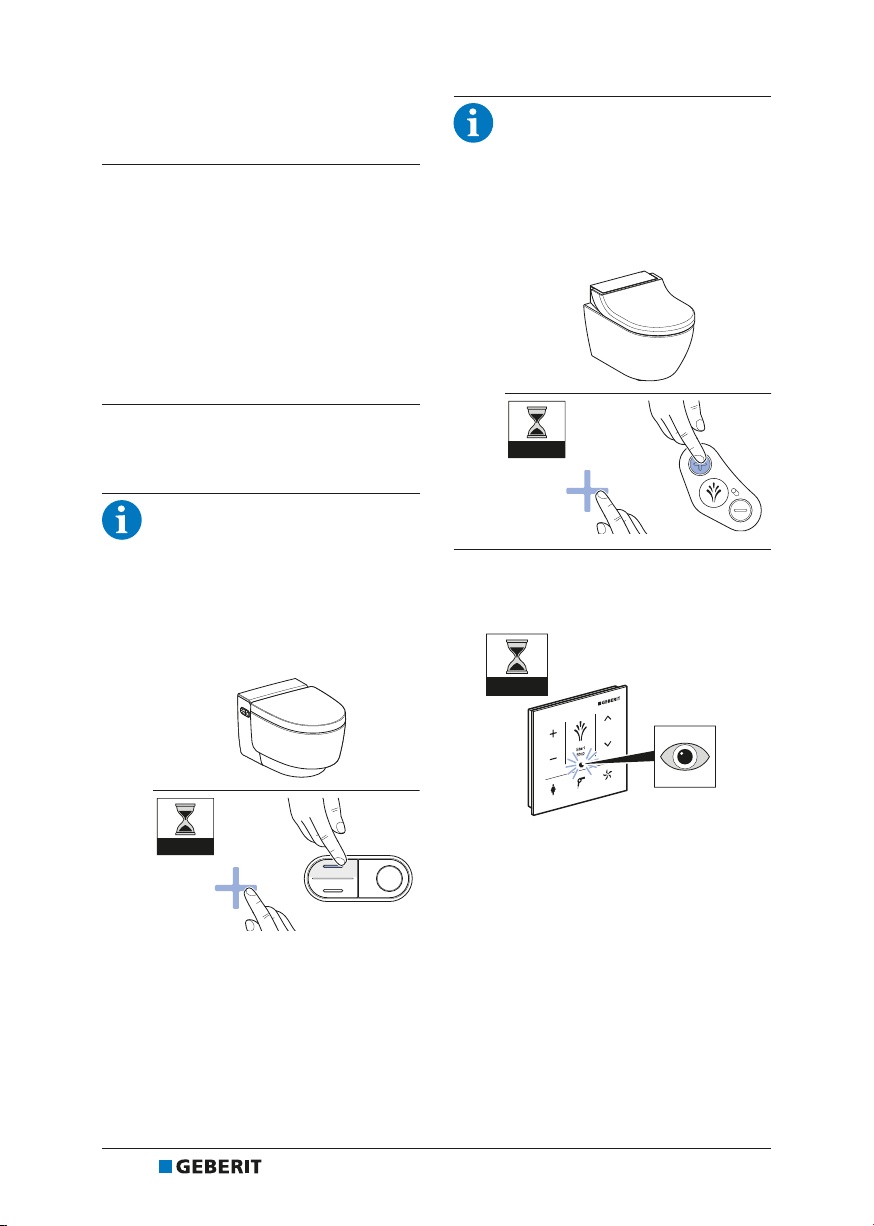

Assigning to the wall-
mounted control panel
Prerequisite
– The basic settings for the shower toilet
can be adapted to suit your individual
requirements via remote control. → See
shower toilet user manual.
1Assign the shower toilet using the
information for the wall-mounted
control panel.
Assign the Geberit AquaClean Mera
to the wall-mounted control panel by
touching the <up> button on the side
control panel of the shower toilet and
the <+> sensor button on the wall-
mounted control panel simultan-
eously for 10seconds.

Assign the Geberit AquaClean Tuma
to the wall-mounted control panel by
pressing the <+> button on the side
control panel of the shower toilet and
the <Geberitlogo> on the wall-
mounted control panel simultan-
eously for 10seconds.

Result
✓ The LED display lights up for 4seconds.

✓ The shower toilet can be operated using
the wall-mounted control panel.
65883451531-1 © 03-2019
967.376.00.0(01)

EN

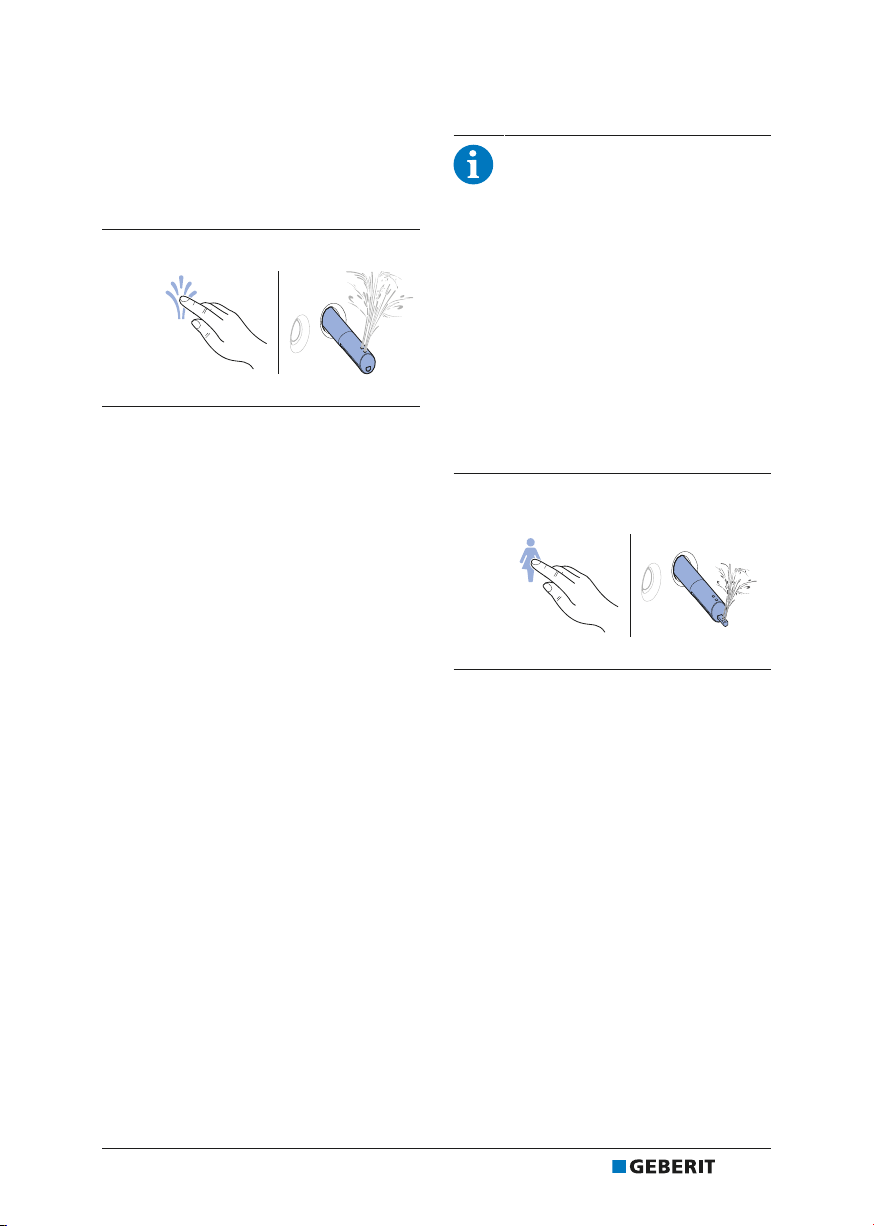

Using the anal shower
Prerequisite
– You are sitting down on the WC seat
ring.
▶Touch the<Shower> sensor button.
Result
✓ The shower procedure starts and runs
for a few seconds. This can be inter-
rupted at any time by touching the
sensor button again.
Using the Lady shower
The woman's intimate area is a very
sensitive zone and requires special
and prudent care. The Lady shower
must be set to your ergonomic
conditions to achieve an optimal
cleaning result. The position of the
spray nozzle and the spray intensity
must be selected so that the shower
spray cannot penetrate the vagina.
Prerequisite
– You are sitting down on the WC seat
ring.
▶Touch the<Lady shower> sensor
button.
Result
✓ The shower procedure starts and runs
for a few seconds. This can be inter-
rupted at any time by touching the
sensor button again.
5883451531-1 © 03-2019
967.376.00.0(01) 7

EN Adjusting the shower
procedure to your
personal needs
Set the spray intensity
Prerequisite
– The shower procedure is running.
– The spray intensity can be set in 5
levels.
1Touch the<+> sensor button.
✓ The shower spray becomes
stronger.
2Touch the<-> sensor button.
✓ The shower spray becomes
weaker.
Result
✓ The shower spray is optimally adjusted
to suit your requirements.
Set the spray arm position
Prerequisite
– The shower procedure is running.
– The spray arm position can be set in 5
levels.
▶Touch the <Forwards> or
<Backwards> sensor button.
✓ The spray arm moves forwards
or backwards.
Result
✓ The spray arm is optimally positioned.
85883451531-1 © 03-2019
967.376.00.0(01)

EN

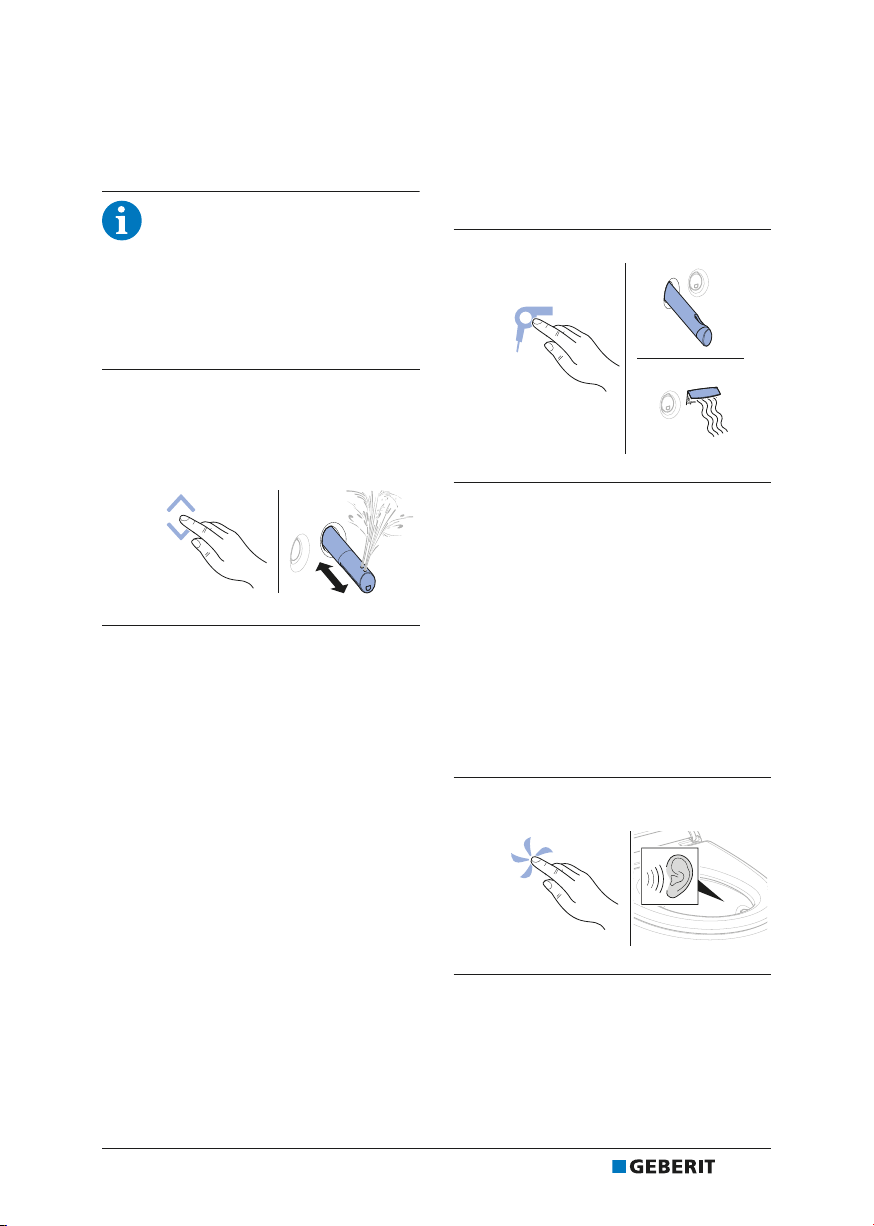

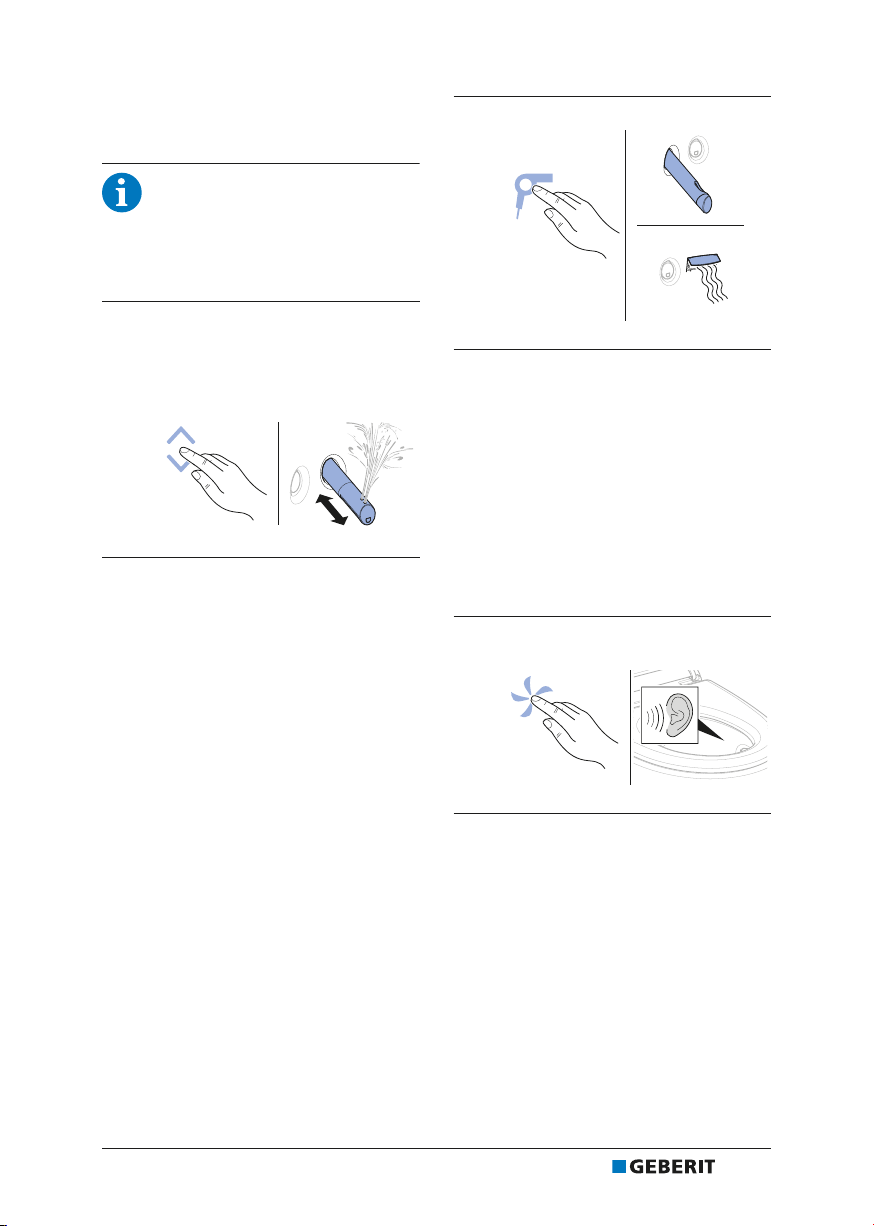

Switch oscillating motion of
the spray nozzle on and off
The oscillating motion of the spray
arm increases the cleaning effect.
Prerequisite
– The shower procedure is running.
▶Touch the<Forwards> and
<Backwards> sensor buttons at the
same time to switch the oscillating
motion on during the shower
procedure.
Result
✓ The oscillating motion is switched on.
This can be switched off at any time by
touching the sensor buttons again.
Using the dryer
Prerequisite
– You have ended the shower procedure.
▶Touch the<Dryer> sensor button.
Result
✓ The drying procedure starts and runs for
a few seconds. This can be interrupted
at any time by touching the sensor
button again.
Use the odour extraction unit
Prerequisite
– You are sitting down on the WC seat
ring.
▶Touch the<Odour extraction> sensor
button.
Result
✓ The odour extraction unit starts and runs
for a few seconds. This can be inter-
rupted at any time by touching the
sensor button again.
5883451531-1 © 03-2019
967.376.00.0(01) 9

EN Troubleshooting
Replace the battery
1Unlock the interlock by using the
screwdriver on the release opening.
2Pull the bottom of the wall-mounted
control panel forward and remove it
from the mounting plate.

3Extract the used batteries. Dispose of
the used batteries appropriately.
4Insert the new CR2032 batteries.
&5
5Attach the top of the wall-mounted
control panel and secure it to the
mounting plate.

Check whether the wall-mounted
control panel is securely locked into
the mounting plate.
10 5883451531-1 © 03-2019
967.376.00.0(01)

EN
The wall-mounted control panel is without function
The following table will help you with troubleshooting if:
• the wall-mounted control panel is not functioning.
• the shower toilet cannot be controlled with the wall-mounted control panel.
Should the remote control fail to function, you can use the lateral control panel instead.
Description of problem Cause Fault clearance
LED display flashed red. Batteries flat
▶ Replace the batteries.
→ See "Replace the battery",
page10.
Touch-sensitive surface
does not respond when
touched.
Malfunction has
occurred
▶ Check batteries in the wall-mounted
control panel.
▶ Check mains connection to the
shower toilet.
▶ Re-assign wall-mounted control
panel.
→ See "Assigning to the wall-
mounted control panel", page6.
LED display flashes red
twice, followed by a short
break.
Pairing unsuccessful
User interface
inactive
▶ Re-assign wall-mounted control
panel.
→ See "Assigning to the wall-
mounted control panel", page6.
5883451531-1 © 03-2019
967.376.00.0(01) 11

EN How to clean the device
Caring for and cleaning smooth surfaces
All smooth surfaces can be cleaned hygienically with water and a mild, liquid cleaning agent
that is kind to the skin.
Aggressive and scouring cleaning agents can damage the surface. Only use mild,
liquid cleaning agents that are kind to the skin. The Geberit AquaClean cleaning set
(art. no. 242.547.00.1) includes a ready-made cleaning agent that is optimal for
cleaning all Geberit AquaClean surfaces.
Disposal
Disposal of old electrical and electronic equipment
In accordance with Directive 2012/19/EU(WEEE-Waste Electrical and Electronic Equipment)
manufacturers of electrical equipment are obliged to take back old equipment and to dispose
of it appropriately. The symbol indicates that the product cannot be disposed of with non-
recyclable waste. Old equipment should be returned directly to Geberit where it will be
disposed of appropriately. Addresses to which equipment can be returned can be requested
from the relevant Geberit sales company.
12 5883451531-1 © 03-2019
967.376.00.0(01)

EN
Technical data and conformity
Technical data
Operating temperature 5–40 °C
Relative humidity 10–100 %
Frequency range 2400–2483.5 MHz
Maximum output power 0 dBm
Wireless technology Bluetooth® Low Energy1)
Battery type CR2032 (3 V)
Service life of batteries supplied ~ 2 years
1) The Bluetooth® brand and its logos are the property of Bluetooth SIG, Inc. and are under
licence by Geberit.
Simplified EU Declaration of Conformity
Geberit International AG hereby declares that the radio equipment type AquaClean Mera /
AquaClean Tuma wall-mounted control panel is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
https://doc.geberit.com/968860000.pdf.
5883451531-1 © 03-2019
967.376.00.0(01) 13

ES Para su seguridad
Uso previsto
Al tocar la superficie táctil, puede manejarse el panel de control de
pared asiganado al inodoro bidé. Cualquier otra aplicación será con-
siderada como uso no previsto.
Aplicación indebida
Geberit no se hace responsable de las consecuencias que pueda
tener una aplicación indebida.
Aclaración e información importante
La siguiente palabra de advertencia se utiliza para avisar de informa-
ción importante.
Símbolo Palabra de advertencia y significado
Indicado únicamente con el símbolo.
Indica una información importante.
14 5883451531-1 © 03-2019
967.376.00.0(01)

ES
Conocer el dispositivo
El panel de control de pared de un vistazo

1 Panel de control de pared con revestimiento antihuellas, desmontable
2 Placa base para montaje mural
3 Indicador LED
4 Apertura de desbloqueo
Las teclas de sensor de un vistazo
Al tocar la tecla de sensor correspondiente, se activa la función pertinente asignada al inodoro
bidé.

1 Tecla de sensor <Ducha>
2 Tecla de sensor <+>/<->
3 Tecla de sensor <adelante>/<atrás>
4 Tecla de sensor <Ducha femenina>
5 Tecla de sensor <Secador>
6 Tecla de sensor <Extracción de olores>
5883451531-1 © 03-2019
967.376.00.0(01) 15

ES Cómo manejar el dis-
positivo
Asignación del panel de con-
trol de pared
Prerrequisito
– Los ajustes básicos del inodoro bidé se
adaptan por medio del mando a distan-
cia a sus necesidades personales. →
Véanse las instrucciones de uso del ino-
doro bidé.
1Asigne el inodoro bidé al panel de
control de pared según la informa-
ción correspondiente.
Asigne el Geberit AquaClean Mera al
panel de control de pared pulsando
durante 10 segundos al mismo
tiempo la tecla <arriba> del panel de
control lateral del inodoro bidé y la
tecla de sensor <+> del panel de
control de pared.

Asigne el Geberit AquaClean Tuma
al panel de control de pared pul-
sando durante 10 segundos al
mismo tiempo la tecla <+> del panel
de control lateral del inodoro bidé y la
tecla de sensor <+> del panel de
control de pared.

Resultado
✓ El indicador LED se enciende durante
4segundos.

✓ El inodoro bidé se puede controlar con
el panel de control de pared.
16 5883451531-1 © 03-2019
967.376.00.0(01)

ES
Uso de la ducha anal
Prerrequisito
– Es necesario sentarse en el asiento del
inodoro.
▶Toque la tecla de sensor<Ducha>.
Resultado
✓ El proceso de ducha comienza y dura
unos segundos. Puede interrumpirlo en
cualquier momento tocando de nuevo la
tecla de sensor.
Uso de la ducha femenina
Las partes íntimas femeninas son
una zona sensible que requiere un
cuidado especial y delicado. Para
conseguir el mejor resultado de lim-
pieza, la ducha femenina deberá
ajustarse a las particularidades de
su anatomía. Tanto la posición del
cabezal como la intensidad del agua
deben ajustarse de tal manera que
se garantice que no puede entrar
agua en la vagina.
Prerrequisito
– Es necesario sentarse en el asiento del
inodoro.
▶Toque la tecla de sensor<Ducha
femenina>.
Resultado
✓ El proceso de ducha comienza y dura
unos segundos. Puede interrumpirlo en
cualquier momento tocando de nuevo la
tecla de sensor.
5883451531-1 © 03-2019
967.376.00.0(01) 17

ES Adaptar el funciona-
miento de la ducha a
las necesidades
Ajuste de la intensidad del
agua
Prerrequisito
– El funcionamiento de la ducha está en
marcha.
– La intensidad del agua puede ajustarse
en 5niveles.
1Toque la tecla de sensor<+>.
✓ La ducha se intensifica.
2Toque la tecla de sensor<->.
✓ La ducha se suaviza.
Resultado
✓ La ducha puede ajustarse de forma
óptima a sus necesidades.
Ajuste de la posición del
brazo-ducha
Prerrequisito
– El funcionamiento de la ducha está en
marcha.
– La posición del brazo-ducha puede ajus-
tarse en 5niveles.
▶Toque a tecla de sensor<Adelante>
o<Atrás>.
✓ El brazo-ducha se desplaza
hacia delante o hacia atrás.
Resultado
✓ El brazo-ducha se ha ajustado de
manera óptima.
18 5883451531-1 © 03-2019
967.376.00.0(01)

ES
Conexión y desconexión del
movimiento oscilante del
cabezal
El movimiento oscilante del brazo-
ducha aumenta el efecto de lim-
pieza.
Prerrequisito
– El funcionamiento de la ducha está en
marcha.
▶Pulsar al mismo tiempo las teclas de
sensor <delante> y <detrás> para
conectar el movimiento oscilante
durante el funcionamiento de la
ducha.
Resultado
✓ El movimiento oscilante está conectado.
Puede desconectarlo en cualquier
momento tocando de nuevo la tecla de
sensor.
Uso del secador
Prerrequisito
– Se ha finalizado el funcionamiento de la
ducha.
▶Toque la tecla de sensor<Secador>.
Resultado
✓ El proceso de secado comienza y dura
unos segundos. Puede interrumpirlo en
cualquier momento tocando de nuevo la
tecla de sensor.
Uso de la extracción de olo-
res
Prerrequisito
– Es necesario sentarse en el asiento del
inodoro.
▶Toque la tecla de sensor<Extracción
de olores>.
Resultado
✓ La extracción de olores comienza y dura
unos segundos. Puede interrumpirla en
cualquier momento tocando de nuevo la
tecla de sensor.
5883451531-1 © 03-2019
967.376.00.0(01) 19

ES Cómo reparar los fallos
Sustitución de la pila
1Desbloquee el cierre usando el des-
tornillador en la apertura de desblo-
queo.
2Tire del panel de control de pared
por el lado inferior hacia adelante y
sáquelo de la placa base.

3Sacar las pilas gastadas. Eliminar las
pilas gastadas profesionalmente.
4Meta las nuevas pilas de tipo
CR2032.
&5
5Coloque el panel de control de pared
en el lado superior y fíjelo en la placa
base.

Compruebe que el panel de control
de pared está encajado de forma
segura en la placa base.
20 5883451531-1 © 03-2019
967.376.00.0(01)
