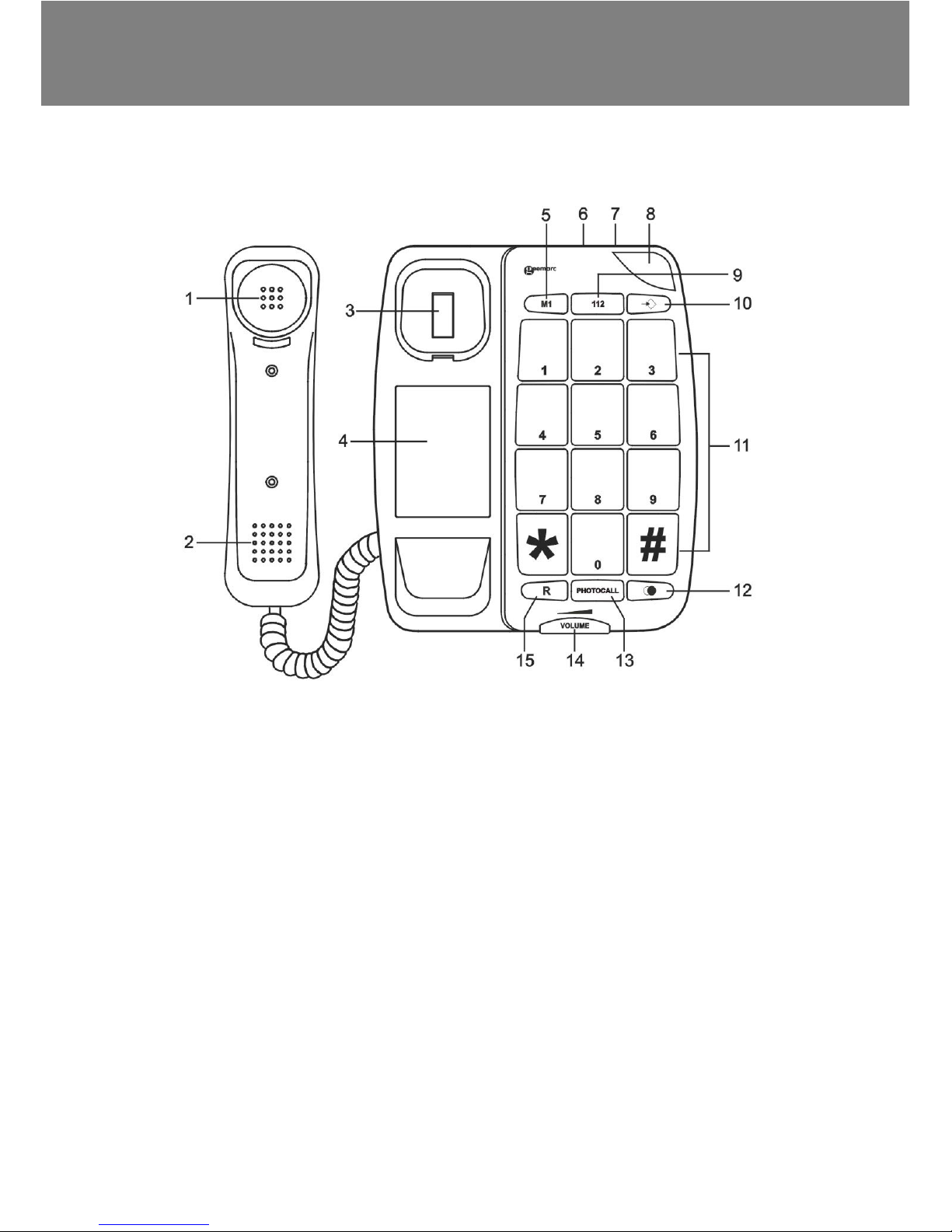

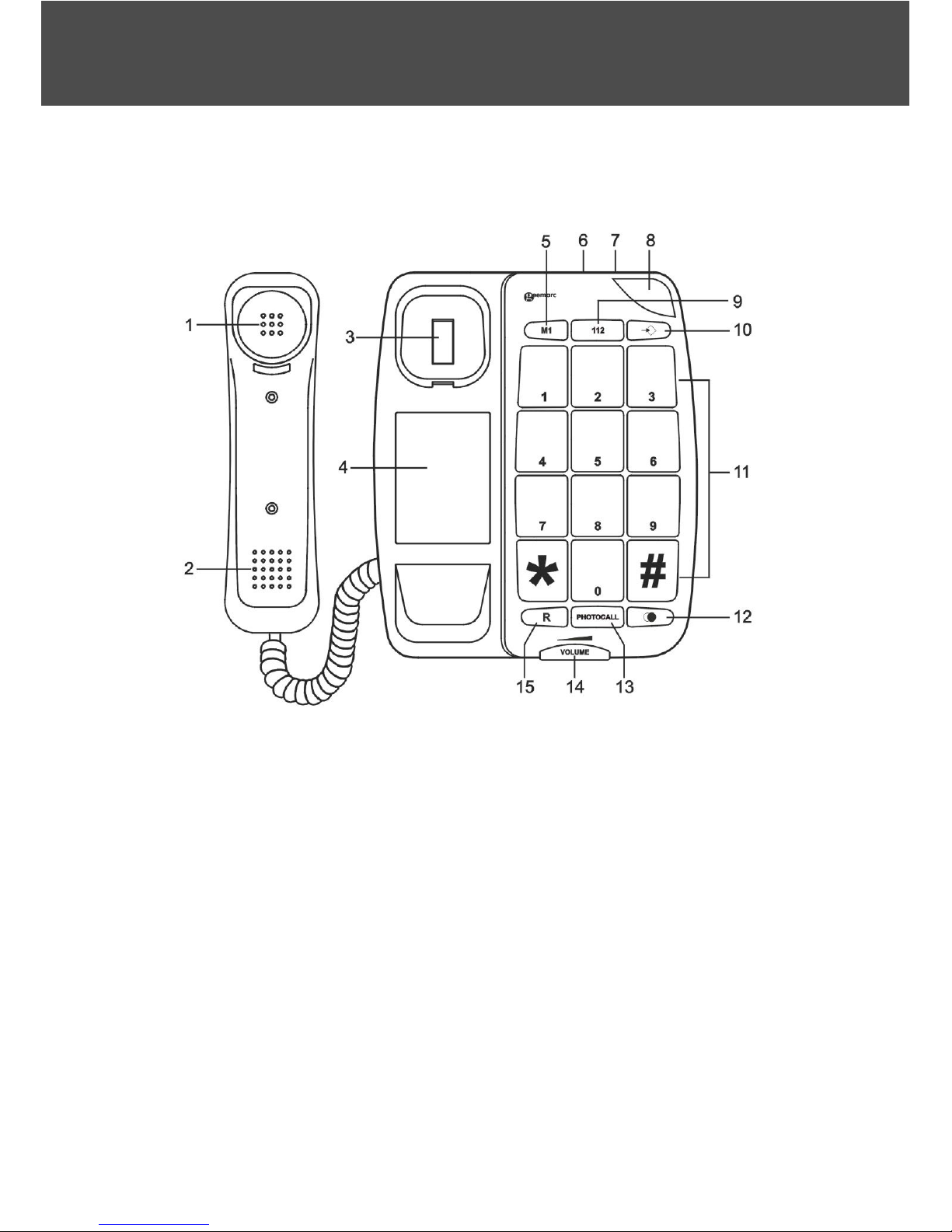

Description
1. Receiver
2. Transmitter
3. Hook Switch
4. Memory Index Card
5. M1 Button
6. «Normal» / «One touch» switch
7. Ringer (Off/Lo/Hi) Switch
8. Ringer Indicator
9. 112 Button
10.StoreButton
11. Key Button (1~9;*;0;#)
12. Redial Button
13. Photocall Button
14. Receiving Volume Control Handset
15. Flash Button

Installation
Handset Cord Connection
Insert the coil cord into modular jack located on the left side of the
base. Connect the other end into the modular jack located on the
handset.
Line Cord Connection
Insert the modular plug of the straight cord into the rear side of base
unit, then insert the other end of RJ11C into the telephone wall
socket (*).
(*) Classified TNV-3 according to EN60950 standard.
Wall mounting
Your PHONE is also designed to be mounted on a wall.
Make 2 holes in the wall , insert the wall plugs and the wall mounting
screws.
The screws should protrude from wall by 6-7 mm.
Place the phone onto the screw-heads and slide down to secure.

6
Settingup
Ringer setting
Ringer OFF / LO / HI
YourphoneprovidesaringeradjustmentofHigh,LoworOff,theswitch
is located at the rear side of the telephone.
When you don‘t want to be disturbed, slide the switch to the OFF posi-
tion. Only the red lamp will flash.
Otherwise adjust to HI or LO position.

7
UsingthePhone
Answering incoming call
- When an incoming call is received the phone will ring . To answer
the call lift the handset and speak.
- On completion of the call, carefully replace the handset in the
cradle to release the line.
Making a call
- Lift the handset.
-Await the dial tone and dial required number.
- On completion of the call, carefully replace the handset in the
cradle.
Last Number Redial
Your telephone remembers the last number dialed. If the number you
dial is busy or not being answered, hang up.
To redial the last number automatically, lift the handset then press the
button.
NOTE: You can redial the same telephone number as many times as
required.However,once youdialanothernumber, thepreviousnumber
is erased.

8
Usingthephone
Flash (R)
The R button can be used to retrieve a new dial tone after ending a
call.
The R button is also a useful feature for special telephone services
such as call waiting and three party calling.
Press briefly, release and perform the custom call procedure.
NOTE : Call waiting is a service of your local telephone company.
Receiver Volume Control
On the front edge of your telephone you will find a slide volume
control. This control may be used to adjust the volume of received
speech.
With the control set towards the right hand side of the phone, the
received volume will be at its maximum.
With the control set to the left side, it will be at its minimum.

9
MemoryFeature
STORING TELEPHONE NUMBERS
M1 and 112 keys
Your phone can store 2 direct memories (one touch) through M1 &
112 keys (like for emergency numbers ).
Others memories
10 memories can be used for programming your most frequently
dialed telephone numbers. You can store up to 16 digits in the
priority key button or in each of the numeric key button (0 through 9),
by following the steps outlined below:
1. Slide the «normal» / «one touch» switch to NORMAL position.
2. Lift the handset (releasing hook switch).
3. Press button.
4. Dial the number.
5. Press button.
6.Press the priority key M1 or (0-9) (pictures) you want that
telephone number stored in.
7. Your number is now stored.
8. To change a stored number, repeat the same process. The new
number will store over the old stored number.
NOTE : A Memory Index Card is provided for your use in writing
down the persons name.

10
MemoryFeature
DIALLING STORED NUMBER
Numbers stored in “one touch” memories keys
- Lift the handset and await the dial tone.
- Press appropriate button M1 or 112.
The stored number will be dialled automatically.
Numbers stored in key button memories
- Lift the handset and await the dial tone.
- Press PHOTOCALL button.
- Press appropriate button 0 to 9.
The stored number will be dialled automatically.
These stored numbers can also be dialed in “one touch” mode
when the keys are equiped with pictures (photos):
- Move the «normal» / «one touch» switch to ONE TOUCH.
- Lift the handset and await the dial tone.
- Press one of the picture buttons.
- The stored number will be dialled automatically.
IMPORTANT : IN ALL THE CASES THE MEMORIES M1 AND 112
WILL BE AVAILABLE IN “ONE TOUCH” MODE.
