RADIUS Log Light

Data logger for

plant monitoring

2 Radius Log Light

Informationaboutthismanual

Before using the product, read the safety instruction section carefully. Keep the manual in a safe place and

available to engineering and installation personnel during the product functioning period.

Gefran S.p.A has the right to modify products, data and dimensions without notice.

The data can only be used for the product description and they can not be understood as legally stated properties.

Thank you for choosing this Gefran product.

We will be glad to receive any possible information which could help us improving this manual. The e-mail ad-

dress is the following: [email protected].

Radius Log Light 3

Contents

1. Introduction..........................................................................................................................................5

1.1 Introduction ....................................................................................................................................................5

2. Installation.............................................................................................................................................6

2.1 Simple chart of RADIUS Log Light ................................................................................................................6

2.2 Wire connection .............................................................................................................................................7

2.3 LED indicator .................................................................................................................................................7

2.4 Accessories ...................................................................................................................................................8

3. Buttonoperationandmenuinterface.................................................................................................9

3.1 Check SD card and scan Bluetooth device ...................................................................................................9

3.2 Main Status interface ...................................................................................................................................10

3.3 Set Table interface ....................................................................................................................................... 11

3.4 Error Display interface .................................................................................................................................13

4. RADIUSLogLightoperationdiagram..............................................................................................14

5. IntroductiontoBluetoothmodulesetting........................................................................................15

5.1 Main interface of Bluetooth RS232 Conguration ........................................................................................15

5.2 Wire Connection ..........................................................................................................................................16

5.3 Set Bluetooth encryption password .............................................................................................................16

6. Q&A......................................................................................................................................................17

4 Radius Log Light

Radius Log Light 5

1. Introduction

1.1 Introduction

RADIUS Log Light is a newly research & design inverter monitoring product of Gefran. It can collect and

analyse photovoltaic station inverter running data via Bluetooth connection, and display monitoring data on

LCD screen, user can browse data on computer as well. RADIUS Log Light can monitor maximum 4 inverters

simultaneously.

RADIUS Log Light has standard data communication interface, including RS232 serial port, USB port, and

Bluetooth, it can smoothly compatible with your existing systems.

RADIUS Log Light has the following features:

1. Remote monitor and control

2. Communicate with APV inverters via Bluetooth

3. Monitoring data store in SD card which plug to RADIUS Log Light.

6 Radius Log Light

2. Installation

2.1 SimplechartofRADIUSLogLight

Fig 2.1 Simple chart of RADIUS Log Light

The following table is components explanation:

Number Name Explanation

1 RS232 For rmware update

2 SD CARD SD card socket

3 MINI USB Power supply or battery charge by MINI USB (cable includ-

ed as standard)

4 SWITCH Power on/off switch

Radius Log Light 7

2.2 Wireconnection

1) Insert the USB terminal of USB wire to power adapter socket, and insert the opposite terminal (MINI

USB) to MINI USB port socket.

2) Insert SD card to SD card socket.

3) Connect power adapter to public gird power outlet

4) Turn on power switch of RADIUS Log Light.

2.3 LEDindicator

There are 3 LED indicators on the right of LCD screen, you can get RADIUS Log Light running status by check-

ing up the 3 LED lights.

LEDlights Function

BT Power Indicate Bluetooth modules status

BT State Indicate Bluetooth connection status

Charge Indicate charge status

1) BTPowerIndicator

If LED indicator blink once per several seconds, it shows bluetooth modules are working in normal sta-

tus. You can check out master device and slave devices by examine the blink interval of LED. LED blink

once every 2 seconds shown it’s a slave device, the master device’s blink interval is 5 seconds.

RADIUS Log Light is working in master mode and inverter bluetooth module in slave mode.

2) BTStateIndicator

Dark LED light indicates connection was established with other bluetooth device, a blink LED indicates

connection haven’t established.

If connection haven’t established, you can check whether RADIUS Log Light had stored logical address

of pair bluetooth device, by examine the LED blink times. Quick blink (2 times per second) indicate logi-

cal address had been stored, slow blink (once per second) indicate haven’t stored the logical address.

For master device, blink once every 2 seconds when searching device, quick blink 4 times in a second

when nding a pair device, blink once when connecting, and become dark in connected status.

The two indicators (BT power, BT state) are all dark when bluetooth modules are in sleeping status, or

working at parameter setting mode.

3) ChargeIndicator

Turn on if exterior power supply came in, else in dark status.

8 Radius Log Light

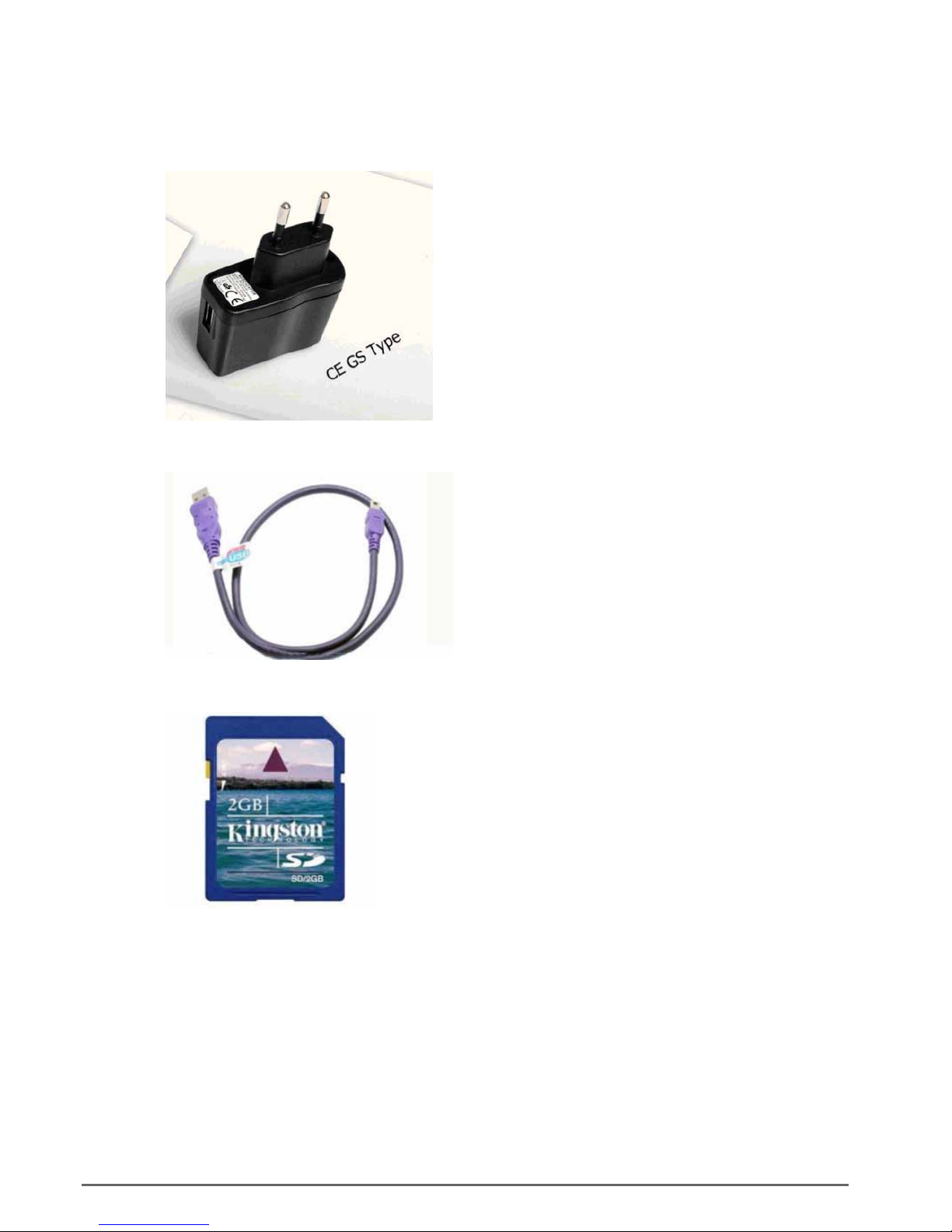

2.4 Accessories

Accessories (as standard) include power adapter, USB wire, SD card.

1) Power adapter:

2) USB wire:

3) SD card:

Radius Log Light 9

3. Buttonoperationandmenuinterface

Button Function

UP Optional item move up, move cursor in a item for parameter make change

DOWN Optional item down; Increase parameter value

ESC Back to previous menu, end of setting; Interface switching

ENTER Enter menu, conrm parameter value setting

Table 3.1 Button operation

The LCD screen became bright for 15 seconds delay after you press any of the four button. After 60 seconds

stop to press any button, the screen come to a sleeping mode, no word display in screen, you can press any of

the four buttons to let screen become bright.

3.1 CheckSDcardandscanBluetoothdevice

After turn on the switch, RADIUS Log Light rst display Gefran logo in screen:

Gefran <Display “Gefran” in art words

APV Solar

Then going to check SD card status.

SdSdSdSdSdSdSdSd <Check SD card

SD CARD: NC

Fig 3.1 Check SD status

Then scan Bluetooth device.

From left to right indicates:

search times, registration times,

cancel times, number of valid

address

Bluetooth logo

xx xx xx xx < Bluetooth Scan Status

> Active Num: 0 < Number of inverter connected

Fig 3.2 Bluetooth scan

1) RADIUS Log Light rst display ”Gefran” logo when powered on.

2) About 10 seconds later it come to Check SD card status, in check SD card status RADIUS Log Light

start to check whether SD card existence, the process last for 30 to 120 seconds dur to actual situation.

3) Then RADIUS Log Light search for Bluetooth devices. RADIUS Log Light off line time, online time, dis-

covered device, active device will be displayed on screen.

4) a. If no device been searched, RADIUS Log Light will continue searching. Press “ENTER” button to

come to “Main Status” interface.

b. If some device been searched, RADIUS Log Light will display “Check Finish” in the end. You can

press “ENTER” to come to “MainStatus” interface.

10 Radius Log Light

3.2 MainStatusinterface

Main status interface display inverters’ running status, serial number of inverter, PV voltage, PV current, AC

voltage, AC current, output power, etc.

(*1) Automatically display when error occurs

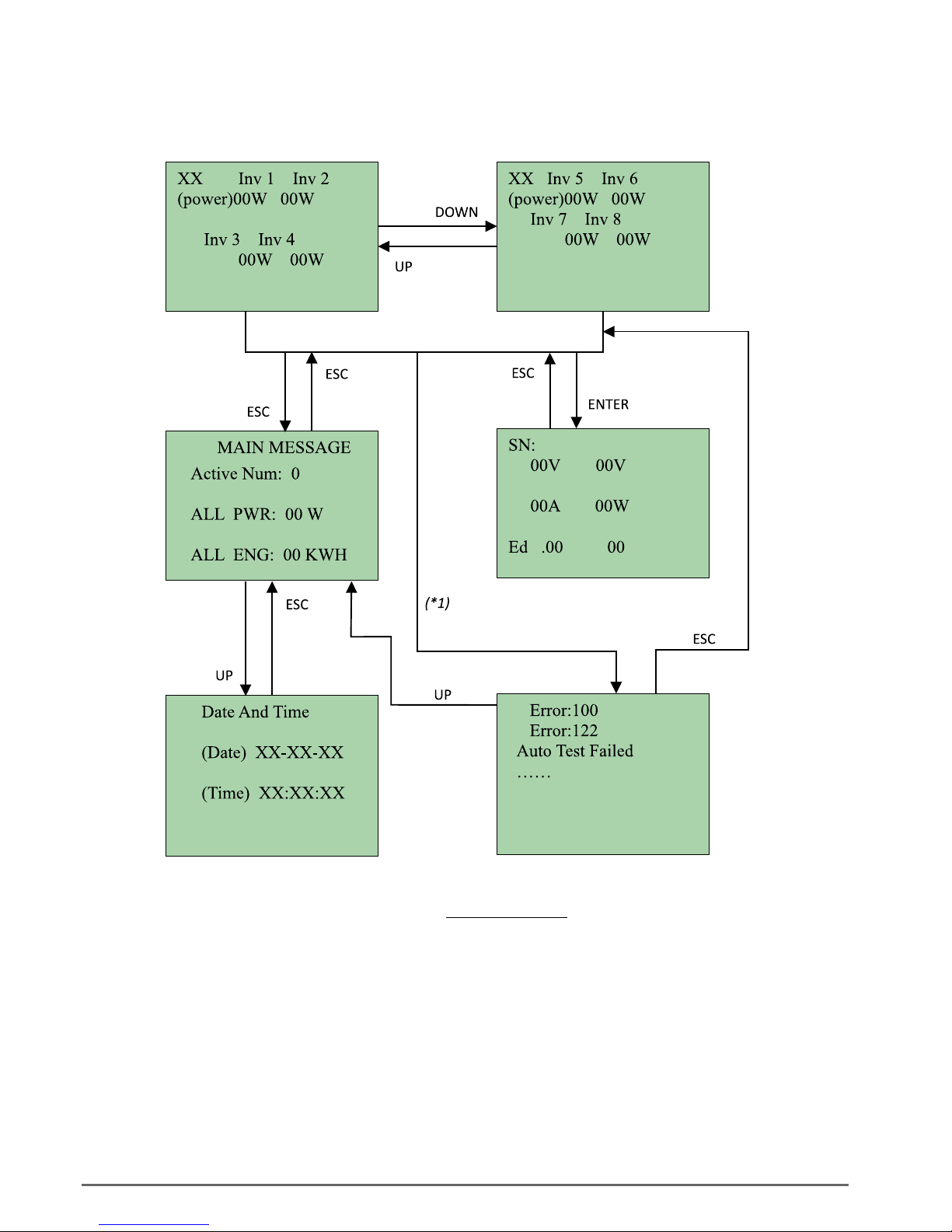

Fig 3.3 Main status interface

All inverters power are display in Main Status interface. Press “UP” and “DOWN” button to select appointed

inverter, then press “ENTER” to check inverter’s detailed running parameters, for example, solar panel input

voltage and current, AC output voltage, AC output power, today’s energy, total energy produced.

Press “ESC” in Main Status interface can ENTER Main Message interface. “Active Num: x” stand for monitoring

number, “ALL PWR: xx W” stand for inverters’ total power, “ALL ENG: xx KWH” stand for total energy produced

by inverters.

Radius Log Light 11

3.3 SetTableinterface

Press “ESC” button in “Check SD Status” or “Bluetooth Scan Status” interface can ENTER Set Table interface.

Set Table

Set Time < Set Table

Set USB

Reset Comm

Set BT Code

Fig 3.4 Set Table interface

There are 4 optional items in “Set Time” interface. “01 Set Time” is for set date and time, “02 Set USB” , “03

Reset Comm”, “04 Set BT Code”.

Press “UP” or “DOWN” button to select item, press “ENTER” come to corresponding item. Suppose you select

from up to down and operate one by one.

12 Radius Log Light

(1) “UP”: select Year, Month, Data, Hour, Minute optional; “DOWN”: adjust value; “ENTER”: confirm and save.

(2) Role Num: set Bluetooth device number. “ESC” restart.

(3) “UP”: select password digit, (4 digit password); “DOWN”: adjust value; “Enter”: confirm setting.

(4) “ESC” restart Log Light.

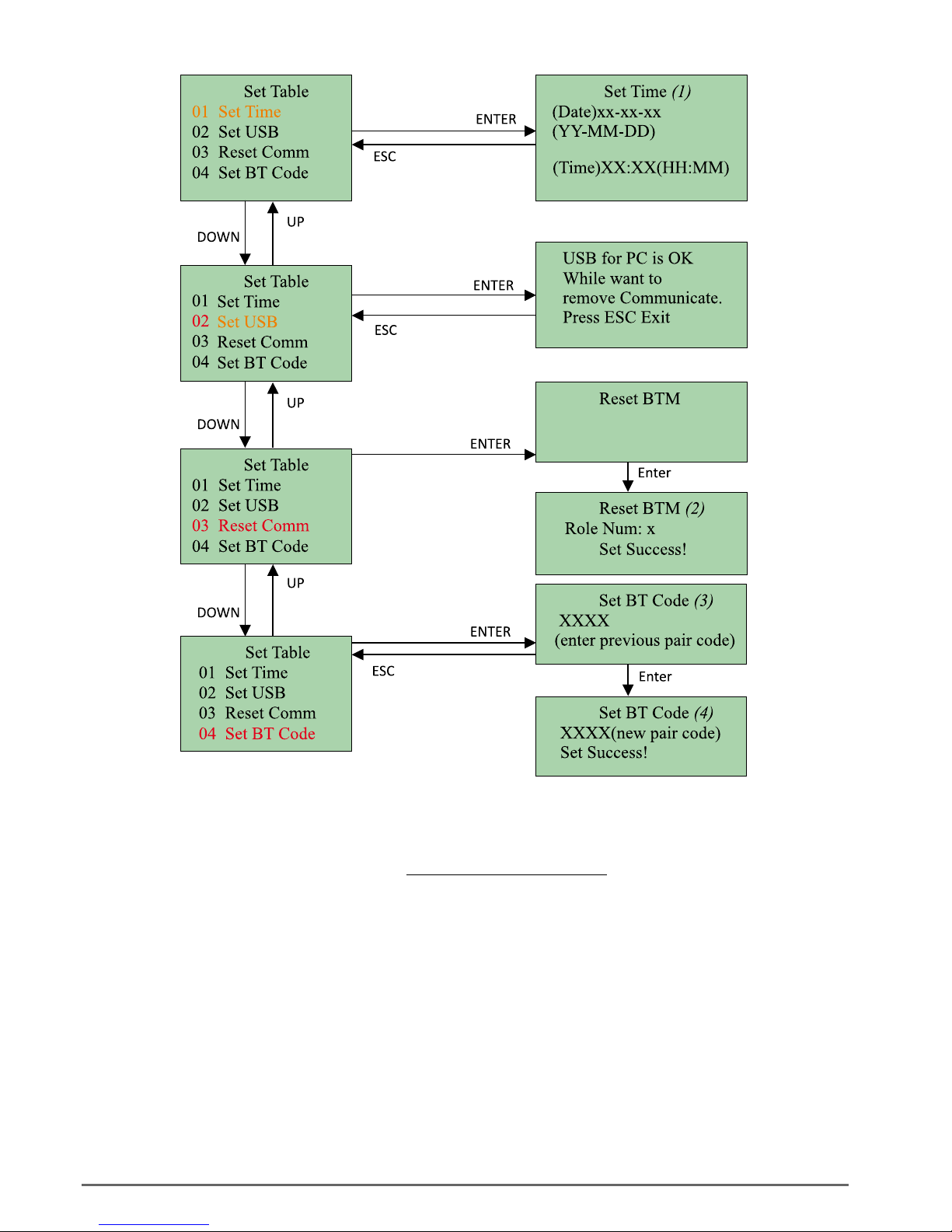

Fig 3.5 Set Table interface and its sub interface

1) Press “ENTER” button after selected “SetTime” option to set year, month, day, hour, minute. Select

one to ENTER then press “UP” to move the cursor, and “DOWN” to increase the value.

2) Press “ENTER” in SetUSB option open the USB function, that allow computer reading SD card data

from USB port. Press “ESC” to shutdown USB port.

3) Press “ENTER” button on “SetComm” option to set Bluetooth module number. You must set Blue-

tooth module number in SetComm option before use RADIUS Log Light. Press UP button to increase

the number and DOWN to decrease the number. The Bluetooth module number must be set rst, or

there might be monitoring data lost. Press ENTER to reset RADIUS Log Light. Then press ESC to

exit, and RADIUS Log Light will restart and connect to inverters.

4) Press “ENTER” button on “Set BT code” selected to set bluetooth pair code (encryption password),

after set nished, press “ESC” to restart RADIUS Log Light.

Radius Log Light 13

3.4 ErrorDisplayinterface

When inverter error occurs, RADIUS Log Light automatically switch to Error display interface and make a

sound continue for about 10 seconds.

Error:100

Error:122

Auto Test Failed

……

Fig 3.6 Error message display

After inverter error occurs, RADIUS Log Light display error code in screen. Meanings of error codes are shown

in the following table.

Faultcode Inverterdisplay Meanings

0~22 Error: 100+x eg: Error:100 or Error:122

23 Auto Test Failed Auto test interrupted

24 No AC Connection Grid haven’t connected

25 PV Isolation Low Impedance between PV positive/negative and

ground are too low

26 Residual I High Residual current too high

27 Output High DCI High DC value in AC output

28 PV Voltage High PV voltage input too high

29 AC V Outrange AC voltage out of range

30 AC F Outrange AC frequence out of range

31 Module Hot Inverter temperature high

Table 3.2 Error codes display in RADIUS Log Light

Also the corresponding error messages will display in inverter’s screen.

14 Radius Log Light

4. RADIUSLogLightoperationdiagram

RADIUS

Light Log

Inverter 1

Inverter 2

Inverter 3

Inverter 4

card

USB

RS232

Fig 4.1 RADIUS Log Light operation diagram

RADIUS Log Light monitor inverters via Bluetooth connection.

It can monitor maximum 4 inverters simultaneity.

The maximum distance between RADIUS Log Light and inverter is 100 meters.

Radius Log Light 15

5. IntroductiontoBluetoothmodulesetting

Bluetooth module is a hardware device insert to inverter’s RS232 port. Bluetooth RS232 Conguration is a pa-

rameter setting software for Bluetooth module. It can set Bluetooth module device name, ow control method,

Bluetooth encryption password (pair code), etc.

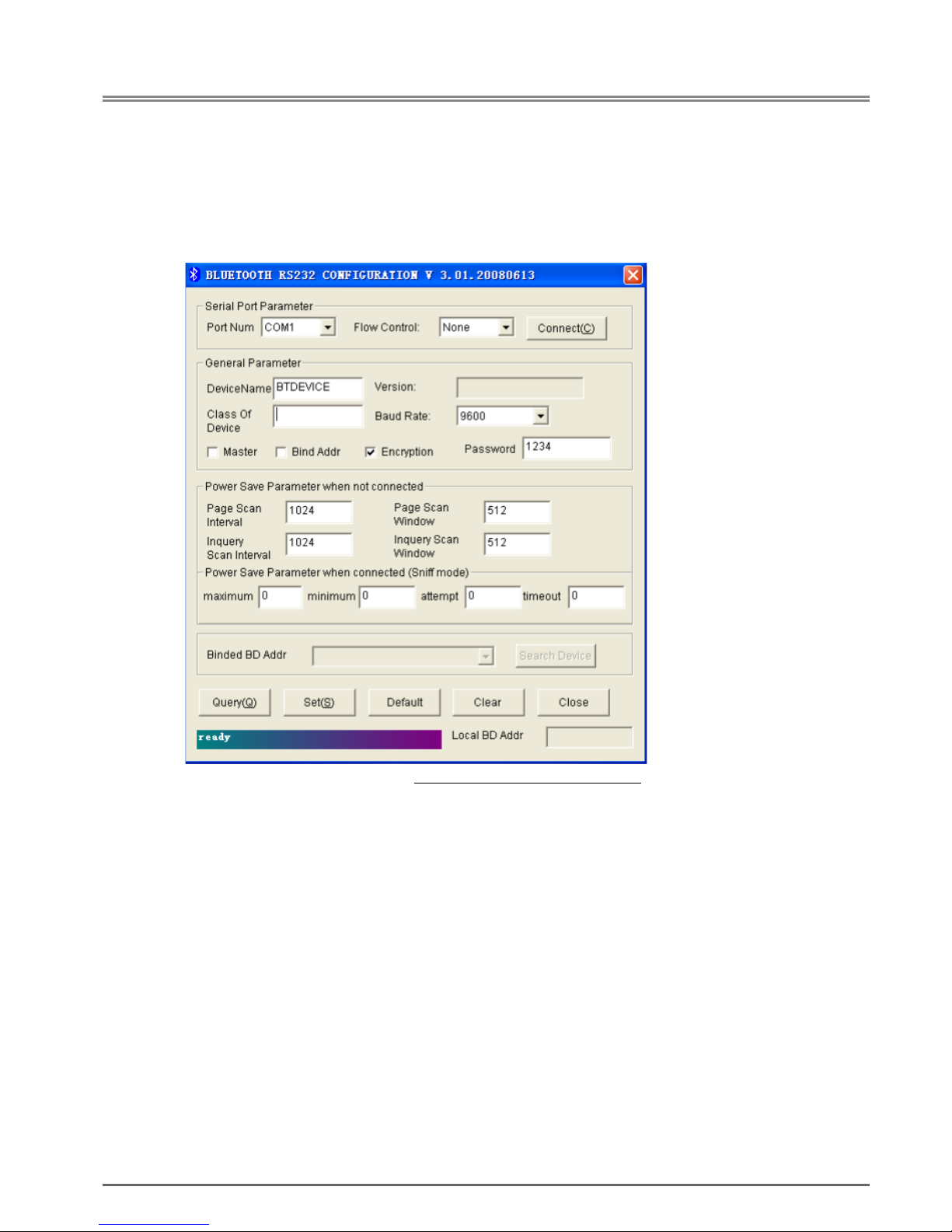

5.1 MaininterfaceofBluetoothRS232Conguration

Fig 5.1 Bluetooth RS232 Conguration main interface

Port Num: Serial port number of computer

Flow Control: Select None

Device Name: Bluetooth name display on RADIUS Log Light

Baud rate: Default baud rate is 9600 baud.

Class of Device: The communication pair of Bluetooth must have a same class code. If not, set master

device to ox000000, then slave device can set to any you like.

Master: Set as a master device. If devices communicate via Bluetooth, it required one is master

device, the other one slave. Bluetooth modules are working as a slave device.

Encryption: If ticked, the pair devices must use password to communicate with each other, data trans-

ferred will encrypt as well.

Bind Addr: Bind address, whether bind to a pair device. If ticked, Bluetooth module can not be con-

nected by other Bluetooth device any more. If not ticked, it can connect by any Bluetooth

device.

Bound BD Addr: Inquire bound address by click “Search Device”

Clear: Clear Bluetooth pair address saved before. When connected to another address, Bluetooth

module saved it address. That hold back other Bluetooth devices’ connect attempt. By do-

ing the clear operation, the module can connect to other devices again.

16 Radius Log Light

5.2 WireConnection

Here is connection diagram between Bluetooth module and RS232 serial port from computer.

Bluetooth

module

RS232 serial port

from computer

RS232 wire

Fig 5.2 Connection diagram

Use a RS232 wire to connect Bluetooth module and computer RS232 port.

The problem is both computer port and Bluetooth module port are female RS232 port , so a wire

with both two male RS232 port is needed.

5.3 SetBluetoothencryptionpassword

There are two operating mode of Bluetooth module: parameter setting mode and communication mode. You

can switch modes by pressing the small button on module. You must let Bluetooth module working in param-

eter setting mode before set parameter. After set nished, press the button to switch module to communication

mode again.

Follow the following step to check or set encryption password

1) Connect Bluetooth module to computer by RS232 wire.

2) Press module mode button to switch module to parameter setting mode.

3) Run Bluetooth RS232 Conguration software, select correct serial port number and select ow con-

trol to “None”.

4) First Click “Query” to check the existing settings.

5) Then tick encryption check box and input password.

6) Click “Set” to apply, and wait for setting nish.

7) Click “Query” to check the setting result.

8) Press module mode button again to switch module to communication mode.

Fig 5.3 Set Bluetooth encryption password

Radius Log Light 17

6. Q&A

1) Why my RADIUS Log Light can not connect to inverter (with Bluetooth module)?

1. Encryption password (pair code) is different. Check Bluetooth module’s encryption password by

“Bluetooth RS232 Conguration”. ENTER “Set BT code” interface and inquiry RADIUS Log Light

module’s password. Check and correct it to the same.

2. Bluetooth module is in parameter setting mode (the 2 Bluetooth indicator lights all dark). Press the

small button to allow module run in communication mode (the 2 indicator lights all blink).

3. If problem still exist, entry “Reset COMM” interface and reset RADIUS Log Light module.

2) Why RADIUS Log Light can’t write data to SD card?

1. There is a write LOCK switch in the side of SD card. Check if SD card have been locked, switch

LOCK to another side.

2. Check your Bluetooth module number has been set correct. You must set it to actual Bluetooth

number used.

Gefran worldwide

GEFRAN S.p.A.

Via Sebina 74

25050 Provaglio d’Iseo (BS) ITALY

Ph. +39 030 98881

Fax +39 030 9839063

gefran RADIUS User manual

Popular Inverter manuals by other brands
